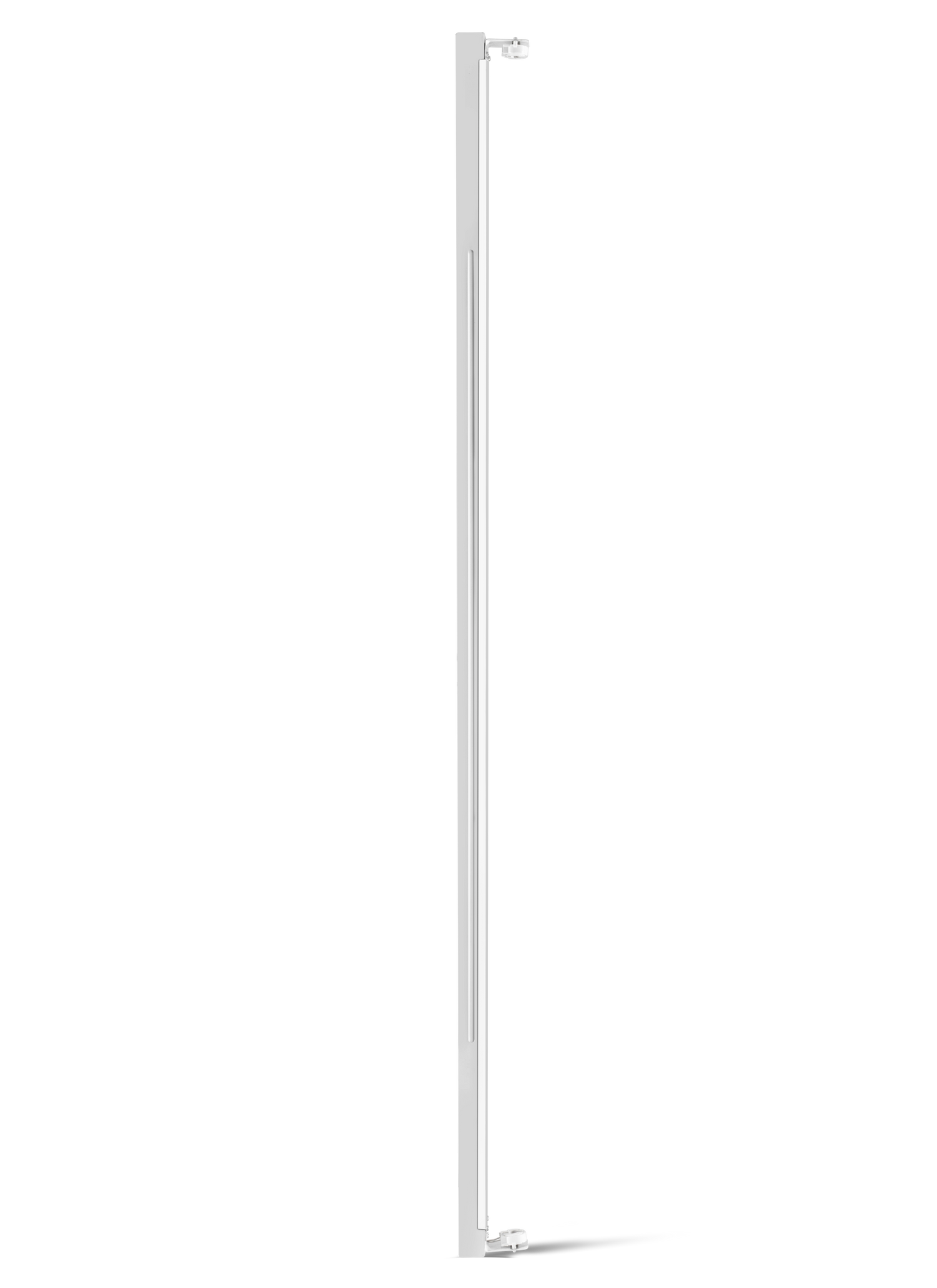

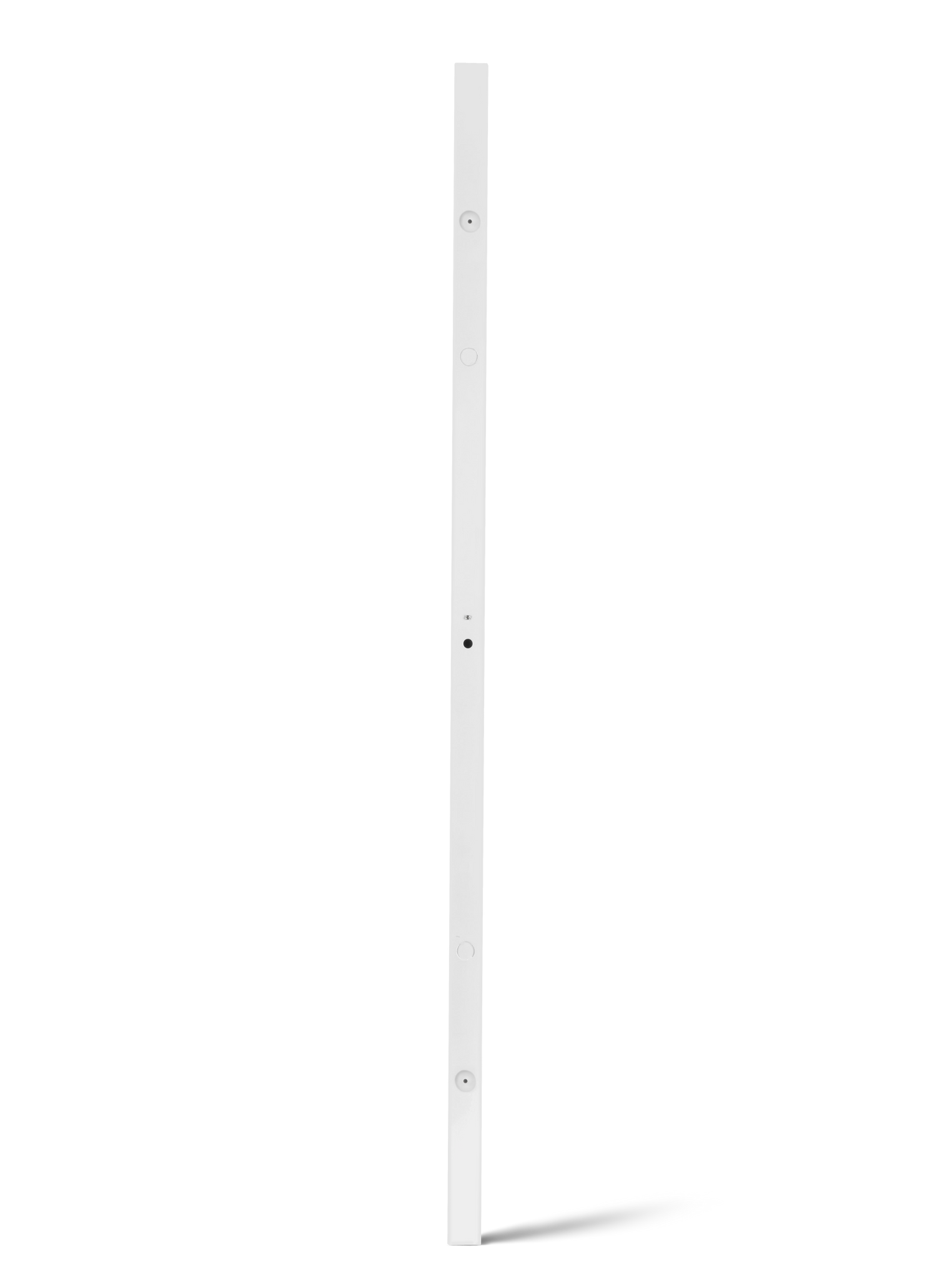

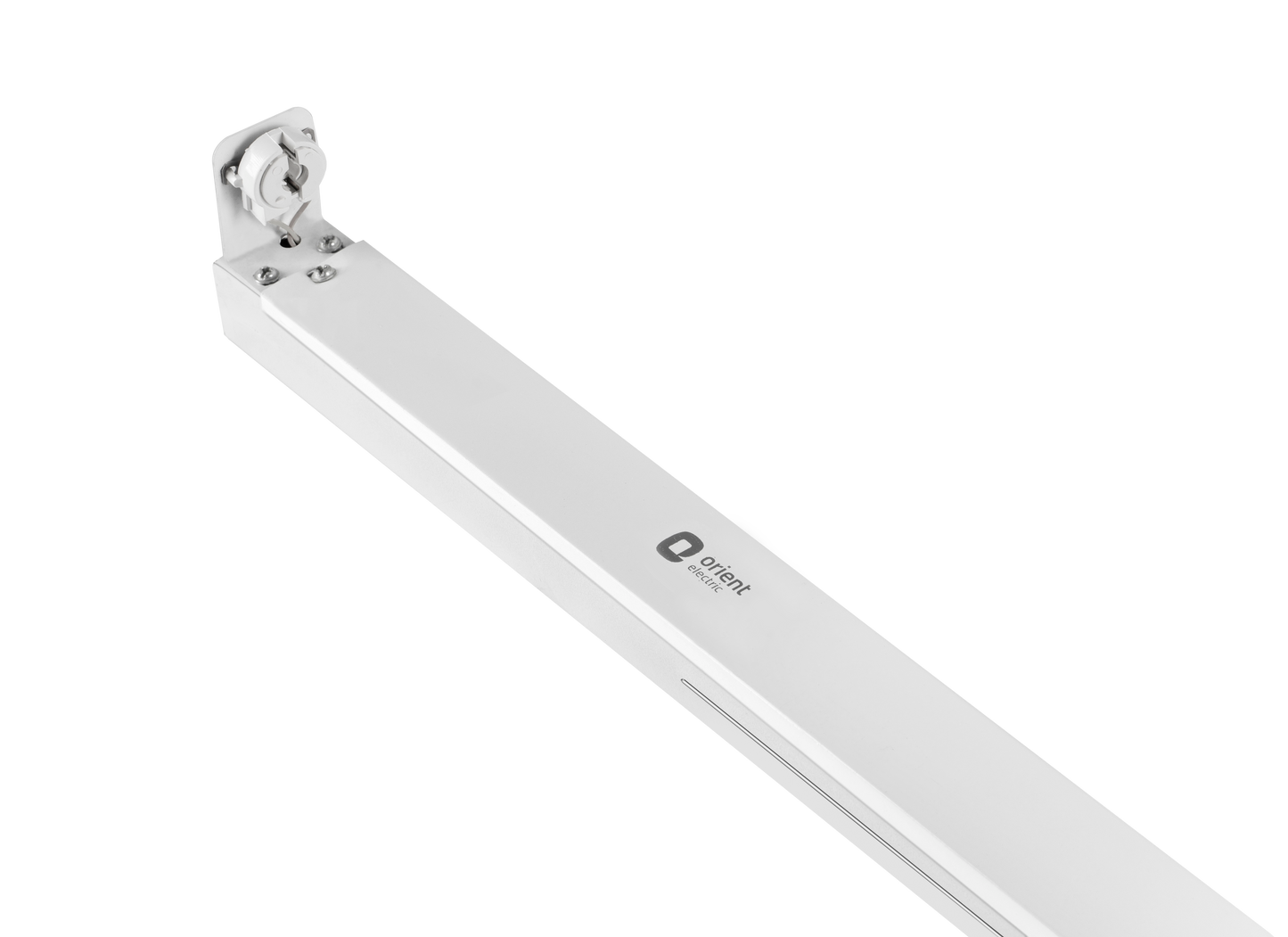

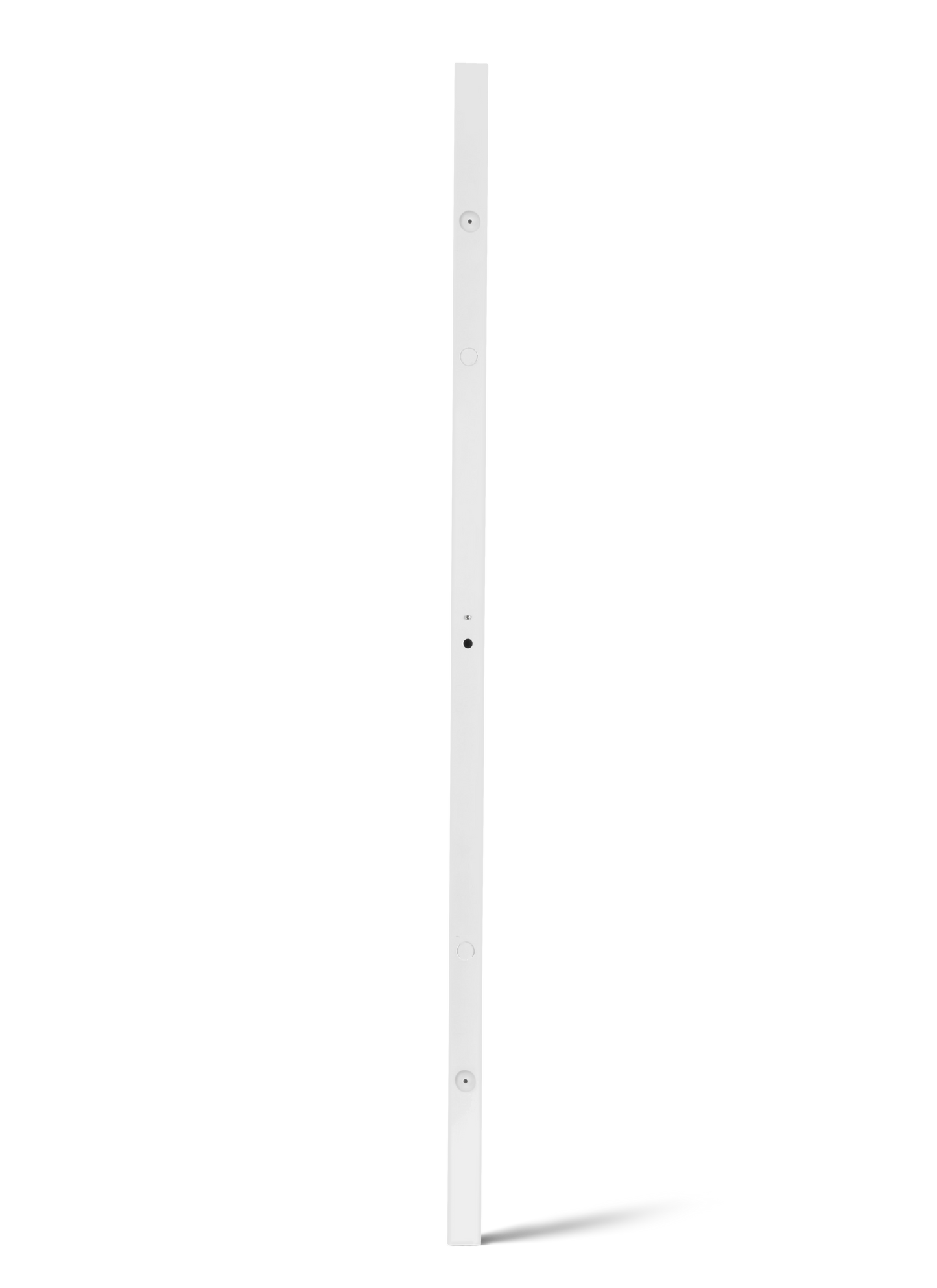

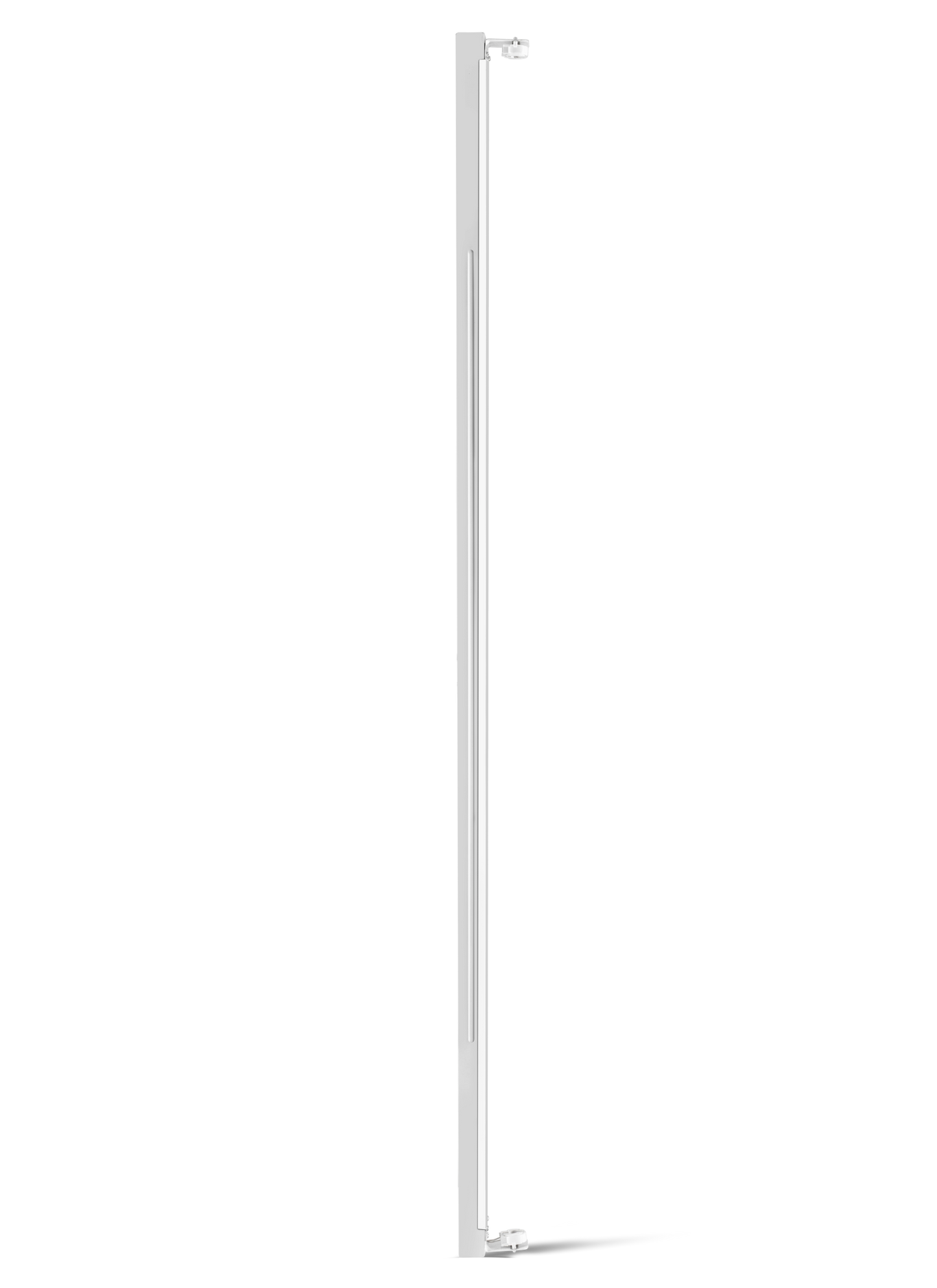

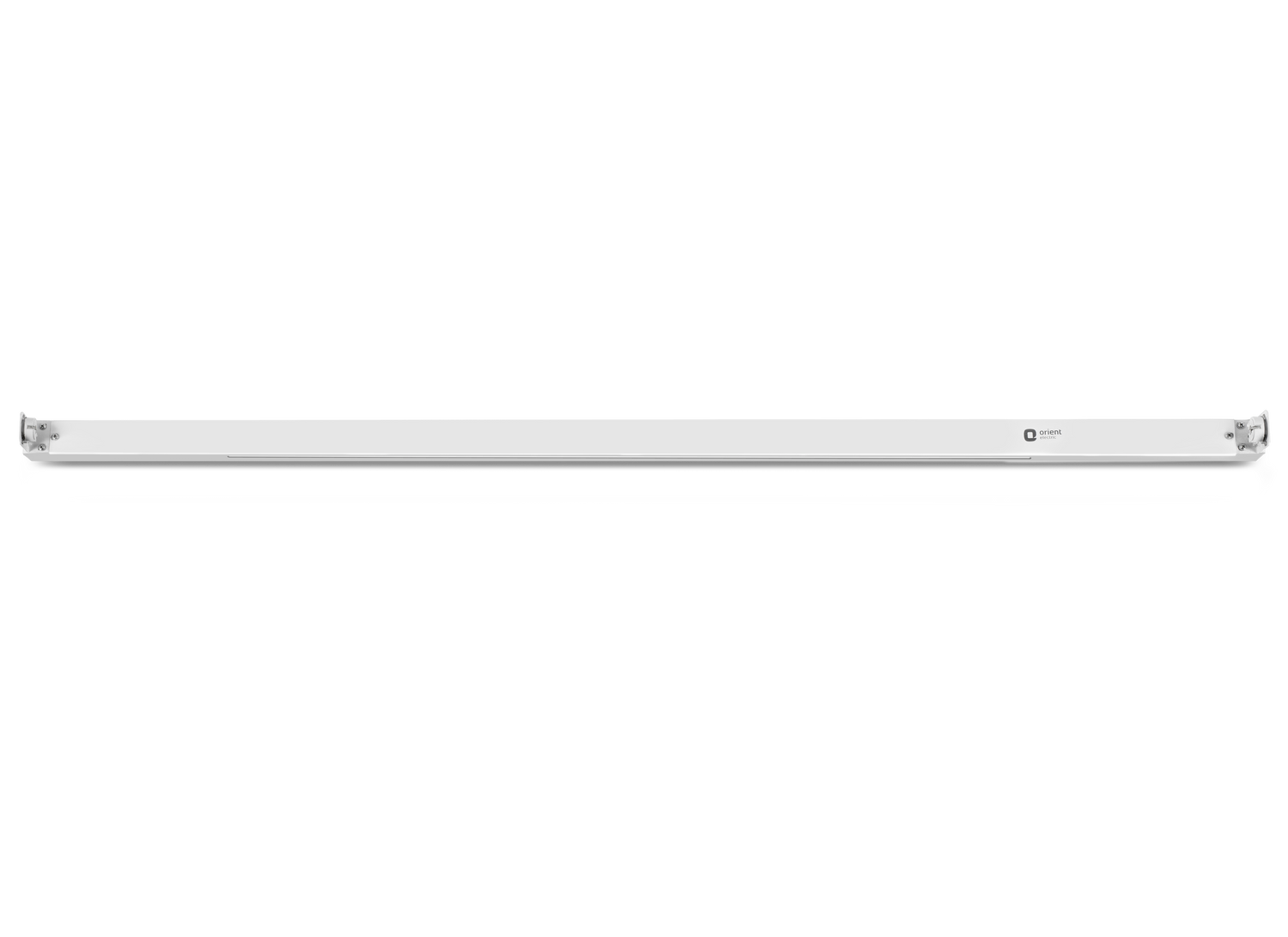

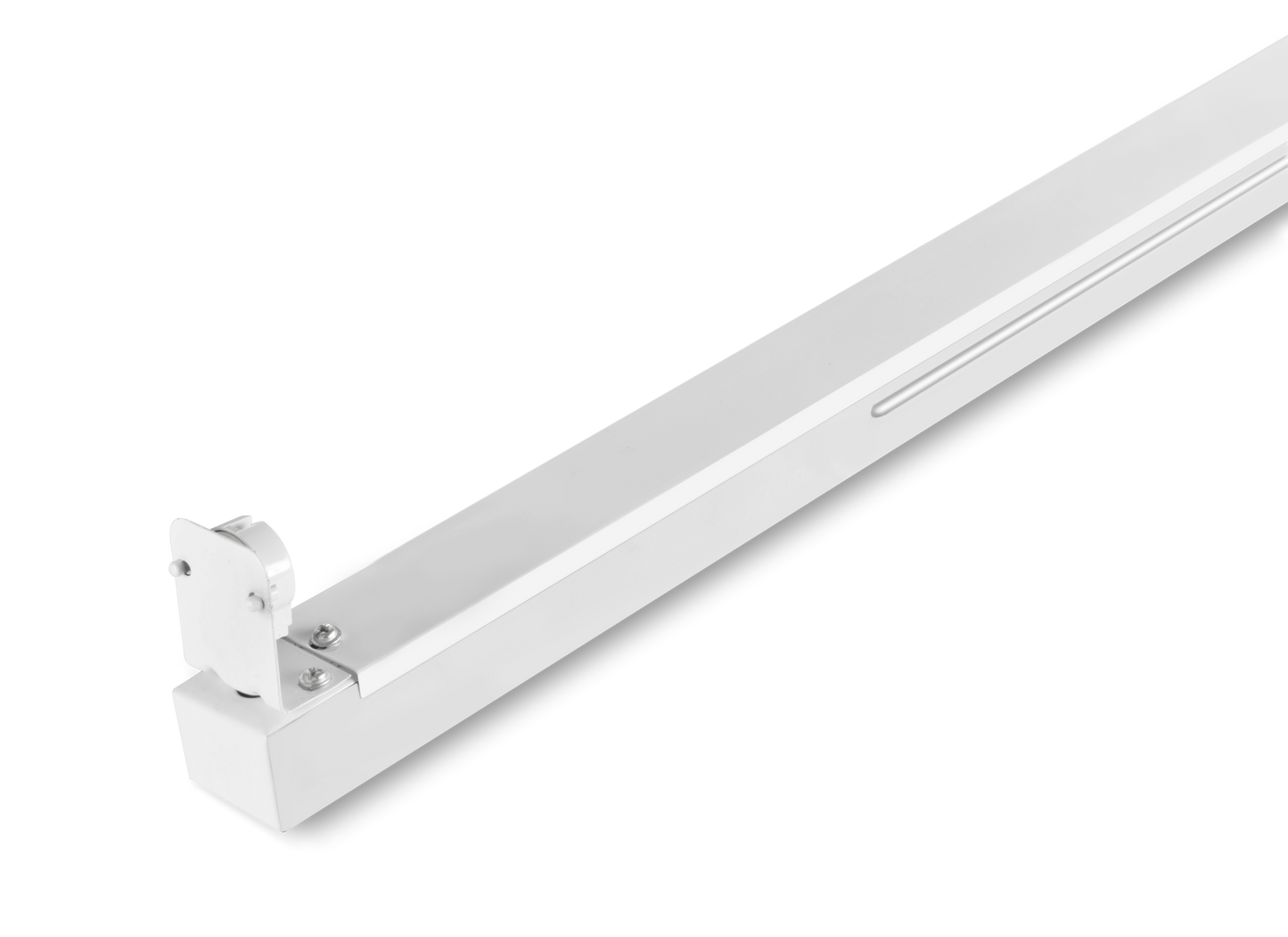

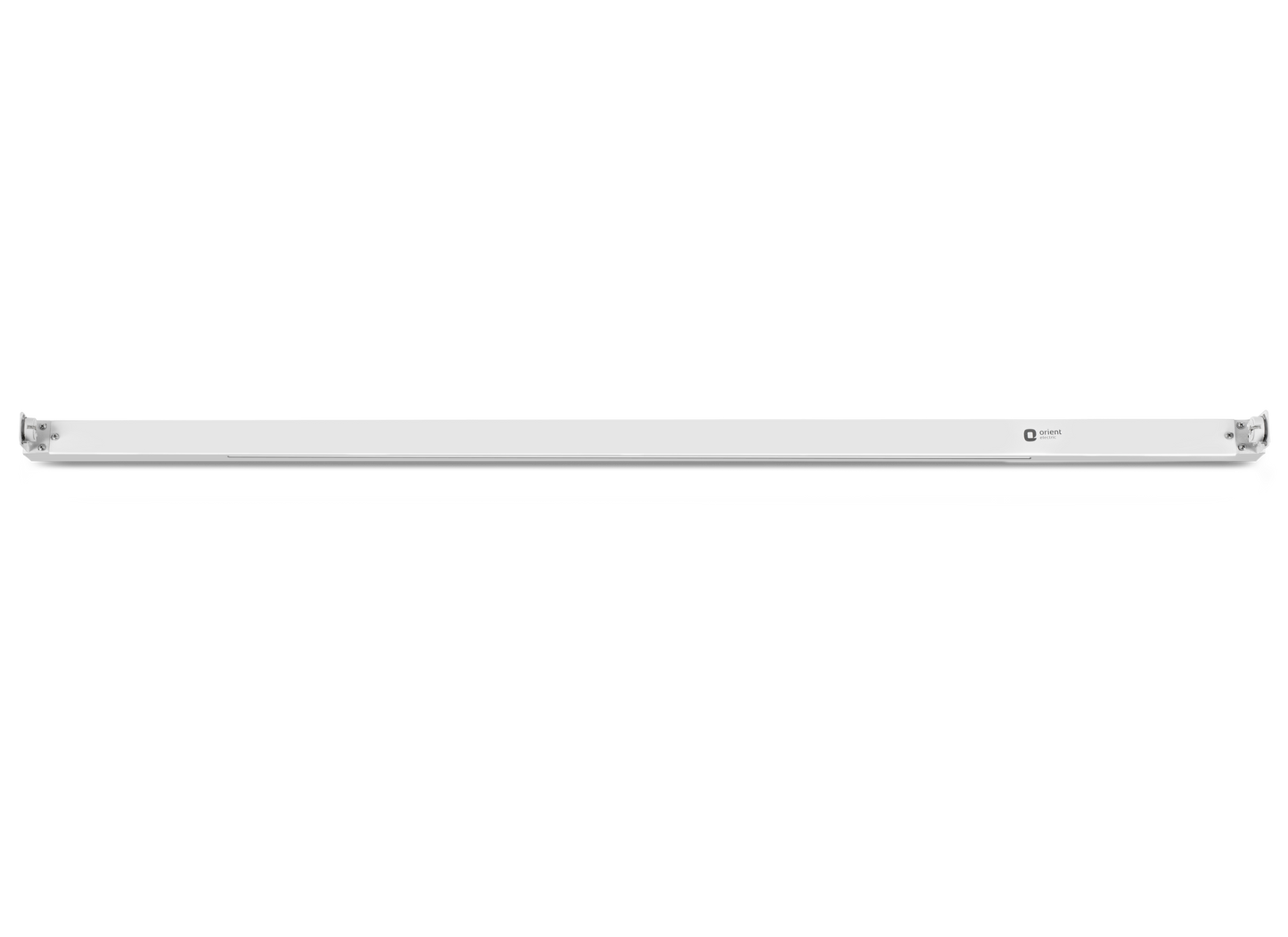

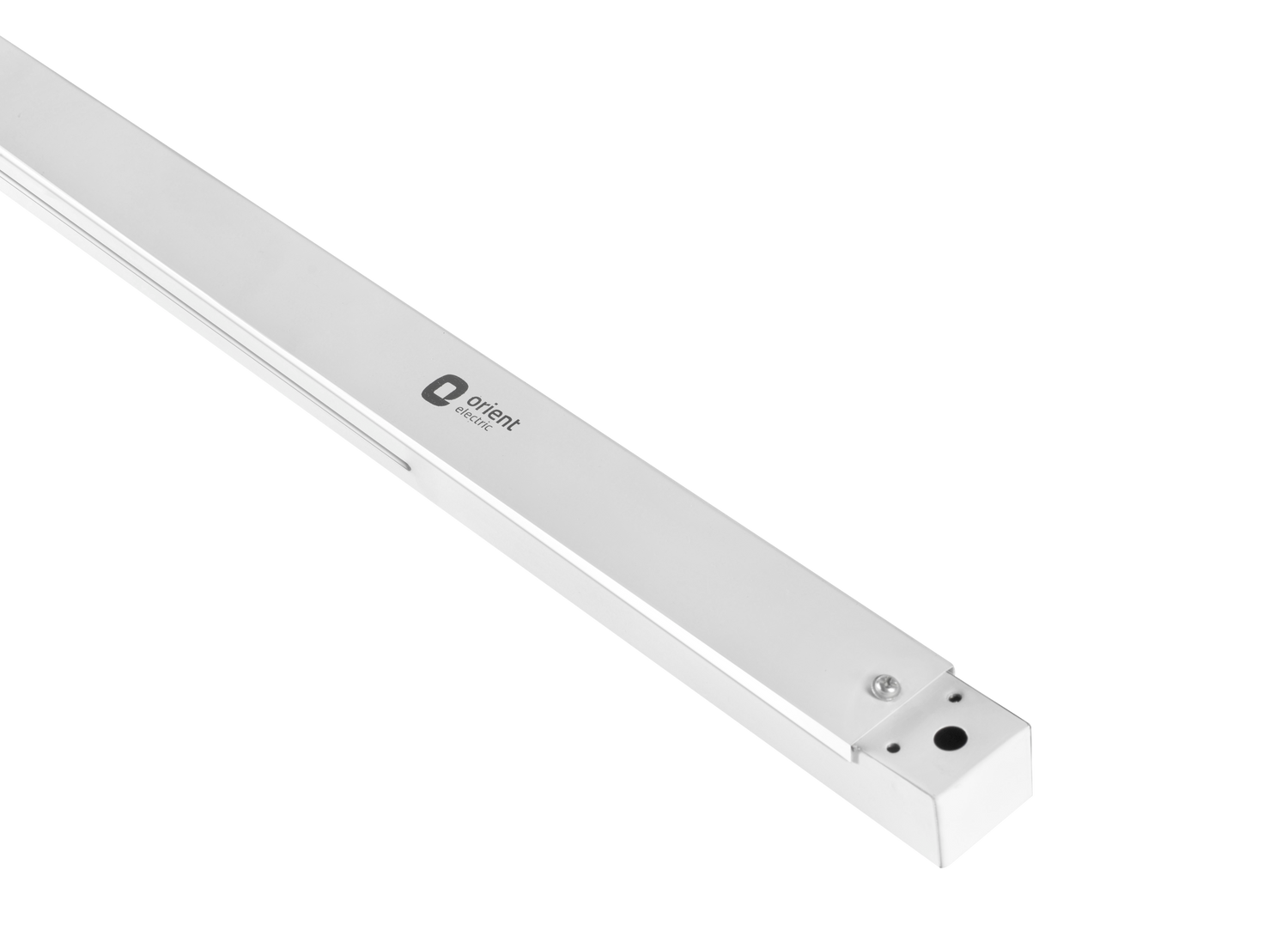

1/2x18 CRCA Batten box

1/2x18 CRCA Batten box

1/2x18 CRCA Batten box

Product Overview

Universal battens with powder-coated CRCA housing complete with prewired control gear. Suitable for T5 and T8/T12 LED tubes.

Best suited for

Commercial buildings | Industrial Buildings | Staircase | Basement Parkings

View full details
  • General specification

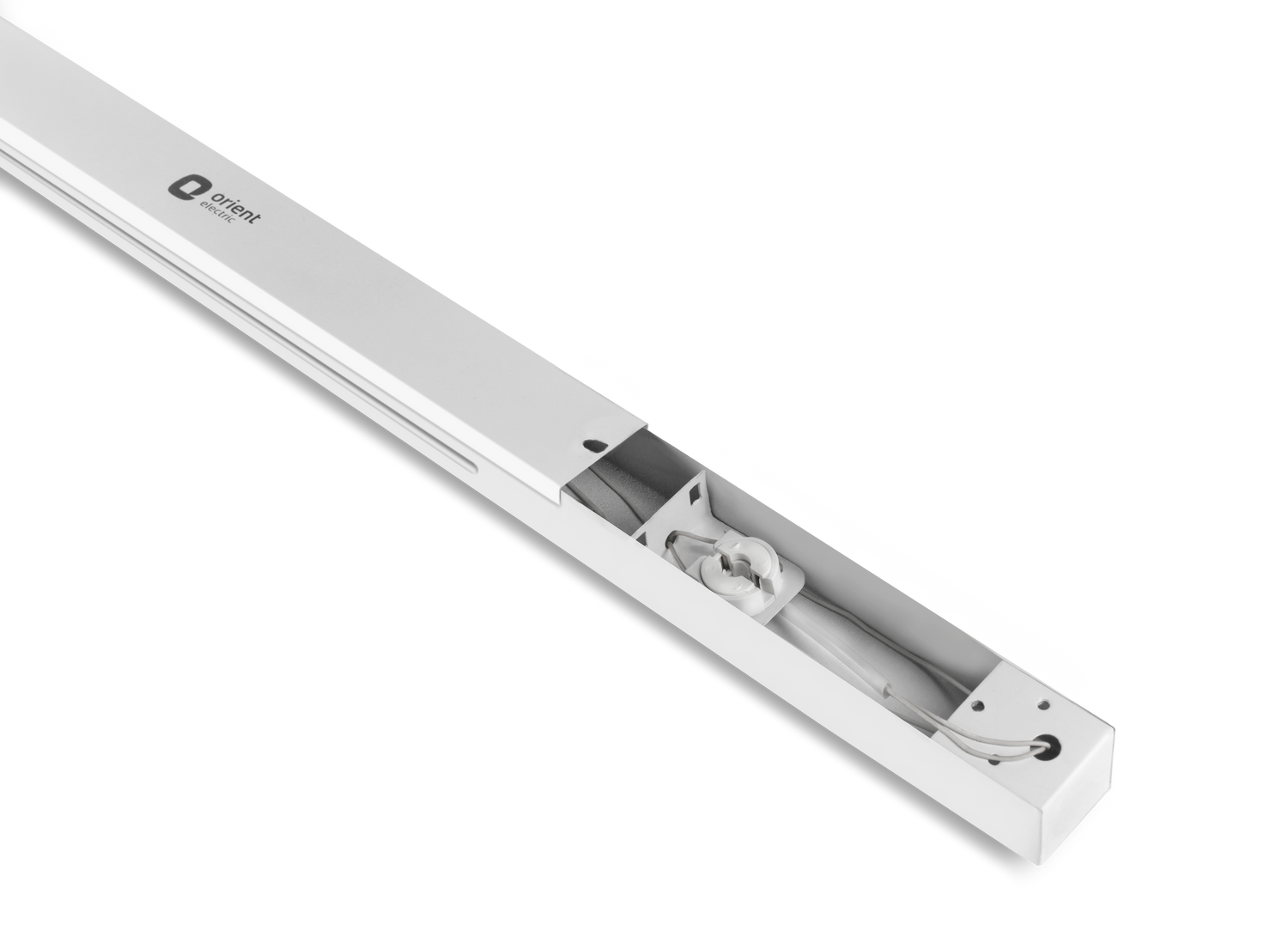

    Housing Housing & cover made up of CRCA sheet steel.Cover is fixed to the housing by means of bolts with engineering plastic head.Epoxy powder-coated white after phosphochromate treatment.Push-fit type while polycarbonate housing and ABS rotor with corrosion-resistant brass contacts.
    Mounting On ceiling/wall with screws
    Control Gear Complete internal wiring suitable for retrofit LED tubelight with single double side connections.
    Surge Protection Upto 2.5 KV
    IP 20
1/2x18 CRCA Batten box variants
Product Variants
1/2x18 CRCA Batten box
LIBT-118-SS
1/2x18 CRCA Batten box
LIBT-218-SS
1/2x18 CRCA Batten box
LIBT-118-DS
1/2x18 CRCA Batten box
LIBT-218-DS
1/2x18 CRCA Batten box
LIBT-118-T5
1/2x18 CRCA Batten box
LIBT-218-T5
Suitable for
Dimensions (in mm) (LXWXH)
1X18/20 W T8 LED TUBE
1240 X 36 X 72
2X18/20 W T8 LED TUBE
1240 X 98 X 72
1X18/20 W T8 LED TUBE
1240 X 36 X 72
2X18/20 W T8 LED TUBE
1240 X 98 X 72
1X18 W T5 LED TUBE
1240 X 36 X 72
2X18 W T5 LED TUBE
1240 X 98 X 72
