Aqua CP Recess 2x2

Aqua CP Recess 2x2

Aqua CP Recess 2x2

Product Overview

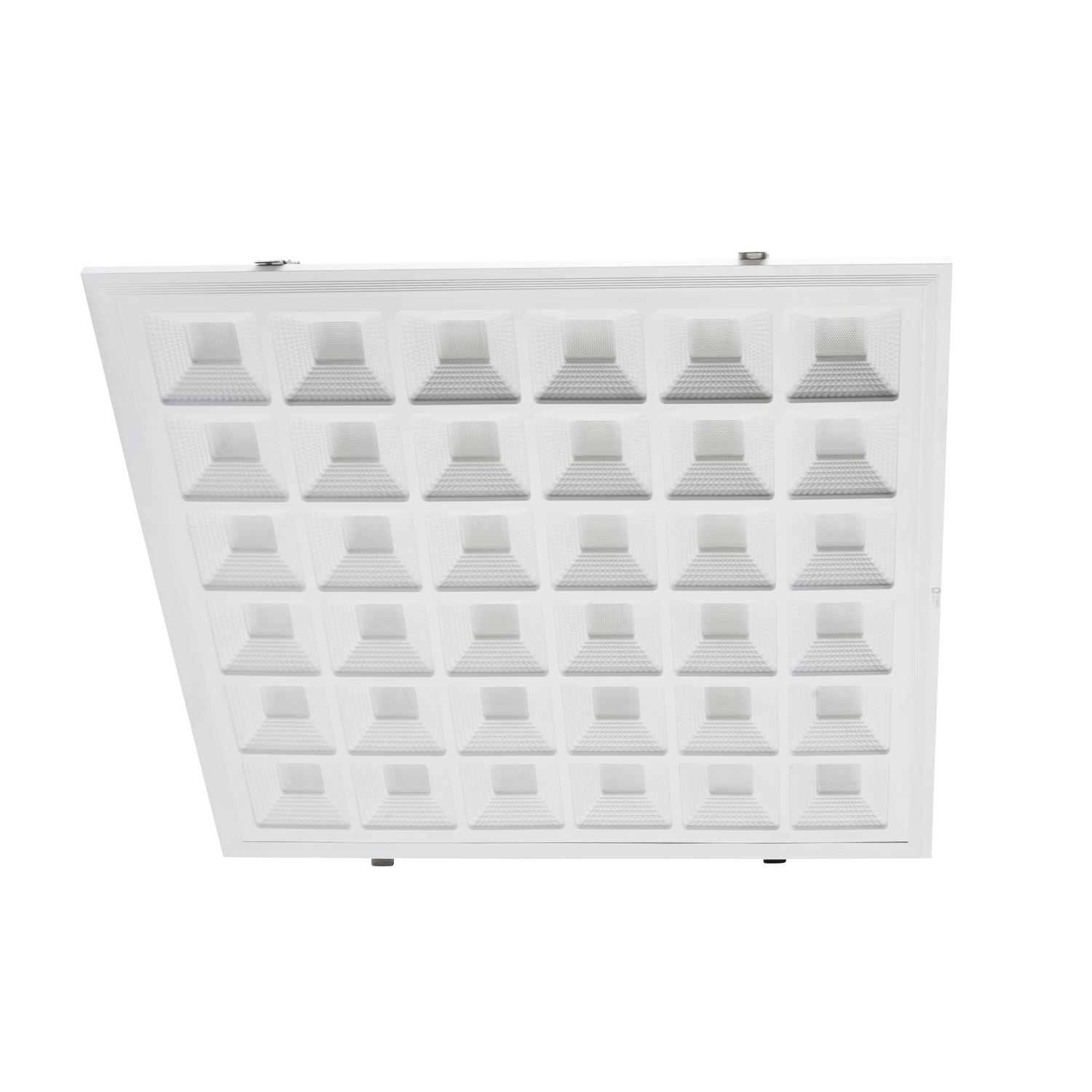

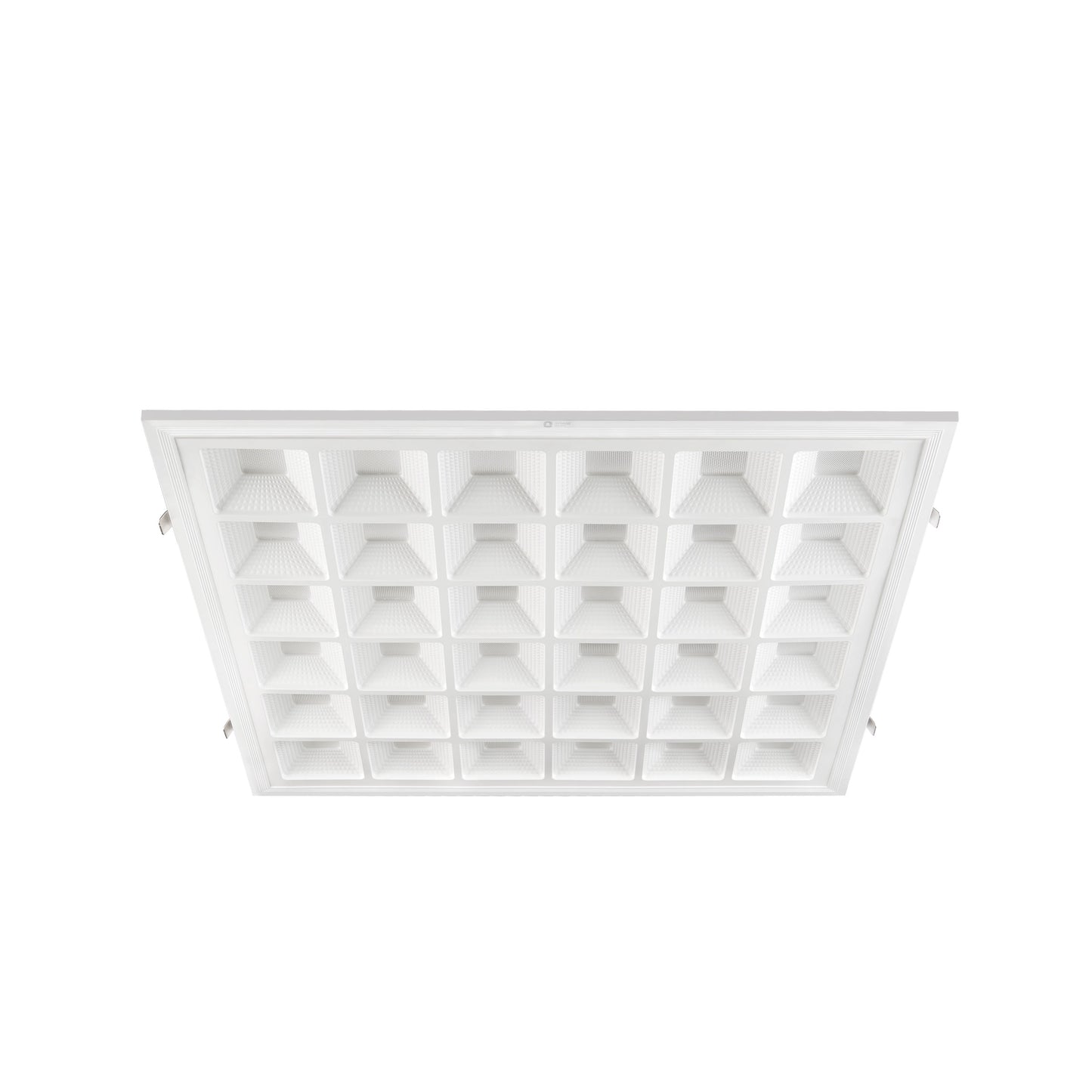

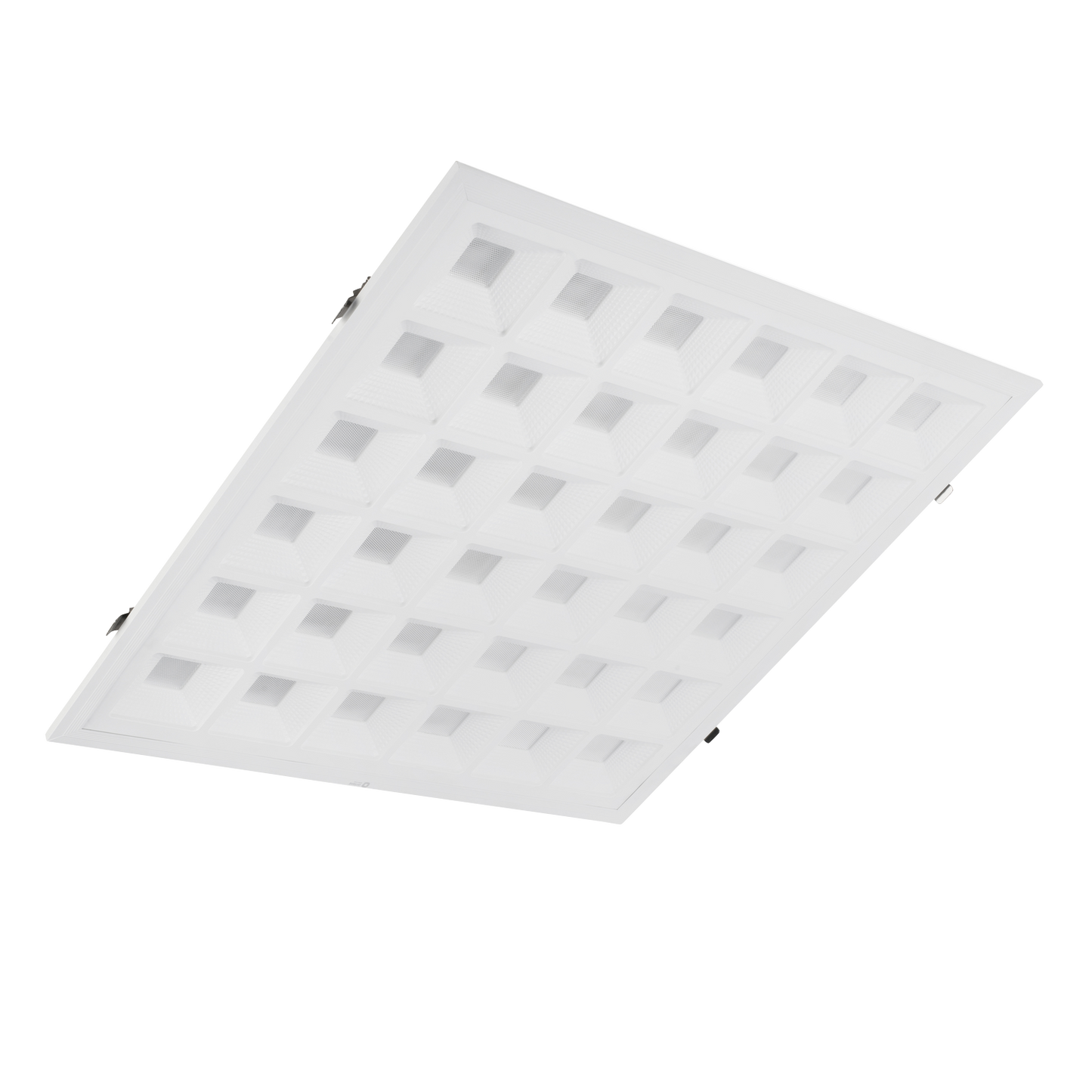

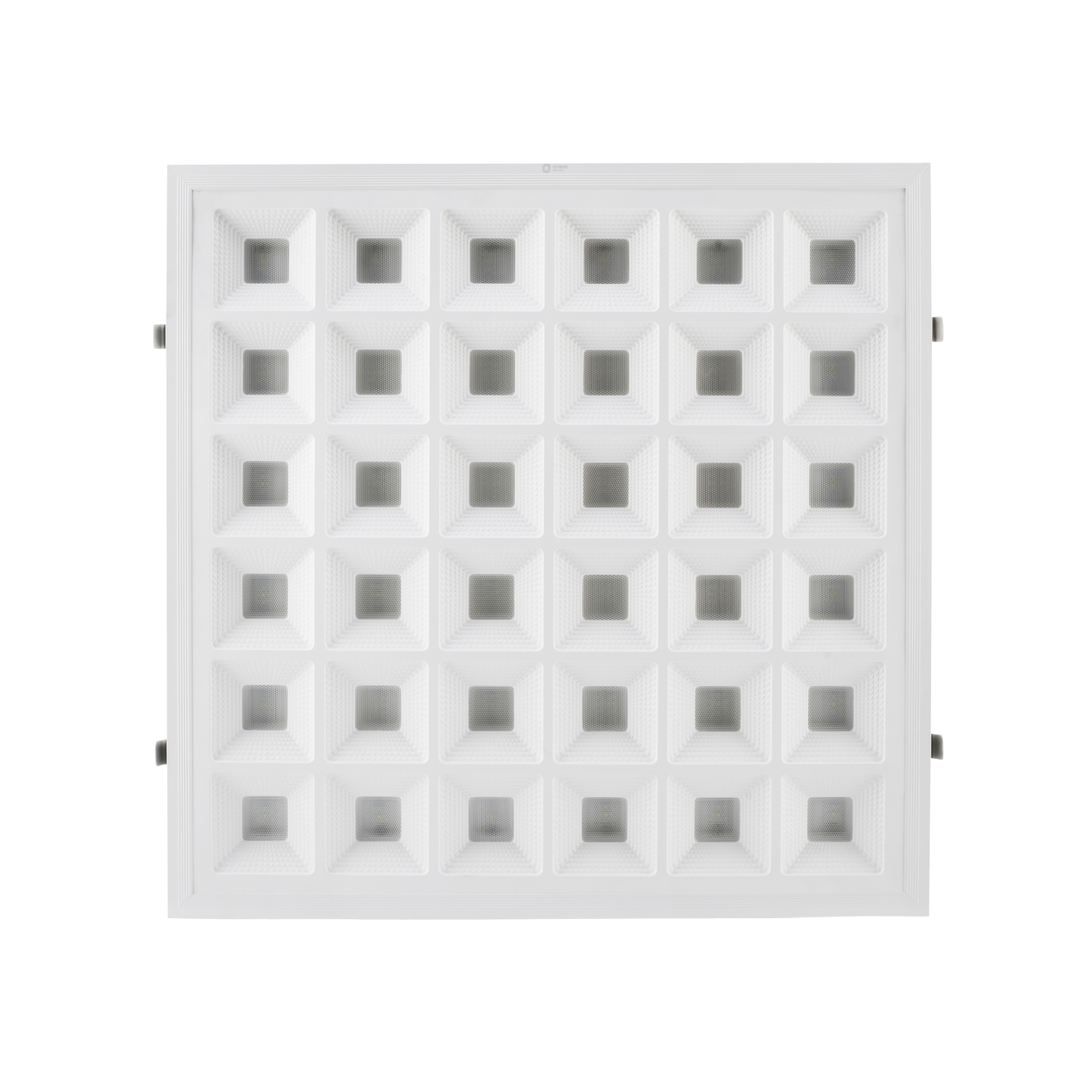

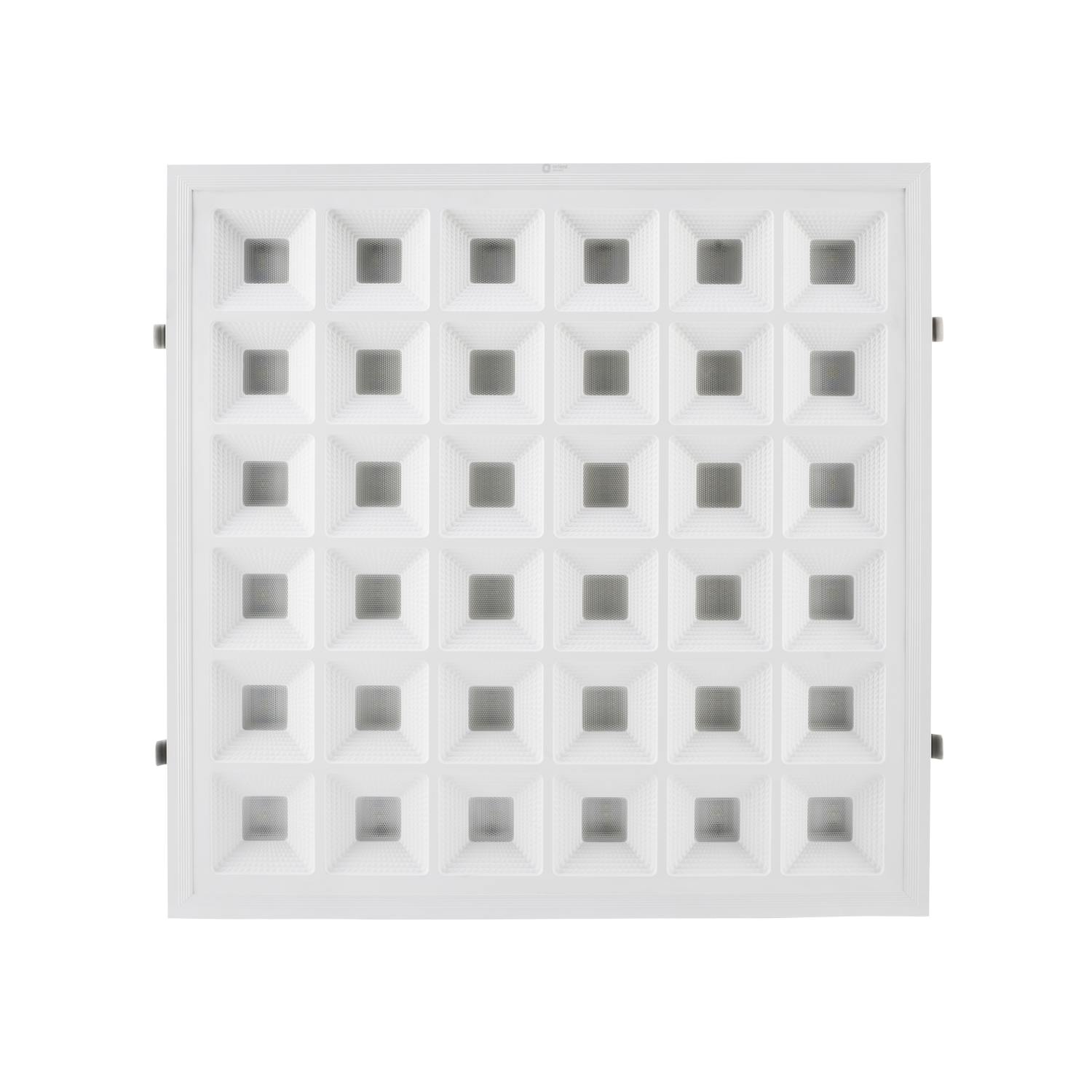

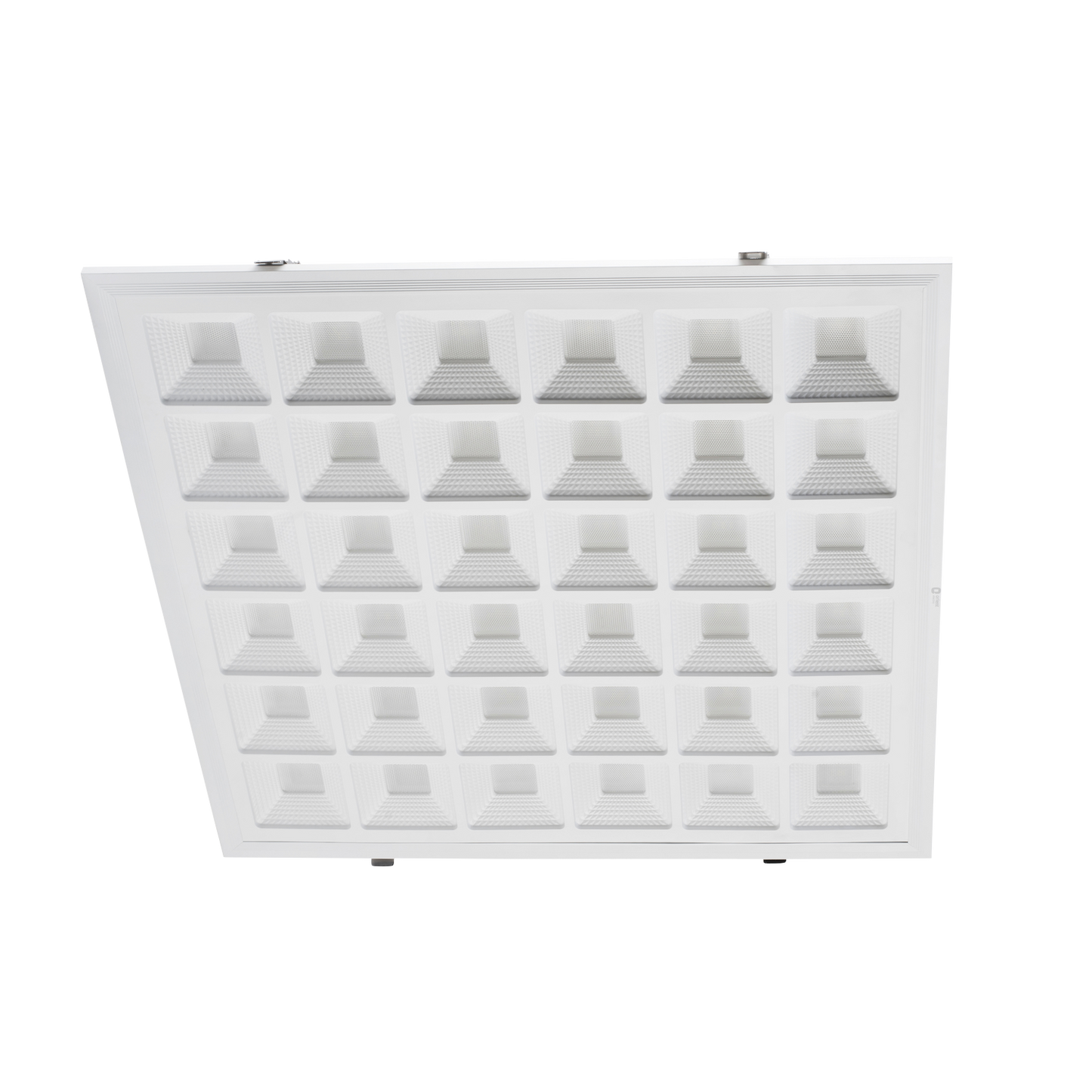

Recess-mounting back-lit LED 2X2 tile in CRCA housing with 36 nos. cup reflector suitable for Armstrong/Grid ceilings with excellent glare control of UGR<13.

Best suited for

Offices

Hospitals

Banks

Meeting rooms

View full details
  • General specification
    Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
    Optics Preformed 36 nos. cup reflector with viewing angle of 120° to ensure better uniformity and glare free lighting.
    Mounting Recessed mounted fixture suitable for Armstrong Grid POP ceiling
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 36W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100, ≥90, ≥85
Aqua CP Recess 2x2 variants
Product Variants
Aqua CP Recess 2x2
LTRAQ1-36-C-CP
Aqua CP Recess 2x2
LTRAQ1-36-N-CP
Aqua CP Recess 2x2
LTRAQ1-36-W-CP
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
600
600
25
580 X 580
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
600
600
25
580 X 580
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
600
600
25
580 X 580
