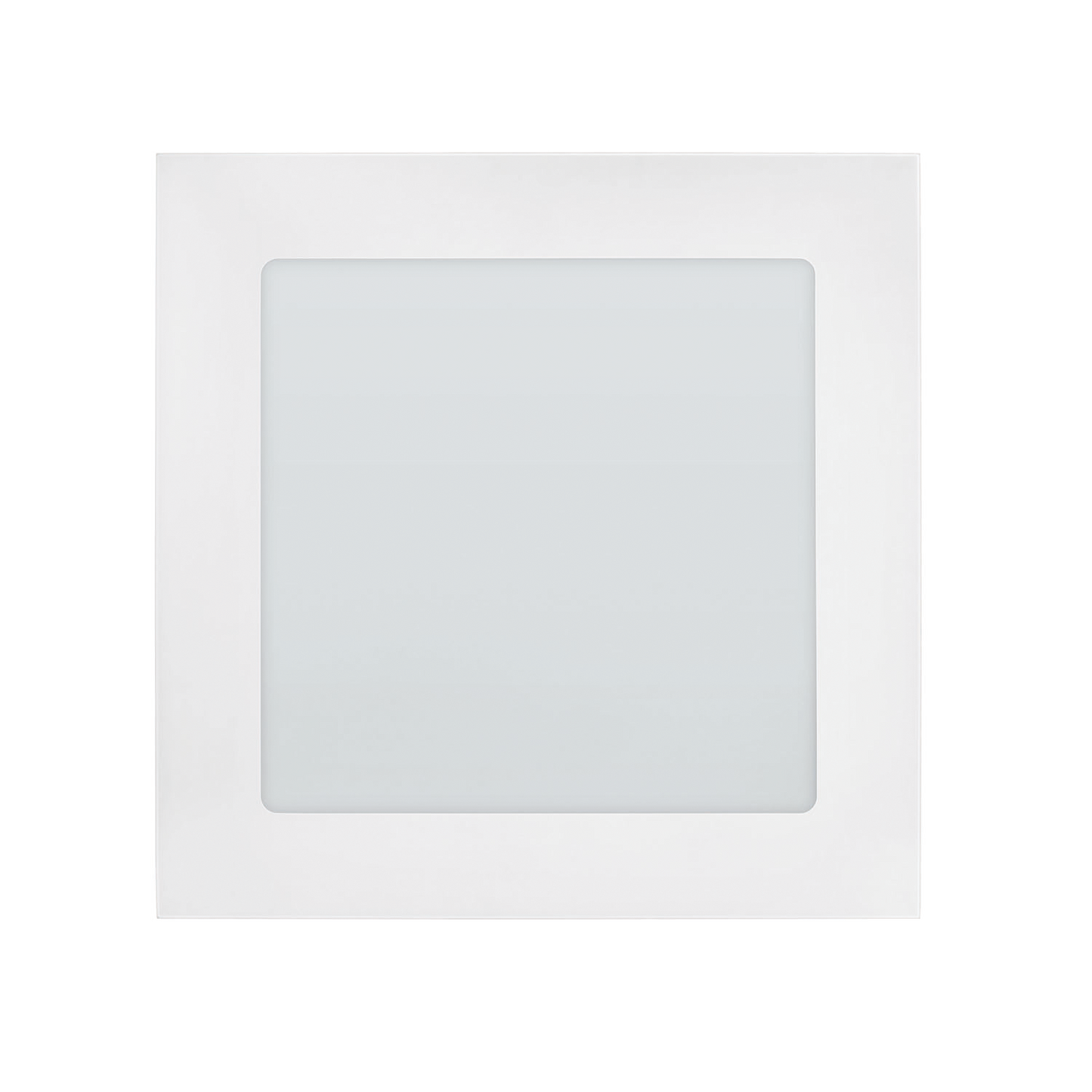

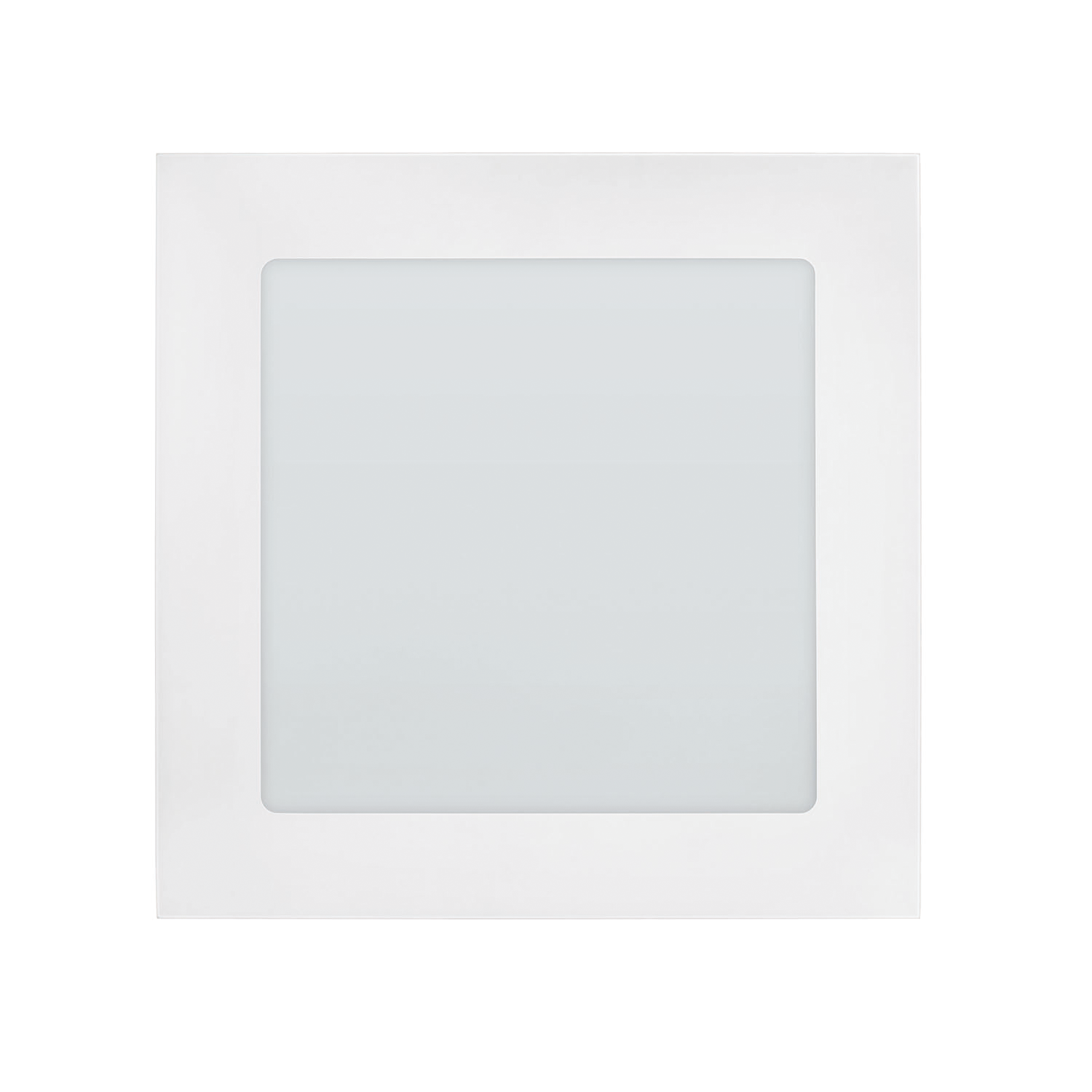

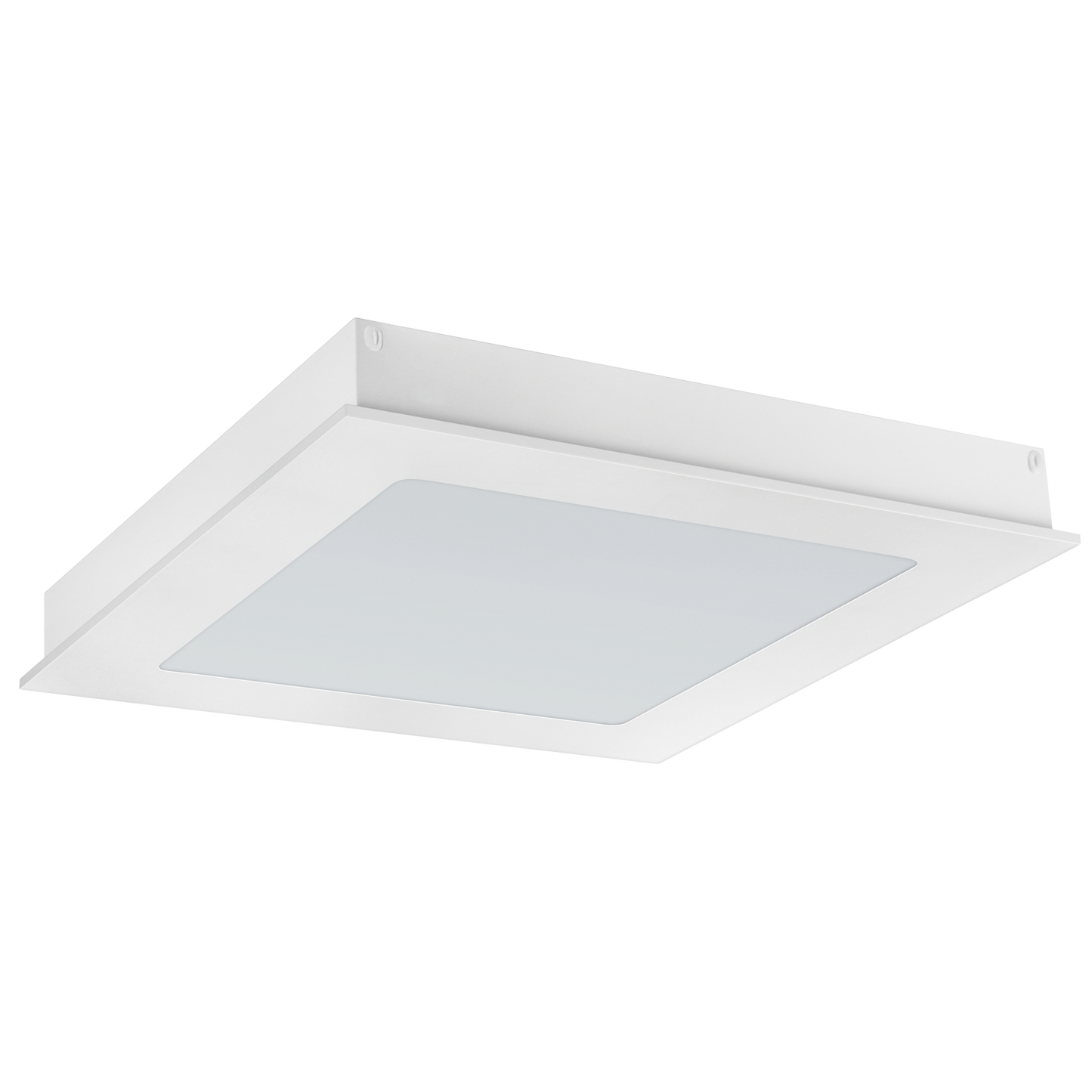

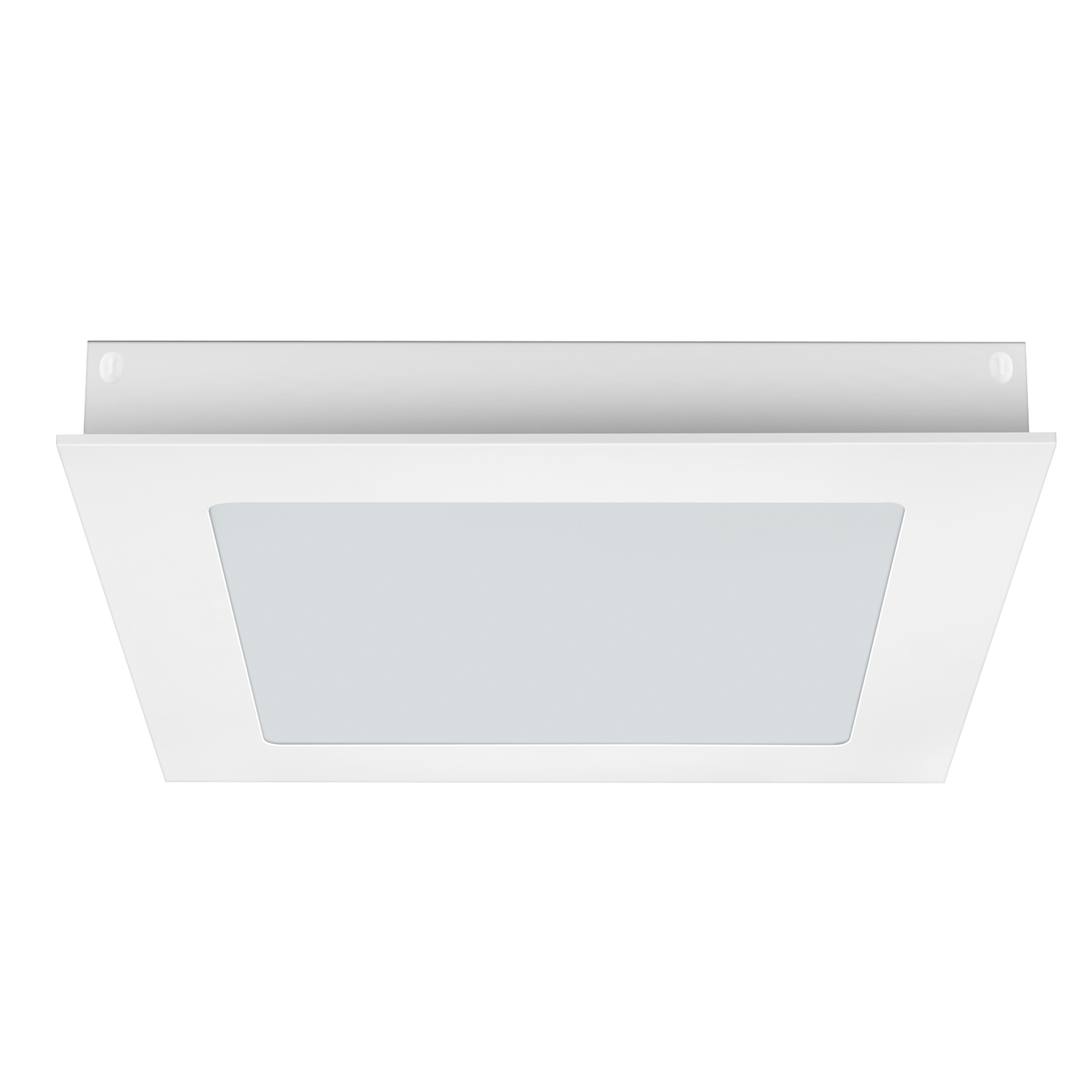

Aqua Recess 2x2 Tunable

Product Overview

Recess LED Panel in CRCA housing with Human-centric property provides improved productivity, better moods and overall healthier workspaces. Tunable with optional pre-set colour temperatures or manual adjustments to any CCT in the range 3000K-6500K along with lux sensing & dimming possibilities. Wired and wireless communication mode available as per site mapping. Mobile Application interface for easiness of operations.

View full details

General specification
Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
Optics High transmittance polystyrene opal diffuser for glare-free symmetric light. High efficiency long life LED package in integral module with viewing angle of 120° to ensure better uniformity.
Mounting Recessed mounted fixture suitable for Armstrong Grid POP ceiling
Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection Surge protection & other reliability tests
Surge Protection Upto 2.5 KV
IP 20
Technical Specifications
System Wattage 30W,36W,40W
CCT 3000K-6500K
CRI ≥80
Rated Voltage 240V AC
Power Factor ≥0.95
THD ≤10%
System Efficacy (lm/W) ≥100

Aqua Recess 2x2 Tunable variants

Product Variants

Aqua Recess 2x2 Tunable

LTRAQ-30-HC

Aqua Recess 2x2 Tunable

LTRAQ-36-HC

Aqua Recess 2x2 Tunable

LTRAQ-40-HC

System Wattage

CCT

CRI

Rated Voltage

Power Factor

THD

System Efficacy (lm/W)

Length (in mm)

Width (in mm)

Height (in mm)

Cutout (in mm)

30W

3000K-6500K

≥80

240V AC

≥0.95

≤10%

≥100

595

580 x 580

36W

3000K-6500K

≥80

240V AC

≥0.95

≤10%

≥100

595

580 x 580

40W

3000K-6500K

≥80

240V AC

≥0.95

≤10%

≥100

595

580 x 580
