Aqua Slim recess 2x2

Aqua Slim recess 2x2

Aqua Slim recess 2x2

Product Overview

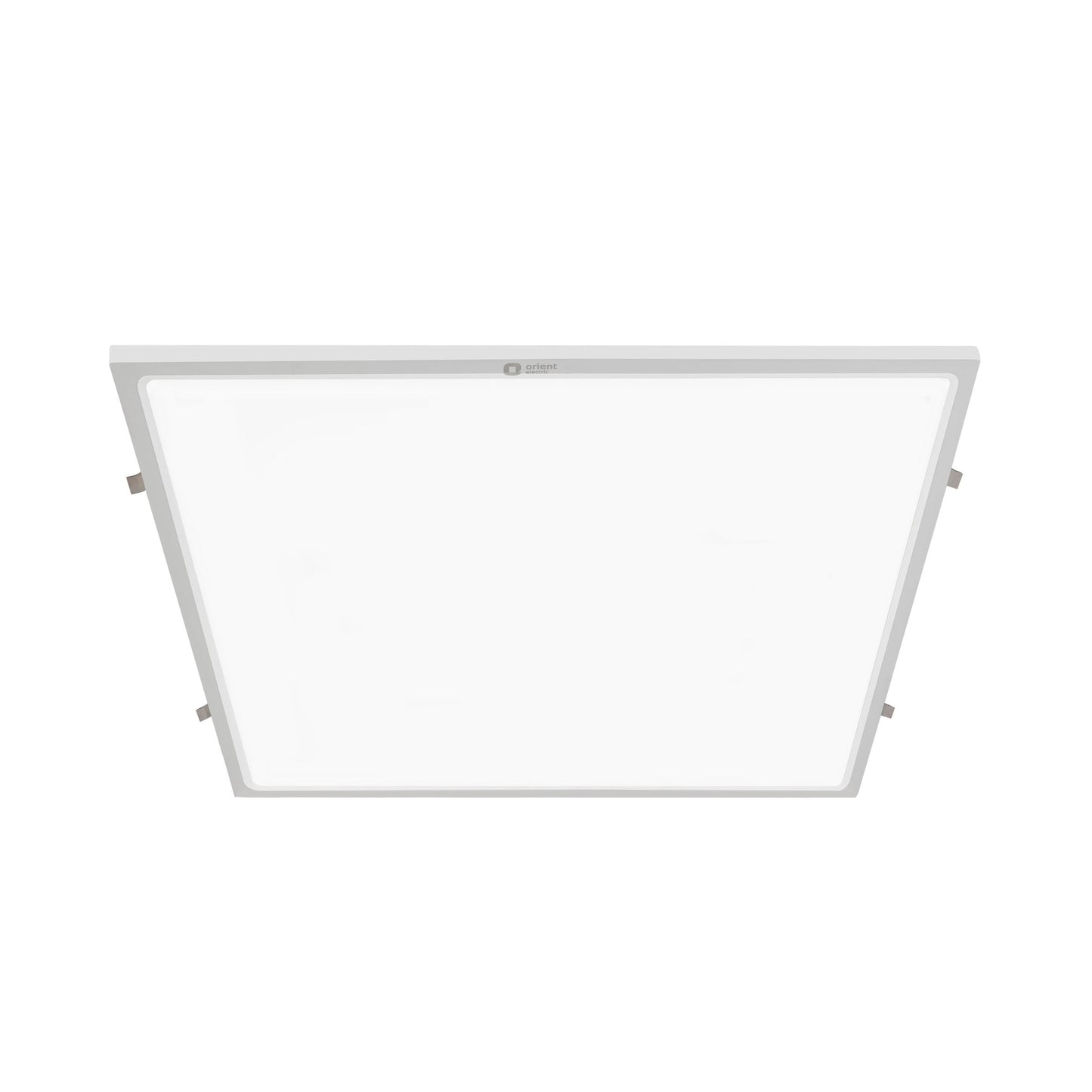

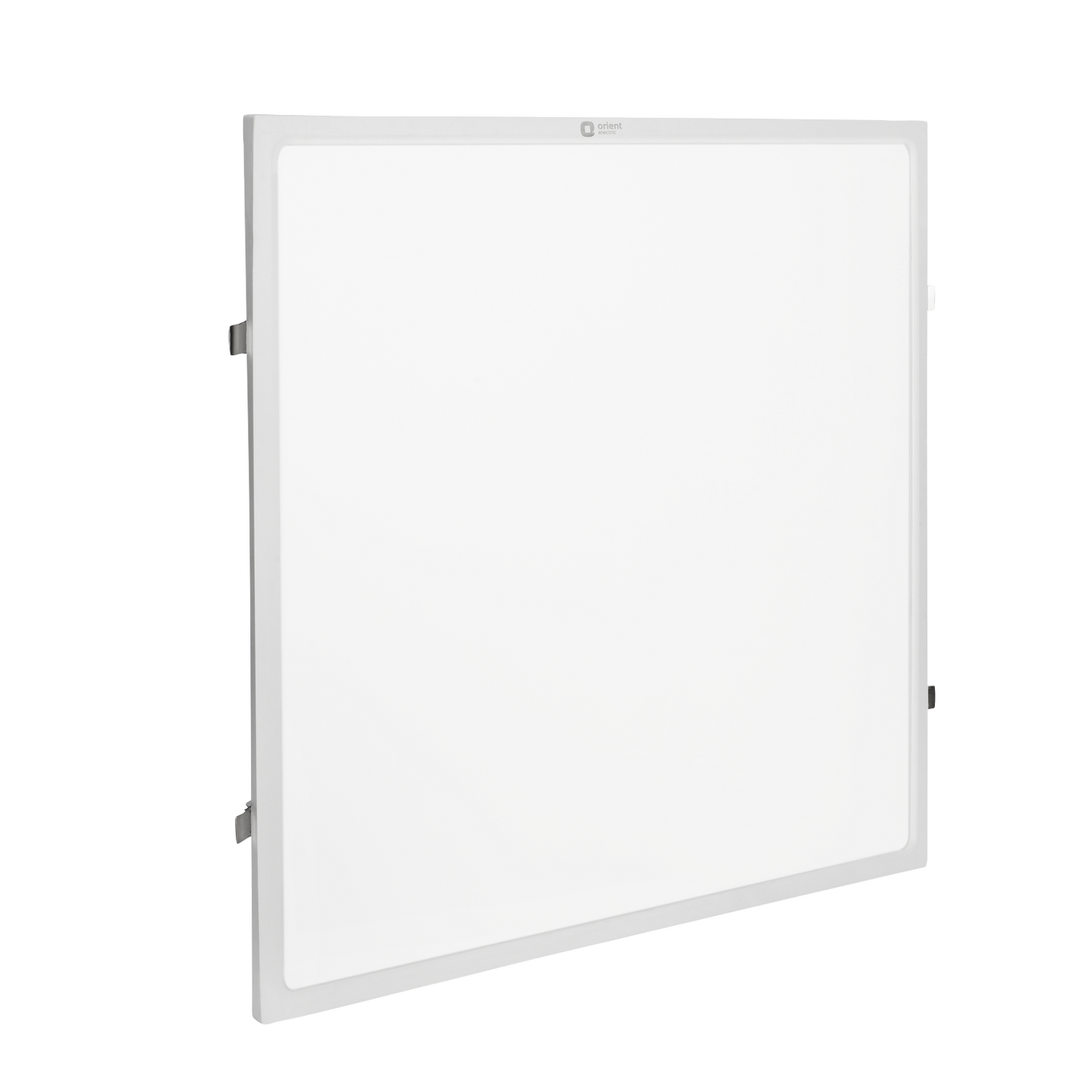

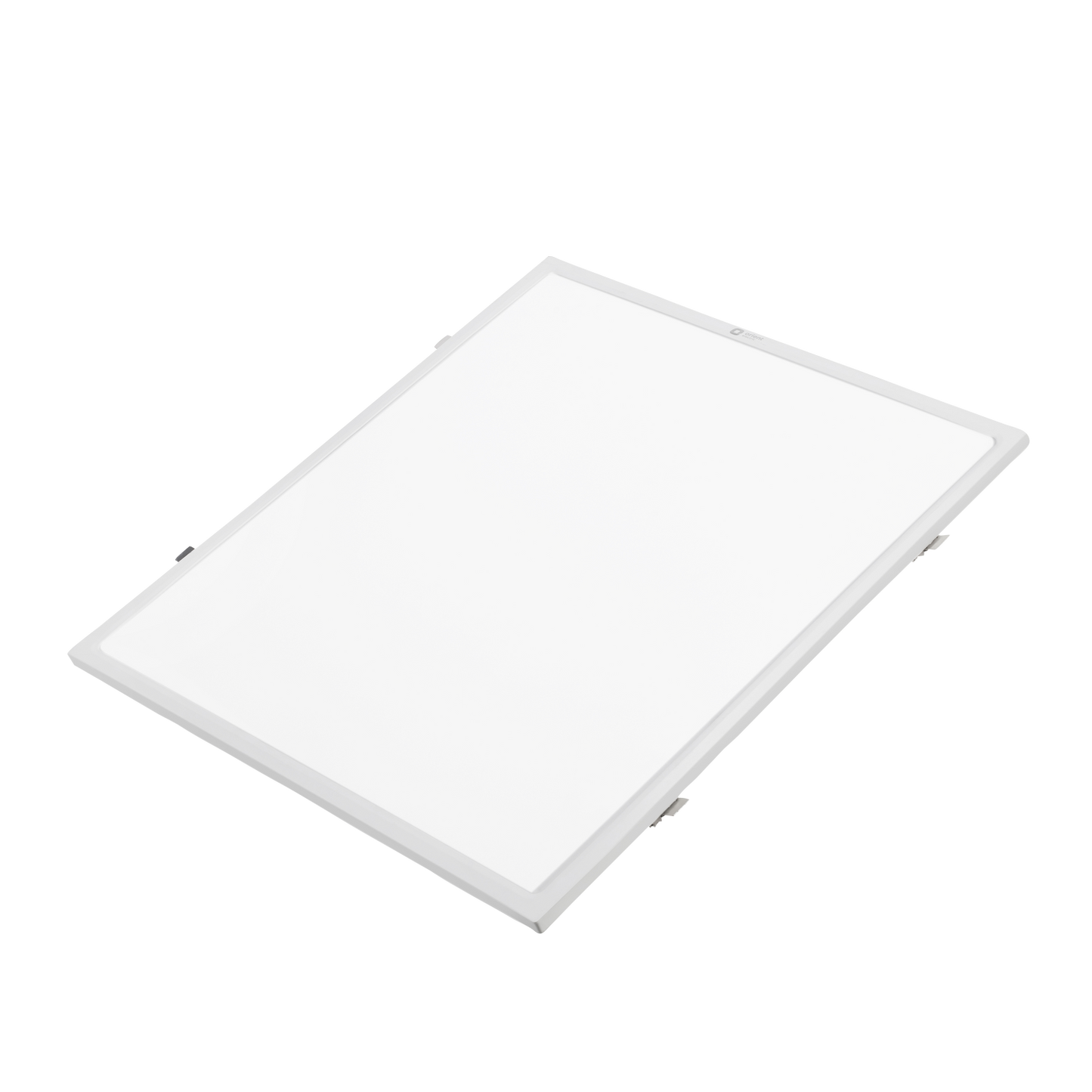

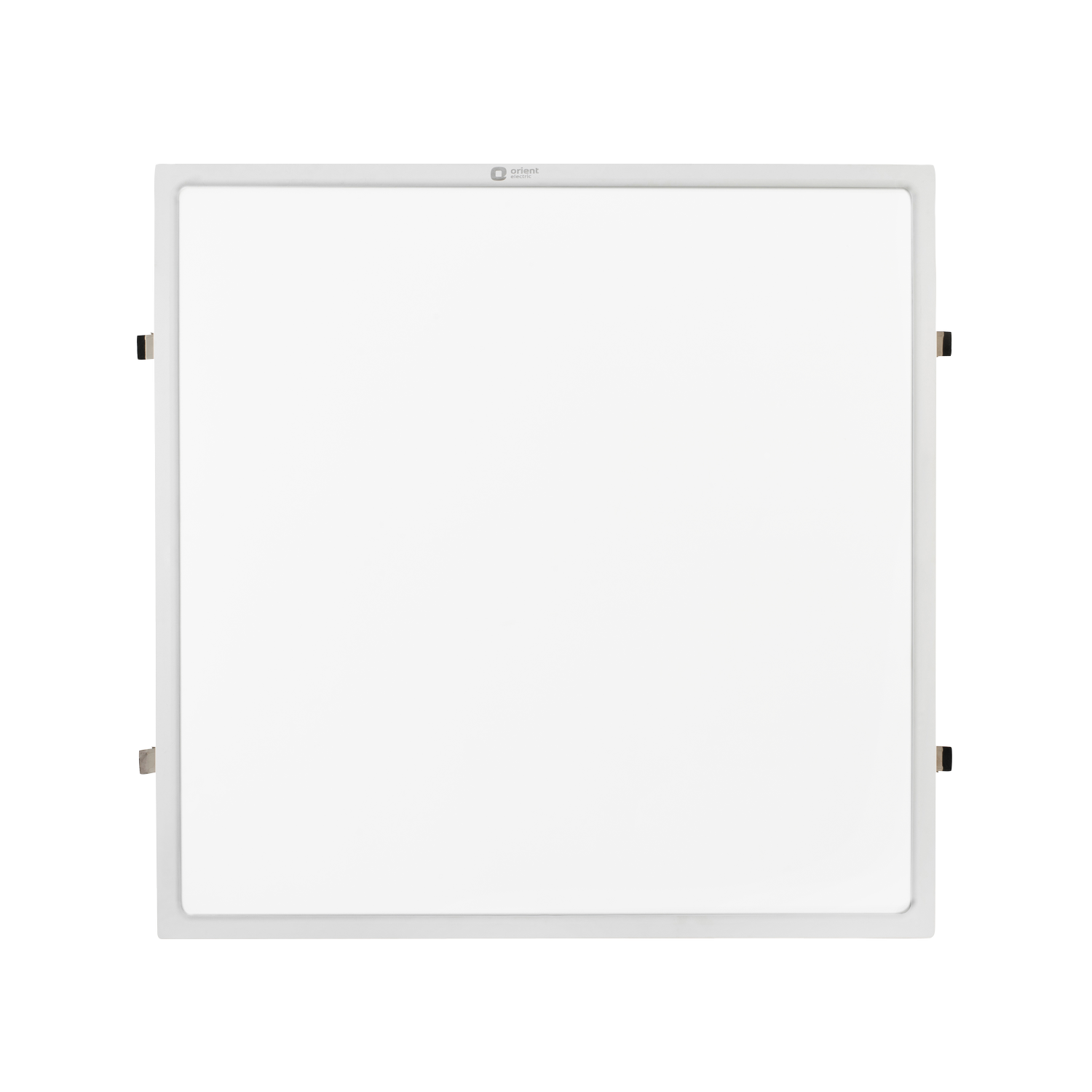

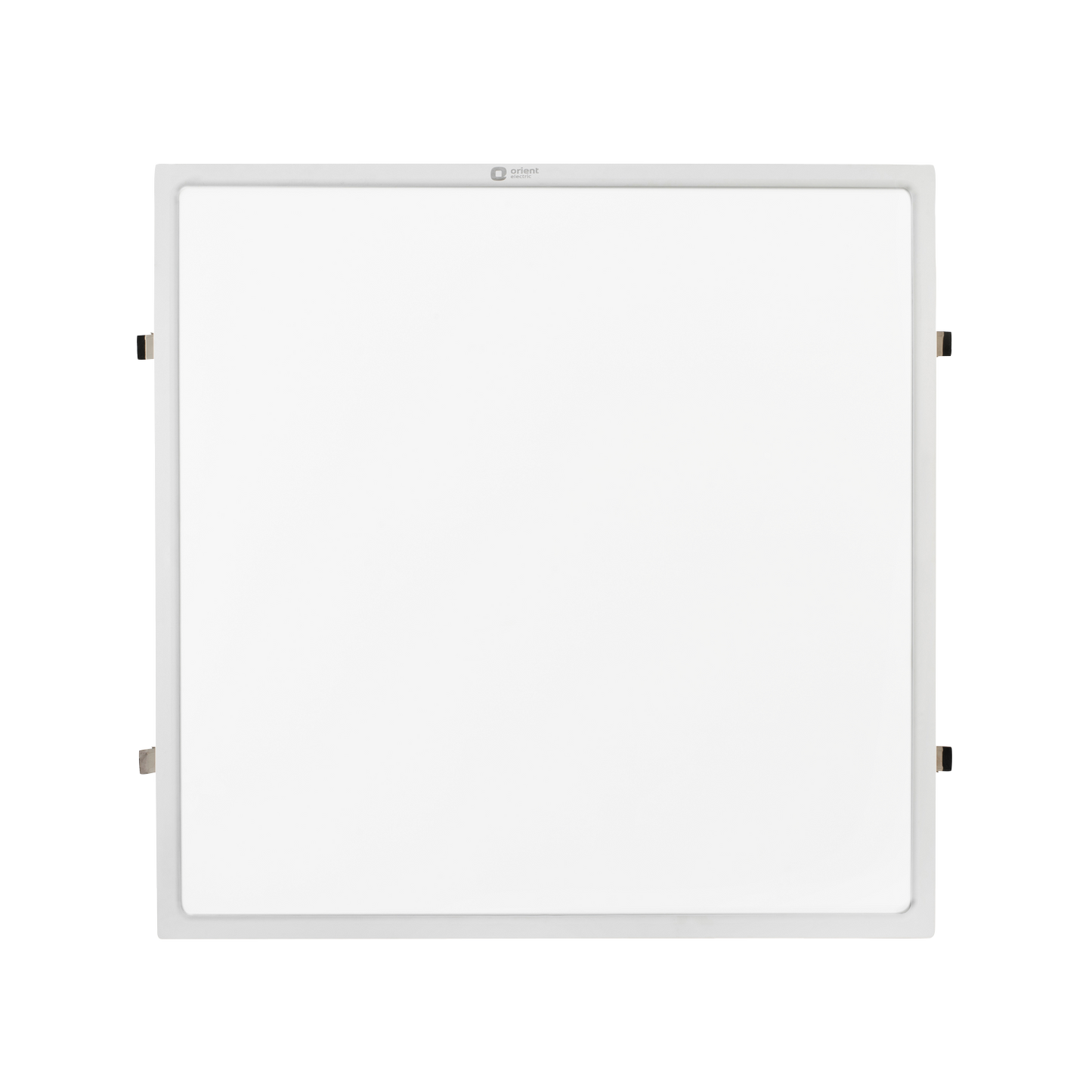

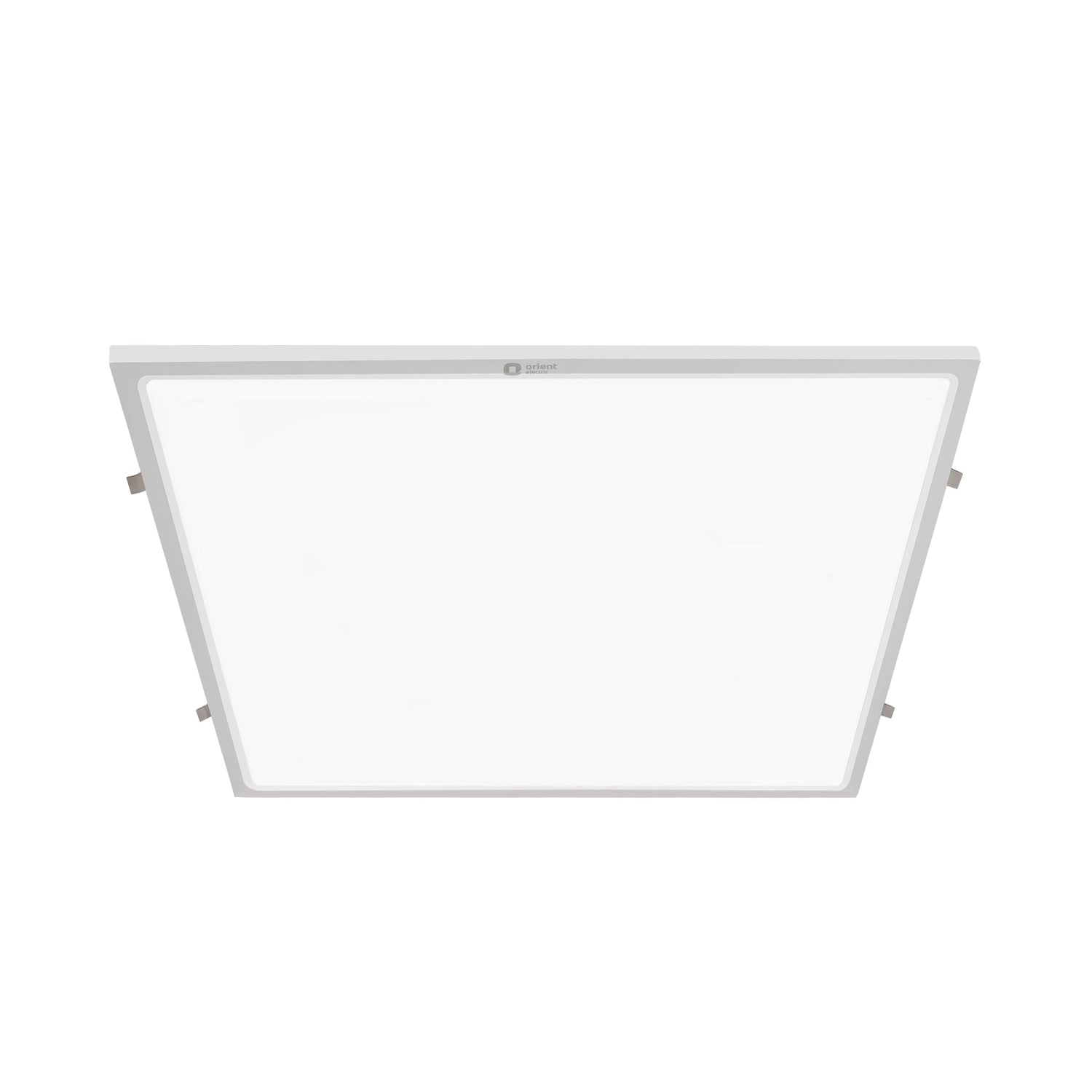

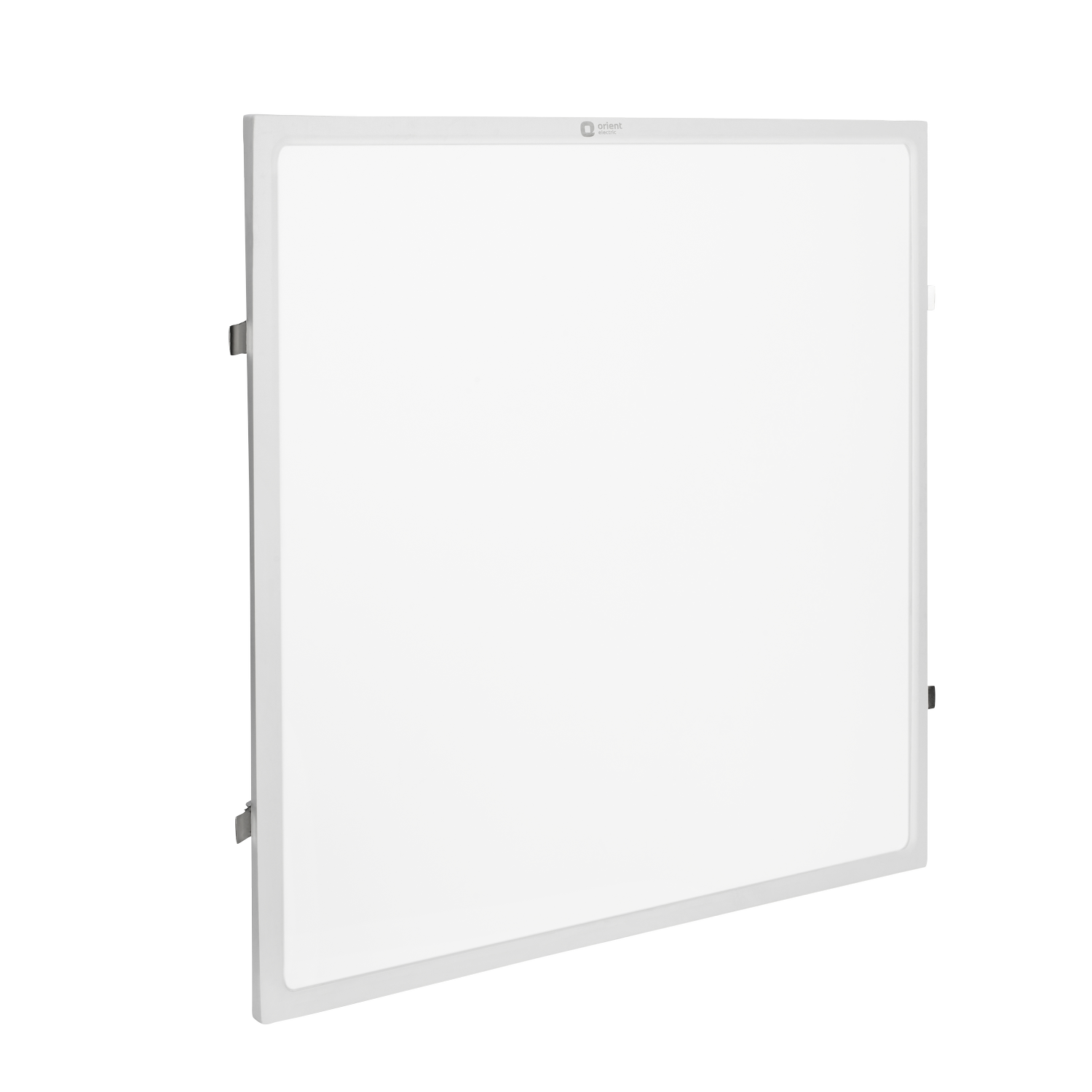

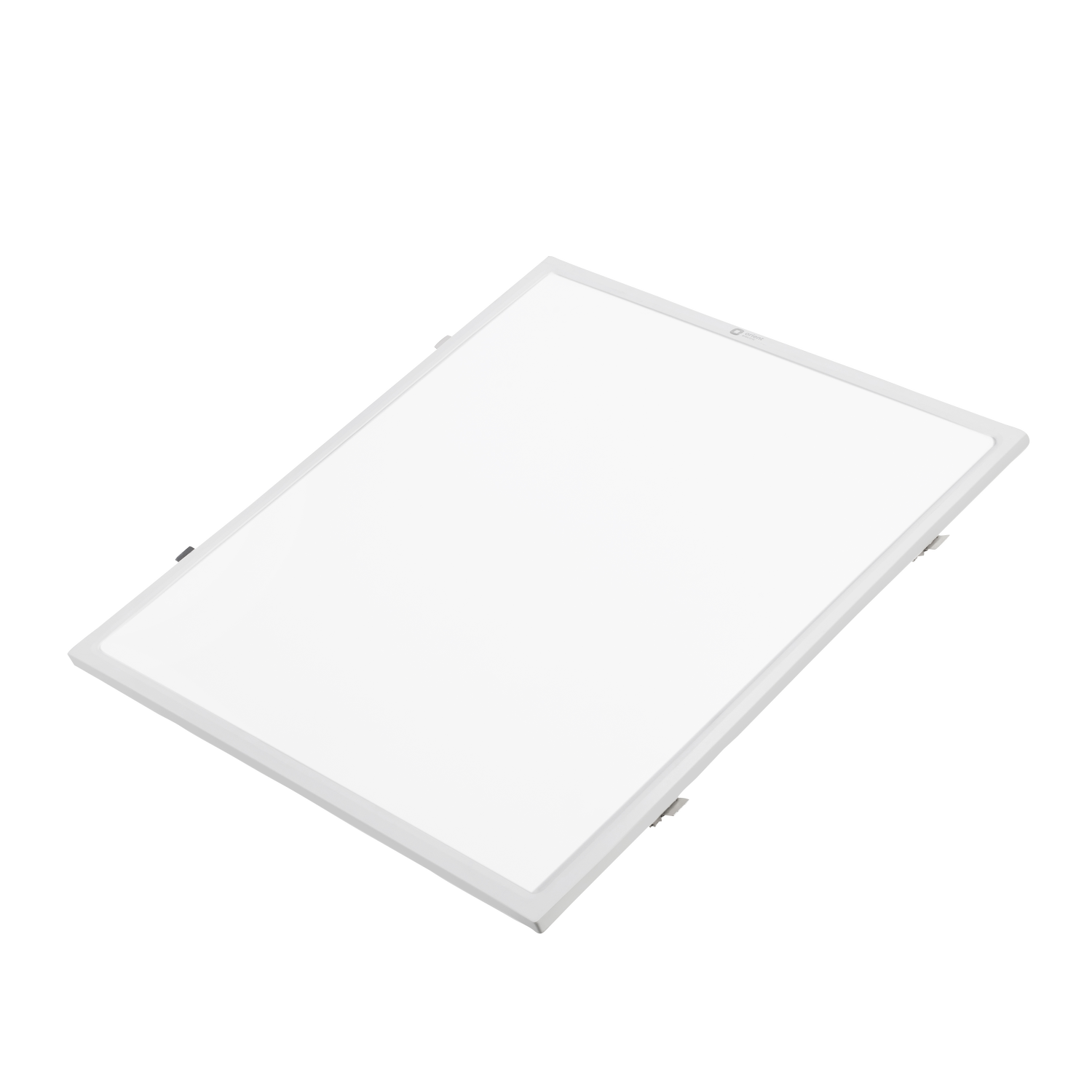

Slim recess-mounting back-lit LED 2X2 Panel in CRCA housing with full-opal diffuser suitable for Armstrong/Grid ceilings.

Best suited for

Offices

Hospitals

Banks

Meeting rooms

View full details
  • General specification
    Housing Excellent thermally managed slim housing in CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance polystyrene opal diffuser for glare free symmetric light. High efficiency long life LED package in integral module with high lumen efficacy and viewing angle of 120° to ensure better uniformity.
    Mounting Recessed mounted fixture suitable for Armstrong Grid POP ceiling
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 24W, 30W, 36W, 42W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100, ≥90, ≥85
Aqua Slim recess 2x2 variants
Product Variants
Aqua Slim recess 2x2
LTRAQ-24-C-V0
Aqua Slim recess 2x2
LTRAQ-24-N-V0
Aqua Slim recess 2x2
LTRAQ-24-W-V0
Aqua Slim recess 2x2
LTRAQ-30-C-V0
Aqua Slim recess 2x2
LTRAQ-30-N-V0
Aqua Slim recess 2x2
LTRAQ-30-W-V0
Aqua Slim recess 2x2
LTRAQ-36-C-V0
Aqua Slim recess 2x2
LTRAQ-36-N-V0
Aqua Slim recess 2x2
LTRAQ-36-W-V0
Aqua Slim recess 2x2
LTRAQ-42-C-V0
Aqua Slim recess 2x2
LTRAQ-42-N-V0
Aqua Slim recess 2x2
LTRAQ-42-W-V0
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
24W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
38
580x580
24W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
38
580x580
24W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
38
580x580
30W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
38
580x580
30W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
38
580x580
30W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
38
580x580
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
38
580x580
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
38
580x580
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
38
580x580
42W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
38
580x580
42W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
38
580x580
42W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
38
580x580
