Aqua Smart Recess 2x2

Aqua Smart Recess 2x2

Aqua Smart Recess 2x2

Product Overview

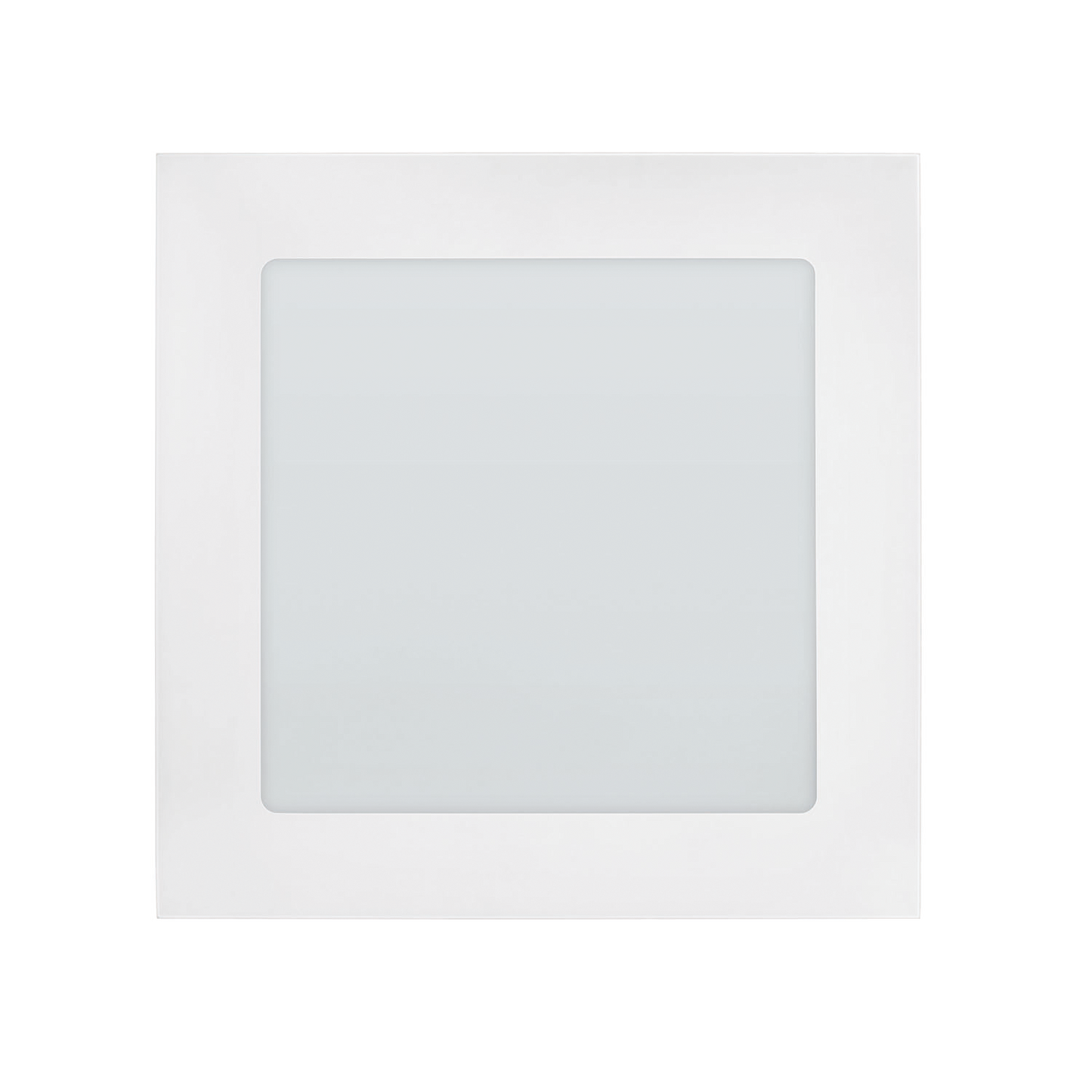

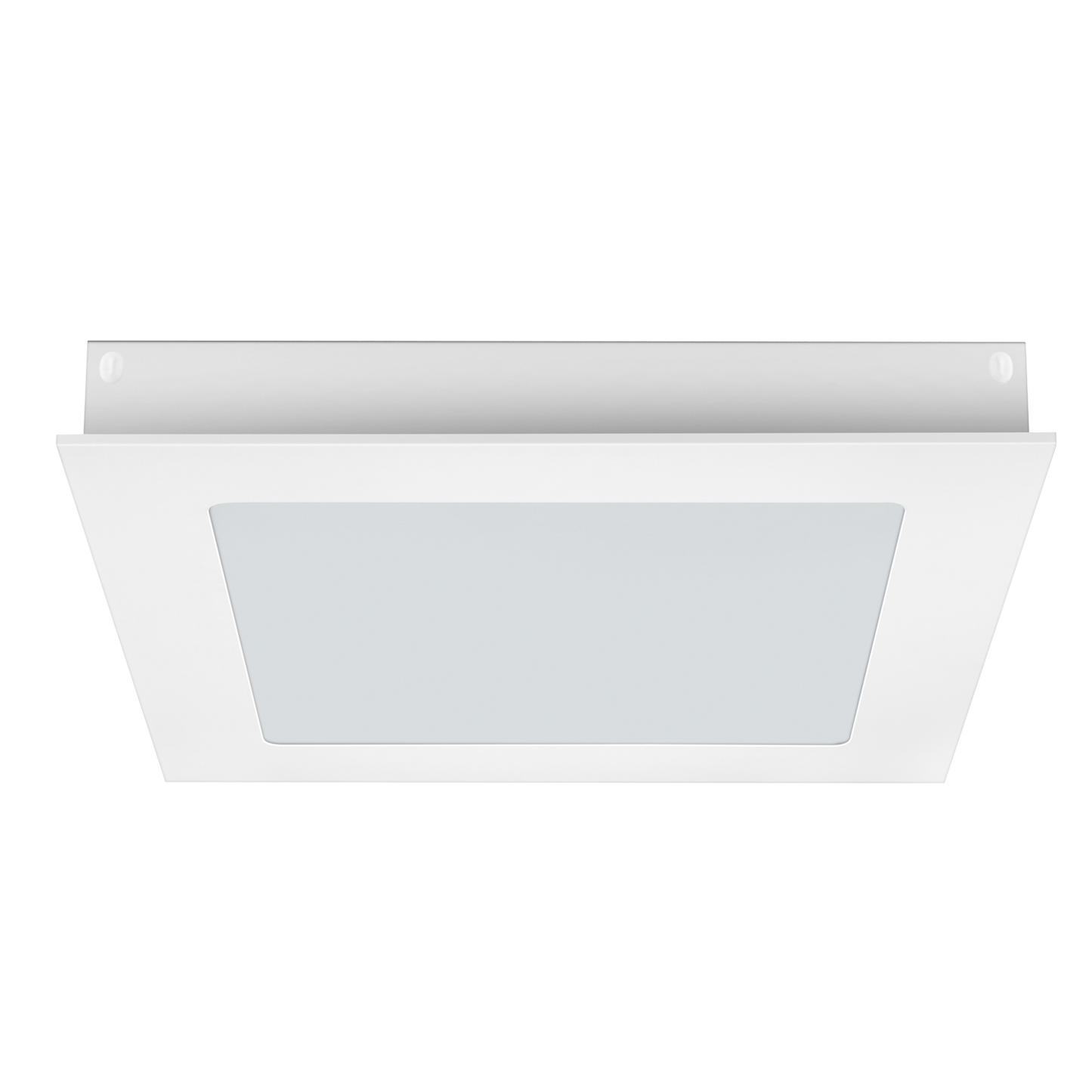

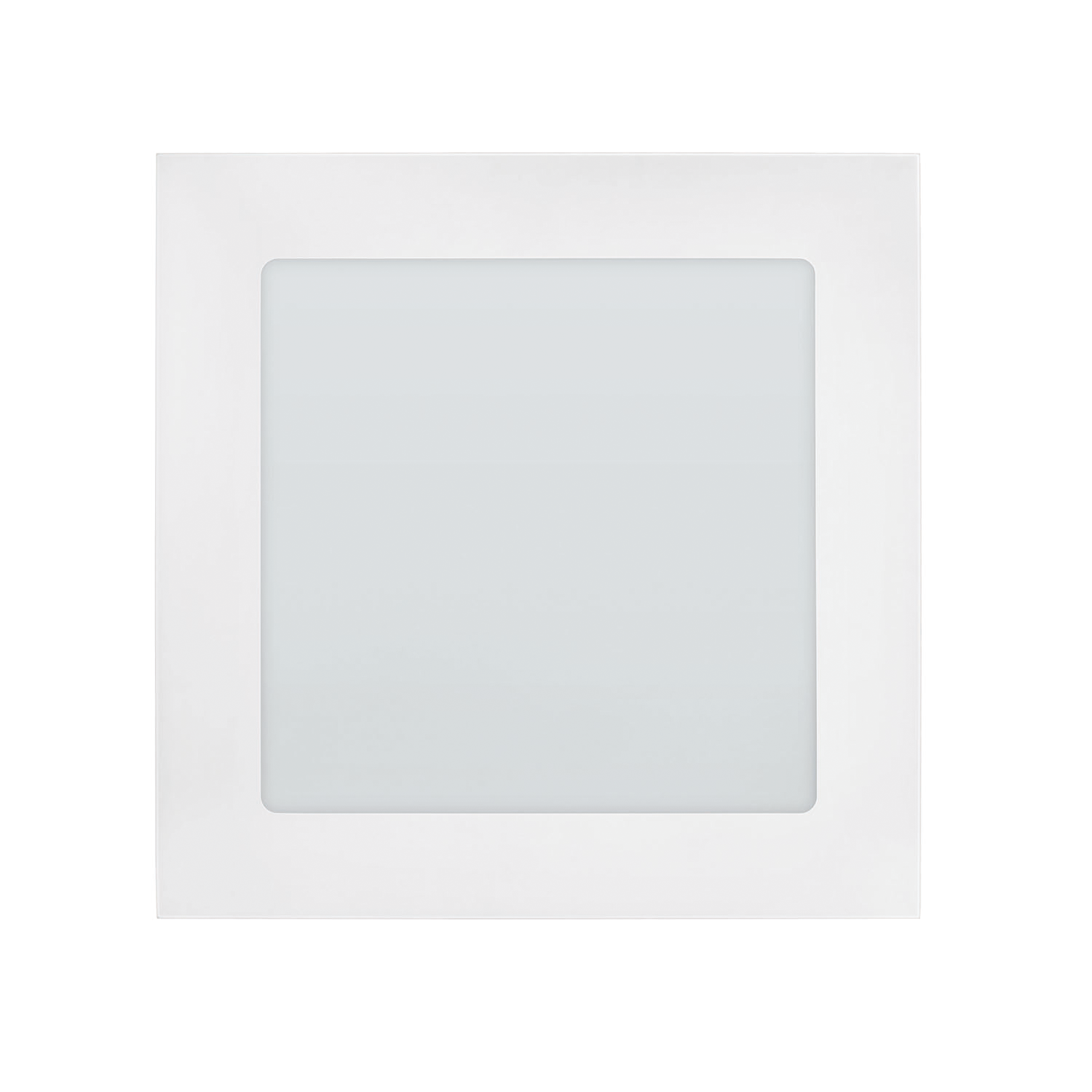

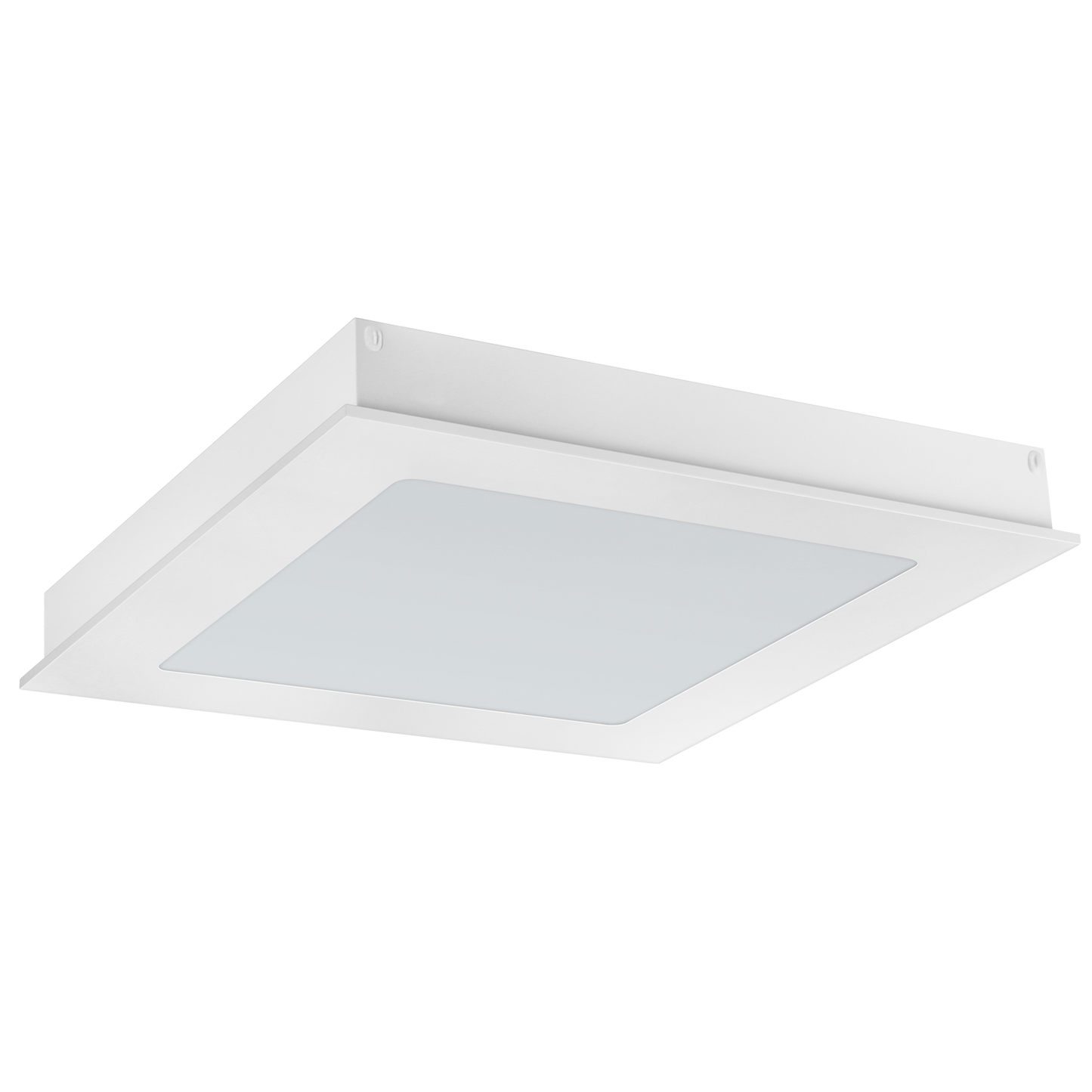

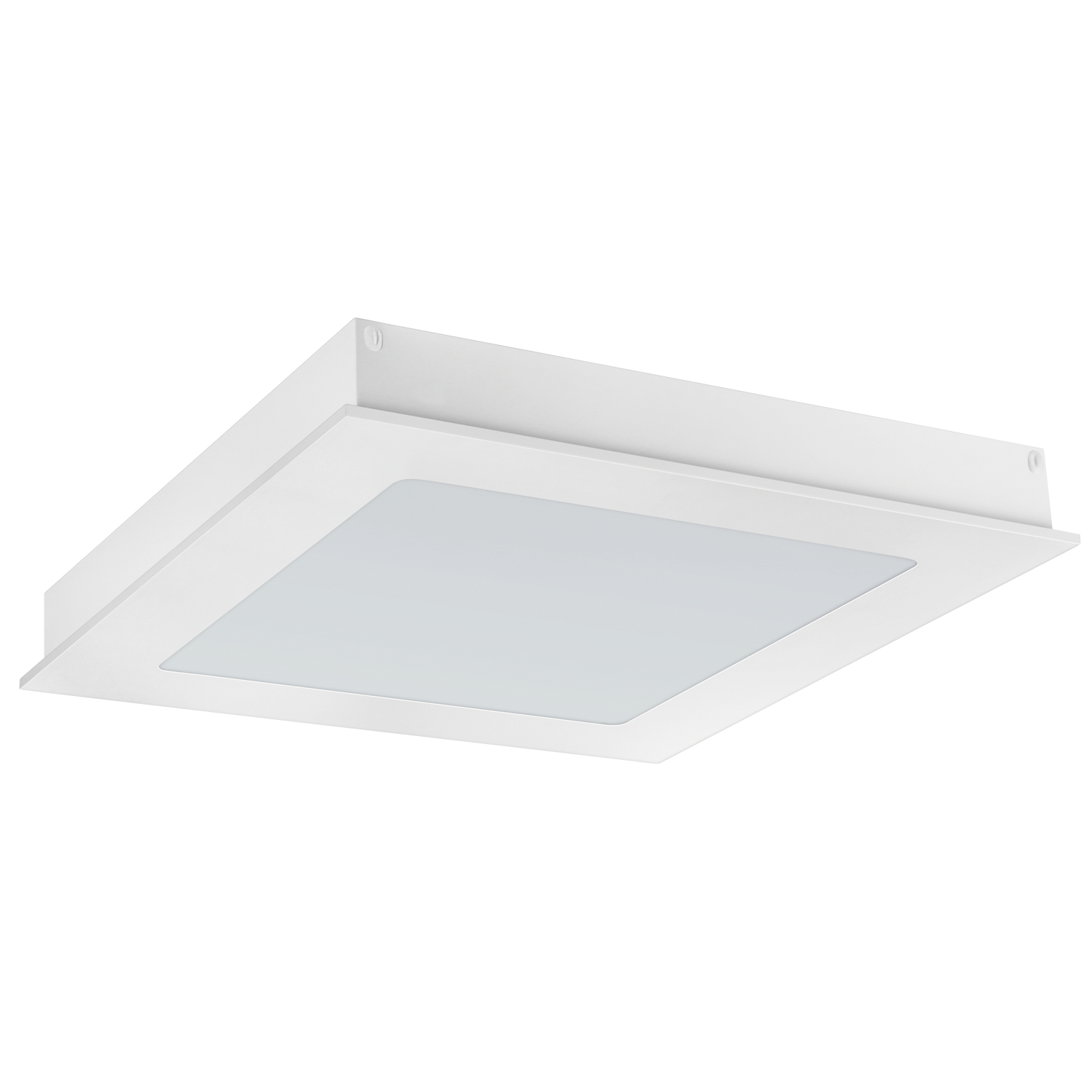

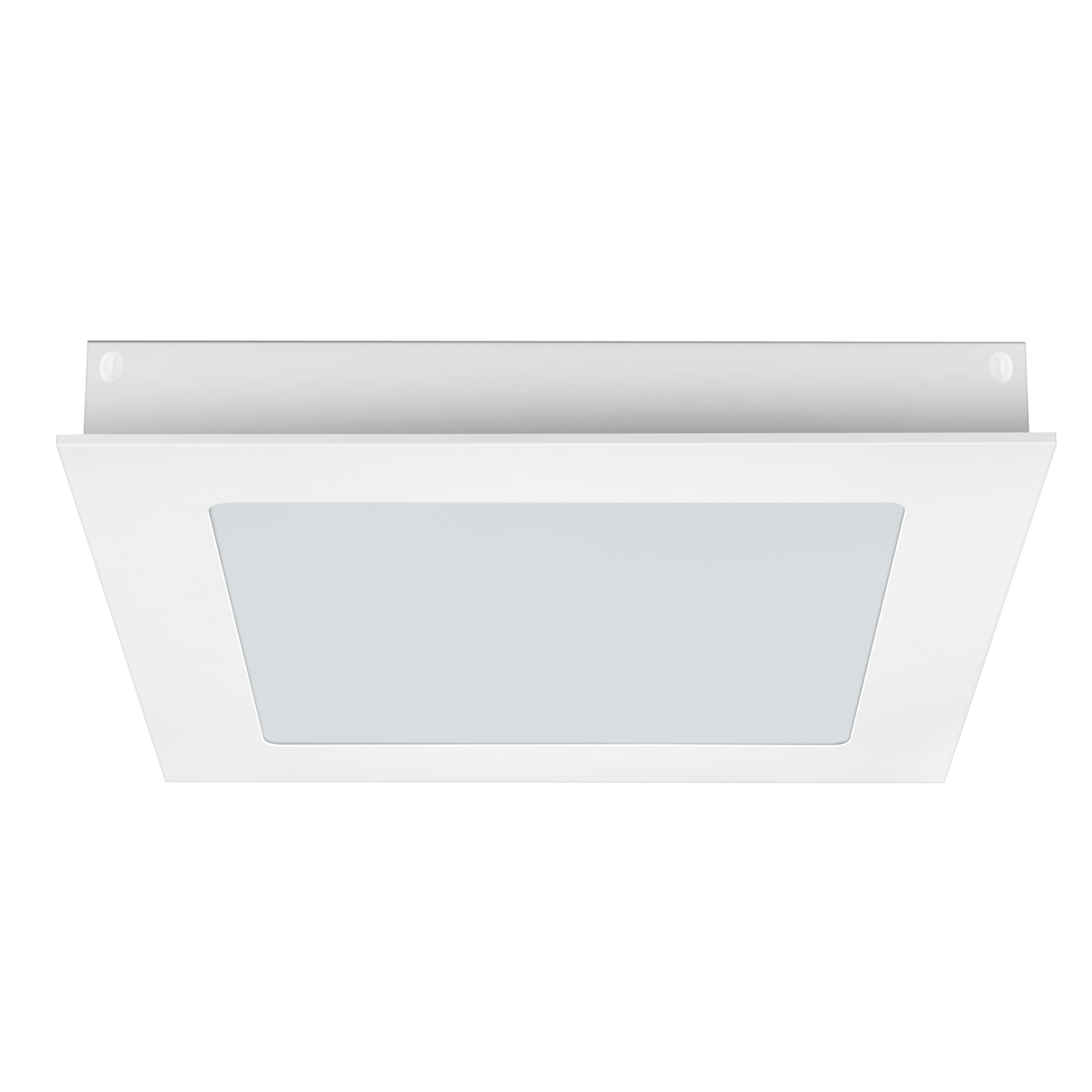

Smart-integrated 2x2 LED flat panel light in CRCA housing in recess mounting with seamless dimming via DALI/PoE, ensuring uniform illumination, energy efficiency, and adaptive lighting control.

View full details
  • General specification
    Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance polystyrene opal diffuser for glare-free symmetric light. High efficiency long life LED package in integral module with high lumen efficacy and viewing angle of 120° to ensure better uniformity.
    Mounting Recessed mounted fixture suitable for Armstrong Grid POP ceiling
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 30W, 36W, 40W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100 , ≥90 ,≥85
Aqua Smart Recess 2x2 variants
Product Variants
Aqua Smart Recess 2x2
LTRAQS-30-C
Aqua Smart Recess 2x2
LTRAQS-30-N
Aqua Smart Recess 2x2
LTRAQS-30-W
Aqua Smart Recess 2x2
LTRAQS-36-C
Aqua Smart Recess 2x2
LTRAQS-36-N
Aqua Smart Recess 2x2
LTRAQS-36-W
Aqua Smart Recess 2x2
LTRAQS-40-C
Aqua Smart Recess 2x2
LTRAQS-40-N
Aqua Smart Recess 2x2
LTRAQS-40-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
30W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
75
580 x 580
30W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
75
580 x 580
30W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
75
580 x 580
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
75
580 x 580
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
75
580 x 580
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
75
580 x 580
40W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
595
595
75
580 x 580
40W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
595
595
75
580 x 580
40W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
595
595
75
580 x 580
