Aqua Surface 1x4

Aqua Surface 1x4

Aqua Surface 1x4

Product Overview

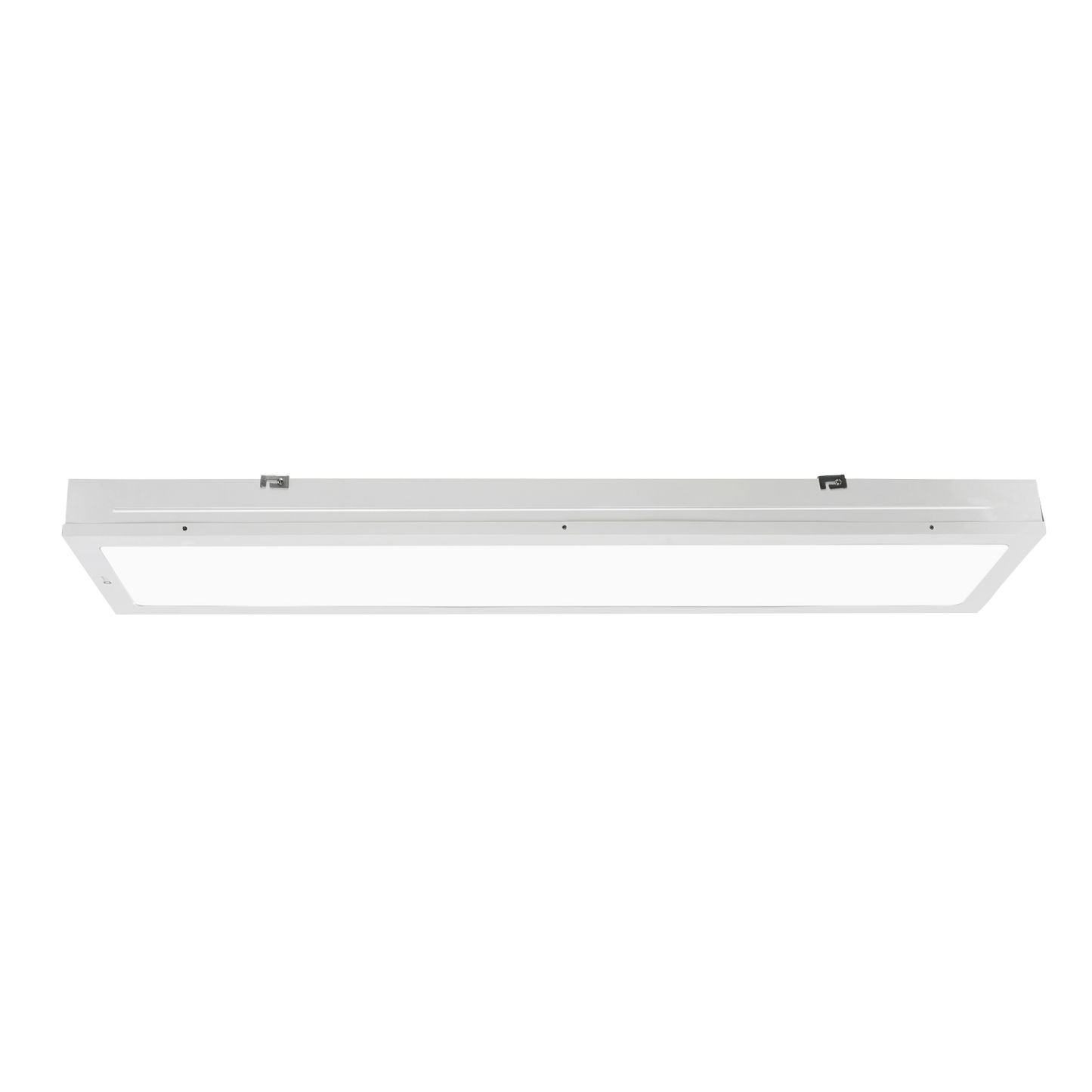

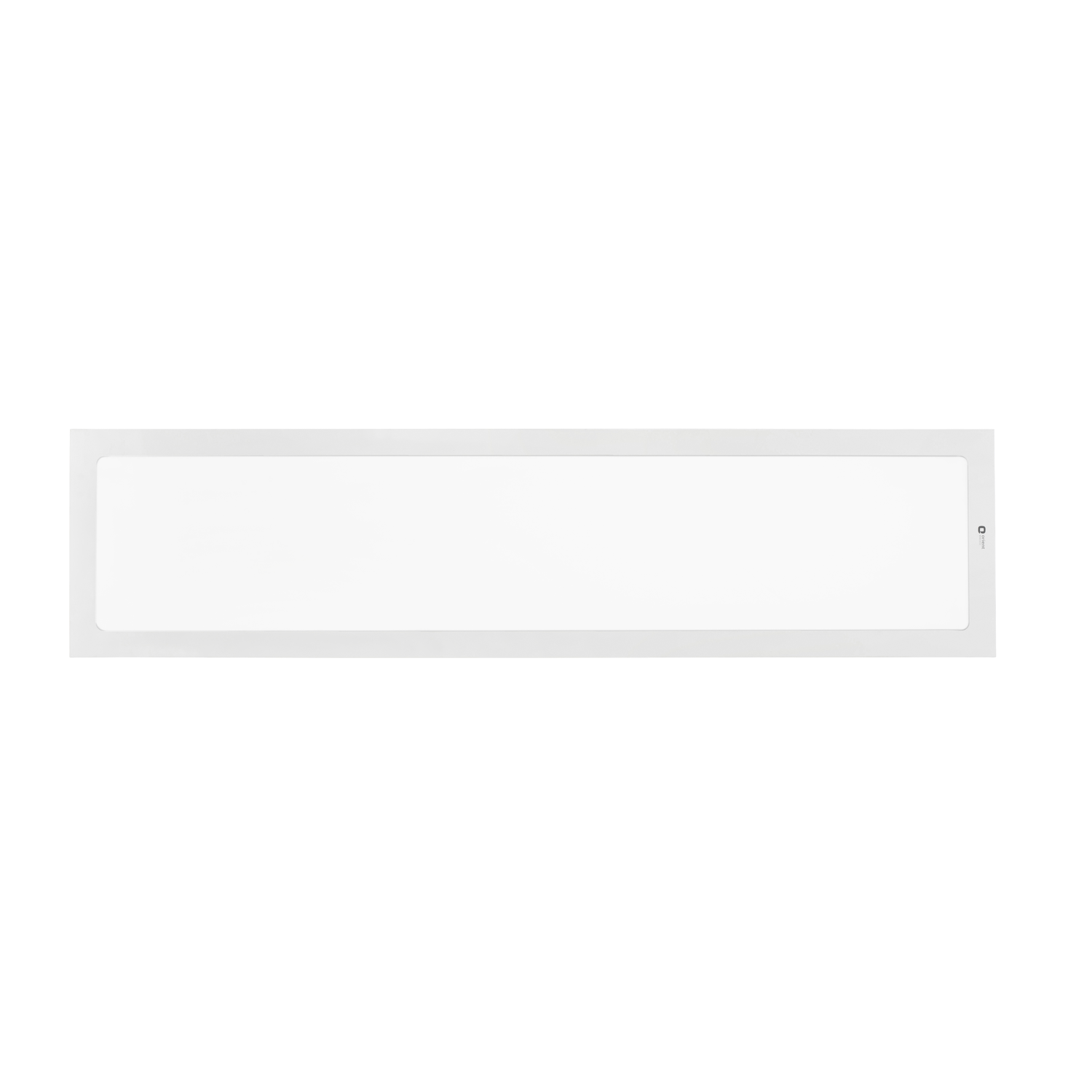

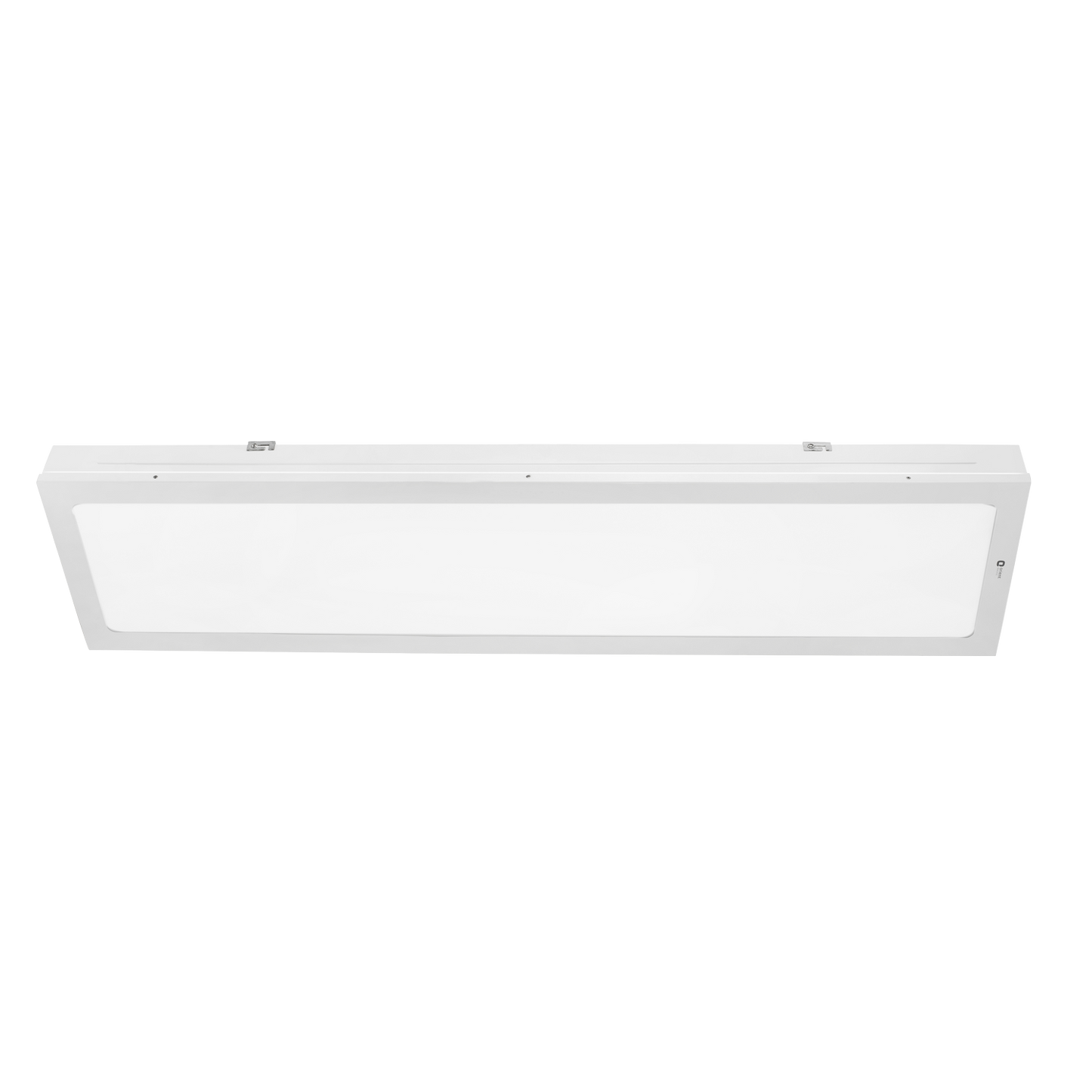

Surface-mounting back-lit LED 1x4 Panel in CRCA housing with full-opal diffuser for soft & glare-free light distribution.

Best suited for

Offices

Banks

Hospitals

Meeting rooms

View full details
  • General specification
    Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance polystyrene opal diffuser for glare-free symmetric light. High efficiency long life LED package in integral module with high lumen efficacy and viewing angle of 120° to ensure better uniformity.
    Mounting Surface mounted fixture suitable for Armstrong Grid POP ceiling
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 36W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100 , ≥90 , ≥85
Aqua Surface 1x4 variants
Product Variants
Aqua Surface 1x4
LTSAQ1-36-C-1X4-V0
Aqua Surface 1x4
LTSAQ1-36-N-1X4-V0
Aqua Surface 1x4
LTSAQ1-36-W-1X4-V0
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1190
290
60
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1190
290
60
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1190
290
60
