Aqua UHL Recess 2x2

Aqua UHL Recess 2x2

Aqua UHL Recess 2x2

Product Overview

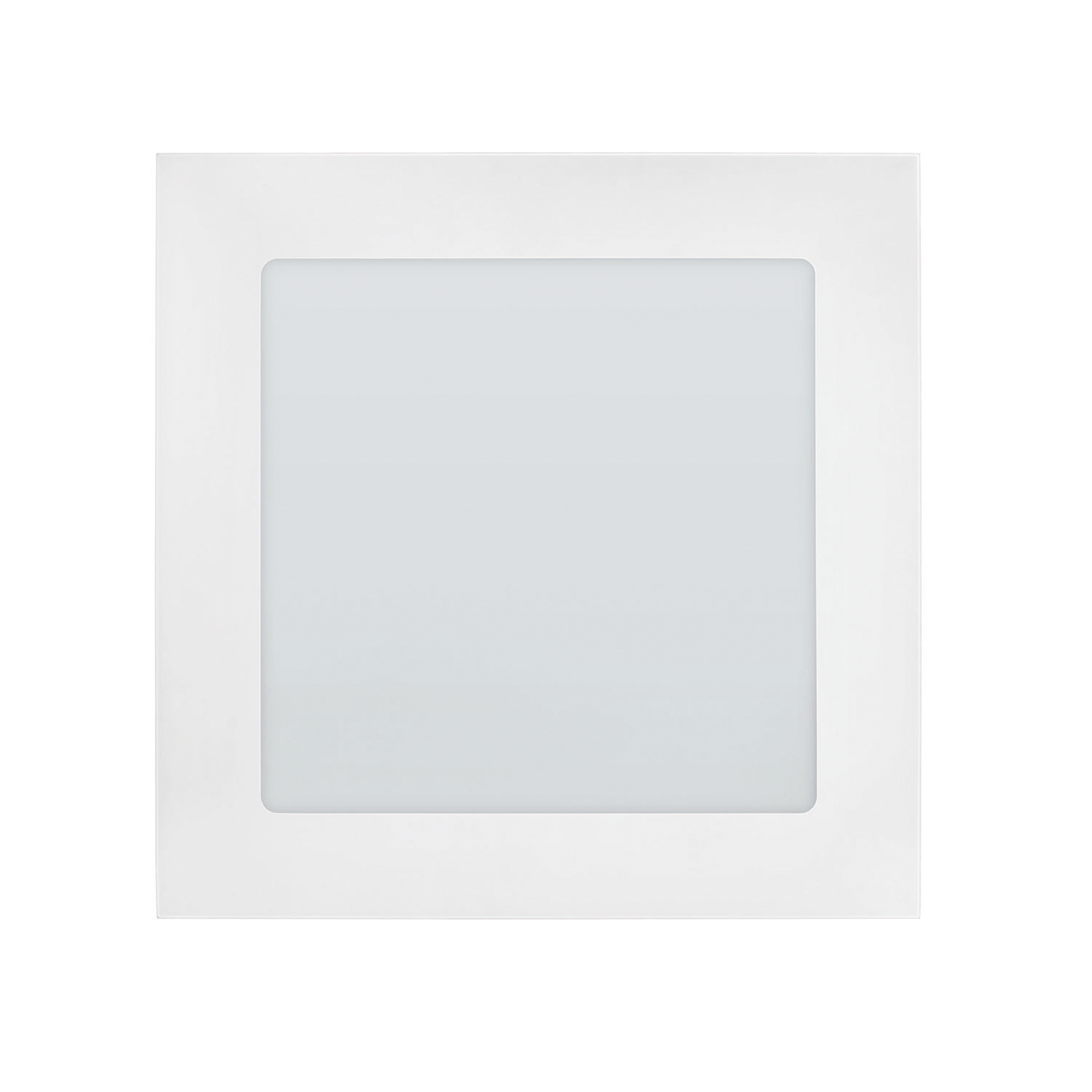

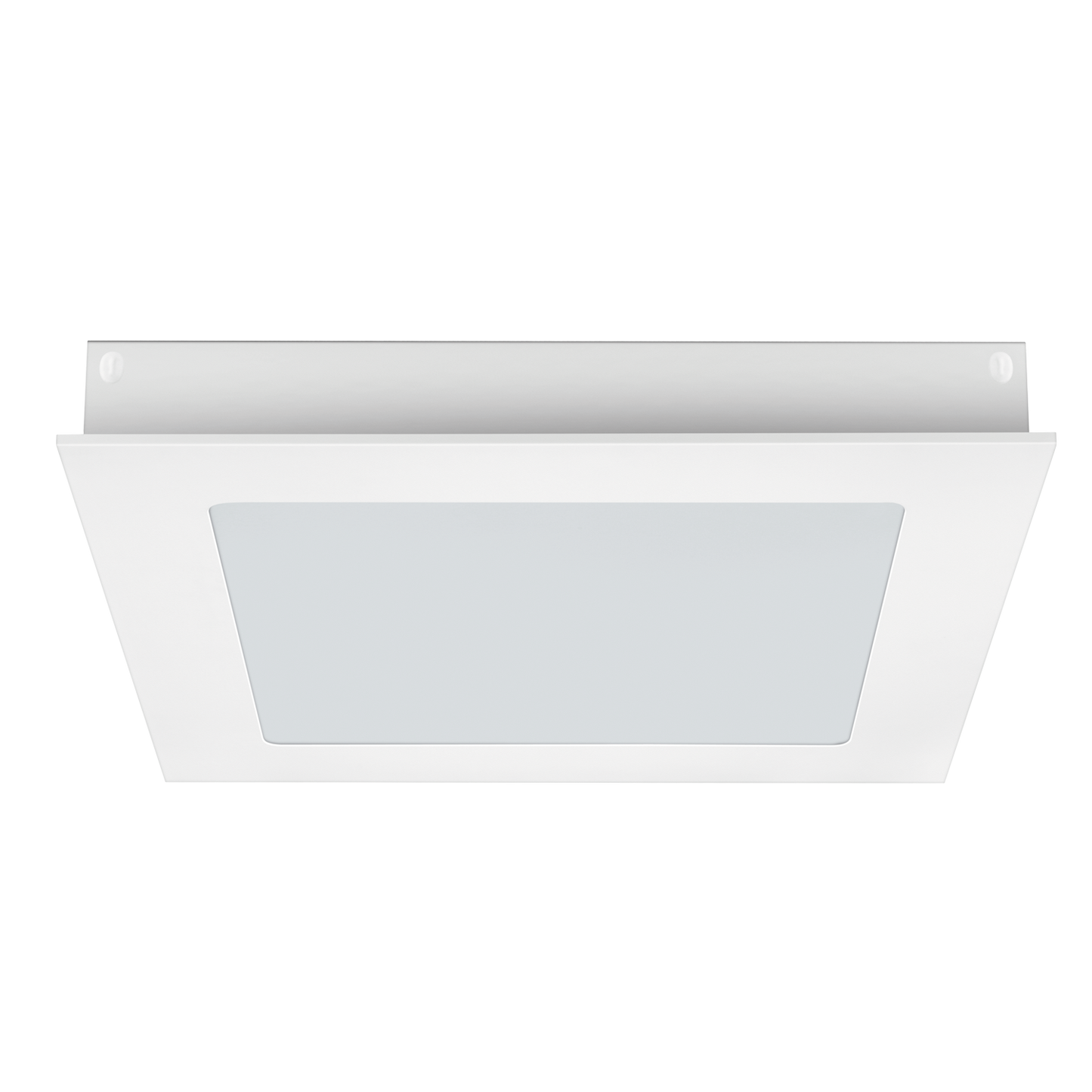

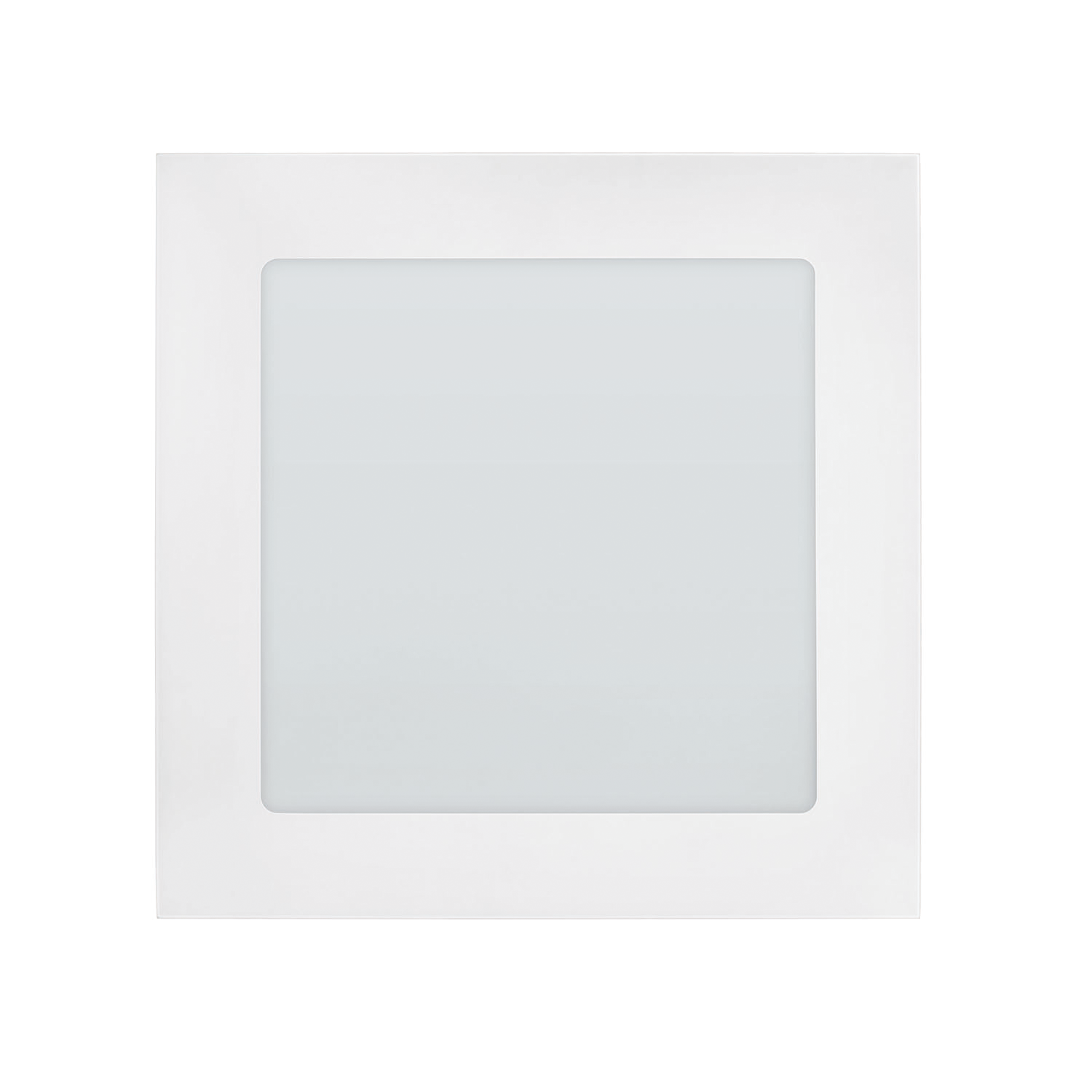

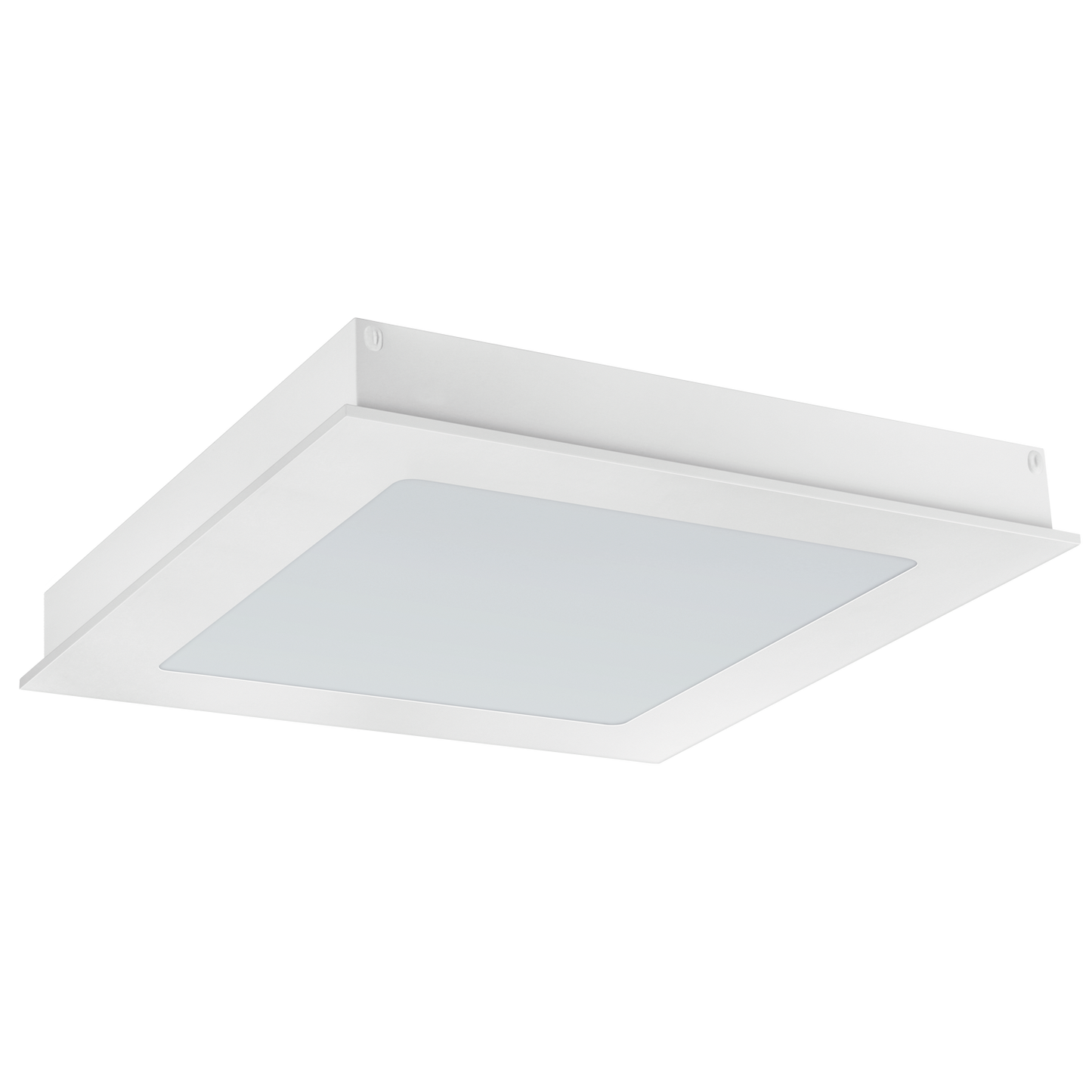

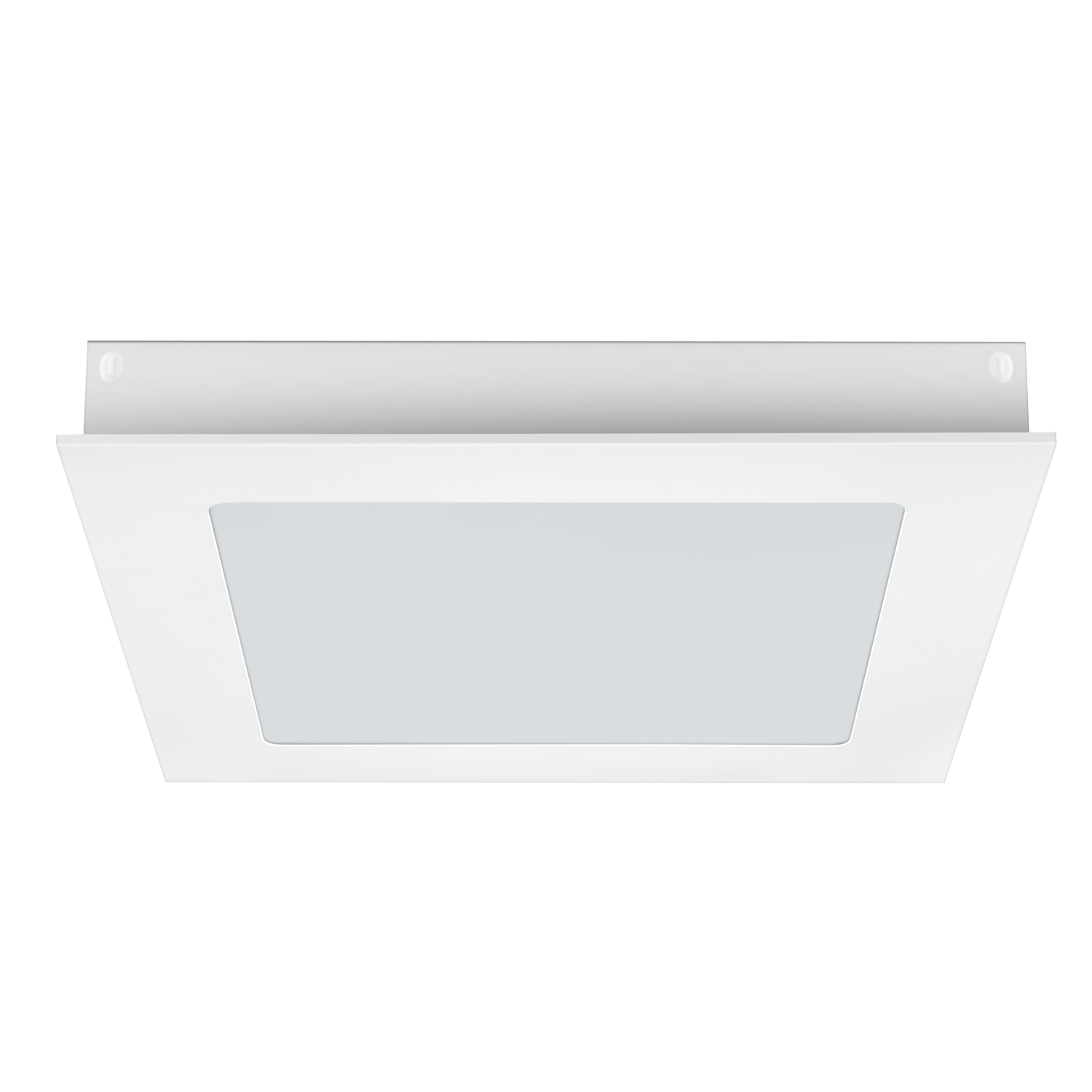

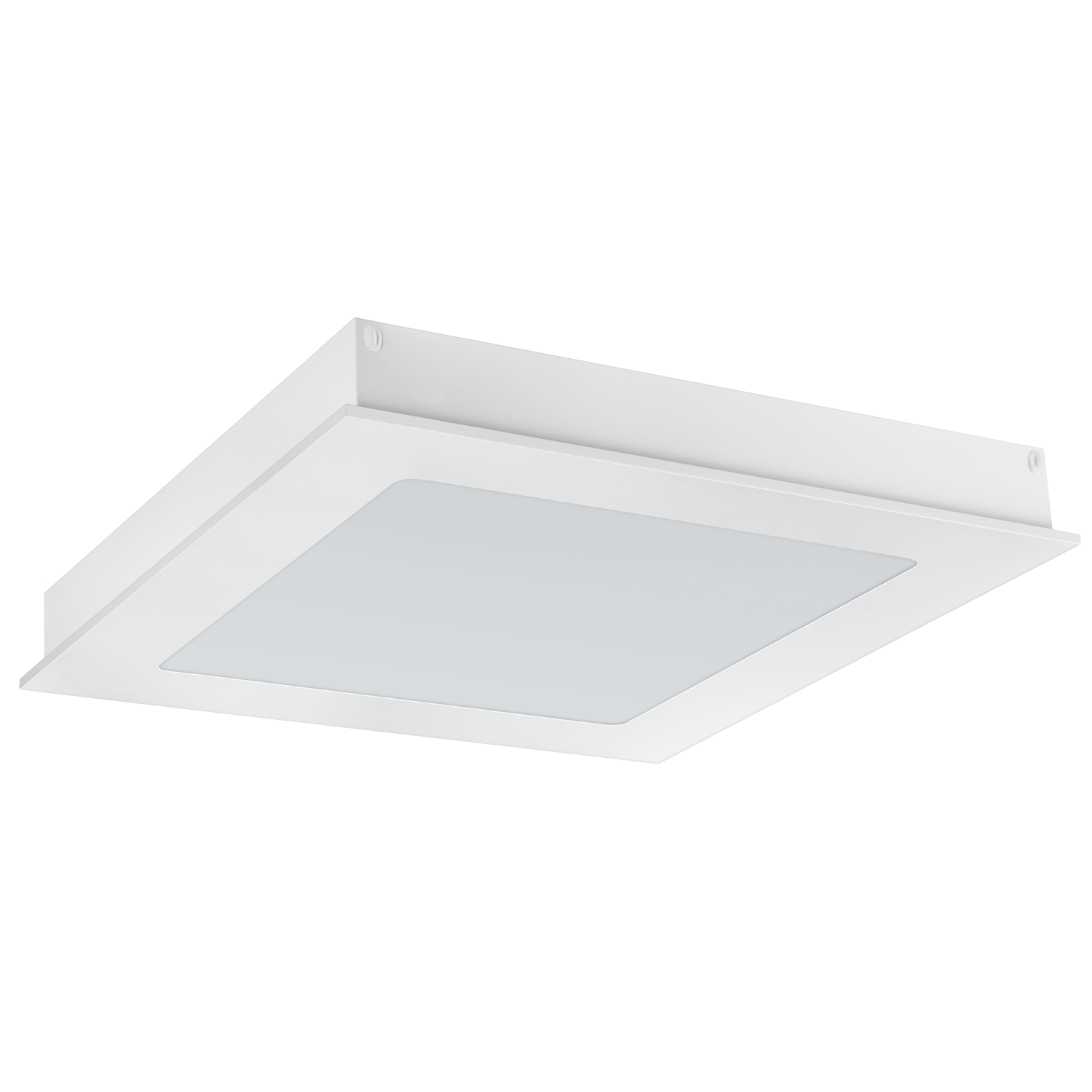

Recess-mounting back-lit LED 2X2 panel in CRCA housing with full-opal diffuser suitable for Armstrong/Grid ceilings with high system efficacy of ≥120 lm/W.

Best suited for

Offices

Hospitals

Banks

Meeting rooms

View full details
  • General specification
    Housing CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance polystyrene opal diffuser for glare free symmetric light. High efficiency long life LED package in integral module with high lumen efficacy and viewing angle of 120° to ensure better uniformity.
    Mounting Recessed mounted fixture suitable for Armstrong Grid POP ceiling
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 24W, 30W, 36W, 45W, 60W
    CCT 6500K|4000K|3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥120, ≥110,≥105
Aqua UHL Recess 2x2 variants
Product Variants
Aqua UHL Recess 2x2
LTRAQ-24-C-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-24-N-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-24-W-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-30-C-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-30-N-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-30-W-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-36-C-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-36-N-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-36-W-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-45-C-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-45-N-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-45-W-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-60-C-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-60-N-V1-UHL
Aqua UHL Recess 2x2
LTRAQ-60-W-V1-UHL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cut Out (In mm)
24W
6500K
≥80
240V AC
≥0.95
≤10%
≥120
595
595
75
580X580
24W
4000K
≥80
240V AC
≥0.95
≤10%
≥110
595
595
75
580X580
24W
3000K
≥80
240V AC
≥0.95
≤10%
≥105
595
595
75
580X580
30W
6500K
≥80
240V AC
≥0.95
≤10%
≥120
595
595
75
580X580
30W
4000K
≥80
240V AC
≥0.95
≤10%
≥110
595
595
75
580X580
30W
3000K
≥80
240V AC
≥0.95
≤10%
≥105
595
595
75
580X580
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥120
595
595
75
580X580
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥110
595
595
75
580X580
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥105
595
595
75
580X580
45W
6500K
≥80
240V AC
≥0.95
≤10%
≥120
595
595
75
580X580
45W
4000K
≥80
240V AC
≥0.95
≤10%
≥110
595
595
75
580X580
45W
3000K
≥80
240V AC
≥0.95
≤10%
≥105
595
595
75
580X580
60W
6500K
≥80
240V AC
≥0.95
≤10%
≥120
595
595
75
580X580
60W
4000K
≥80
240V AC
≥0.95
≤10%
≥110
595
595
75
580X580
60W
3000K
≥80
240V AC
≥0.95
≤10%
≥105
595
595
75
580X580
