Aster

Aster

Aster

Product Overview

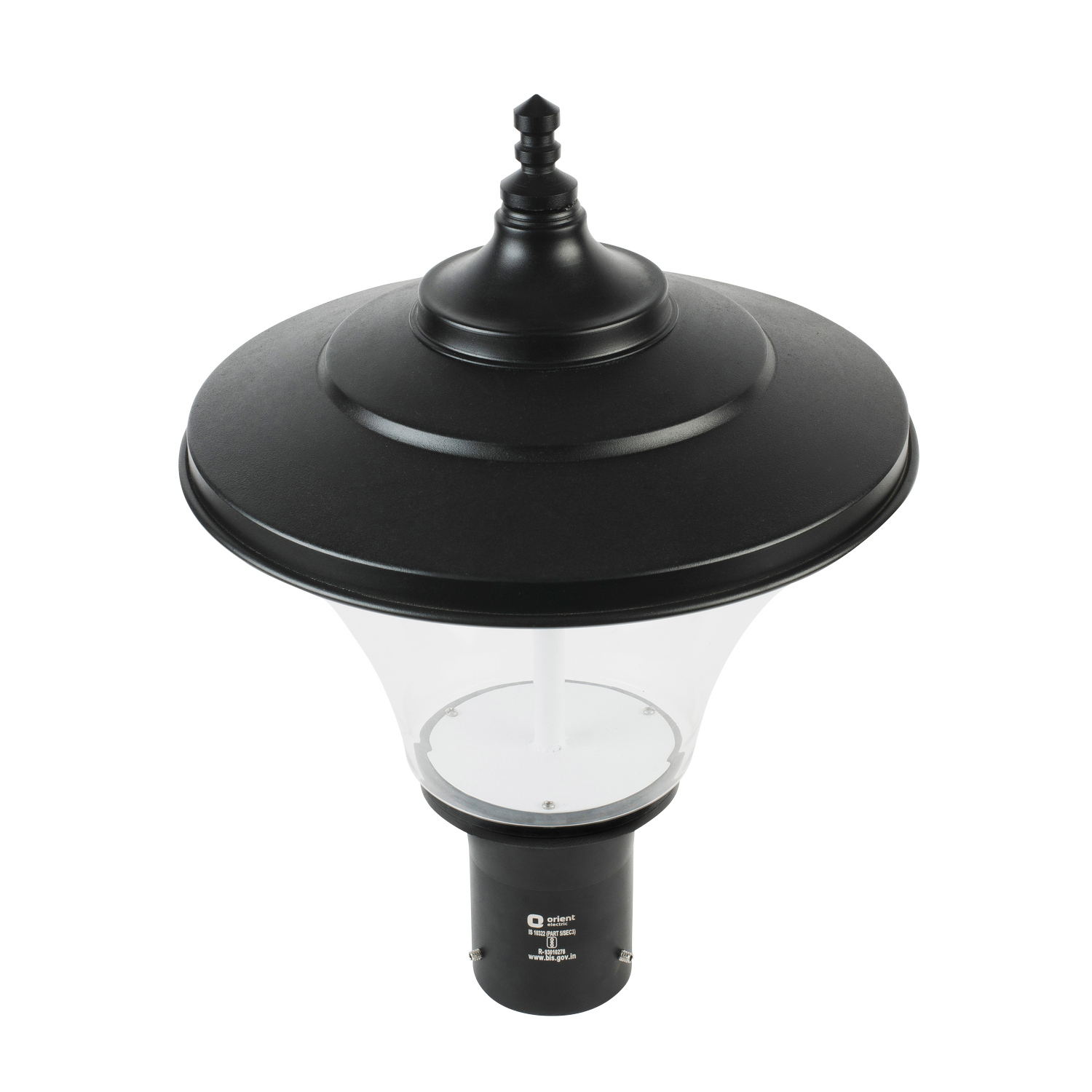

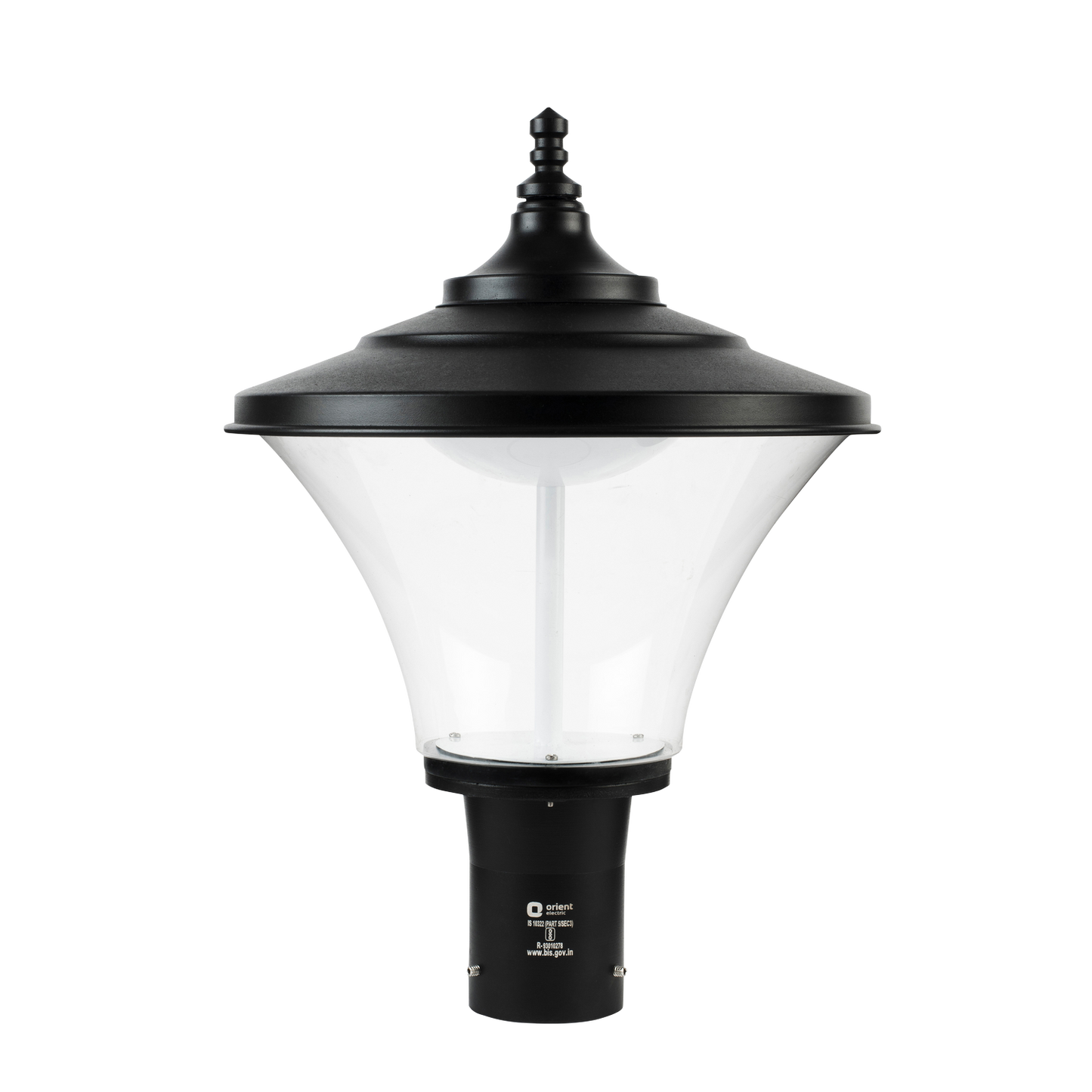

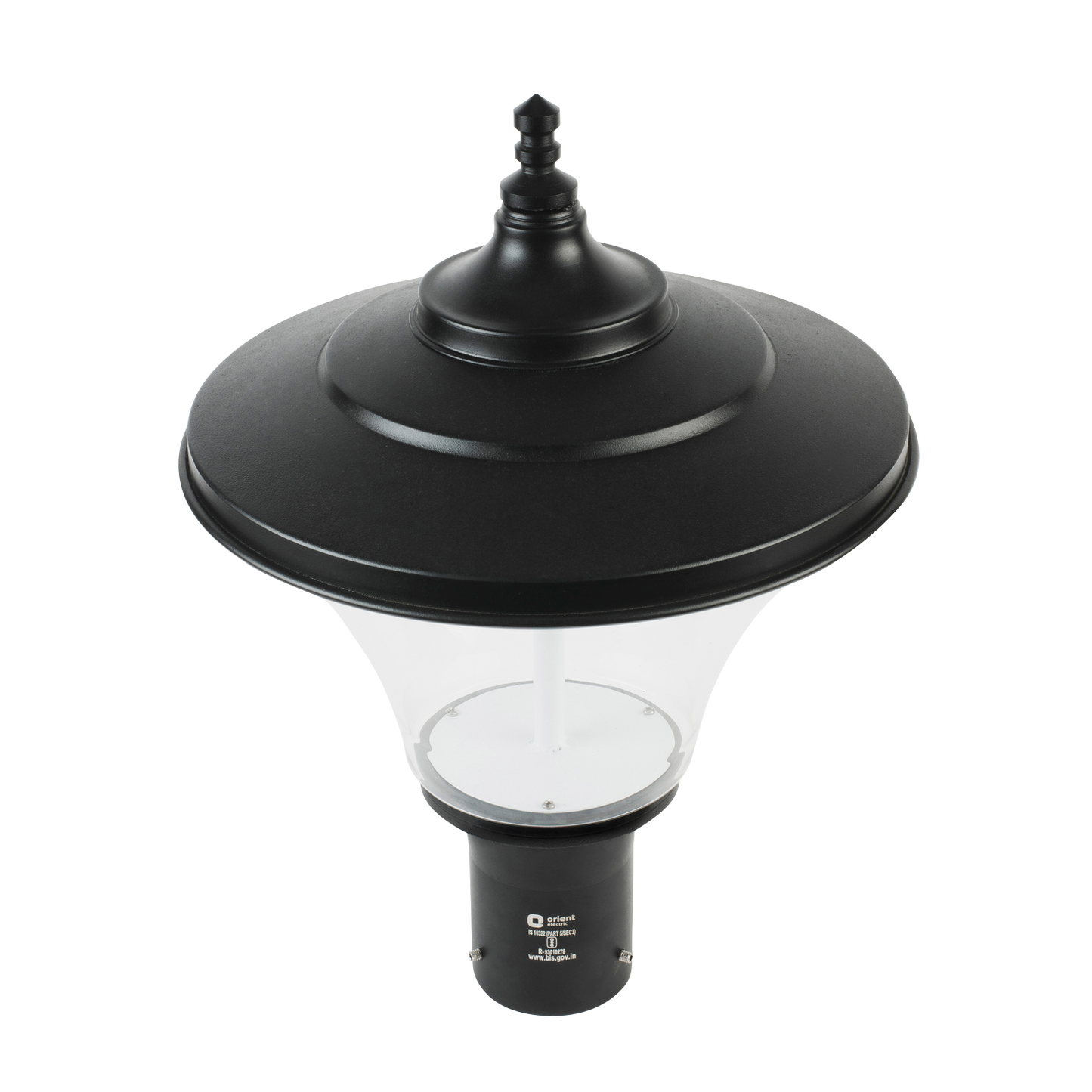

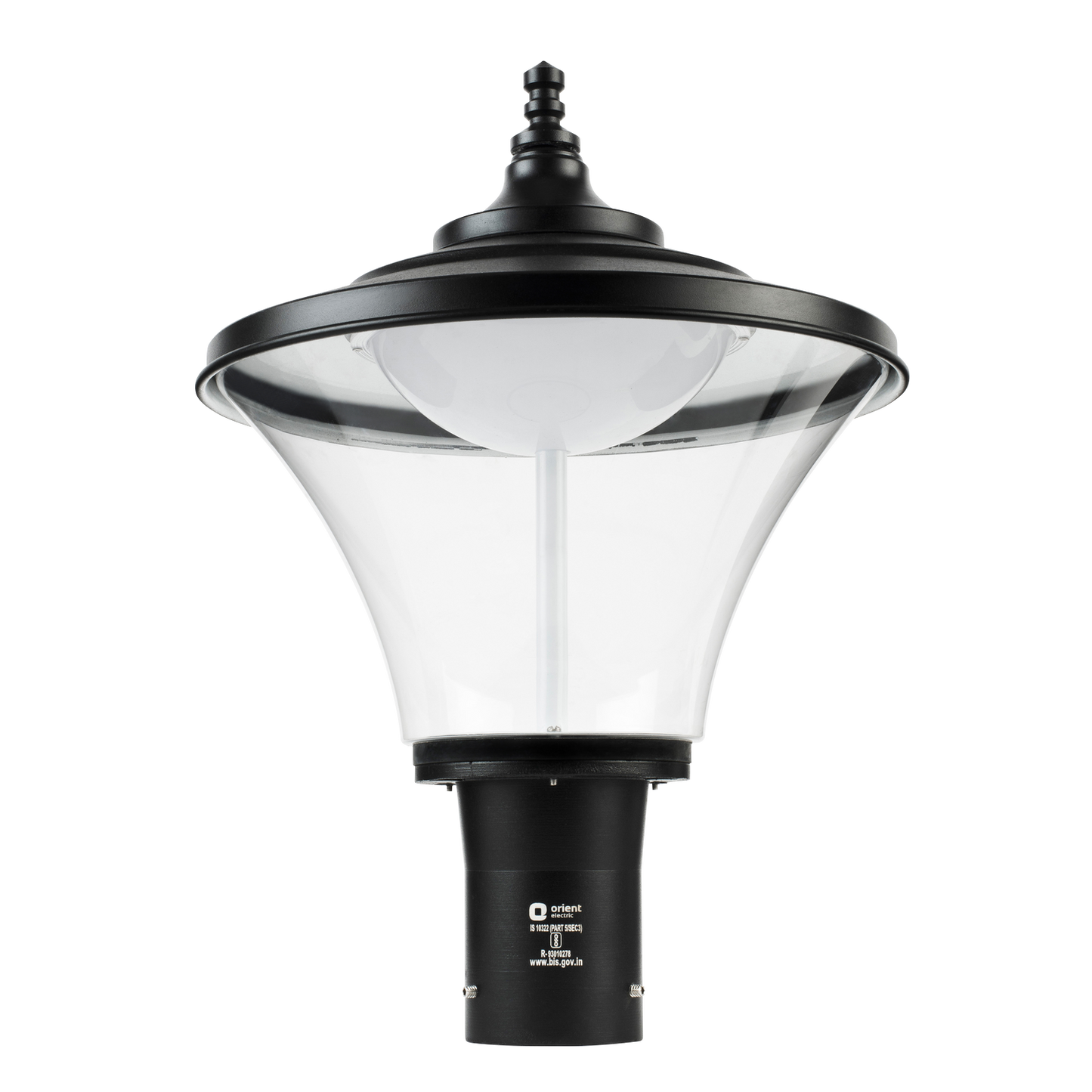

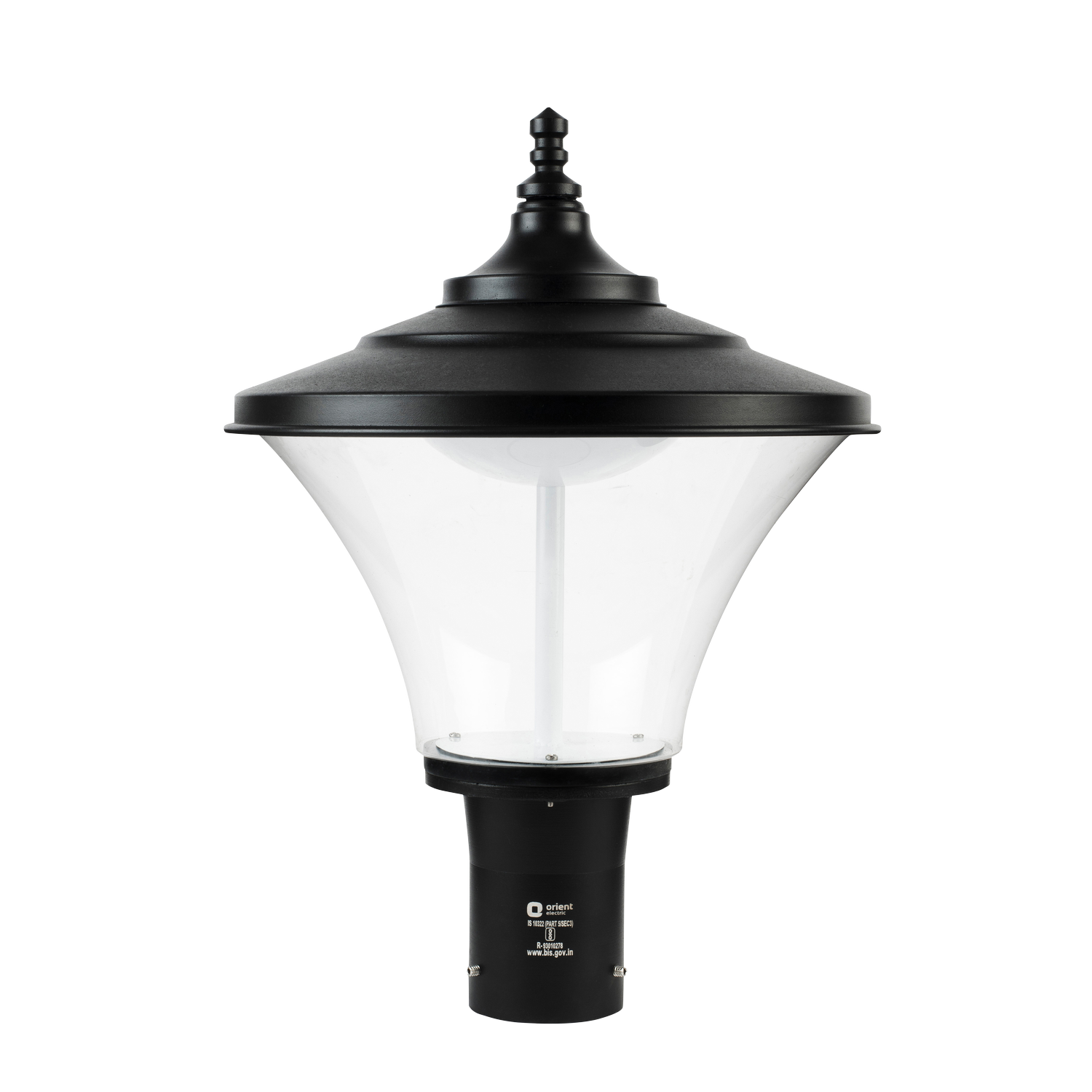

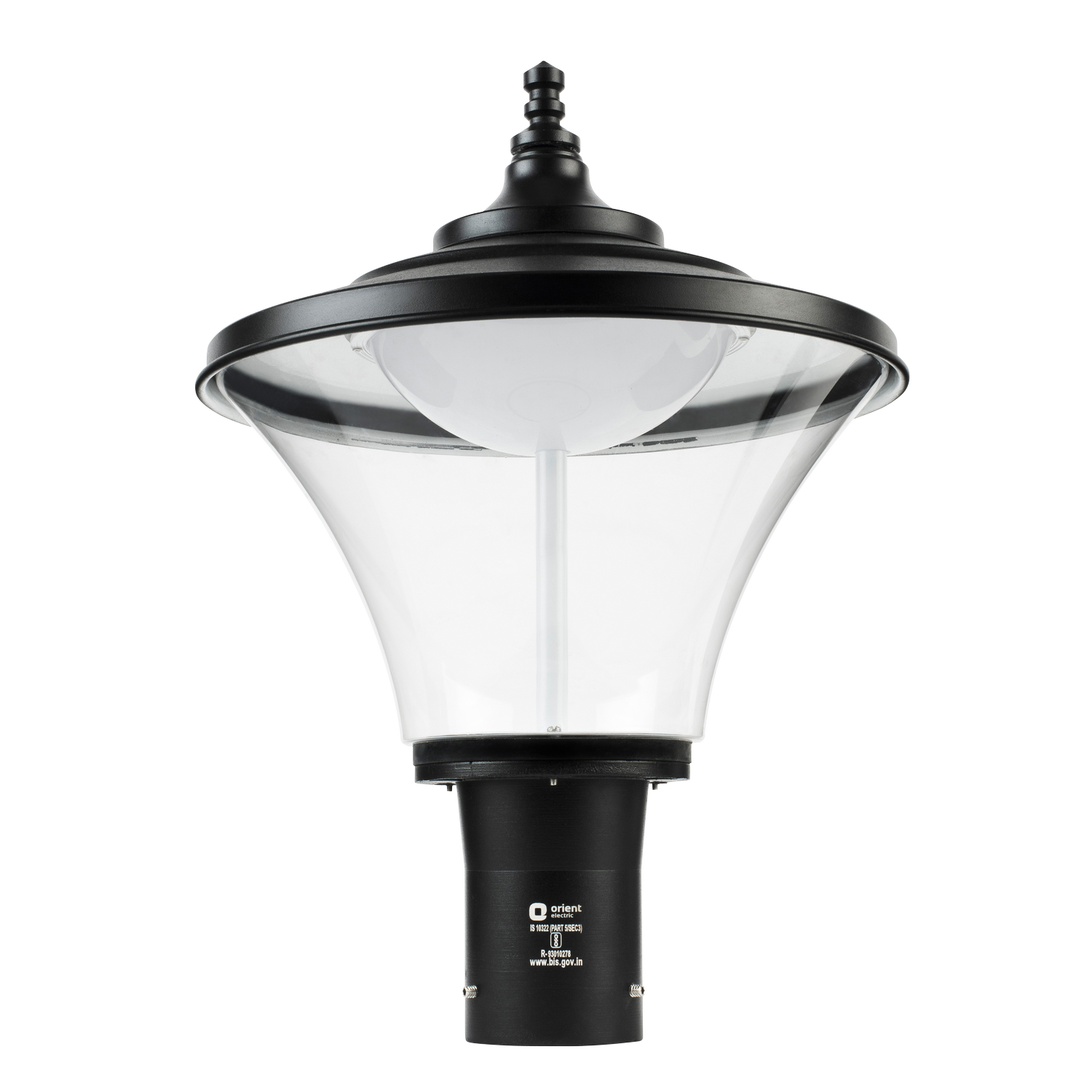

Energy saving, long life aesthetically designed die-cast aluminium landscape luminaire with high power LED as light source.

Best suited for

Parks & Garden lighting

Street Lanterns

Pathway Lighting

Driveways

View full details
  • General specification
    Housing Elegantly designed spun aluminum housing and high grade aluminium heat sink for efficient thermal management, sturdiness and excellent corrosion resistance. MS base provided to support the housing. Powder coated black after phosphochromate treatment.
    Optics life LEDs with high lumen efficacies are used.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic driver with output short circuit protection, surge protection & other safety tests.
    Surge Protection Upto 3.5 KV(Internal); Optional 10KV external SPD
    IP 65
  • Technical Specifications
    System Wattage 20W, 30W, 40W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90, ≥80
Aster variants
Product Variants
Aster
LLAS-20-C
Aster
LLAS-20-W
Aster
LLAS-30-C
Aster
LLAS-30-W
Aster
LLAS-40-C
Aster
LLAS-40-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Diameter (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
340
490
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
340
490
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
340
490
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
340
490
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
340
490
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
340
490
