Canopy Light

Canopy Light

Canopy Light

Product Overview

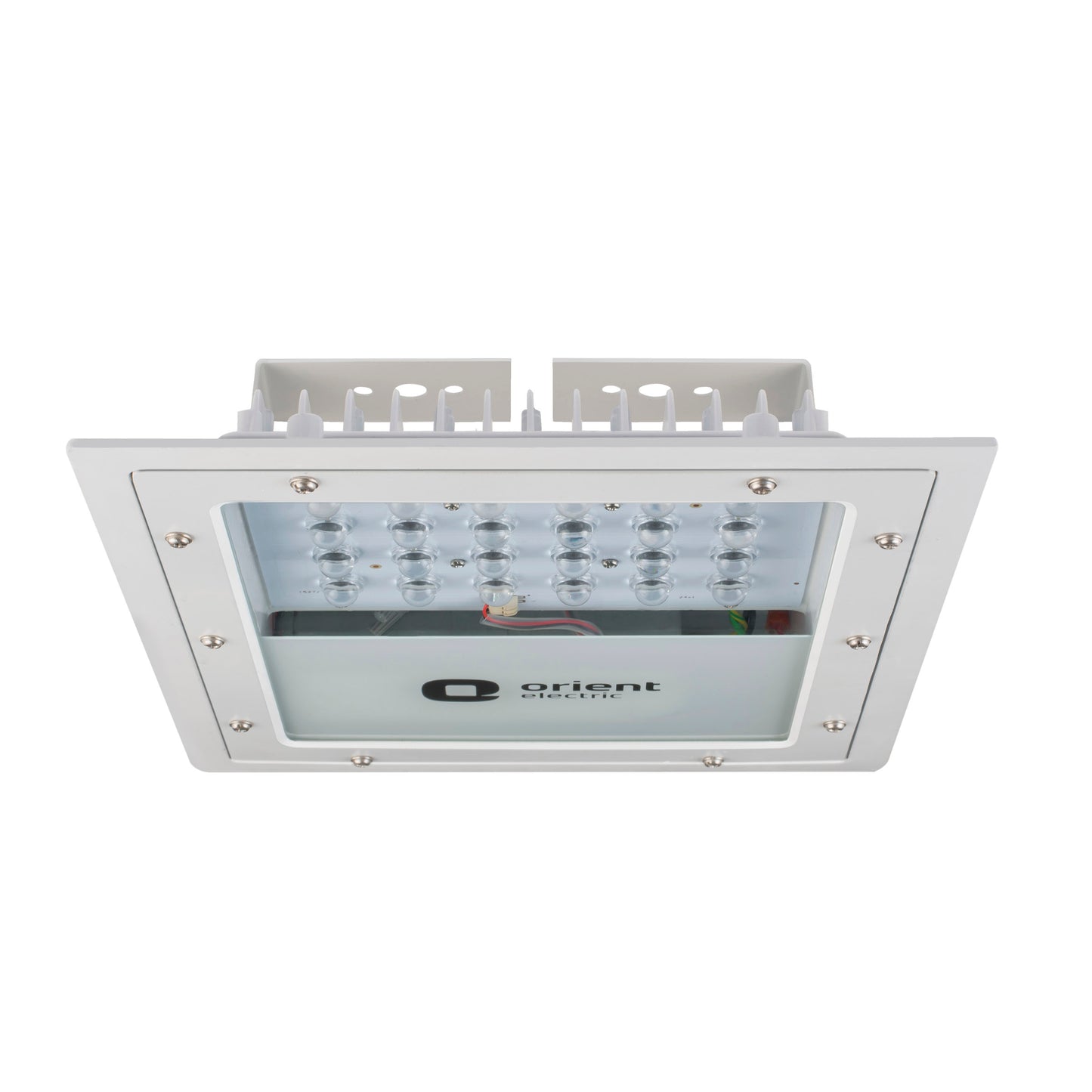

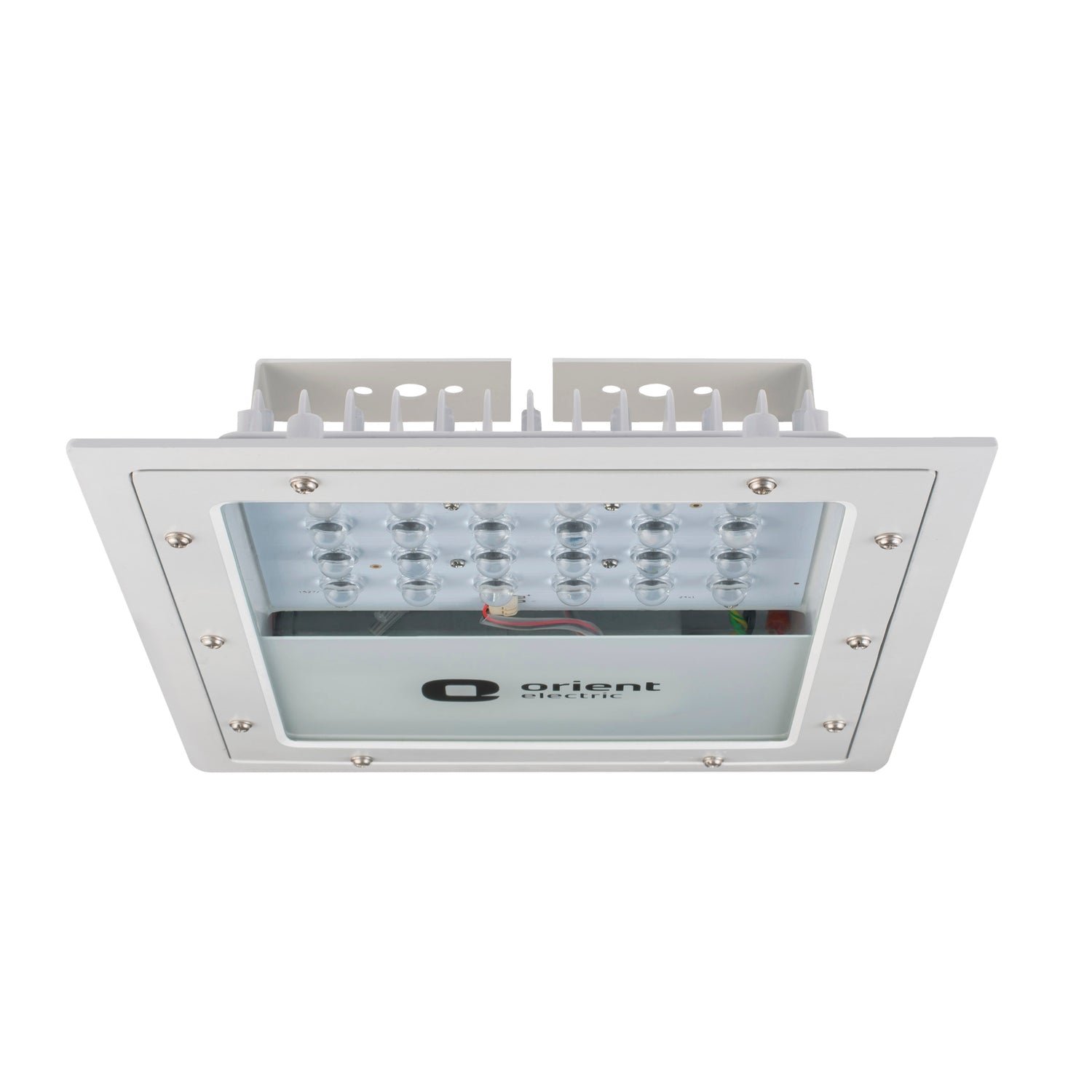

Innovatively designed recess-mounting bottom-opening LED canopy light, IP65 high-grade  aluminium housing with frame and elegantly designed extruded aluminium heat sink for efficent thermal management, sturdiness , excellent corrosion resistance , dust-free and zero-maintenance luminaire suitable for petrol pump lighting.

Best suited for

Fuel stations

Toll plazas

View full details
  • General specification
    Housing Excellent thermally managed high-grade aluminium housing with frame and elegantly designed extruded aluminium heat sink.
    Optics High lumen efficacy LED Module with SMD LED Package mounted with PC lens covered with clear toughened glass to ensure better uniformity.
    Mounting Recess/conduit mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV (internal) 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 80W , 100W
    CCT 5700K , 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥100 , ≥90
Canopy Light variants
Product Variants
Canopy Light
LICP-080-C-V1
Canopy Light
LICP-080-W-V1
Canopy Light
LICP-100-C-V1
Canopy Light
LICP-100-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
273
324
59
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
273
324
59
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
272
324
59
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
272
324
59
