Cleanroom Flameproof

Product Overview

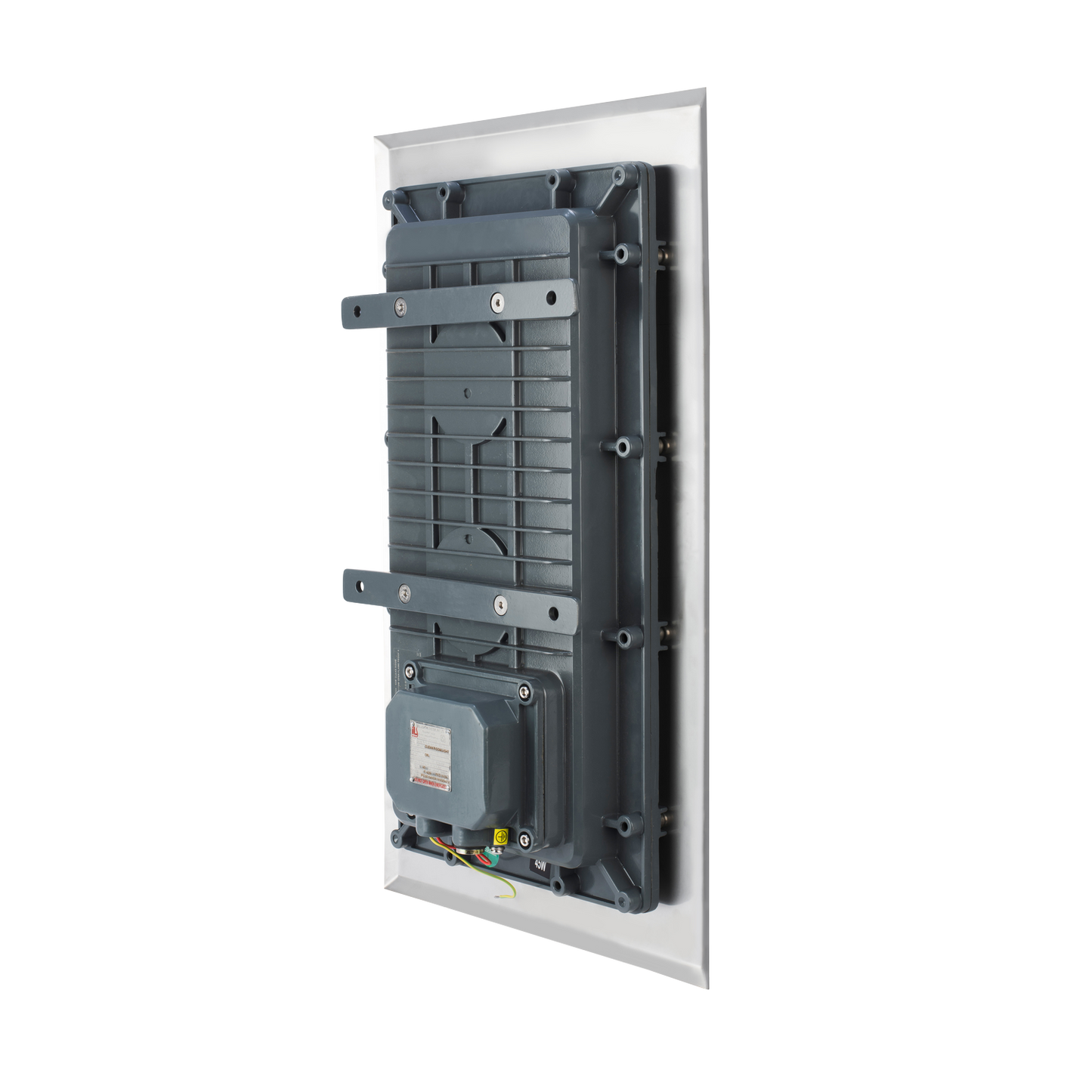

Recess-mounting bottom openable high-efficiency IP66 innovative flame proof bottom openable LED cleanroom with pressure die-cast housing and toughened glass in front designed to meet the stringent requirements of cleanroom environments while ensuring safety in hazardous locations classified as Zone 1 and Zone 2 with Gas Groups IIA and IIB.Built with advanced flameproof technology, this luminaire is engineered to operate safely in areas with potential exposure to flammable gases, vapors, or dust.

View full details

General specification
Housing Excellent thermally managed PDC Aluminum Housing With SS Frame
Optics Secondary optics 120 degree glass lens
Mounting Recess mounting
Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
Surge Protection Upto 2.5 KV
IP 66
Technical Specifications
System Wattage 45W , 60W
CCT 6500K
CRI ≥70
Rated Voltage 240V AC
Power Factor ≥0.95
THD ≤10%
System Efficacy (lm/W) ≥100

Cleanroom Flameproof variants

Product Variants

Cleanroom Flameproof

LTRCFLP-45-C-BO

Cleanroom Flameproof

LTRCFLP-60-C-BO

System Wattage

CCT

CRI

Rated Voltage

Power Factor

THD

System Efficacy (lm/W)

Length (in mm)

Width (in mm)

Height (in mm)

Cut-out dimension (in mm)

45W

6500K

≥70

240V AC

≥0.95

≤10%

≥100

680

450

130

620

60W

6500K

≥70

240V AC

≥0.95

≤10%

≥100

680

450

130

620
