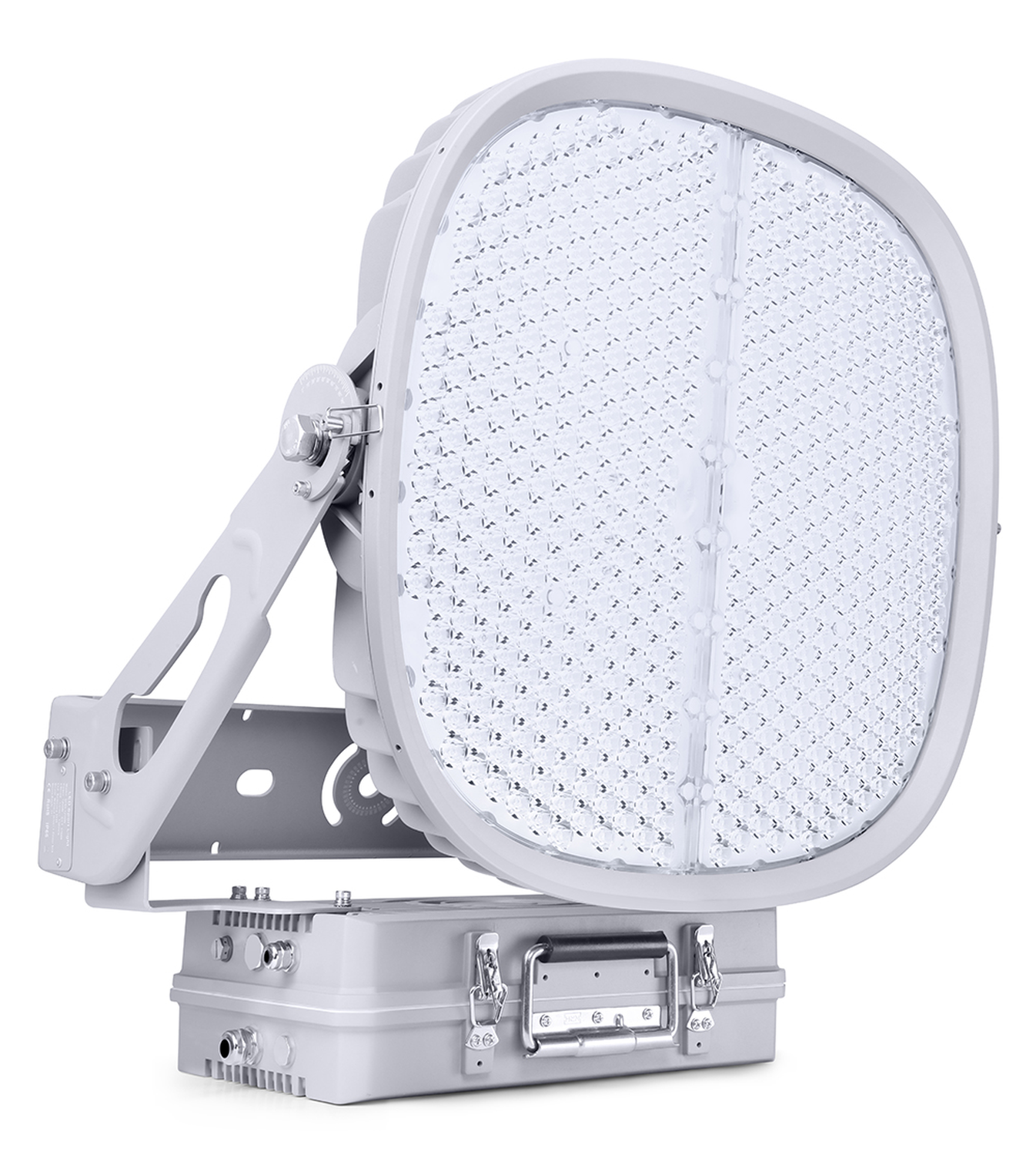

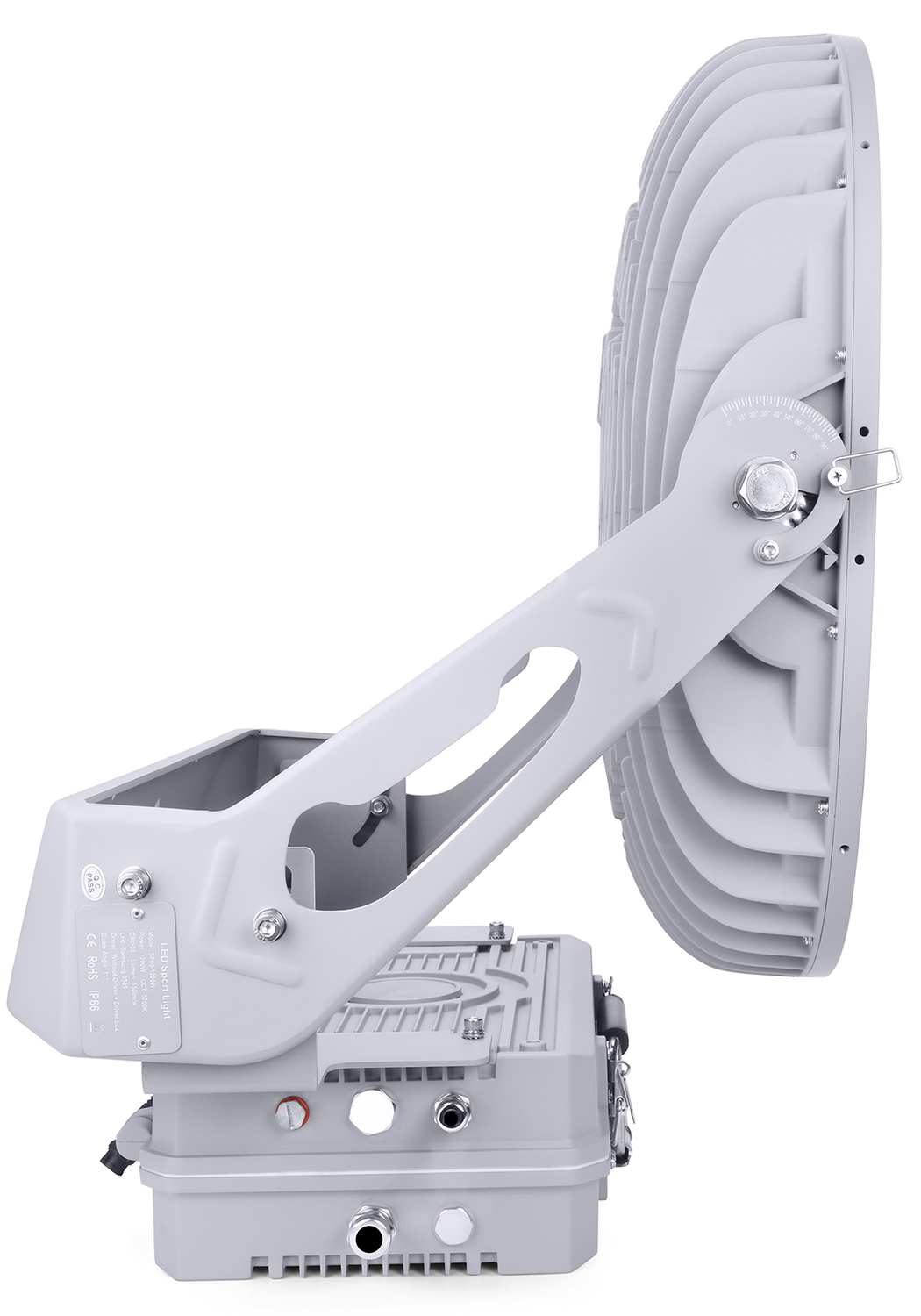

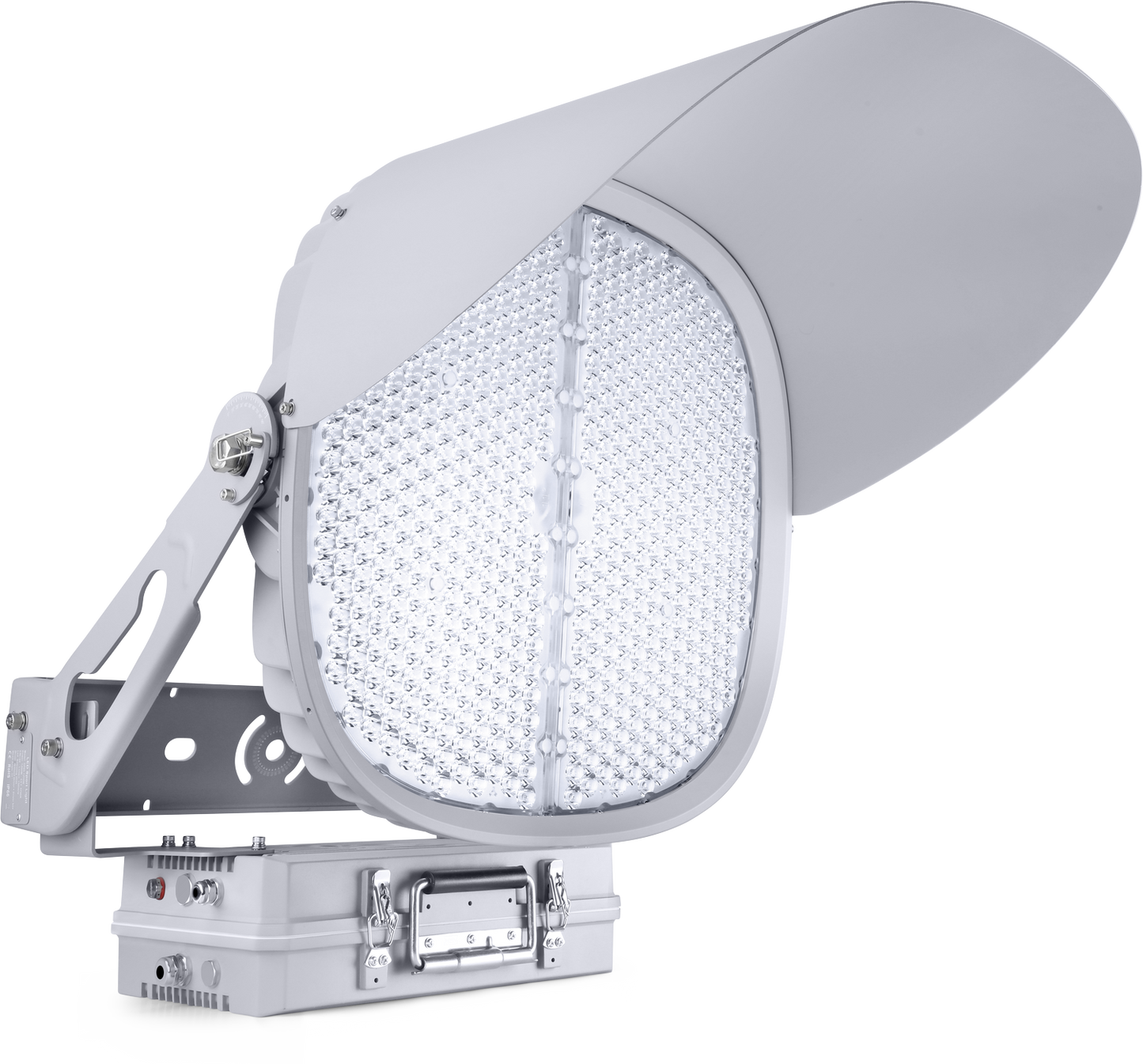

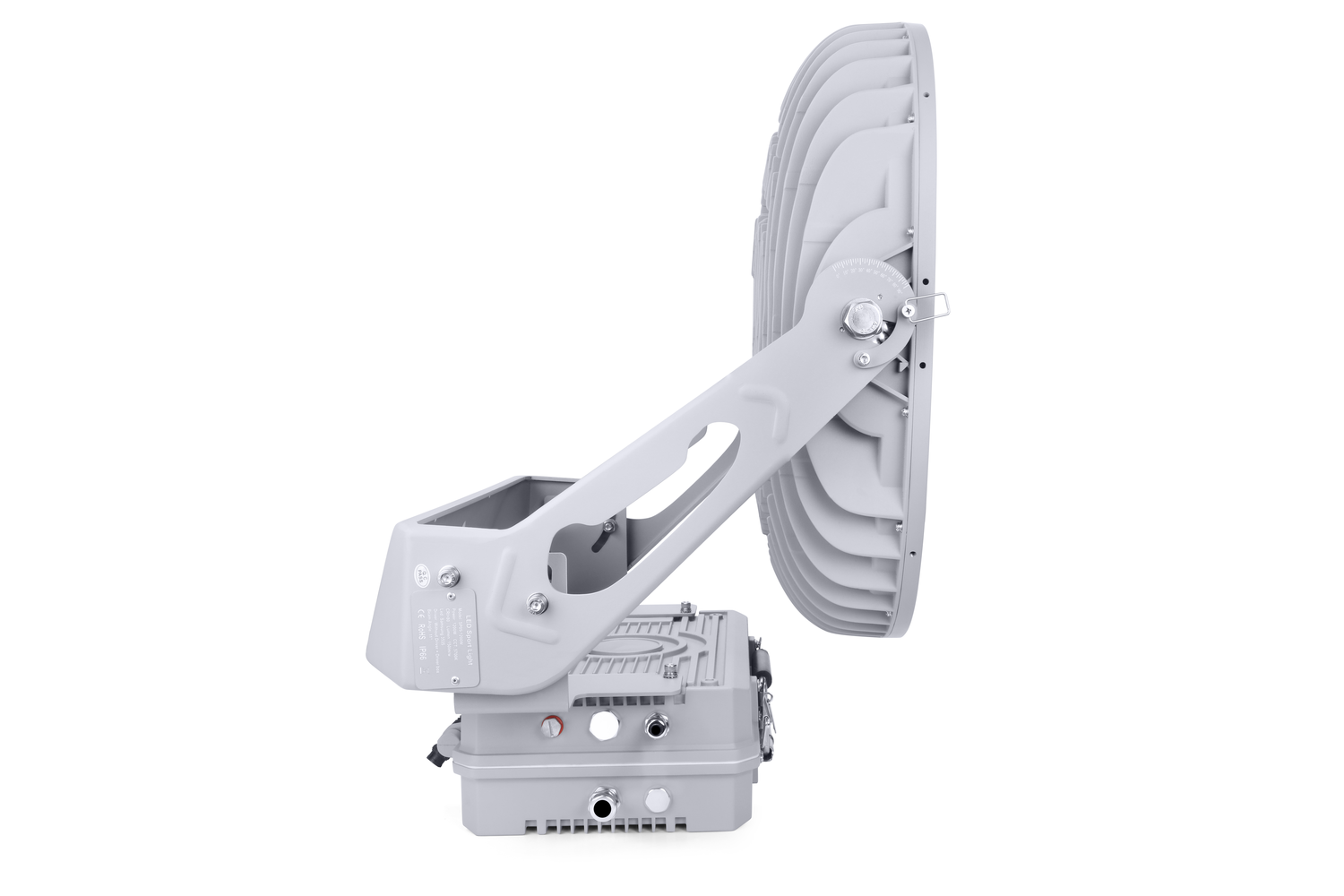

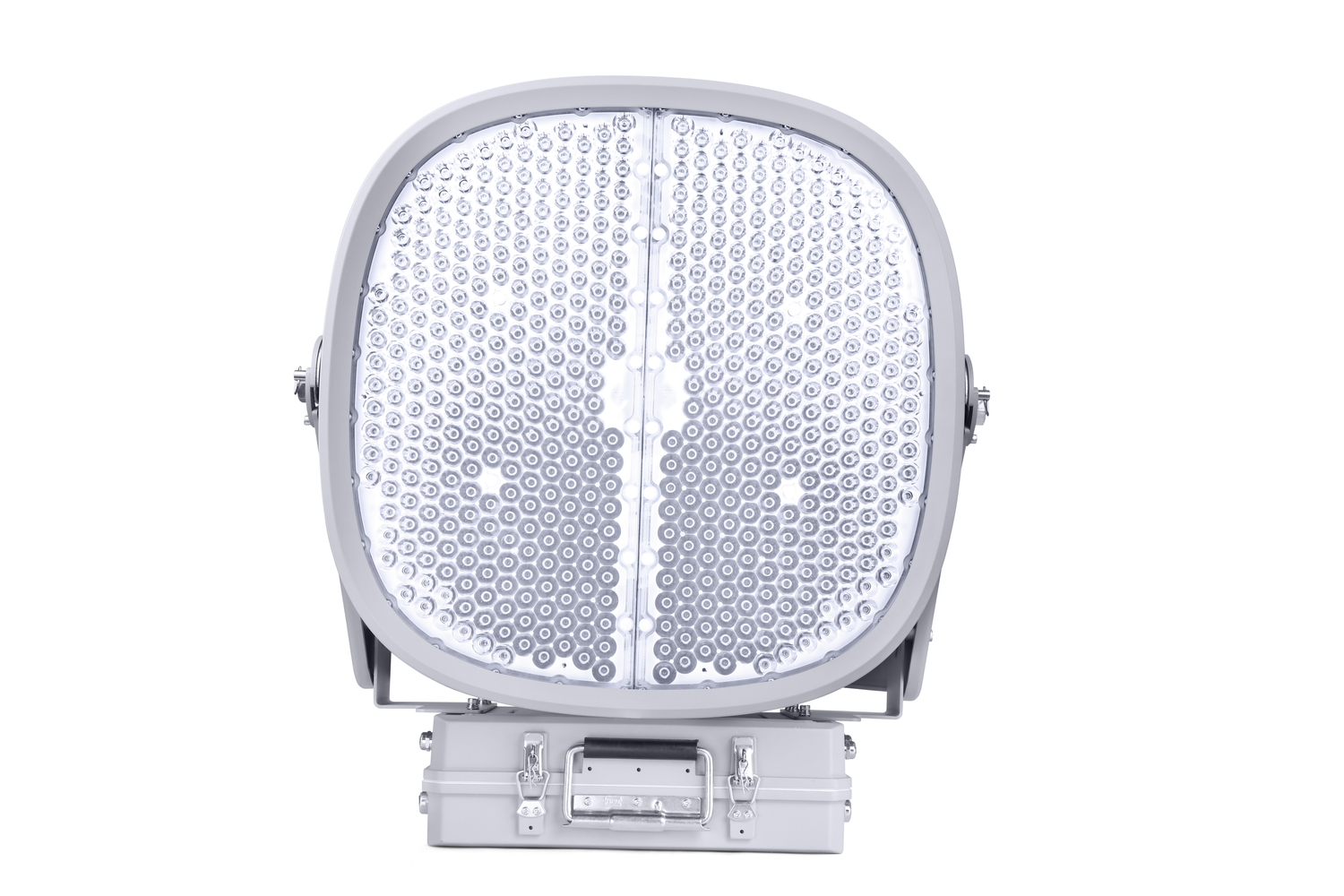

Colosseum Oval Smart

Colosseum Oval Smart

Colosseum Oval Smart

Product Overview

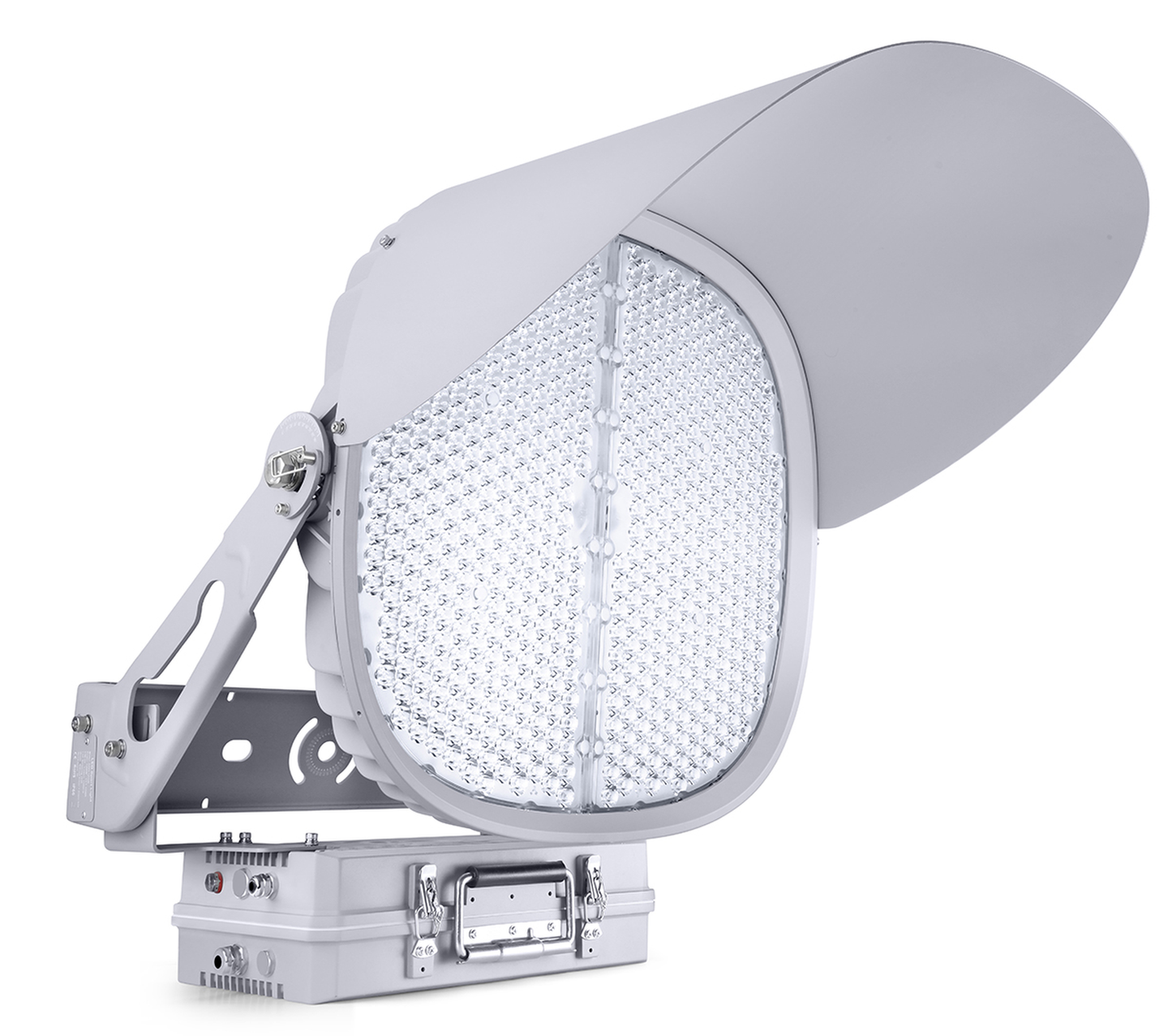

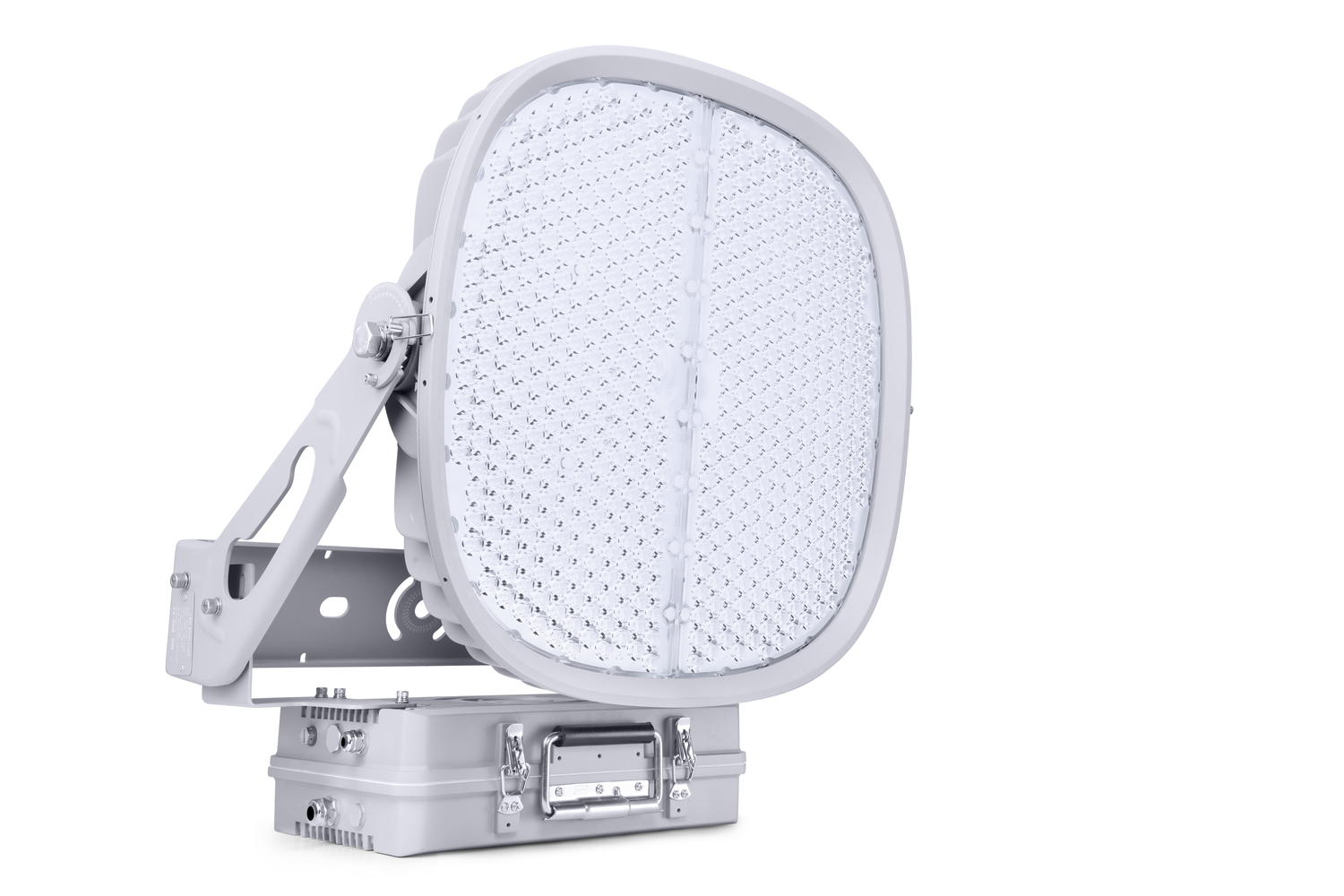

Energy efficient high efficacy ≥120lm/W LED Floodlight luminaire for Sports applications with innovative LED lighting system solution that supports the latest TV broadcasting standards designed in oval shape in single unit body made up of corrosion resistant Aluminium and Polycarbonate cover with integral Lens, offering IP 66 and IK 09. It offers dynamic Lighting control (on demand) with appropriate Driver & DMX system.

Best suited for

Class I category Sports grounds

Sports arena

Stadium lighting

View full details
  • General specification

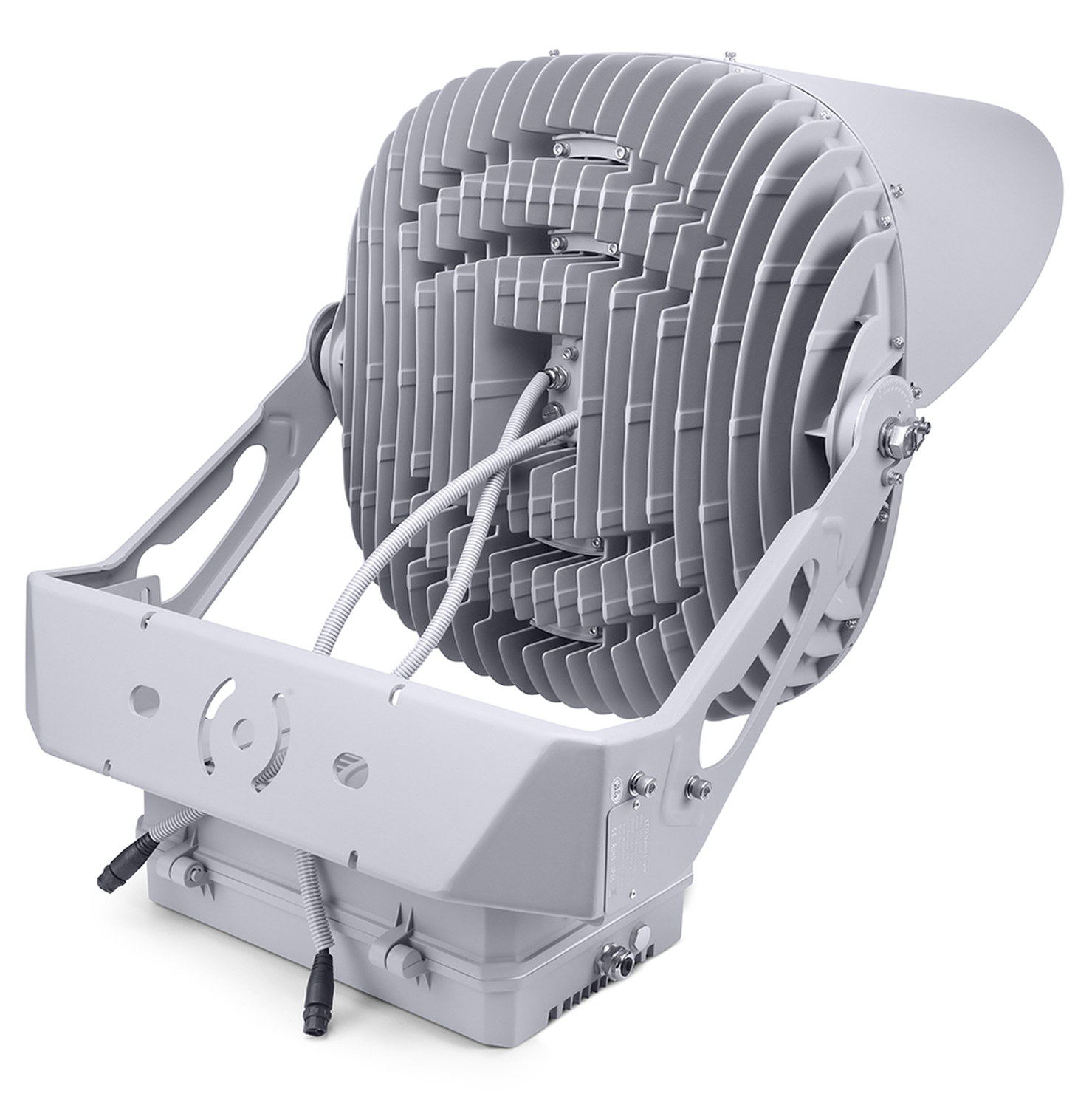

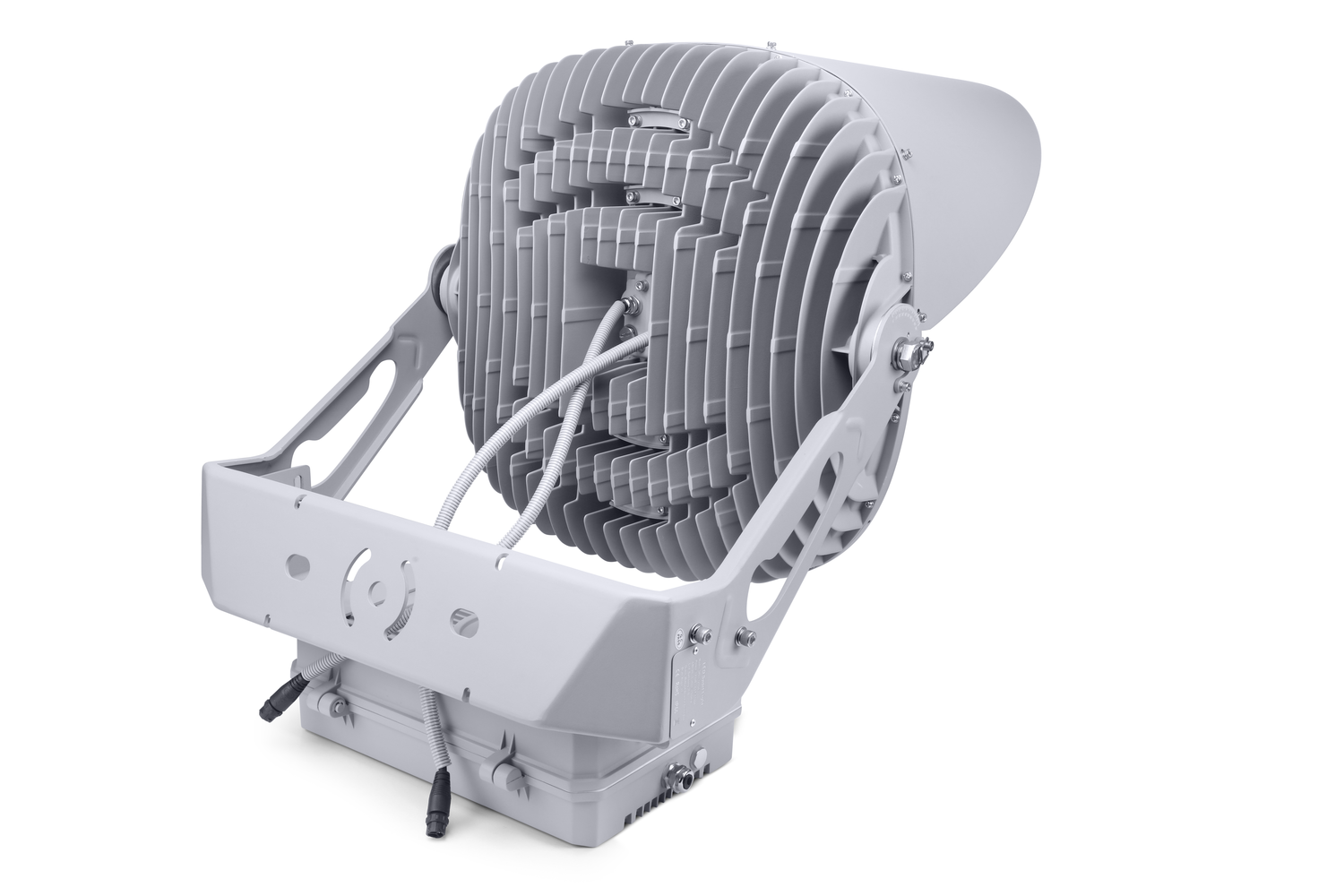

    Housing Excellent thermally managed single unit aluminium die cast housing having larger surface.

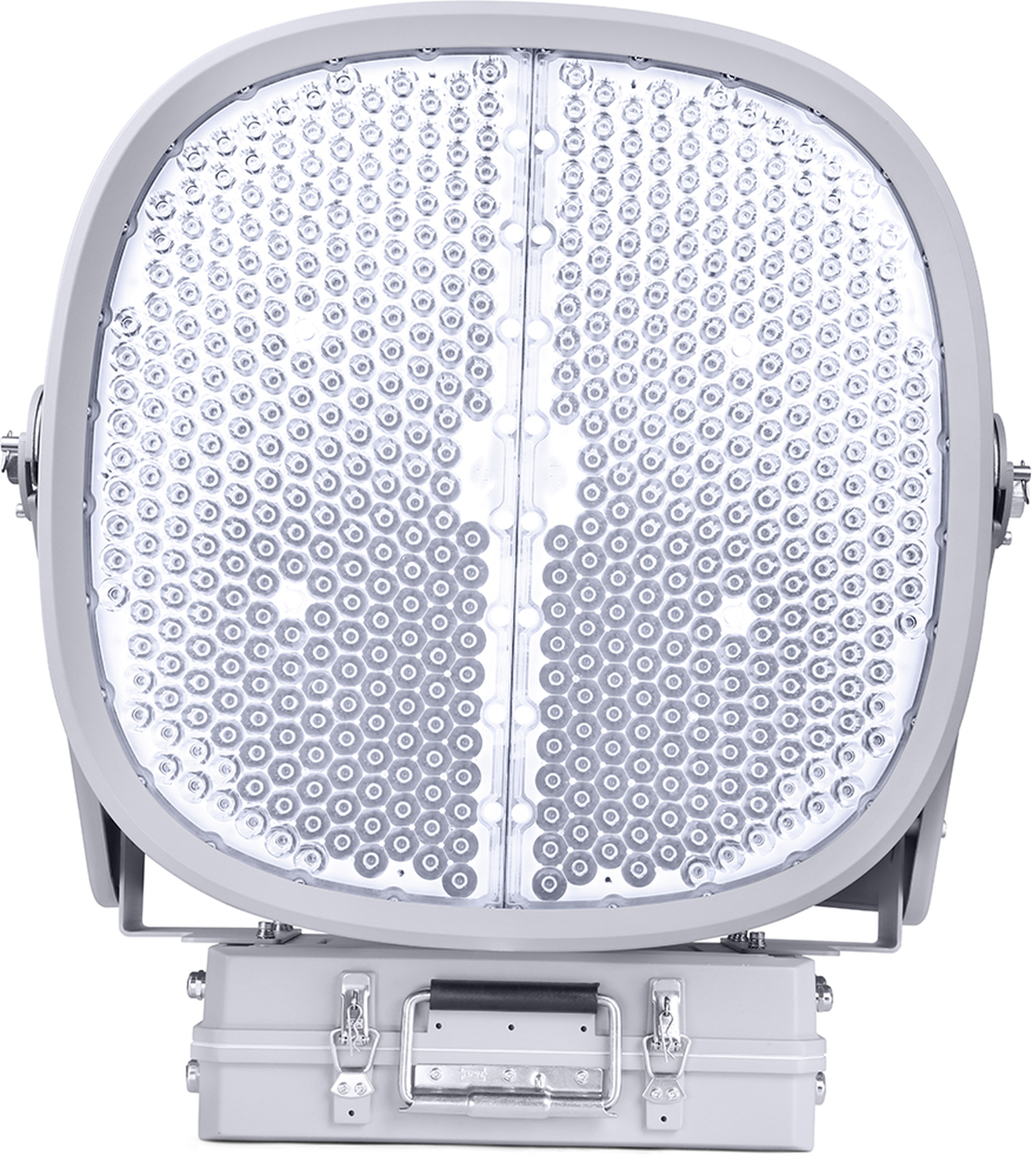

    Optics High lumen efficacy LED Module with SMD LED Package fitted with integrated polycarbonate lens cover in front.Available in 10°/13°/17°/24°

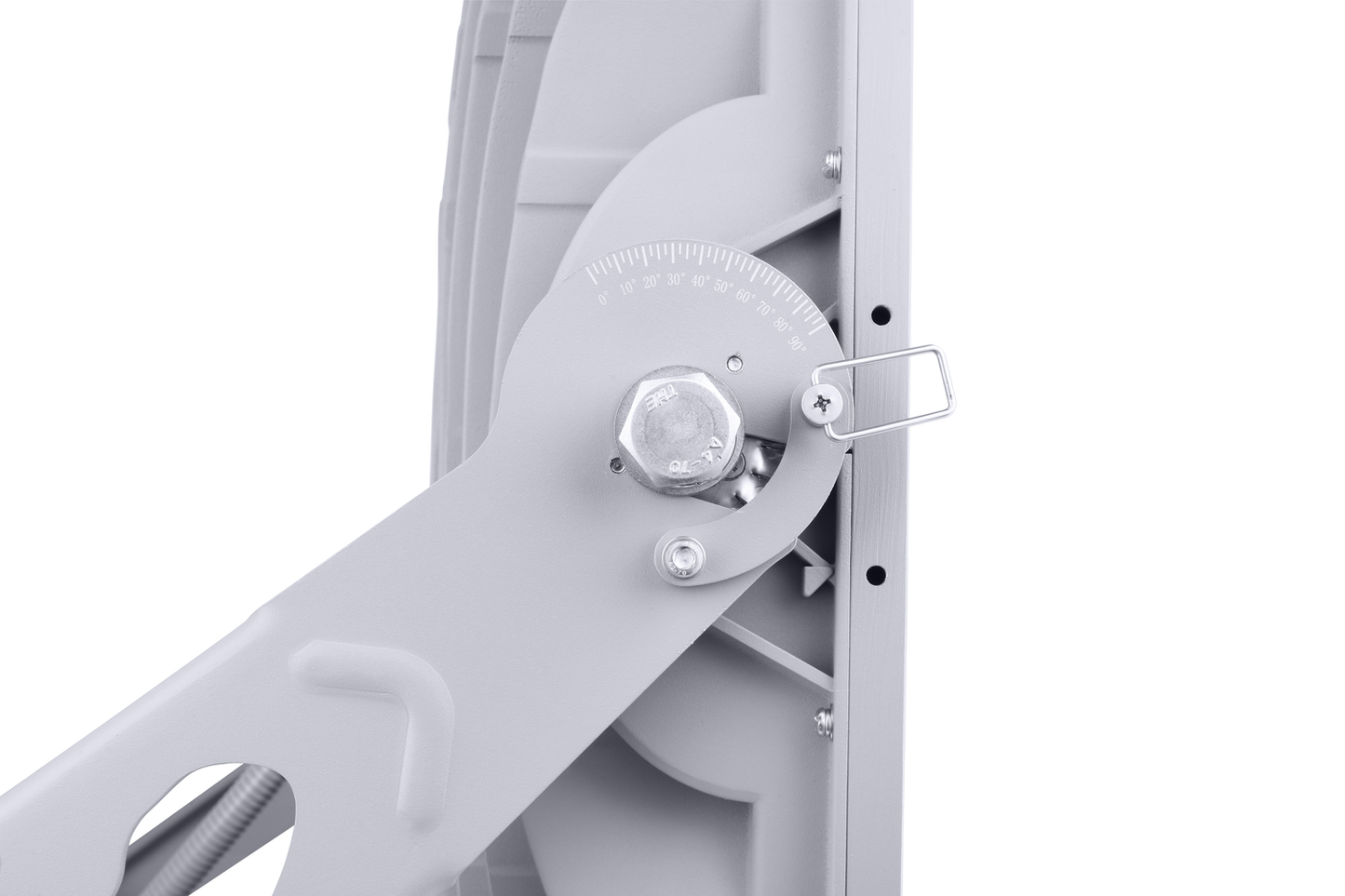

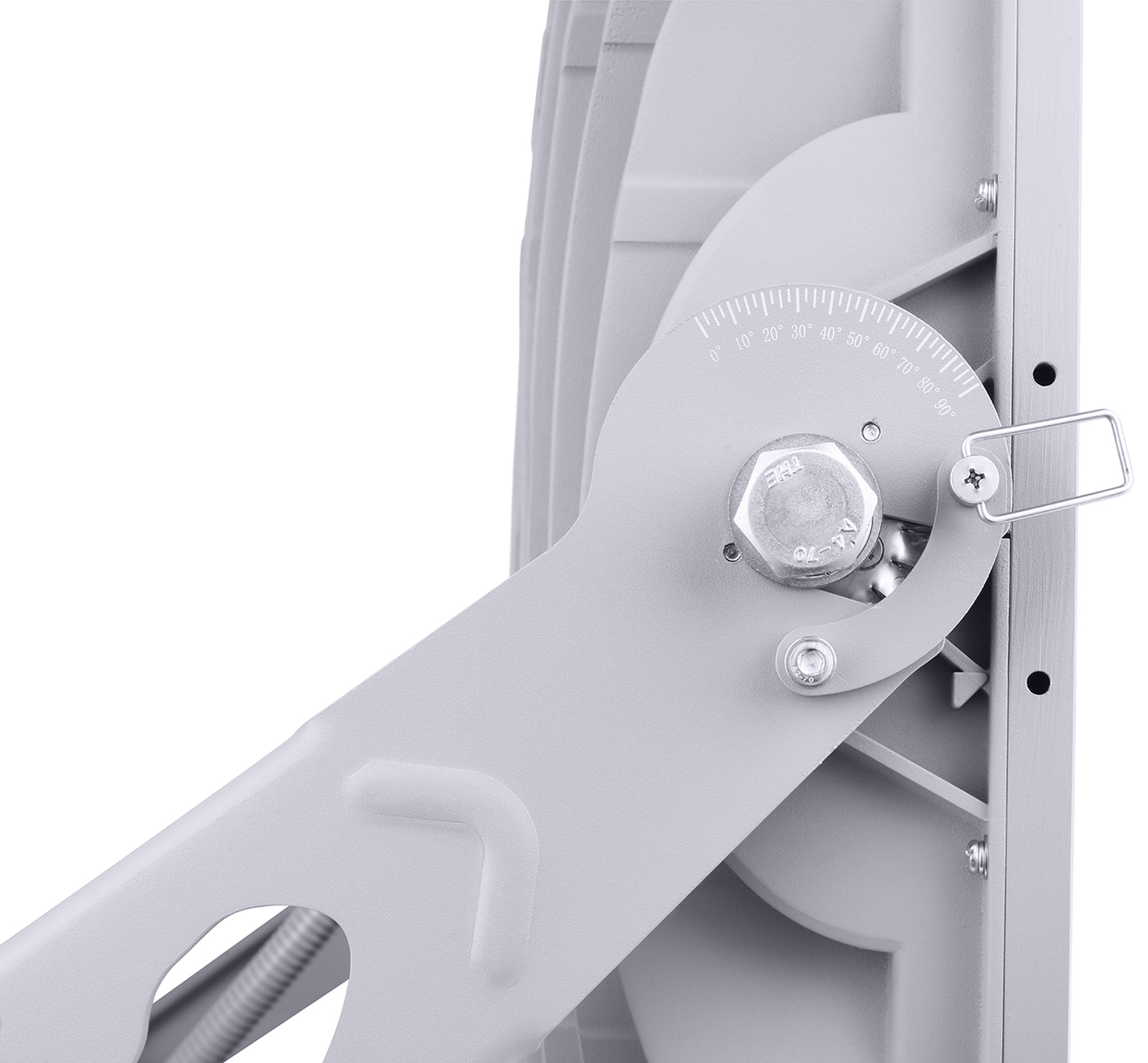

    Mounting Mounting using adjustable cradle
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV (internal) ;inbuilt 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 1350W, 1400W, 1450W
    CCT 5700K
    CRI ≥90
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥120
Colosseum Oval Smart variants
Product Variants
Colosseum Oval Smart
LFCO-1350-C9
Colosseum Oval Smart
LFCO-1400-C9
Colosseum Oval Smart
LFCO-1450-C9
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height ( in mm)
1350W
5700K
≥90
240V AC
≥0.95
≤10%
≥120
575
528
544
1400W
5700K
≥90
240V AC
≥0.95
≤10%
≥120
575
528
544
1450W
5700K
≥90
240V AC
≥0.95
≤10%
≥120
575
528
544
