Product Overview

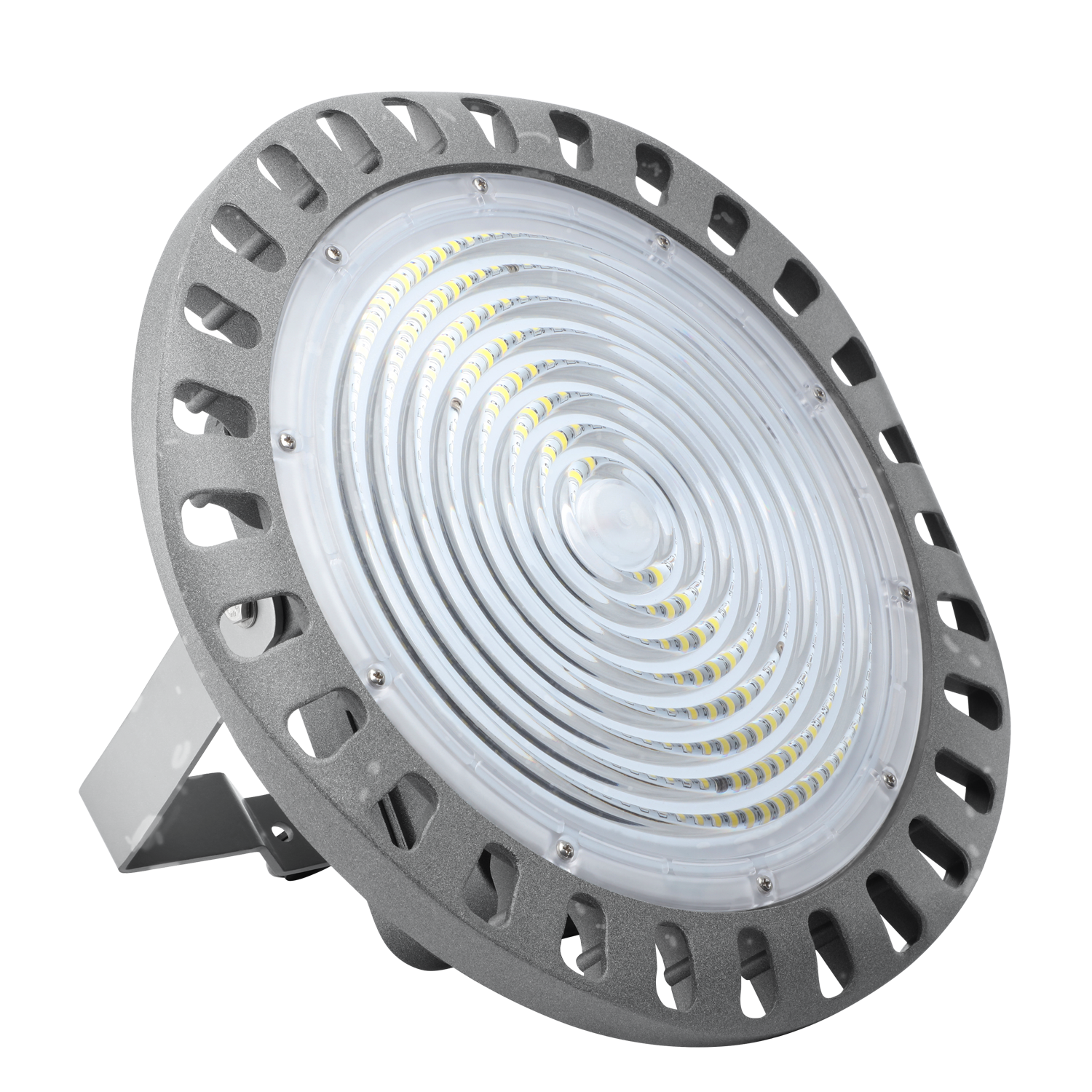

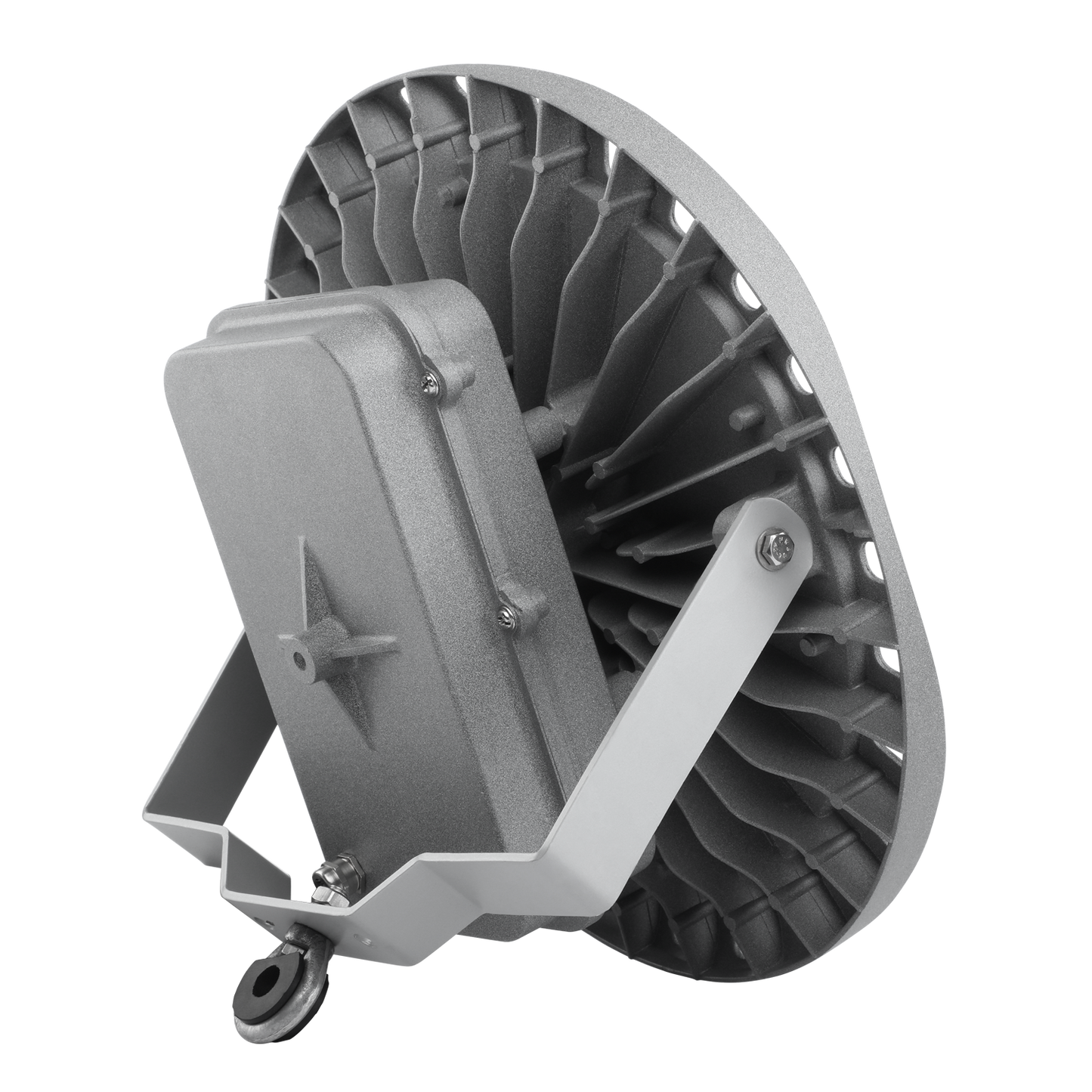

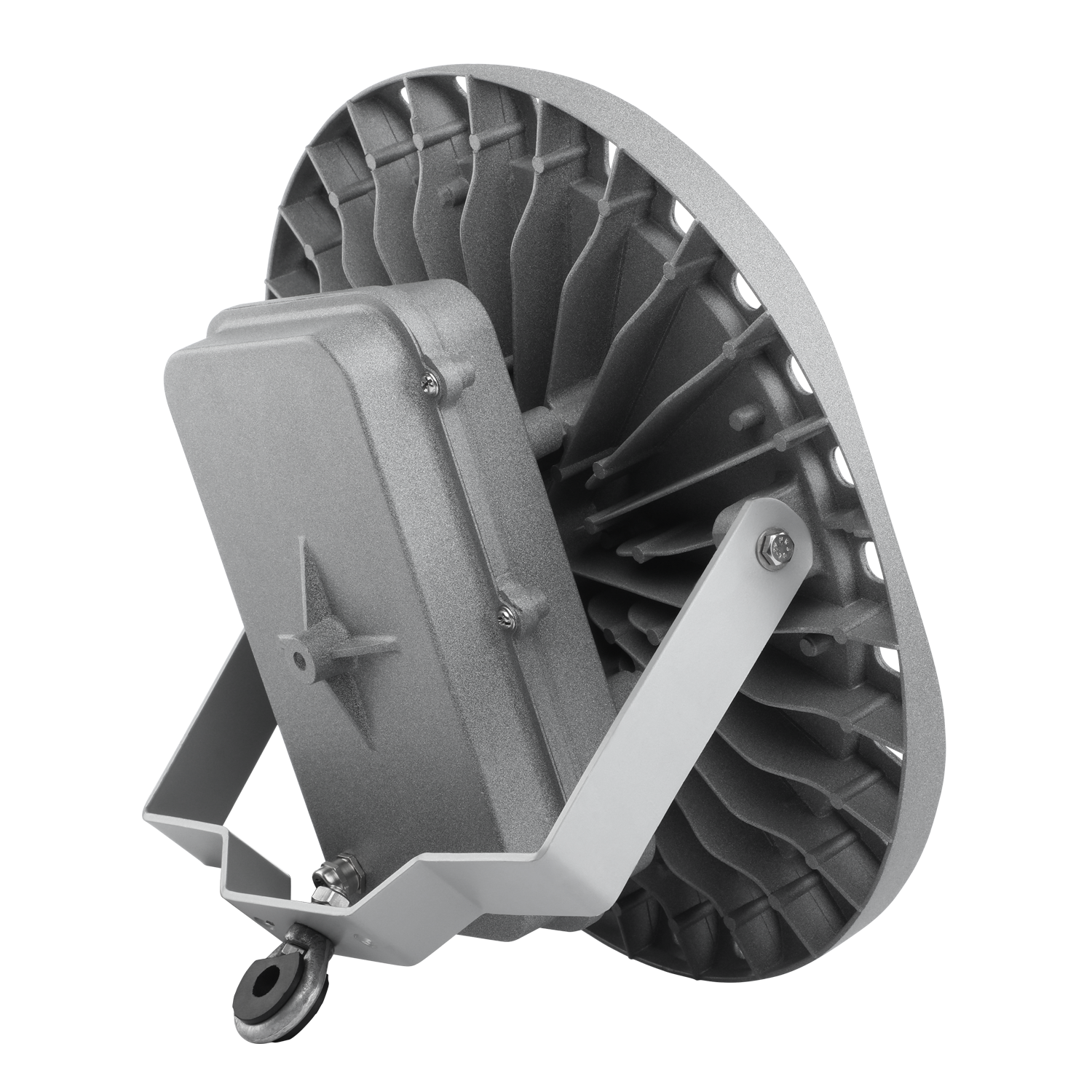

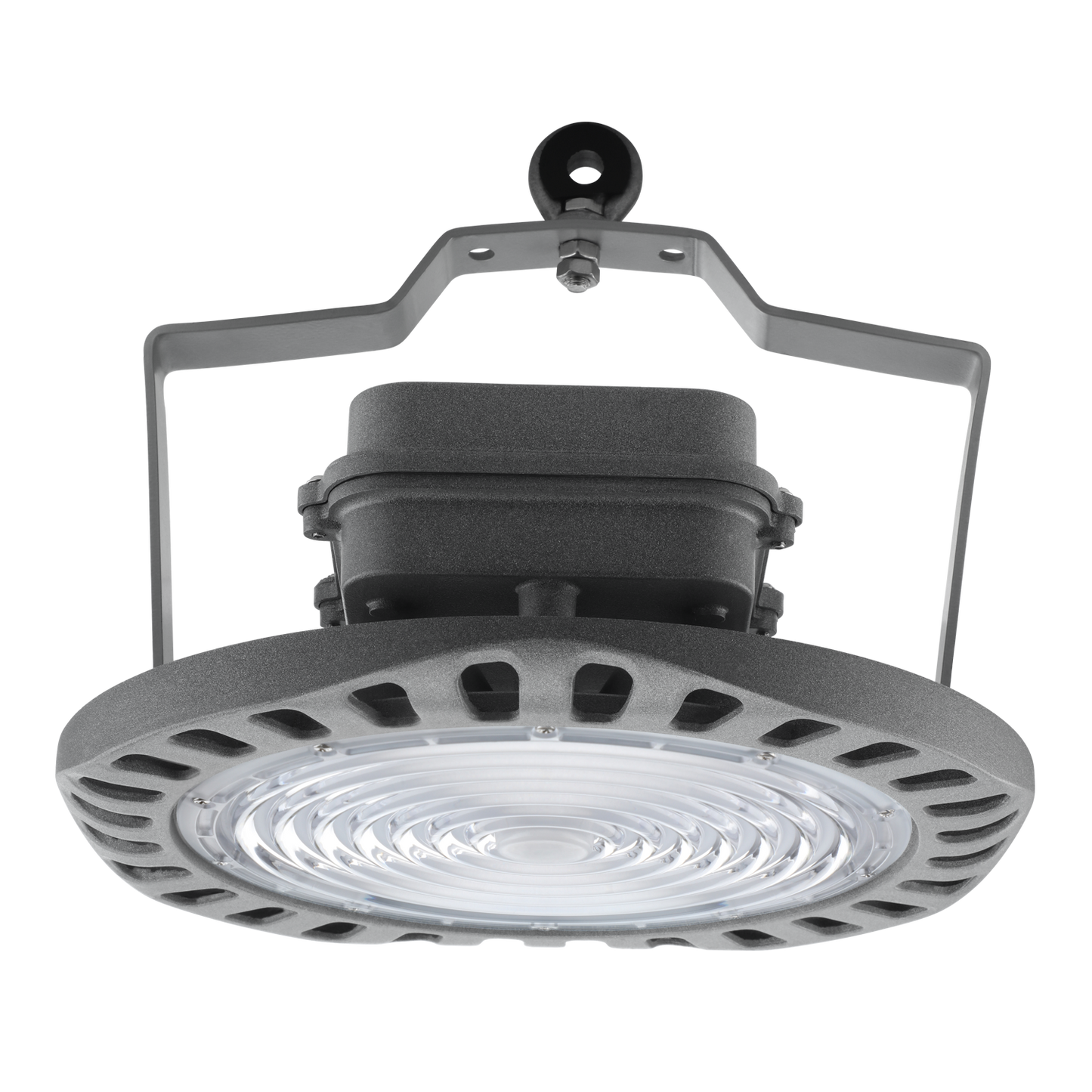

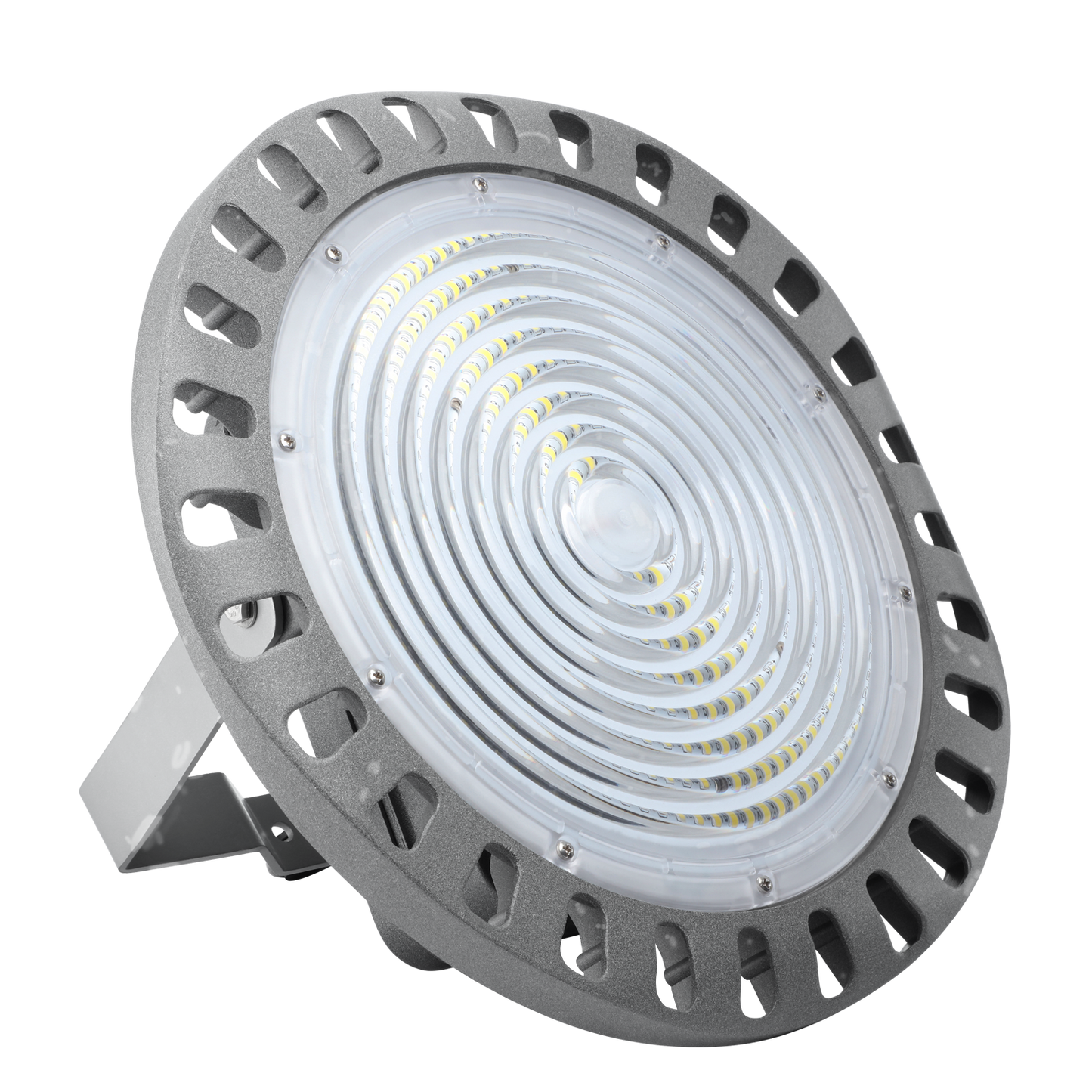

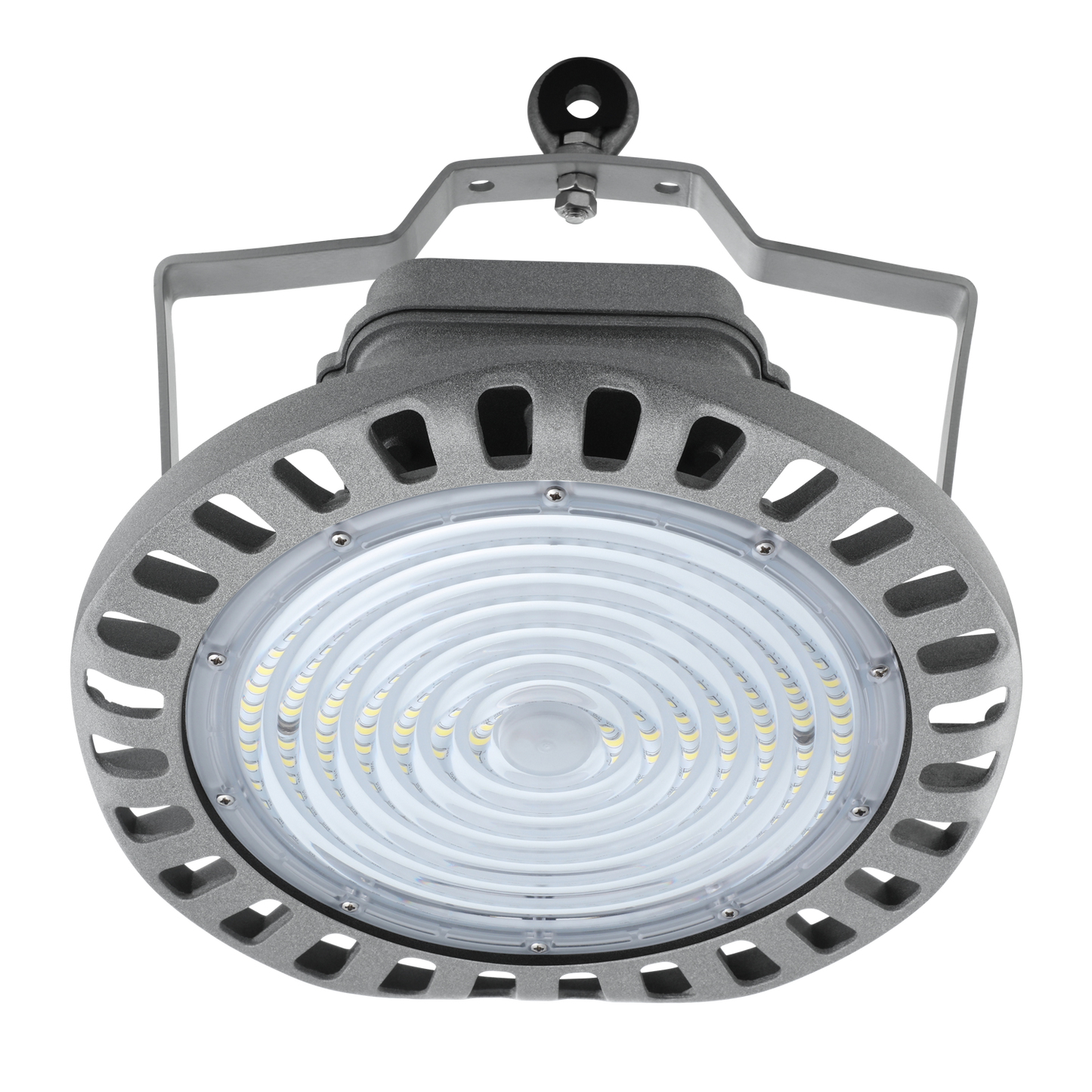

LED Highbay designed with excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area, satin finish powder coating and fitted with polycarbonate integrated lens in the front for the desired Ingress Protection.

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area with satin finish powder coating
    Optics Polycarbonate integrated lens in the front of LEDs. Available in 60° & 90° beam angles
    Mounting Eyebolt provided for chain suspension
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV; optional 10 KV SPD
    IP 66
  • Technical Specifications
    Wattage 80W | 100W | 120W| 150W | 200W
    CCT 5700K | 3000K
    CRI ≥ 70
    Rated Voltage 240V AC
    Power Factor ≥ 0.95
    THD ≤ 10%
    System efficacy (lm/W) ≥150, ≥135
Crown variants
Product Variants
Crown
LHCN-080-CF
Crown
LHCN-080-WF
Crown
LHCN-100-CF
Crown
LHCN-100-WF
Crown
LHCN-120-CF
Crown
LHCN-120-WF
Crown
LHCN-150-CF
Crown
LHCN-150-WF
Crown
LHCN-200-CF
Crown
LHCN-200-WF
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥150
260
118
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥135
260
118
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥150
292
160
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥135
292
160
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥150
292
160
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥135
292
160
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥150
300
121
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥135
300
121
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥150
342
130
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥135
342
130
