Crystal Mini

Crystal Mini

Crystal Mini

Product Overview

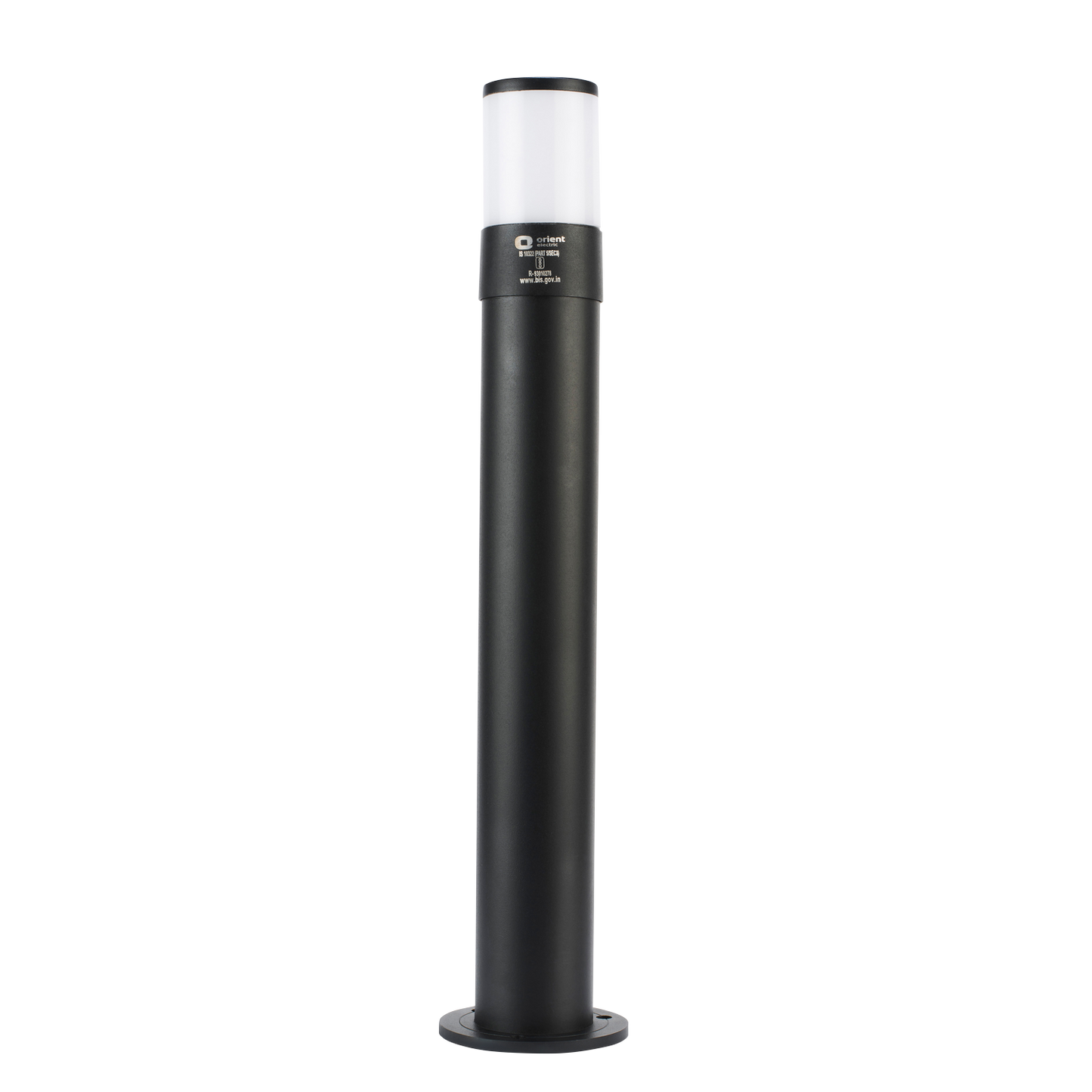

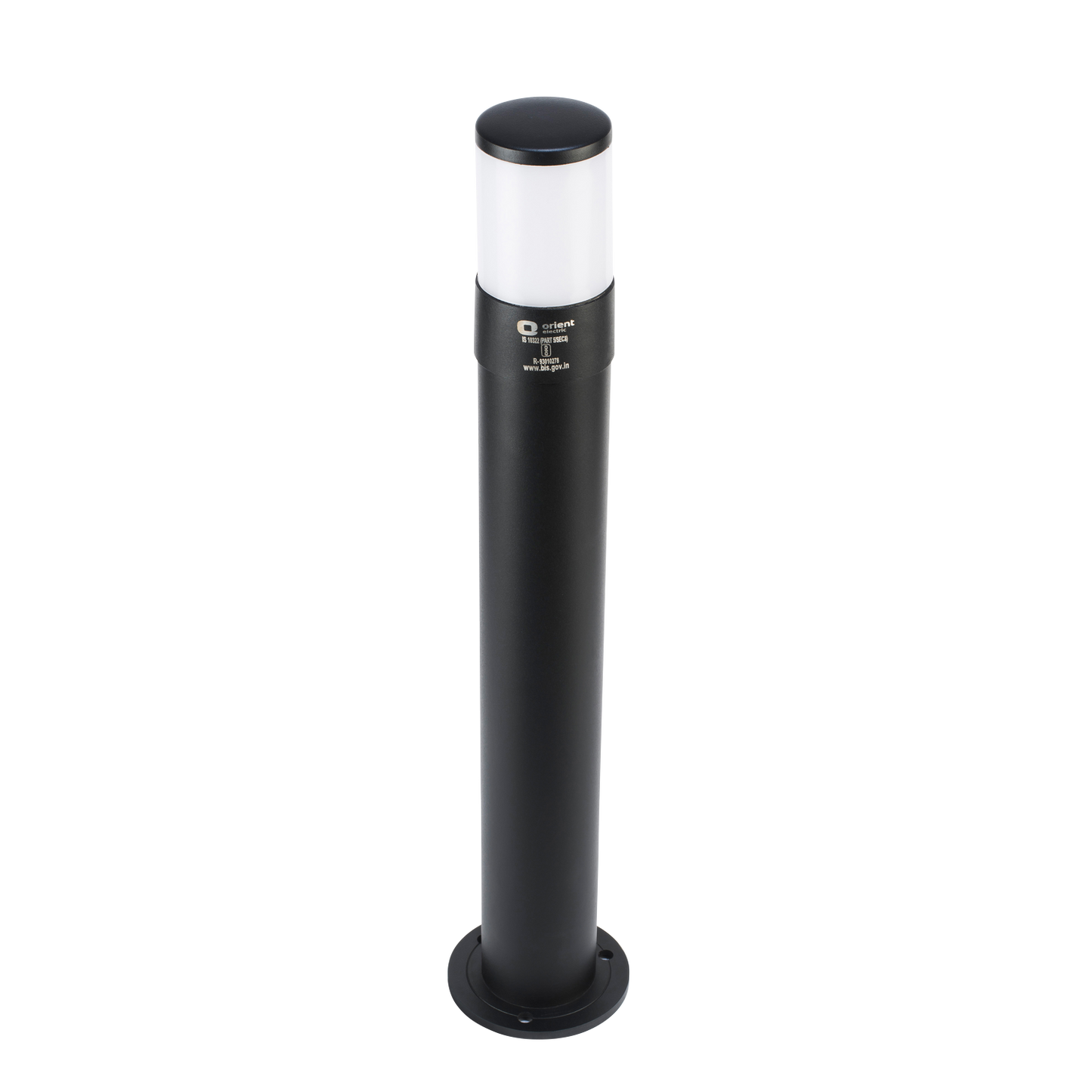

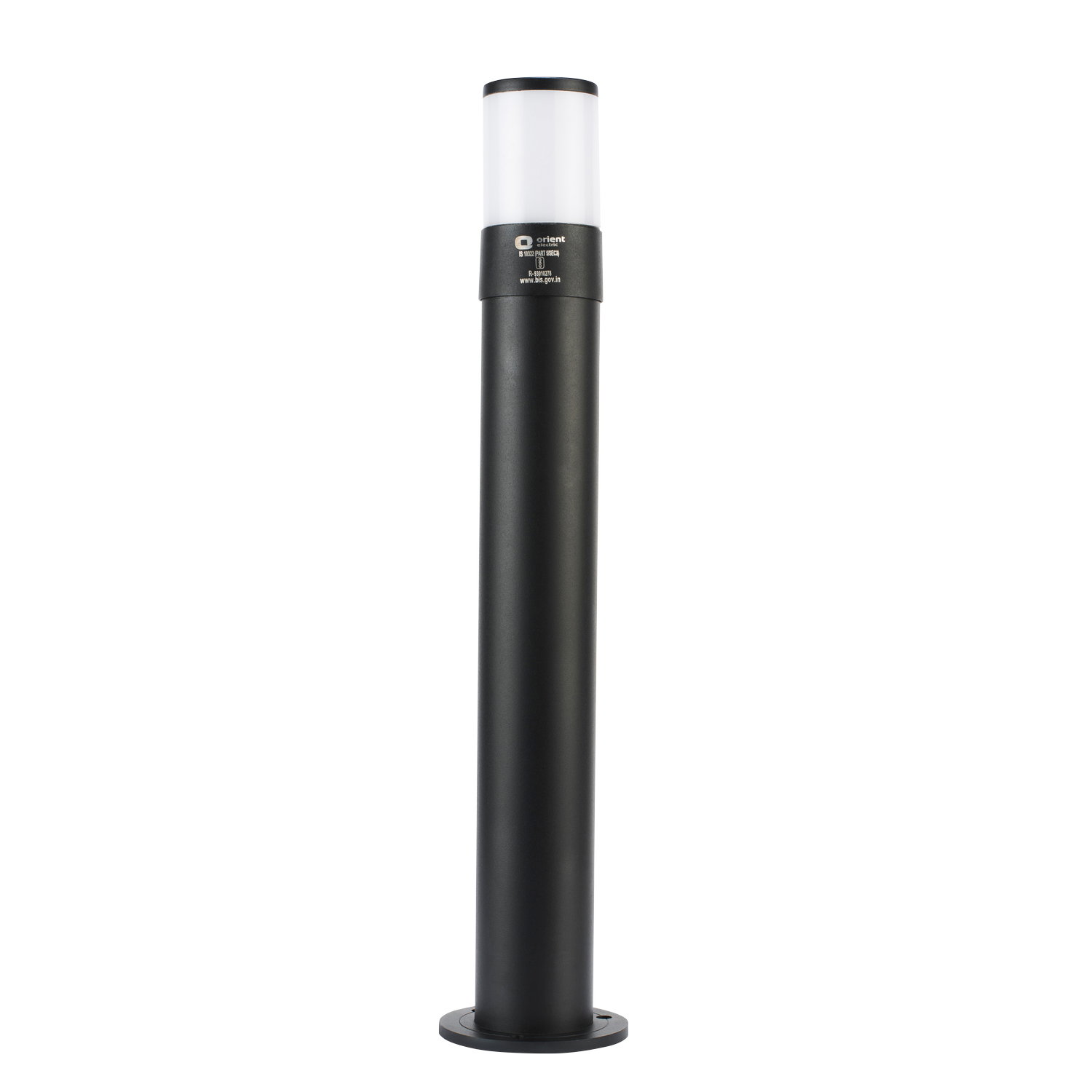

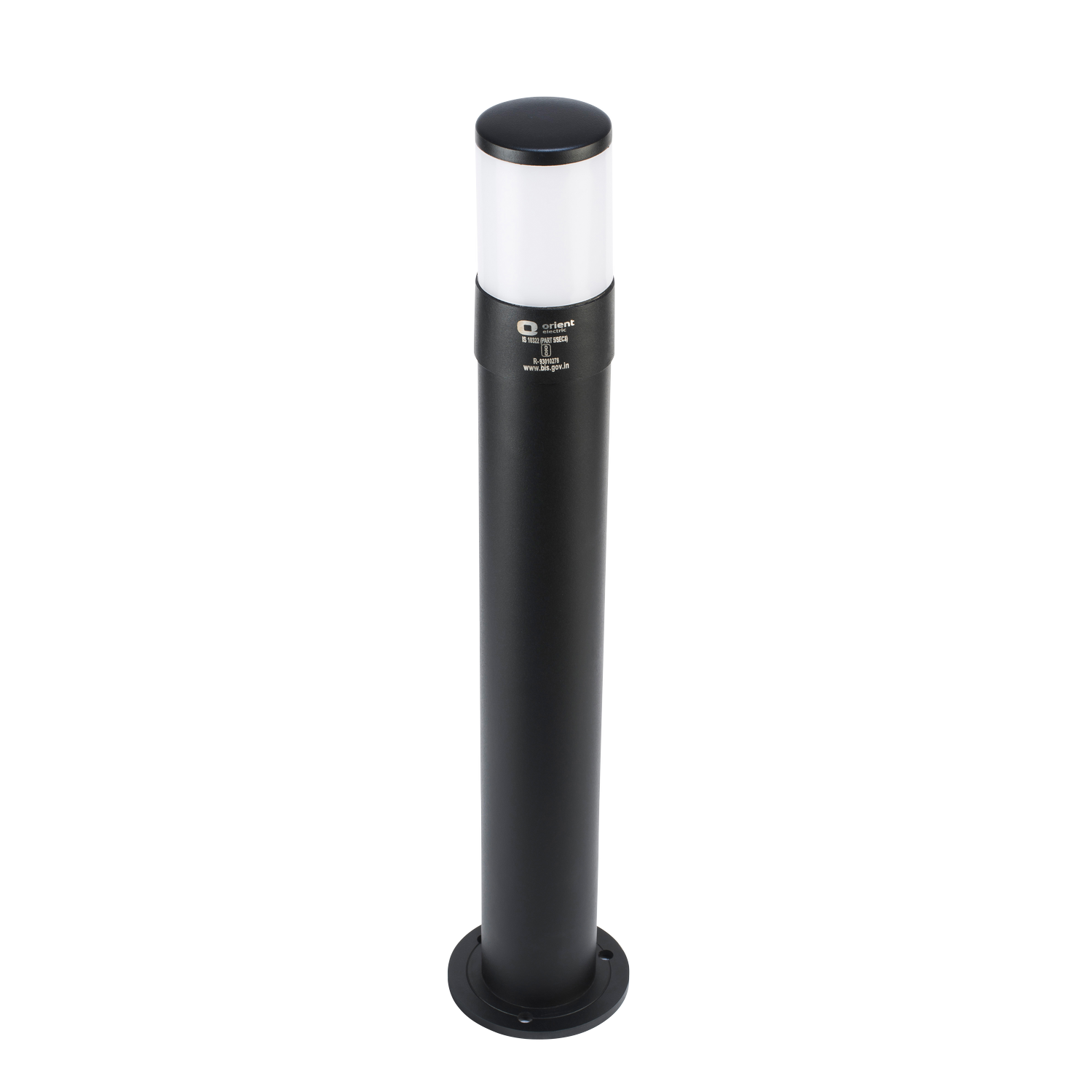

LED bollard made in aluminium housing with top cover with opal polycarbonate cover for glare-free symmetric light with minimum ULOR. Best suitable to illuminate walkways, steps or pathways.

Best suited for

Parks and garden

Townships

Squares Plazas

Walkways

View full details
  • General specification
    Housing Excellent thermally managed Aluminium housing with top in aluminium.
    Optics Polycarbonate opal diffuser for glare free symmetric light with minimum ULOR.
    Mounting Fixed on Ground
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 65
  • Technical Specifications
    System Wattage 10W
    CCT 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    TDS ≤10%
    System efficacy ≥90, ≥80
Crystal Mini variants
Product Variants
Crystal Mini
LLCMBL-10-C
Crystal Mini
LLCMBL-10-W
Crystal Mini
LLCMBL-10-C-B
Crystal Mini
LLCMBL-10-W-B
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Diameter (in mm)
Height (in mm)
10W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
75
600
10W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
75
600
10W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
75
800
10W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
75
800
