Delta HL

Delta HL

Delta HL

Product Overview

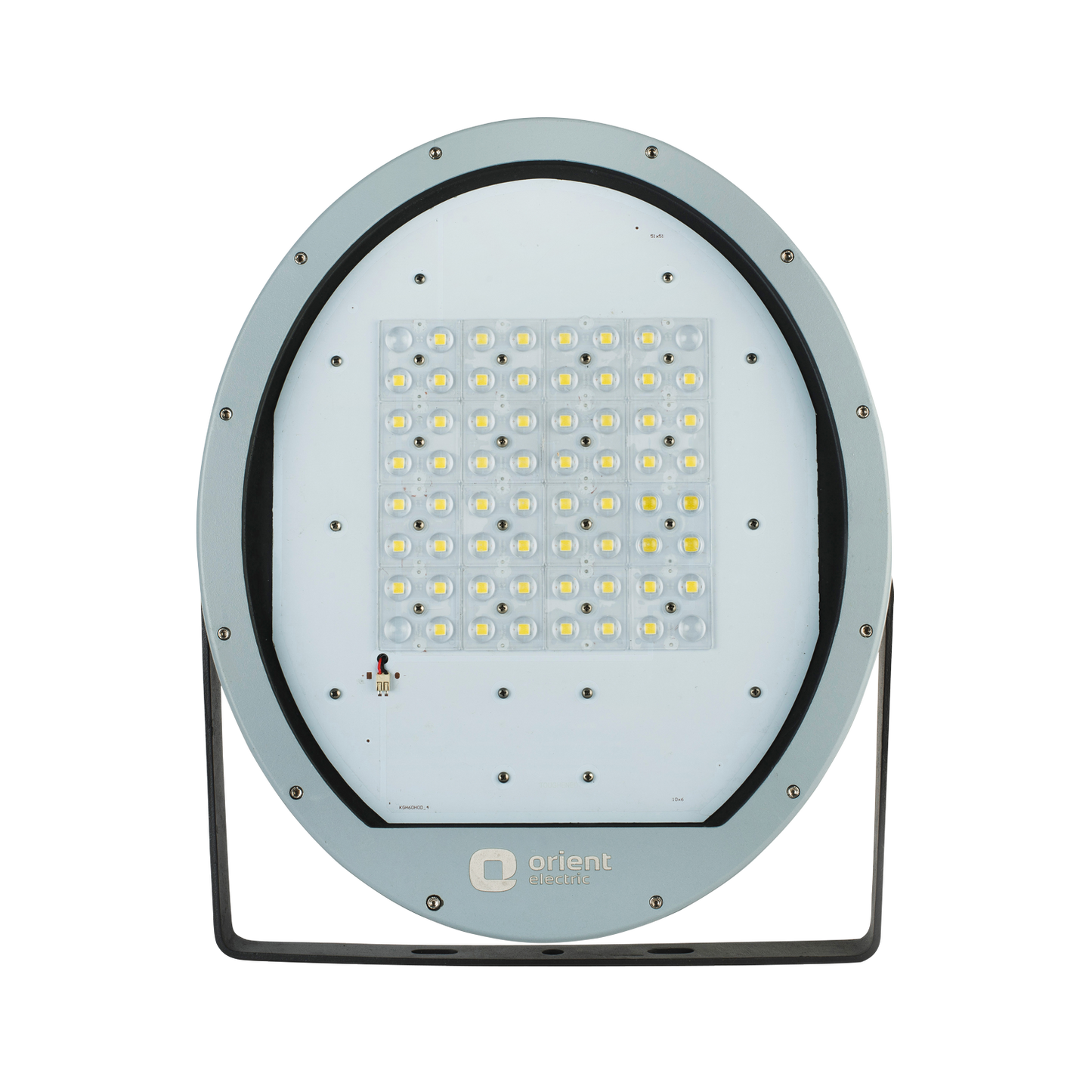

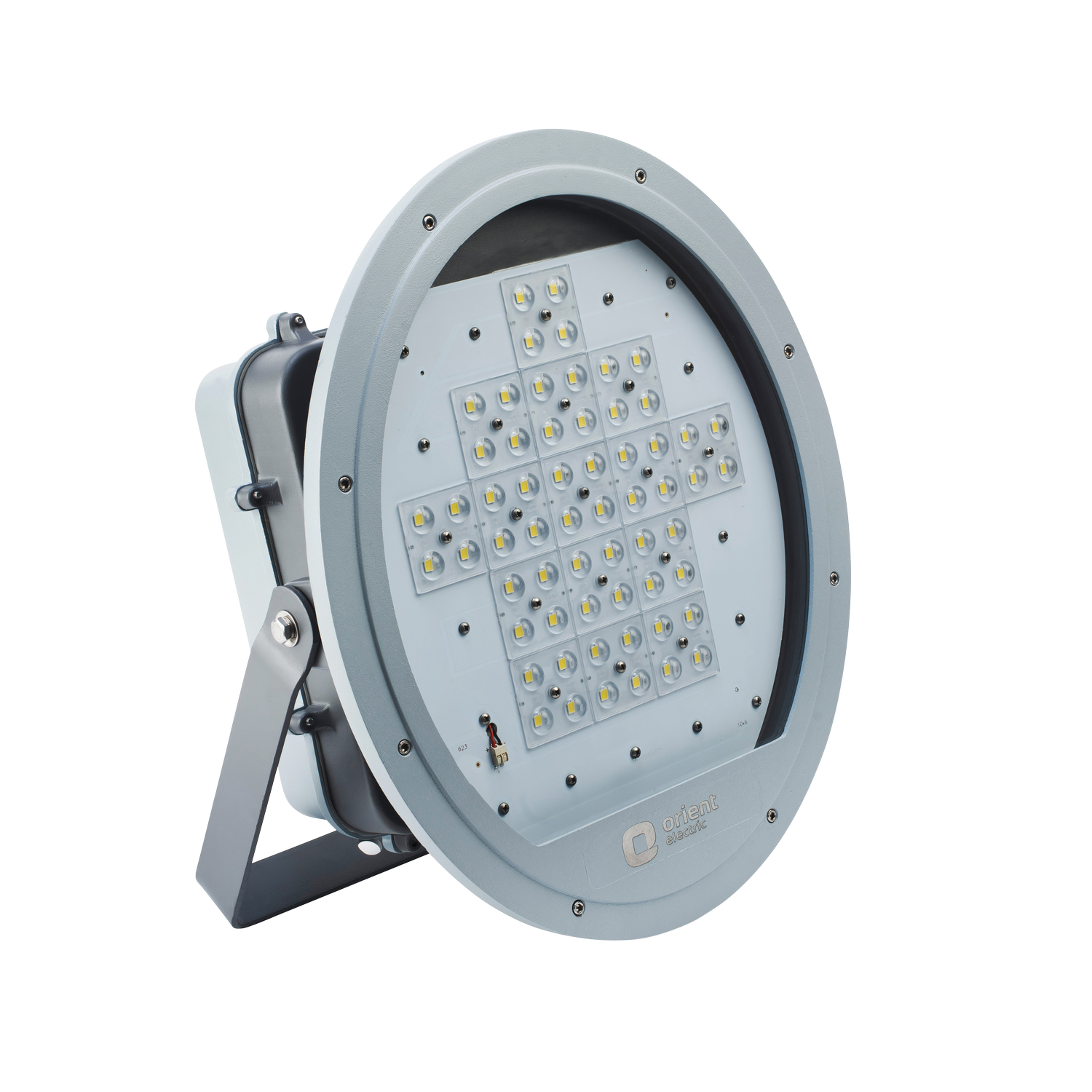

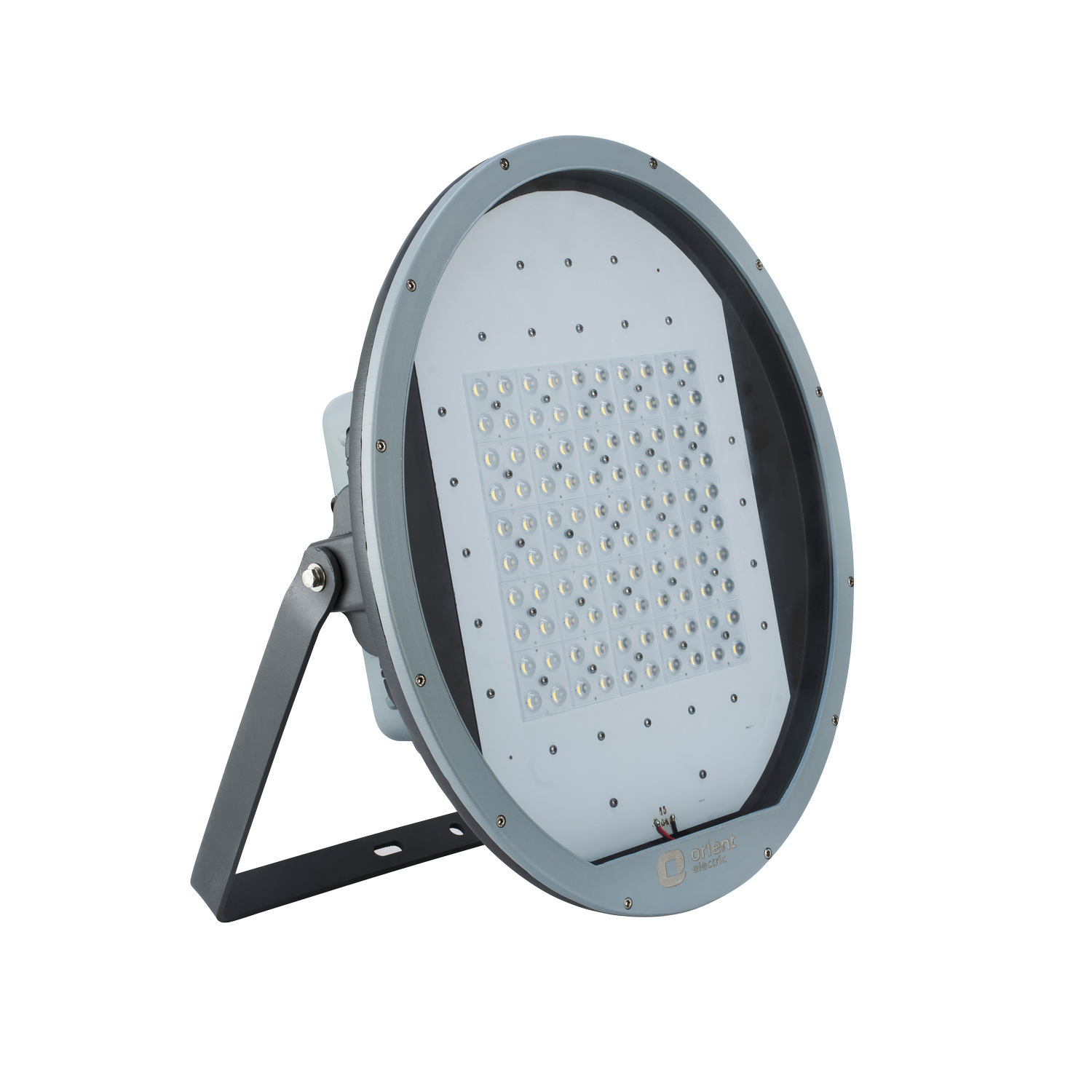

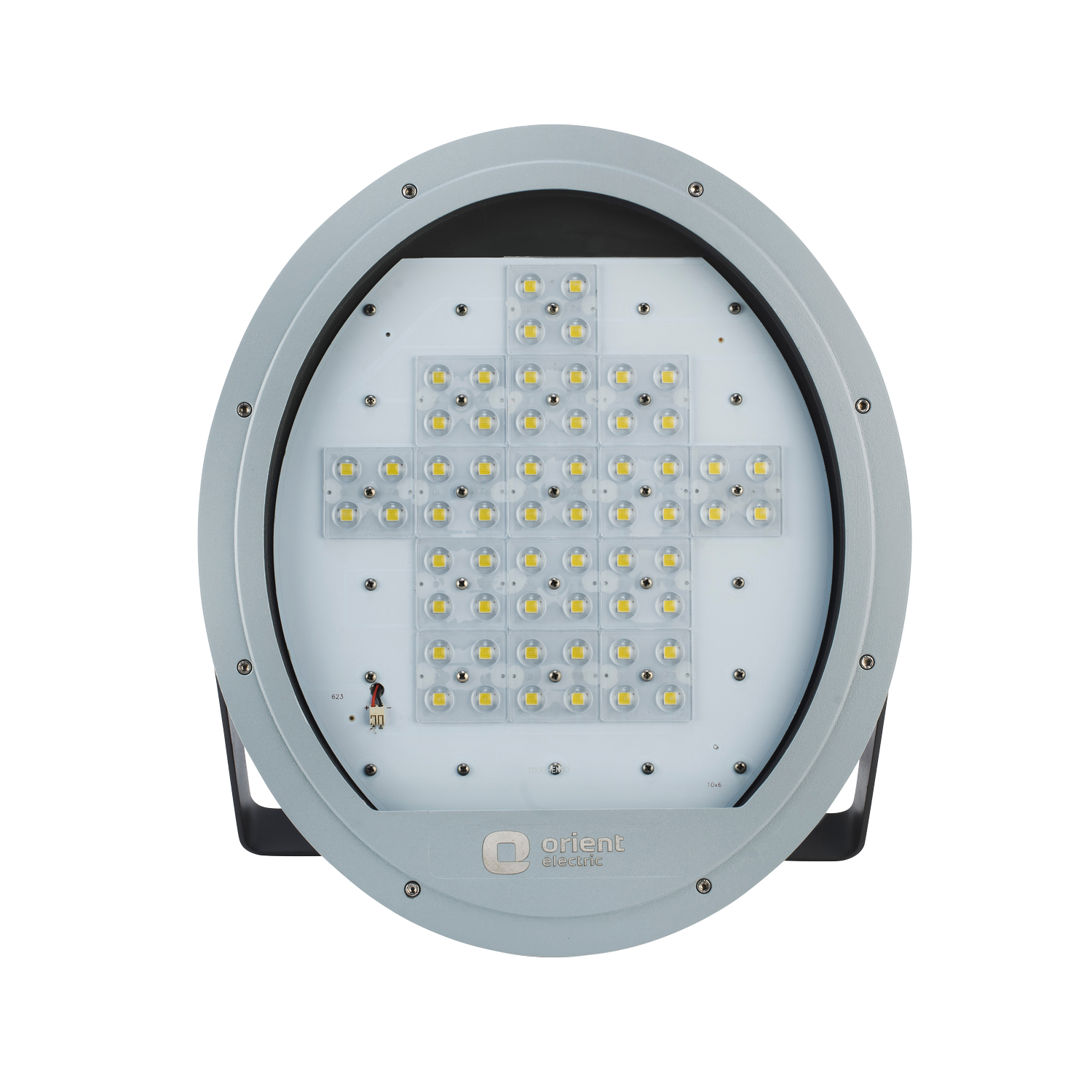

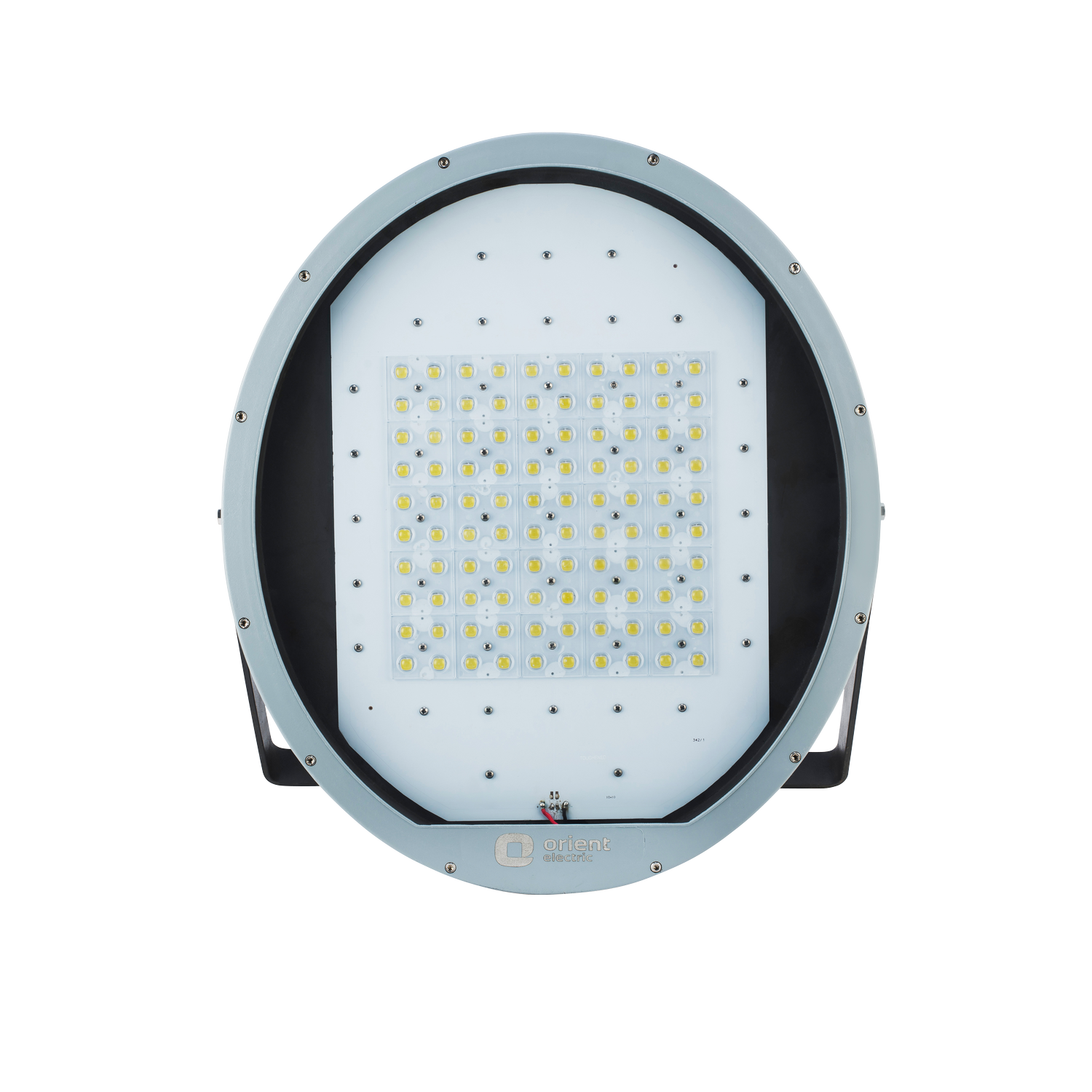

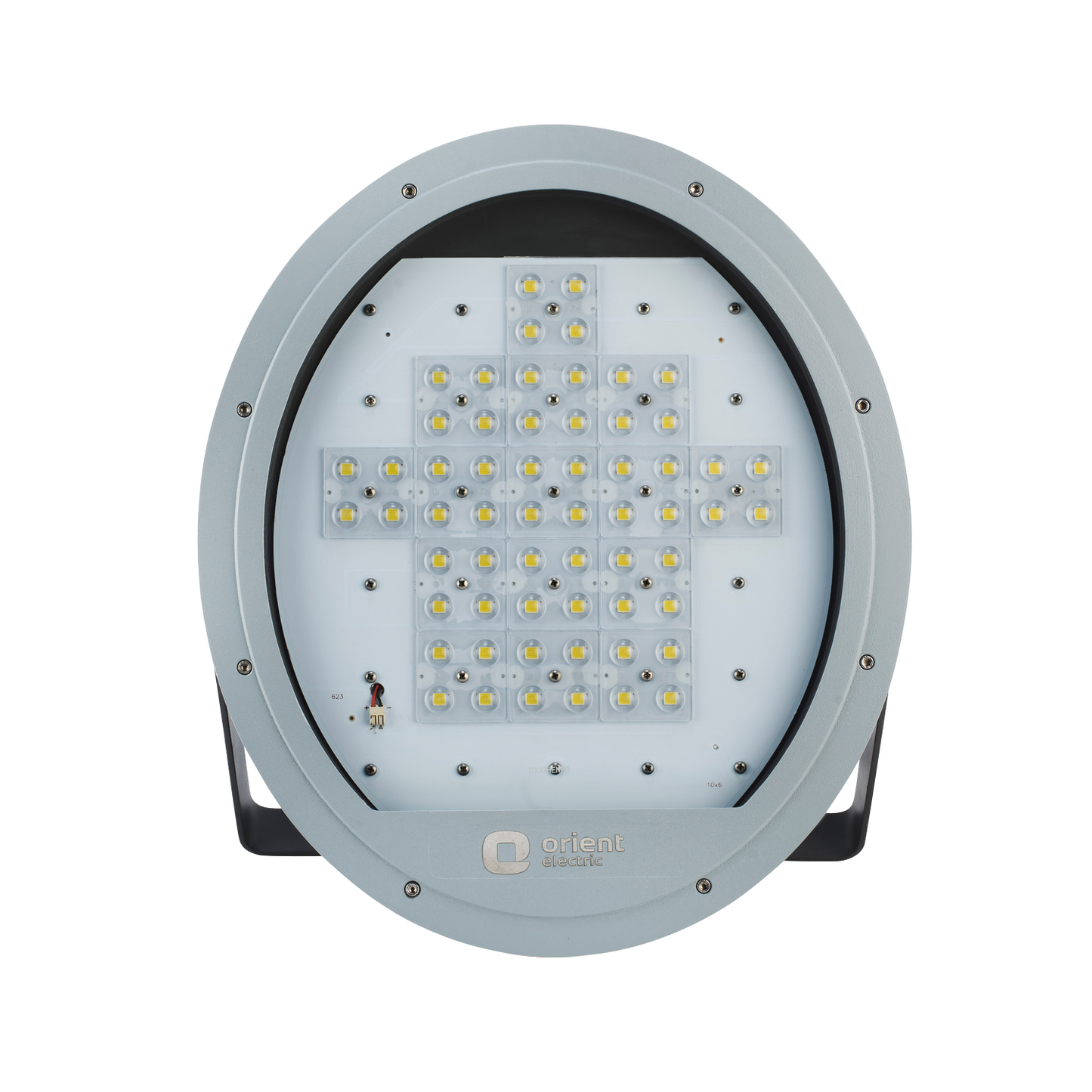

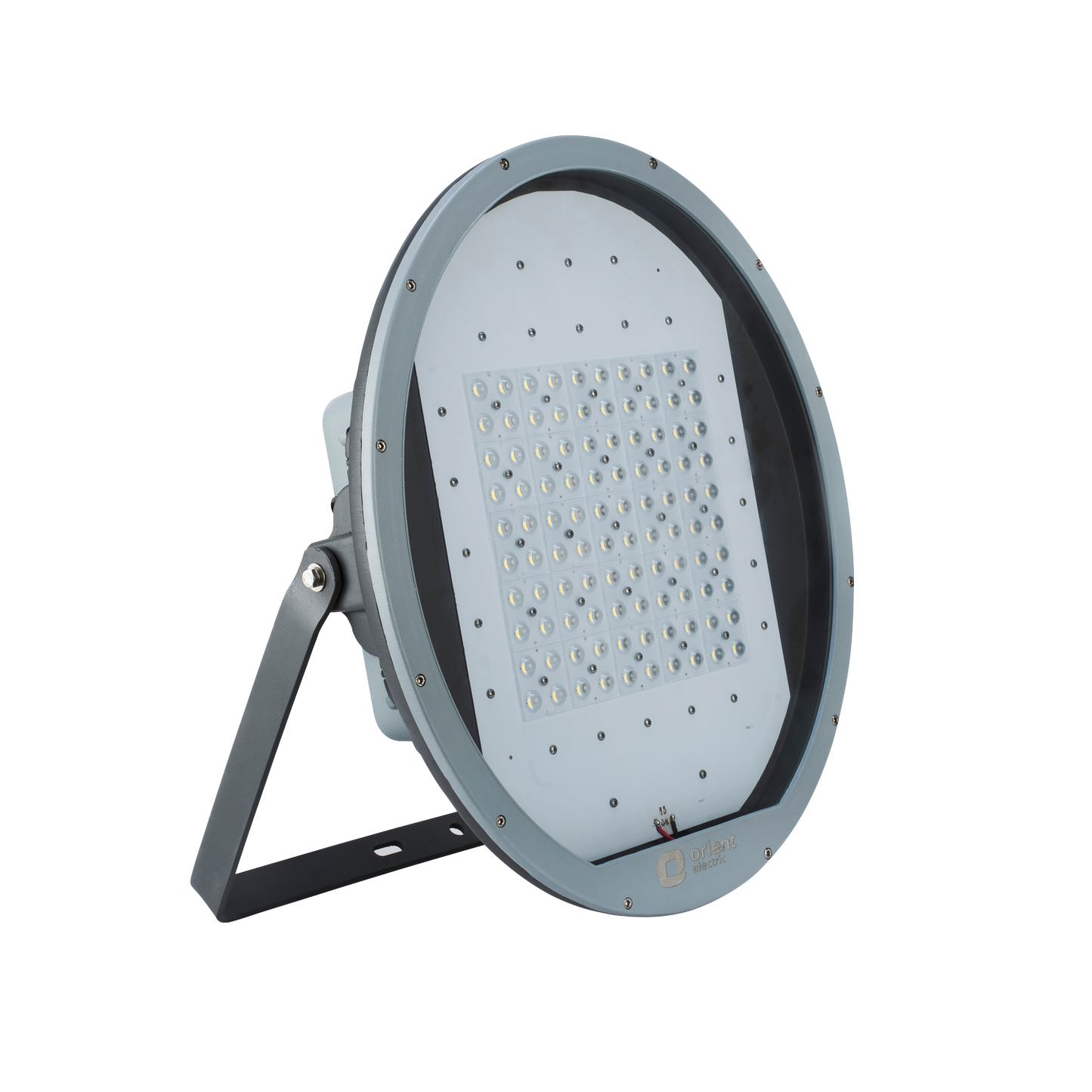

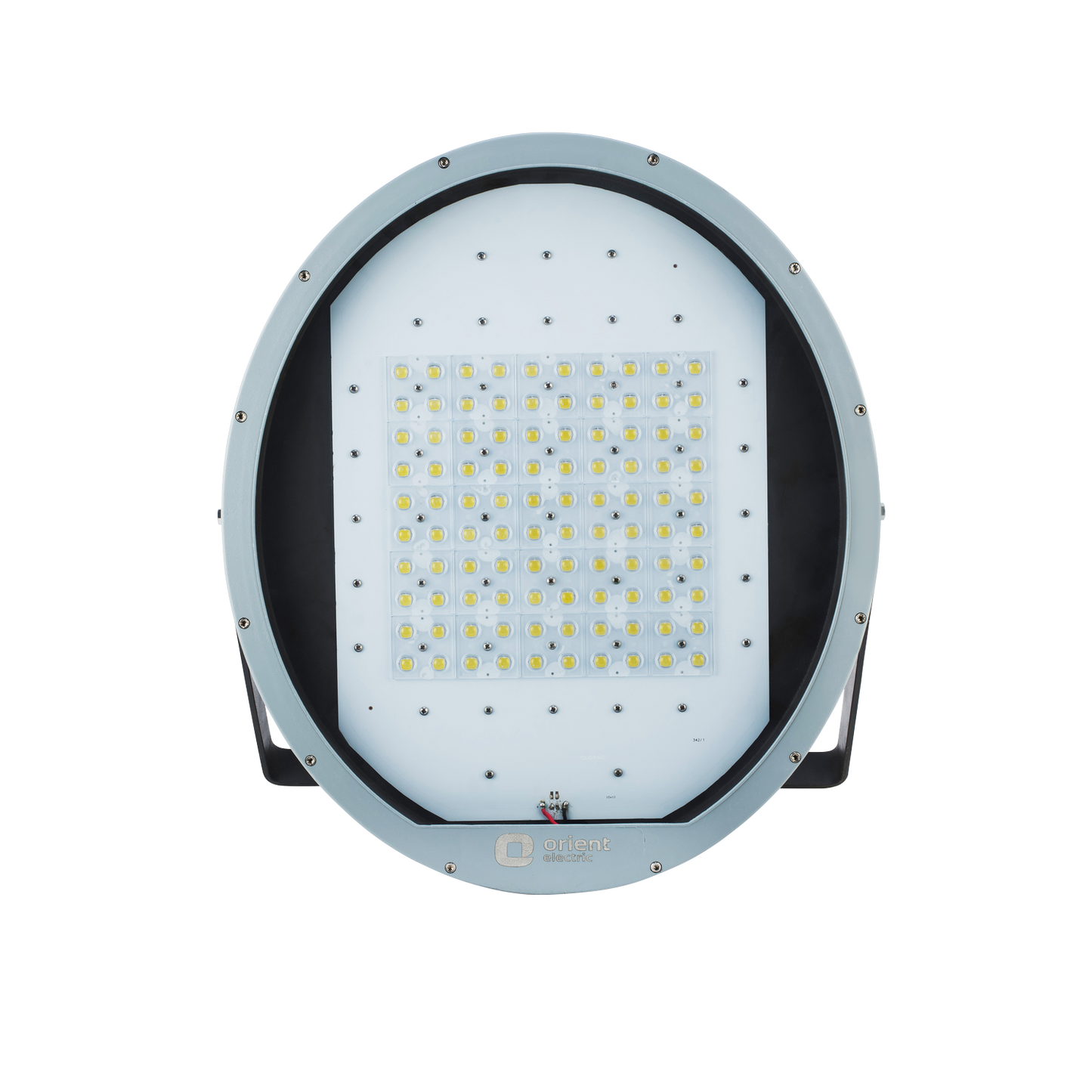

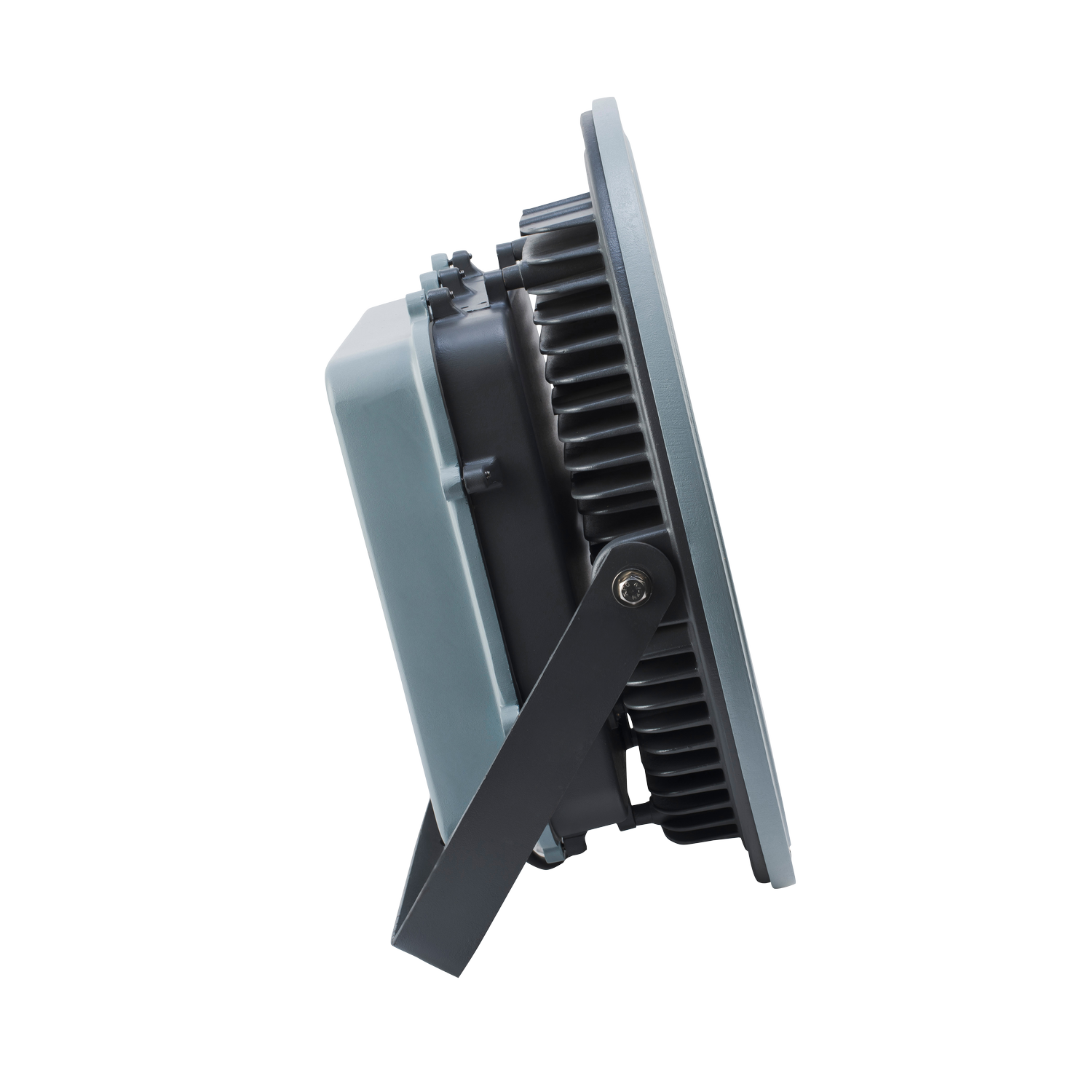

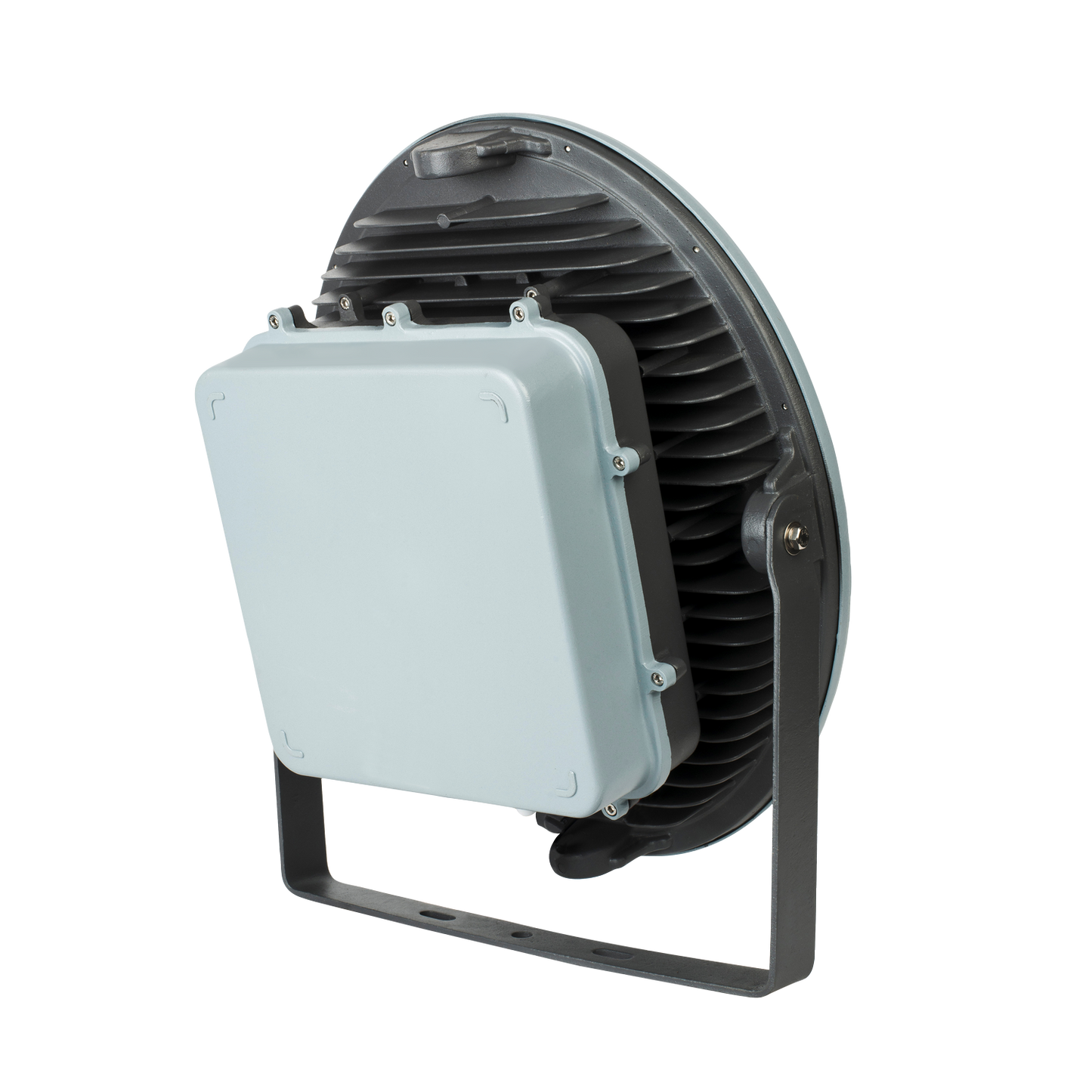

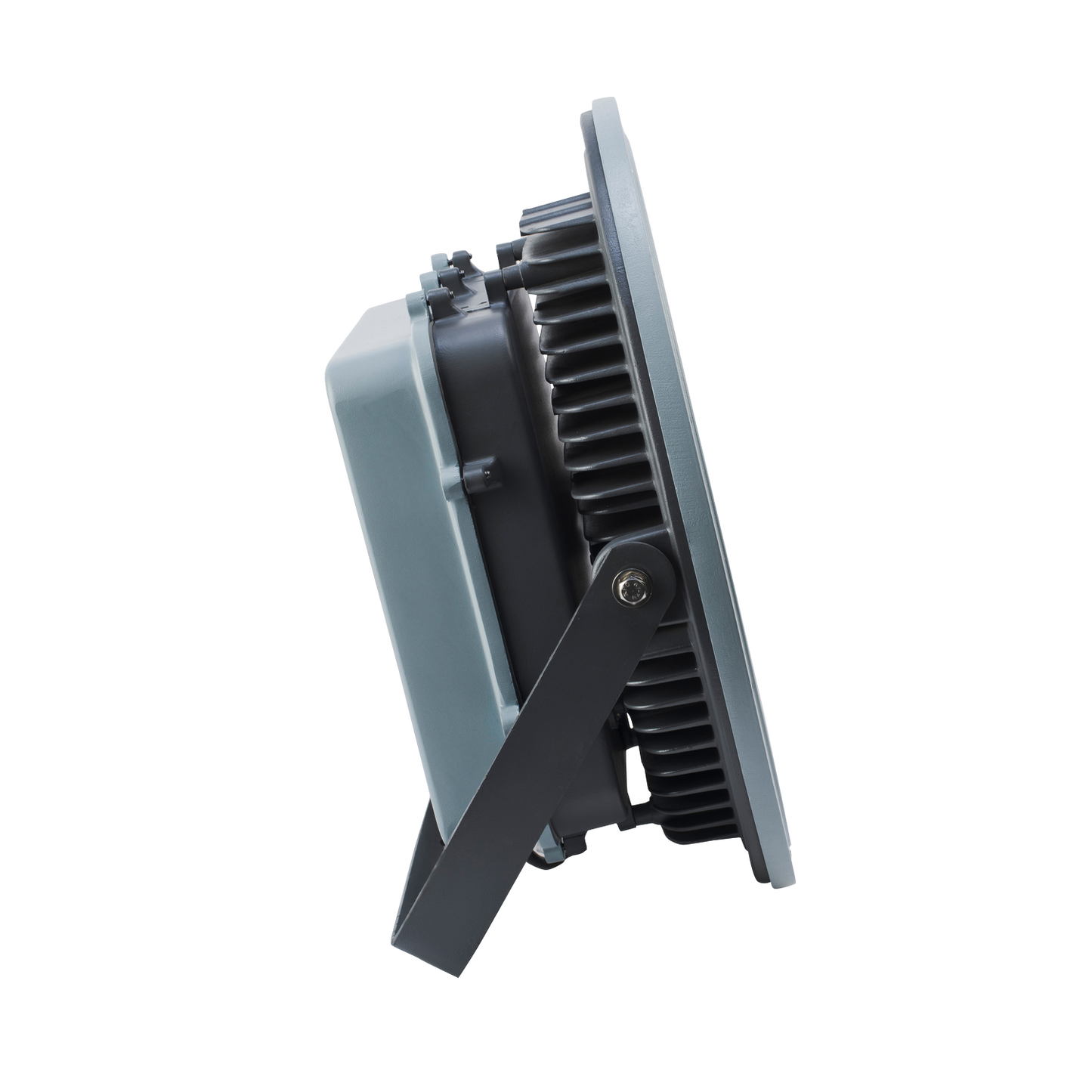

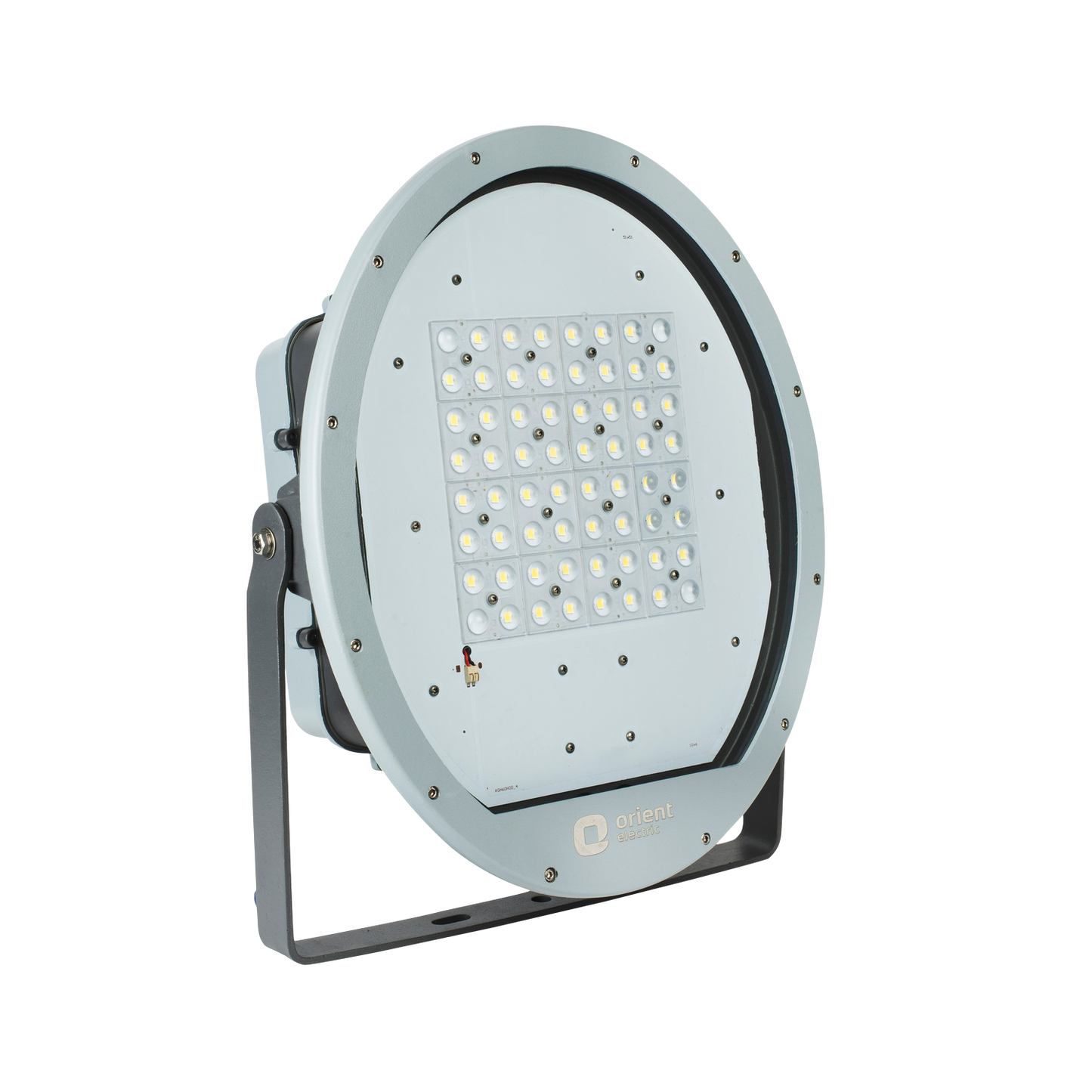

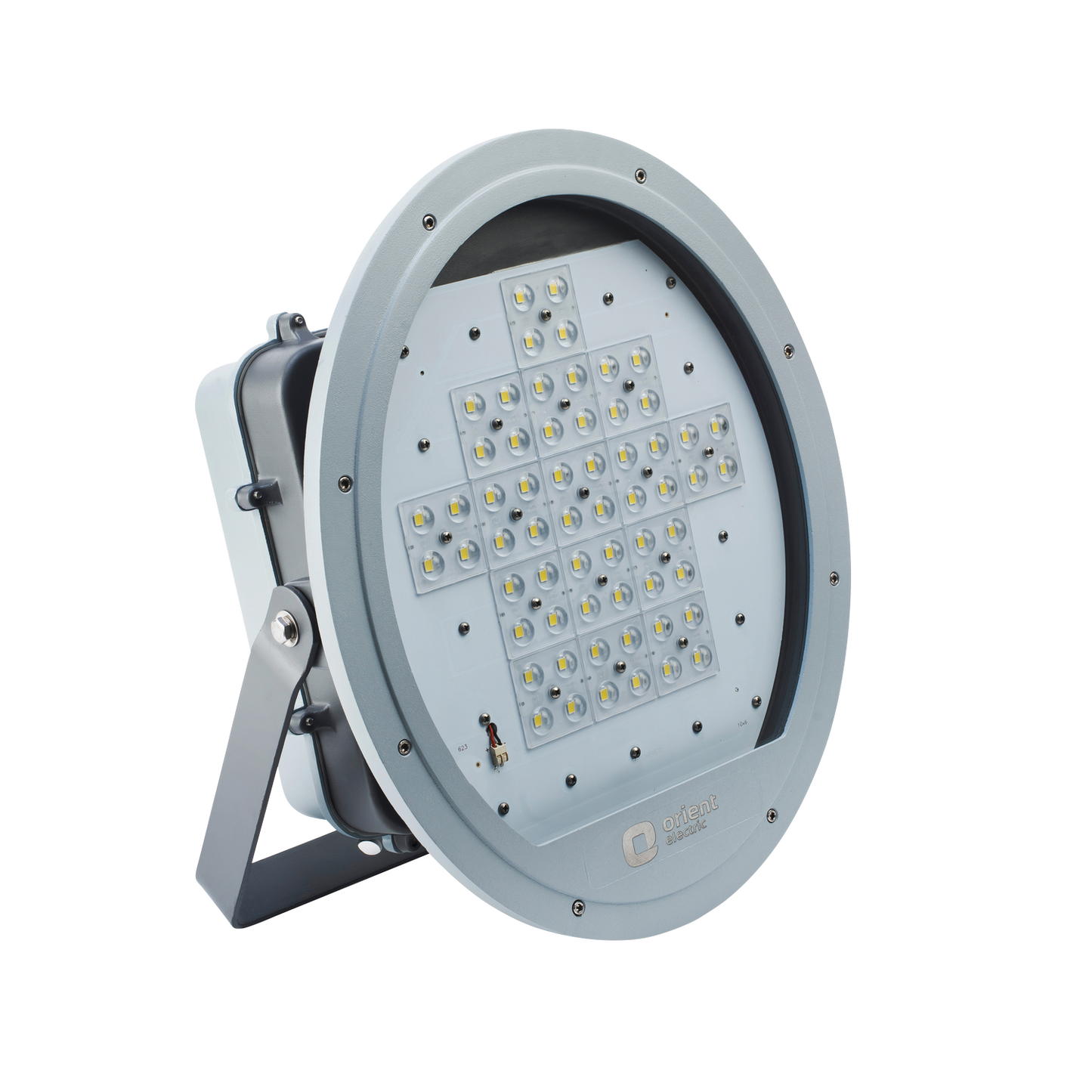

LED Floodlight with high efficacy of ≥110 lm/W designed with excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area with satin finish powder coating and fitted with polycarbonate lens mounted on SMD LEDs with front cover of toughened glass.

Best suited for

Yard Lighting

Road Junctions

Area Lighting

Safety & Security Lighting

View full details
  • General specification

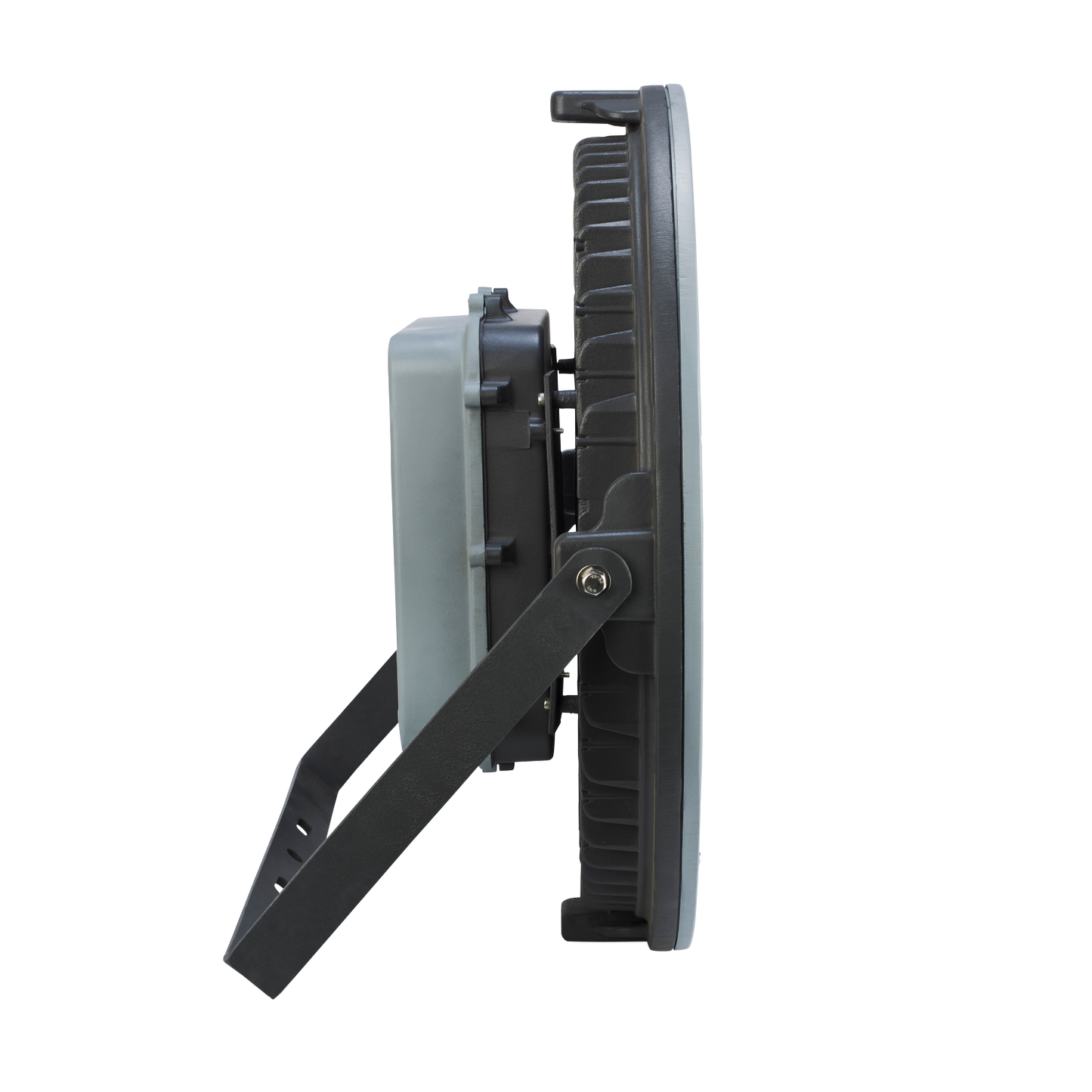

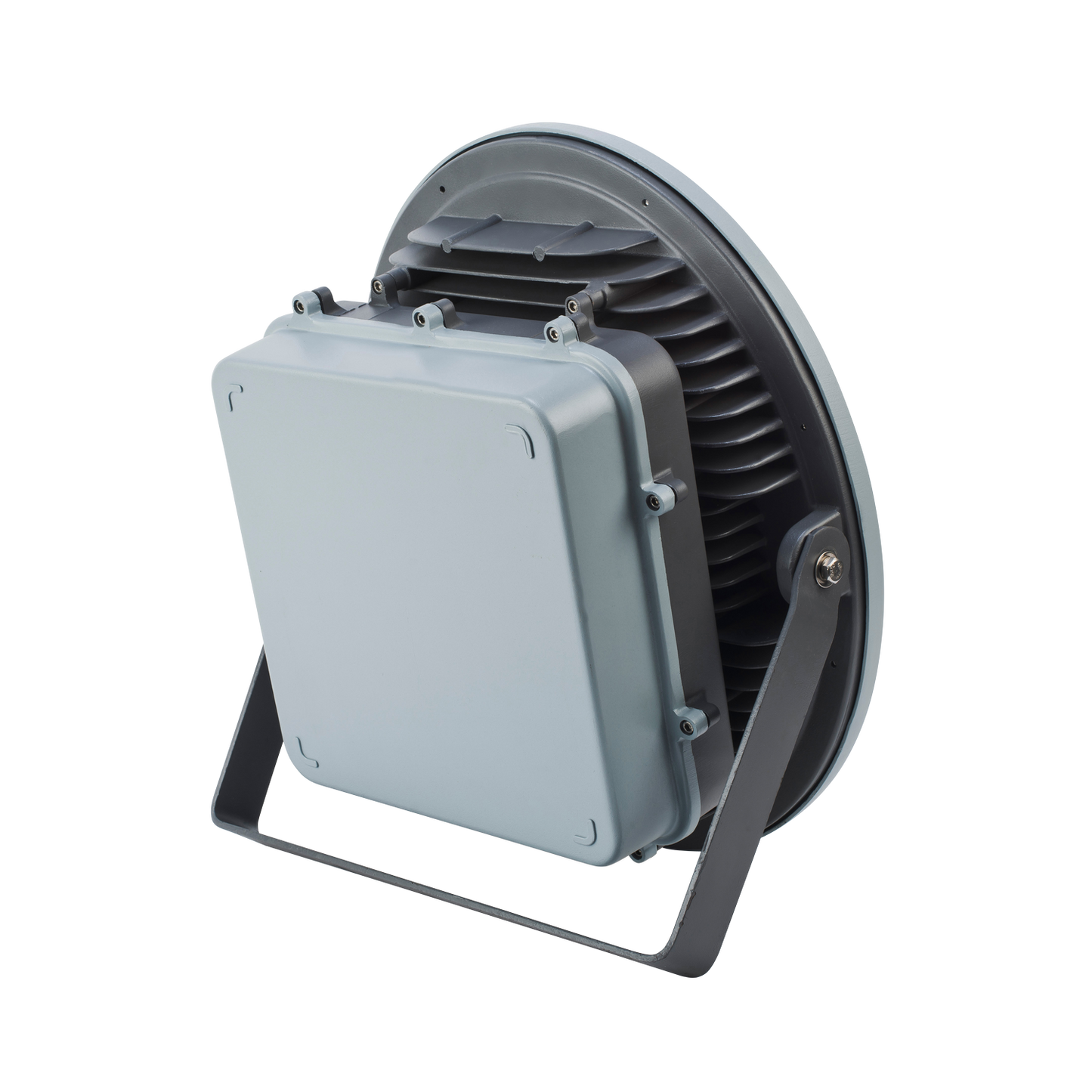

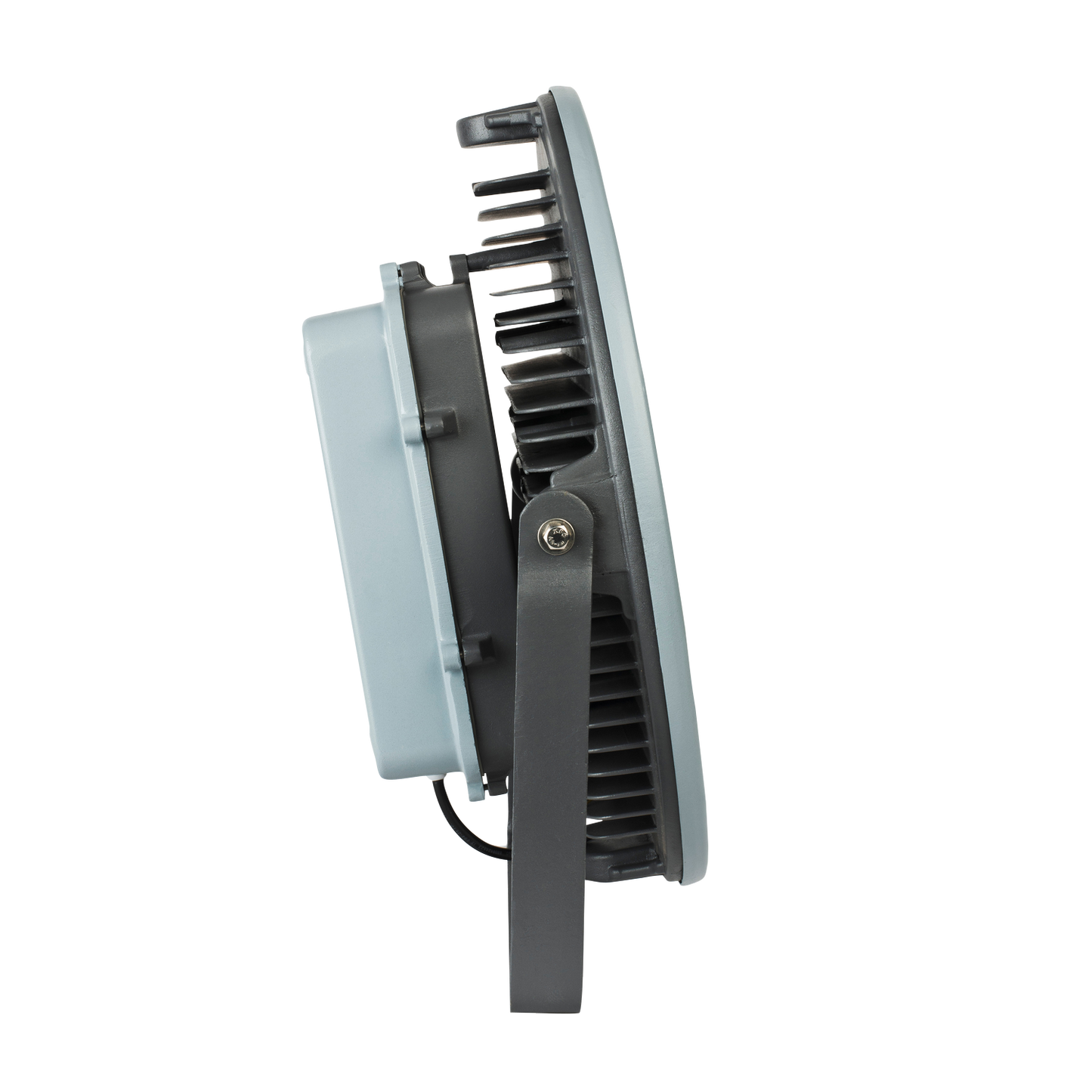

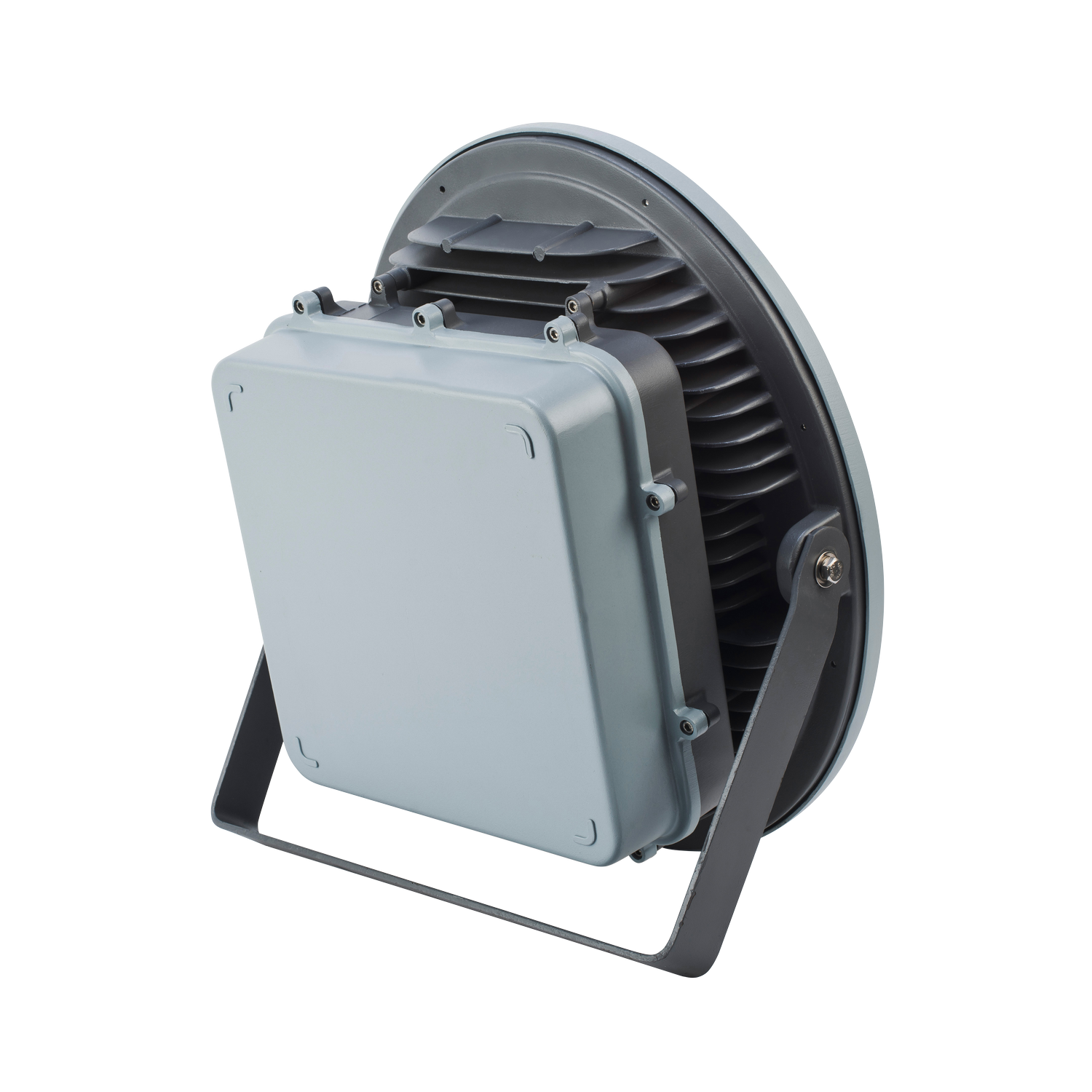

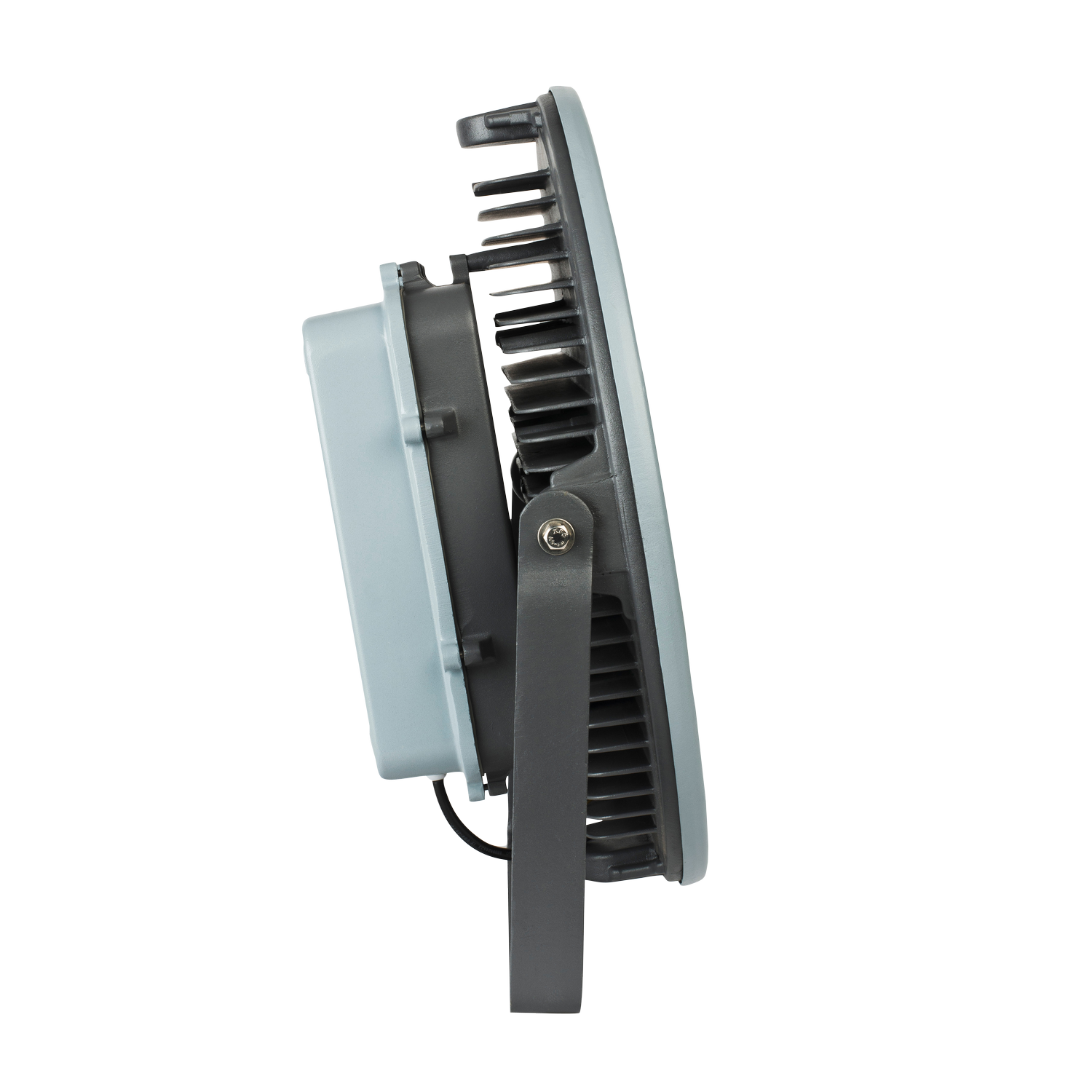

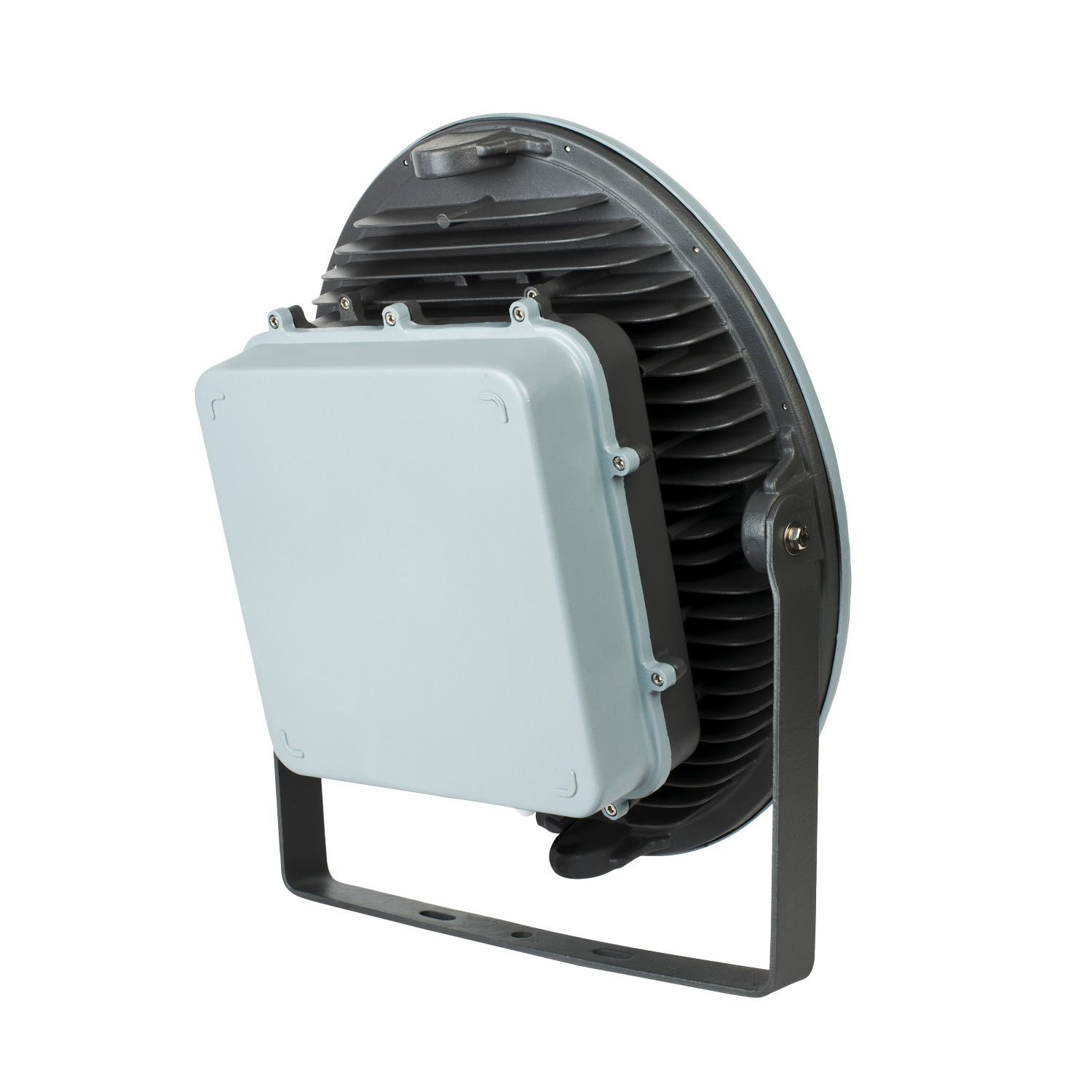

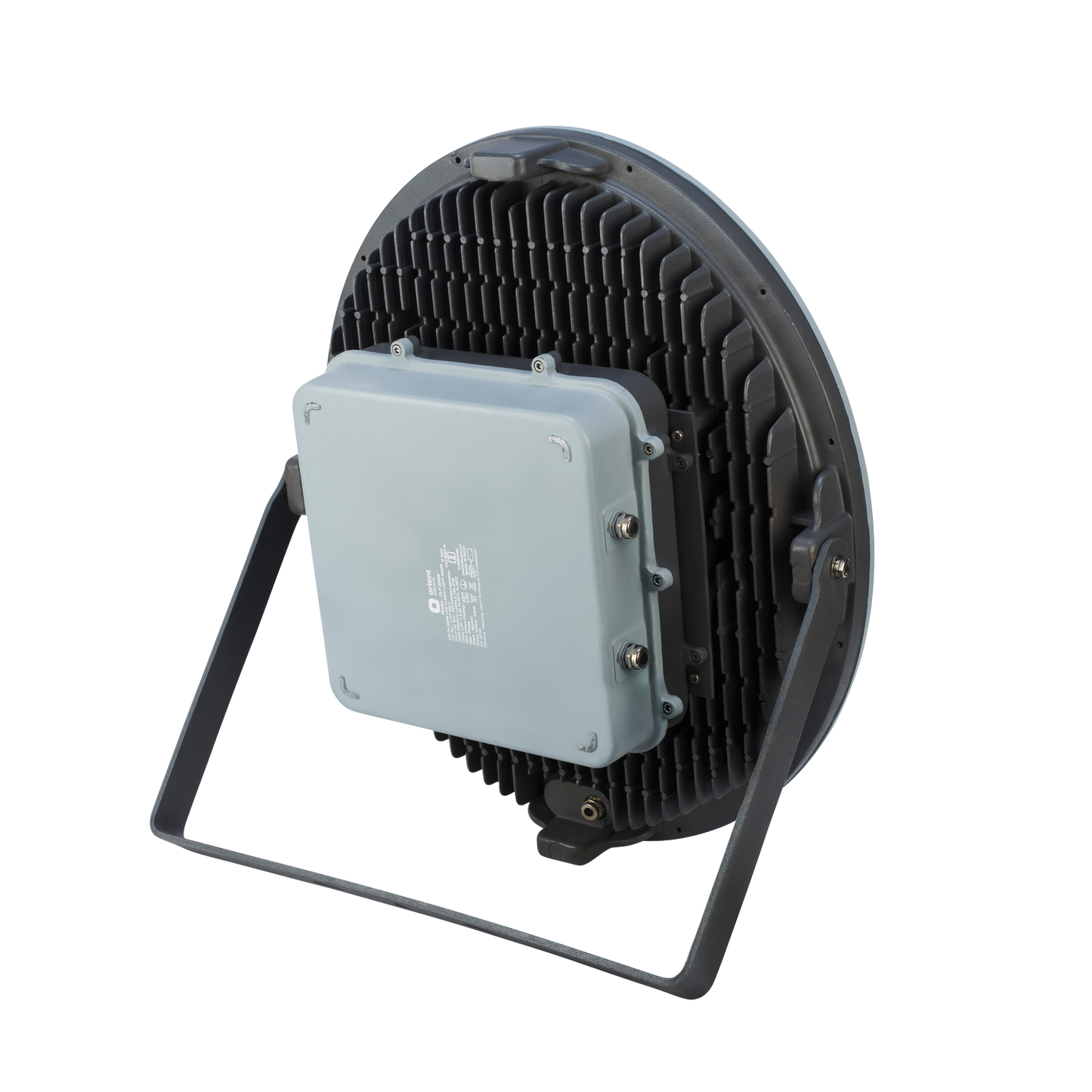

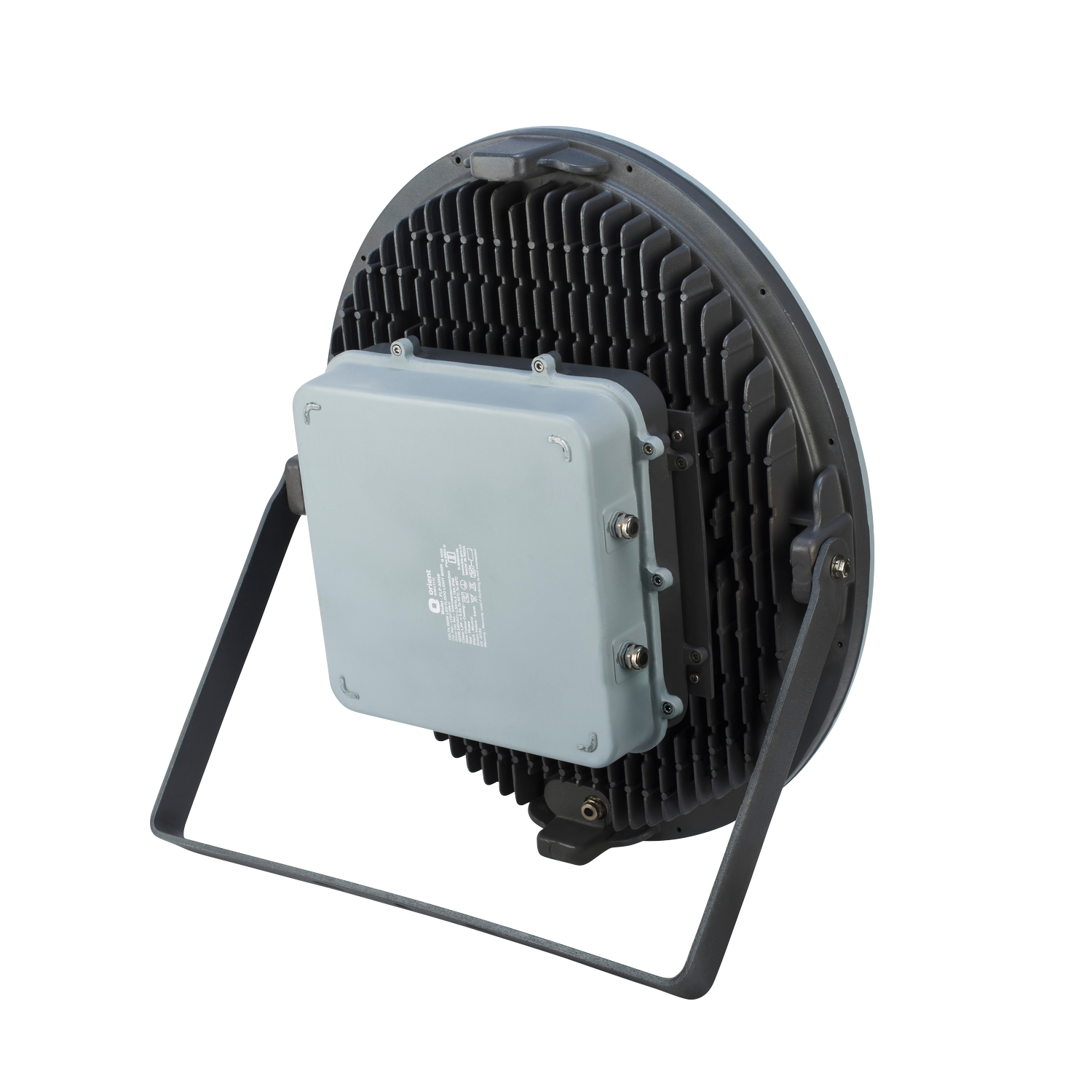

    Housing Excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area with satin finish powder coating.
    Optics High lumen efficacy LED Module with SMD LED Package mounted with PC lens to ensure better uniformity.Front cover in clear toughened glass.Available in 16°,30°,60° and 90°.

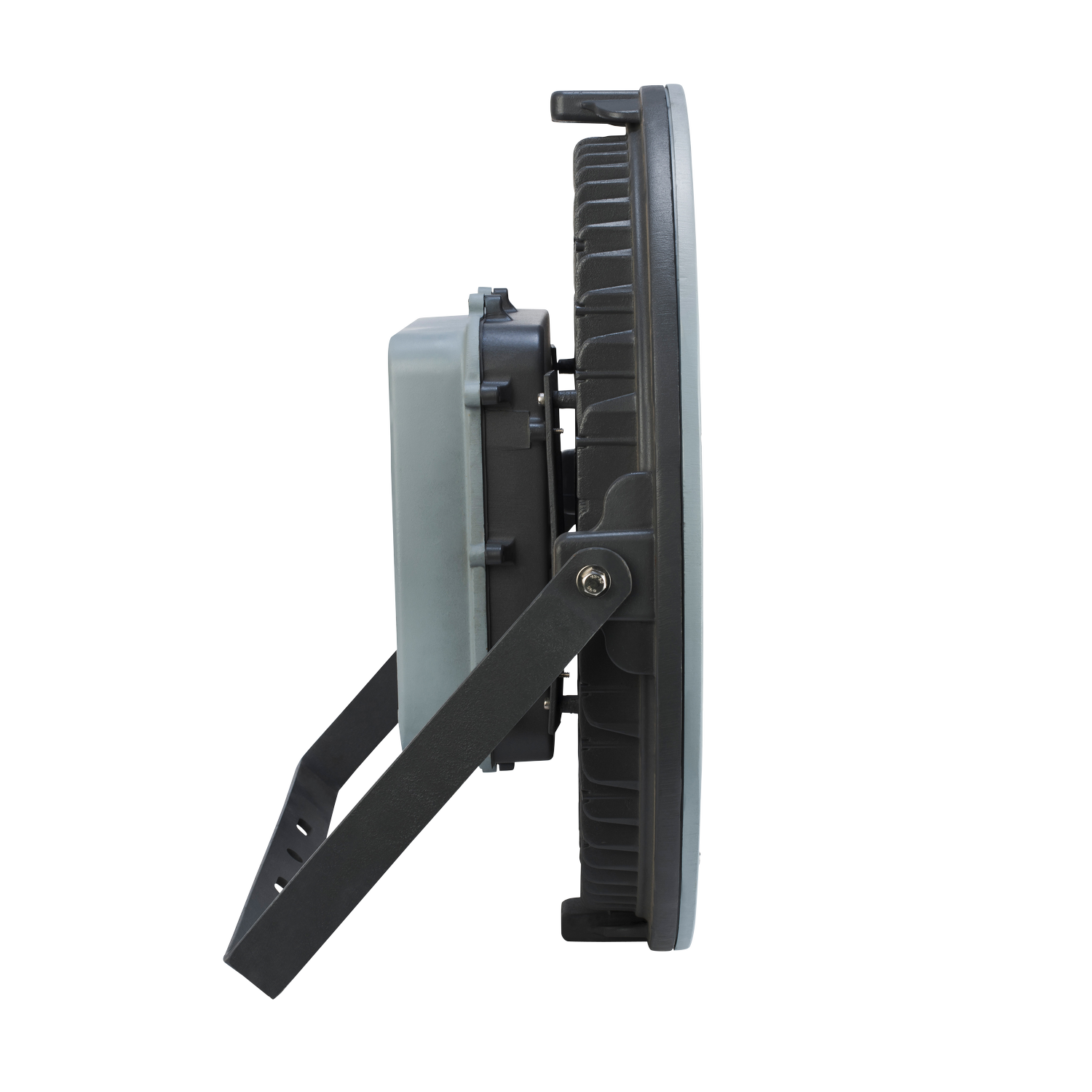

    Mounting Mounting using adjustable cradle
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (internal) inbuilt 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 300W, 350W, 400W, 450W, 500W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥110, ≥100
Delta HL variants
Product Variants
Delta HL
LFDT-300-C-HL
Delta HL
LFDT-300-W-HL
Delta HL
LFDT-350-C-HL
Delta HL
LFDT-350-W-HL
Delta HL
LFDT-400-C-HL
Delta HL
LFDT-400-W-HL
Delta HL
LFDT-450-C-HL
Delta HL
LFDT-450-W-HL
Delta HL
LFDT-500-C-HL
Delta HL
LFDT-500-W-HL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
460
394
177
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
460
394
177
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
460
394
177
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
460
394
177
400W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
500
425
190
400W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
500
425
190
450W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
500
425
190
450W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
500
425
190
500W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
595
514
84
500W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
595
514
84
