Dline Pendant

Dline Pendant

Dline Pendant

Product Overview

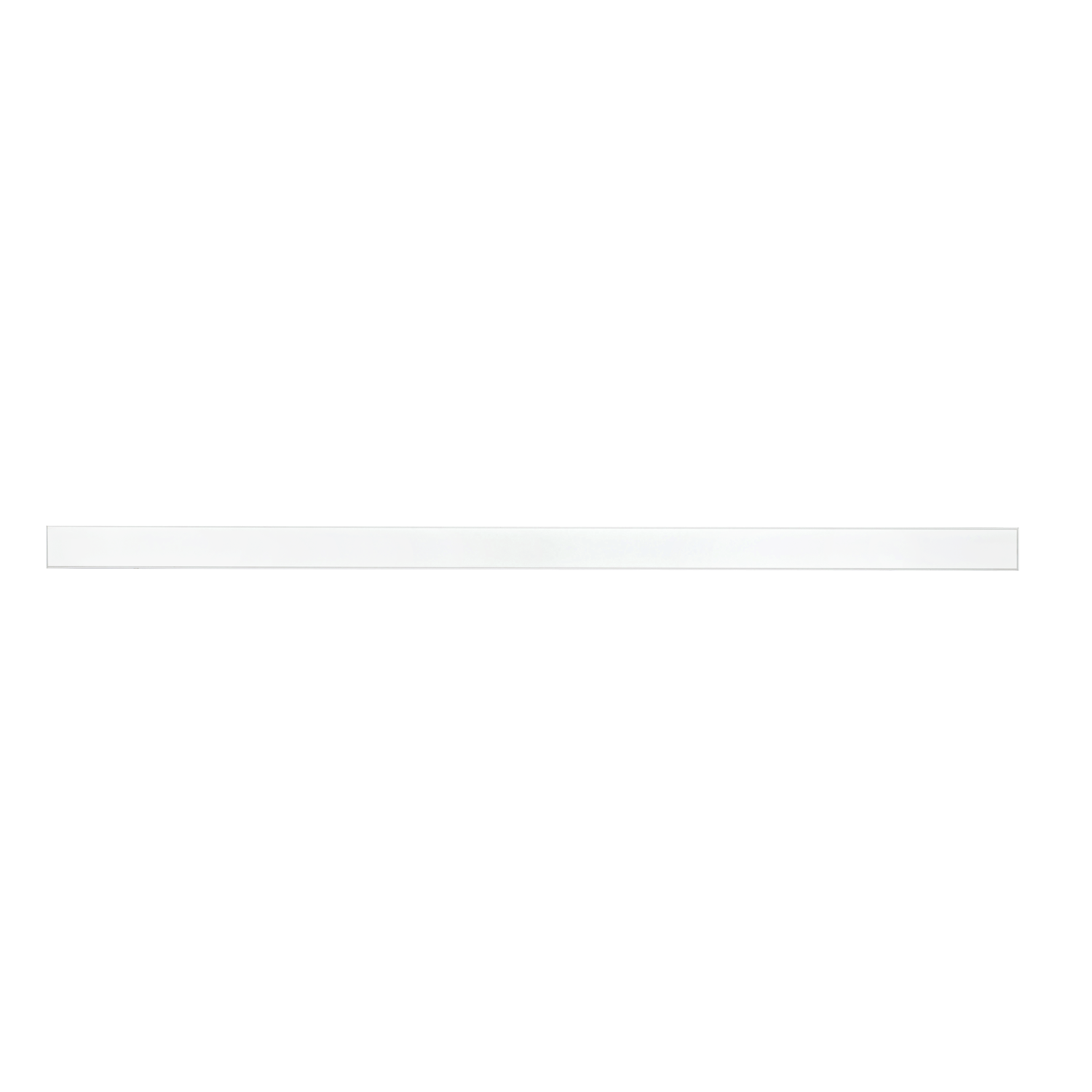

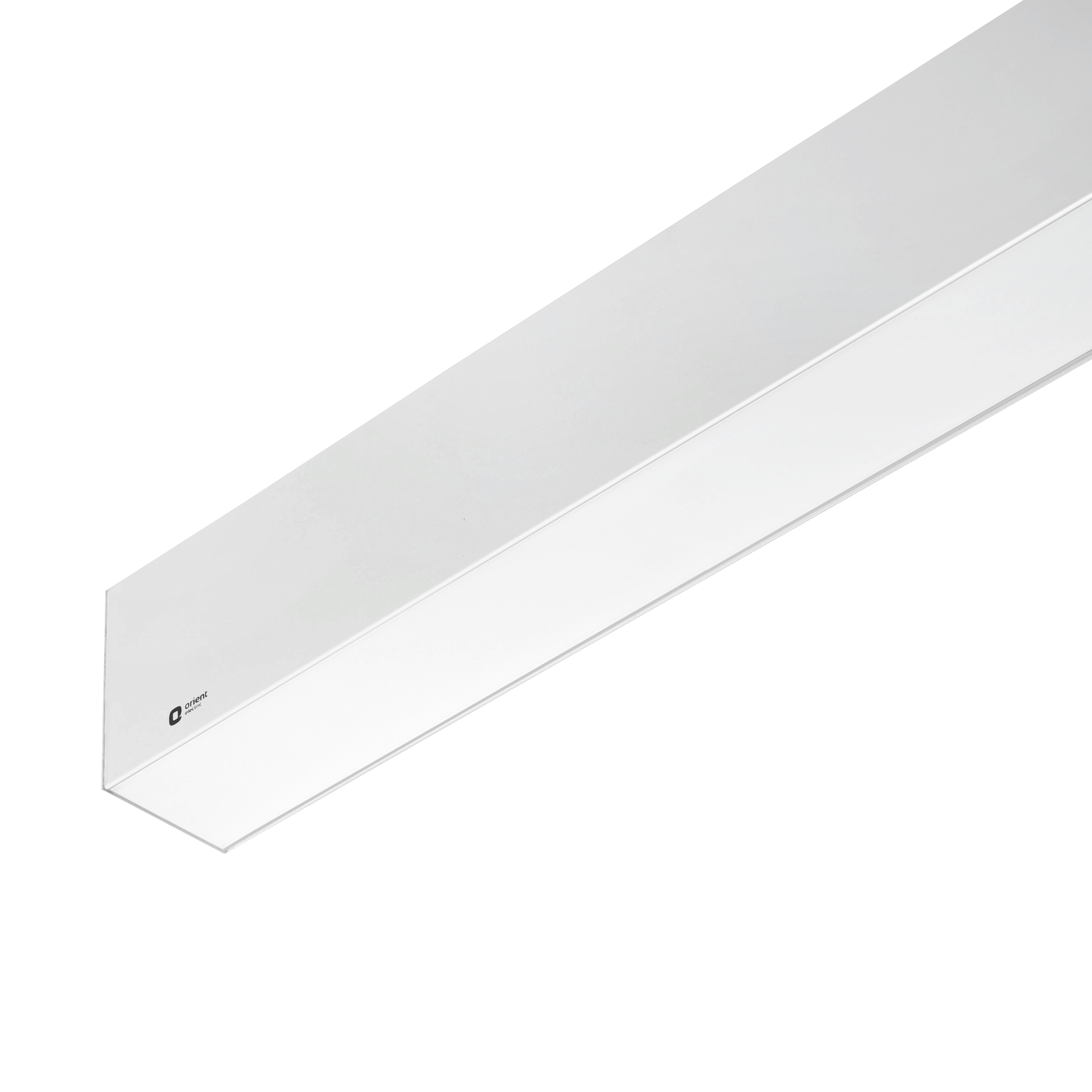

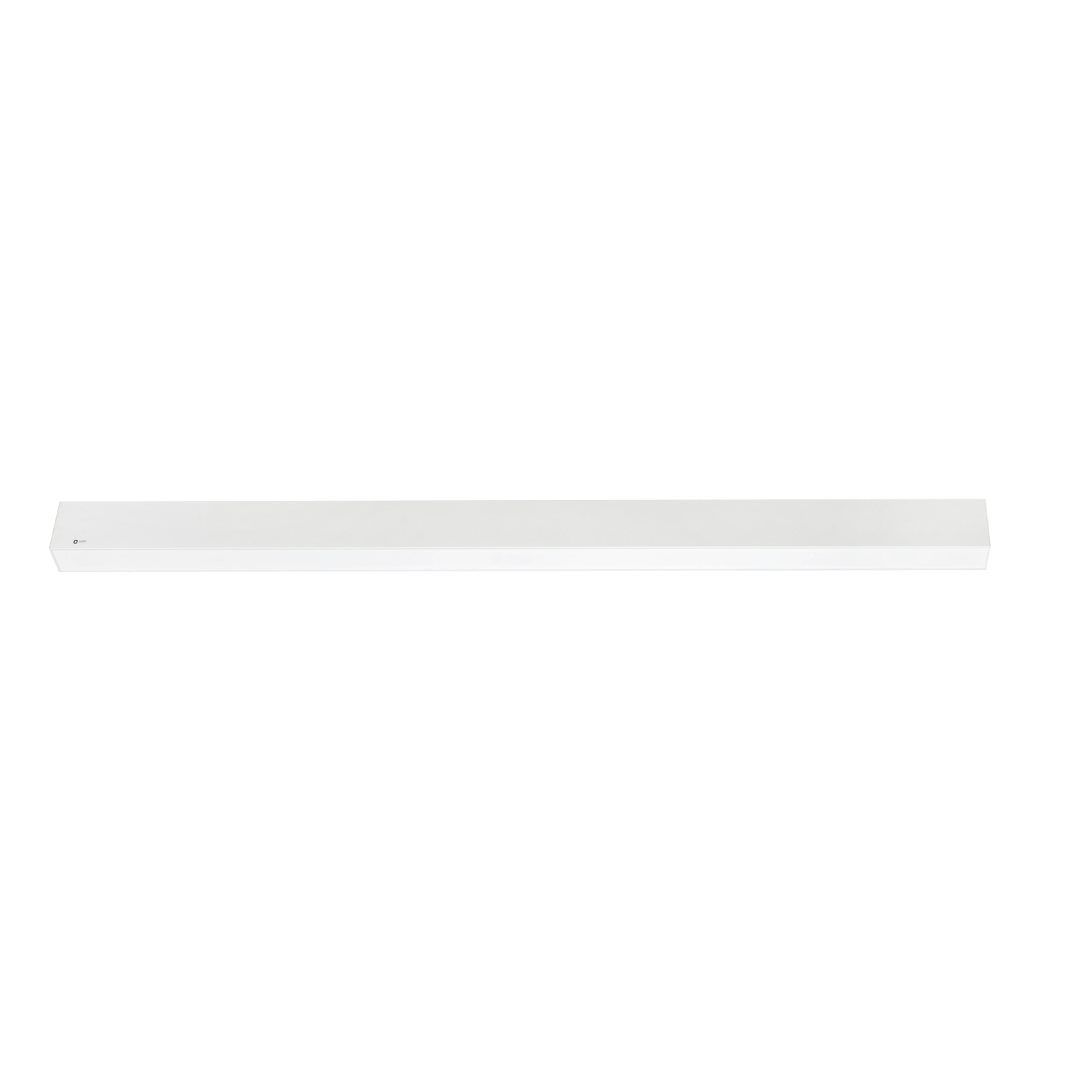

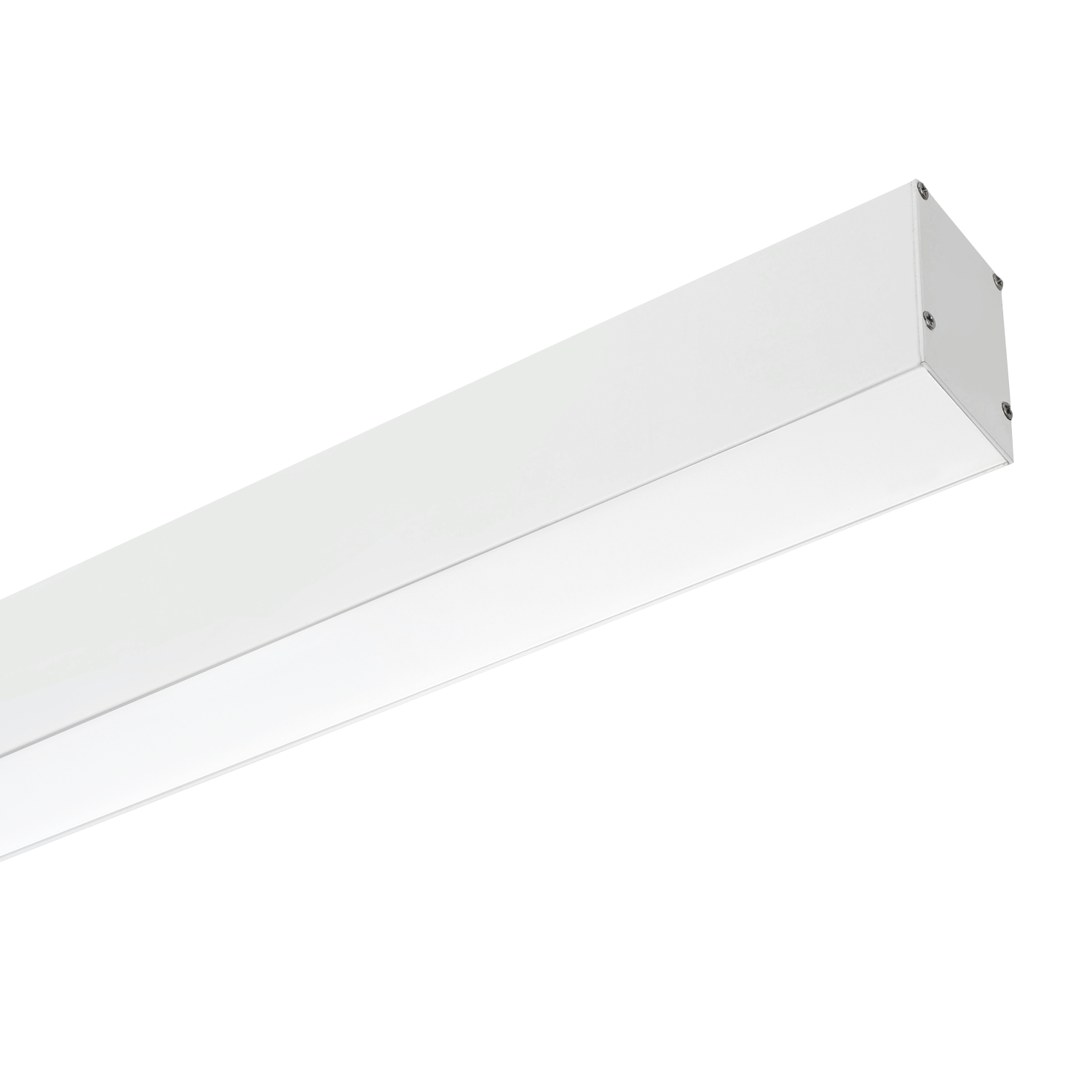

Seamless LED aluminium extruded suspended luminaire for indoor architectural lighting solution. Offers excellent energy saving and maintenance-free operation. It is ideal for linear lighting system and is suitable for continuous mounting. It enhances visual ambience with uniform illumination with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

Best suited for

Workstations

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Pendant mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 20W, 36W, 48W, 60W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100, ≥90, ≥85
Dline Pendant variants
Product Variants
Dline Pendant
LCPDL2-20-C-50
Dline Pendant
LCPDL2-20-N-50
Dline Pendant
LCPDL2-20-W-50
Dline Pendant
LCPDL4-36-C-50
Dline Pendant
LCPDL4-36-N-50
Dline Pendant
LCPDL4-36-W-50
Dline Pendant
LCPDL6-48-C-50
Dline Pendant
LCPDL6-48-N-50
Dline Pendant
LCPDL6-48-W-50
Dline Pendant
LCPDL8-60-C-50
Dline Pendant
LCPDL8-60-N-50
Dline Pendant
LCPDL8-60-W-50
Dline Pendant
LCPDL2-20-C-70
Dline Pendant
LCPDL2-20-N-70
Dline Pendant
LCPDL2-20-W-70
Dline Pendant
LCPDL4-36-C-70
Dline Pendant
LCPDL4-36-N-70
Dline Pendant
LCPDL4-36-W-70
Dline Pendant
LCPDL6-48-C-70
Dline Pendant
LCPDL6-48-N-70
Dline Pendant
LCPDL6-48-W-70
Dline Pendant
LCPDL8-60-C-70
Dline Pendant
LCPDL8-60-N-70
Dline Pendant
LCPDL8-60-W-70
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
6500K
≥80
240V AC
≥0.95
<10%
≥100
602
50
70
20W
4000K
≥80
240V AC
≥0.95
<10%
≥90
602
50
70
20W
3000K
≥80
240V AC
≥0.95
<10%
≥85
602
50
70
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
50
70
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1196
50
70
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1196
50
70
48W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1794
50
70
48W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1794
50
70
48W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1794
50
70
60W
6500K
≥80
240V AC
≥0.95
<10%
≥100
2388
50
70
60W
4000K
≥80
240V AC
≥0.95
<10%
≥90
2388
50
70
60W
3000K
≥80
240V AC
≥0.95
<10%
≥85
2388
50
70
20W
6500K
≥80
240V AC
≥0.95
<10%
≥100
602
70
85
20W
4000K
≥80
240V AC
≥0.95
<10%
≥90
602
70
85
20W
3000K
≥80
240V AC
≥0.95
<10%
≥85
602
70
85
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
70
85
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1196
70
85
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1196
70
85
48W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1794
70
85
48W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1794
50
70
48W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1794
70
85
60W
6500K
≥80
240V AC
≥0.95
<10%
≥100
2388
70
85
60W
4000K
≥80
240V AC
≥0.95
<10%
≥90
2388
70
85
60W
3000K
≥80
240V AC
≥0.95
<10%
≥85
2388
70
85
