Dline Pendant FC

Dline Pendant FC

Dline Pendant FC

Product Overview

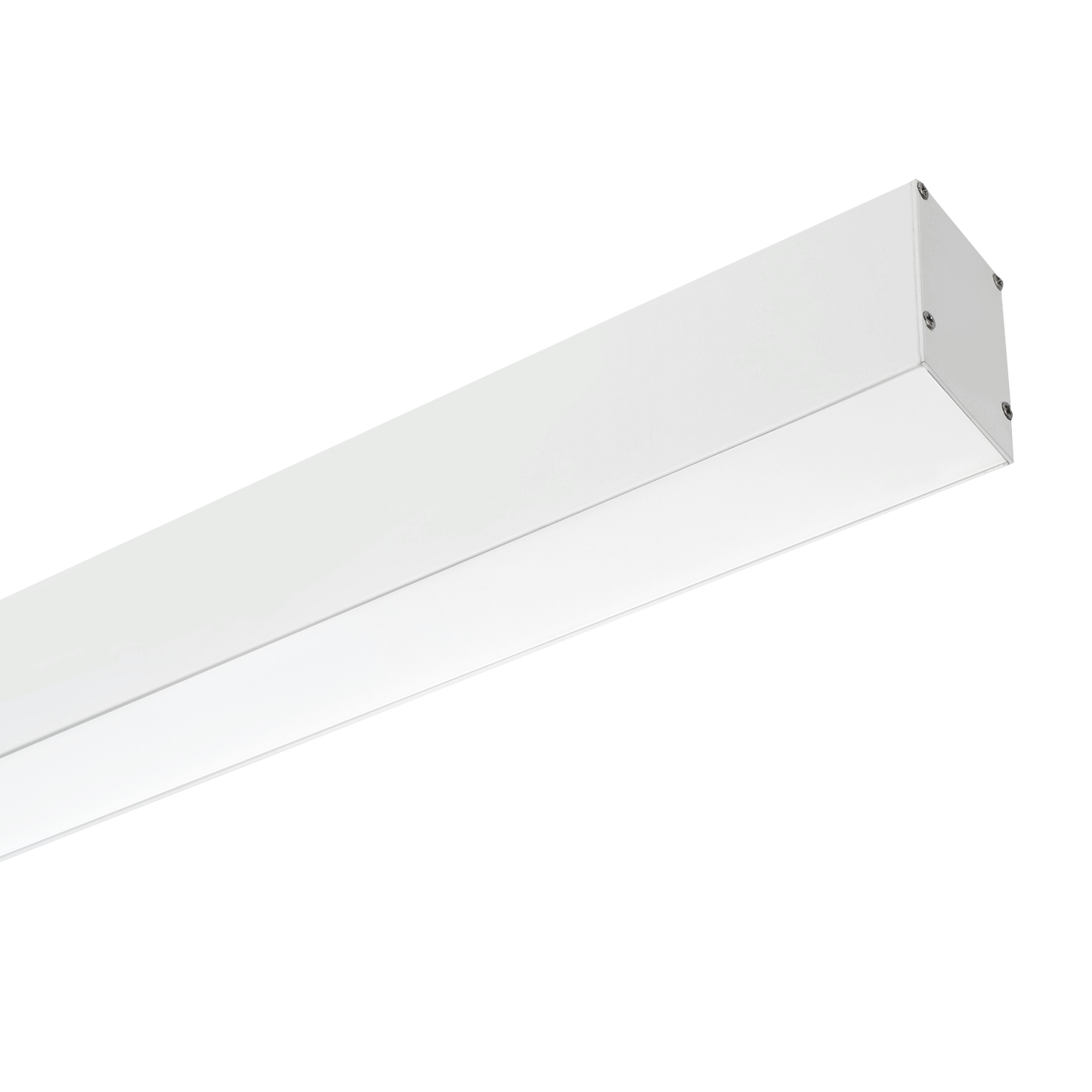

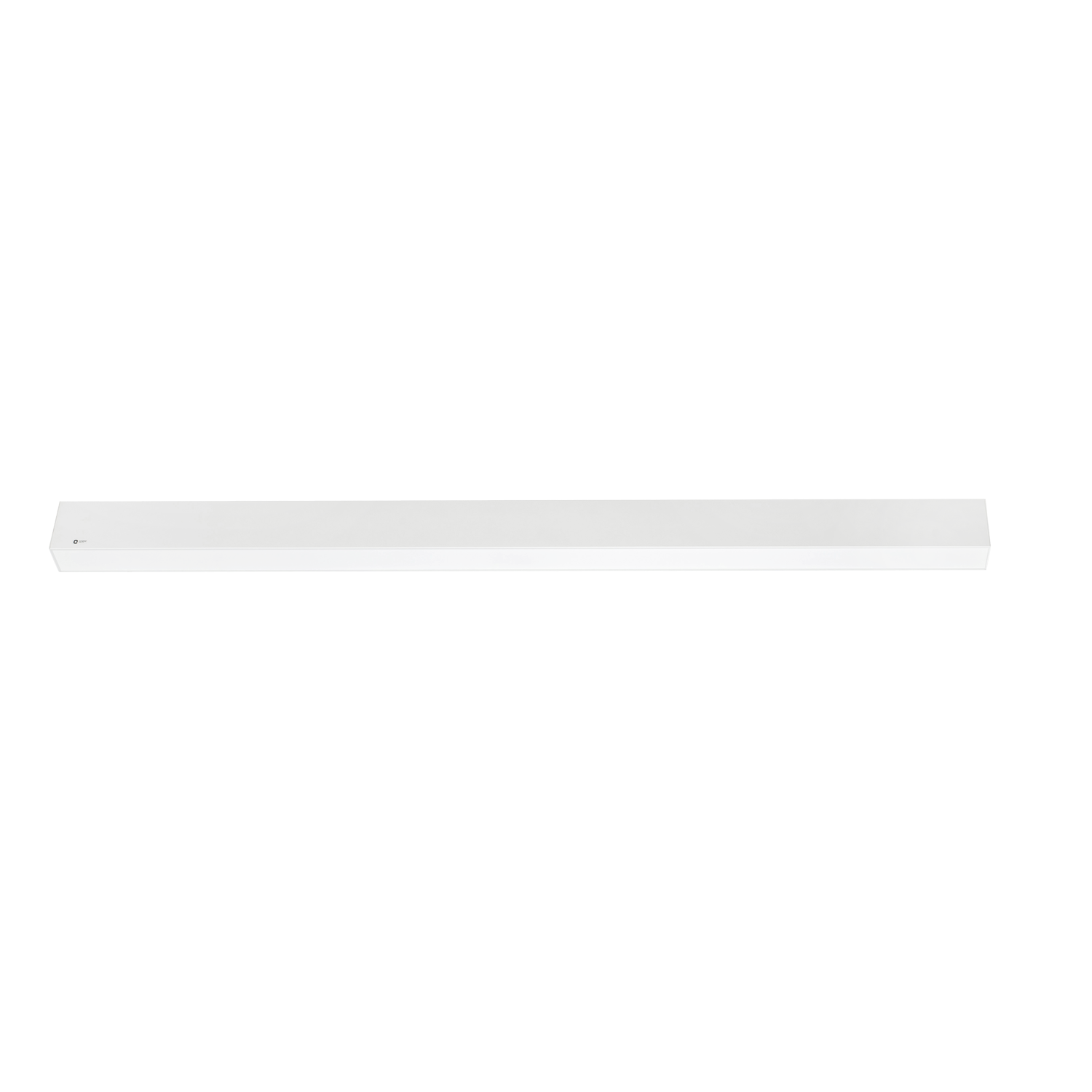

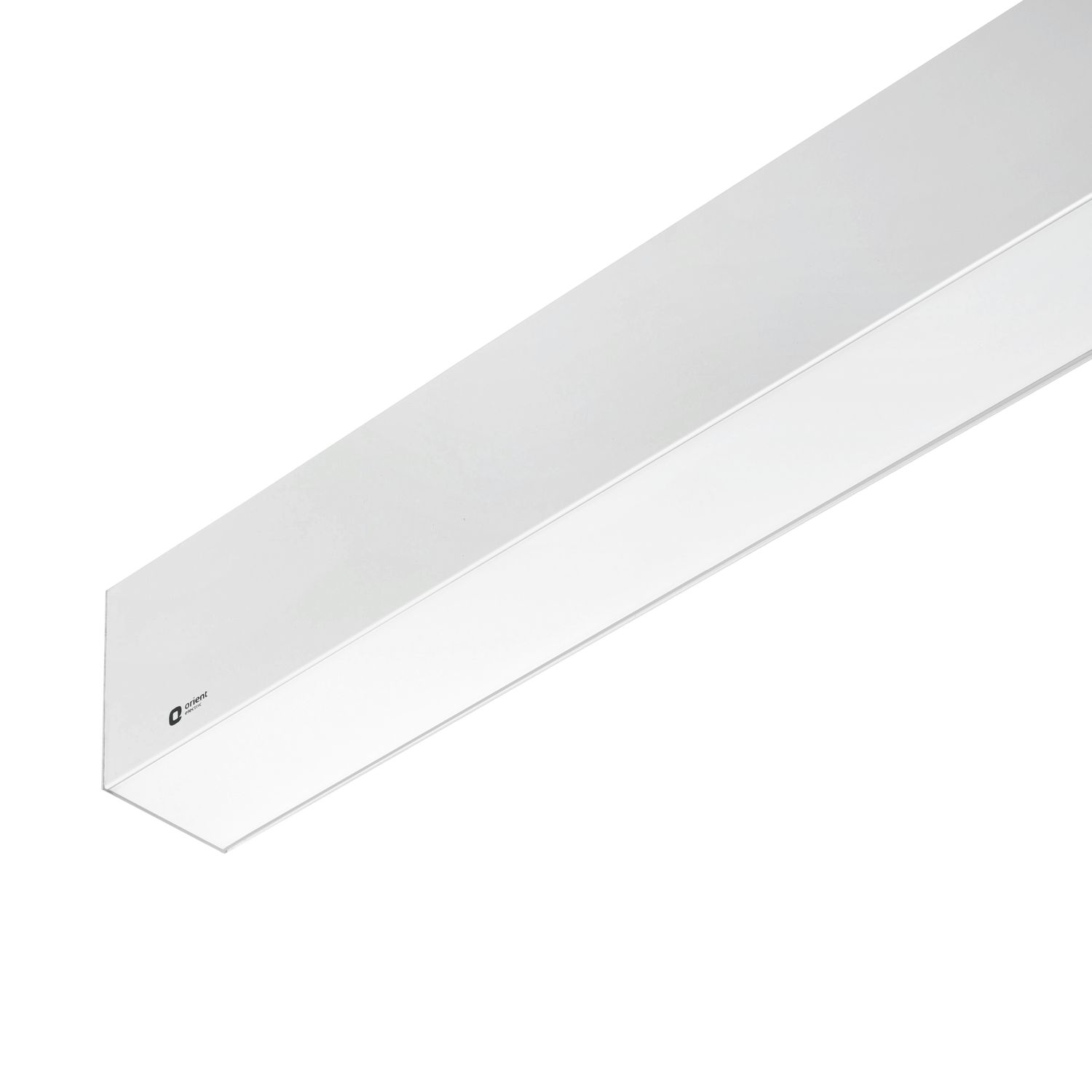

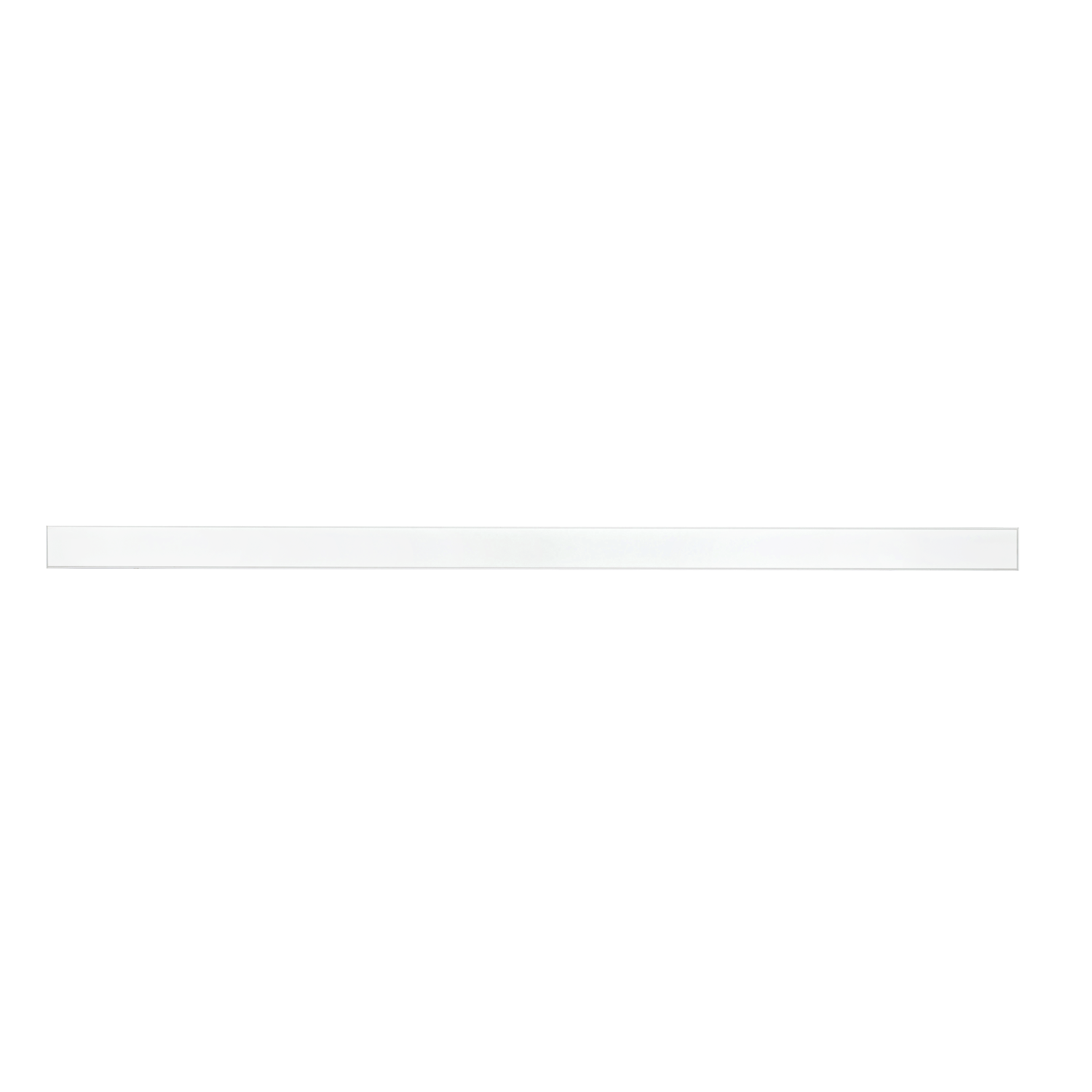

Seamless LED aluminium extruded suspended luminaire for indoor architectural lighting solution. Offers excellent energy saving and maintenance-free operation. It is ideal for linear lighting system and is suitable for continuous mounting. It enhances visual ambience with uniform illumination with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

Best suited for

Workstations

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.

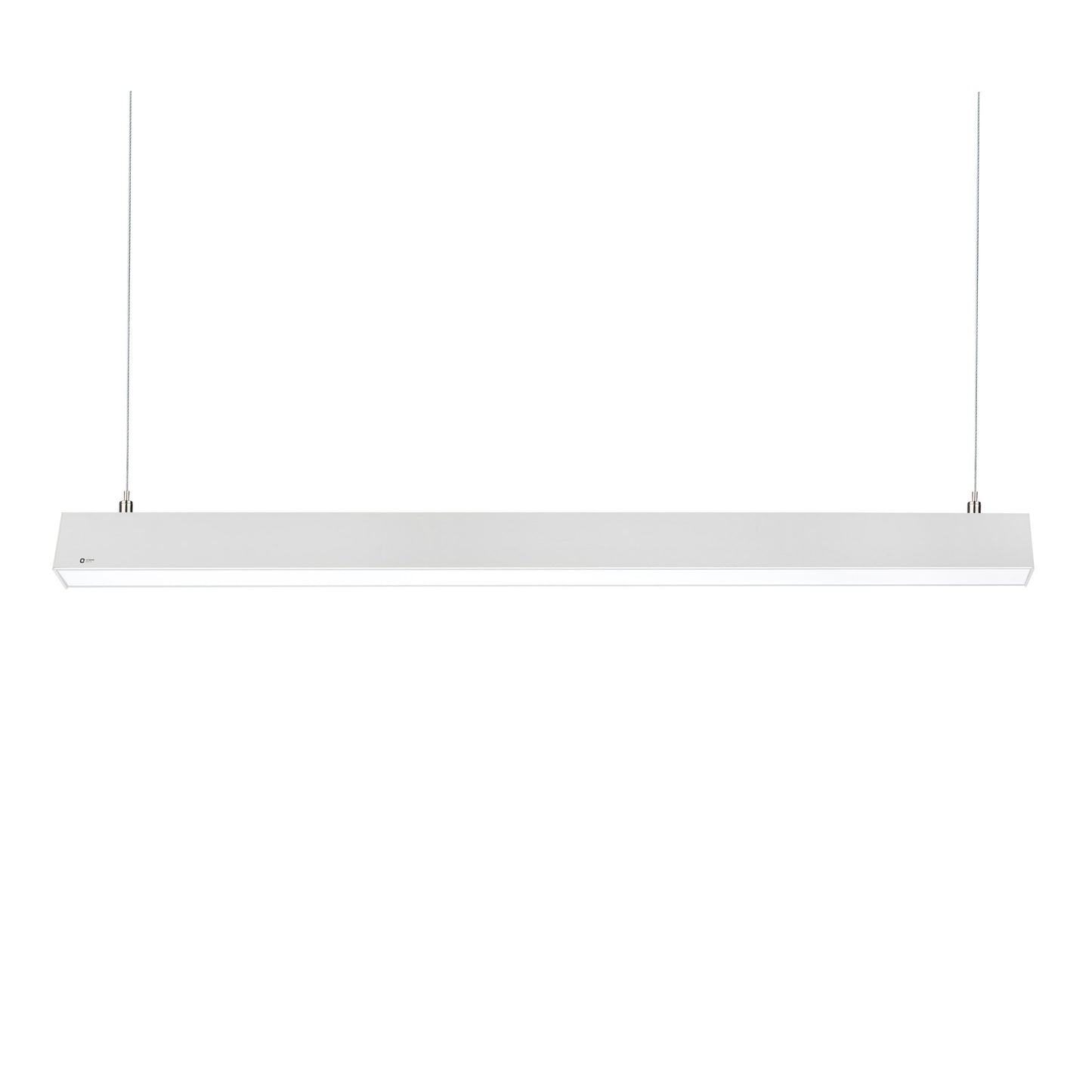

    Mounting Pendant mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 36W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100,≥90,≥85
Dline Pendant FC variants
Product Variants
Dline Pendant FC
LCPDL4-36-C-70-FC
Dline Pendant FC
LCPDL4-36-N-70-FC
Dline Pendant FC
LCPDL4-36-W-70-FC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
70
85
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1196
70
85
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1196
70
85
