Dline Pendant Tunable

Dline Pendant Tunable

Dline Pendant Tunable

Product Overview

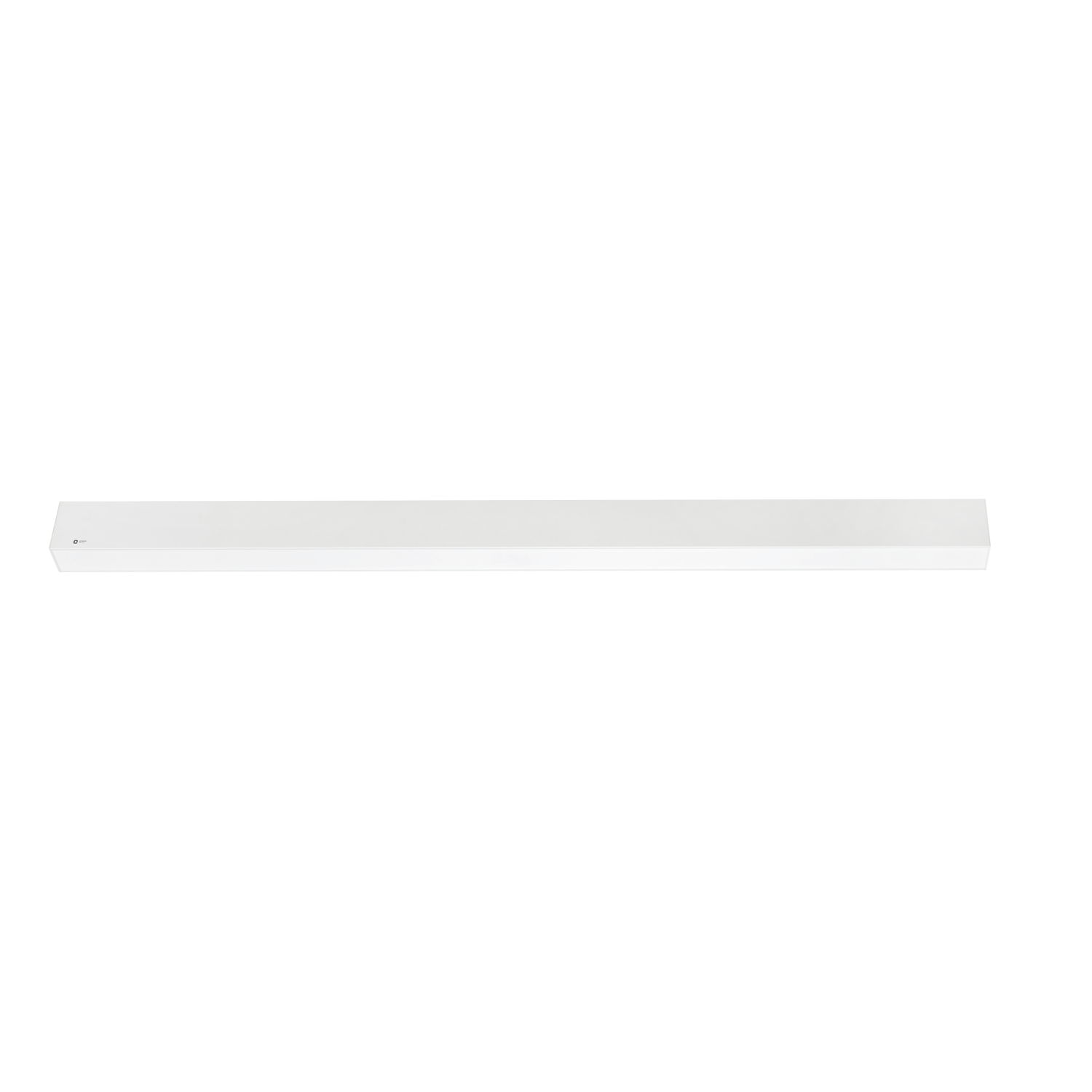

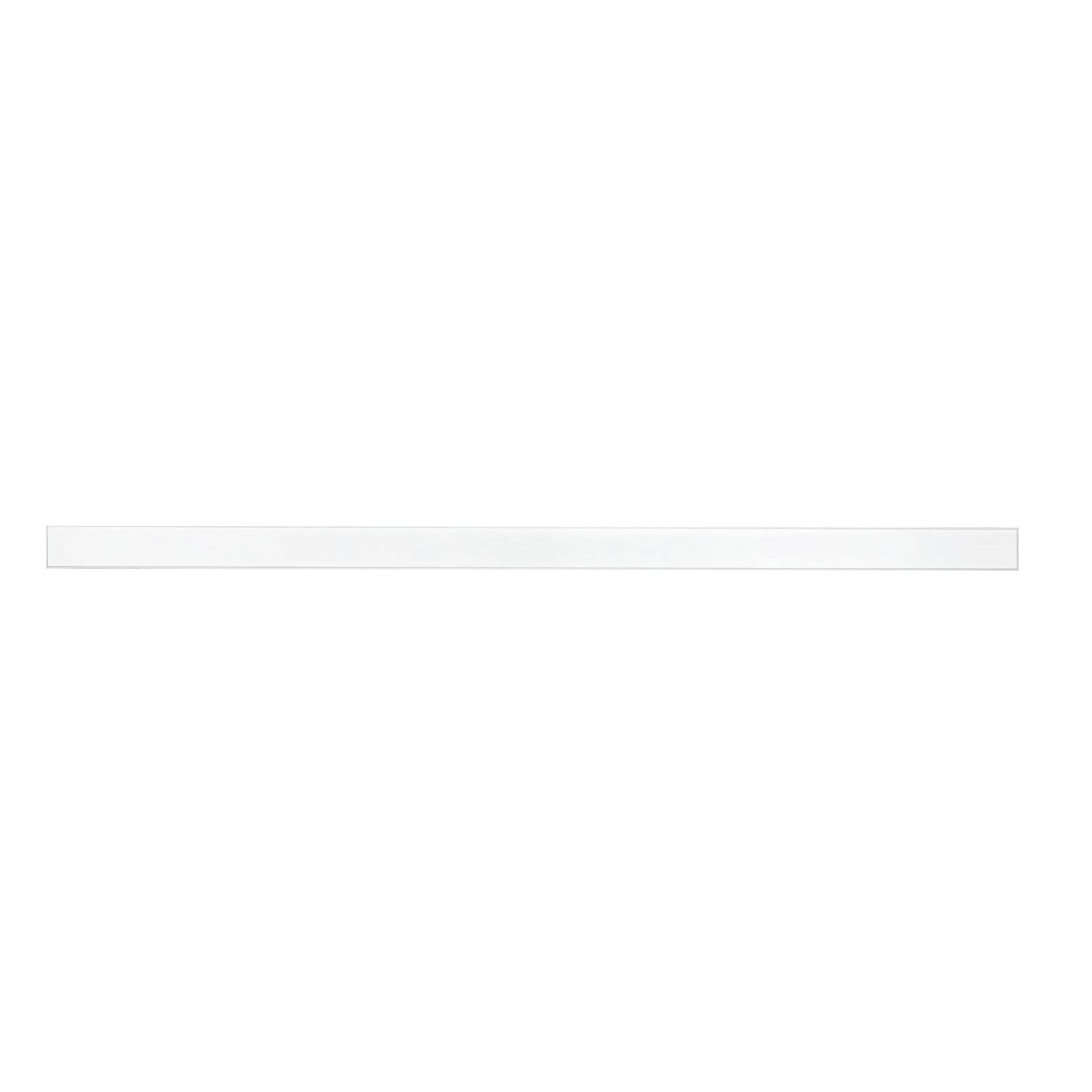

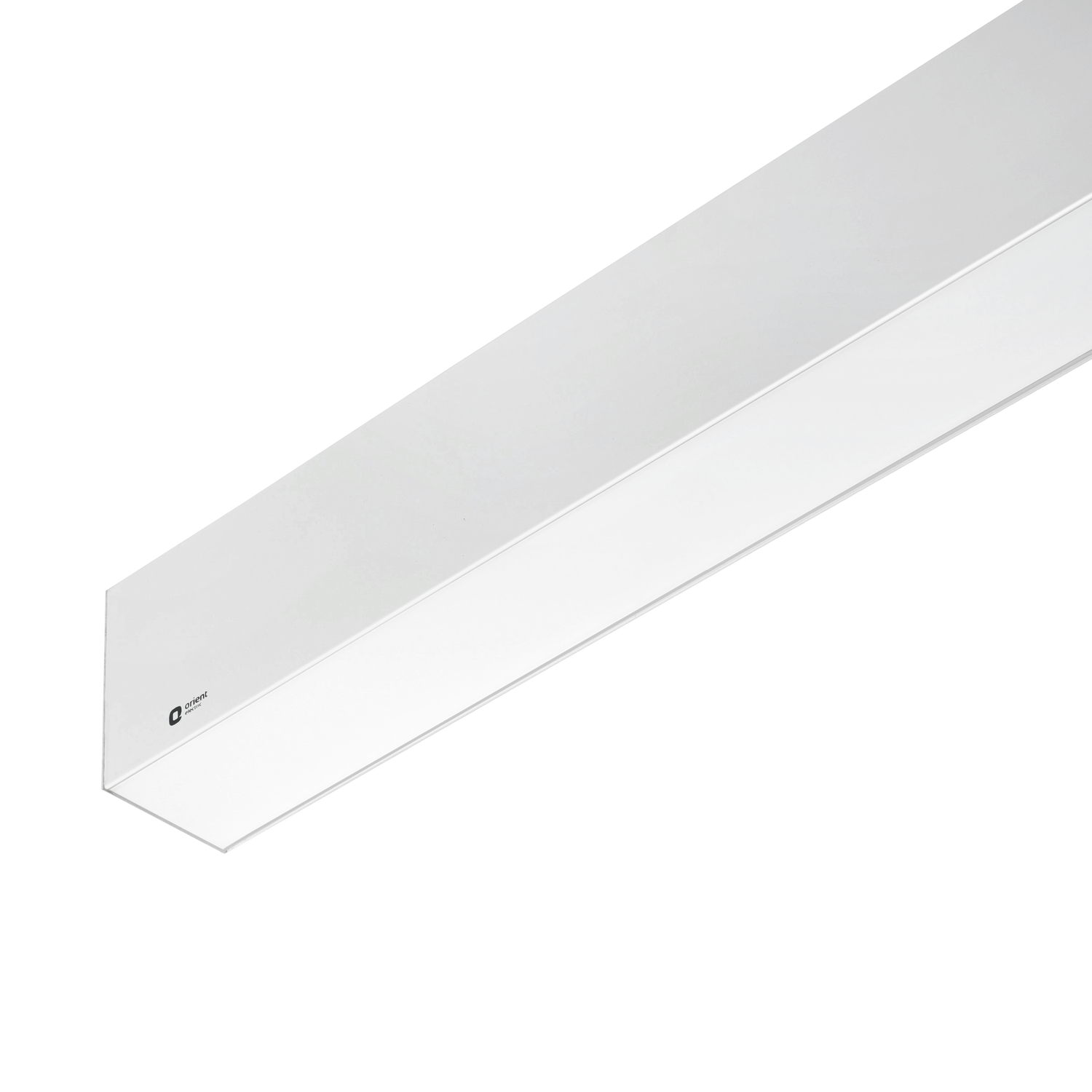

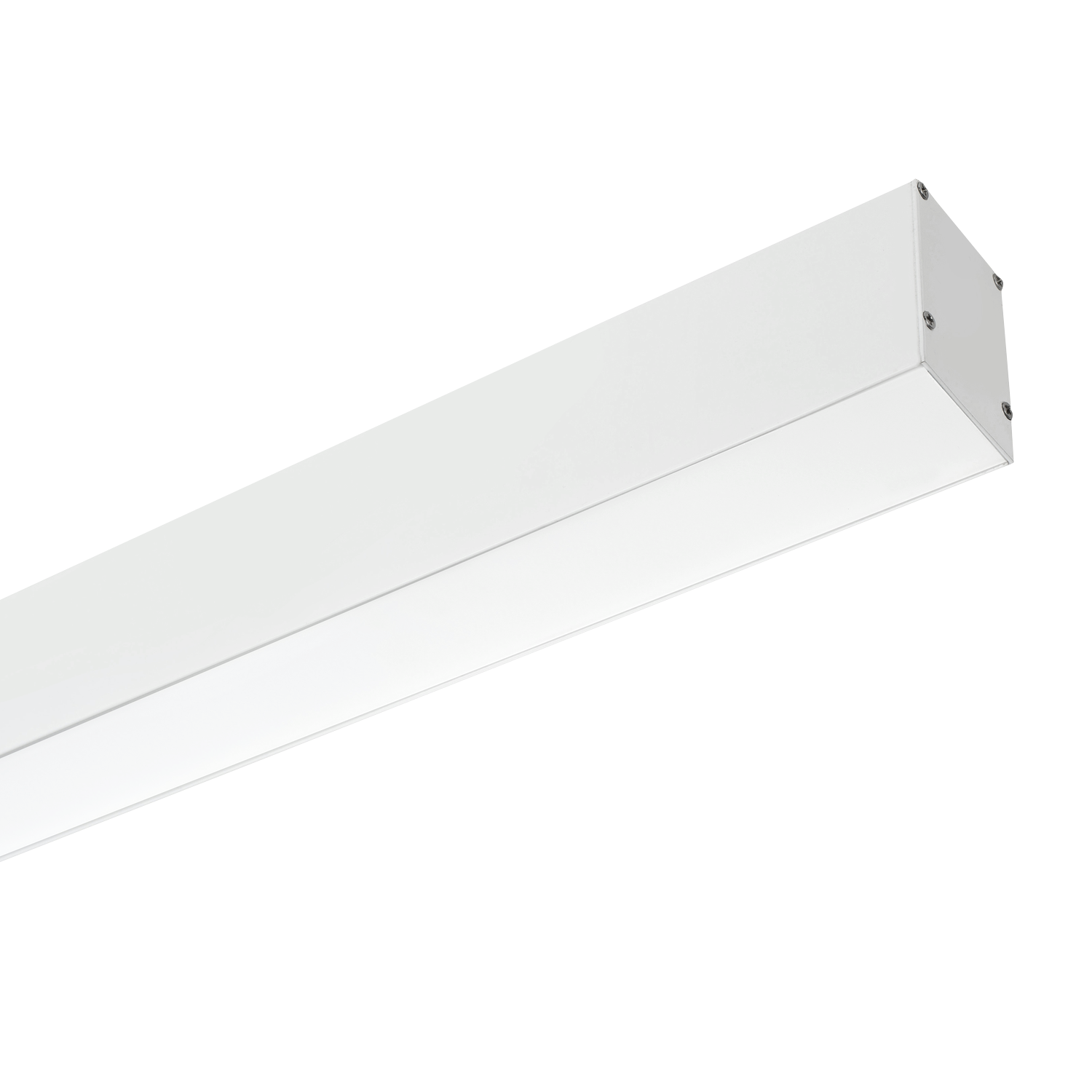

Pendant LED linear light in aluminium housing with Human-centric property provides improved productivity, better moods and overall healthier workspaces. Tunable with optional pre-set colour temperatures or manual adjustments to any CCT in the range 3000K-6500K along with lux sensing & dimming possibilities. Wired and wireless communication mode available as per site mapping. Mobile Application interface for easiness of operations.

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Pendant mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 24W, 30W, 36W
    CCT 3000K-6500K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100
Dline Pendant Tunable variants
Product Variants
Dline Pendant Tunable
LCPDL4-24-HC-50
Dline Pendant Tunable
LCPDL4-30-HC-50
Dline Pendant Tunable
LCPDL4-36-HC-50
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
24W
3000K-6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
50
70
30W
3000K-6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
50
70
36W
3000K-6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
50
70
