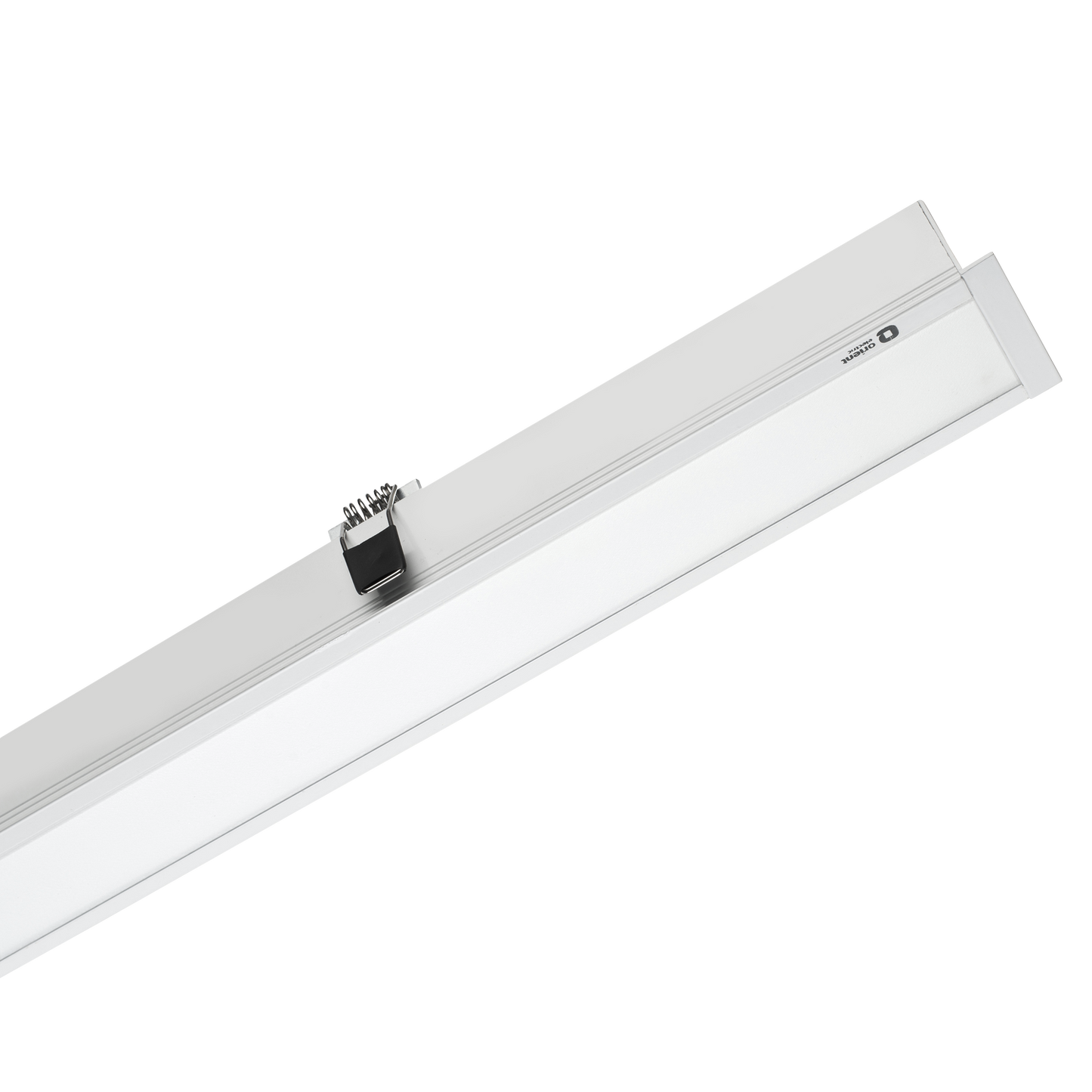

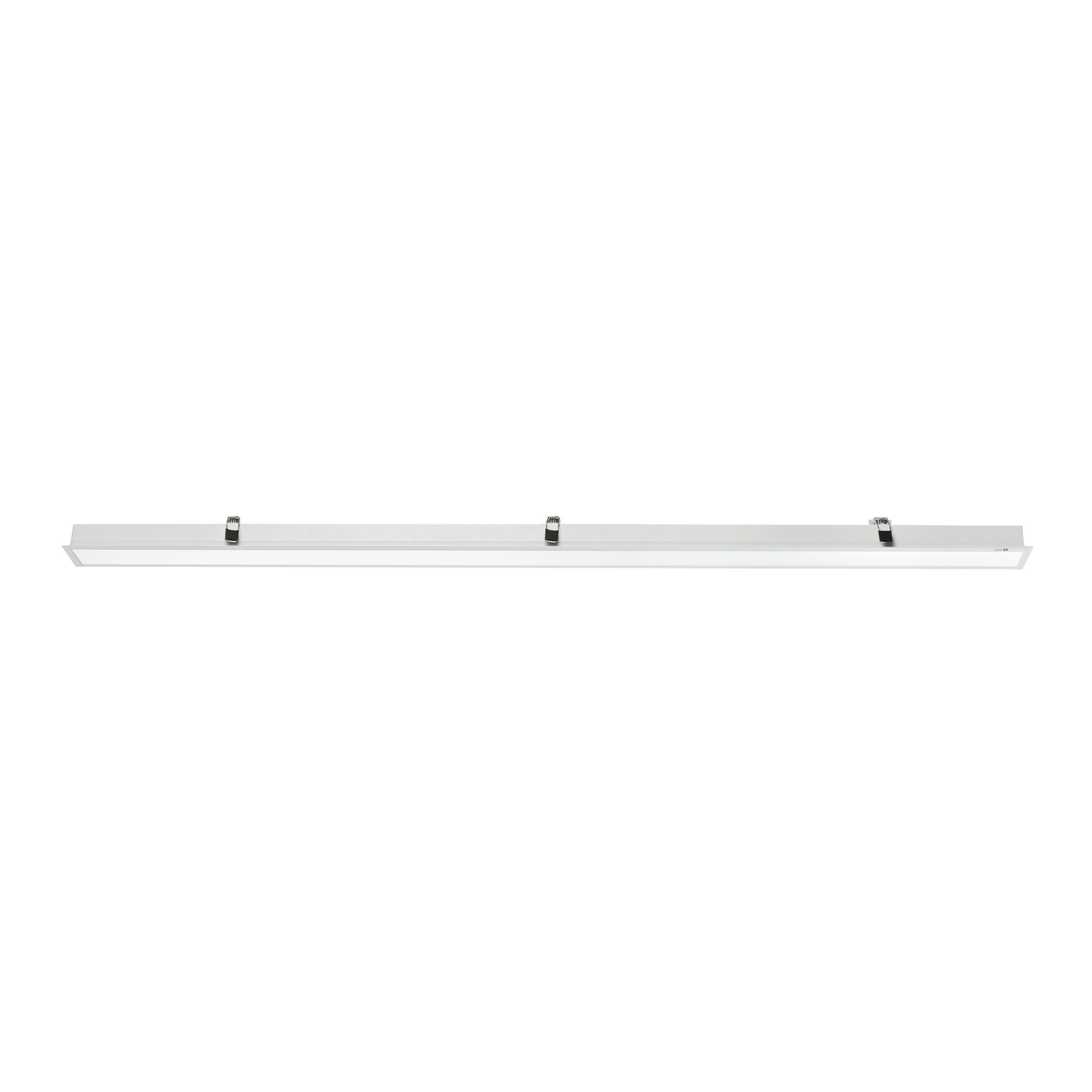

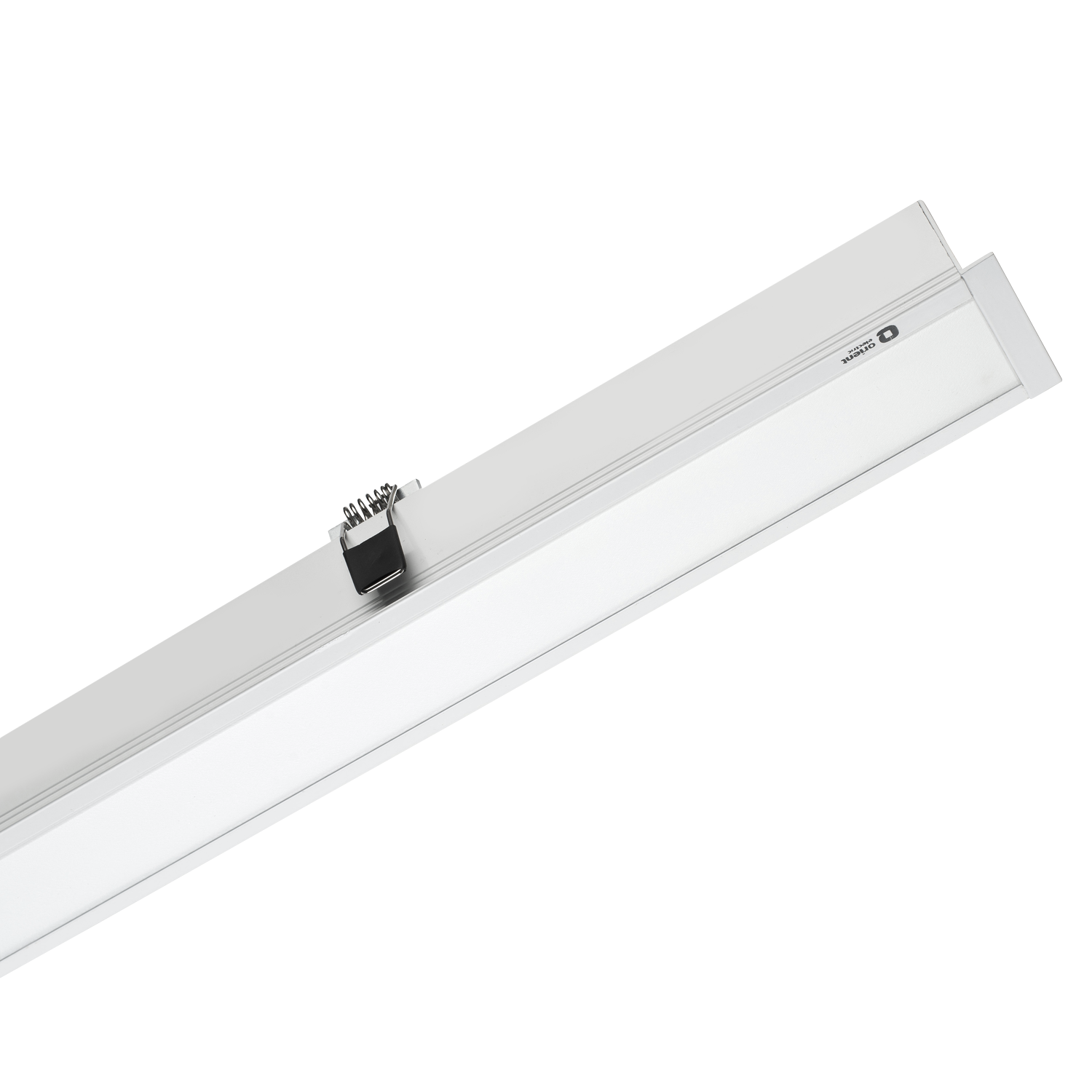

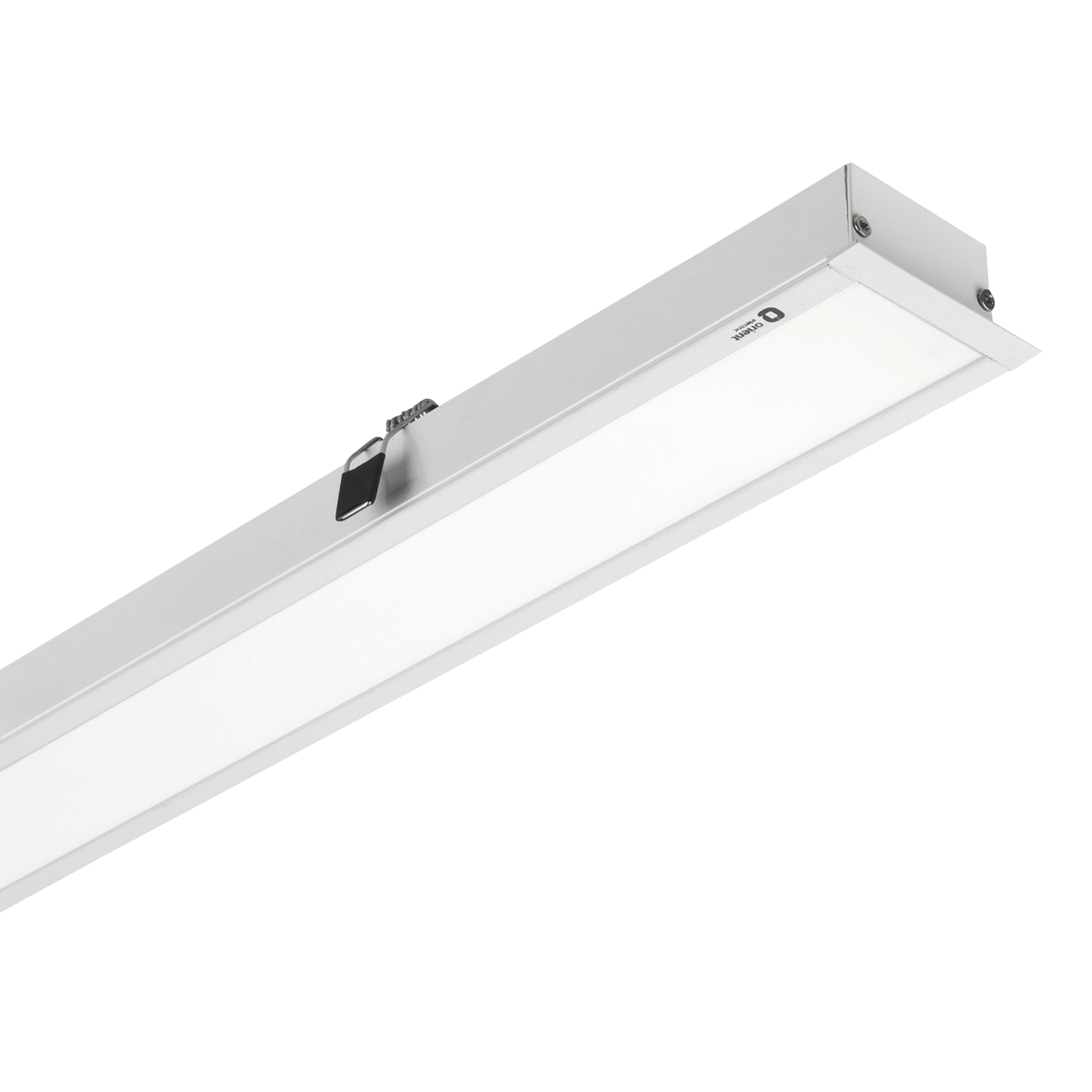

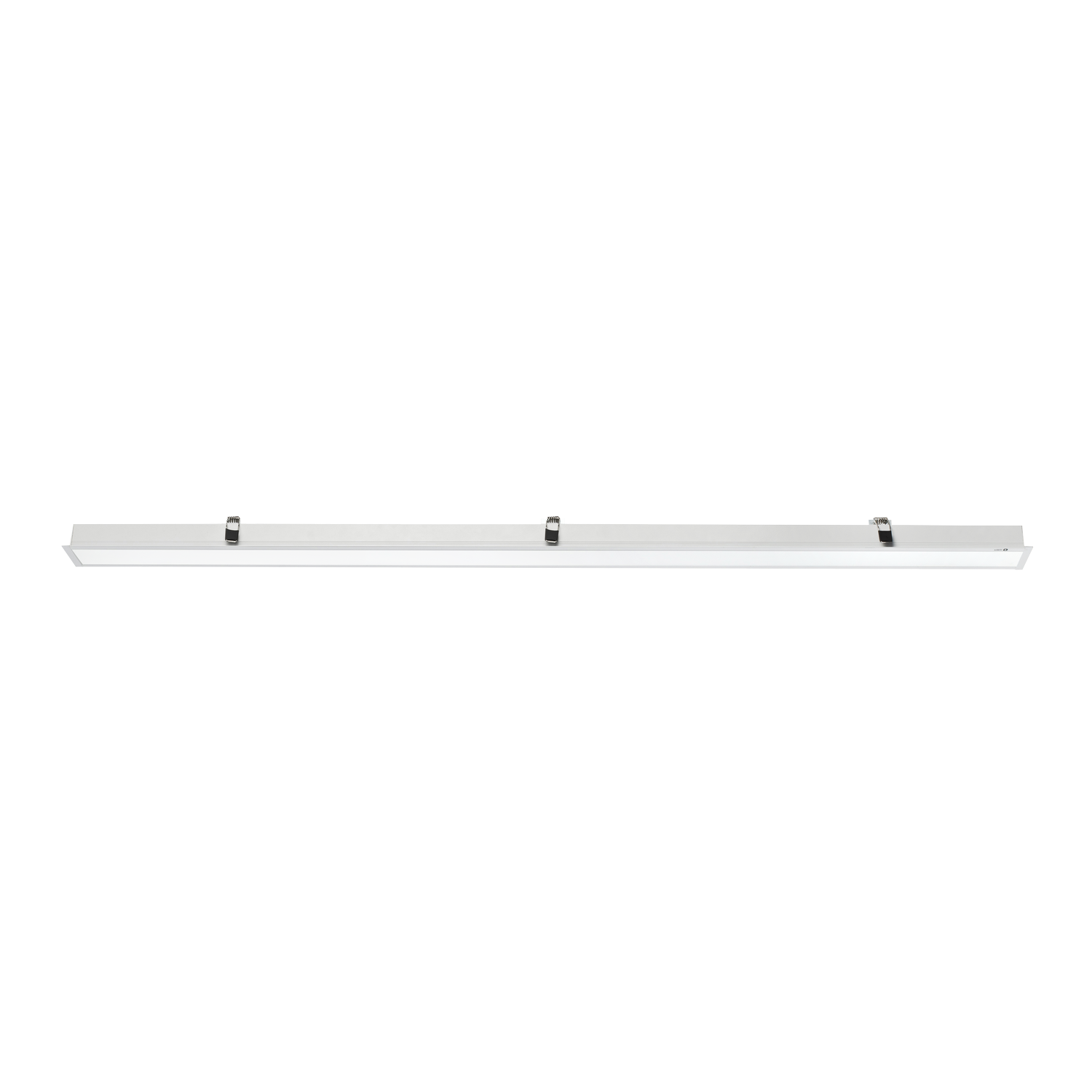

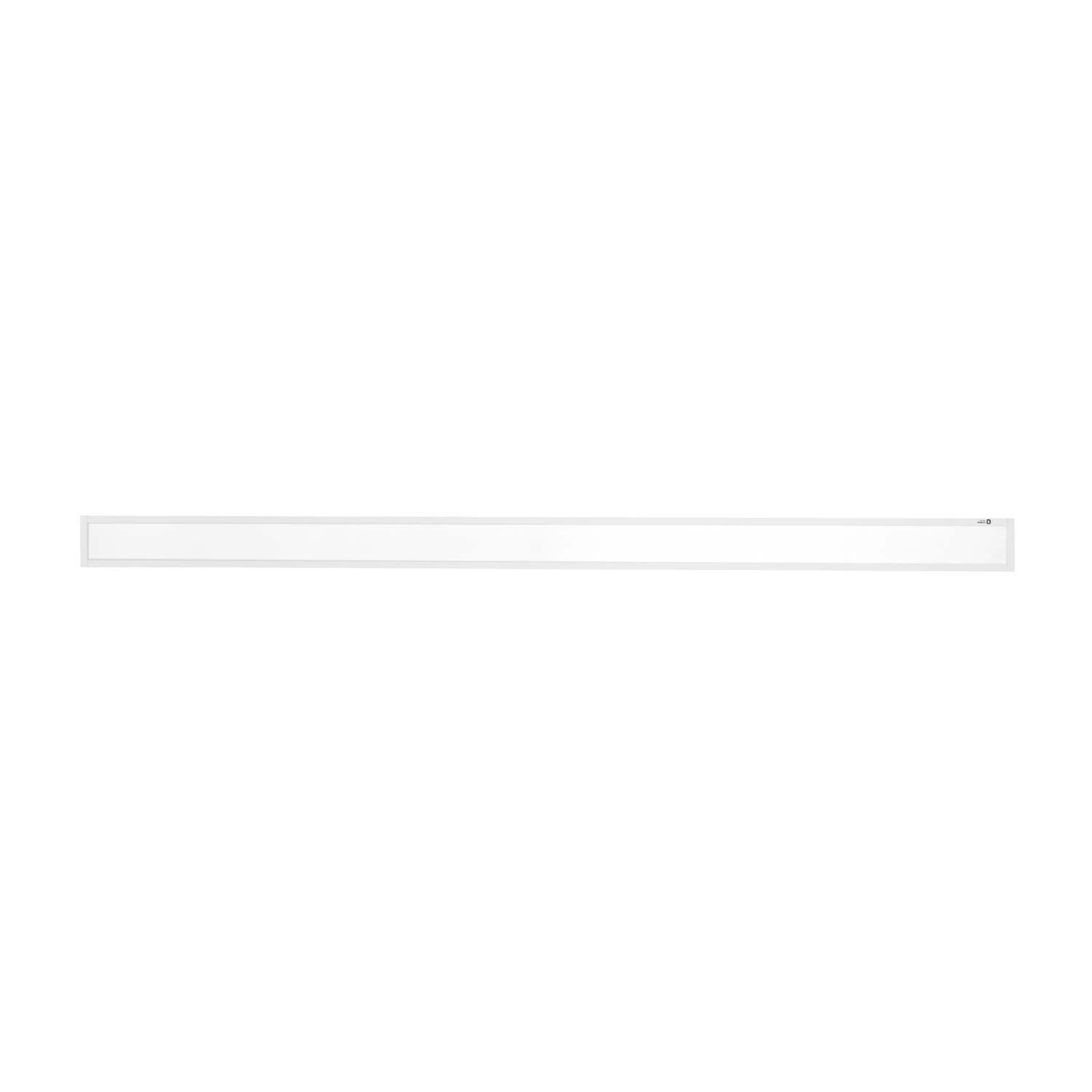

Dline Recess

Dline Recess

Dline Recess

Product Overview

Seamless aluminium extruded recess-mounting luminaire for indoor architectural lighting solution for continuous mounting. Offers excellent energy saving and maintenance-free operation featured with best-in-class LED light sources with high luminous efficacy and highly translucent optical system to ensure maximum light output with excellent glare control and uniformity with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

Best suited for

Workstations

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 20W
    CCT 6500K, 4000K, 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
Dline Recess variants
Product Variants
Dline Recess
LCRDL2-20-C-50
Dline Recess
LCRDL2-20-N-50
Dline Recess
LCRDL2-20-W-50
Dline Recess
LCRDL4-36-C-50
Dline Recess
LCRDL4-36-N-50
Dline Recess
LCRDL4-36-W-50
Dline Recess
LCRDL6-48-C-50
Dline Recess
LCRDL6-48-N-50
Dline Recess
LCRDL6-48-W-50
Dline Recess
LCRDL8-60-C-50
Dline Recess
LCRDL8-60-N-50
Dline Recess
LCRDL8-60-W-50
Dline Recess
LCRDL2-20-C-70
Dline Recess
LCRDL2-20-N-70
Dline Recess
LCRDL2-20-W-70
Dline Recess
LCRDL4-36-C-70
Dline Recess
LCRDL4-36-N-70
Dline Recess
LCRDL4-36-W-70
Dline Recess
LCRDL6-48-C-70
Dline Recess
LCRDL6-48-N-70
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Cutout (in mm)
Height (in mm)
20W
6500K
≥80
240V AC
≥0.95
<10%
≥100
615
63
602x52
30
20W
4000K
≥80
240V AC
≥0.95
<10%
≥90
615
63
602×52
30
20W
3000K
≥80
240V AC
≥0.95
<10%
≥85
615
63
602×52
30
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
63
1196×52
30
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
63
1196×52
30
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
63
1196×52
30
48W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1806
63
1794x52
30
48W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1806
63
1794x52
30
48W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1806
63
1794x52
30
60W
6500K
≥80
240V AC
≥0.95
<10%
≥100
2400
63
2388x52
30
60W
4000K
≥80
240V AC
≥0.95
<10%
≥90
2400
63
2388x52
30
60W
3000K
≥80
240V AC
≥0.95
<10%
≥85
2400
63
2388x52
30
20W
6500K
≥80
240V AC
≥0.95
<10%
≥100
615
90
602x72
80
20W
4000K
≥80
240V AC
≥0.95
<10%
≥90
615
90
602x72
80
20W
3000K
≥80
240V AC
≥0.95
<10%
≥85
615
90
602x72
80
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
90
1196x72
80
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
90
1196×72
80
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
90
1196×72
80
48W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1806
90
1794x72
80
48W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1806
90
1794x72
80
