Dline Recess FC

Dline Recess FC

Dline Recess FC

Product Overview

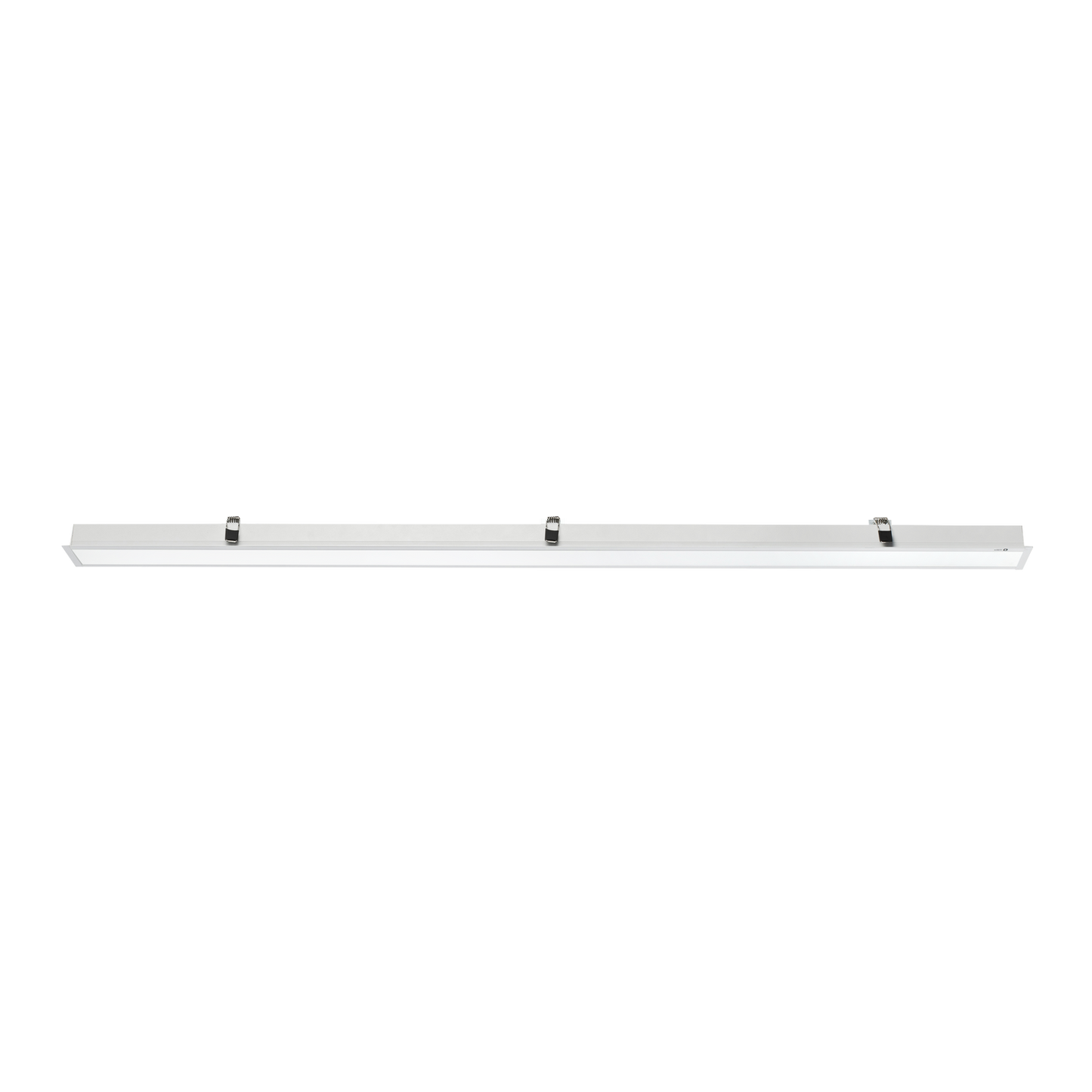

Seamless LED aluminium extruded direct distribution luminaire in recess mounting for indoor architectural lighting solution. Offers excellent energy saving and maintenance-free operation. It is ideal for linear lighting system and is suitable for continuous mounting. It enhances visual ambience with uniform illumination.

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 36W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100,≥90,≥85
Dline Recess FC variants
Product Variants
Dline Recess FC
LCRDL4-36-C-70-FC
Dline Recess FC
LCRDL4-36-N-70-FC
Dline Recess FC
LCRDL4-36-W-70-FC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cut Out (in mm)
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
90
80
1196 x 72
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
90
80
1196 x 72
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
90
80
1196 x 72
