Dline Smart Recess

Dline Smart Recess

Dline Smart Recess

Product Overview

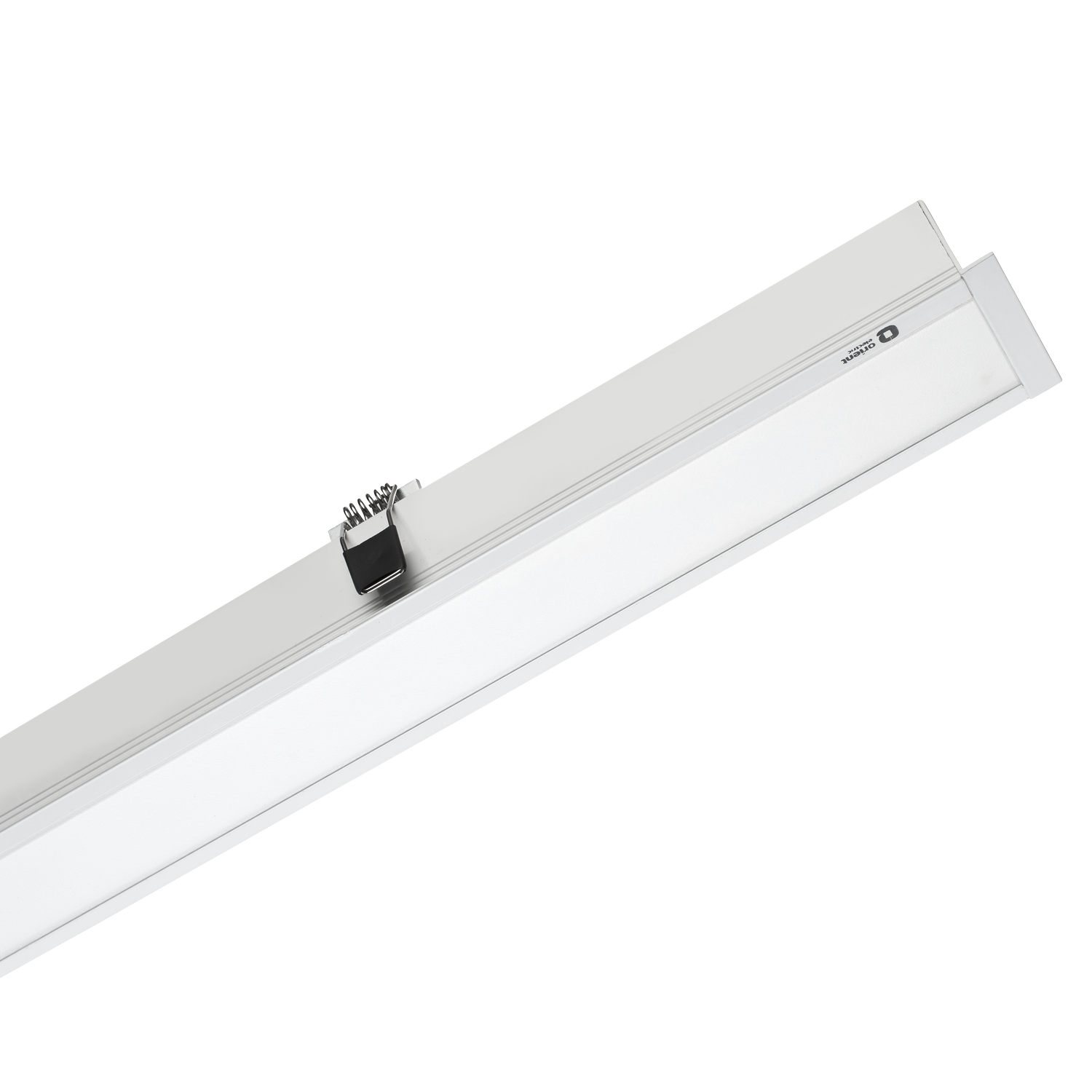

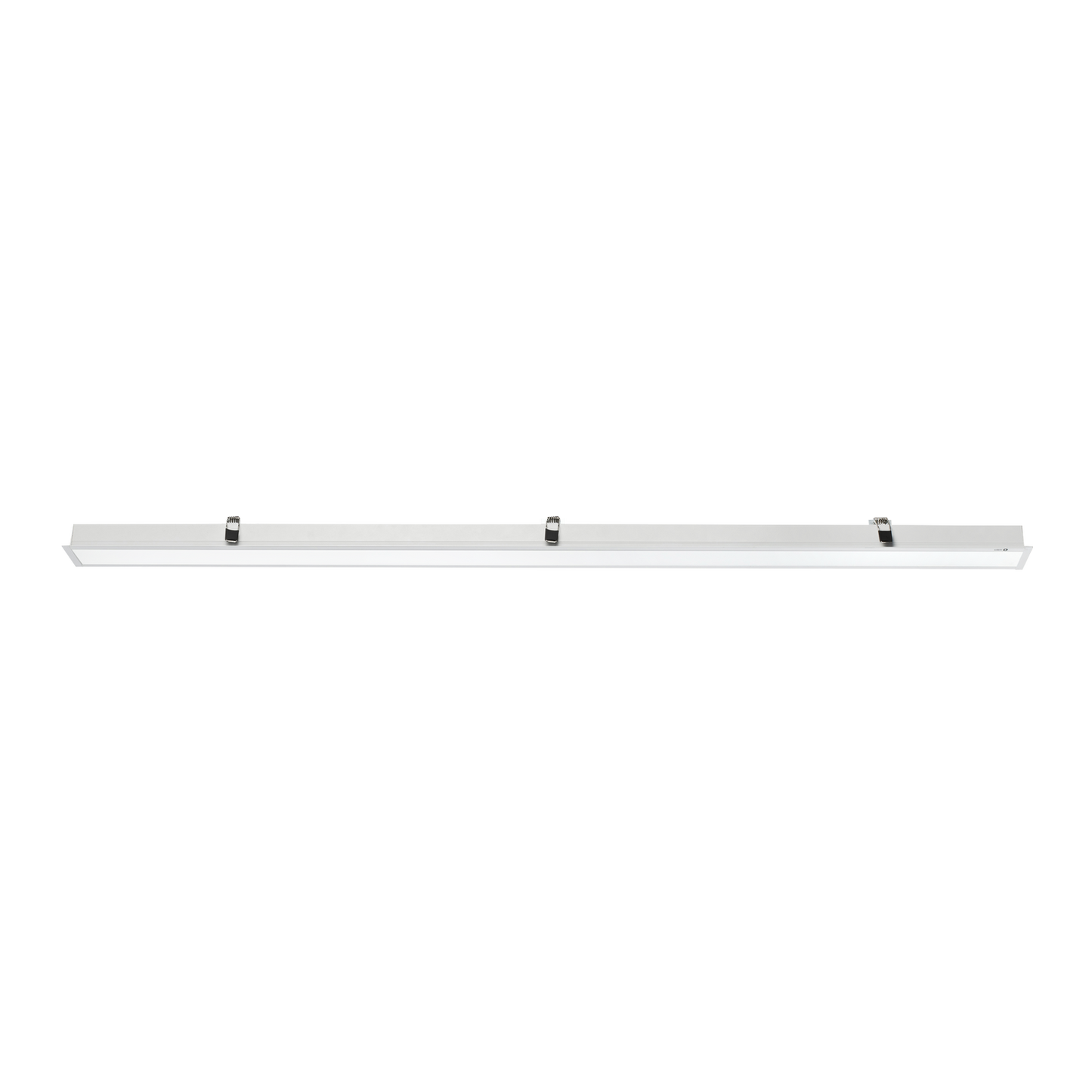

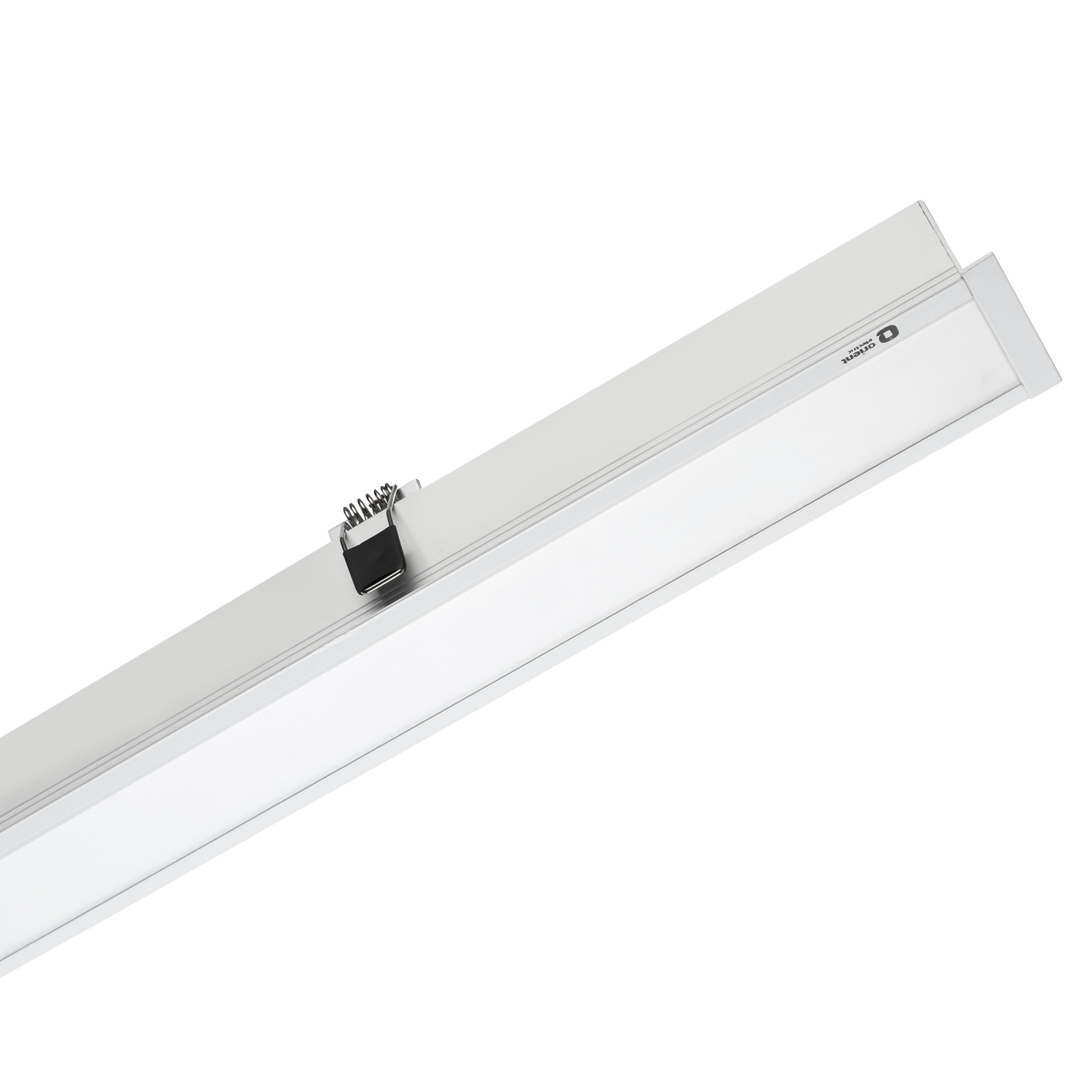

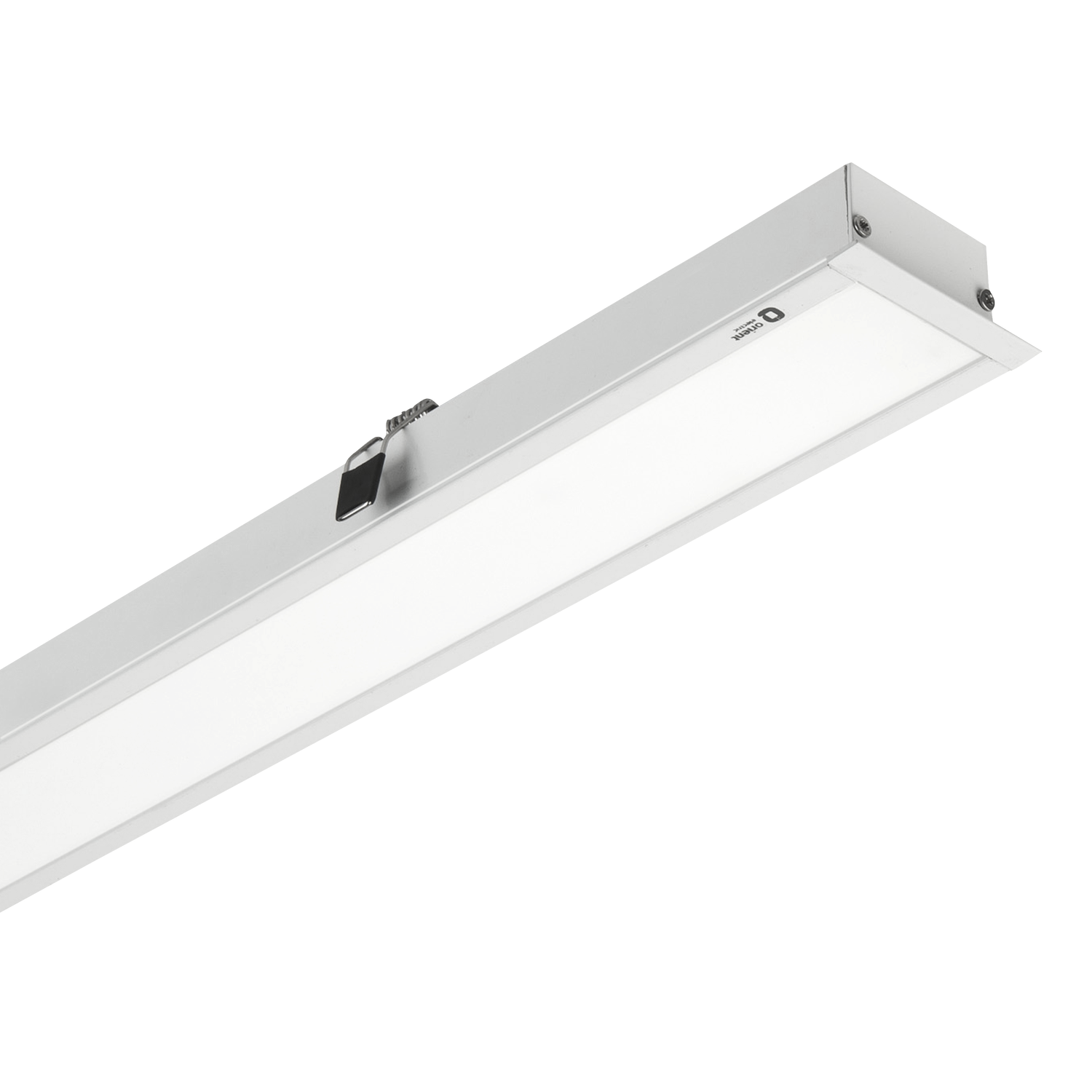

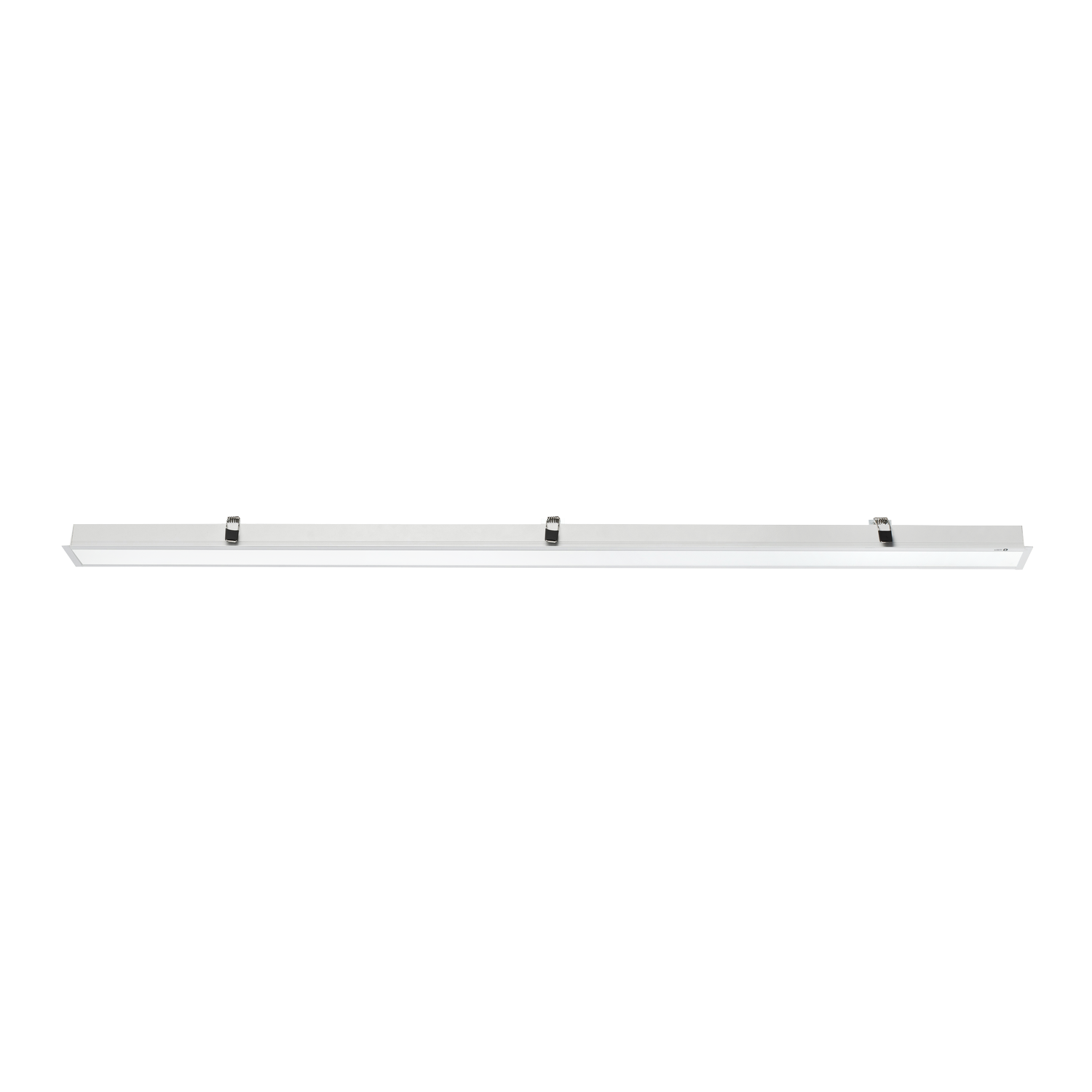

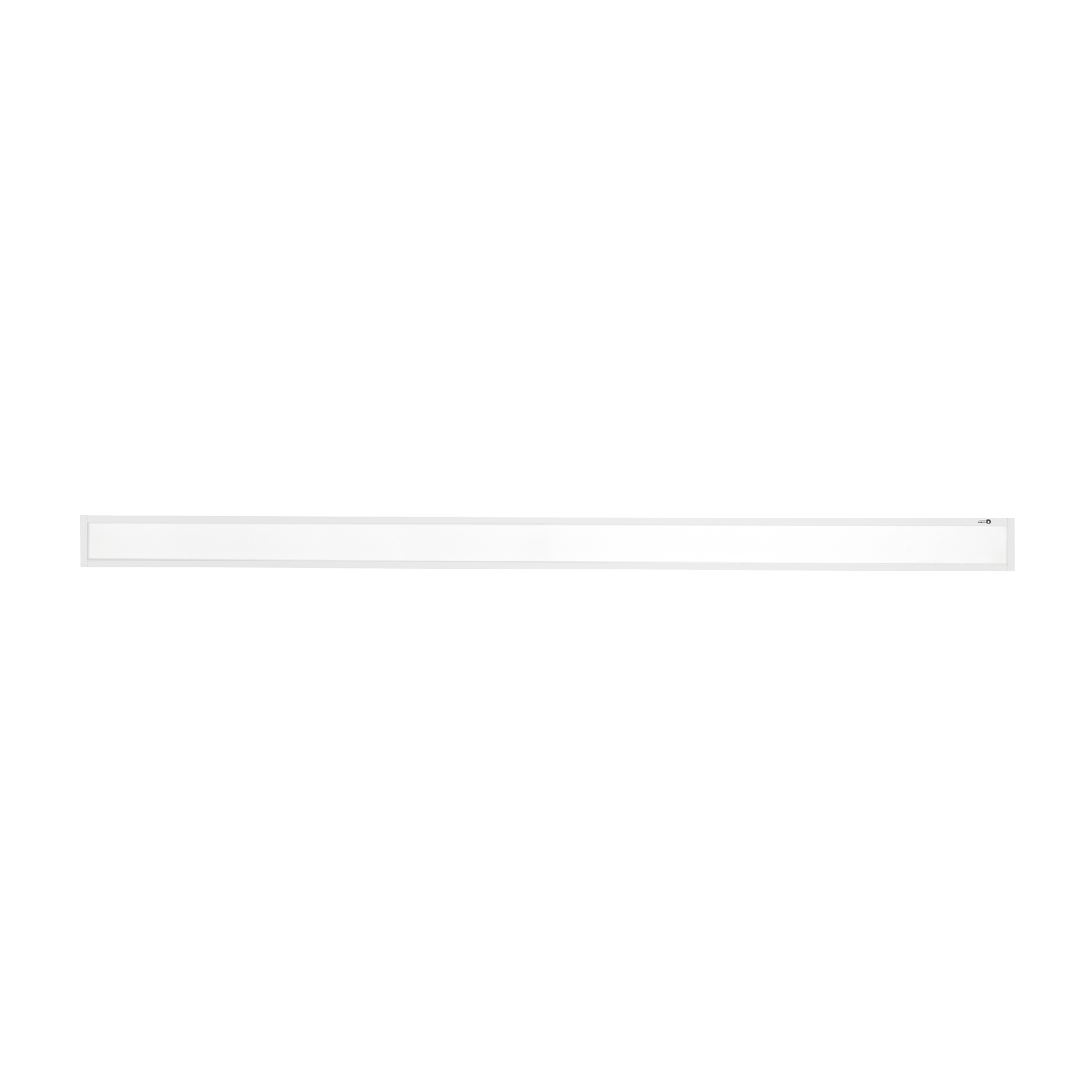

Smart-integrated linear LED light in aluminium housing in recess mounting with seamless dimming control, featuring DALI/PoE compatibility for adaptive lighting, energy efficiency, and enhanced user experience.

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 24W ,30W , 36W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100 , ≥90 , ≥85
Dline Smart Recess variants
Product Variants
Dline Smart Recess
LCRDLS4-24-C-50
Dline Smart Recess
LCRDLS4-24-N-50
Dline Smart Recess
LCRDLS4-24-W-50
Dline Smart Recess
LCRDLS4-30-C-50
Dline Smart Recess
LCRDLS4-30-N-50
Dline Smart Recess
LCRDLS4-30-W-50
Dline Smart Recess
LCRDLS4-36-C-50
Dline Smart Recess
LCRDLS4-36-N-50
Dline Smart Recess
LCRDLS4-36-W-50
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cut Out (in mm)
24W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
63
30
1196 x 52
24W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
63
30
1196 x 52
24W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
63
30
1196 x 52
30W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
63
30
1196 x 52
30W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
63
30
1196 x 52
30W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
63
30
1196 x 52
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1208
63
30
1196 x 52
36W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1208
63
30
1196 x 52
36W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1208
63
30
1196 x 52
