Dline TZ

Dline TZ

Dline TZ

Product Overview

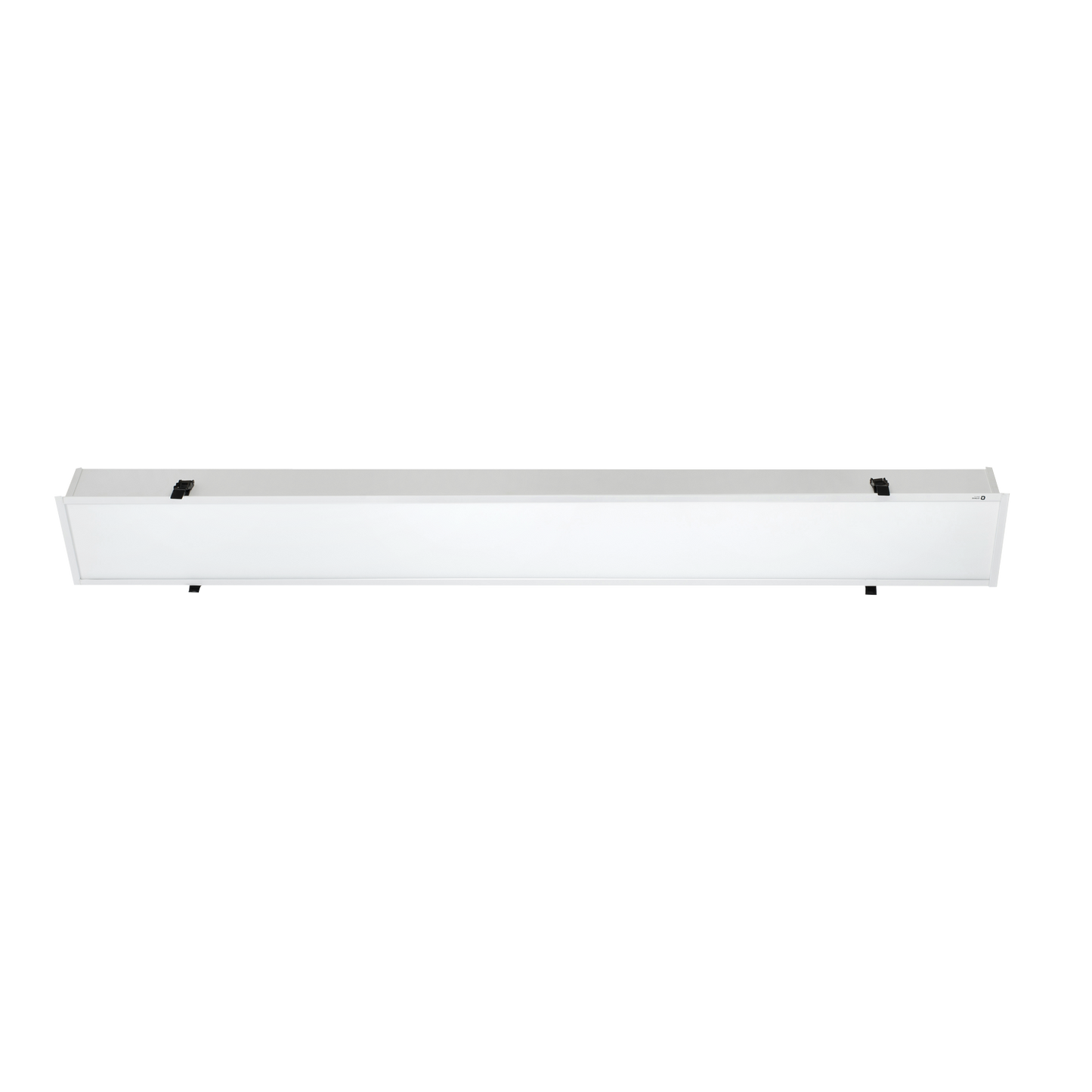

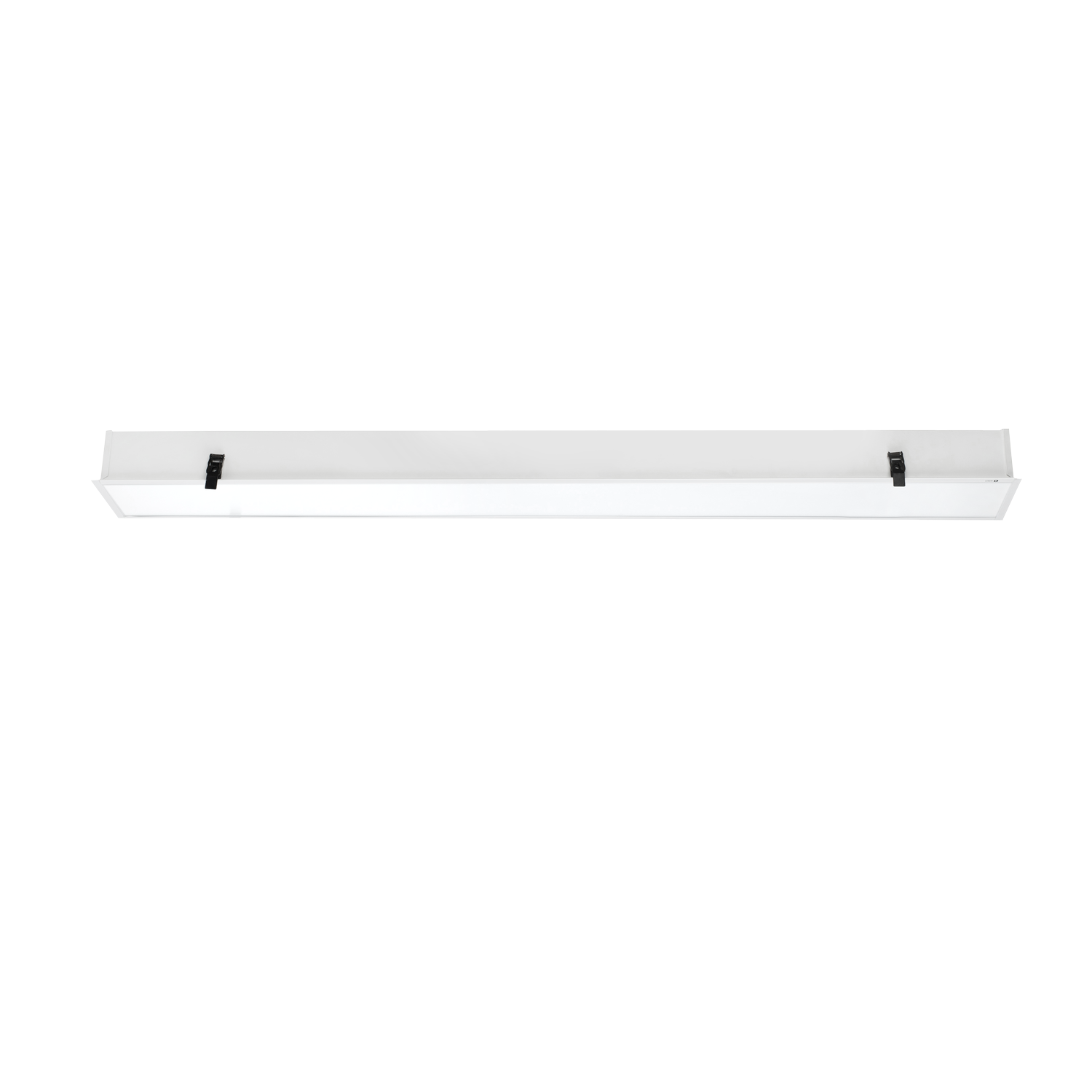

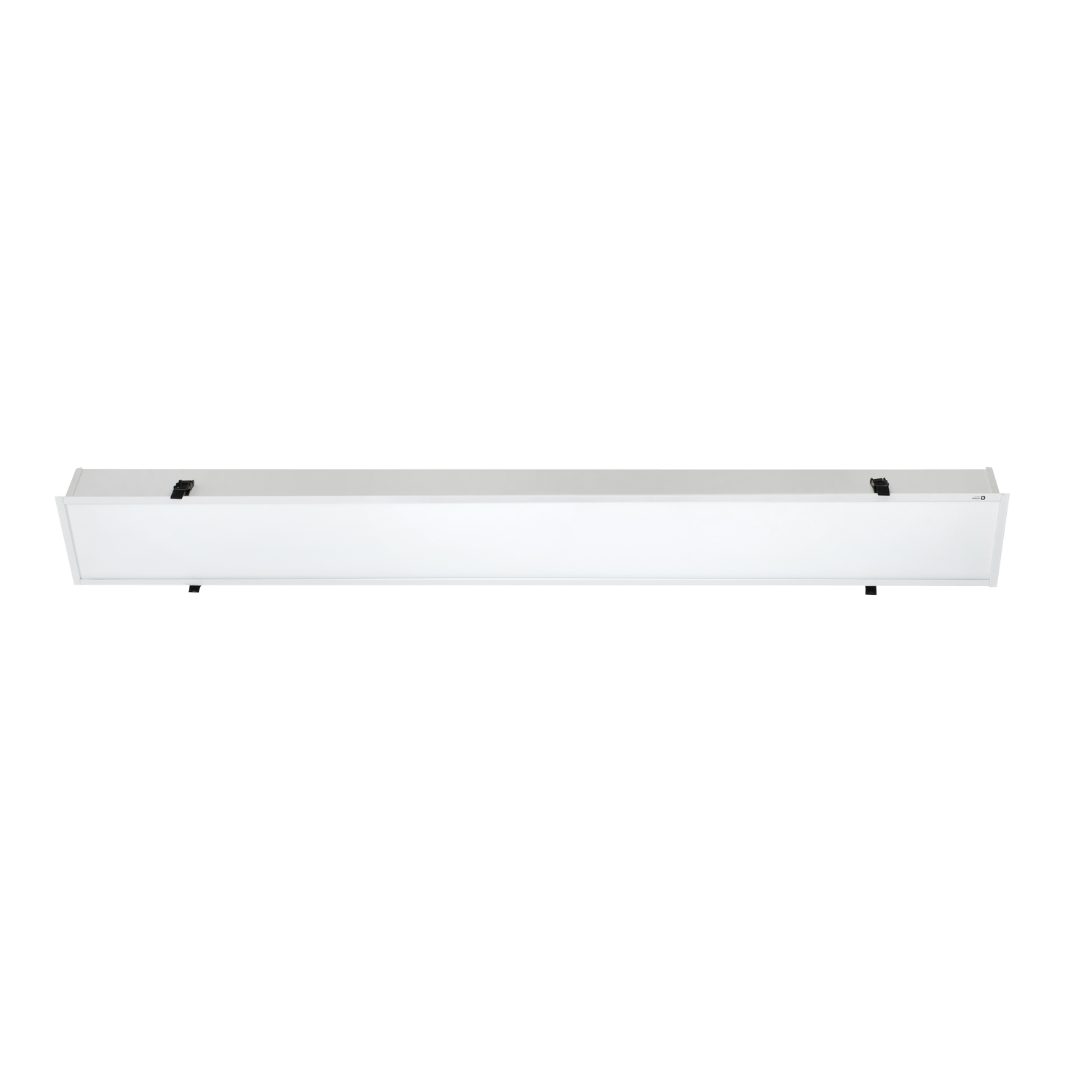

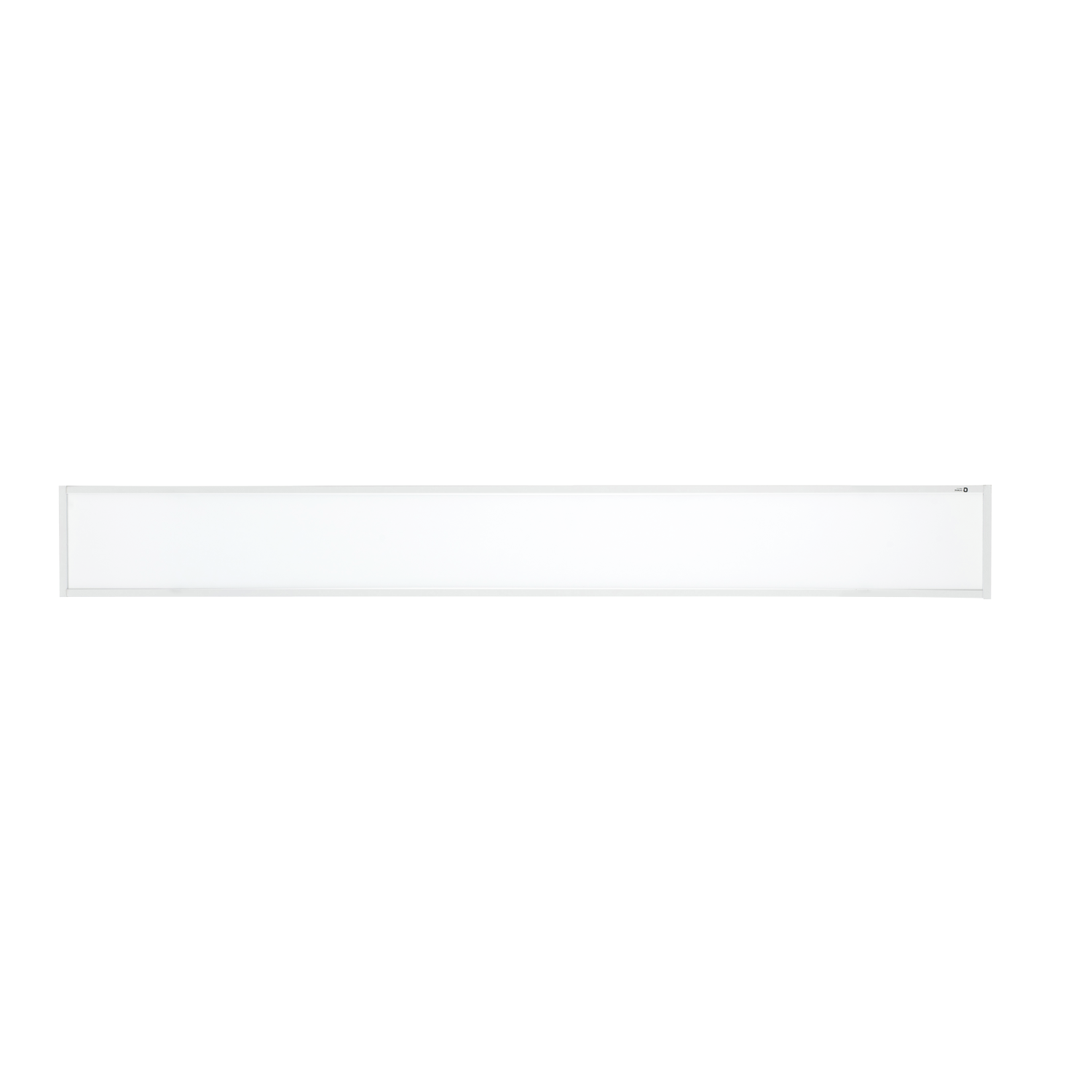

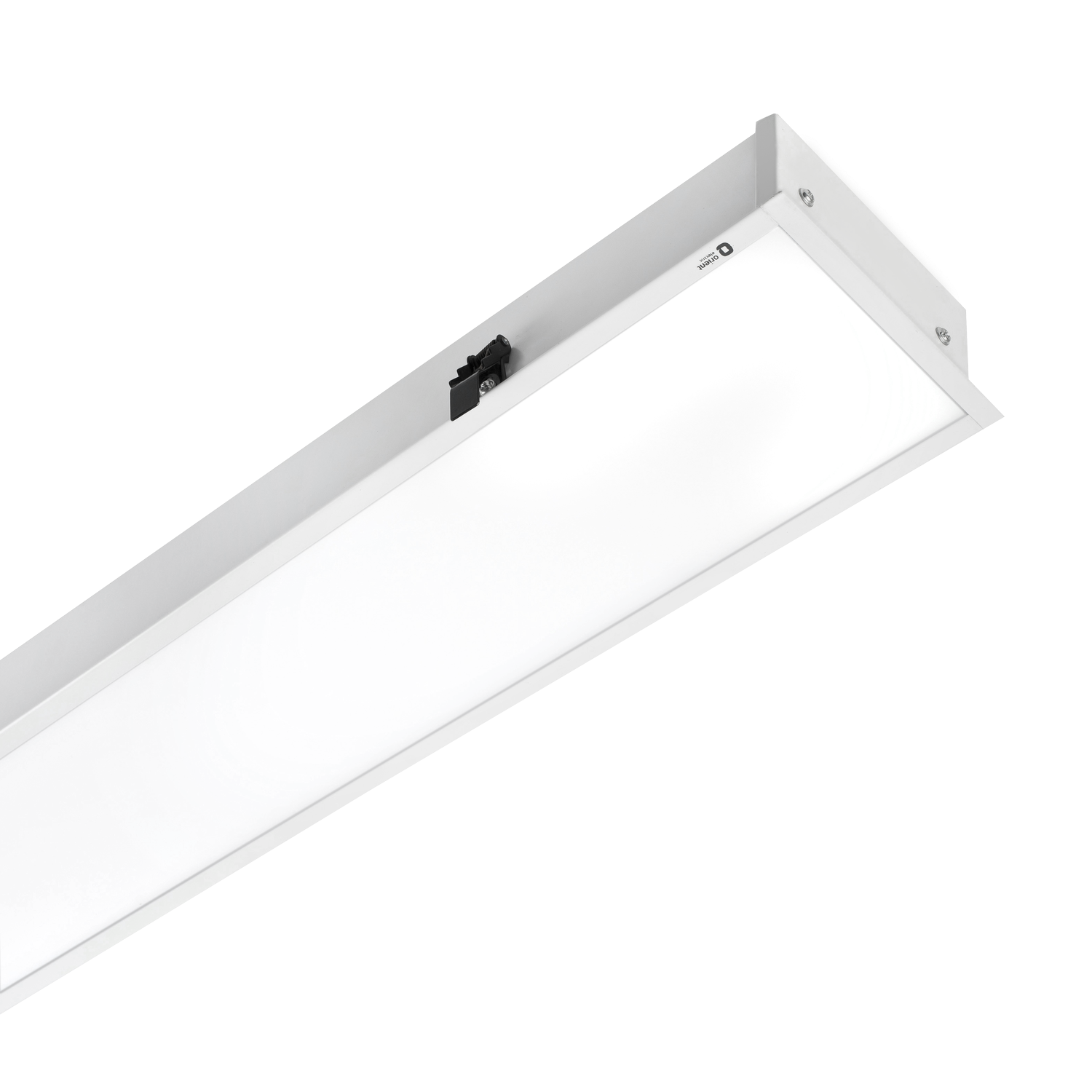

High-efficiency energy-saving LED recess-mounting luminaire with premium powder coating and robust electronics makes it ideal choice for office lighting for continuous mounting featured with best-in-class LED light sources with high luminous efficacy and highly translucent optical system to ensure maximum light output with excellent glare control and uniformity. Suitable for architectural lighting for Techzone ceiling.

Best suited for

Workstations Lounge

Reception

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 28W , 56W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100 , ≥90 , ≥85
Dline TZ variants
Product Variants
Dline TZ
LCRDL4-28-C-TZ
Dline TZ
LCRDL4-28-N-TZ
Dline TZ
LCRDL4-28-W-TZ
Dline TZ
LCRDL8-56-C-TZ
Dline TZ
LCRDL8-56-N-TZ
Dline TZ
LCRDL8-56-W-TZ
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
28W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1195
145
81
28W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1195
145
81
28W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1195
145
81
56W
6500K
≥80
240V AC
≥0.95
<10%
≥100
2400
145
81
56W
4000K
≥80
240V AC
≥0.95
<10%
≥90
2400
145
81
56W
3000K
≥80
240V AC
≥0.95
<10%
≥85
2400
145
81
