Product Overview

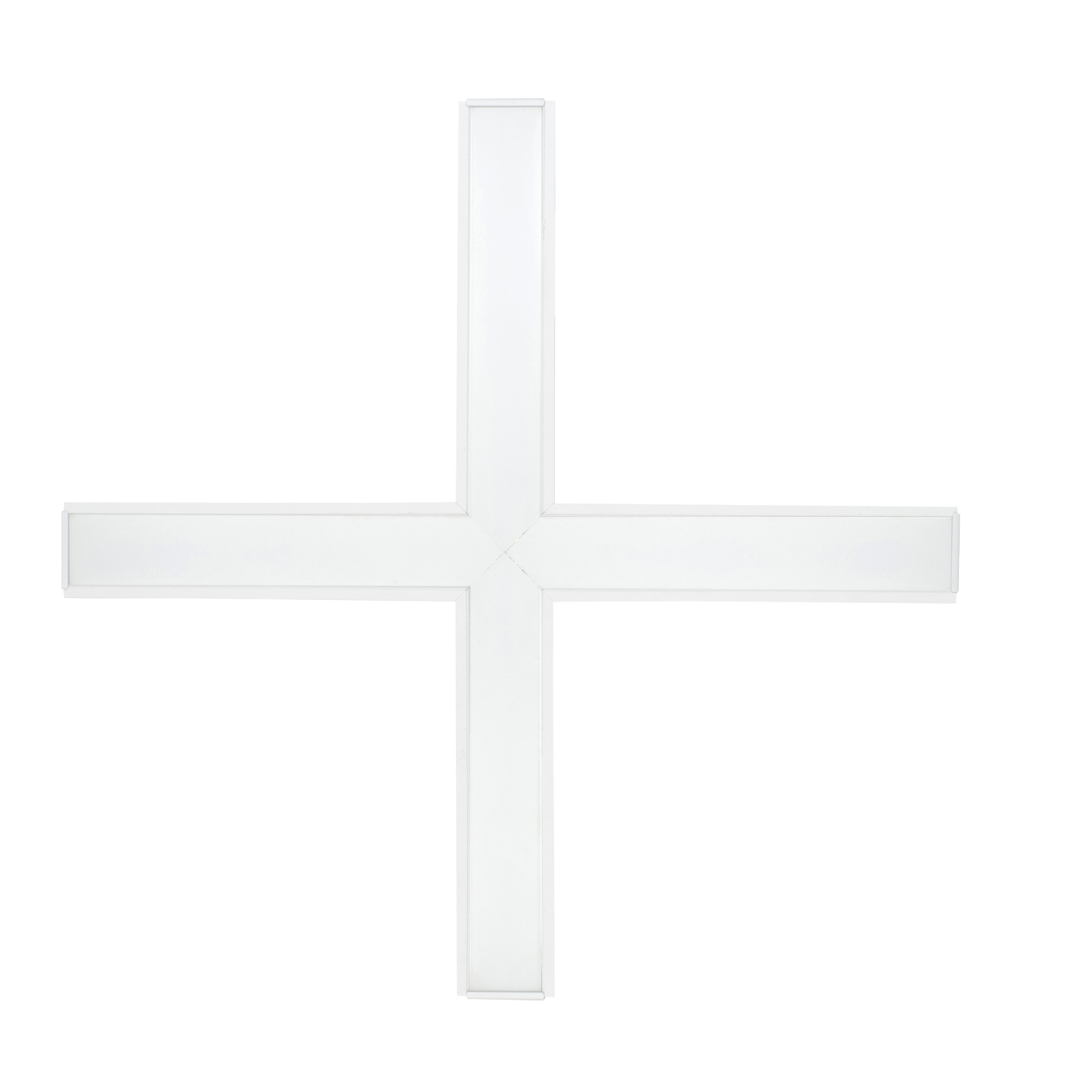

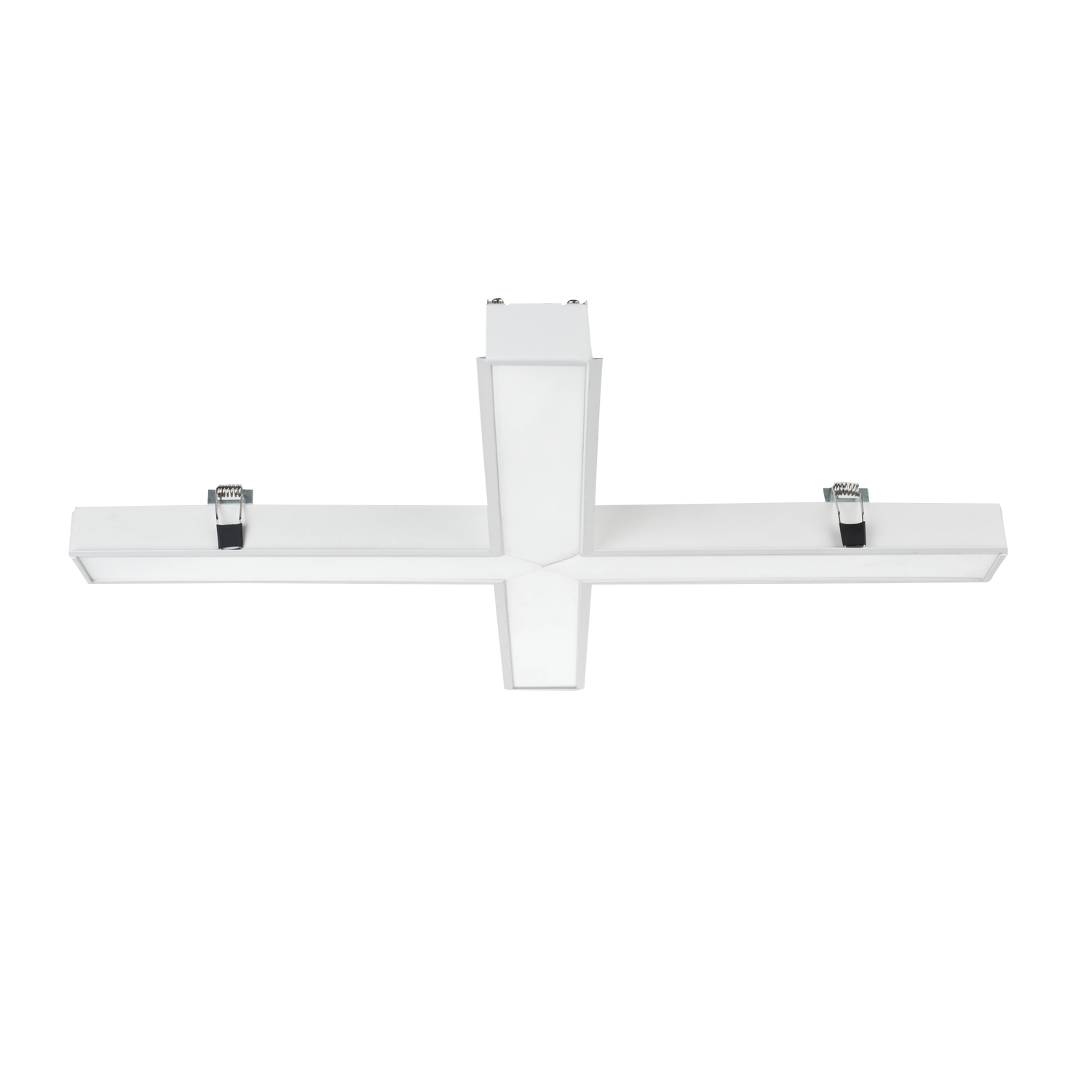

Seamless LED X shape direct light distribution luminaire in recess mounting in extruded aluminium for indoor architectural lighting solution, offering excellent energy saving and maintenance-free operation. Luminaires can be connected end-to-end to make a continuous lighting system of any length to uplift visual ambience.

Best suited for

Workstations

Reception

Waiting Lounge

Meeting Rooms

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 40W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100 , ≥90 , ≥85
Dline X Recess variants
Product Variants
Dline X Recess
CTRLR1-X-40-C-50
Dline X Recess
CTRLR1-X-40-N-50
Dline X Recess
CTRLR1-X-40-W-50
Dline X Recess
CTRLR1-X-40-C-70
Dline X Recess
CTRLR1-X-40-N-70
Dline X Recess
CTRLR1-X-40-W-70
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Cutout (in mm)
Height (in mm)
40W
6500K
≥80
240V AC
≥0.95
<10%
≥100
300
63
300 x 52
30
40W
4000K
≥80
240V AC
≥0.95
<10%
≥90
300
63
300 x 52
30
40W
3000K
≥80
240V AC
≥0.95
<10%
≥85
300
63
300 x 52
30
40W
6500K
≥80
240V AC
≥0.95
<10%
≥100
300
90
300 x 72
80
40W
4000K
≥80
240V AC
≥0.95
<10%
≥90
300
90
300 x72
80
40W
3000K
≥80
240V AC
≥0.95
<10%
≥85
300
90
300 x72
80
