Product Overview

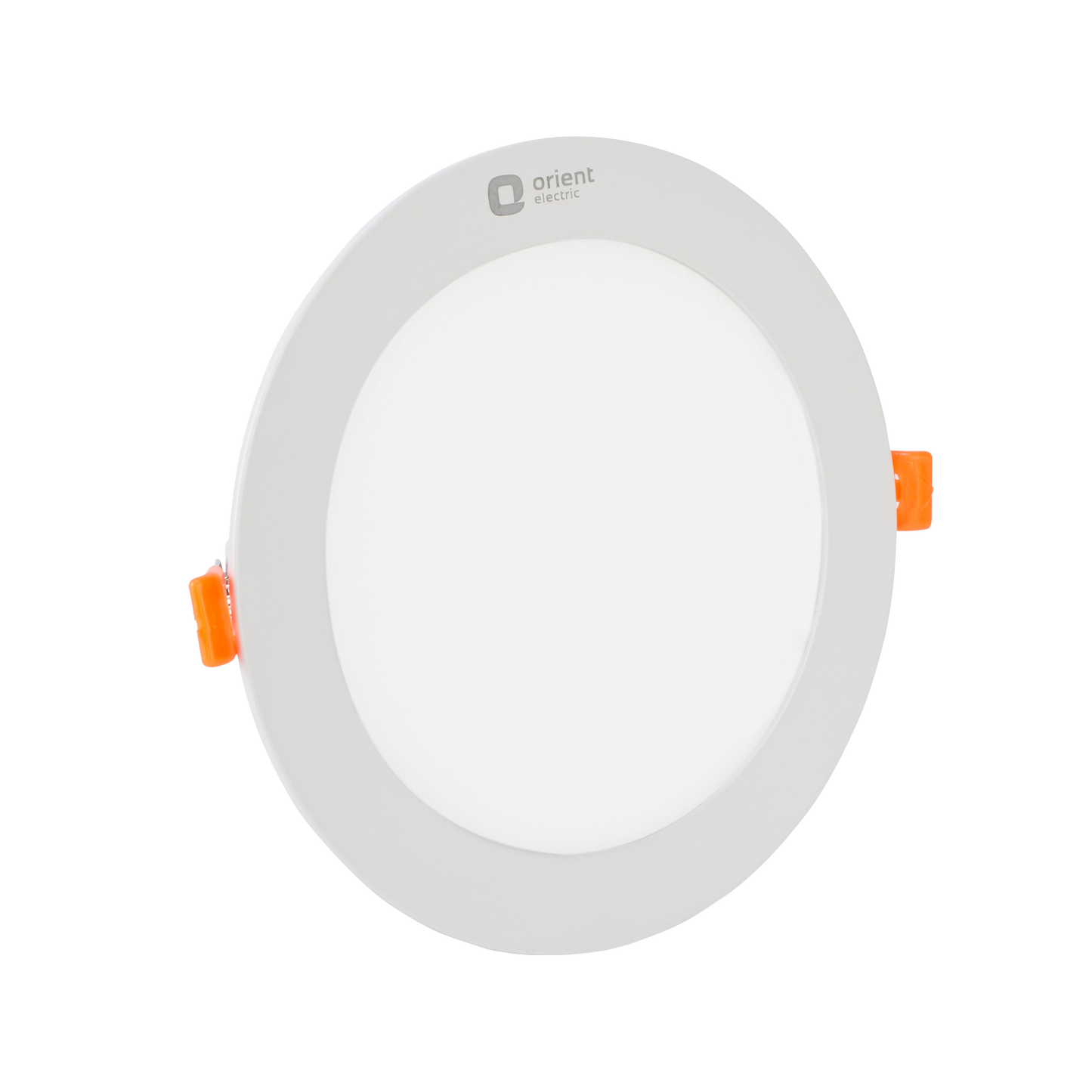

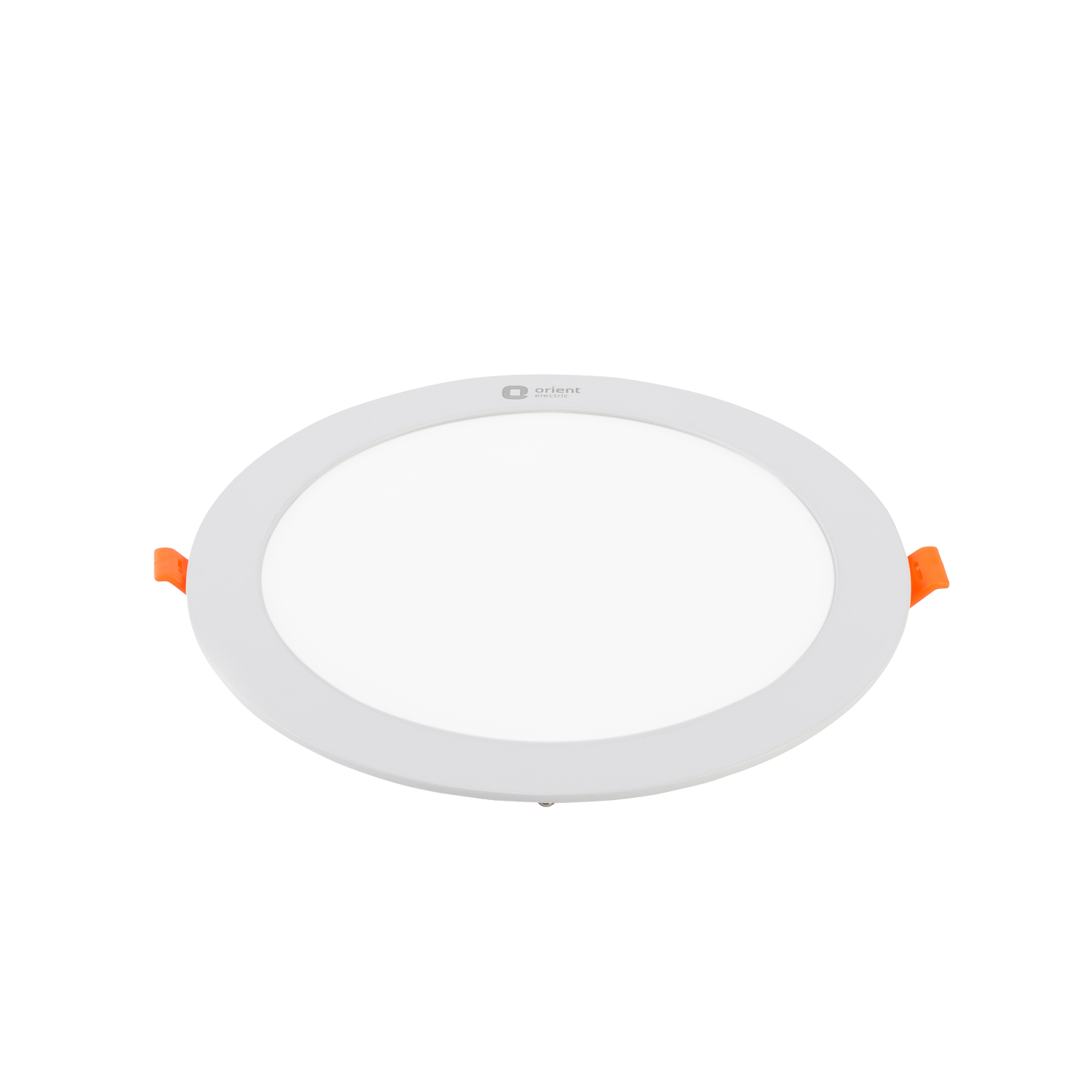

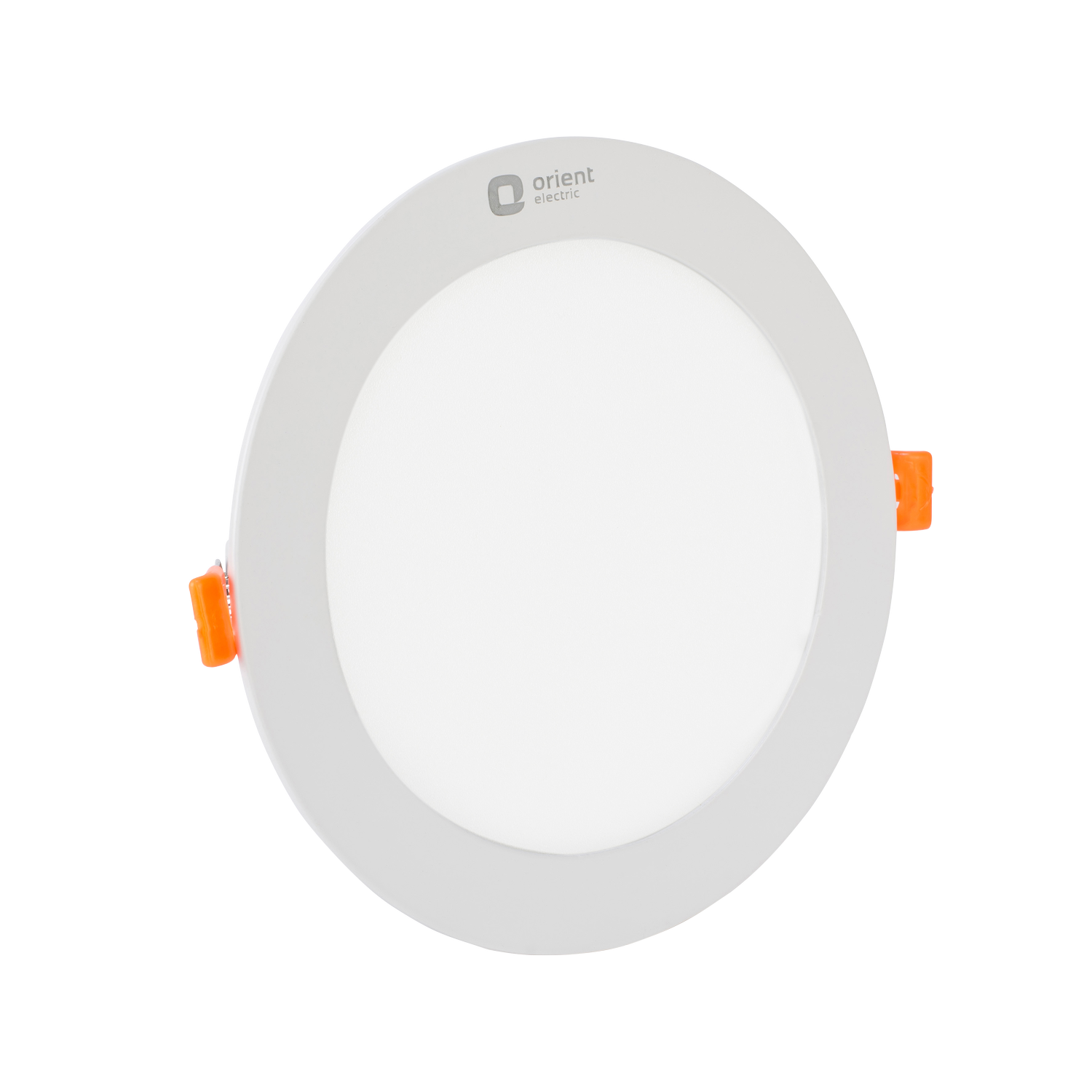

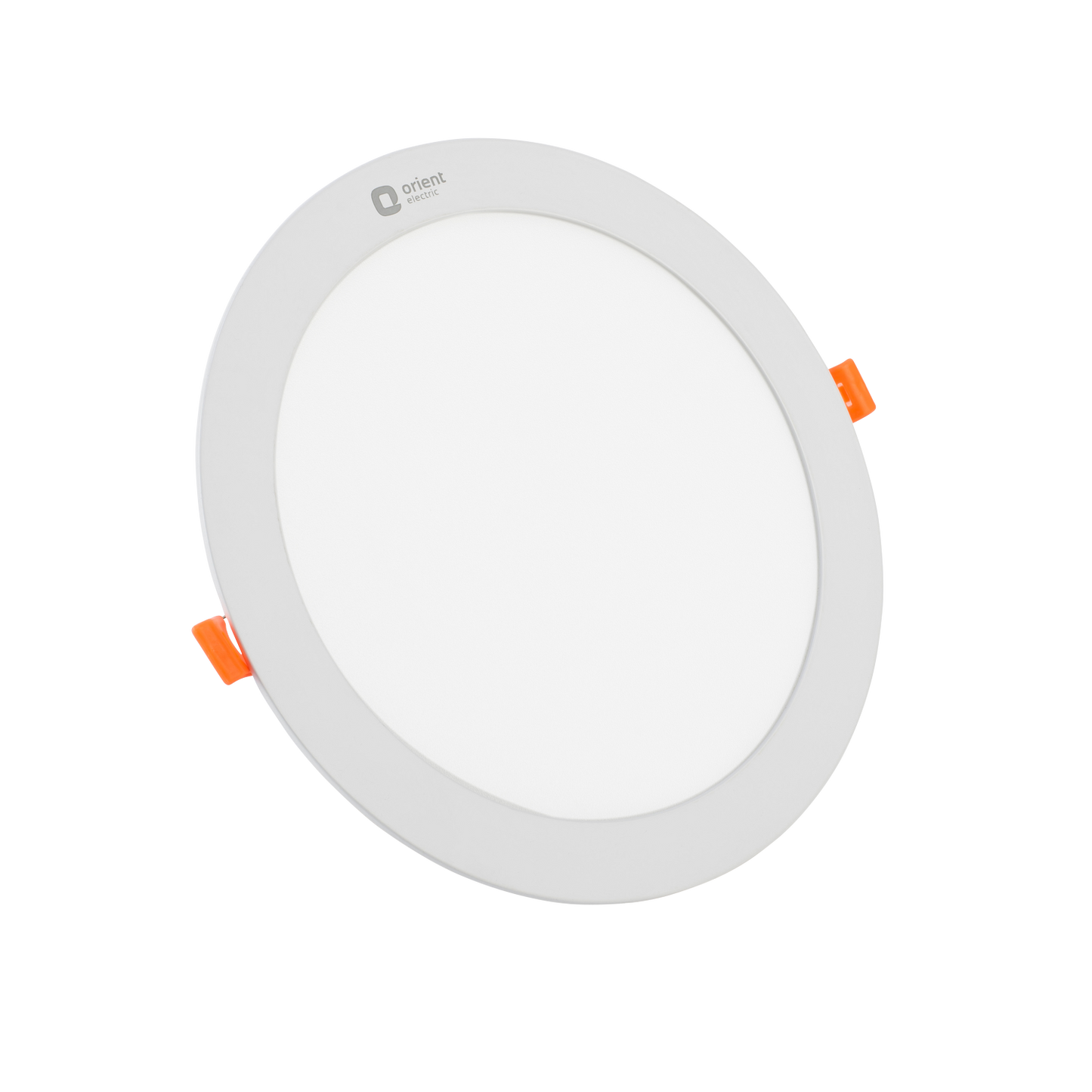

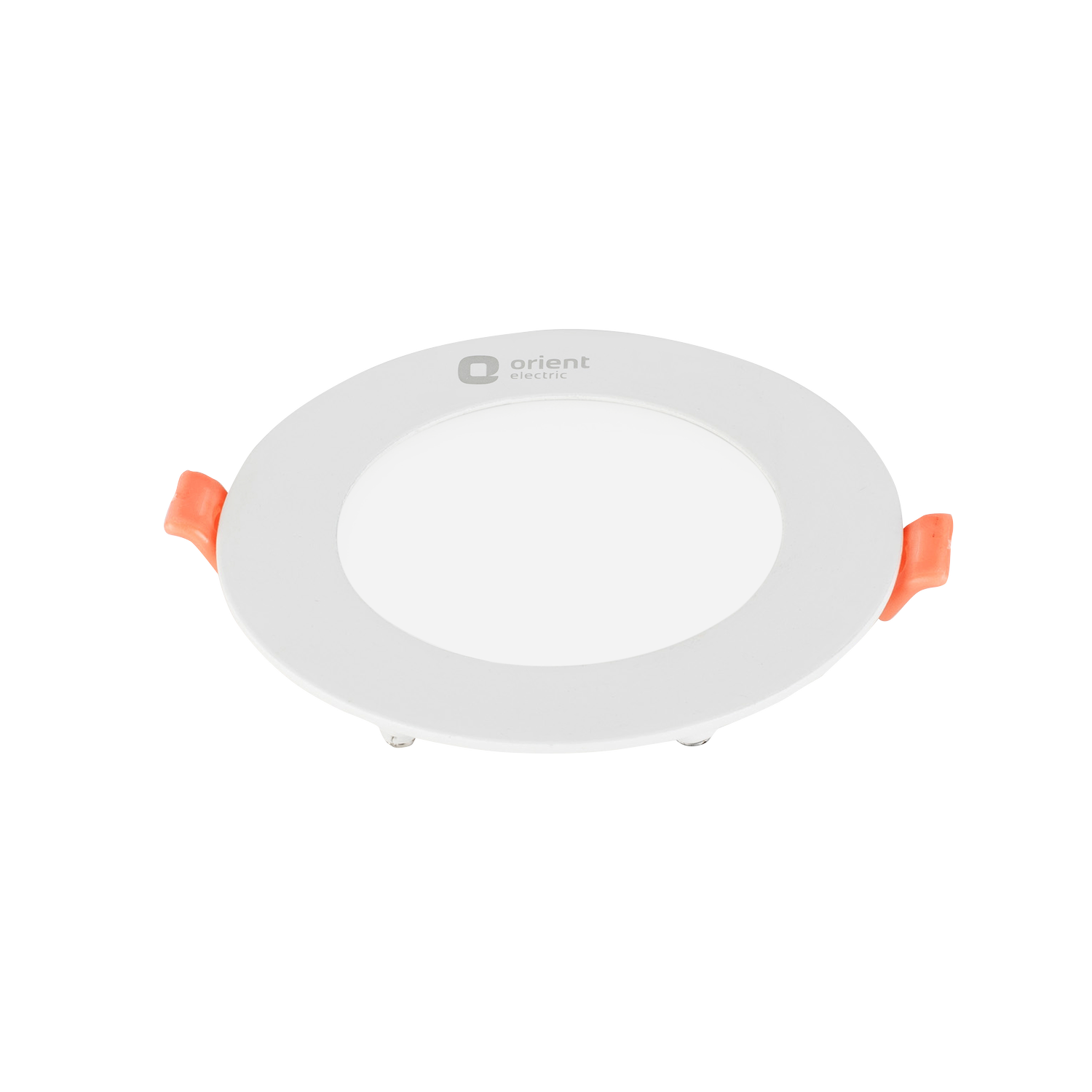

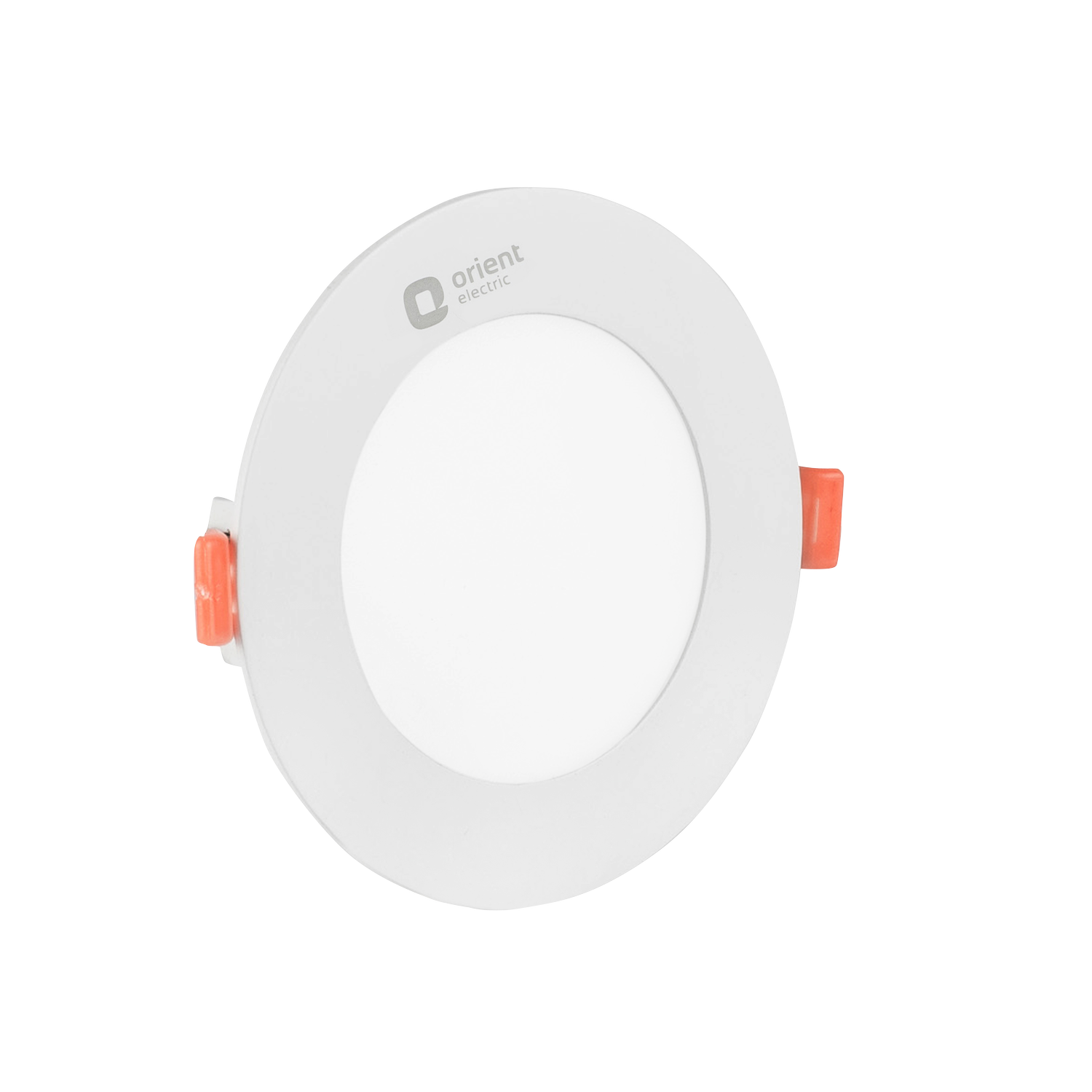

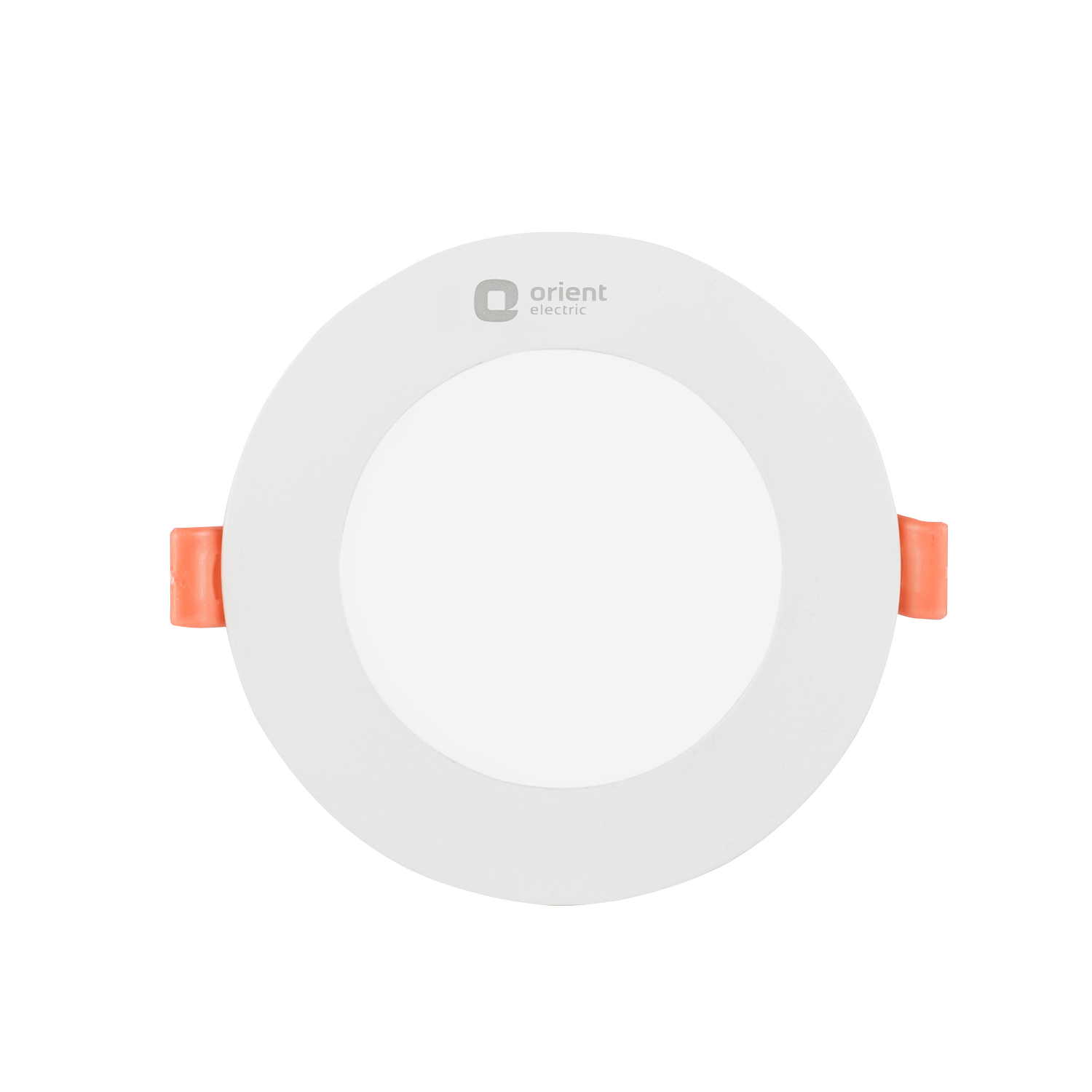

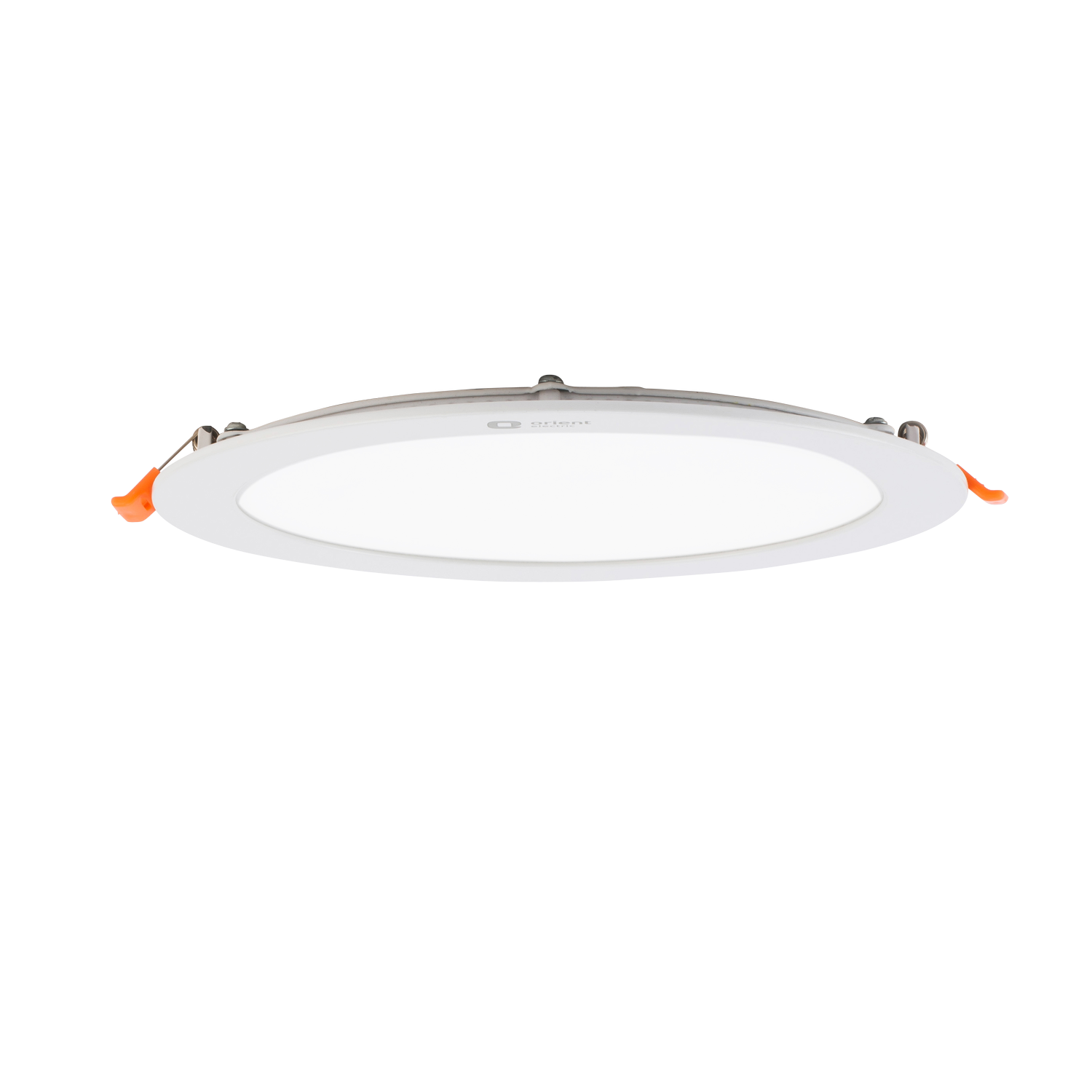

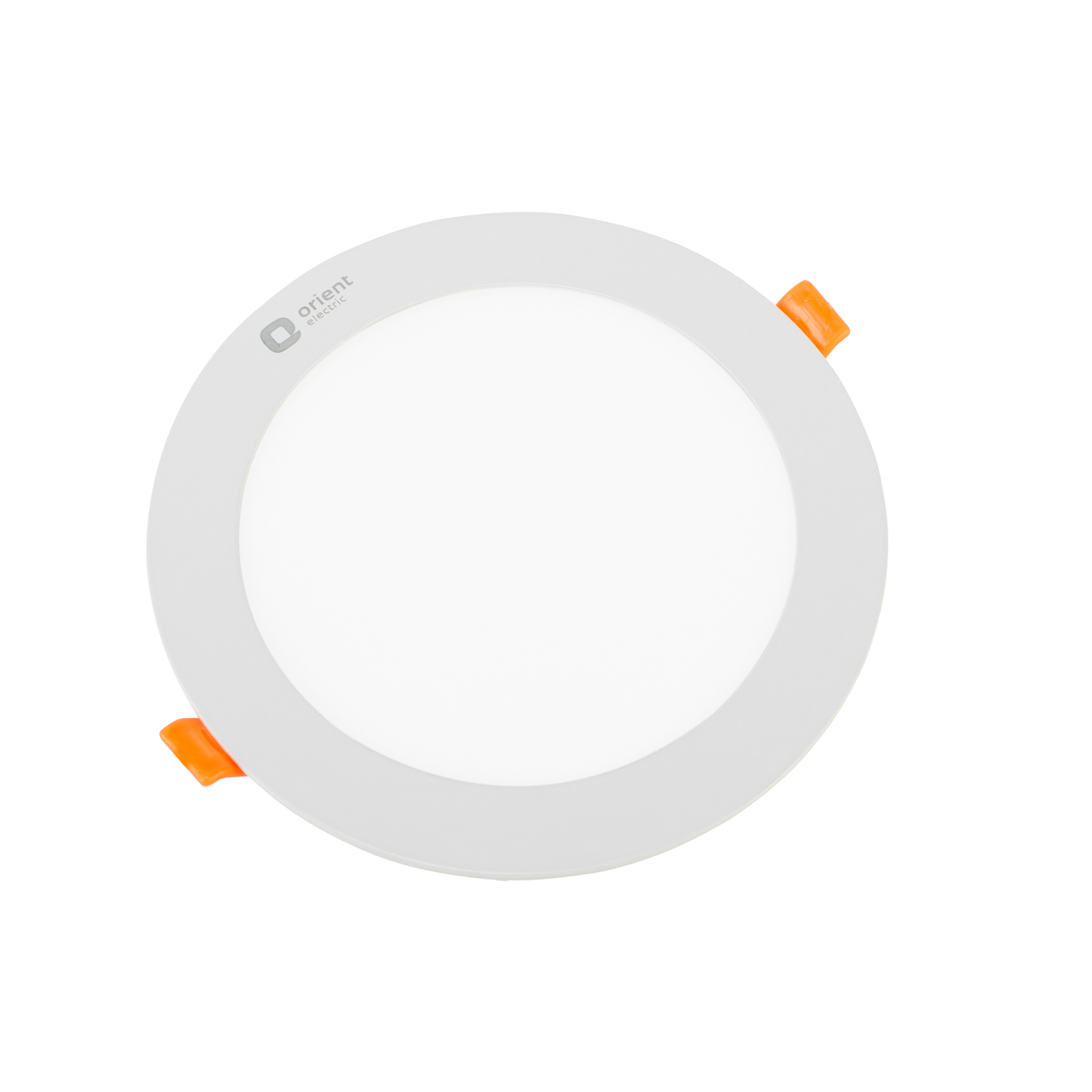

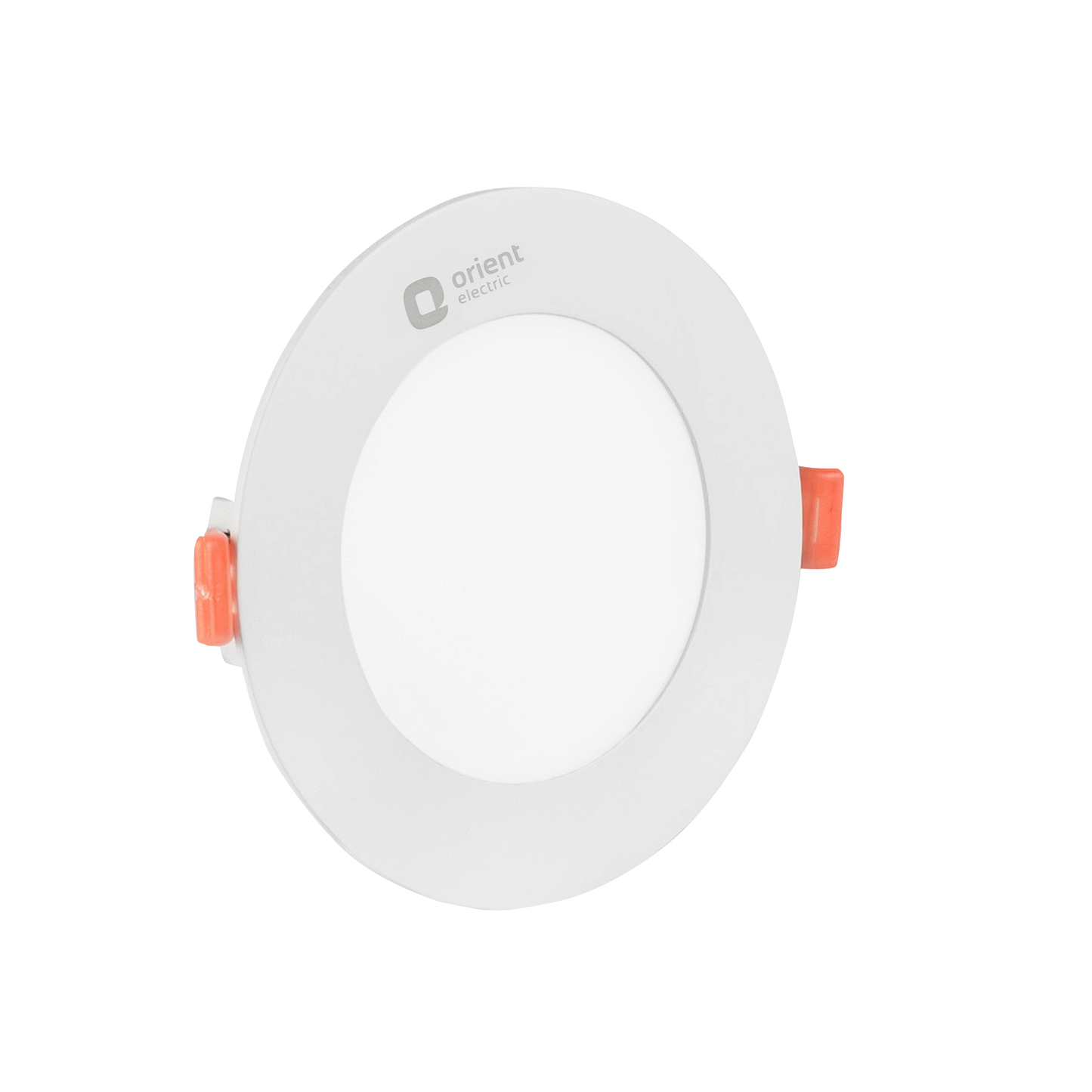

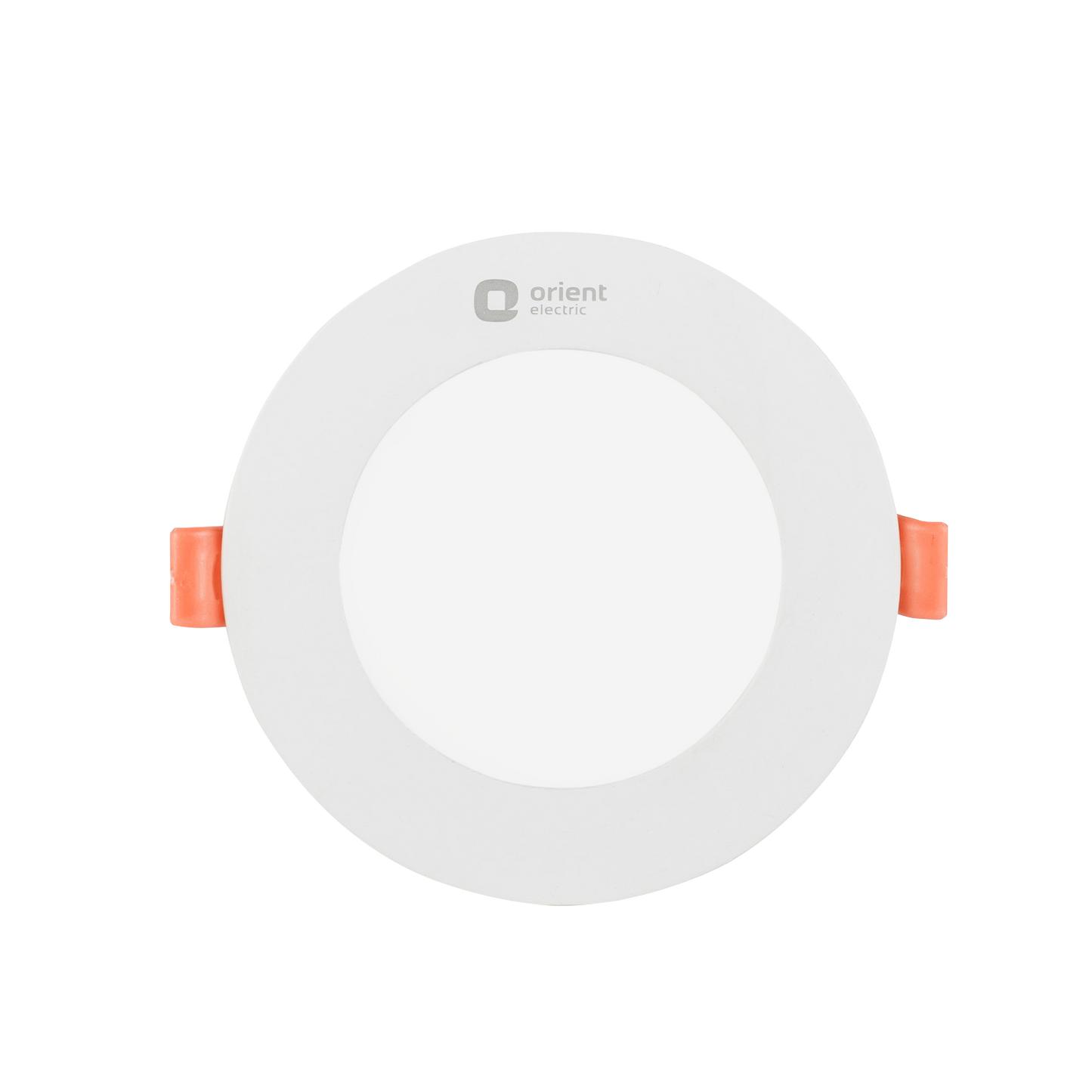

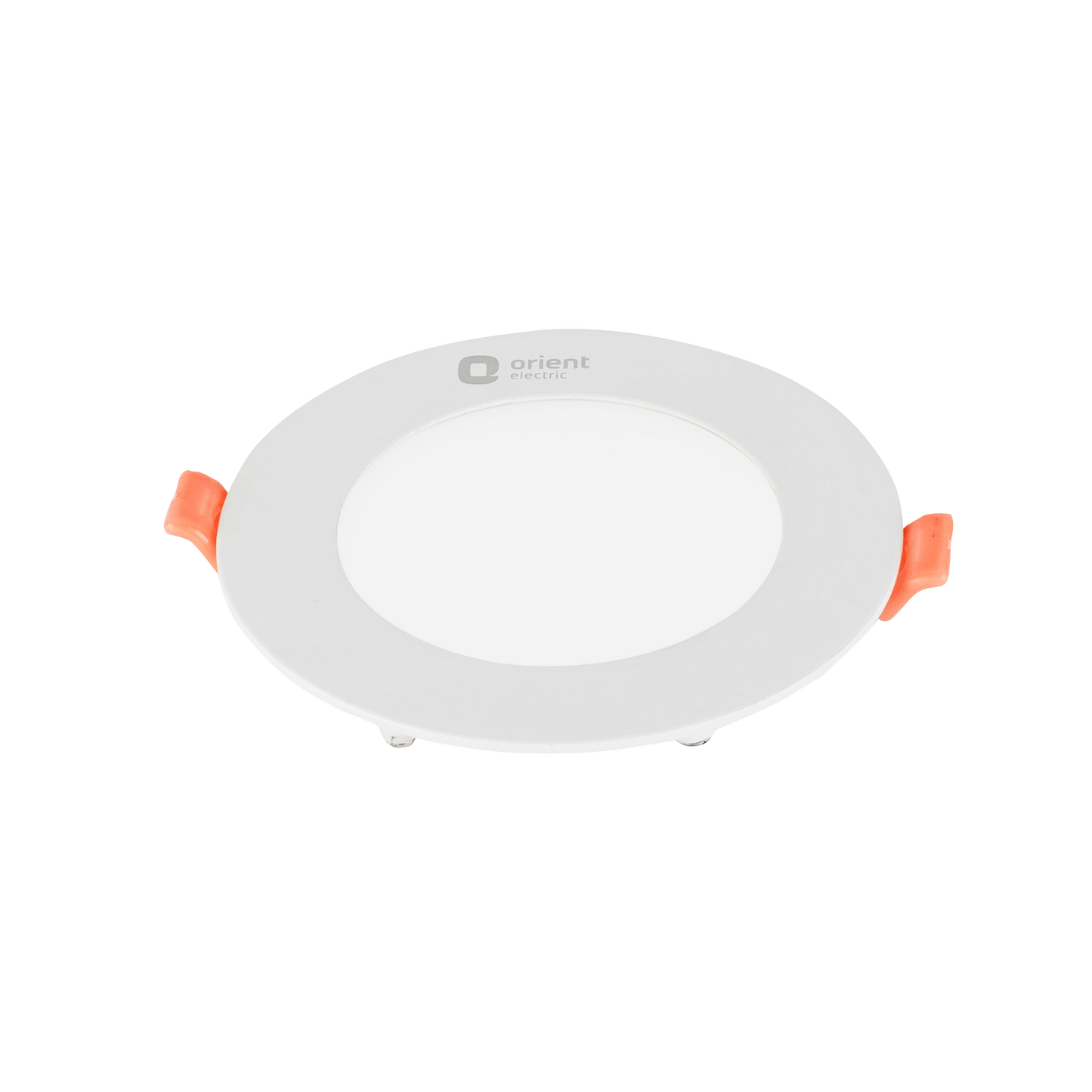

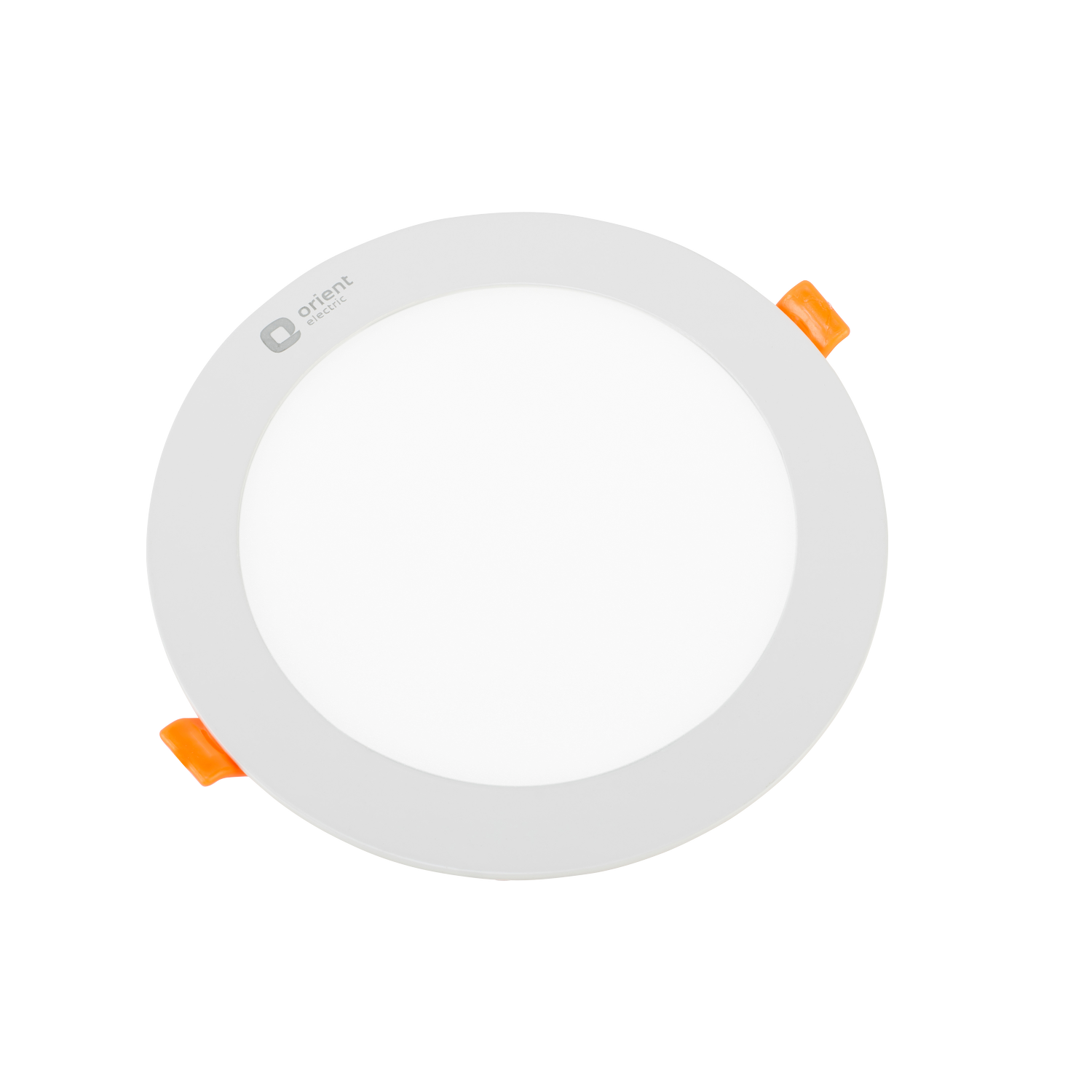

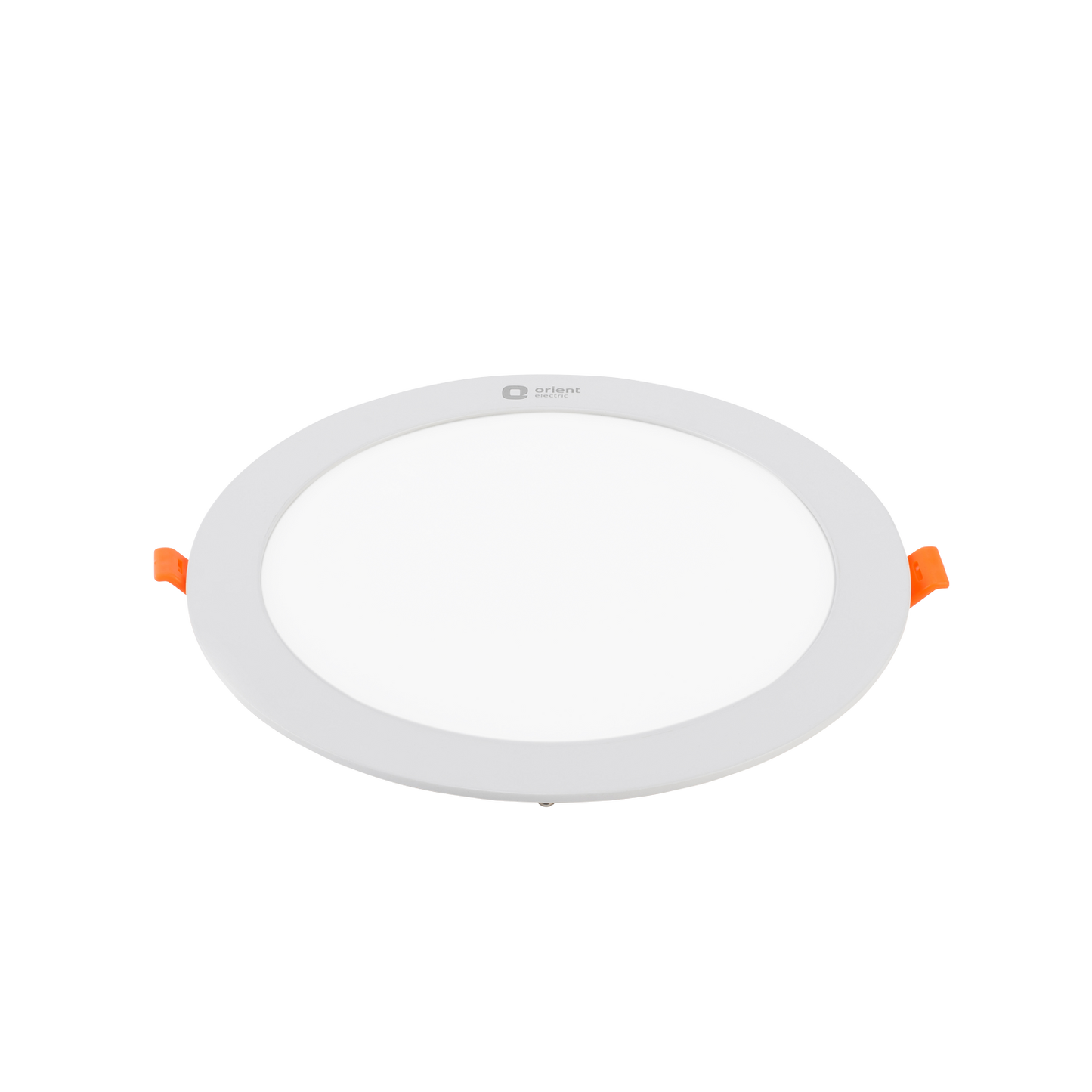

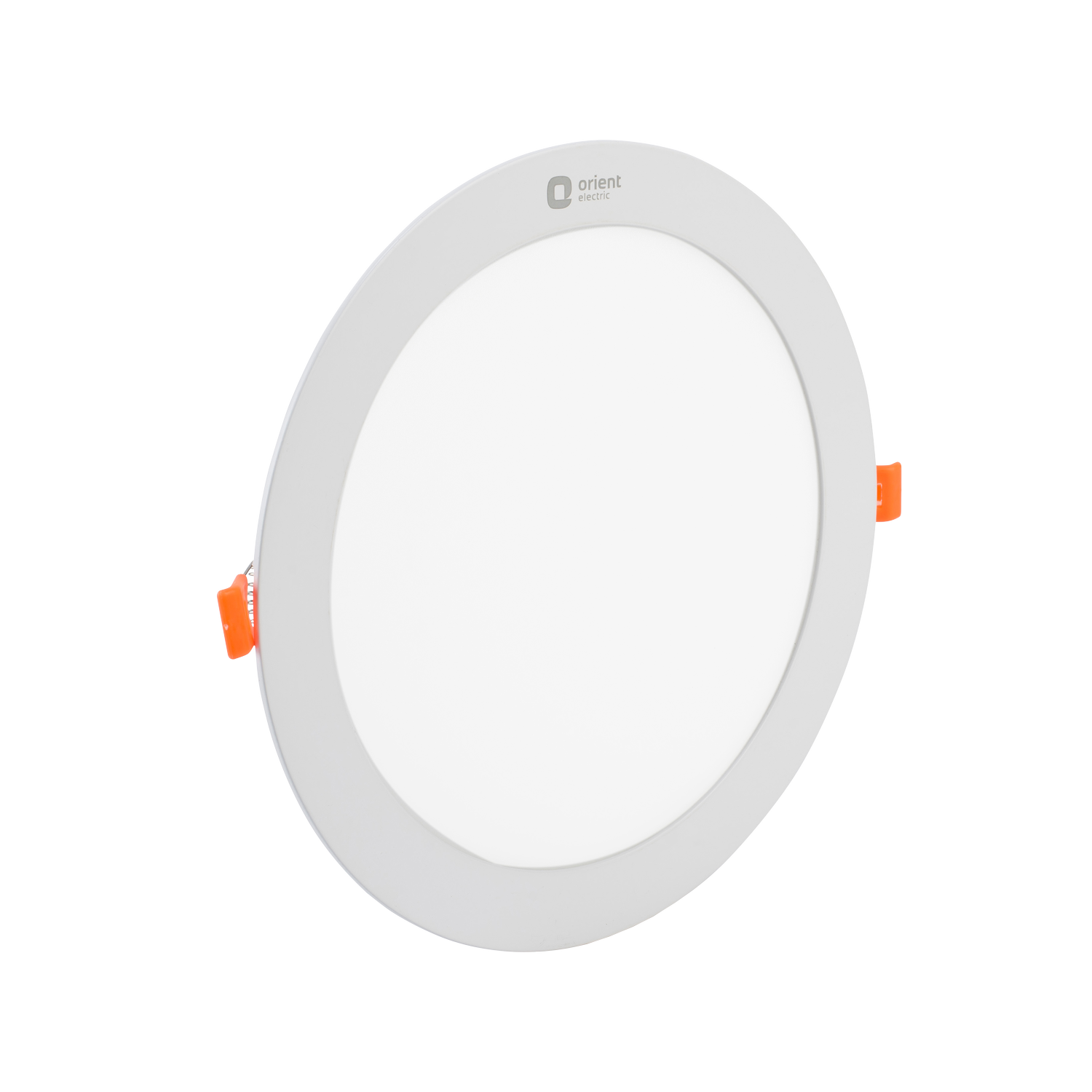

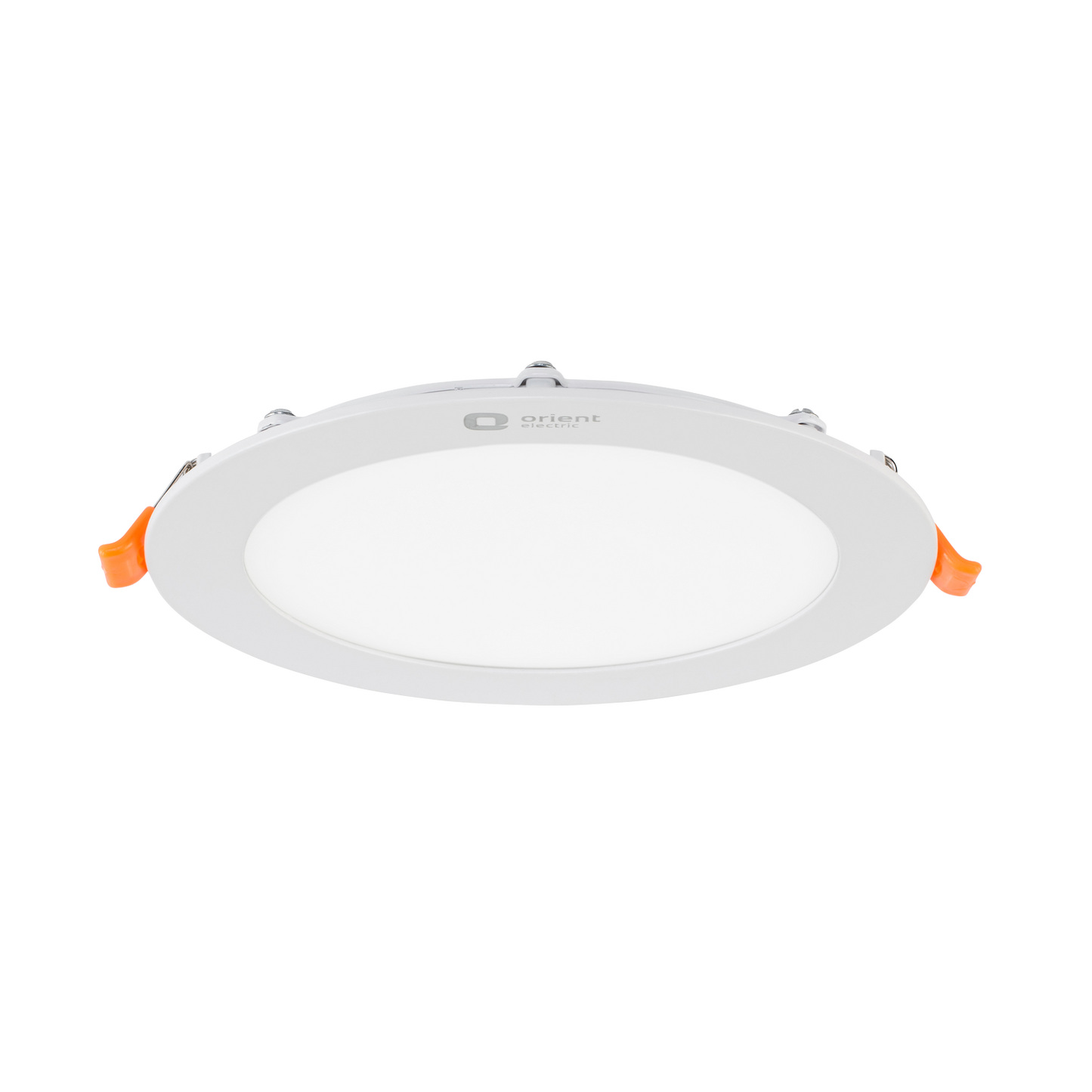

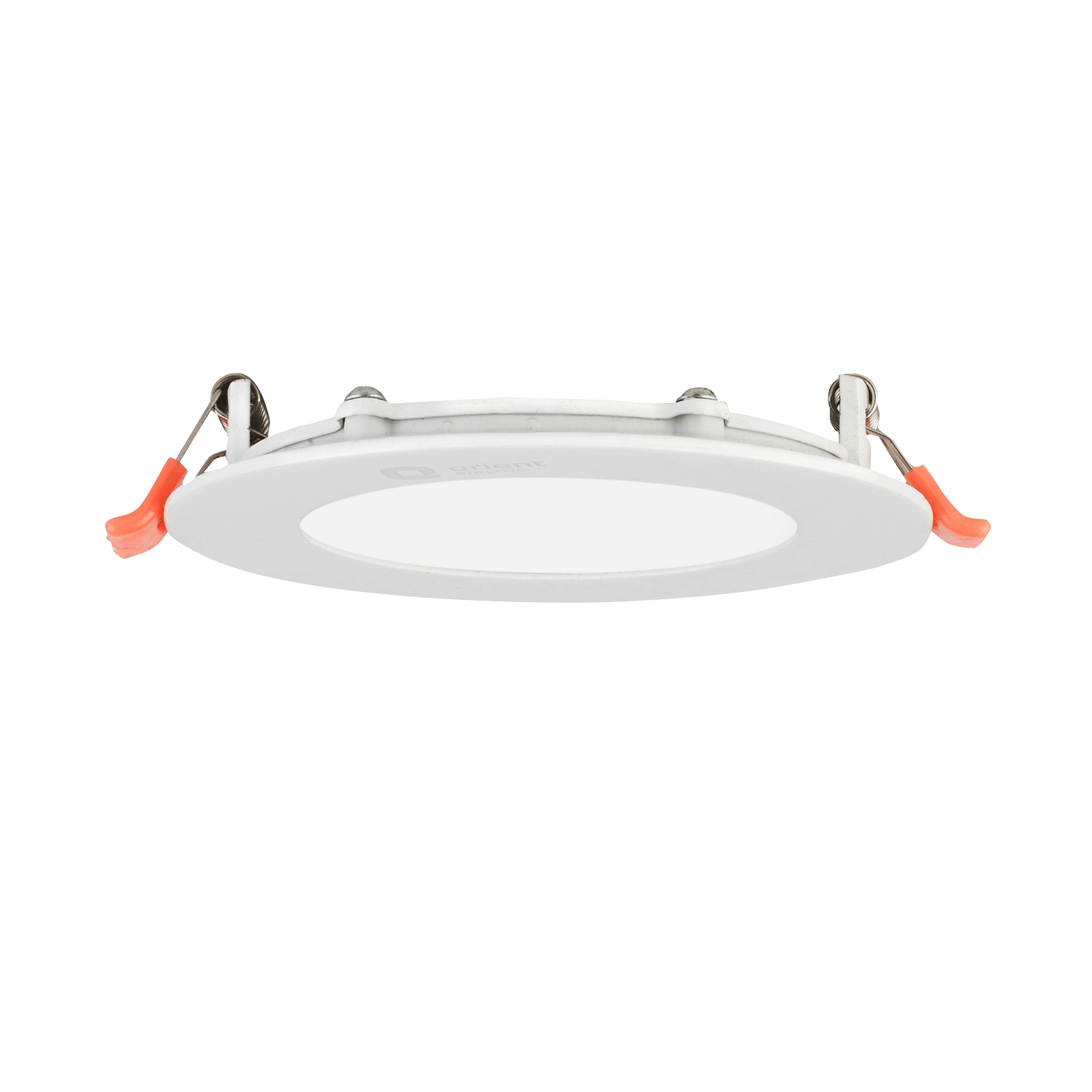

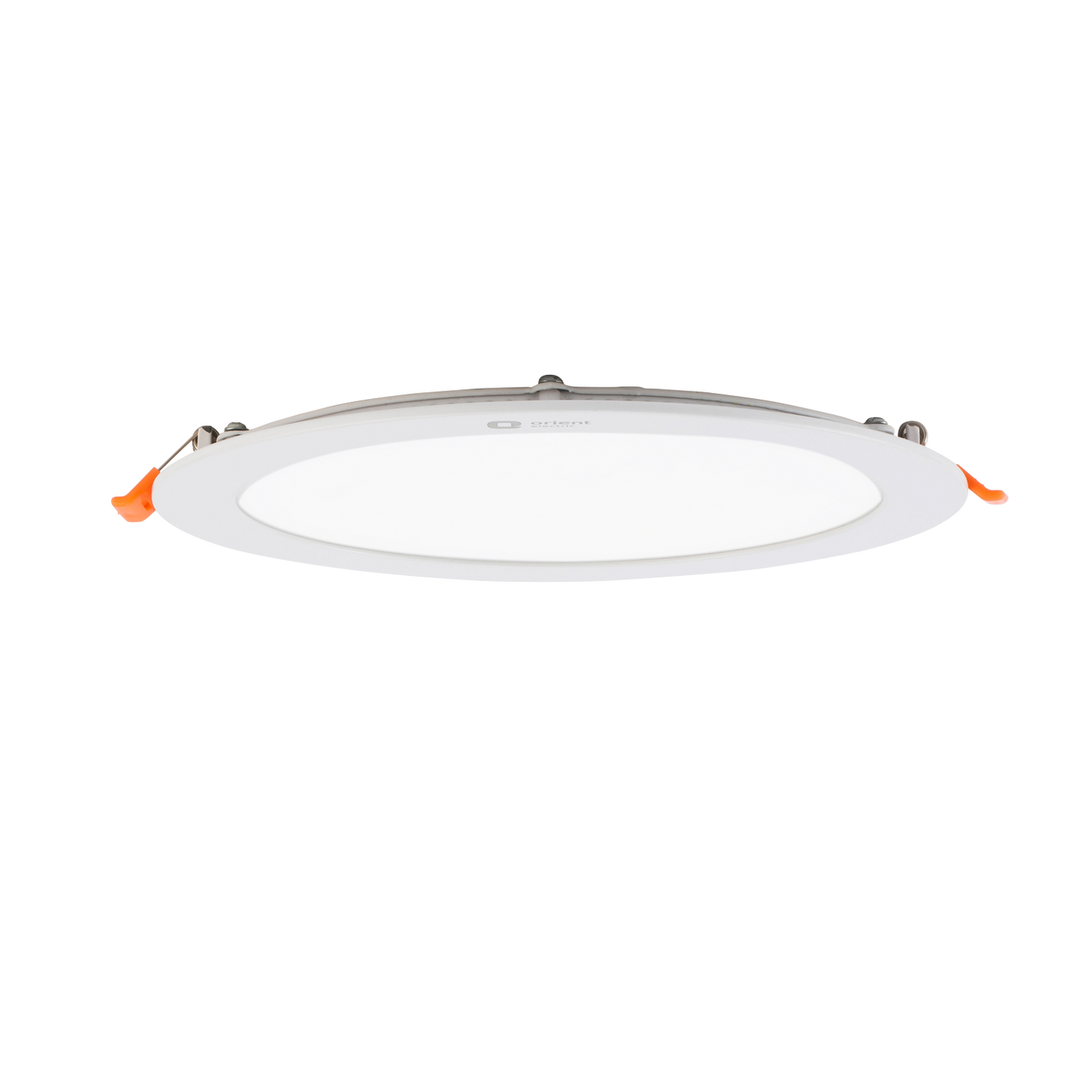

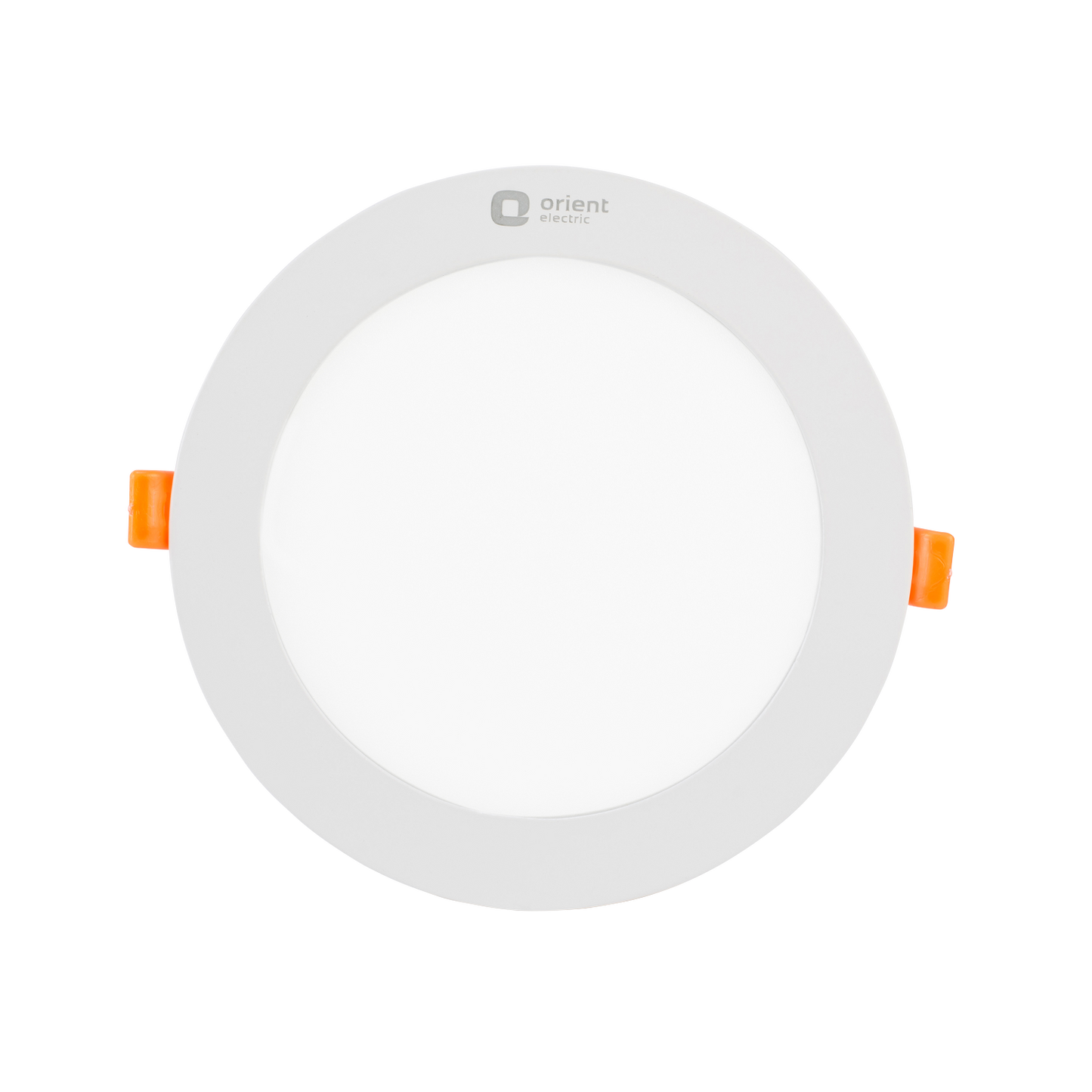

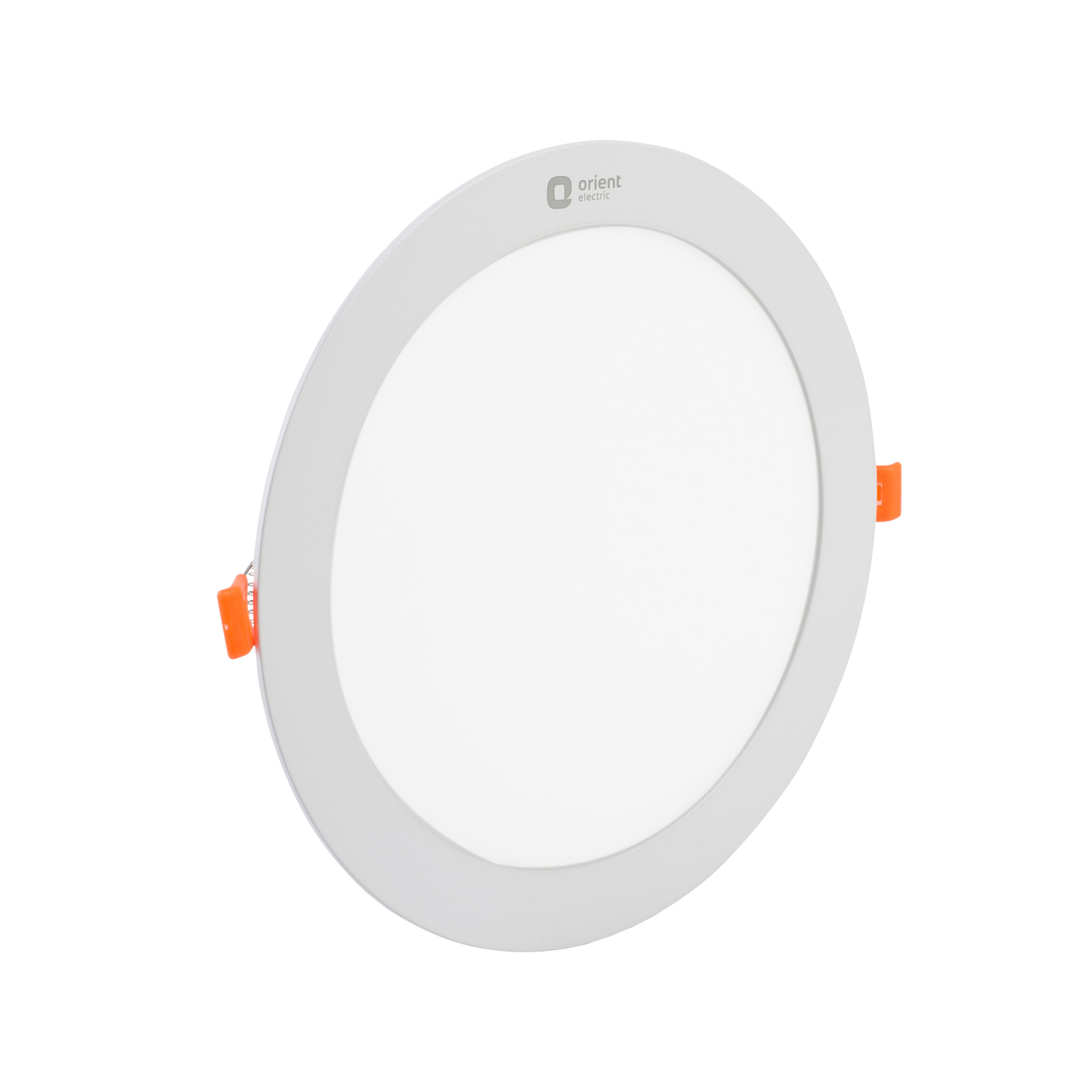

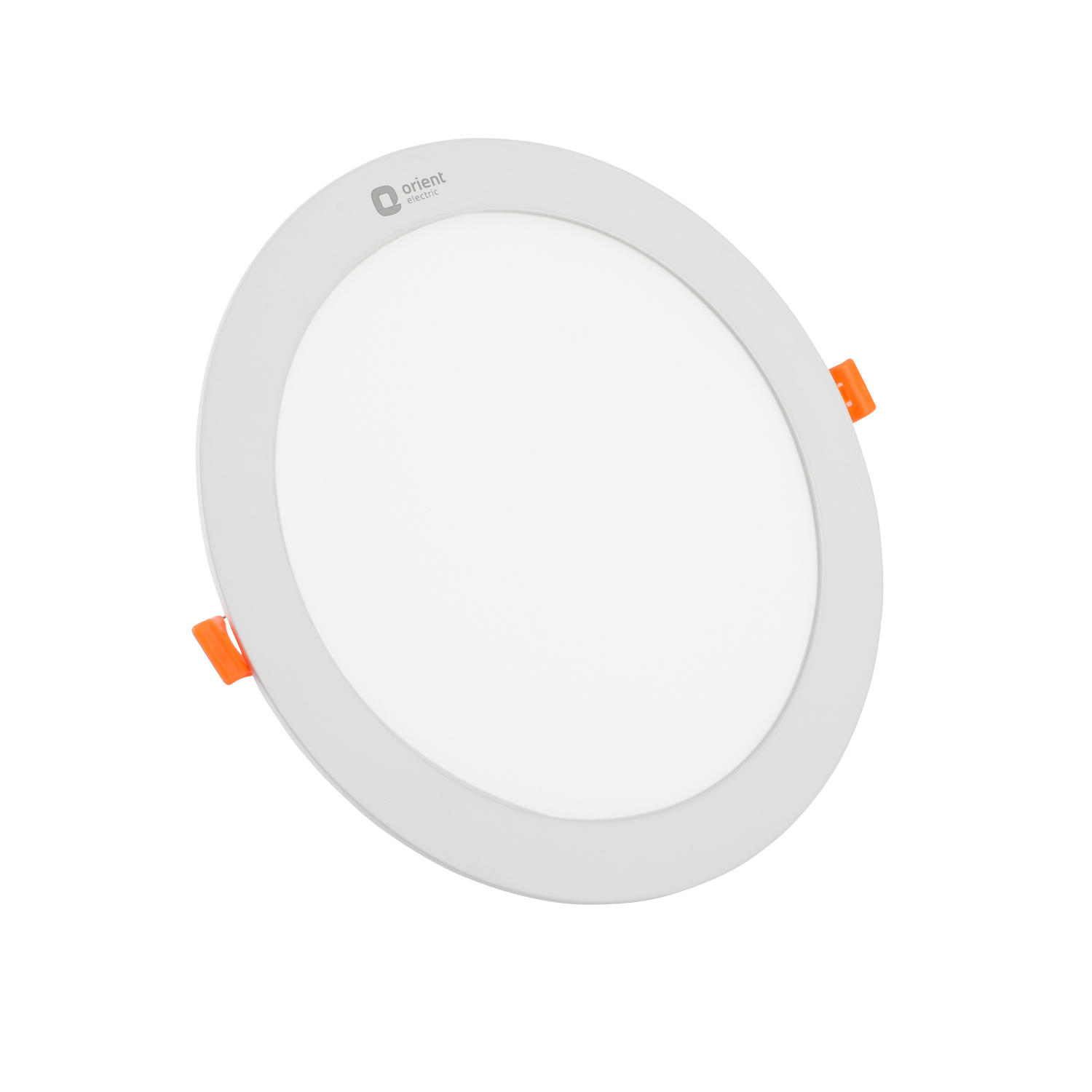

Ultra slim recess-mounting round LED downlighter designed with excellent thermally managed aluminium pressure die-cast housing with heat-dissipating fins for larger surface area finished in epoxy powder-coated white to deliver high-efficacy light output and uniformity, utilising edge-lit technology.

Best suited for

Banking

Offices

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate frosted diffuser for glare free uniform light distribution.

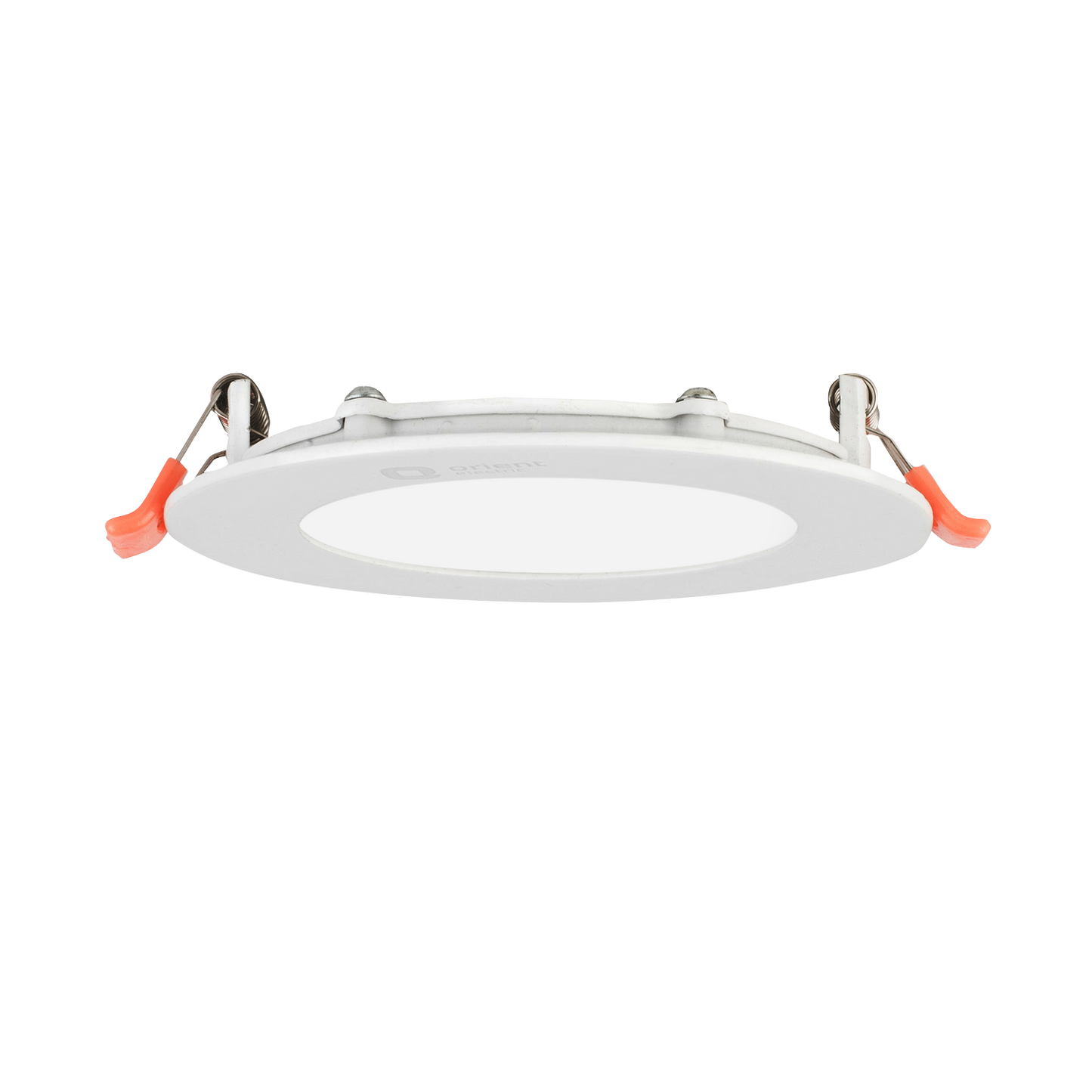

    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 6W, 12W, 15W, 18W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy ≥80 , ≥75 , ≥70
Edge recess round variants
Product Variants
Edge recess round
LDRER-06-C-V2
Edge recess round
LDRER-06-N-V2
Edge recess round
LDRER-06-W-V2
Edge recess round
LDRER-12-C-V2
Edge recess round
LDRER-12-N-V2
Edge recess round
LDRER-12-W-V2
Edge recess round
LDRER-15-C-V2
Edge recess round
LDRER-15-N-V2
Edge recess round
LDRER-15-W-V2
Edge recess round
LDRER-18-C-V2
Edge recess round
LDRER-18-N-V2
Edge recess round
LDRER-18-W-V2
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Cut out Diameter (in mm)
Height (in mm)
6W
6500K
≥80
240V AC
≥0.95
<15%
≥80
120
106
20
6W
4000K
≥80
240V AC
≥0.95
<15%
≥75
120
106
20
6W
3000K
≥80
240V AC
≥0.95
<15%
≥70
120
106
20
12W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170
155
20
12W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170
155
20
12W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170
155
20
15W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170
155
20
15W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170
155
20
15W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170
155
20
18W
6500K
≥80
240V AC
≥0.95
<15%
≥80
225
205
20
18W
4000K
≥80
240V AC
≥0.95
<15%
≥75
225
205
20
18W
3000K
≥80
240V AC
≥0.95
<15%
≥70
225
205
20
