Edge Recess Round FC

Edge Recess Round FC

Edge Recess Round FC

Product Overview

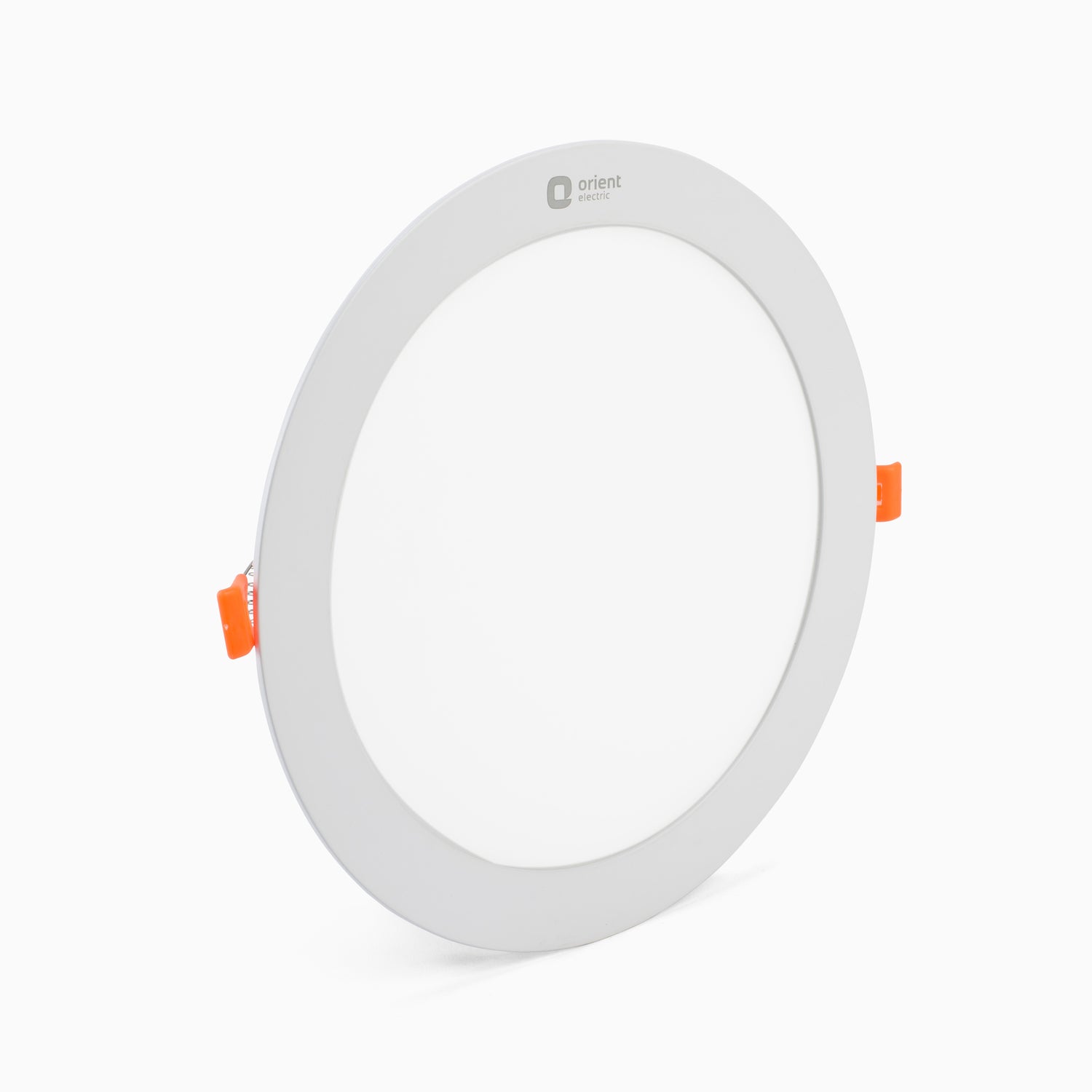

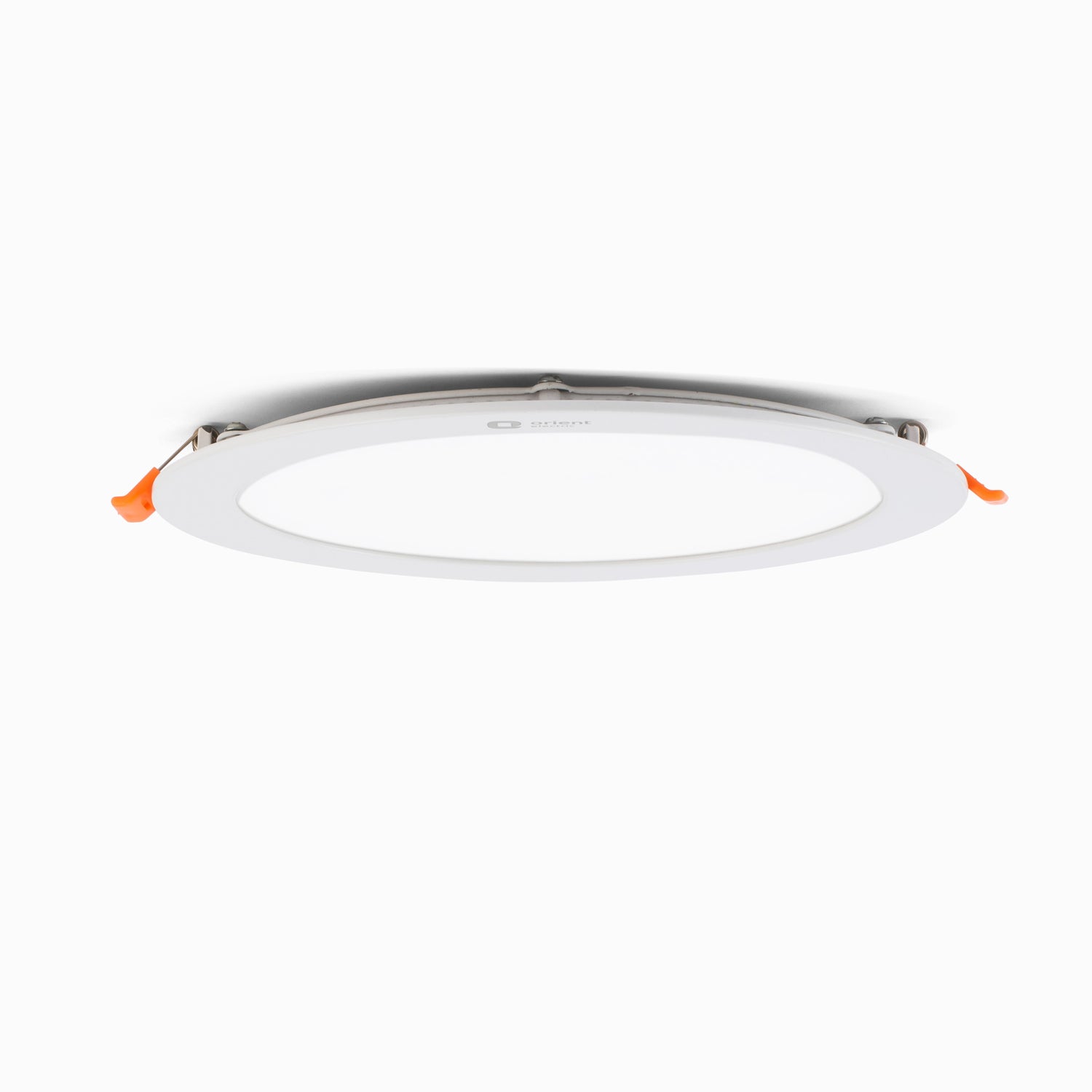

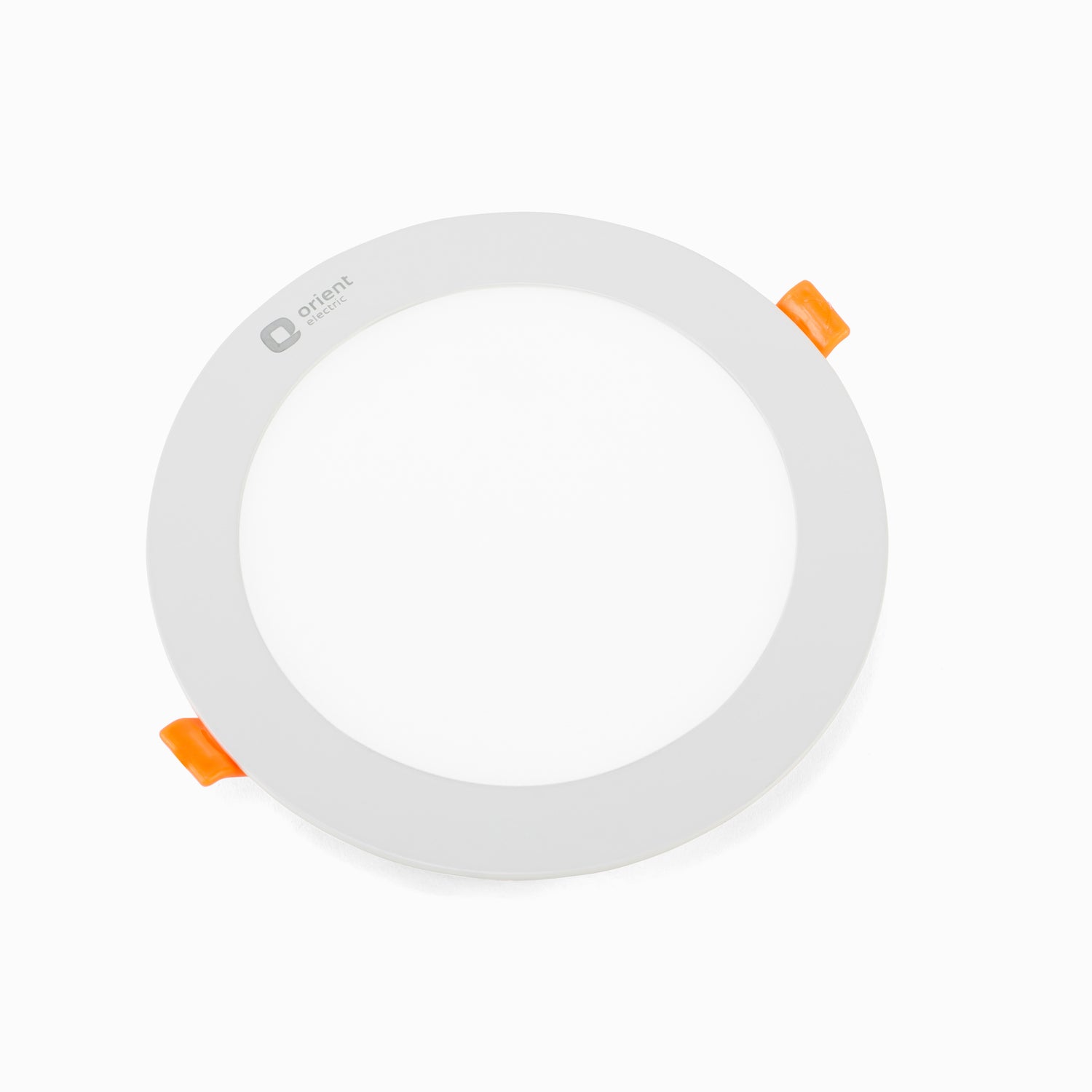

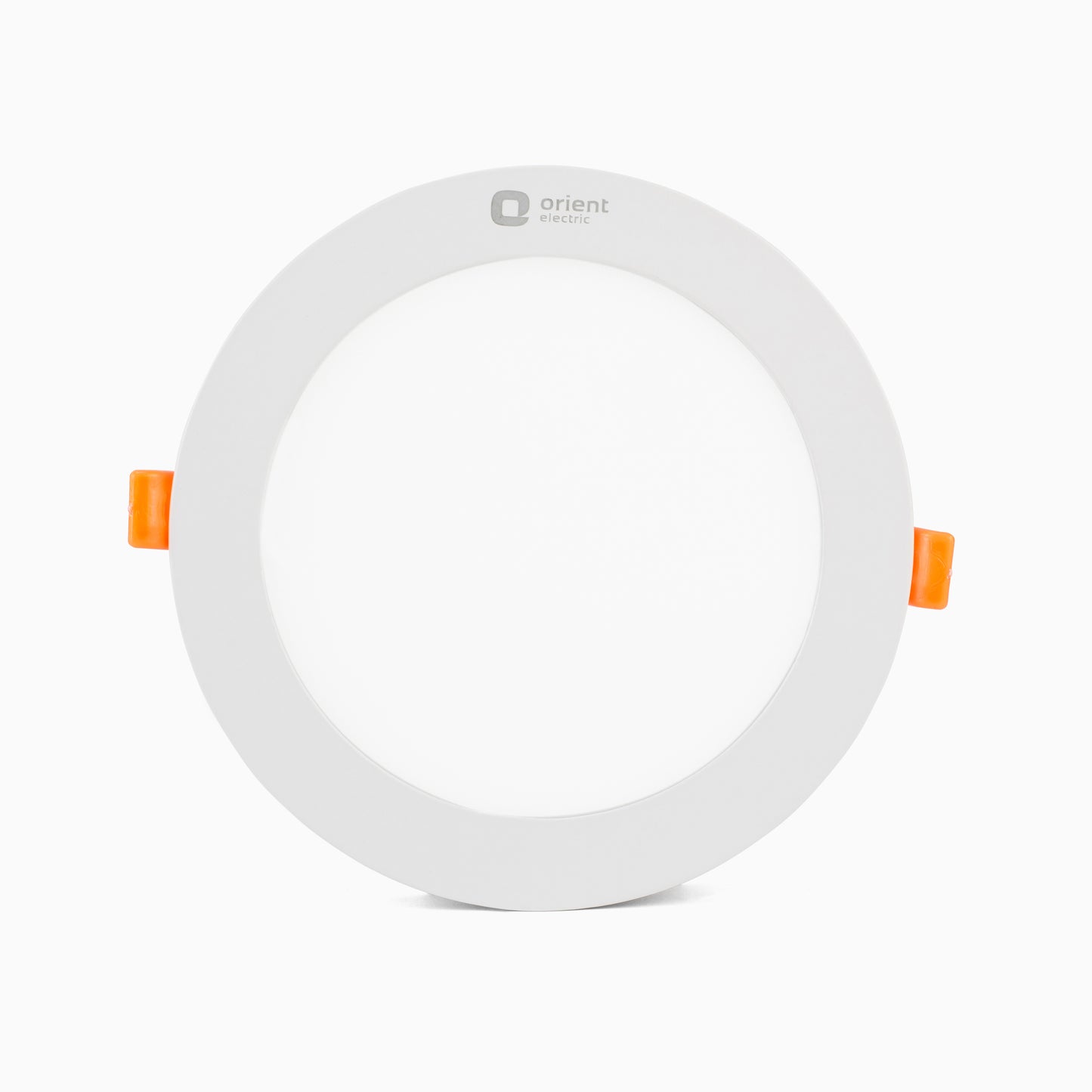

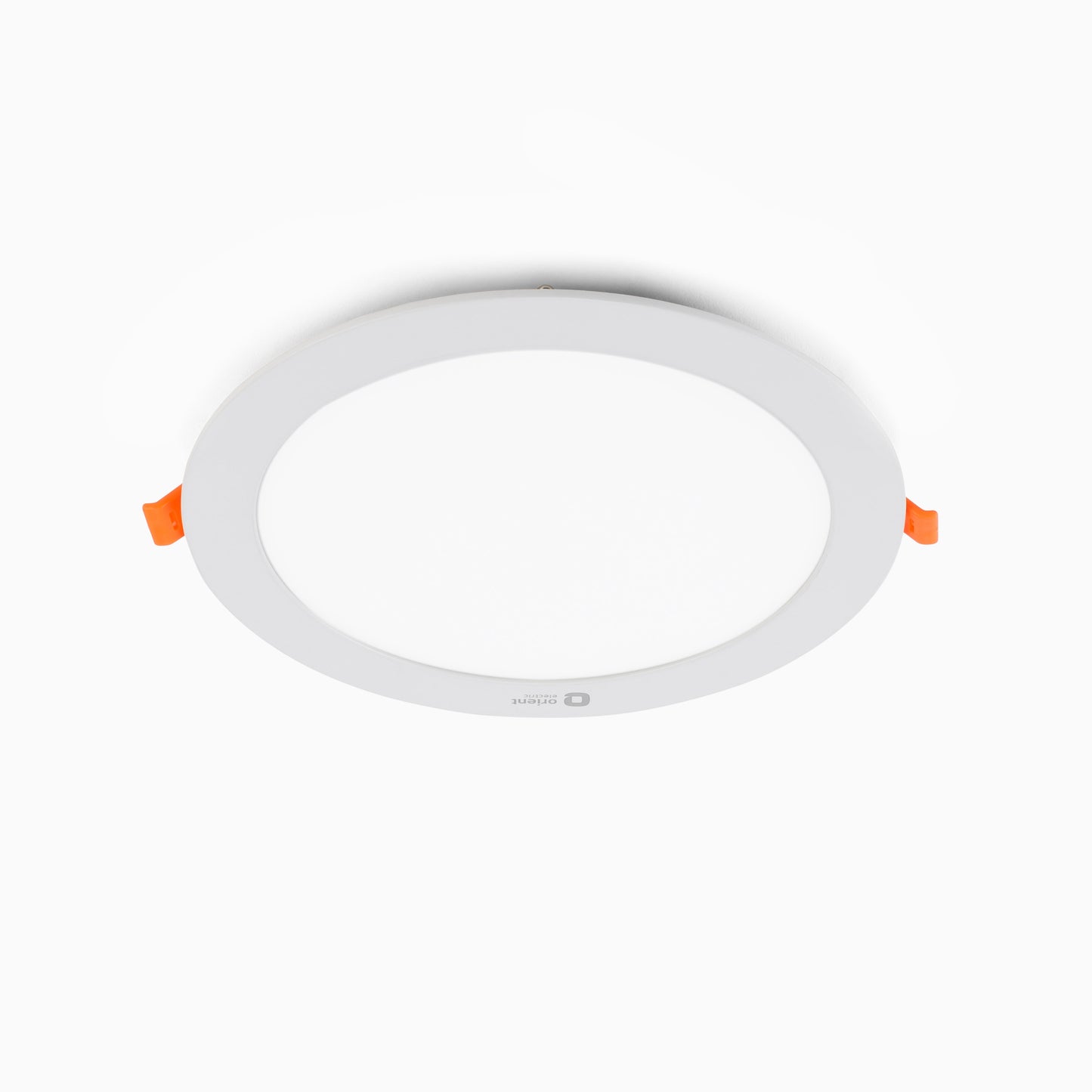

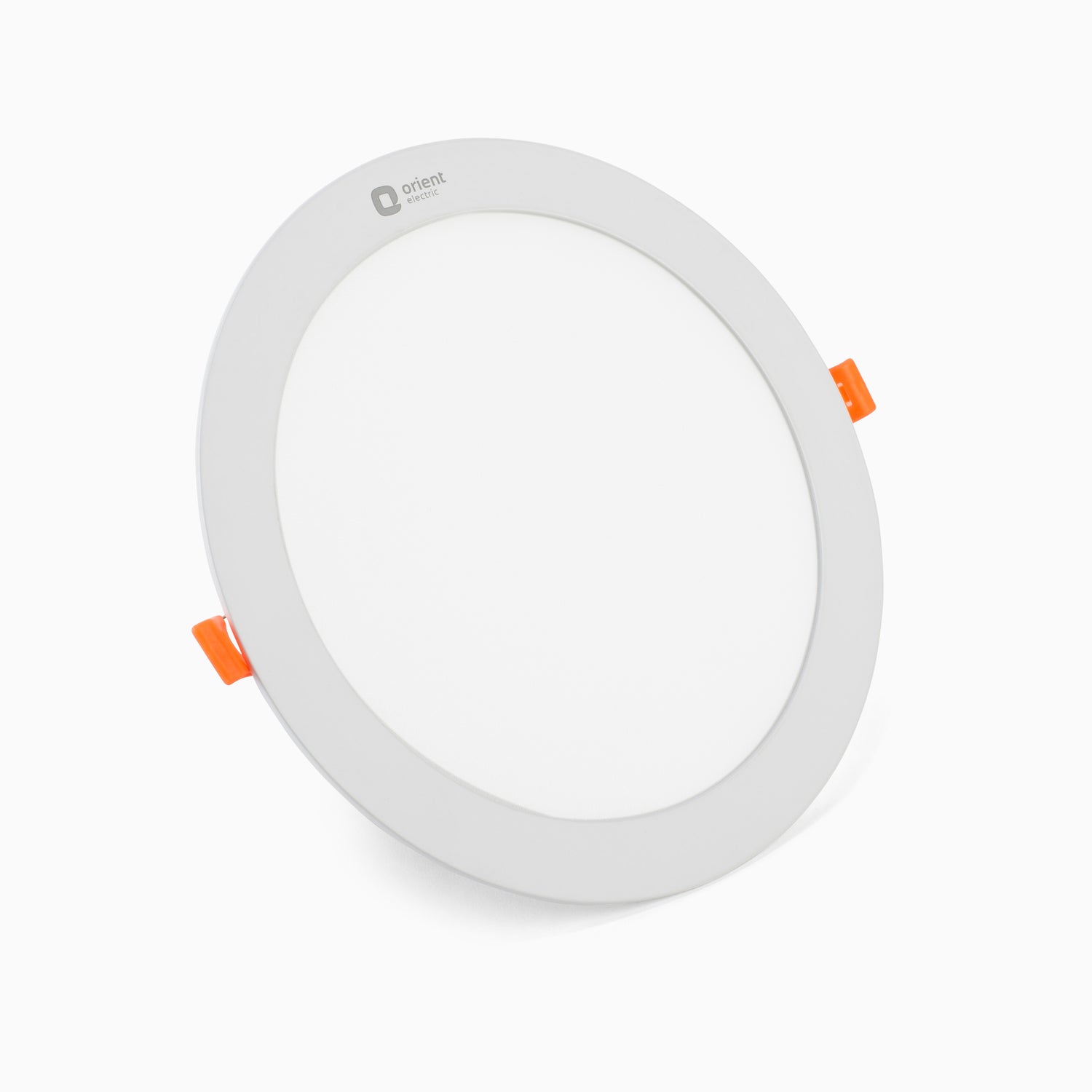

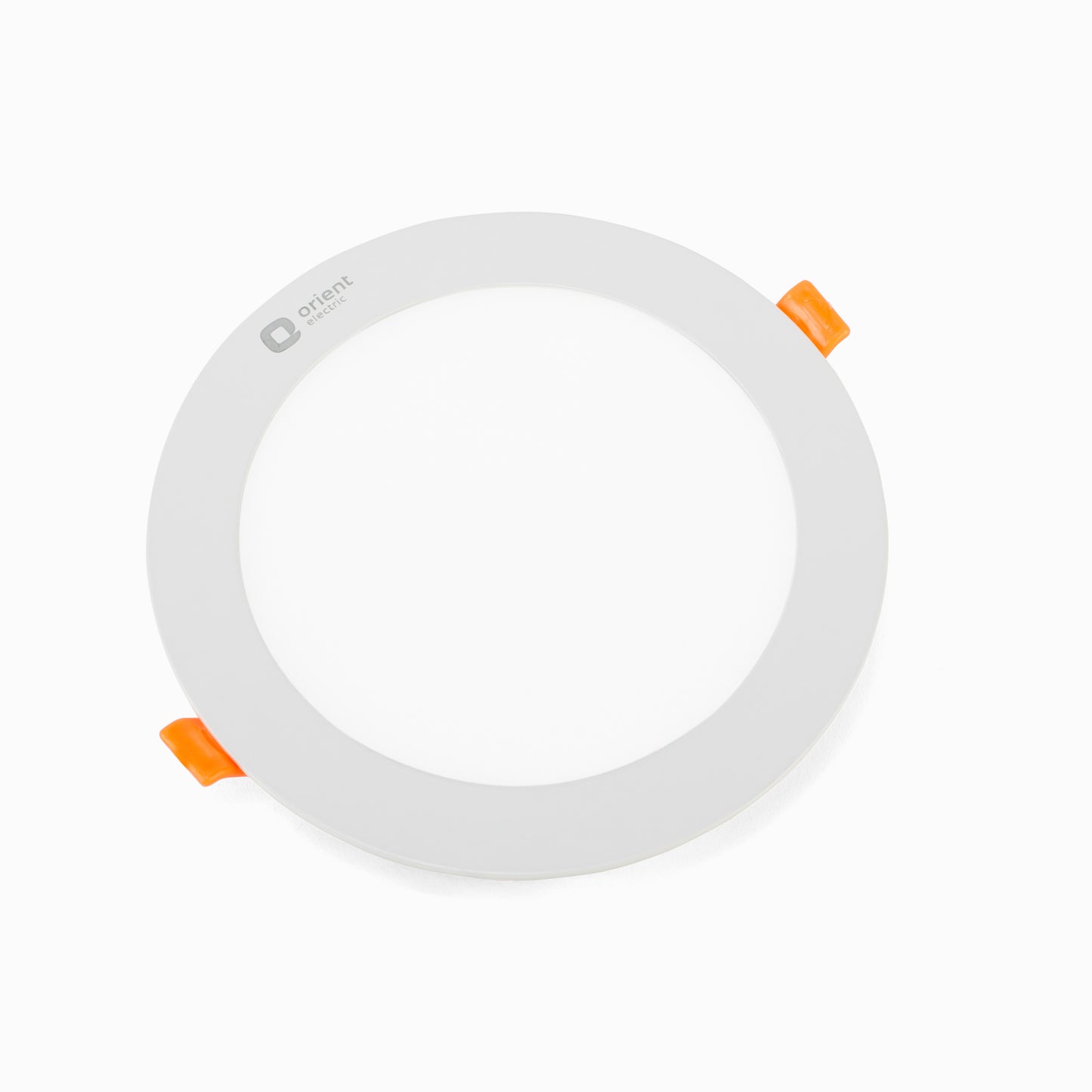

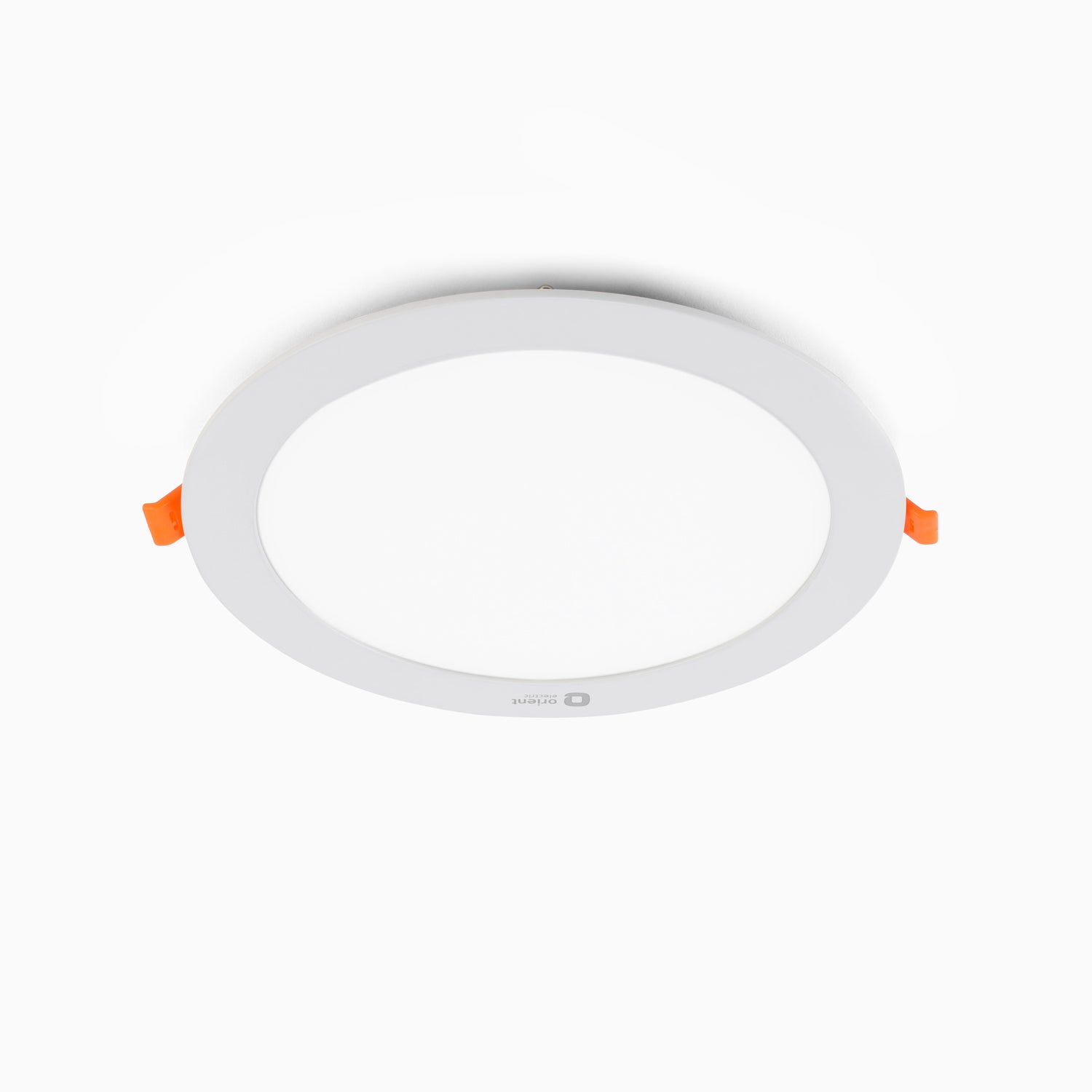

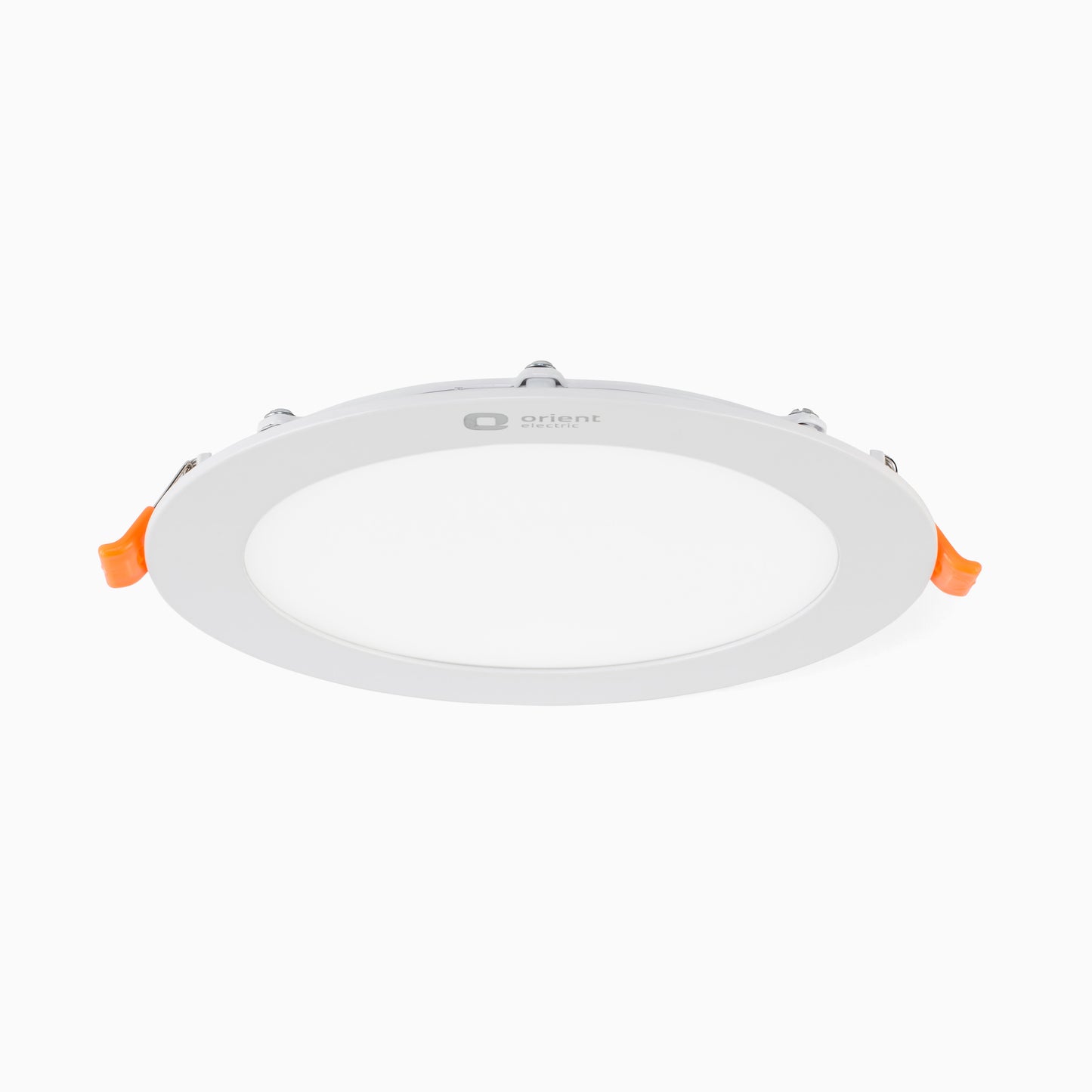

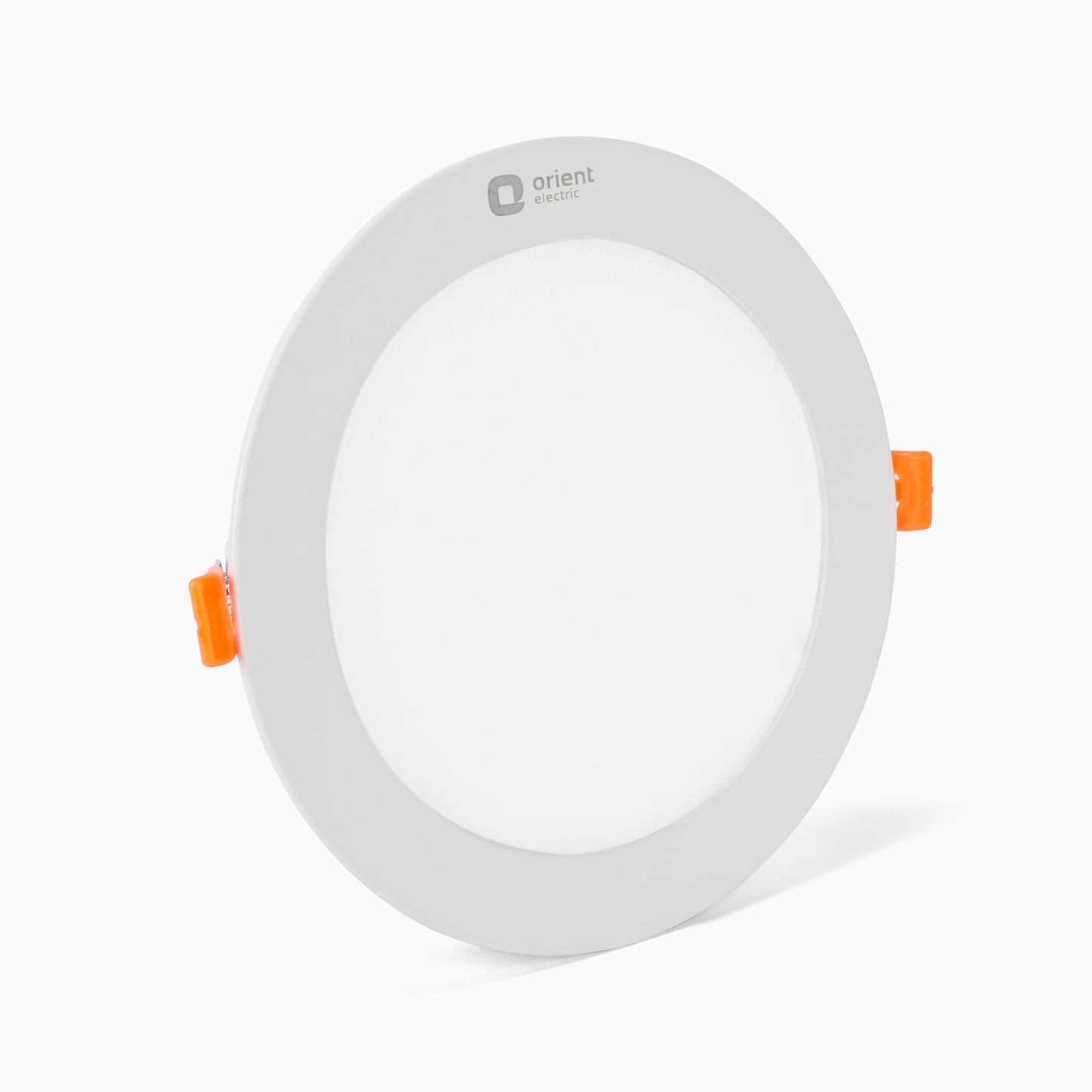

Recess-mounting low-height round edge lit LED downlighter designed in Aluminium housing with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

Best suited for

Banks

Offices

Reception

Waiting Lounge

Meeting rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate frosted diffuser for glare-free uniform light distribution.
    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    Wattage 6W | 12W | 15W | 18W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System efficacy (lm/W) ≥80,≥75,≥70
Edge Recess Round FC variants
Product Variants
Edge Recess Round FC
LDRER-15-C-V2-FC
Edge Recess Round FC
LDRER-15-N-V2-FC
Edge Recess Round FC
LDRER-15-W-V2-FC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Cut out Diameter ( in mm)
Height (in mm)
15W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170
155
20
15W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170
155
20
15W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170
155
20
