Product Overview

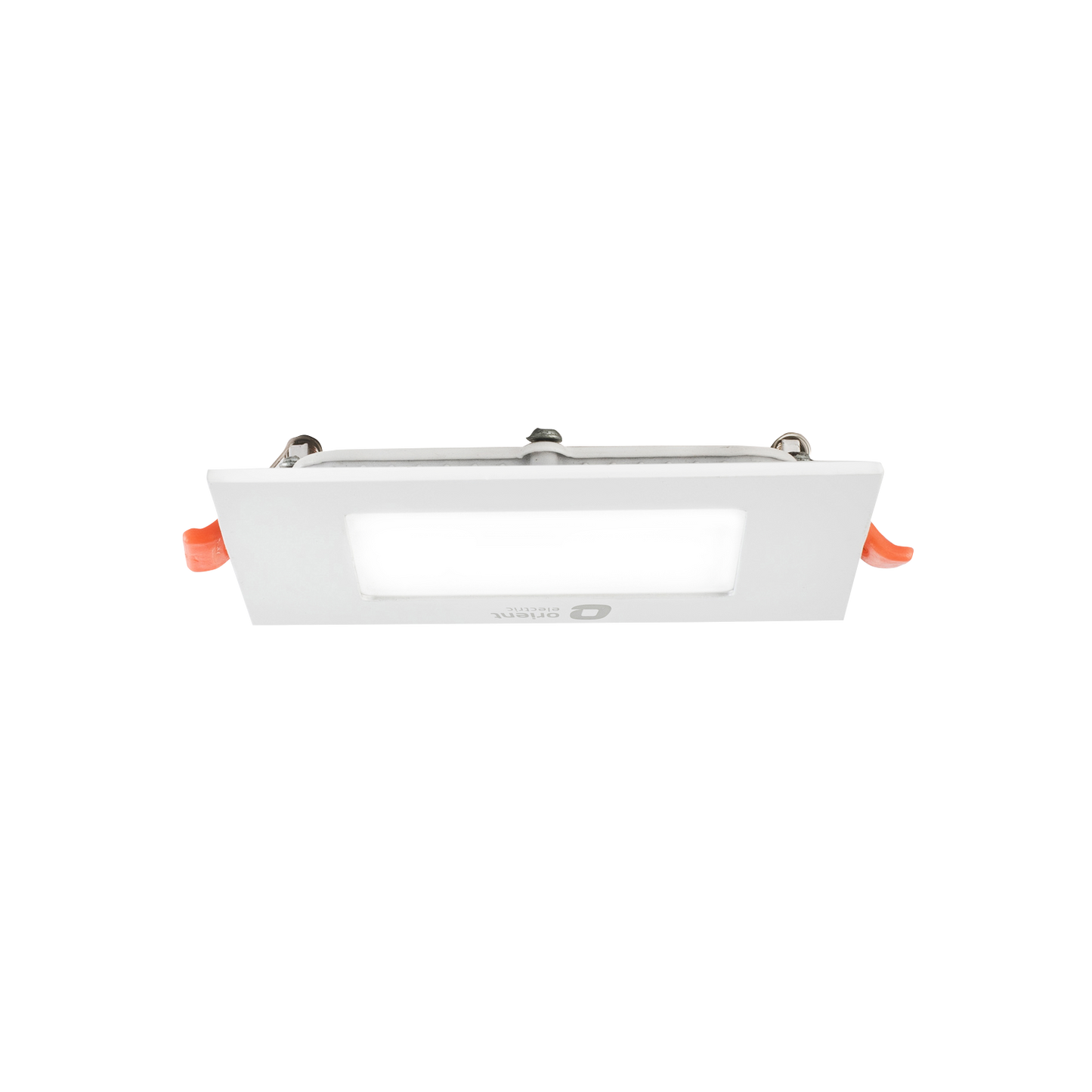

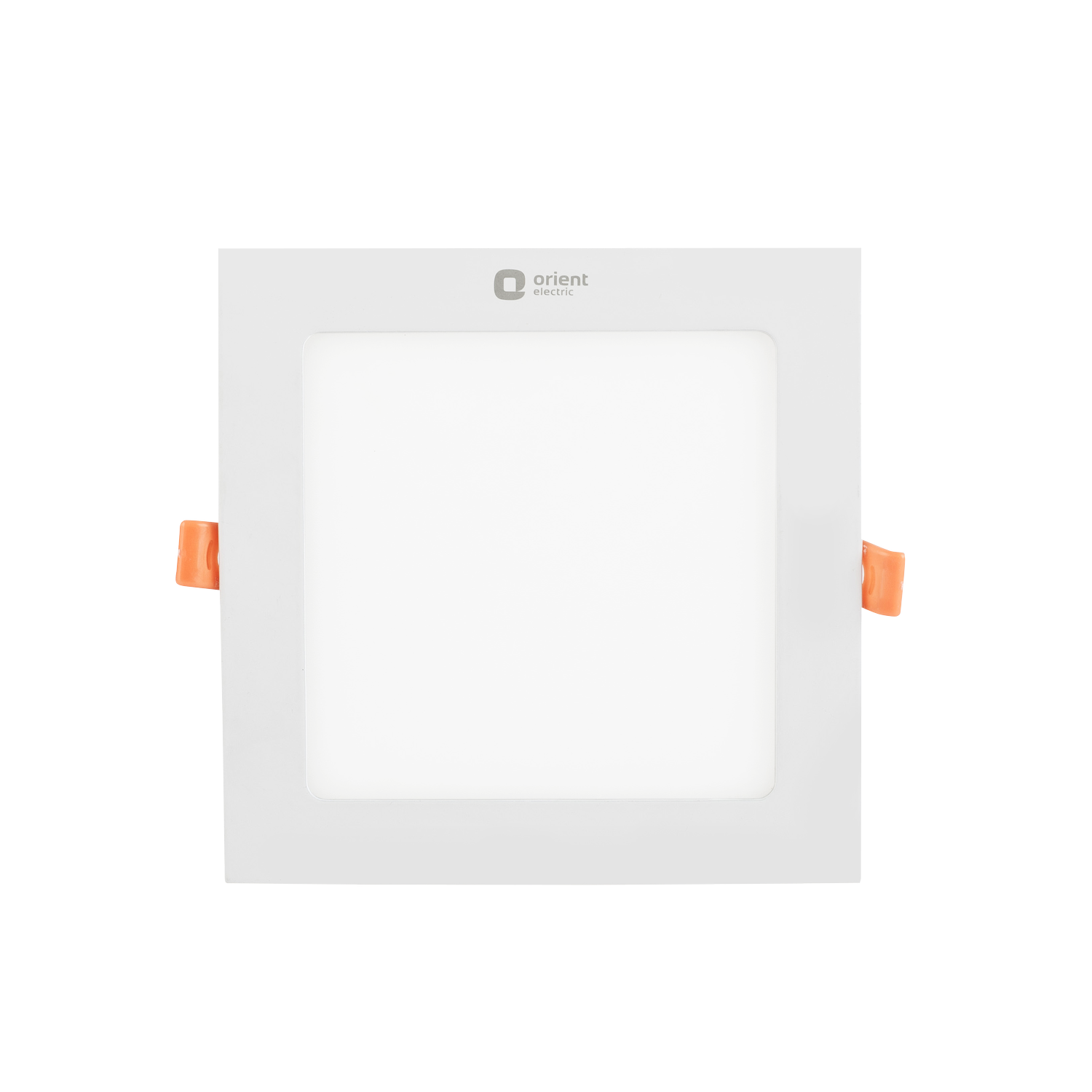

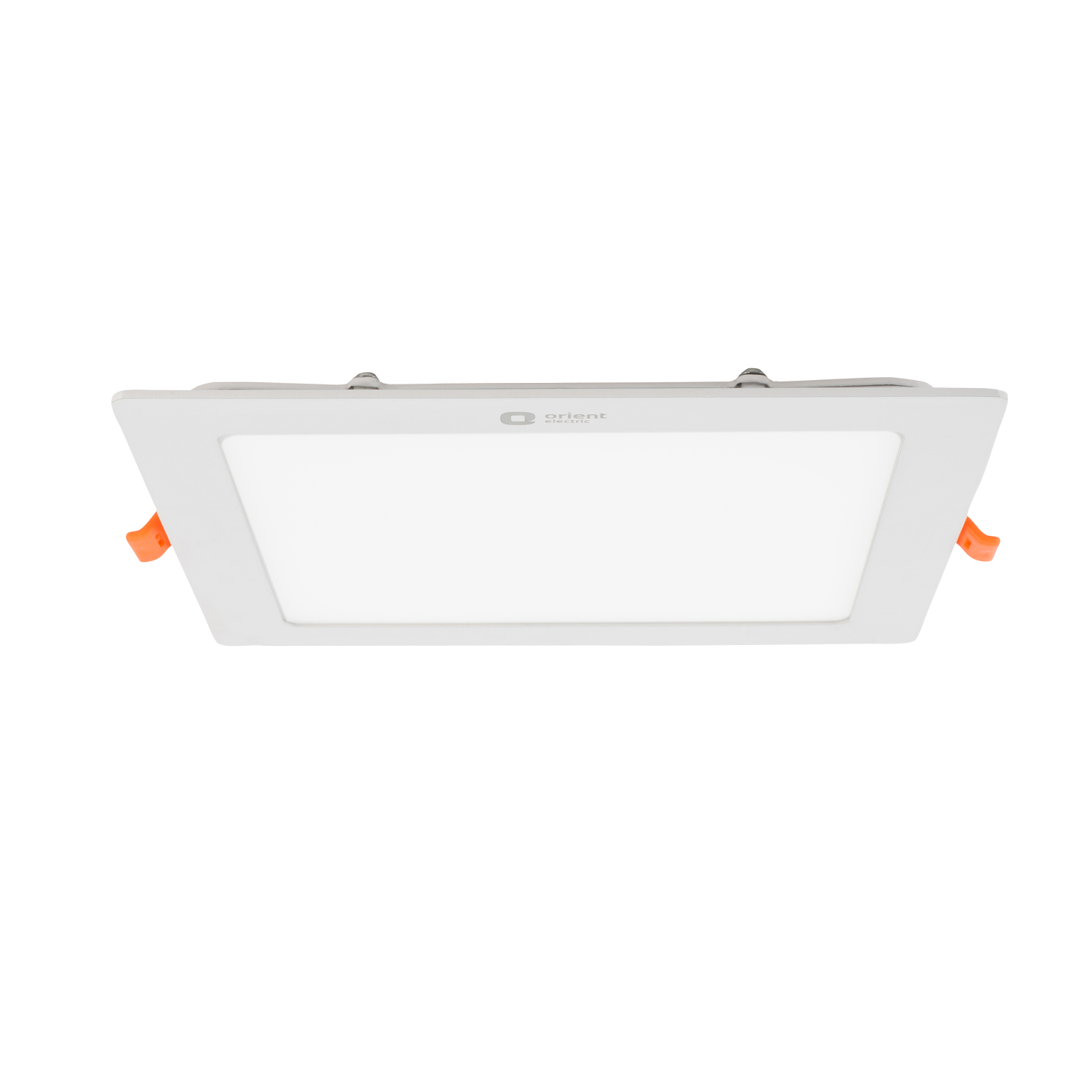

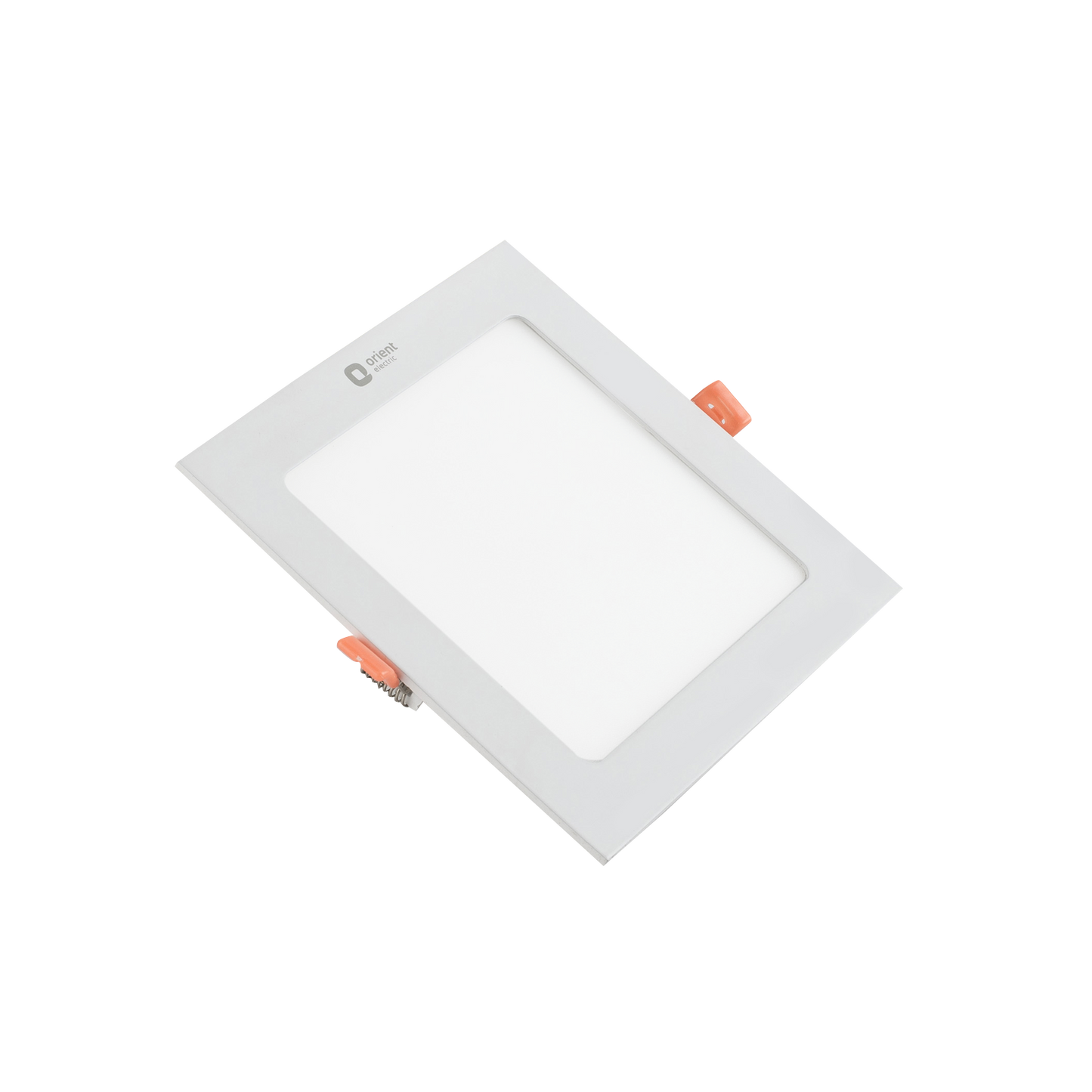

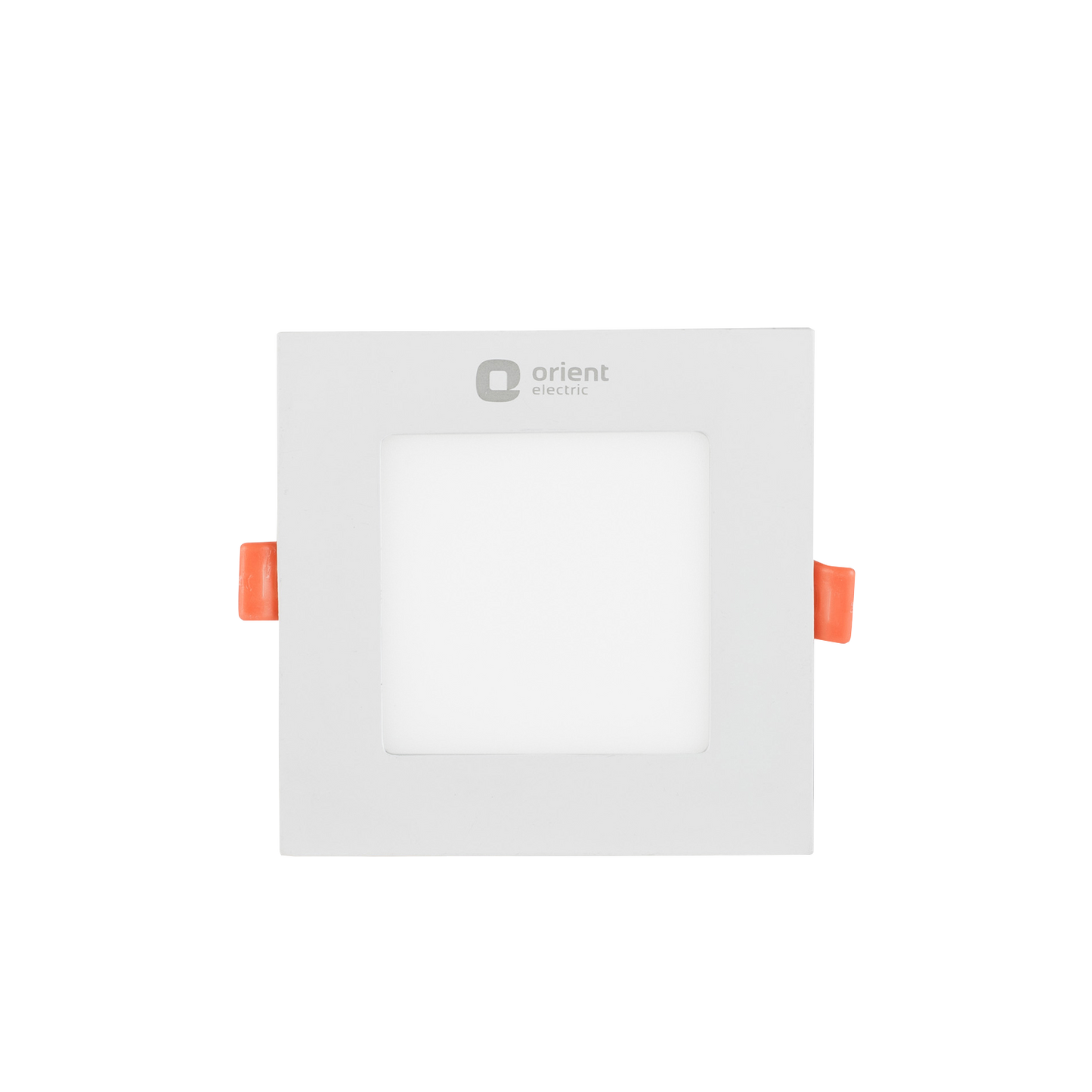

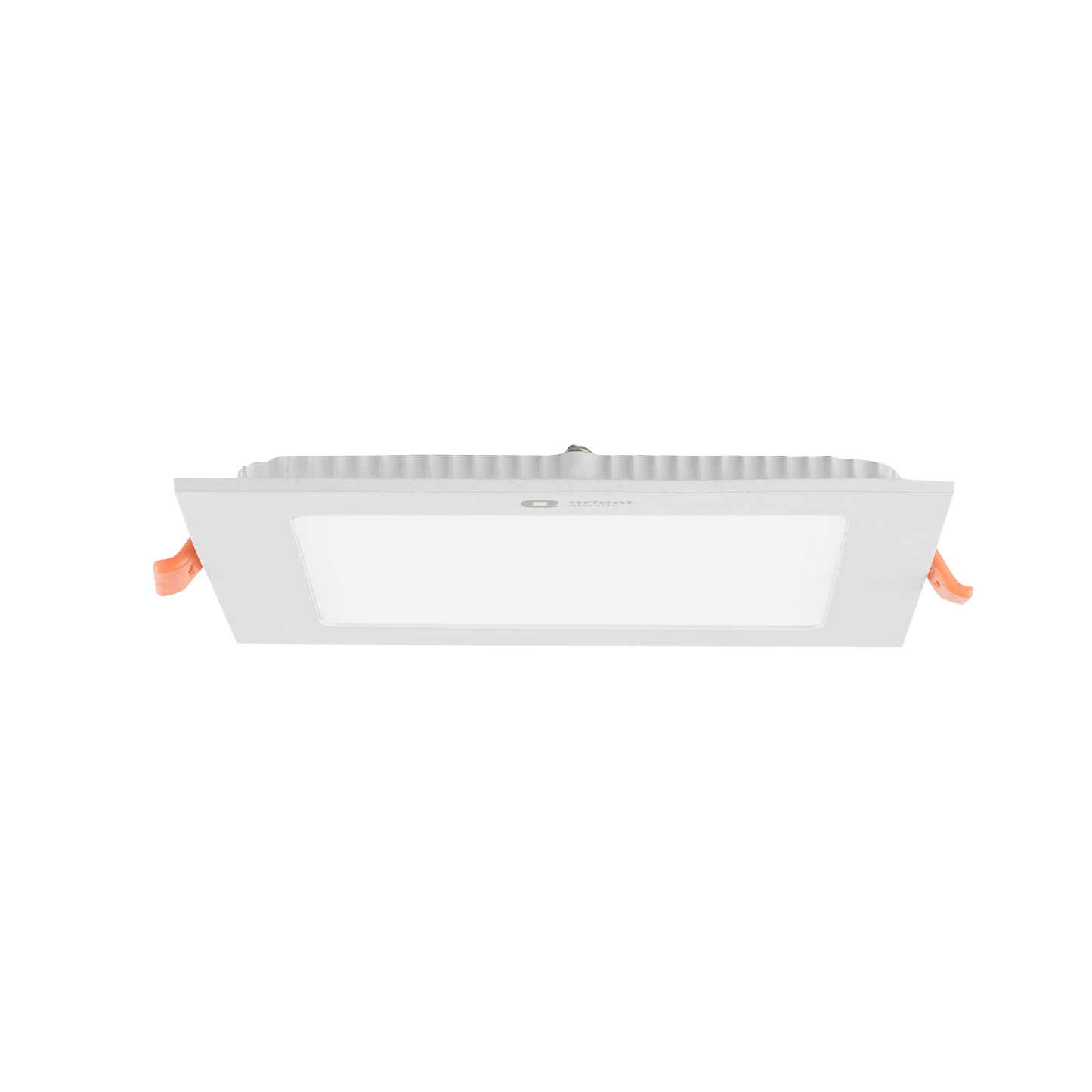

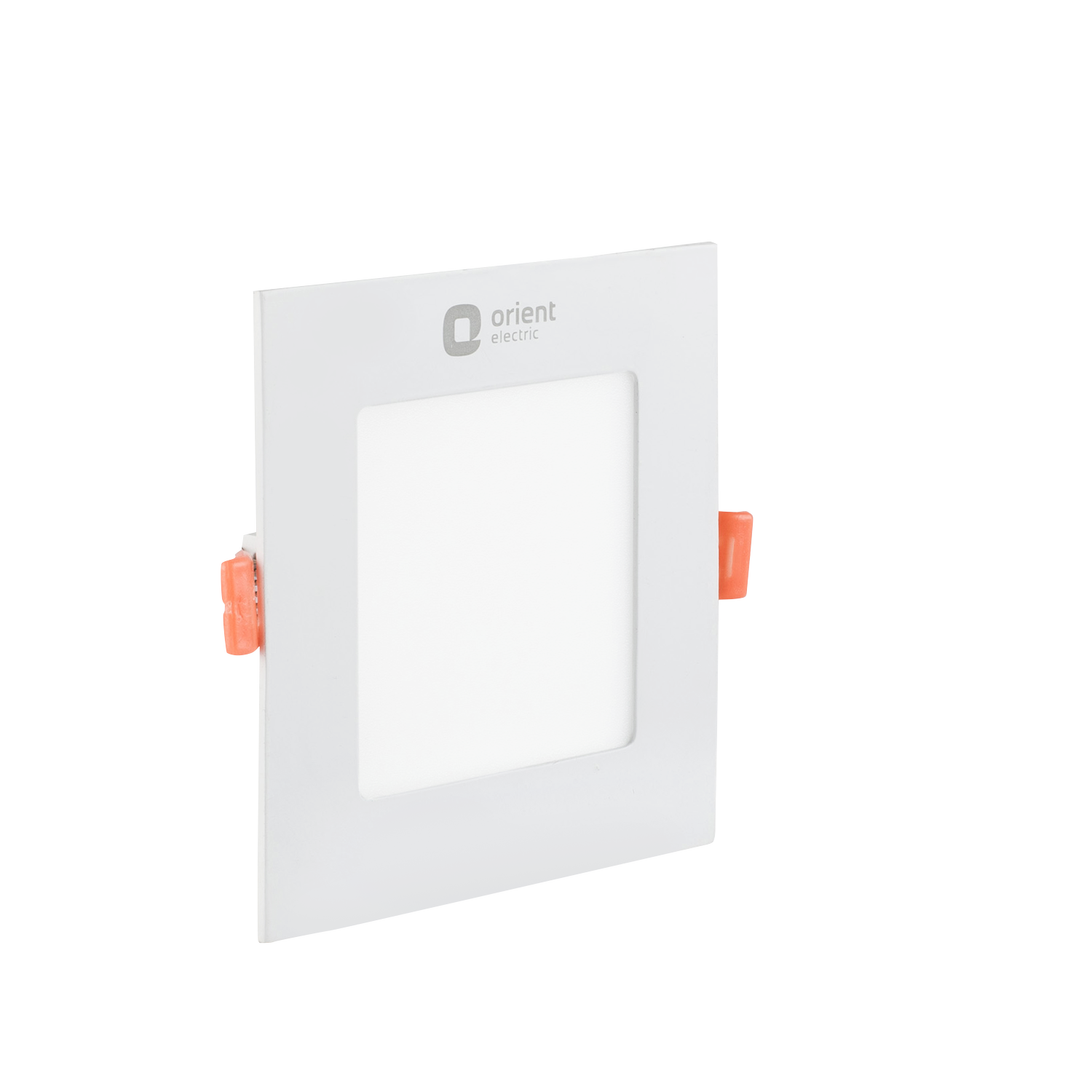

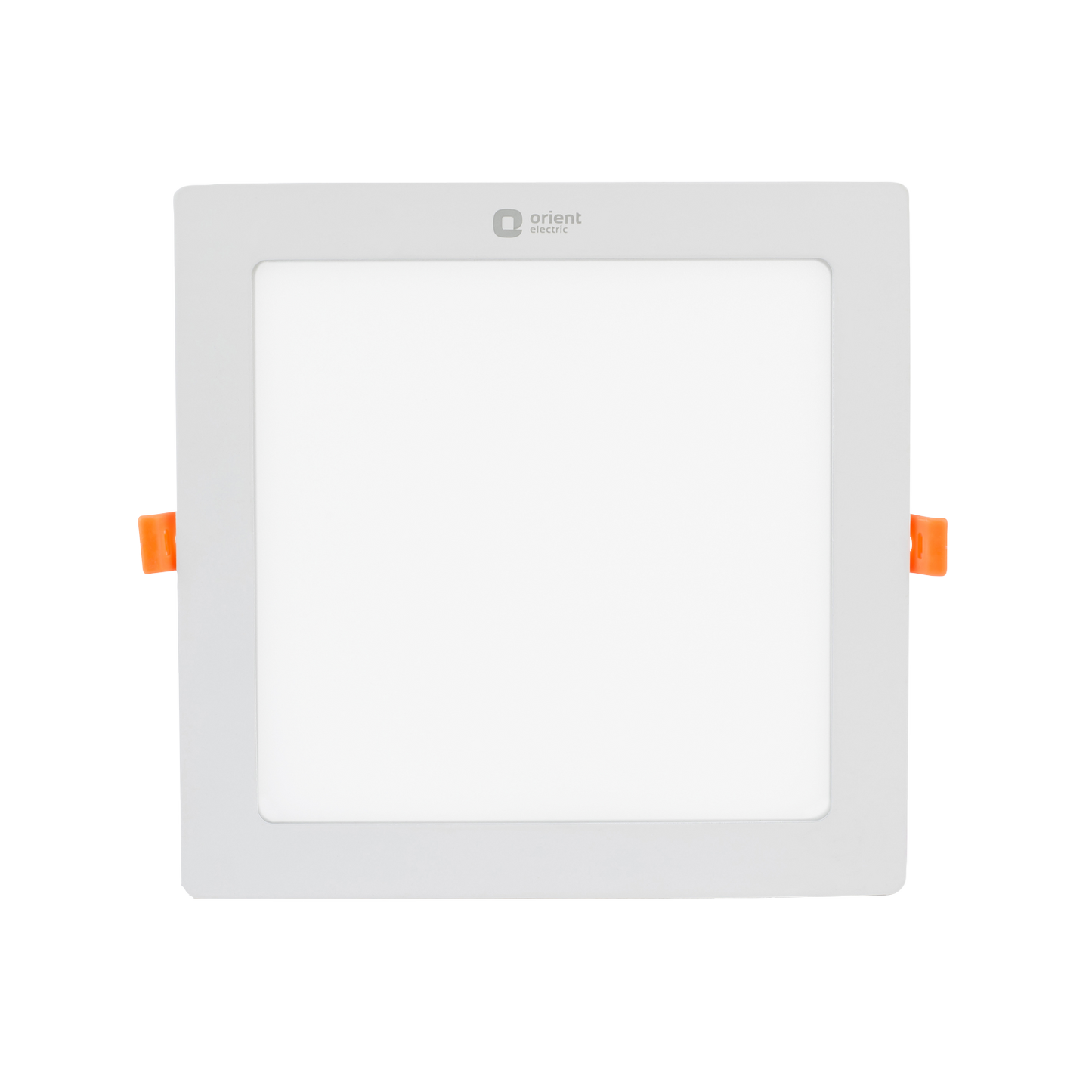

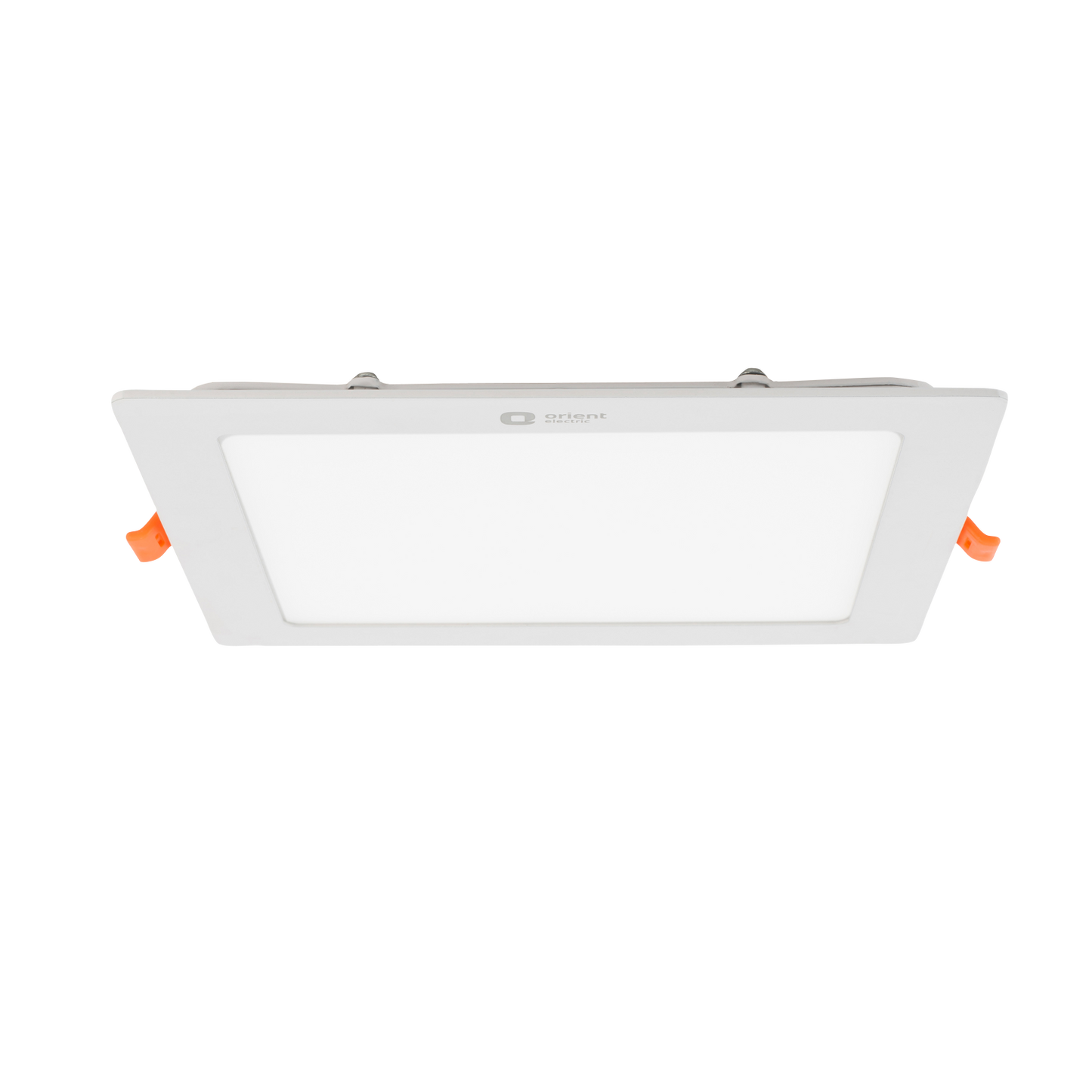

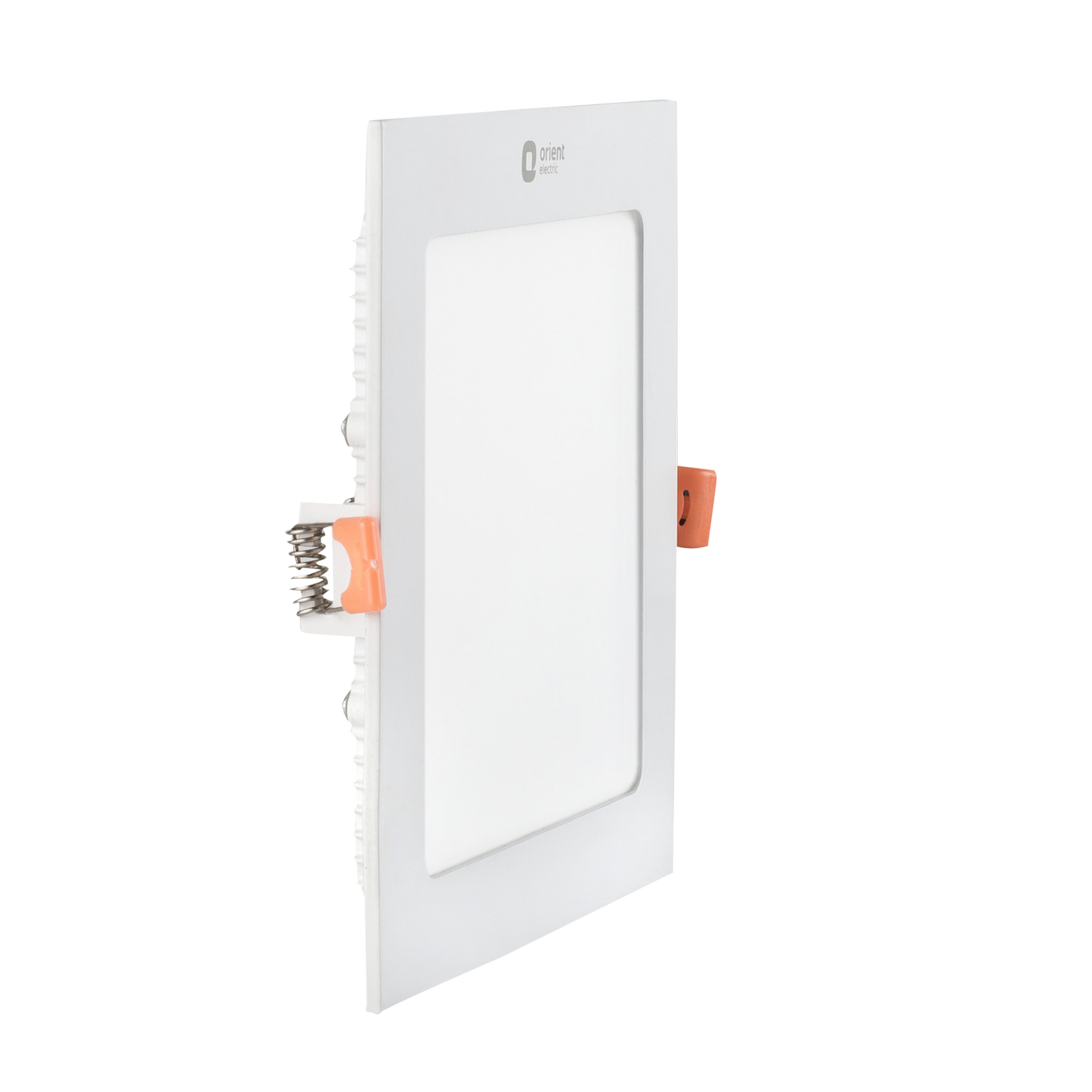

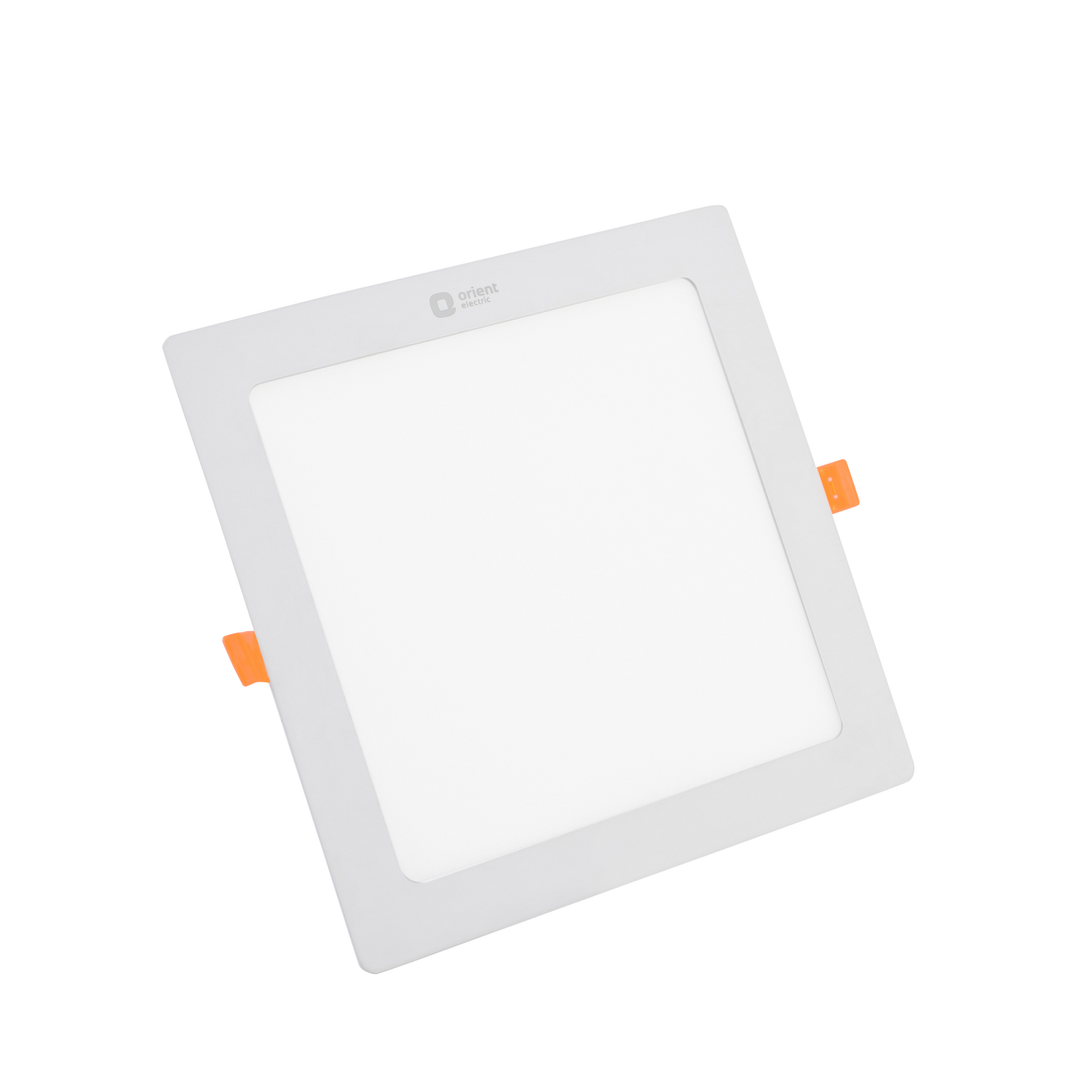

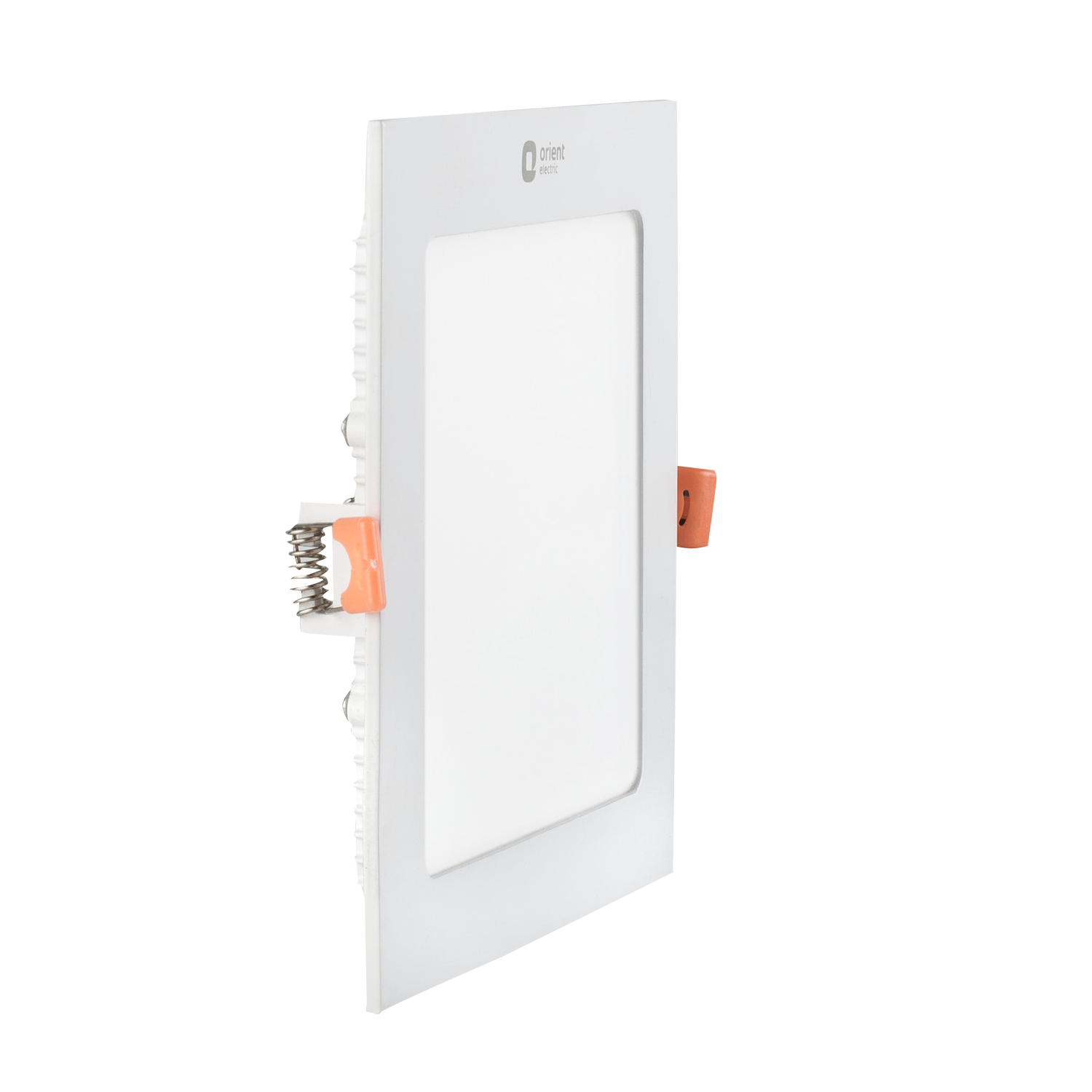

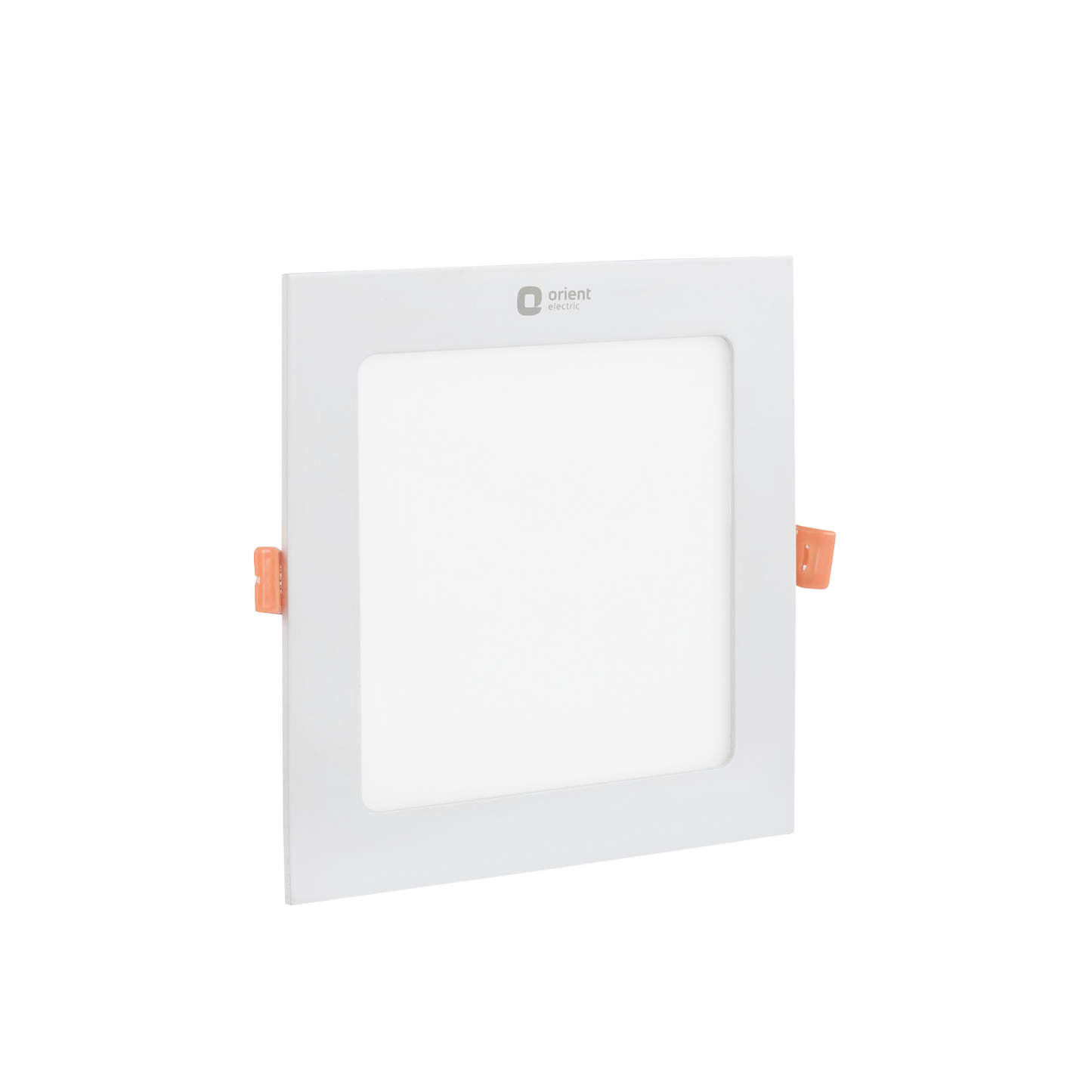

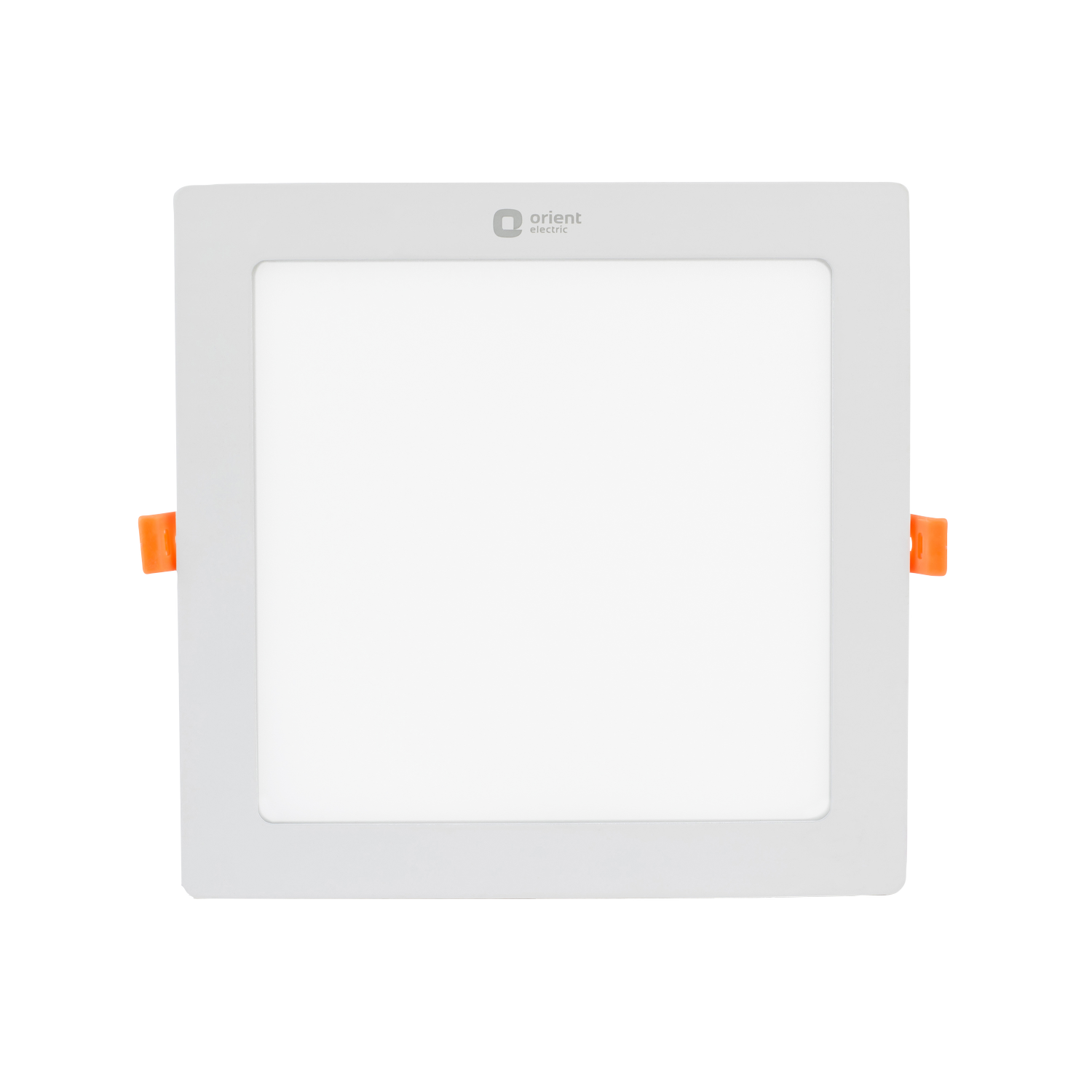

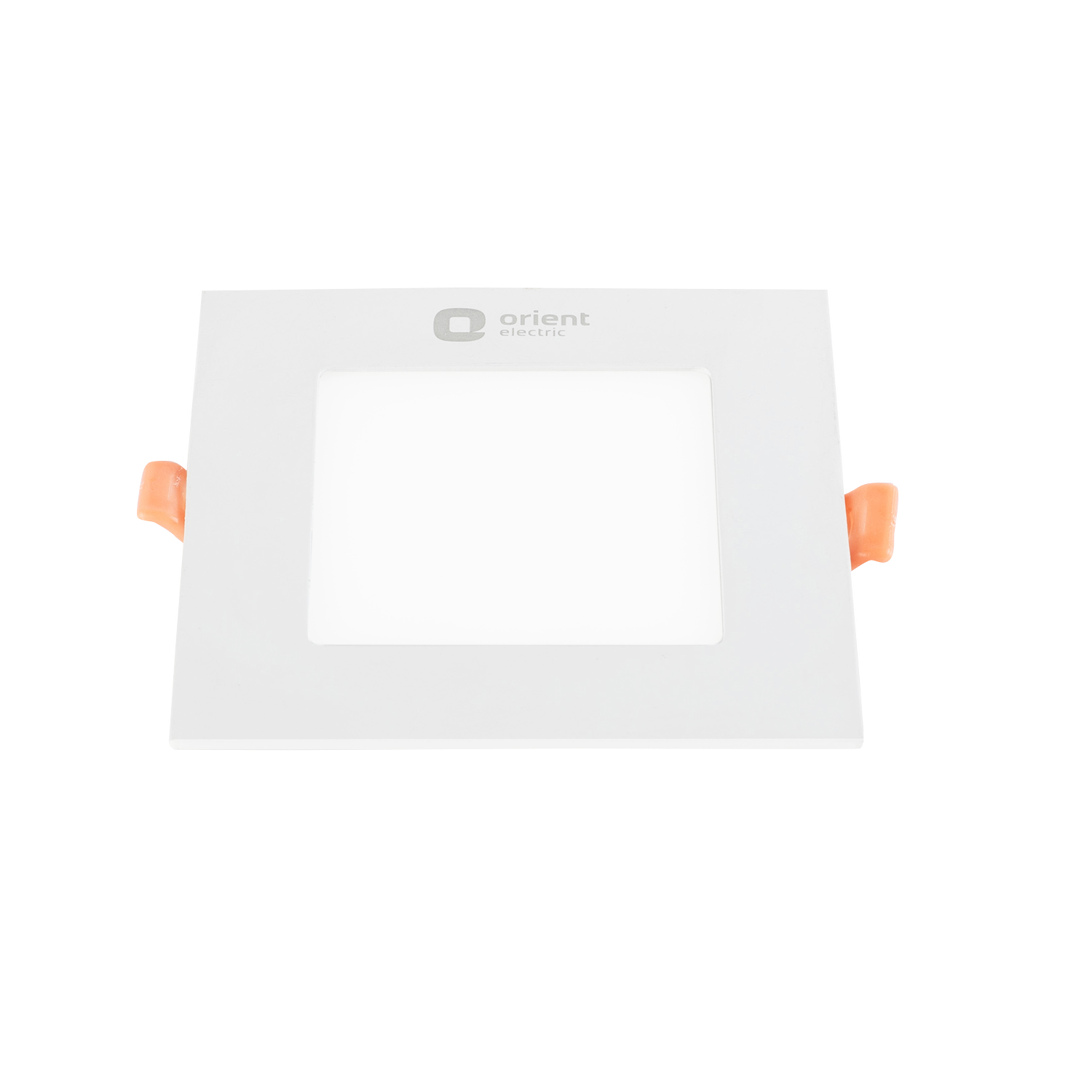

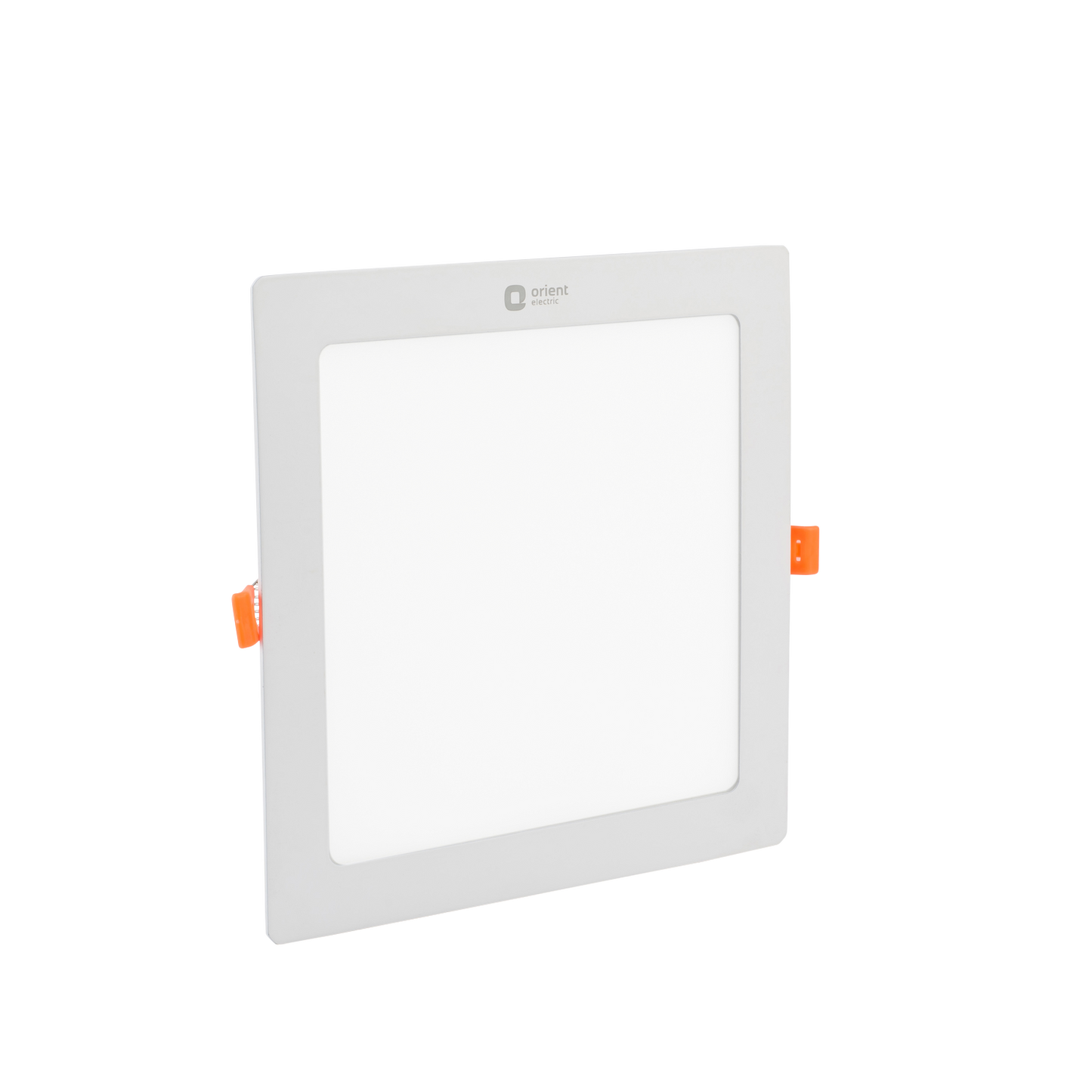

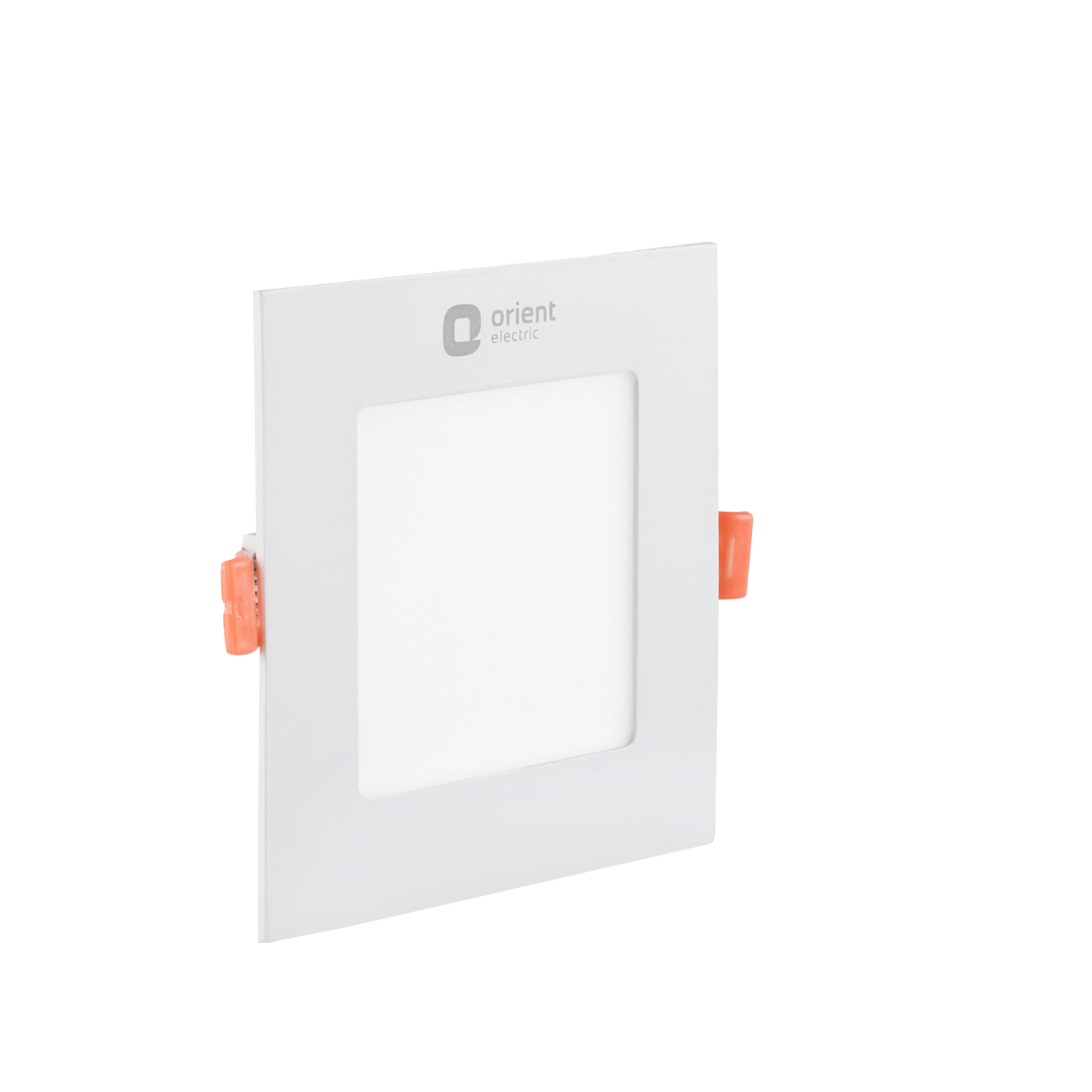

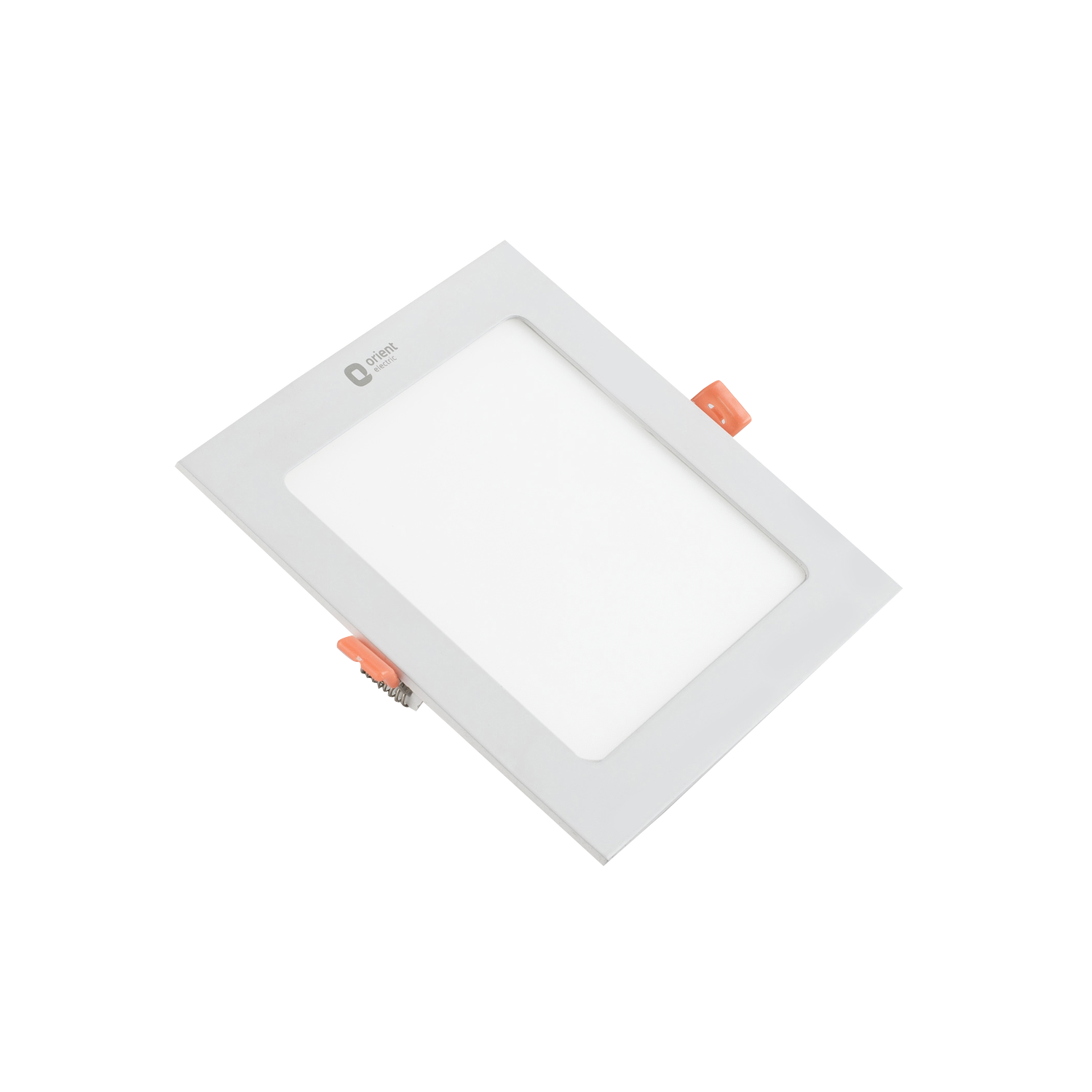

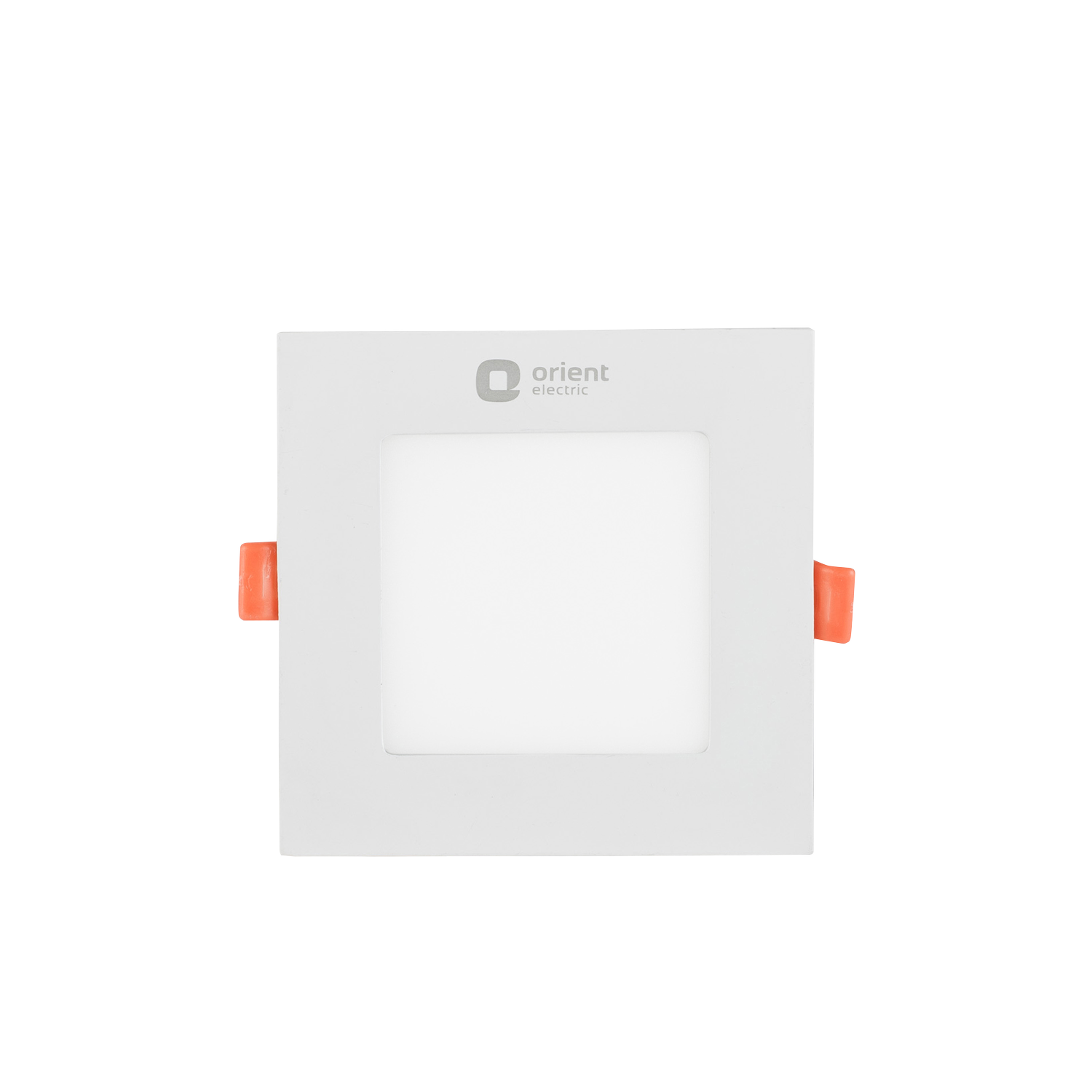

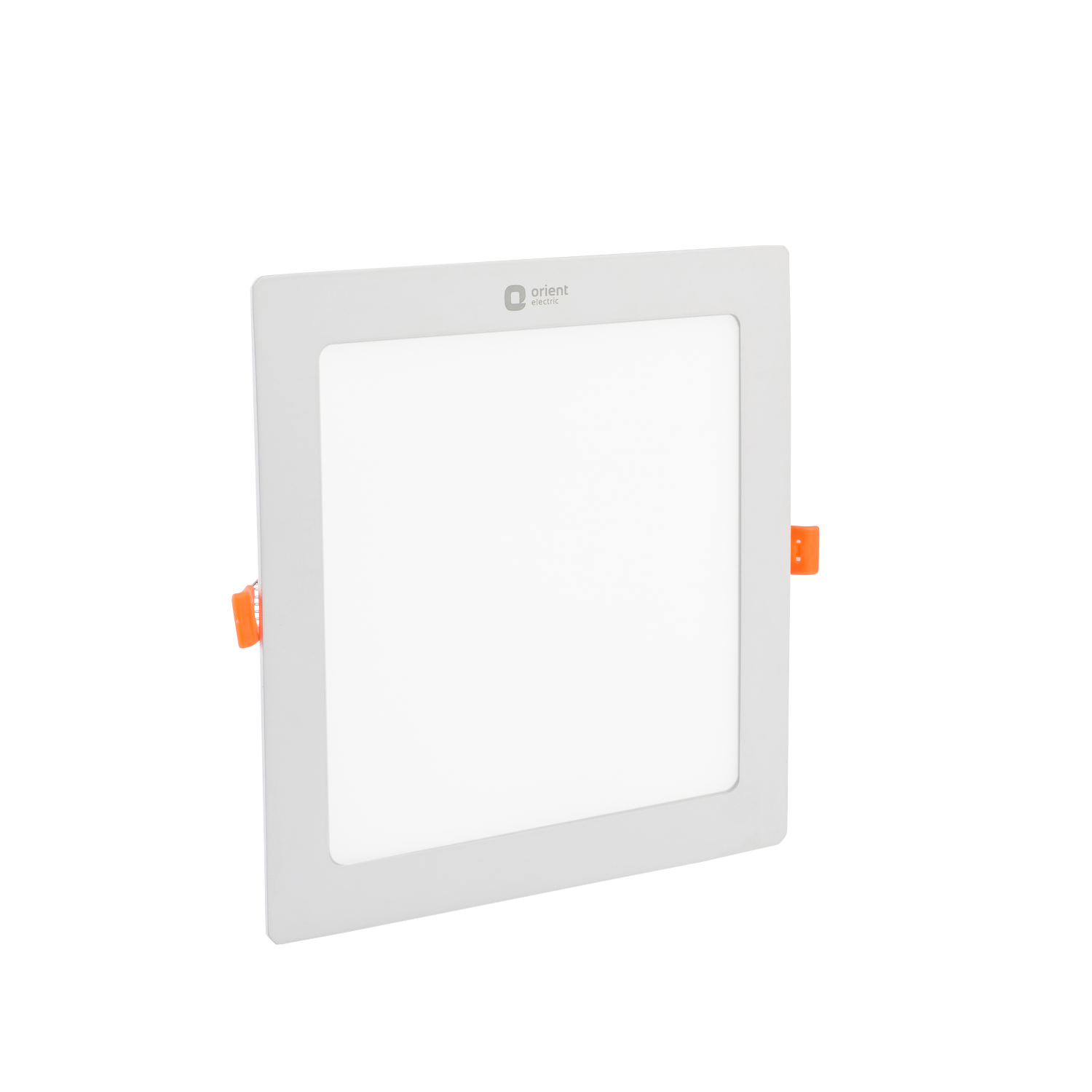

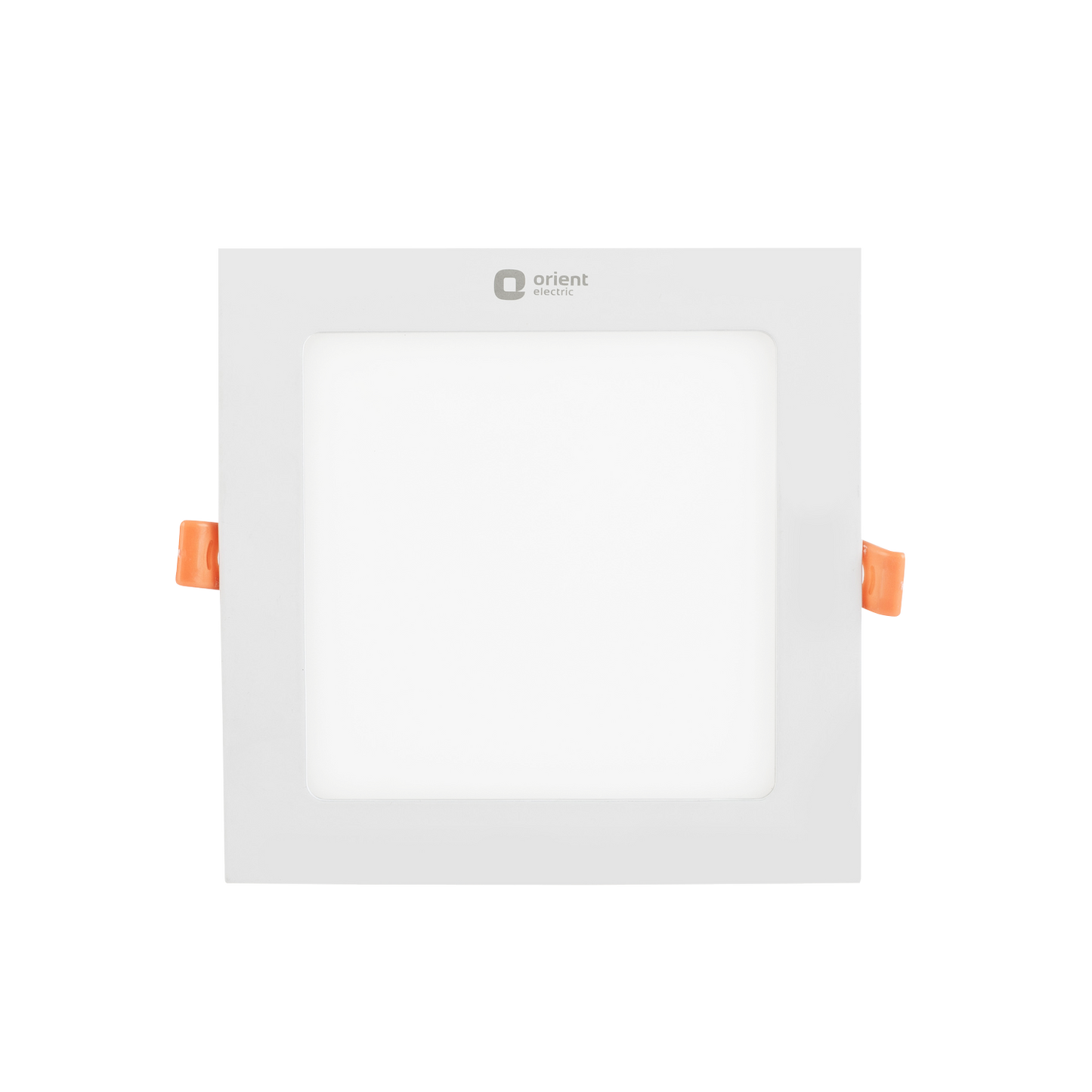

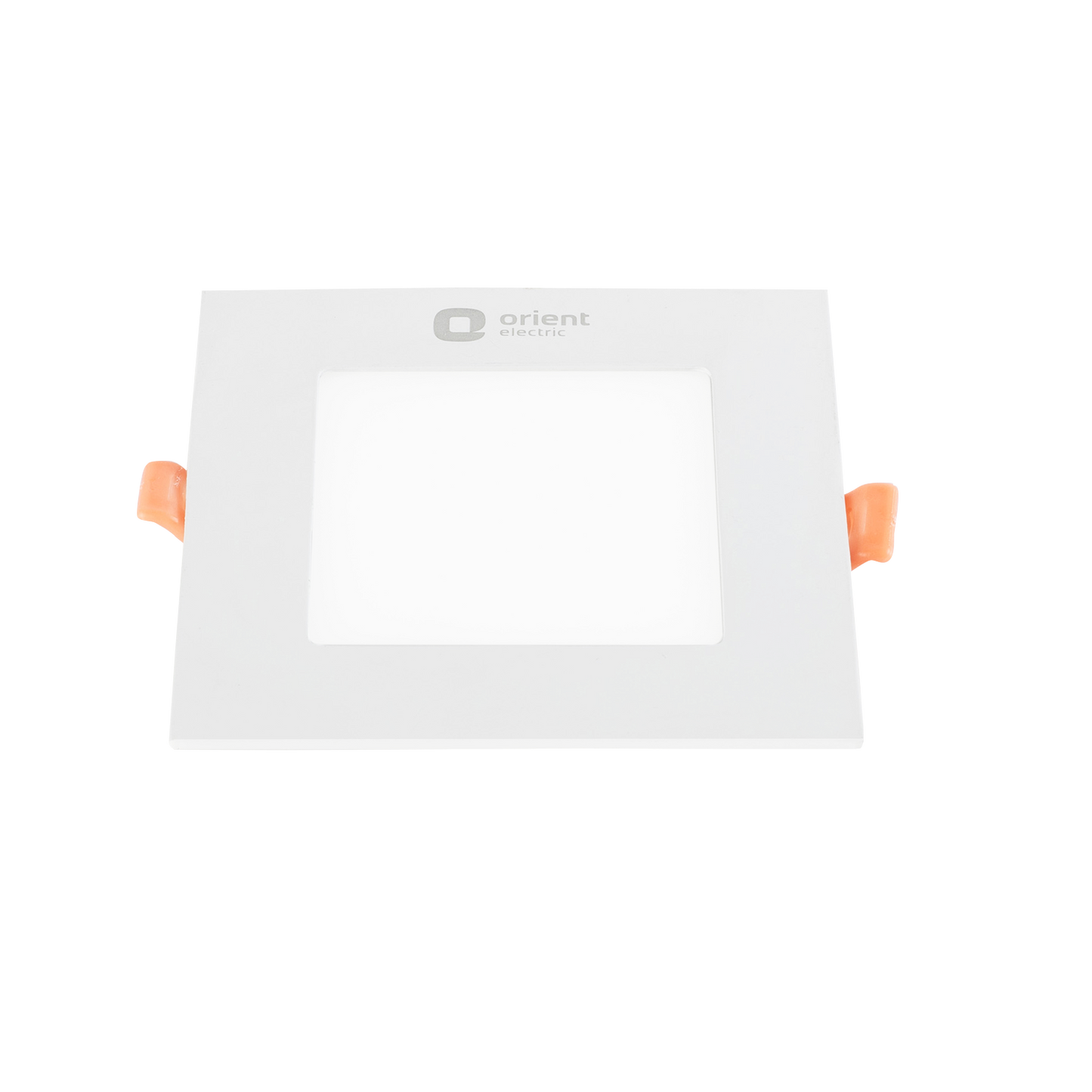

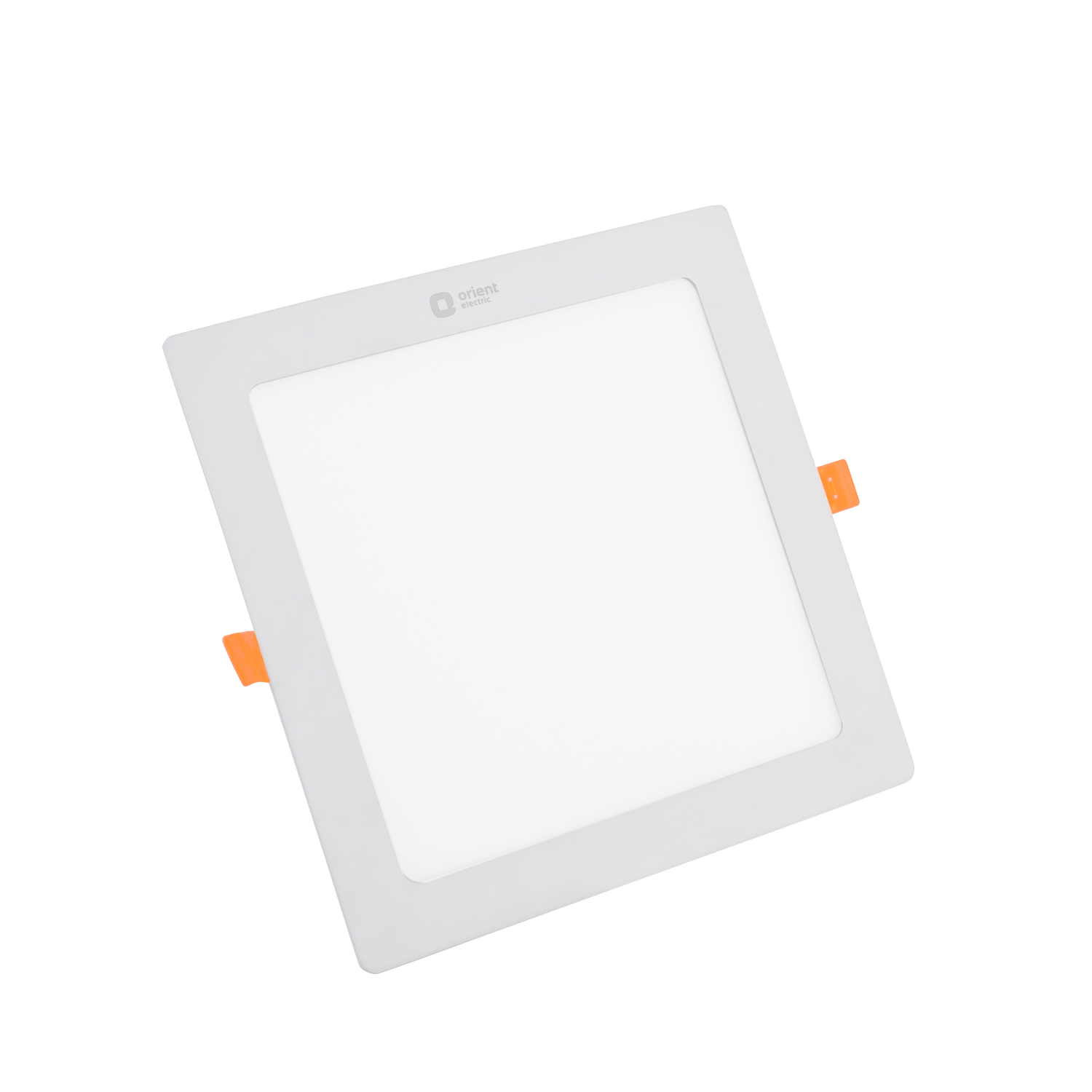

Ultra slim recess-mounting square LED downlighter designed with excellent thermally managed aluminium pressure die-cast housing with heat-dissipating fins for larger surface area finished in epoxy powder-coated white to deliver high-efficacy of light output and uniformity, utilizing edge-lit technology.

Best suited for

Banking

Offices

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate opal diffuser for glare free uniform light distribution.
    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 6W, 12W, 15W, 18W, 24W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy (lm/W) ≥80 , ≥75 , ≥70
Edge recess square variants
Product Variants
Edge recess square
LDRES-06-C-V2
Edge recess square
LDRES-06-N-V2
Edge recess square
LDRES-06-W-V2
Edge recess square
LDRES-12-C-V2
Edge recess square
LDRES-12-N-V2
Edge recess square
LDRES-12-W-V2
Edge recess square
LDRES-15-C-V2
Edge recess square
LDRES-15-N-V2
Edge recess square
LDRES-15-W-V2
Edge recess square
LDRES-18-C-V2
Edge recess square
LDRES-18-N-V2
Edge recess square
LDRES-18-W-V2
Edge recess square
LDRES-24-C-V2
Edge recess square
LDRES-24-N-V2
Edge recess square
LDRES-24-W-V2
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer (in mm)
Cut Out (in mm)
Height (in mm)
6W
6500K
≥80
240V AC
≥0.95
<15%
≥80
120x120
105x105
20
6W
4000K
≥80
240V AC
≥0.95
<15%
≥75
120x120
105x105
20
6W
3000K
≥80
240V AC
≥0.95
<15%
≥70
120x120
105x105
20
12W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170x170
155x155
20
12W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170x170
155x155
20
12W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170x170
155x155
20
15W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170x170
155x155
20
15W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170x170
155x155
20
15W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170x170
155x155
20
18W
6500K
≥80
240V AC
≥0.95
<15%
≥80
225x225
205x205
20
18W
4000K
≥80
240V AC
≥0.95
<15%
≥75
225x225
205x205
20
18W
3000K
≥80
240V AC
≥0.95
<15%
≥70
225x225
205x205
20
24W
6500K
≥80
240V AC
≥0.95
<15%
≥80
295x295
275x275
20
24W
4000K
≥80
240V AC
≥0.95
<15%
≥75
295x295
275x275
20
24W
3000K
≥80
240V AC
≥0.95
<15%
≥70
295x295
275x275
20
