Product Overview

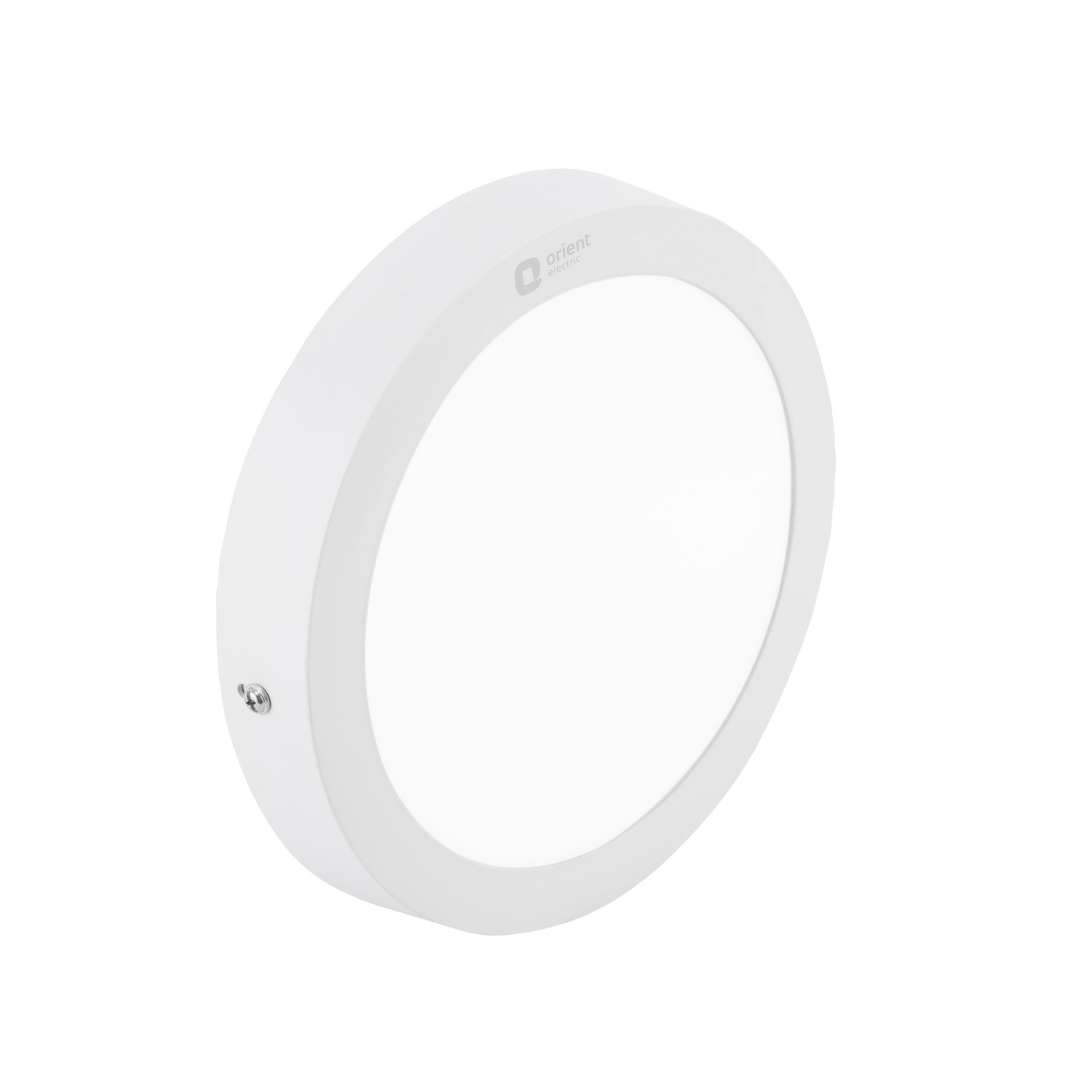

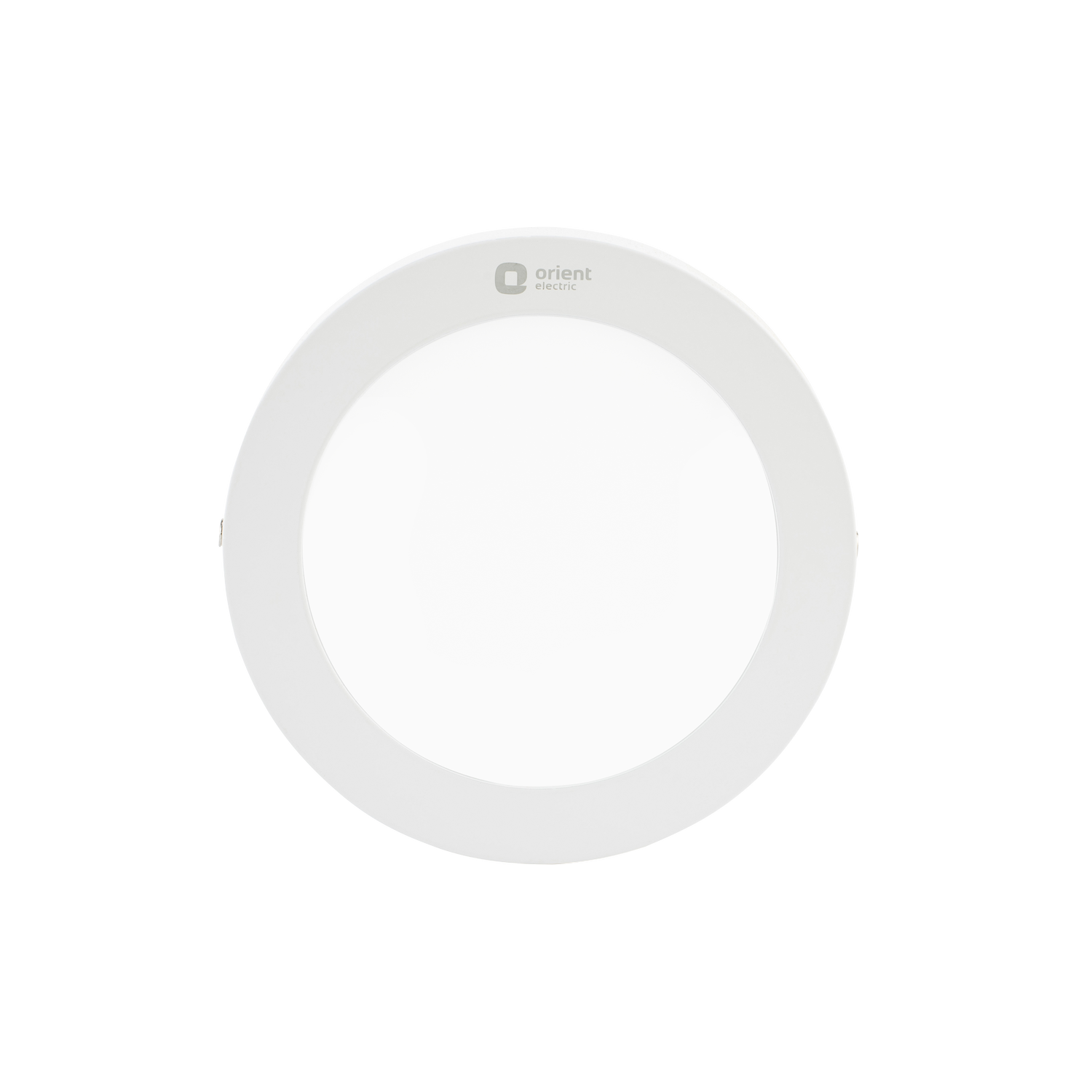

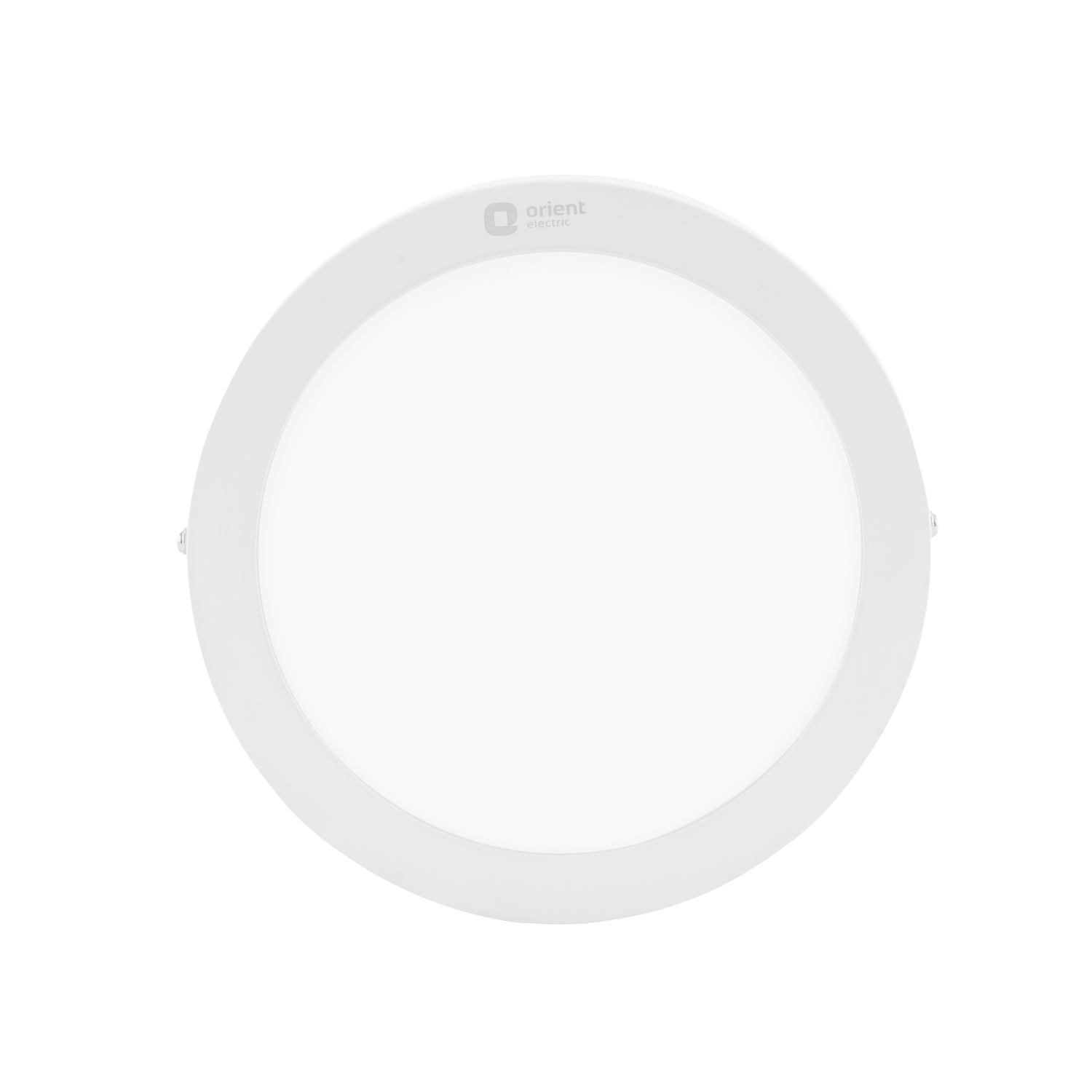

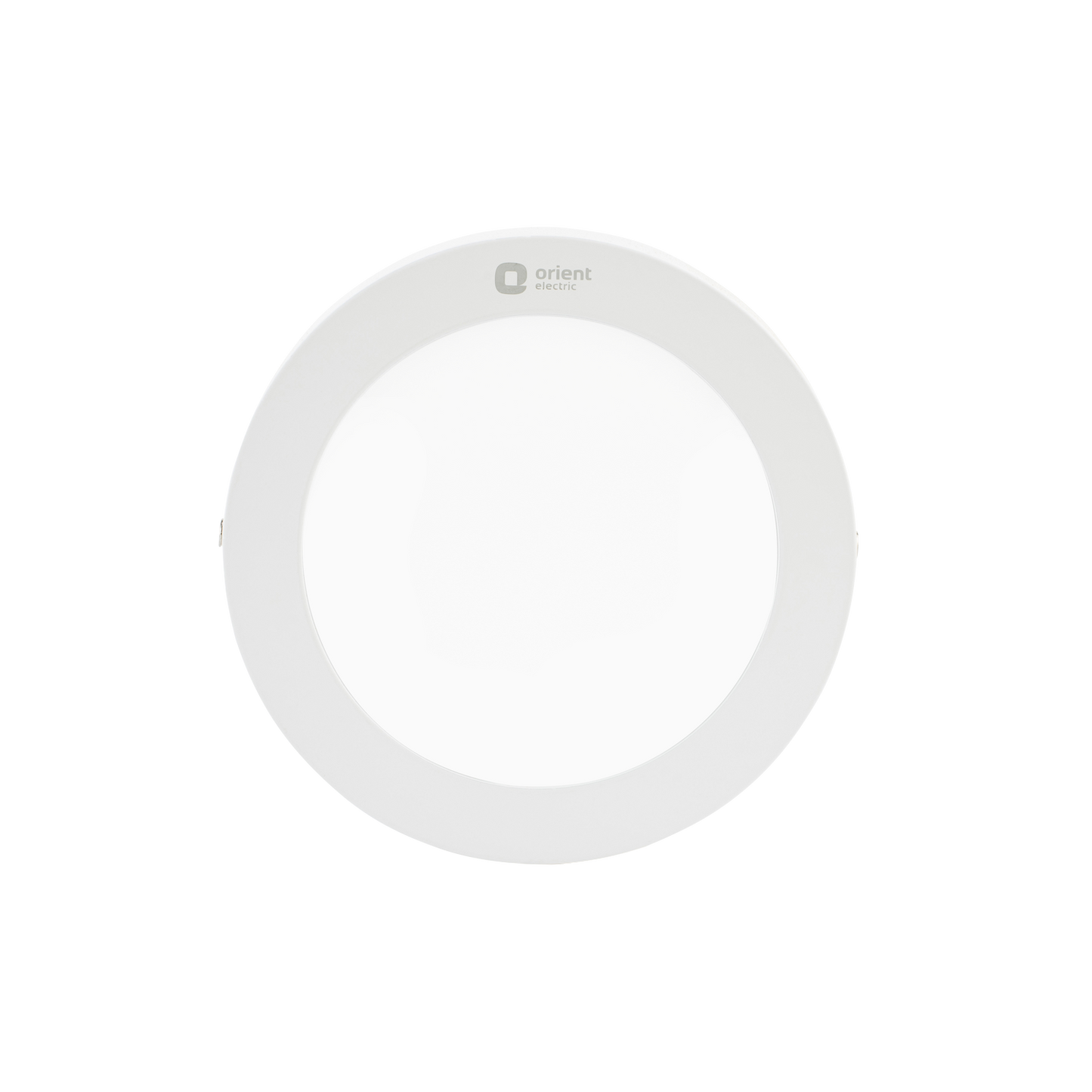

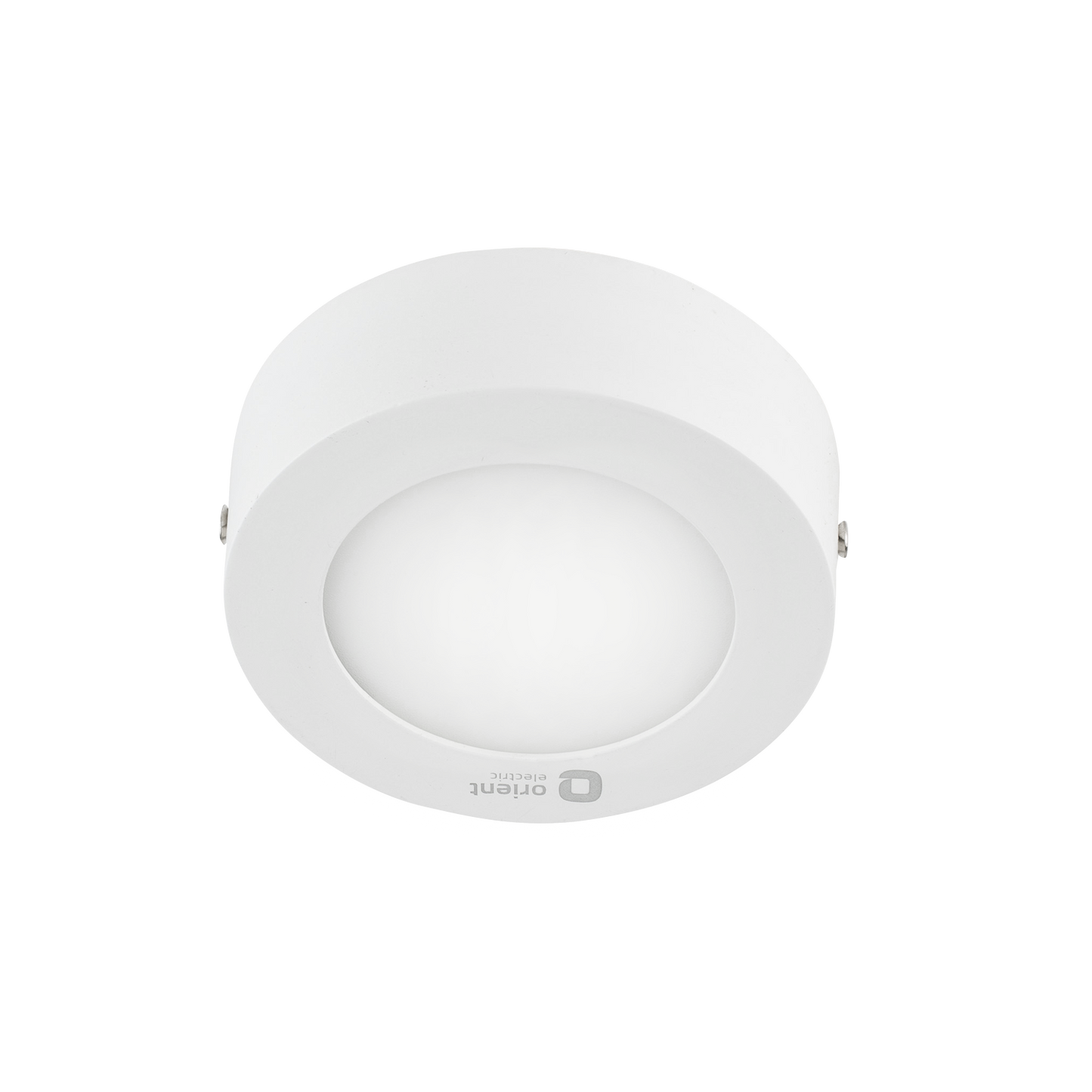

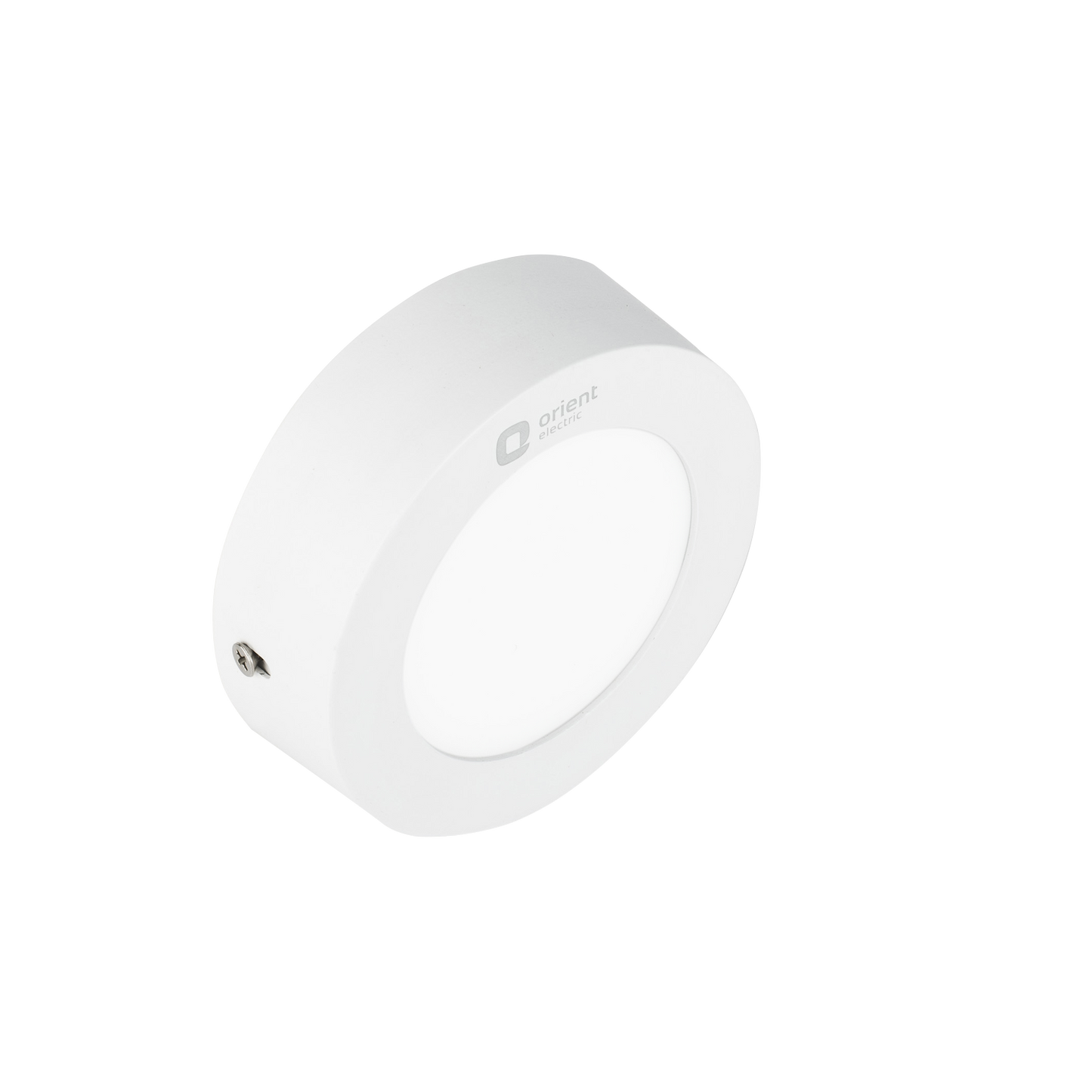

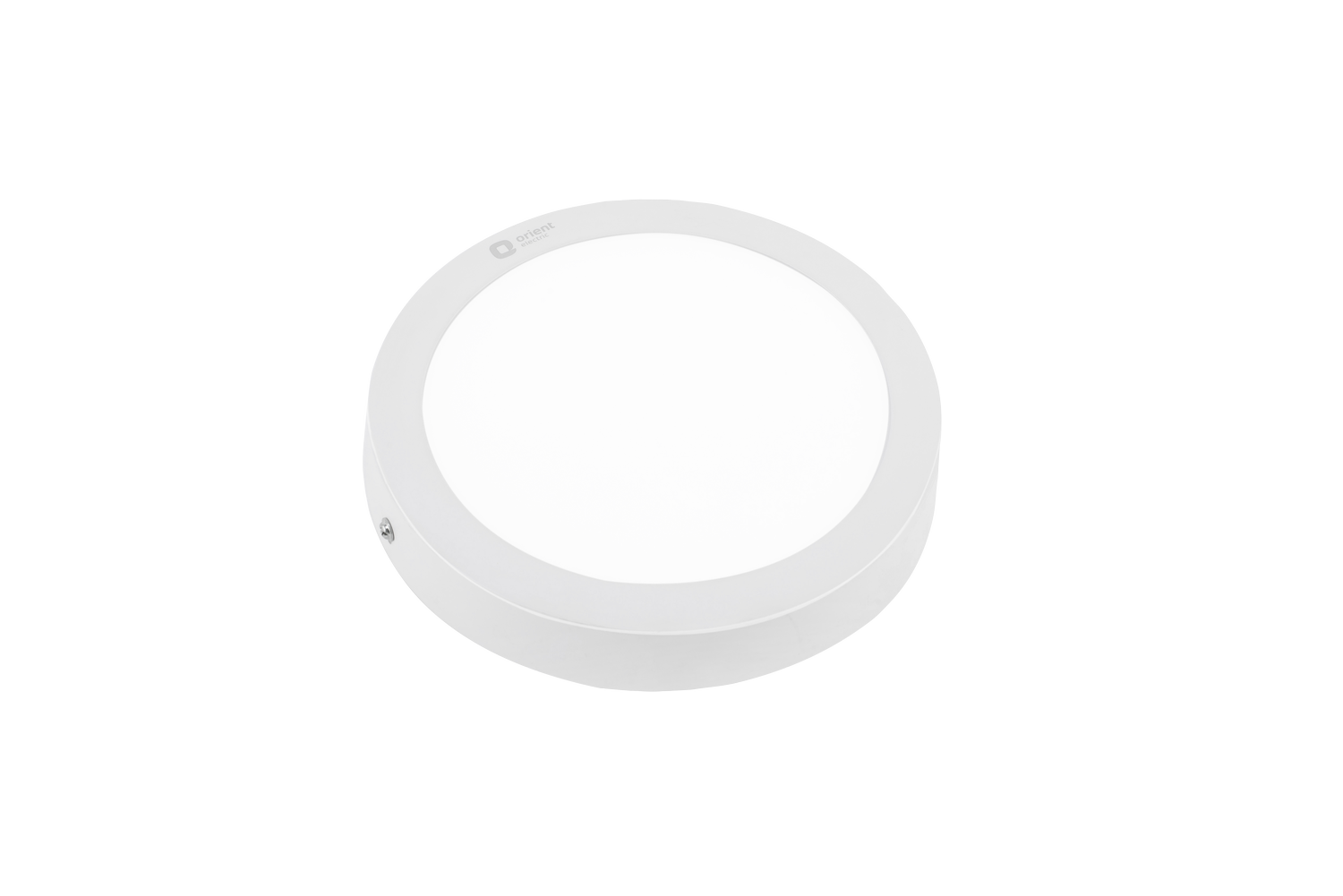

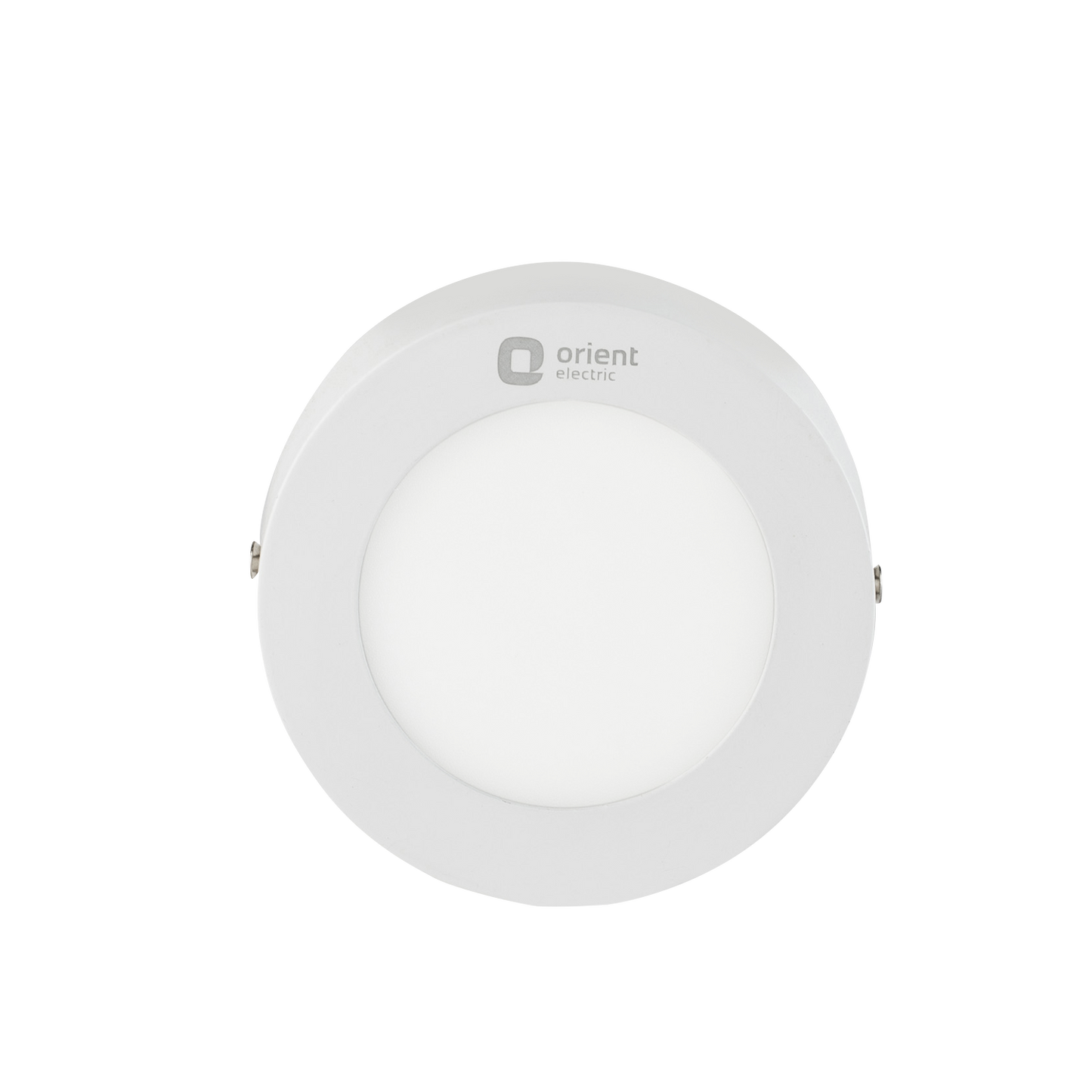

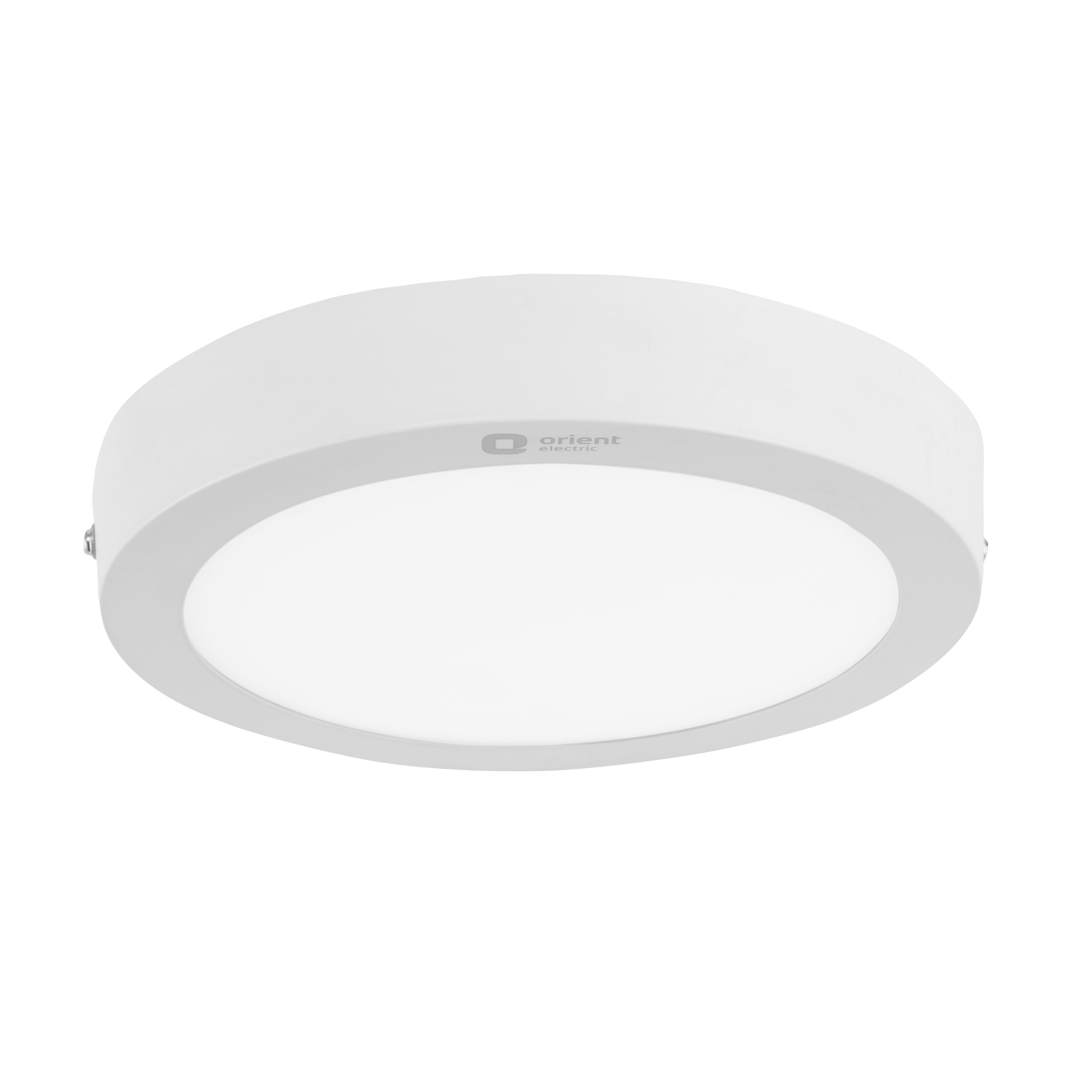

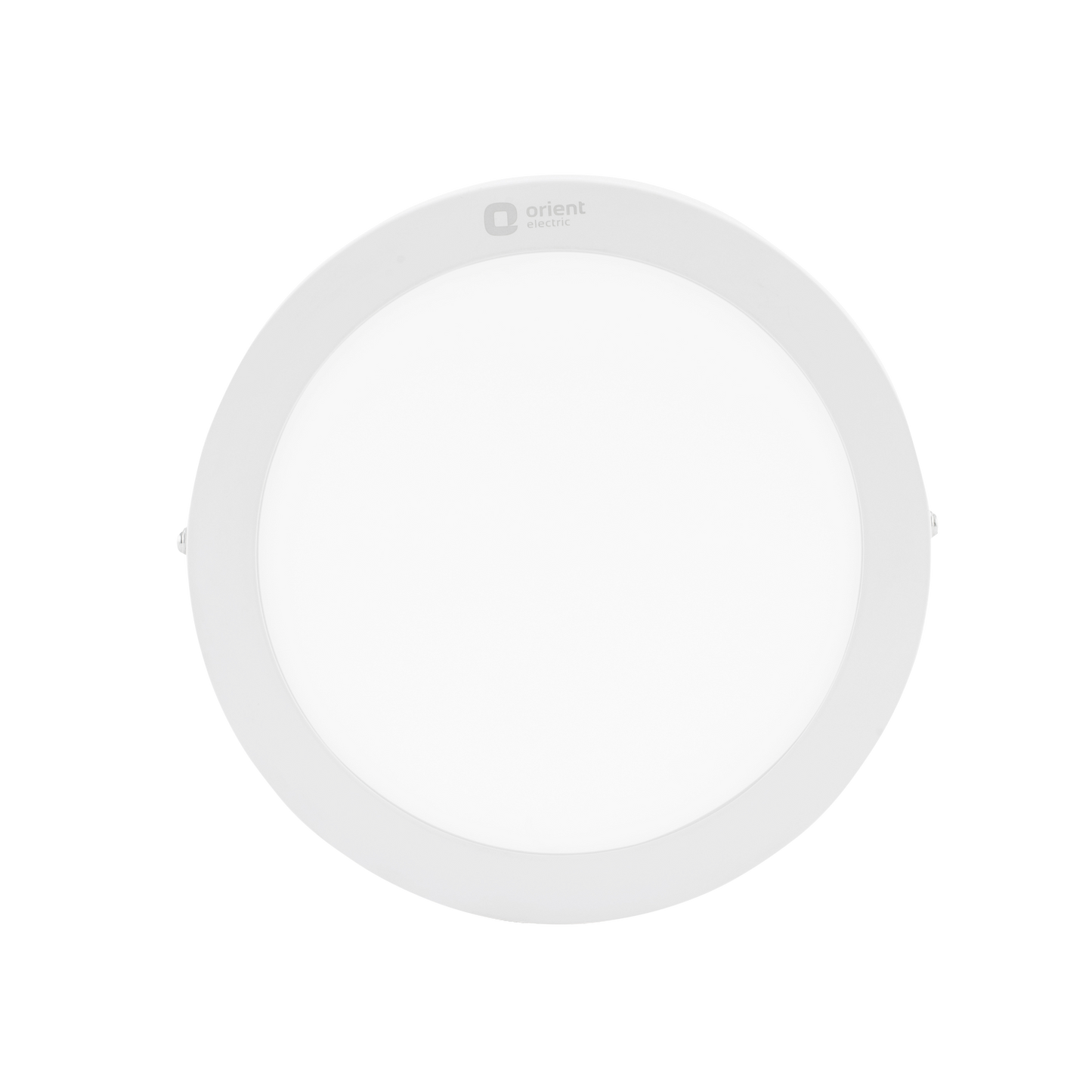

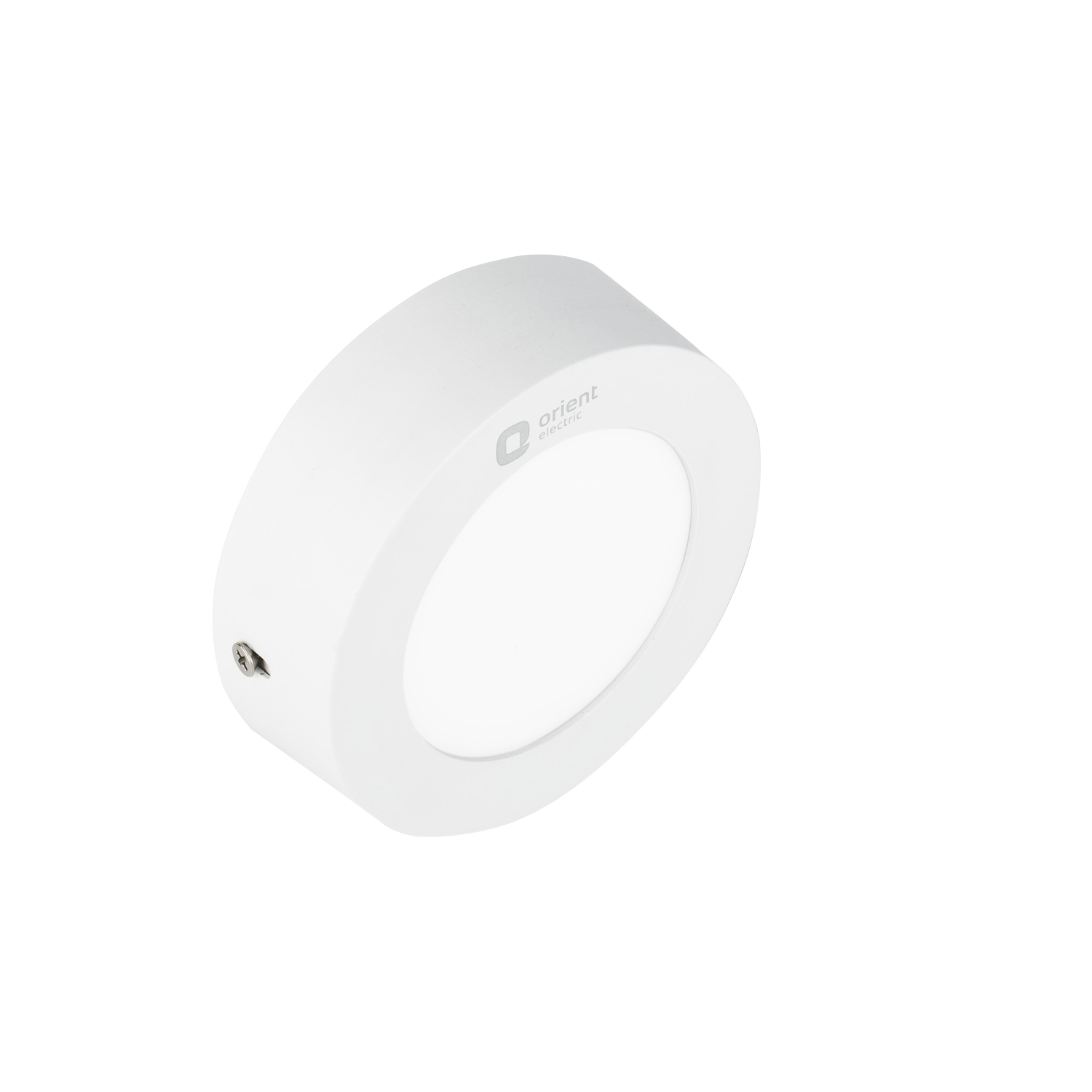

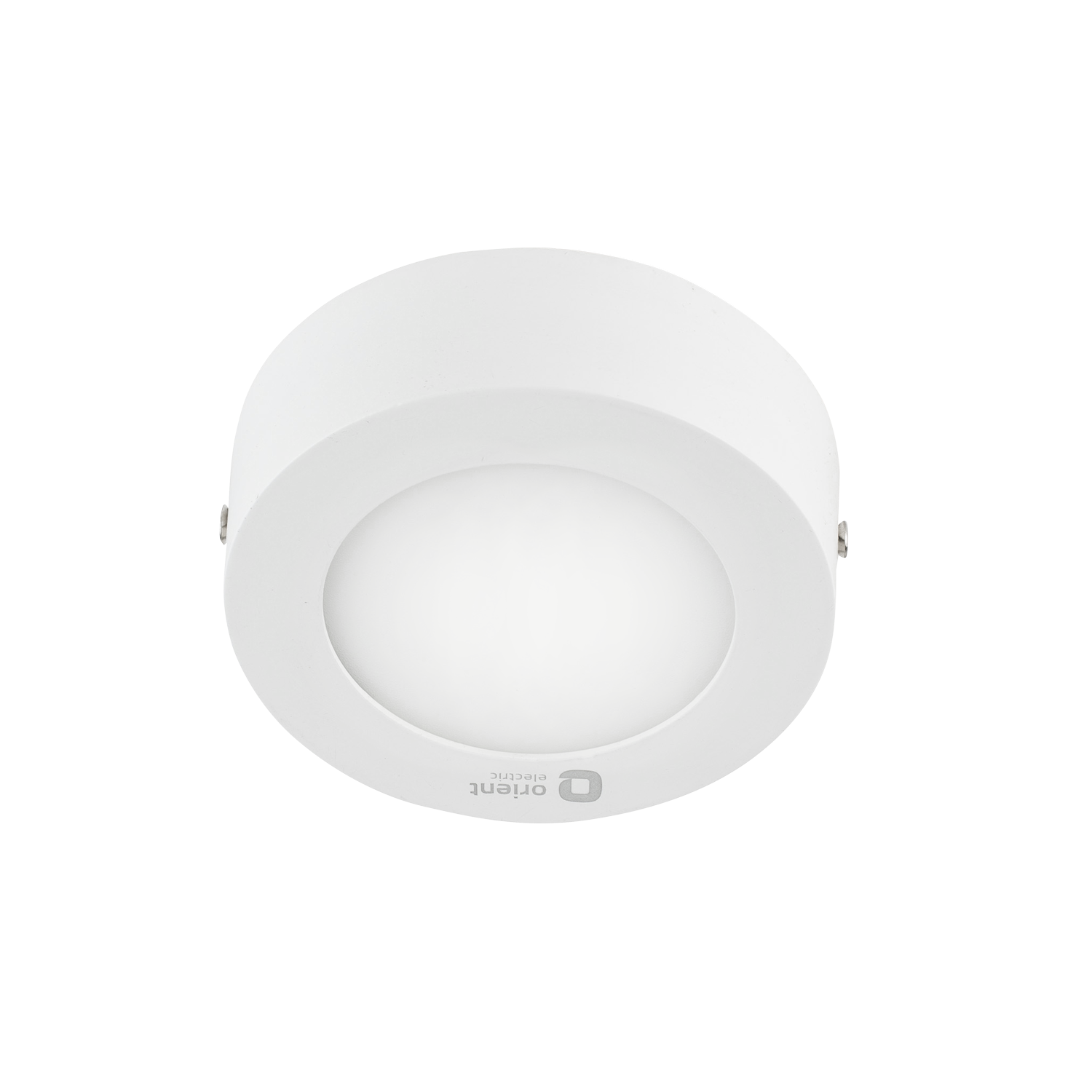

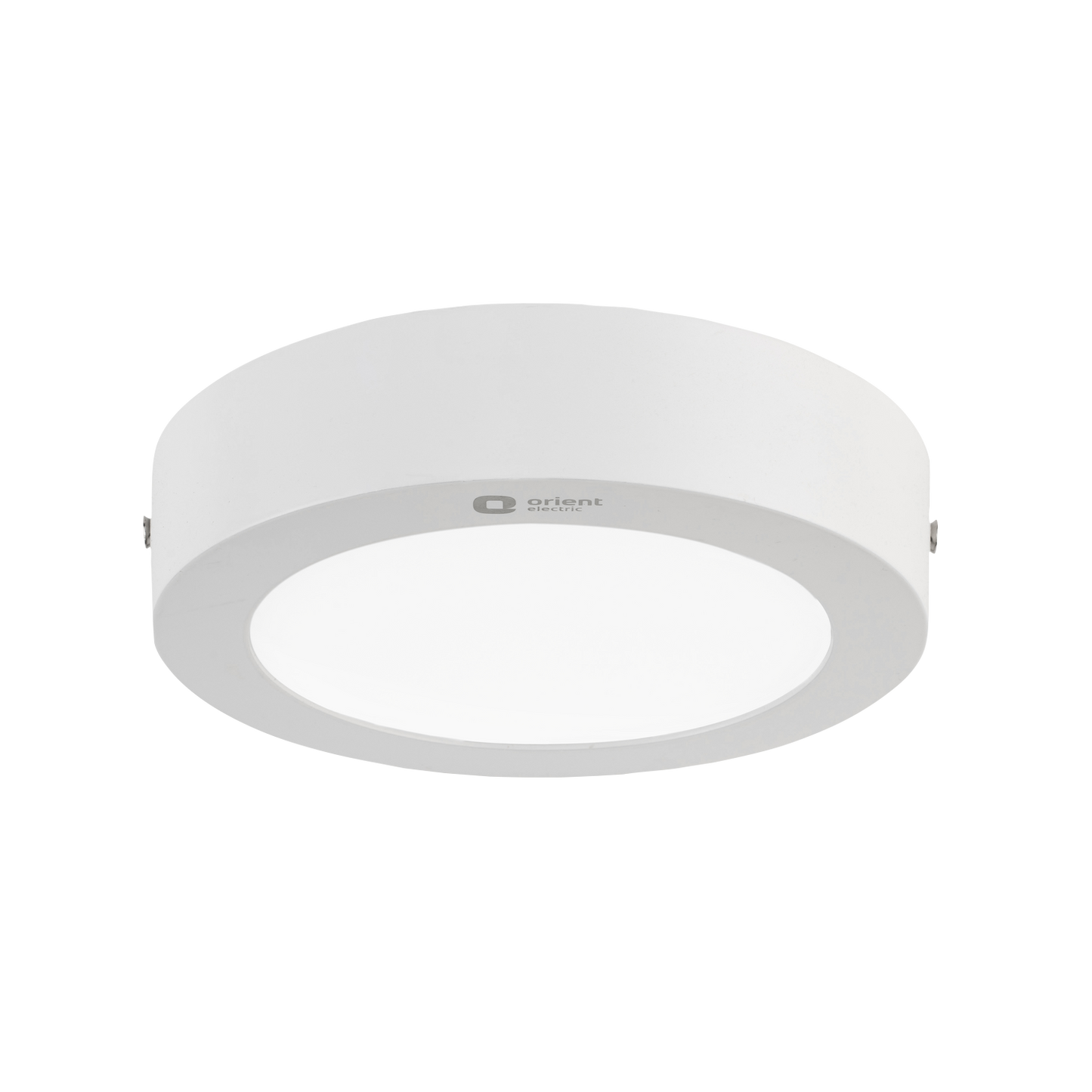

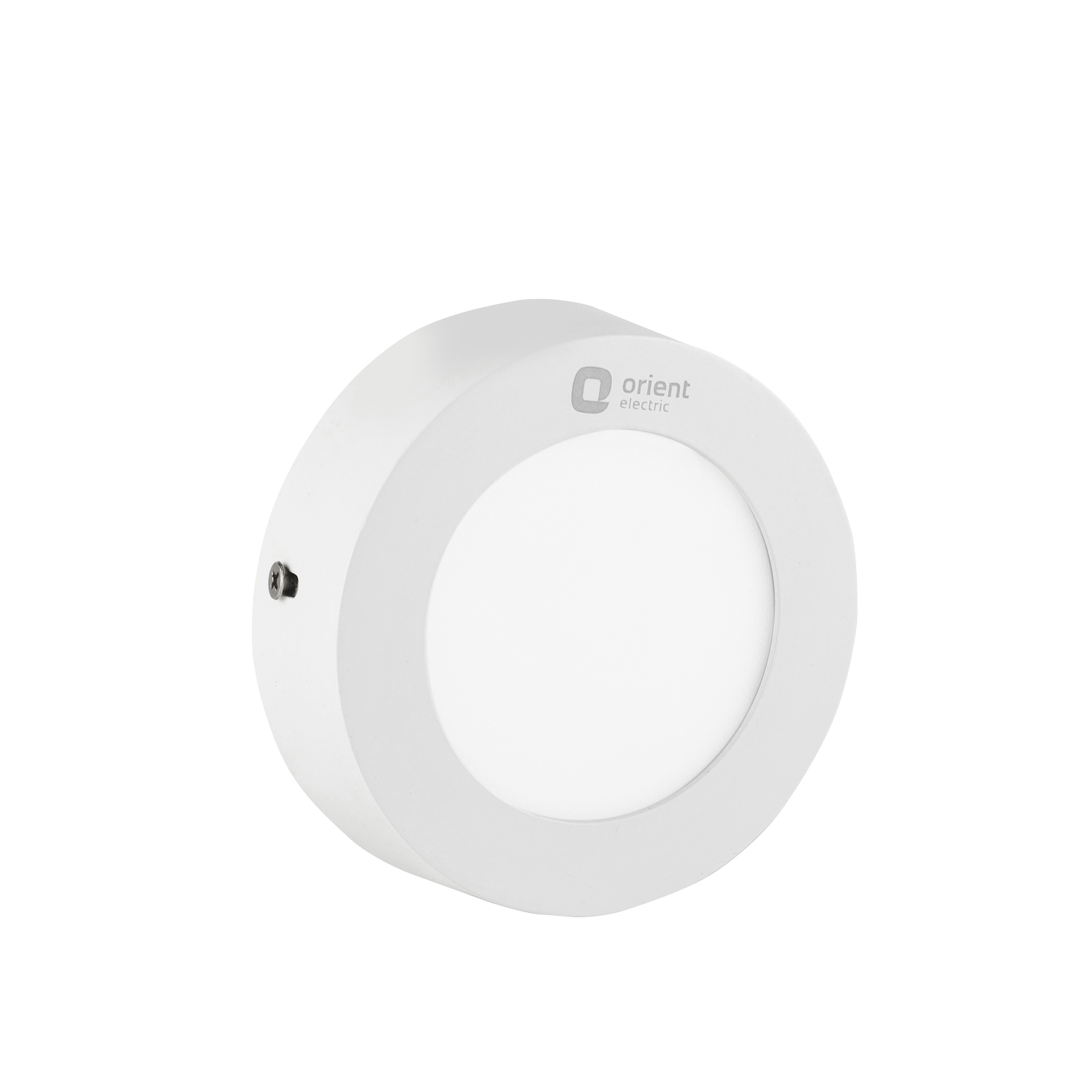

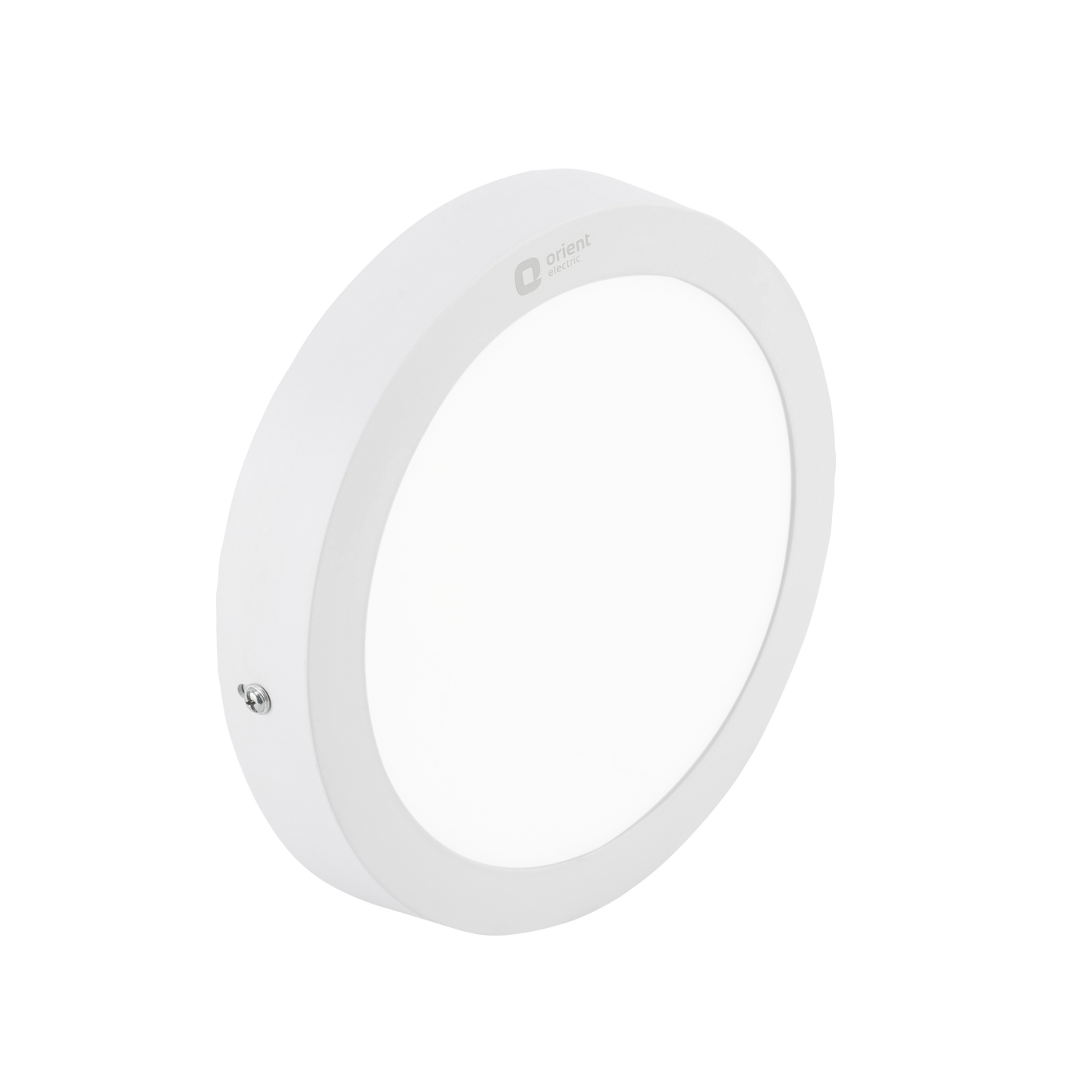

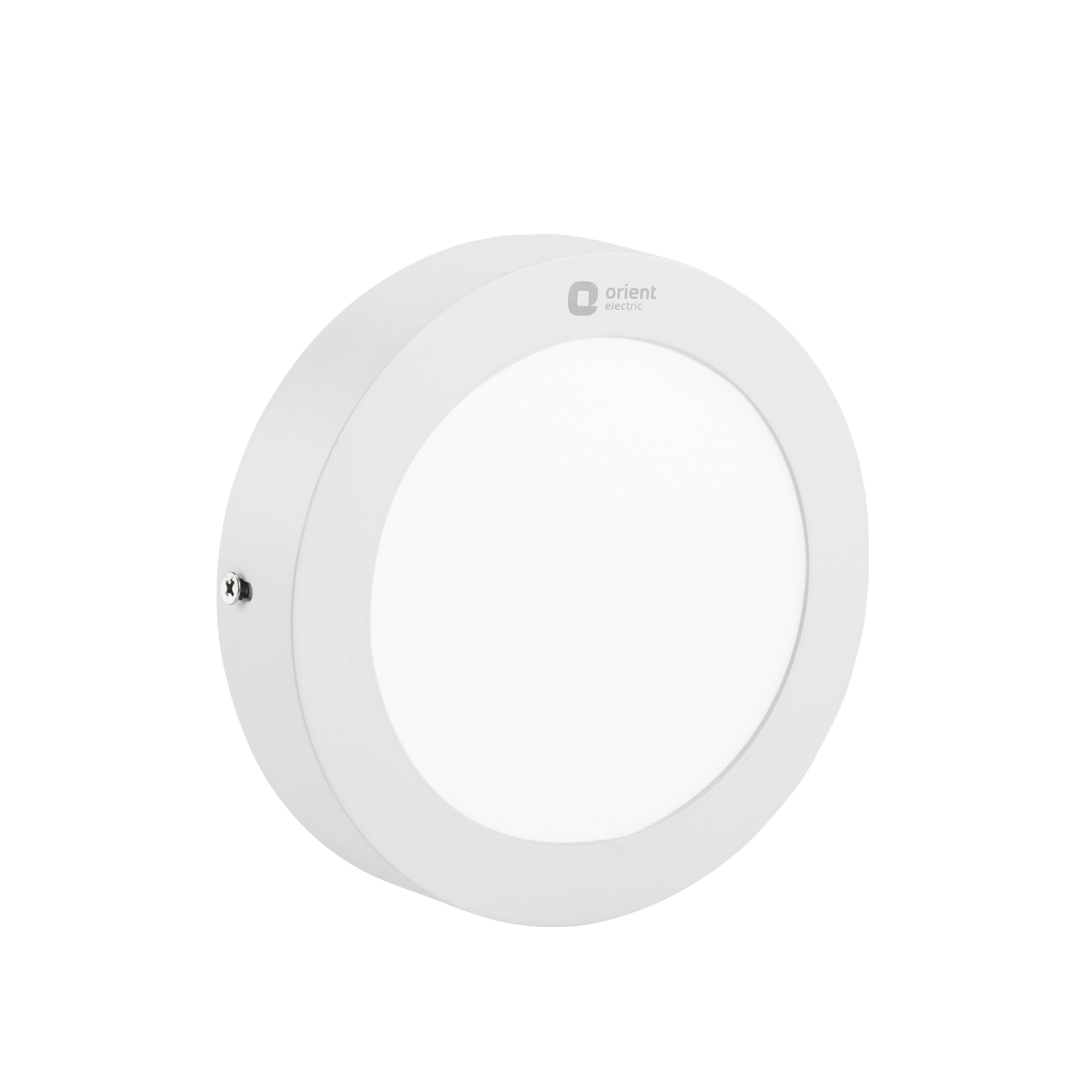

Ultra slim surface-mounting round LED downlighter designed with excellent thermally managed aluminium pressure die-cast housing with heat-dissipating large surface area finished in epoxy powder-coated white to deliver high-efficacy light output and uniformity, utilising edge-lit technology.

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing finished in epoxy powder coated white.
    Optics High quality polycarbonate frosted diffuser for glare free uniform light distribution.
    Mounting Surface mounting
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 6W, 12W, 18W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy (lm/W) ≥80 , ≥75 , ≥70
Edge surface round variants
Product Variants
Edge surface round

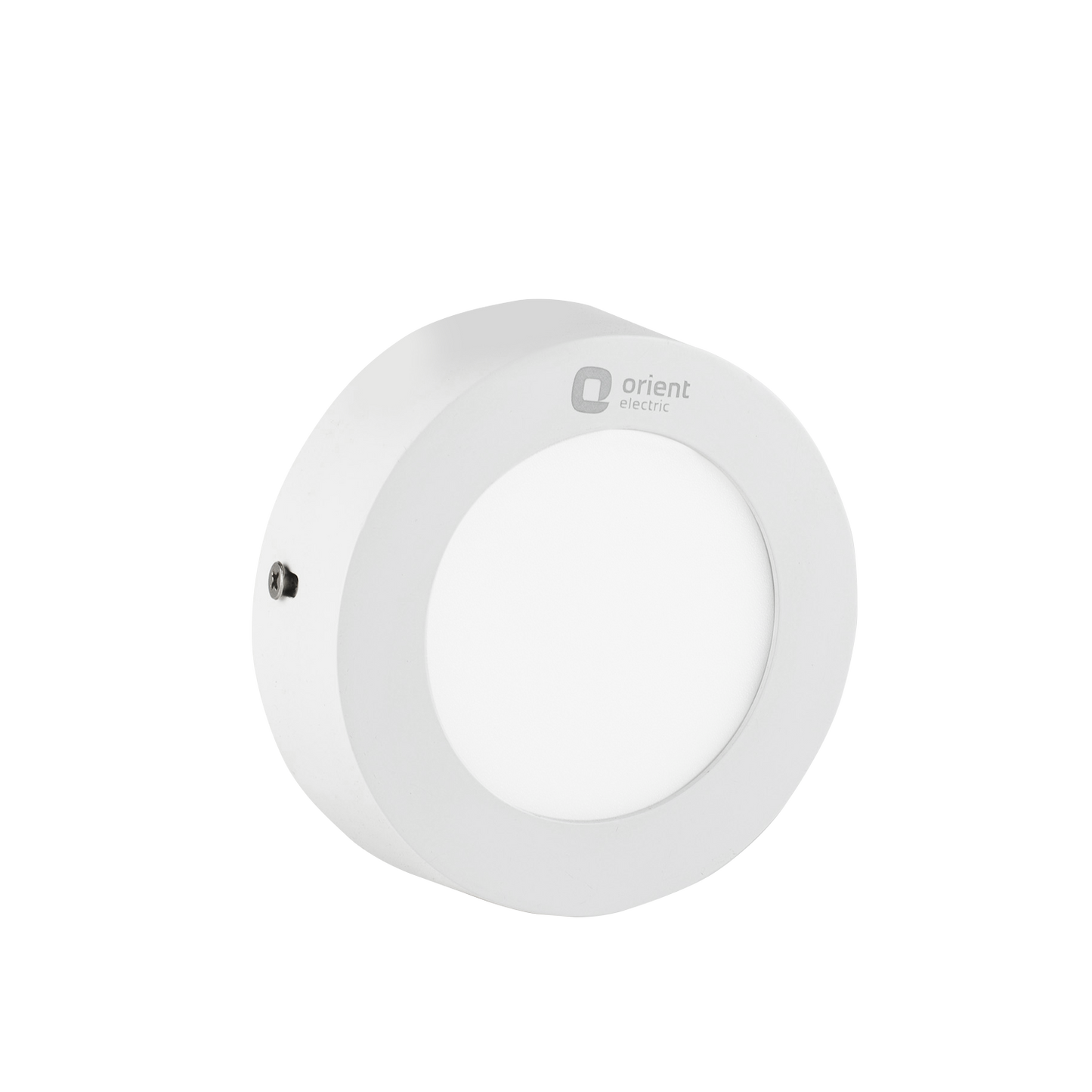

LDSER-06-C-V2
Edge surface round
LDSER-06-N-V2
Edge surface round
LDSER-06-W-V2
Edge surface round

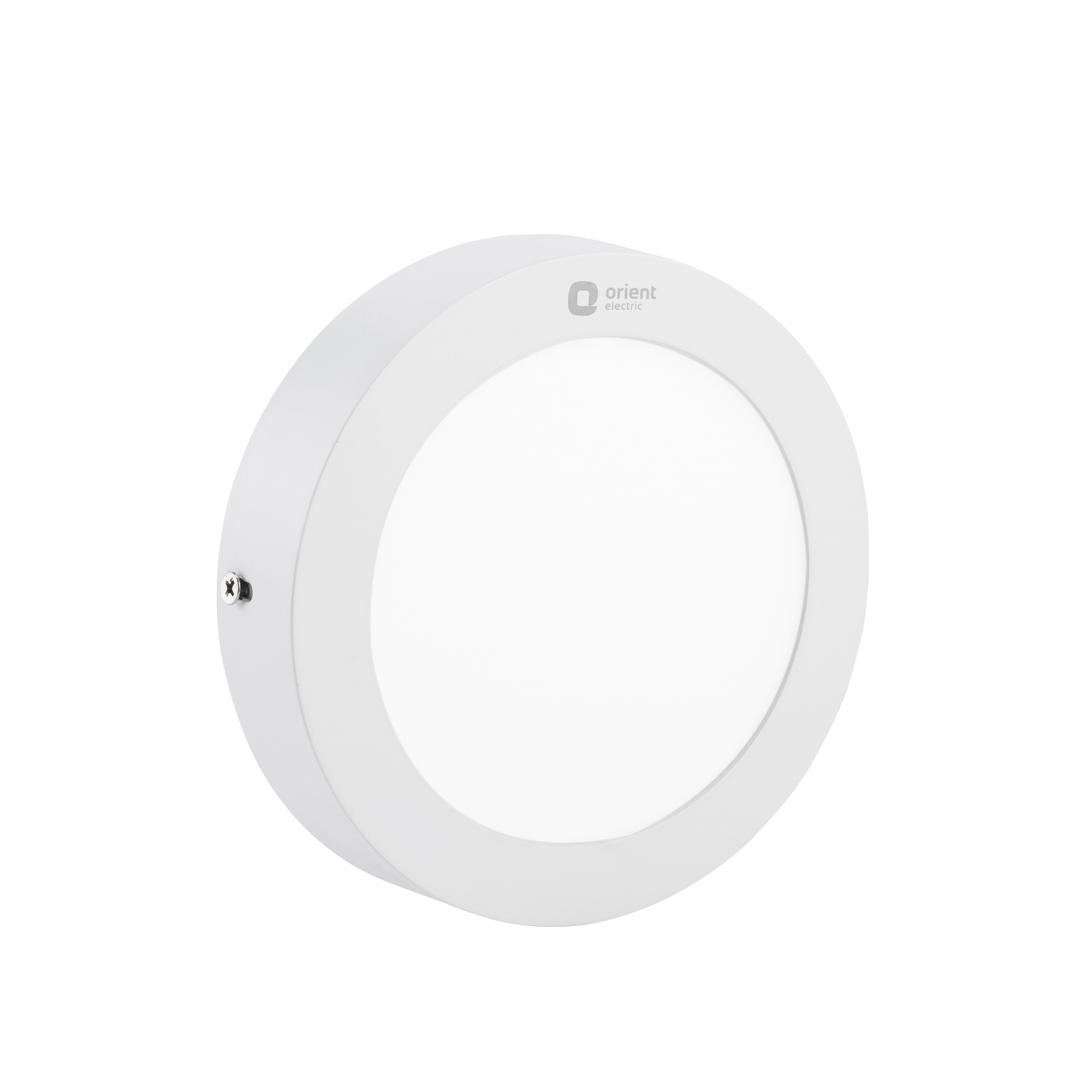

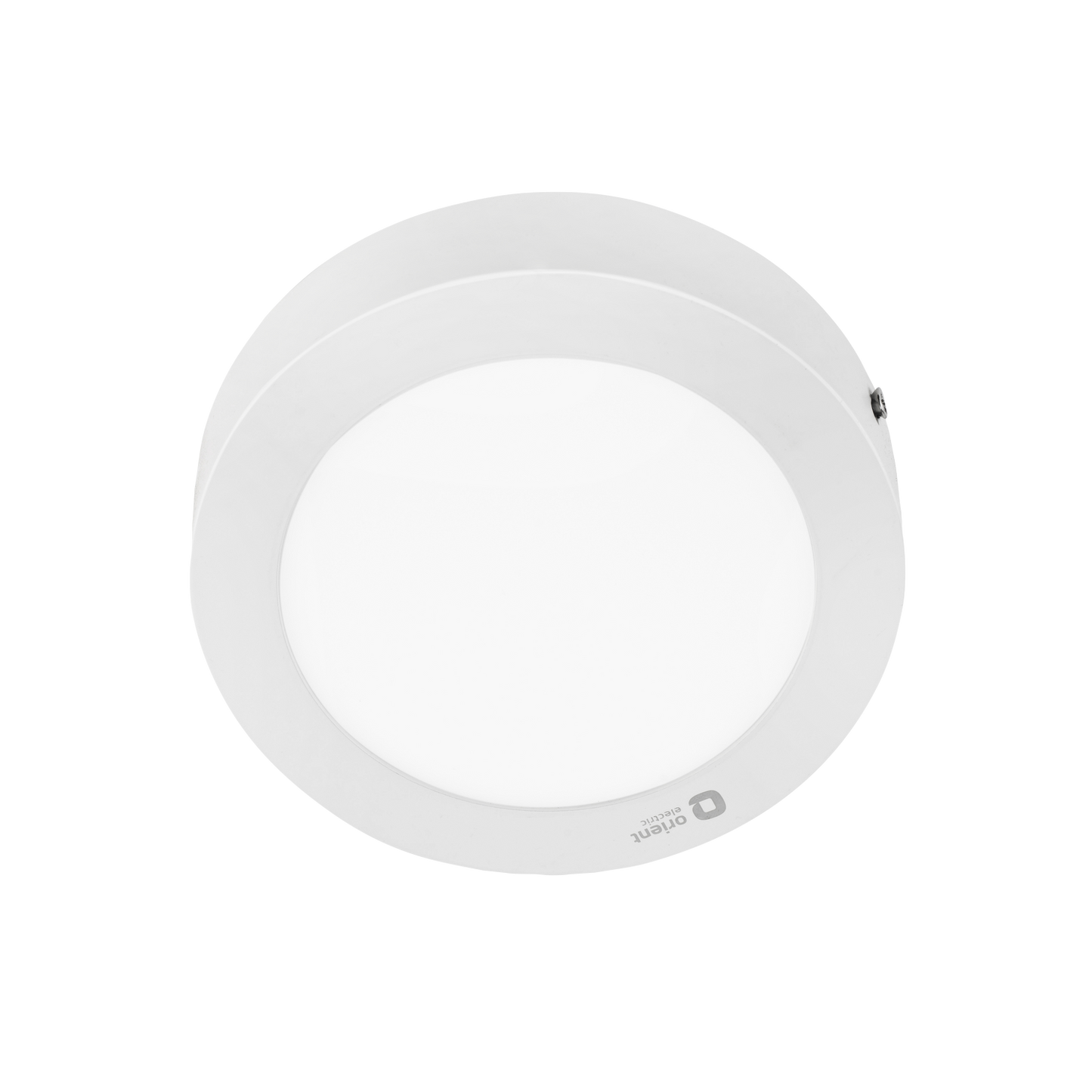

LDSER-12-C-V2
Edge surface round
LDSER-12-N-V2
Edge surface round
LDSER-12-W-V2
Edge surface round

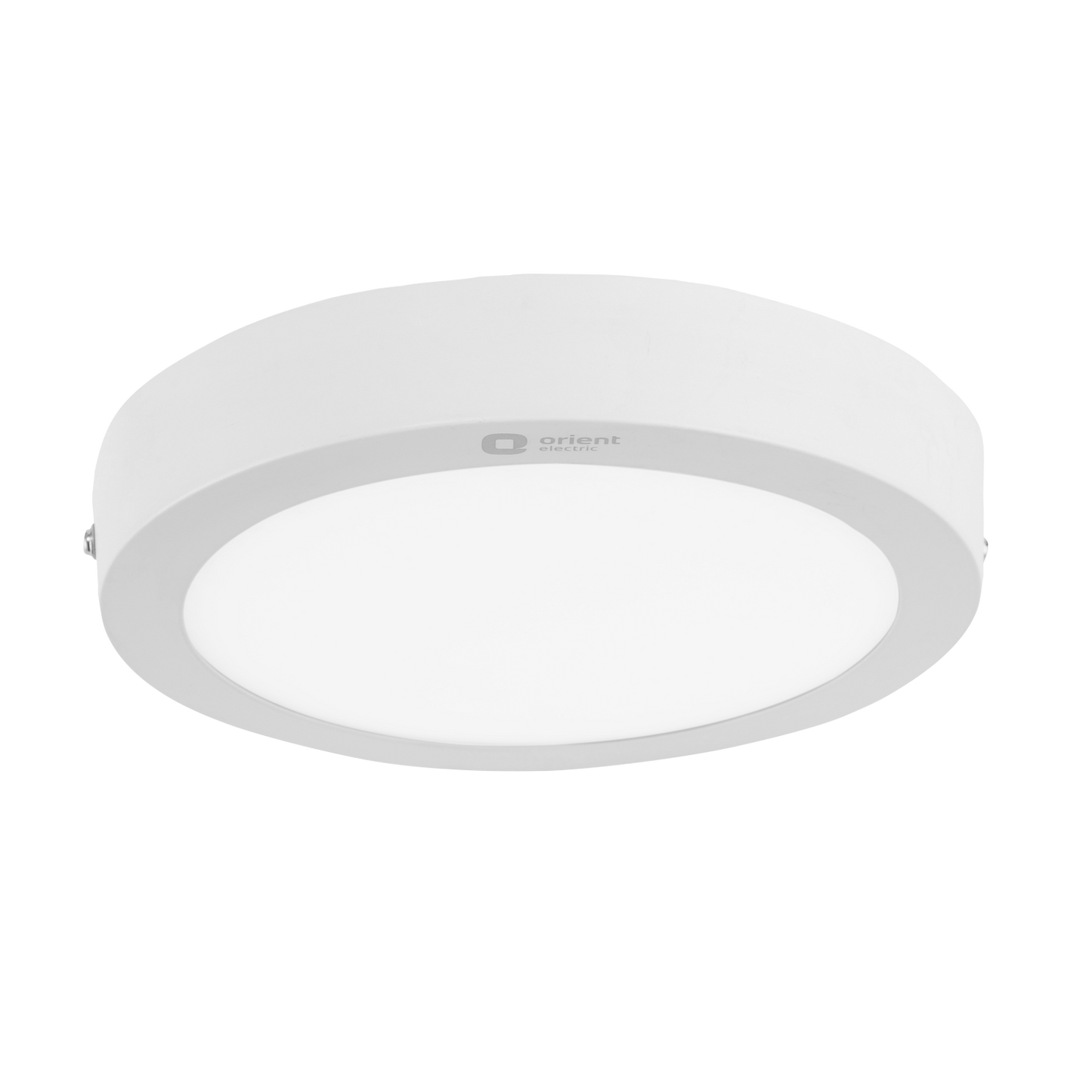

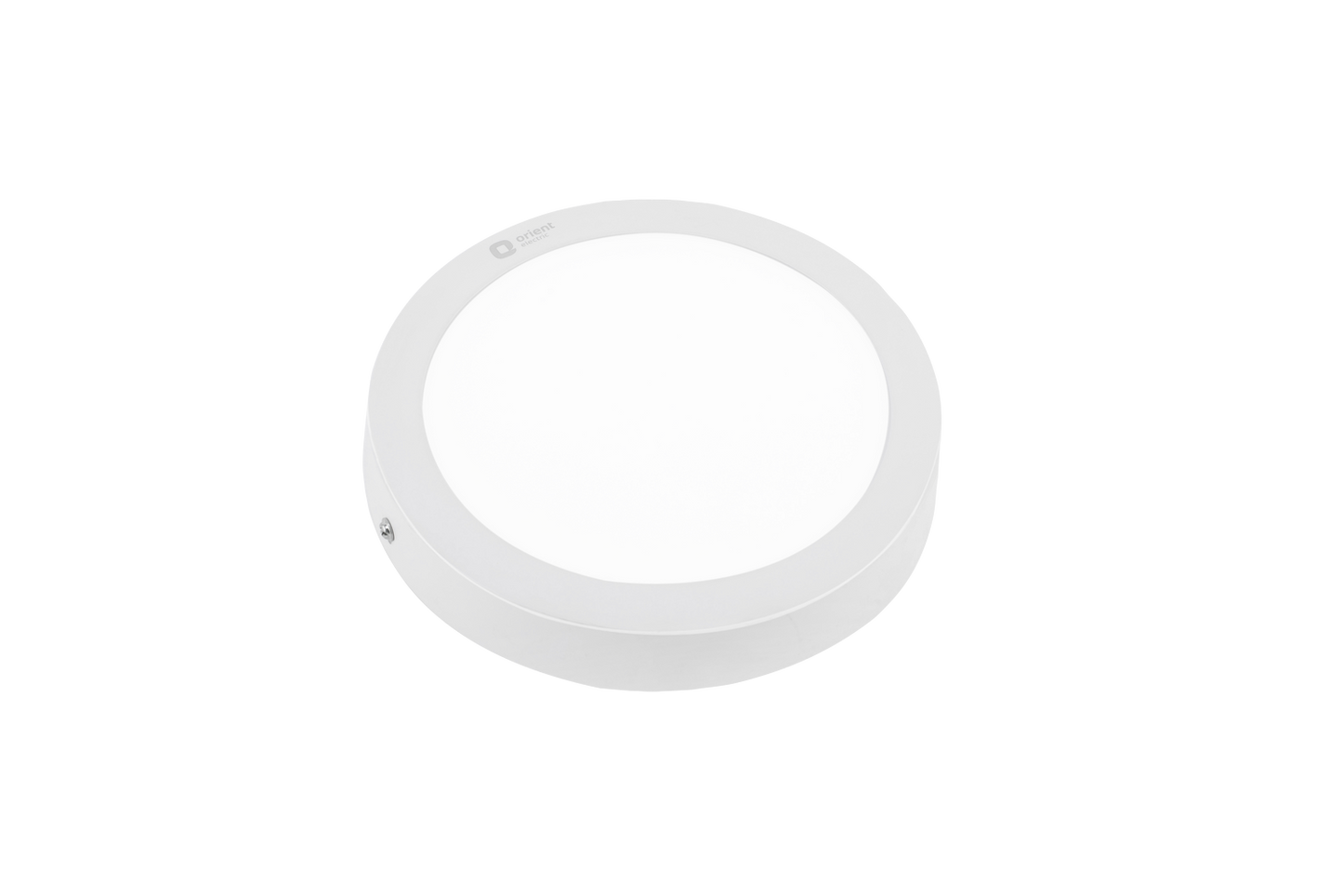

LDSER-18-C-V2
Edge surface round
LDSER-18-N-V2
Edge surface round
LDSER-18-W-V2
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
6W
6500K
≥80
240V AC
≥0.95
<15%
≥80
120
35
6W
4000K
≥80
240V AC
≥0.95
<15%
≥75
120
35
6W
3000K
≥80
240V AC
≥0.95
<15%
≥70
120
35
12W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170
35
12W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170
35
12W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170
35
18W
6500K
≥80
240V AC
≥0.95
<15%
≥80
225
35
18W
4000K
≥80
240V AC
≥0.95
<15%
≥75
225
35
18W
3000K
≥80
240V AC
≥0.95
<15%
≥70
225
35
