Edge surface square

Edge surface square

Edge surface square

Product Overview

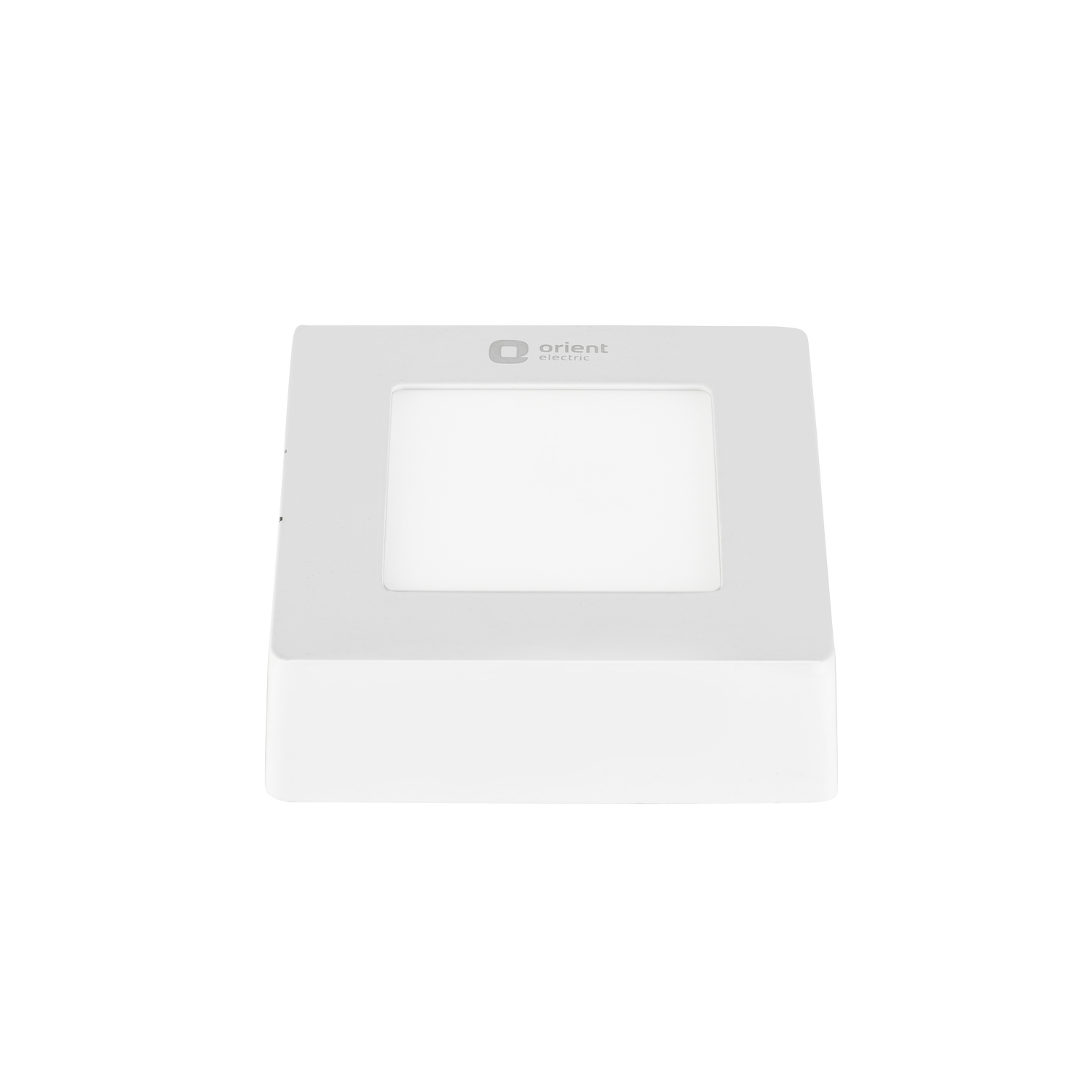

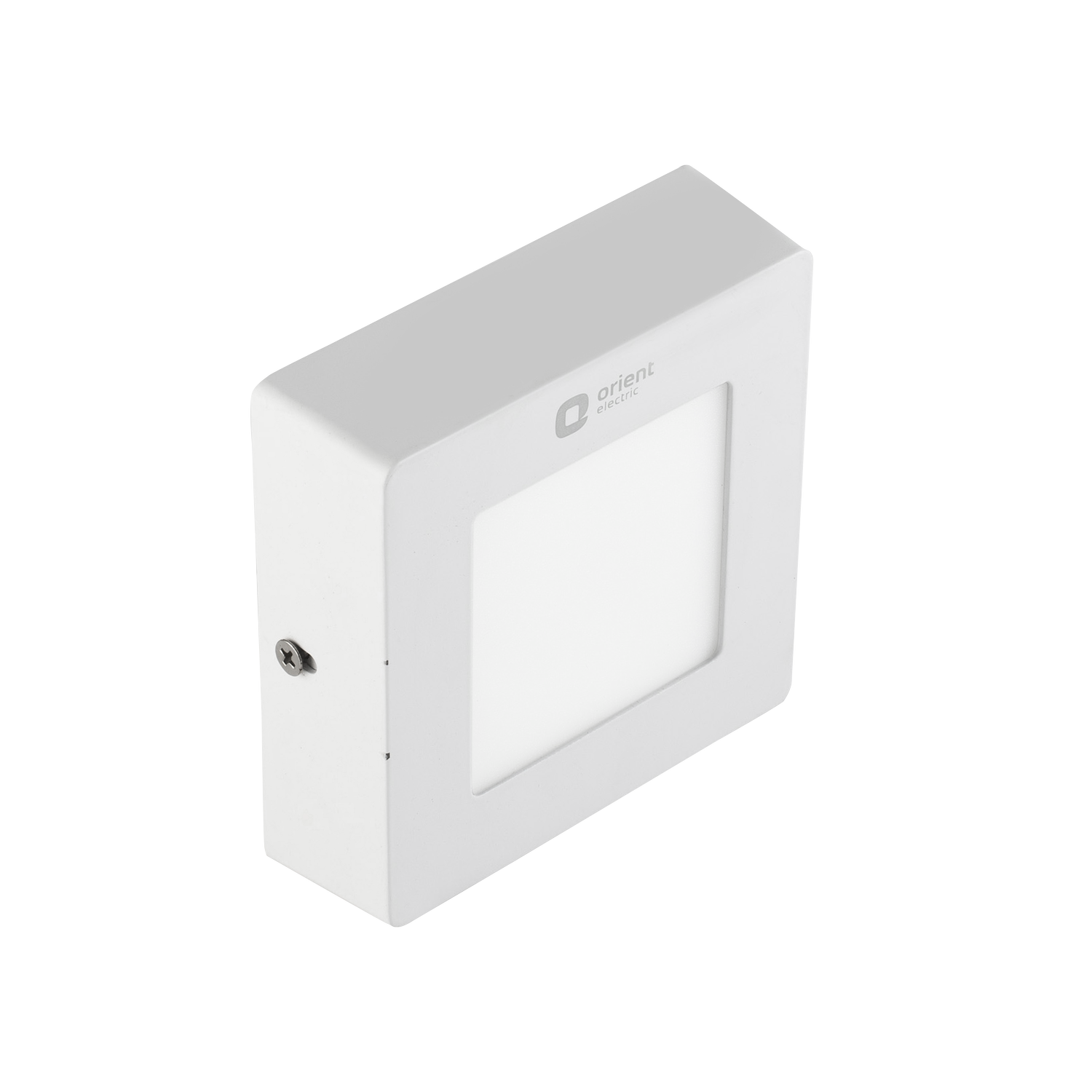

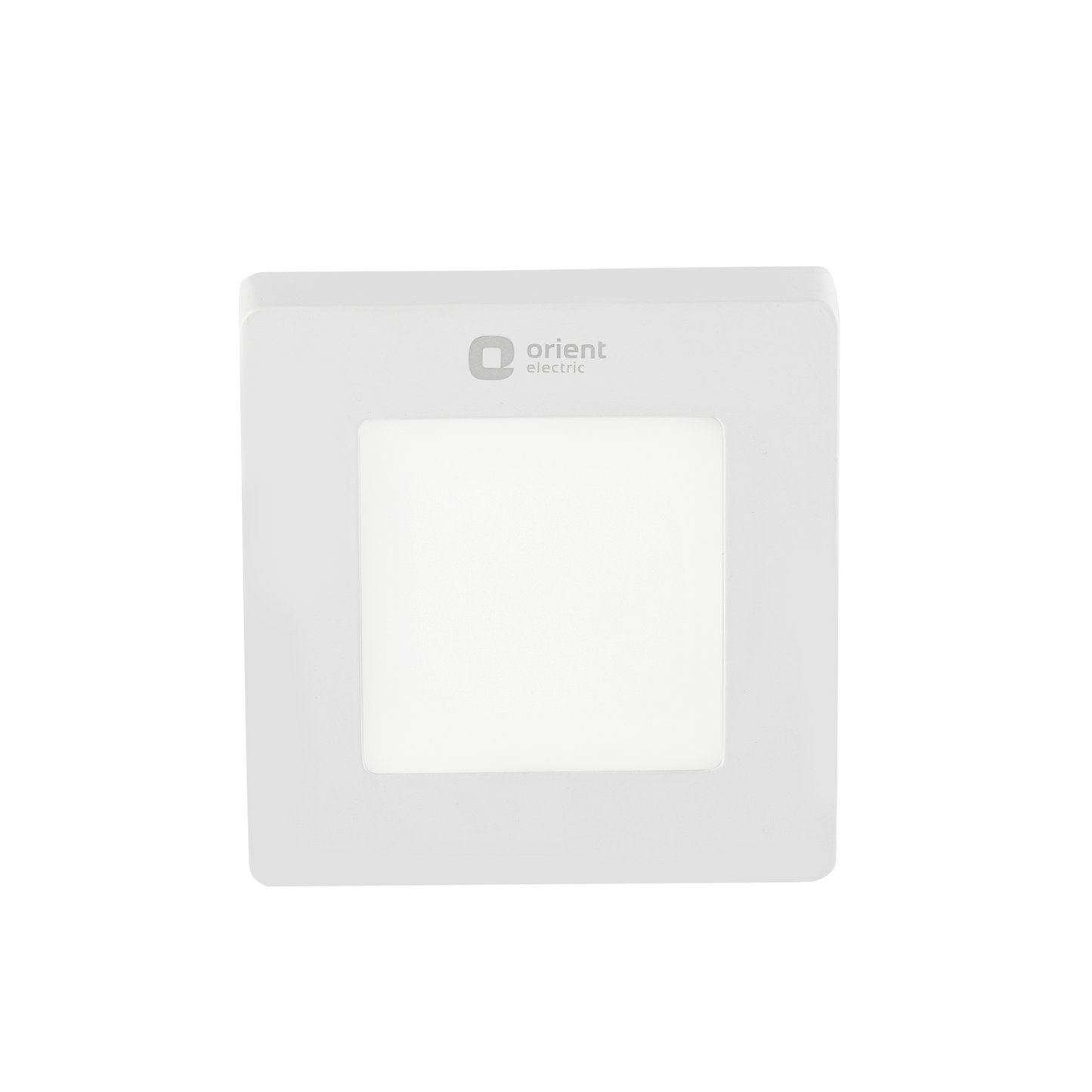

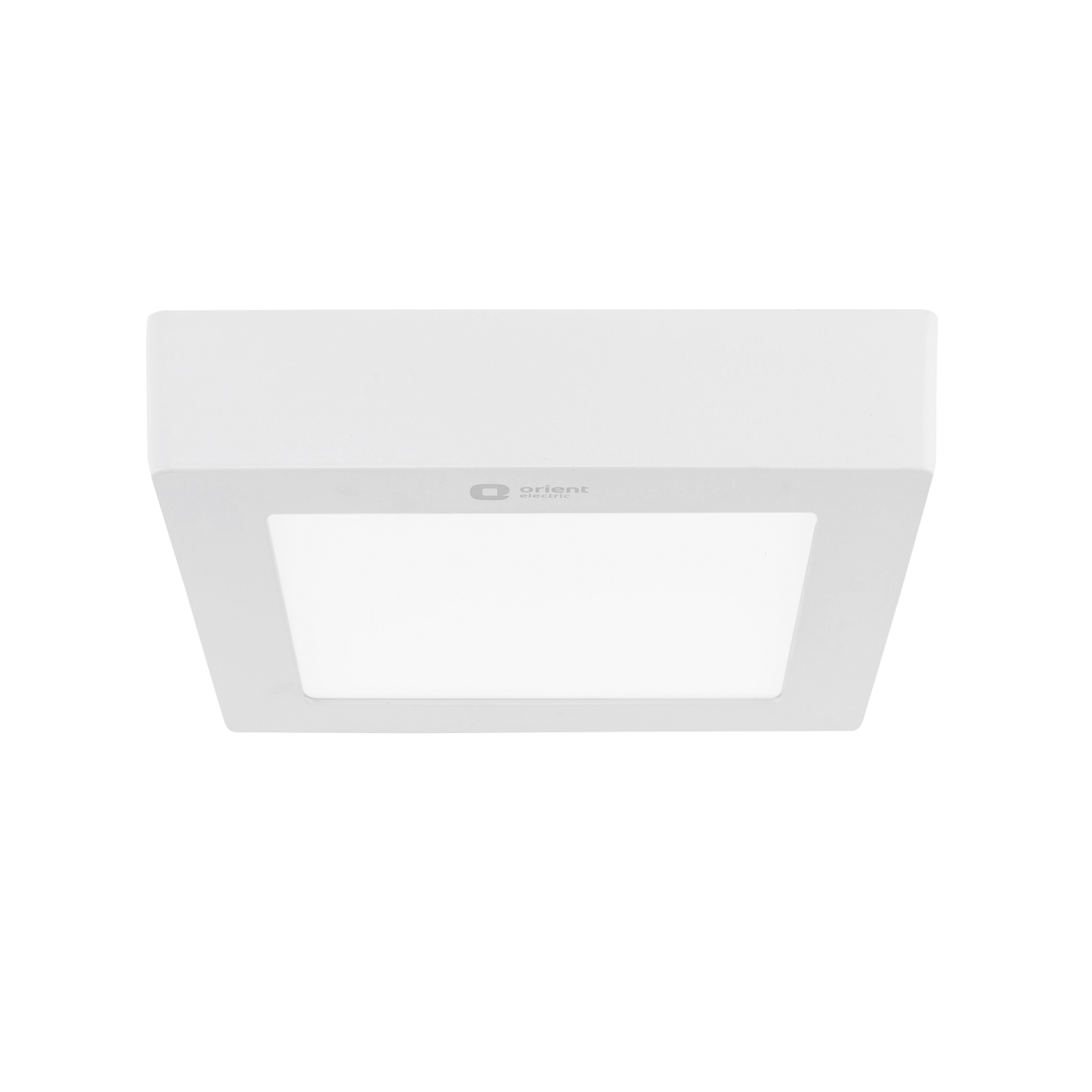

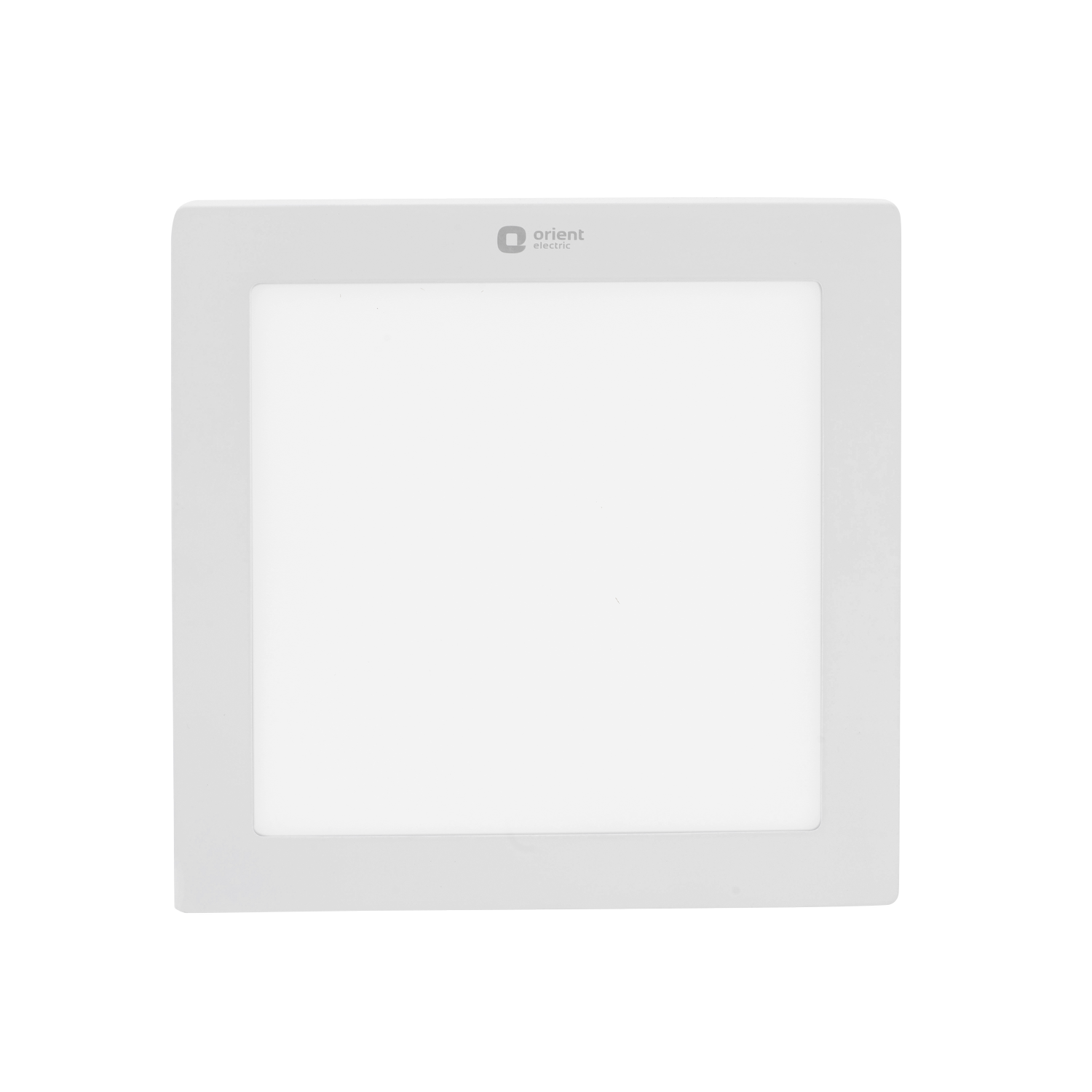

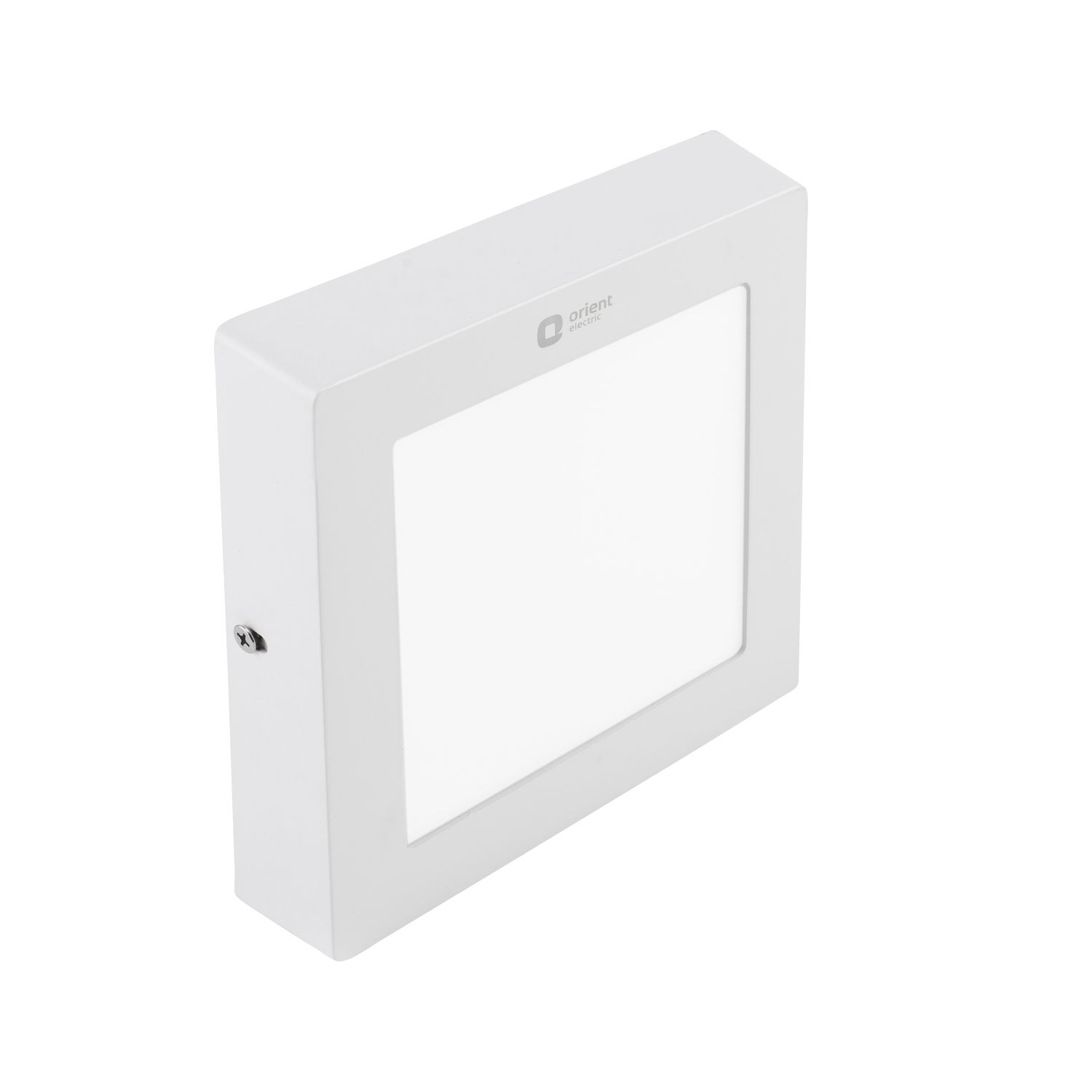

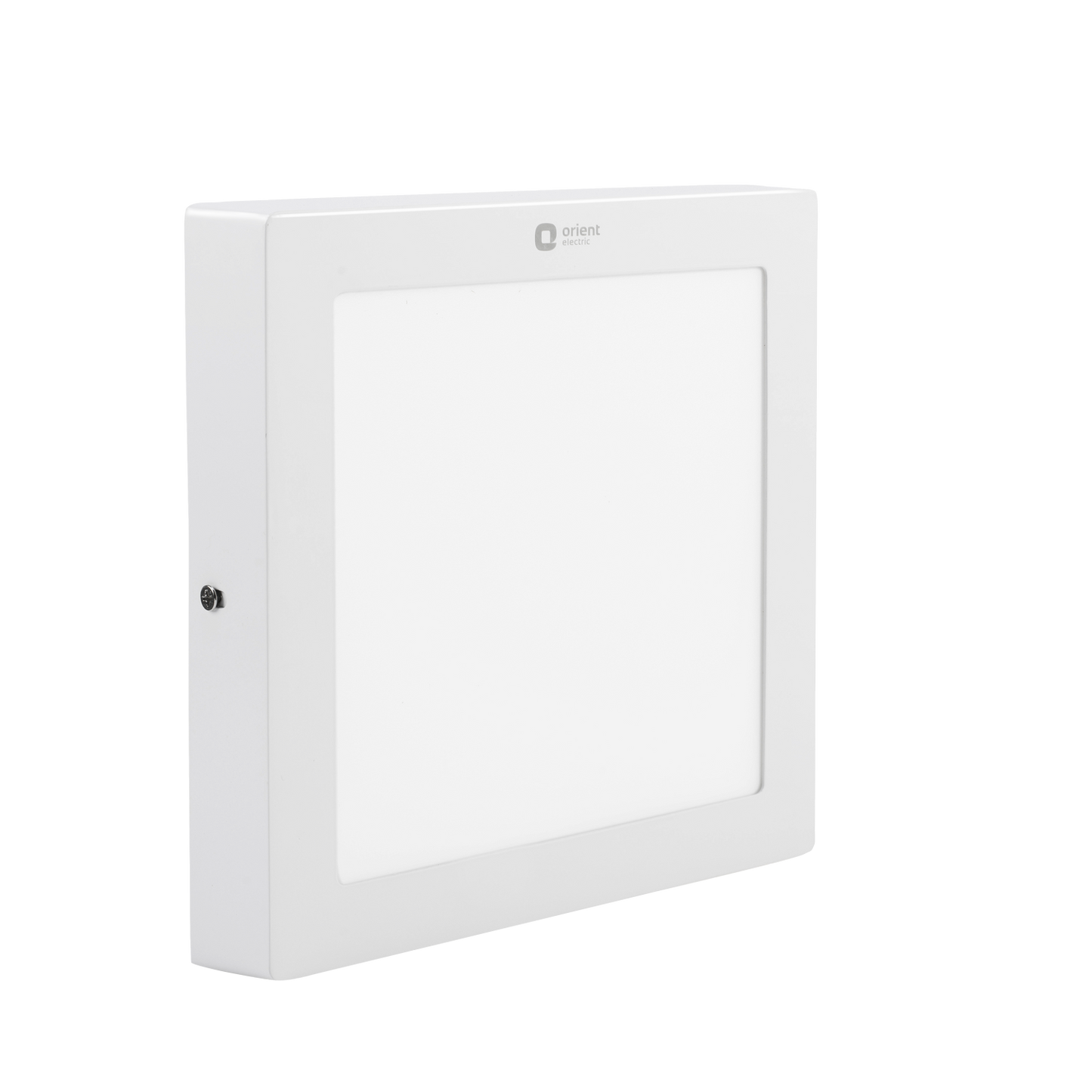

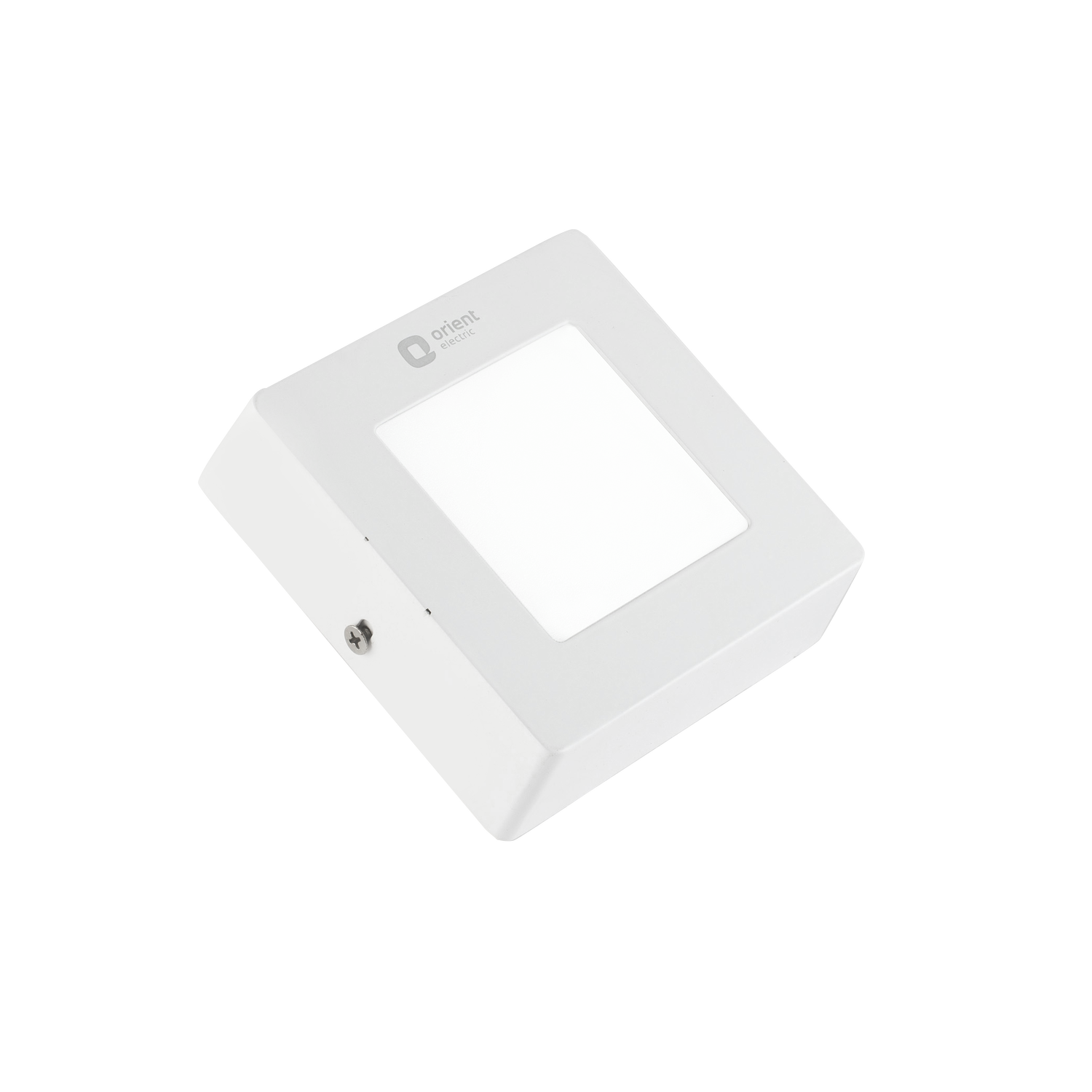

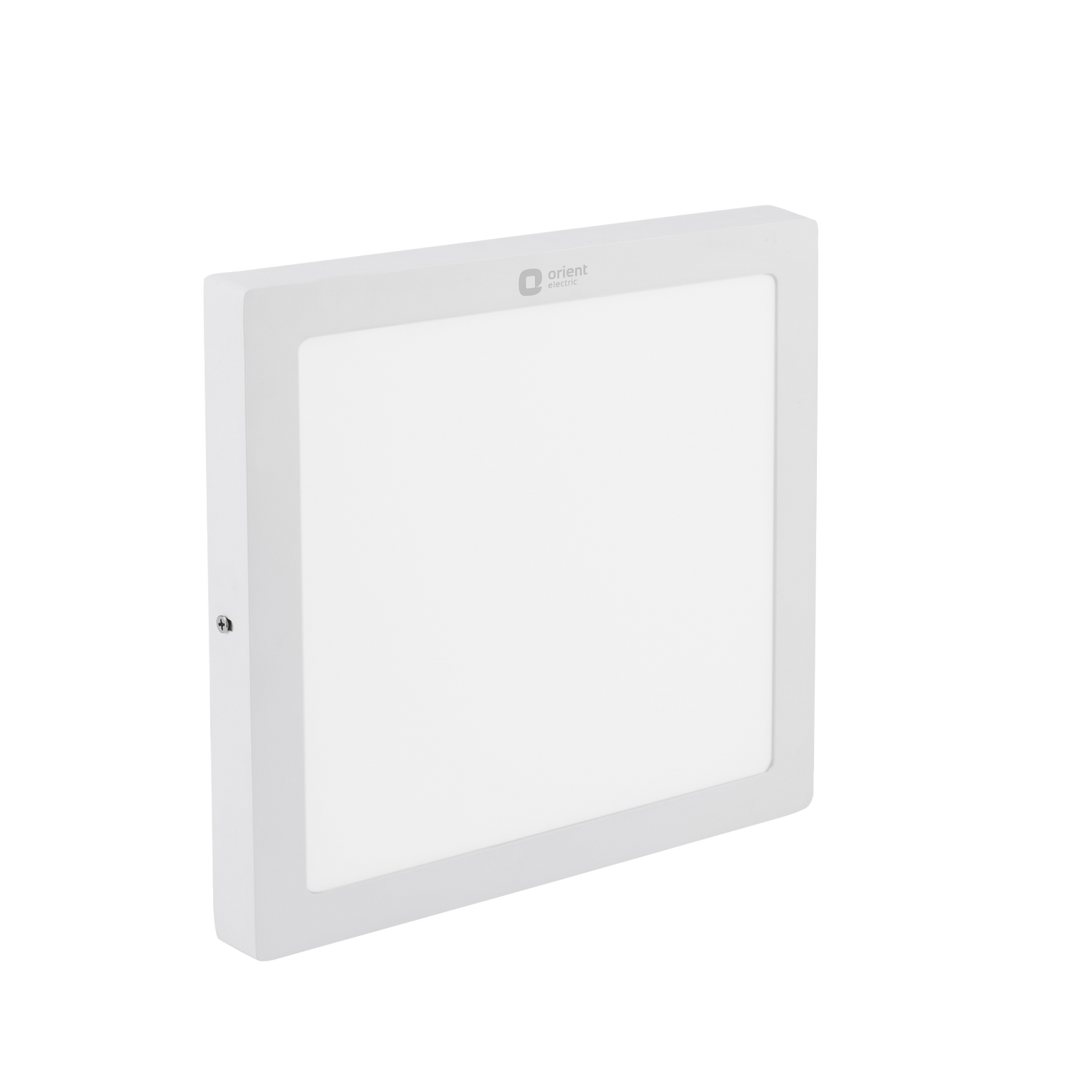

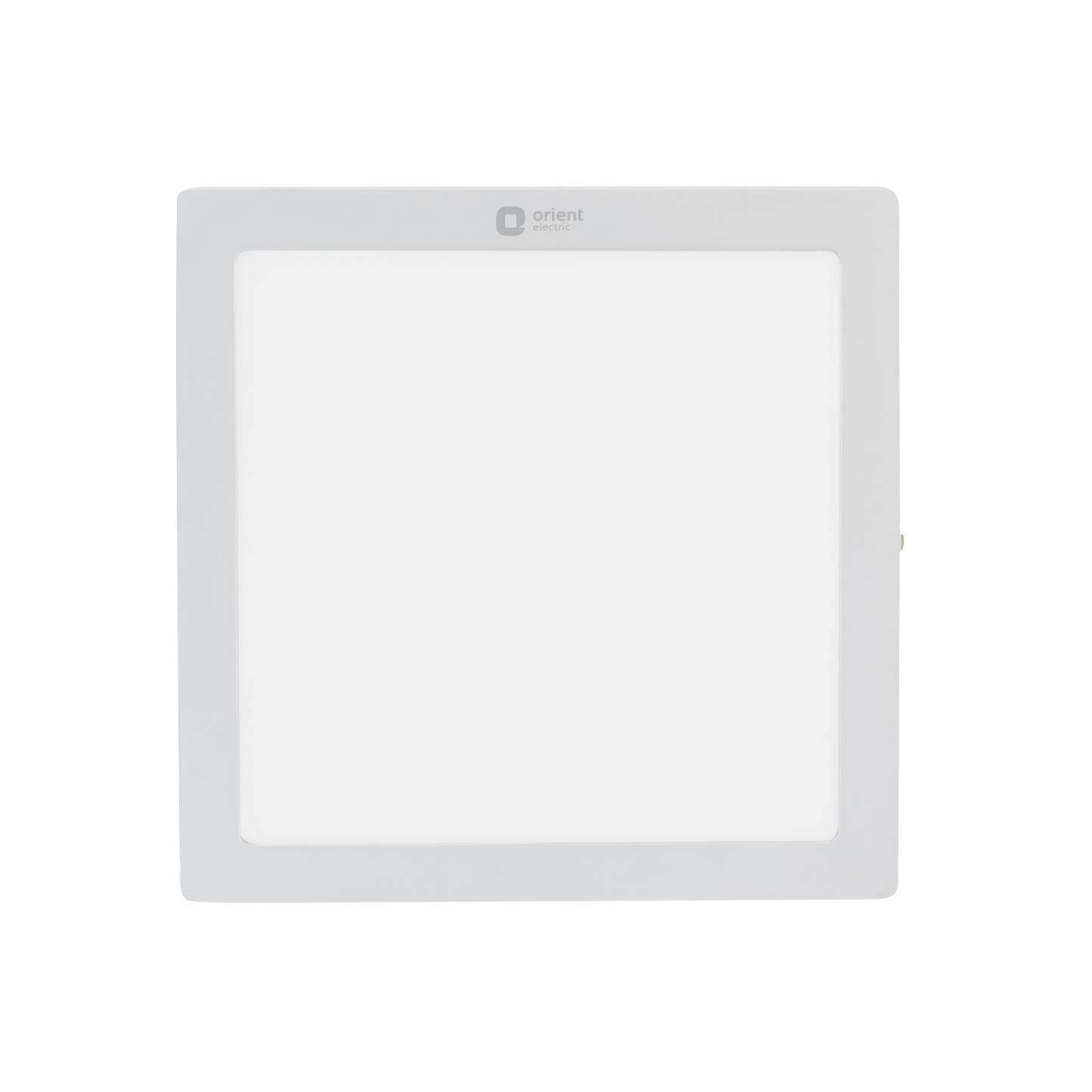

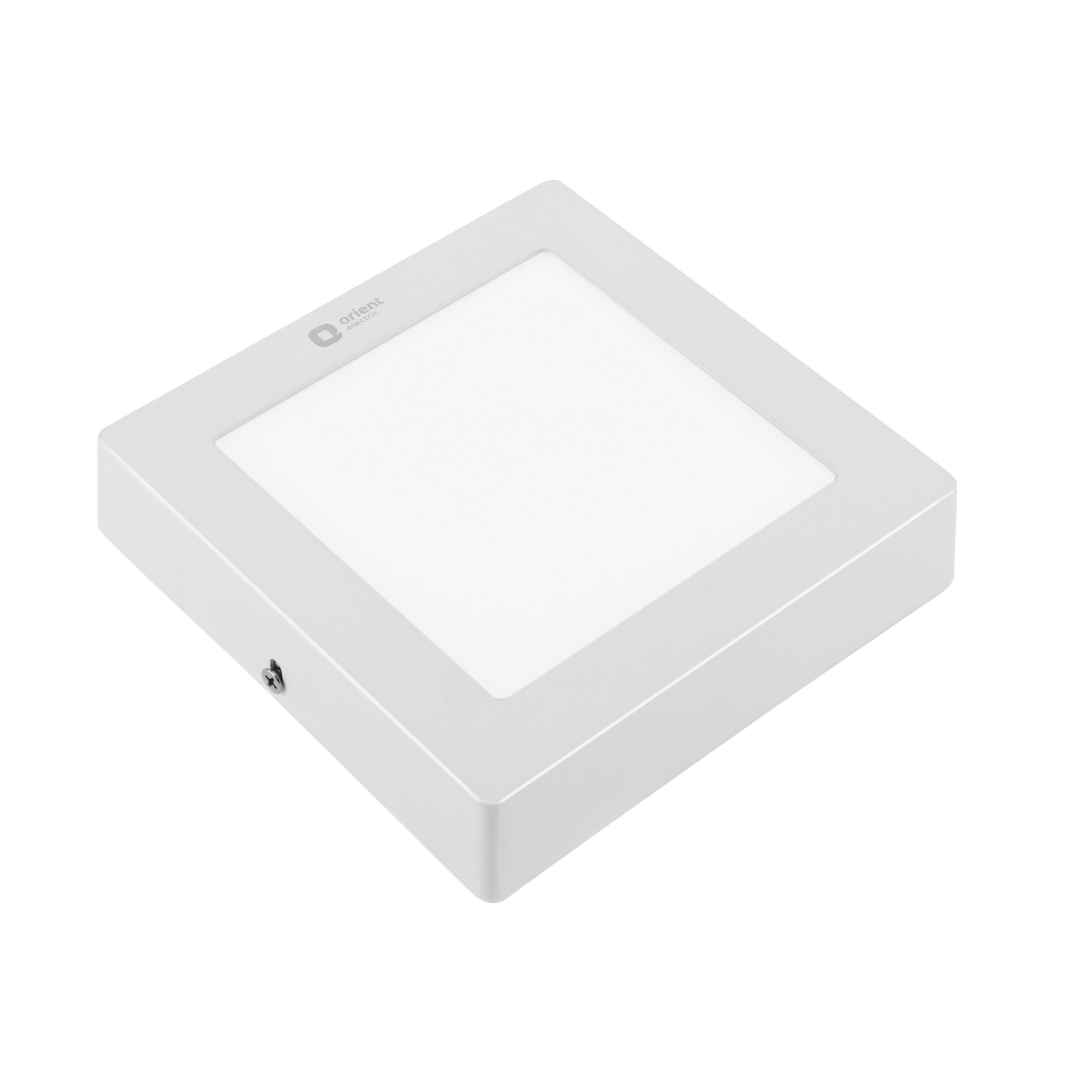

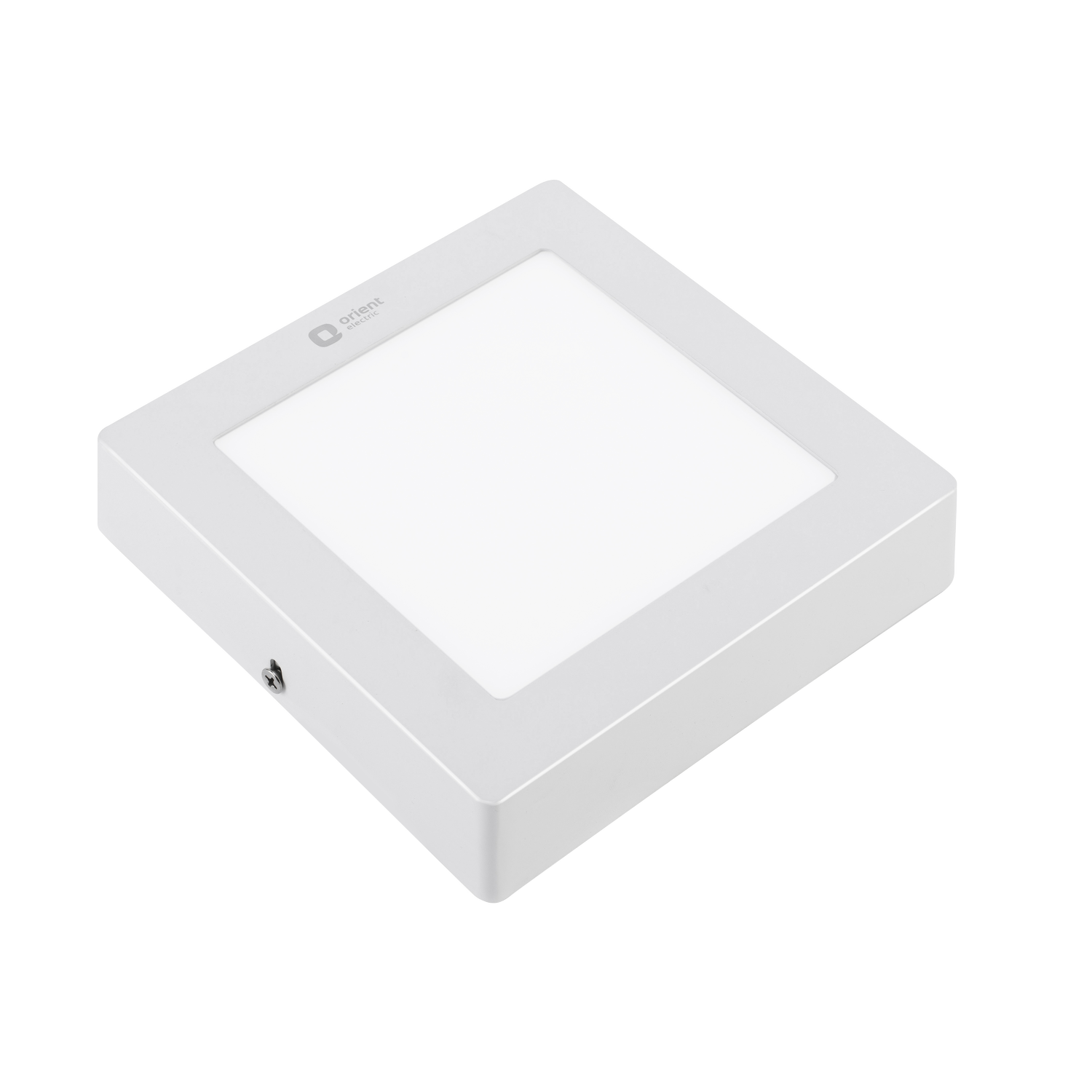

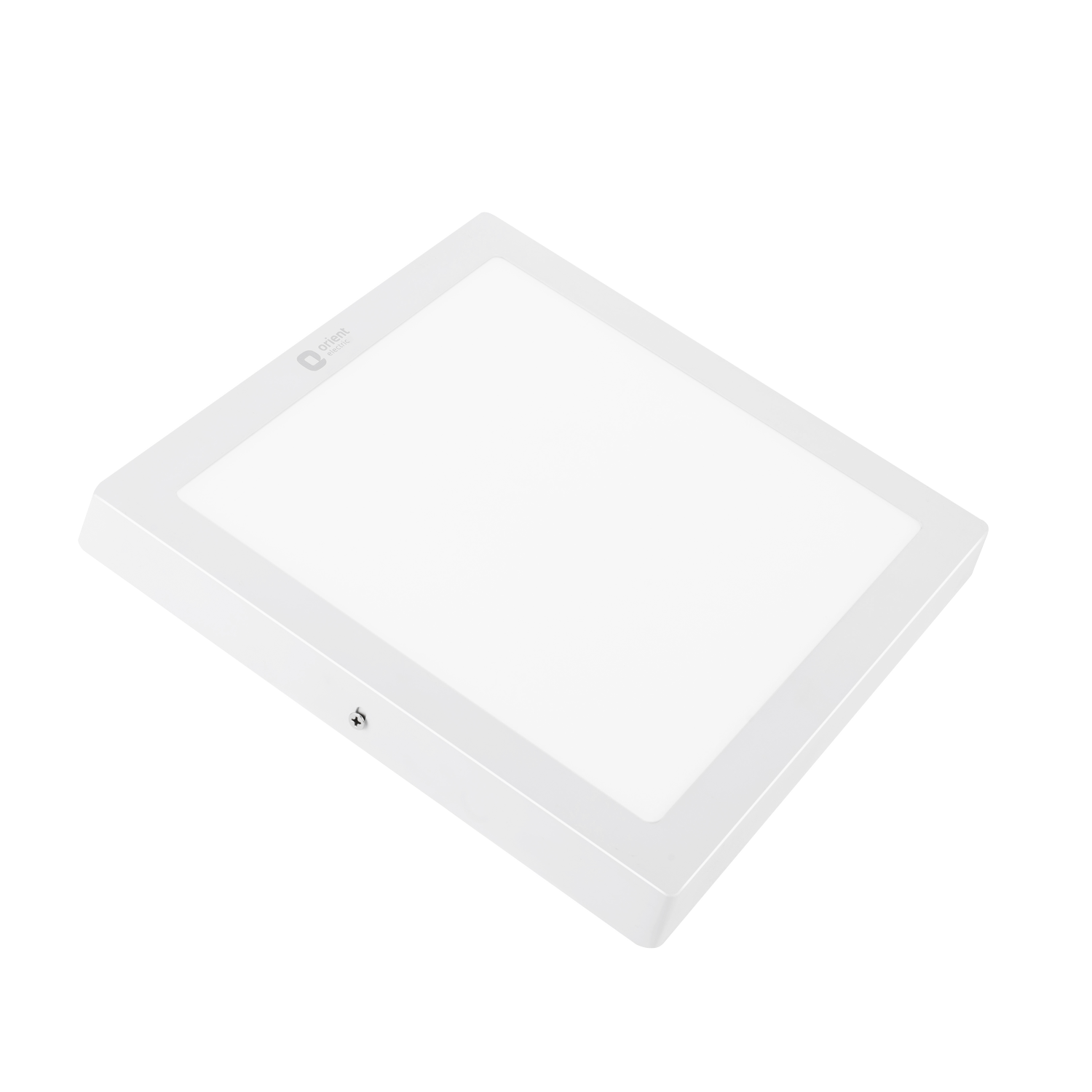

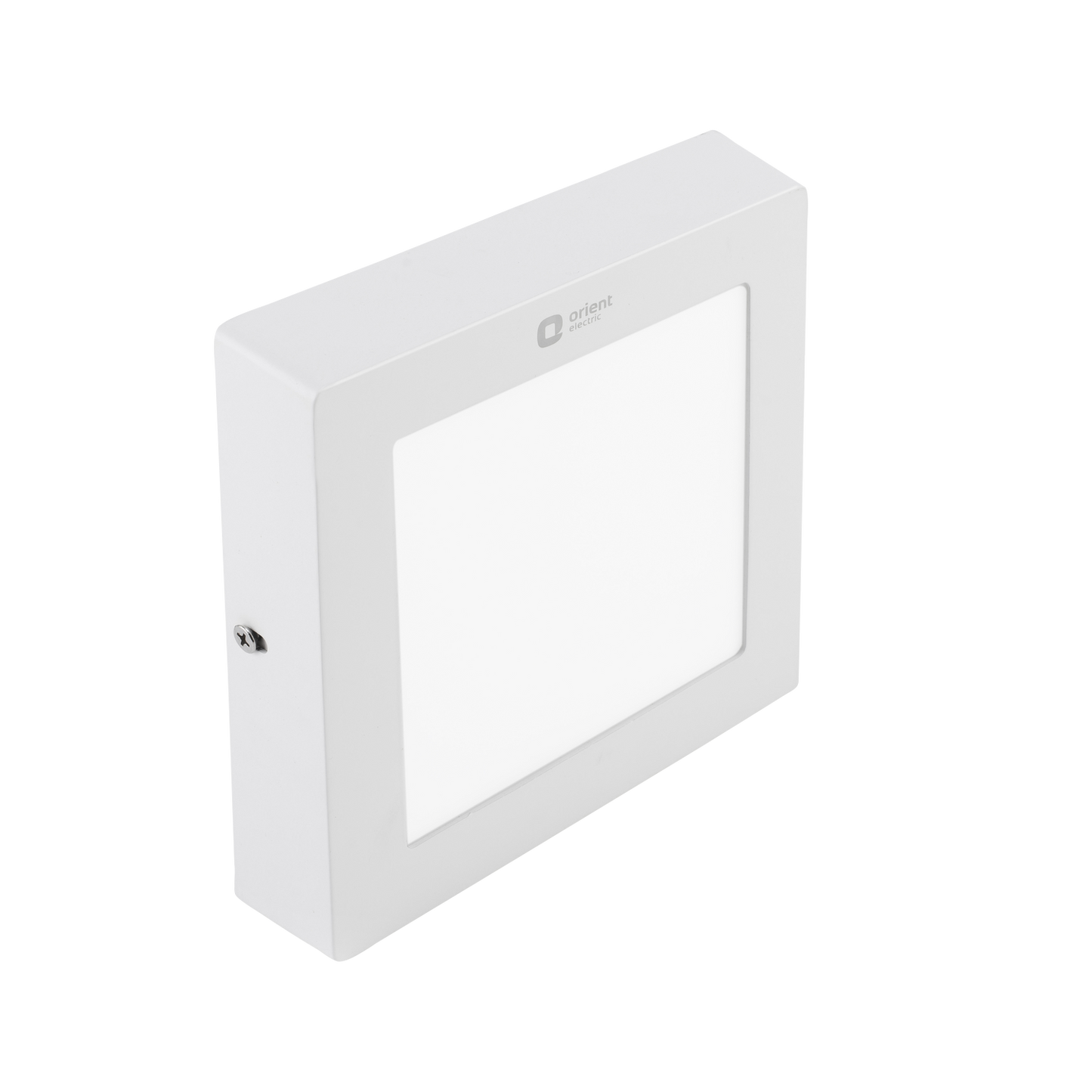

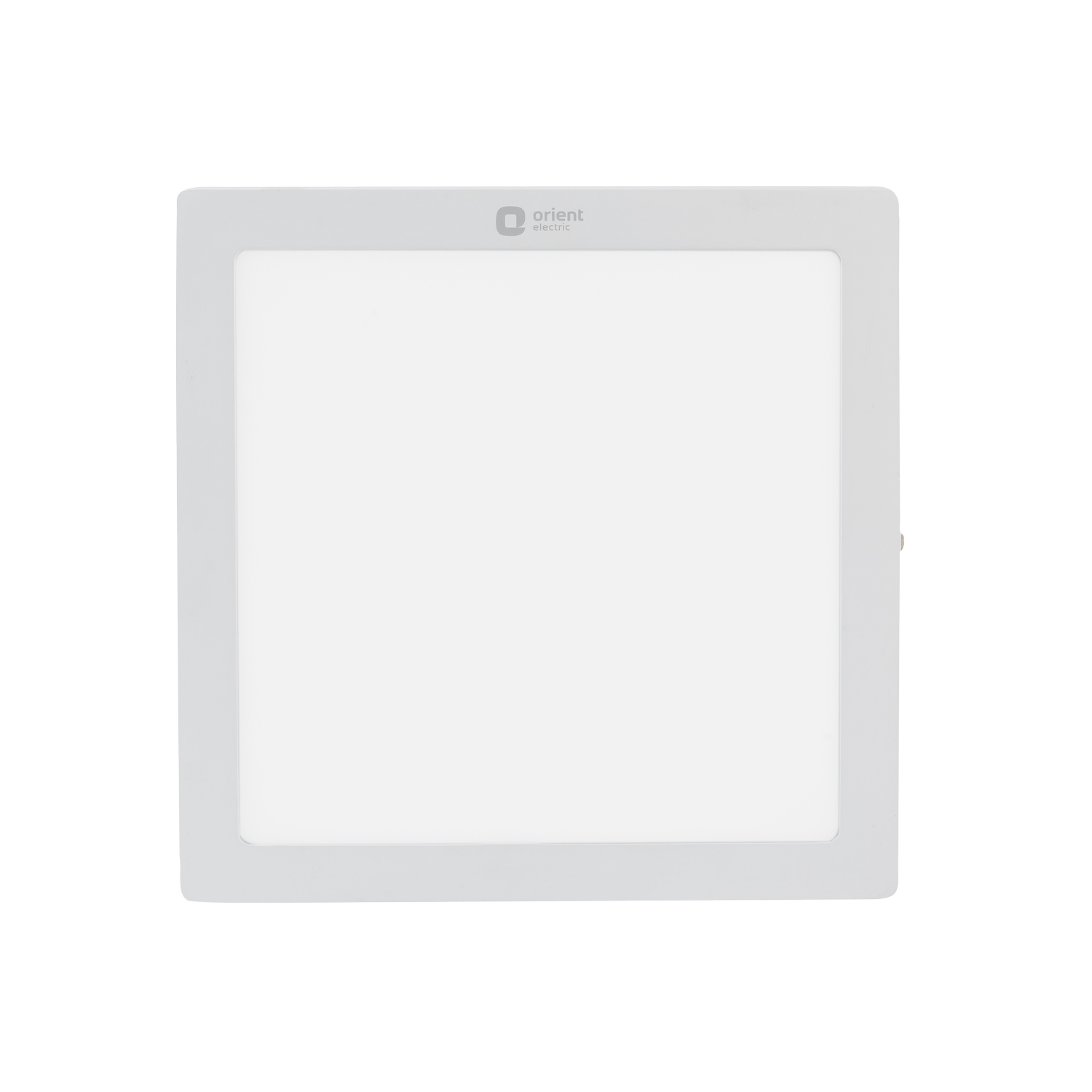

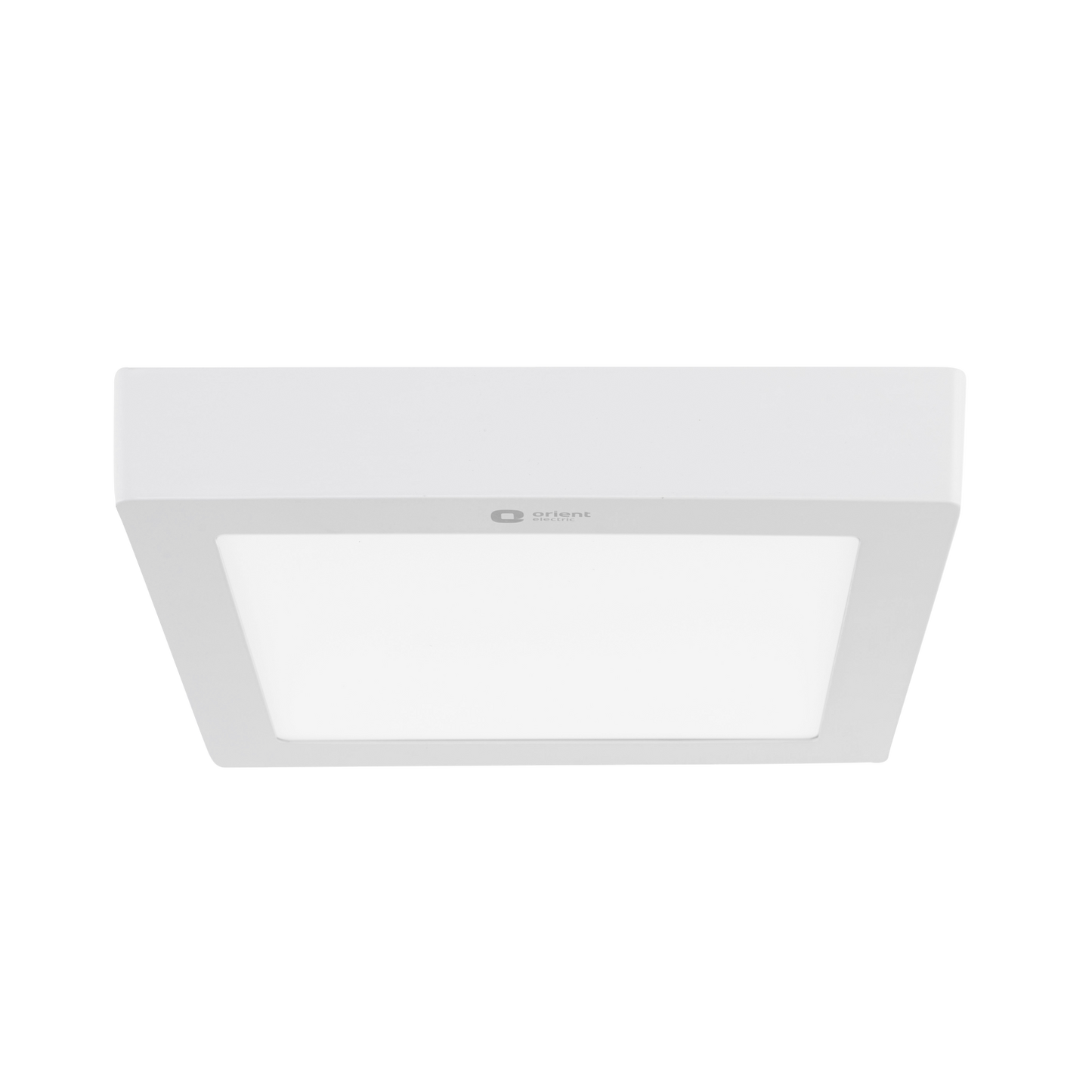

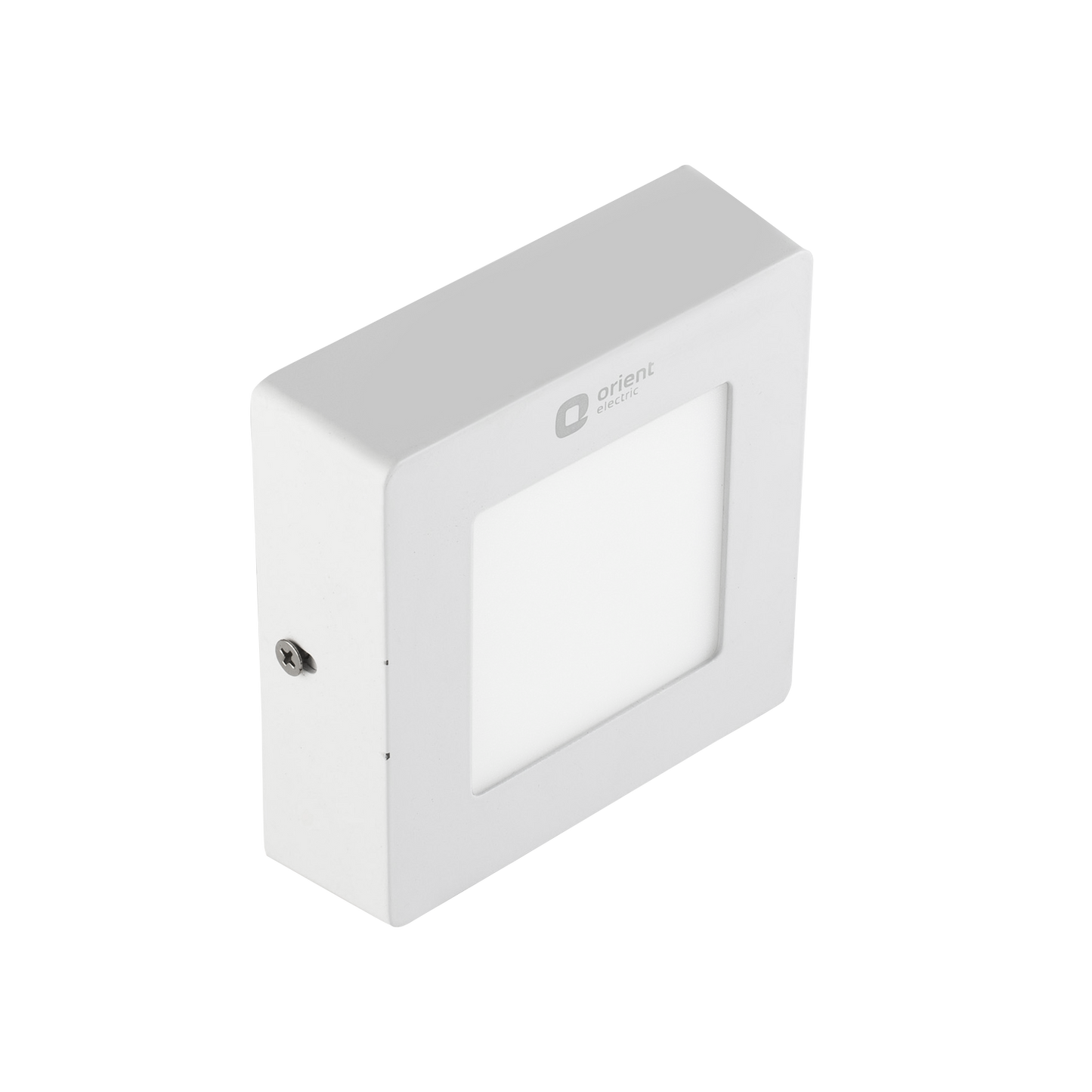

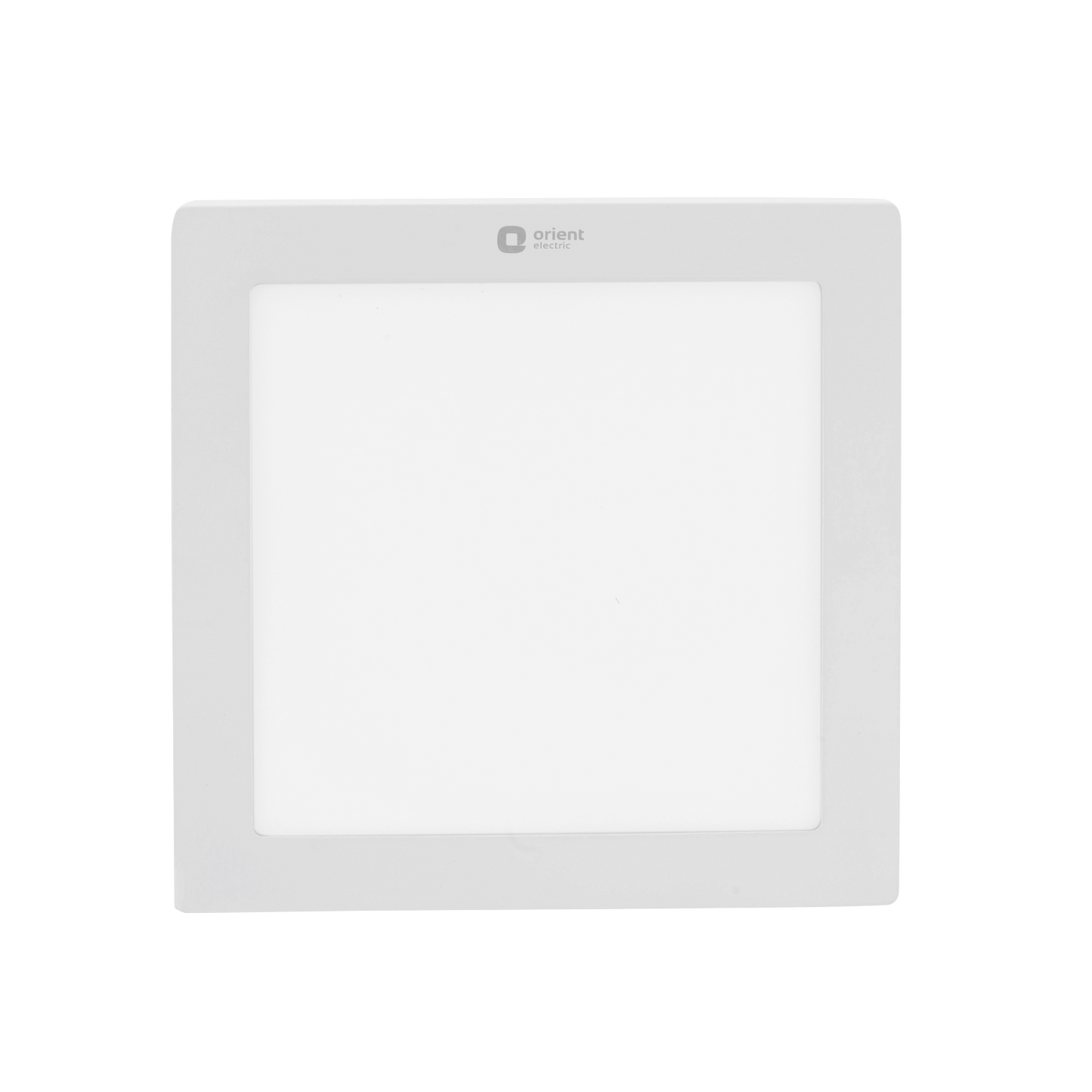

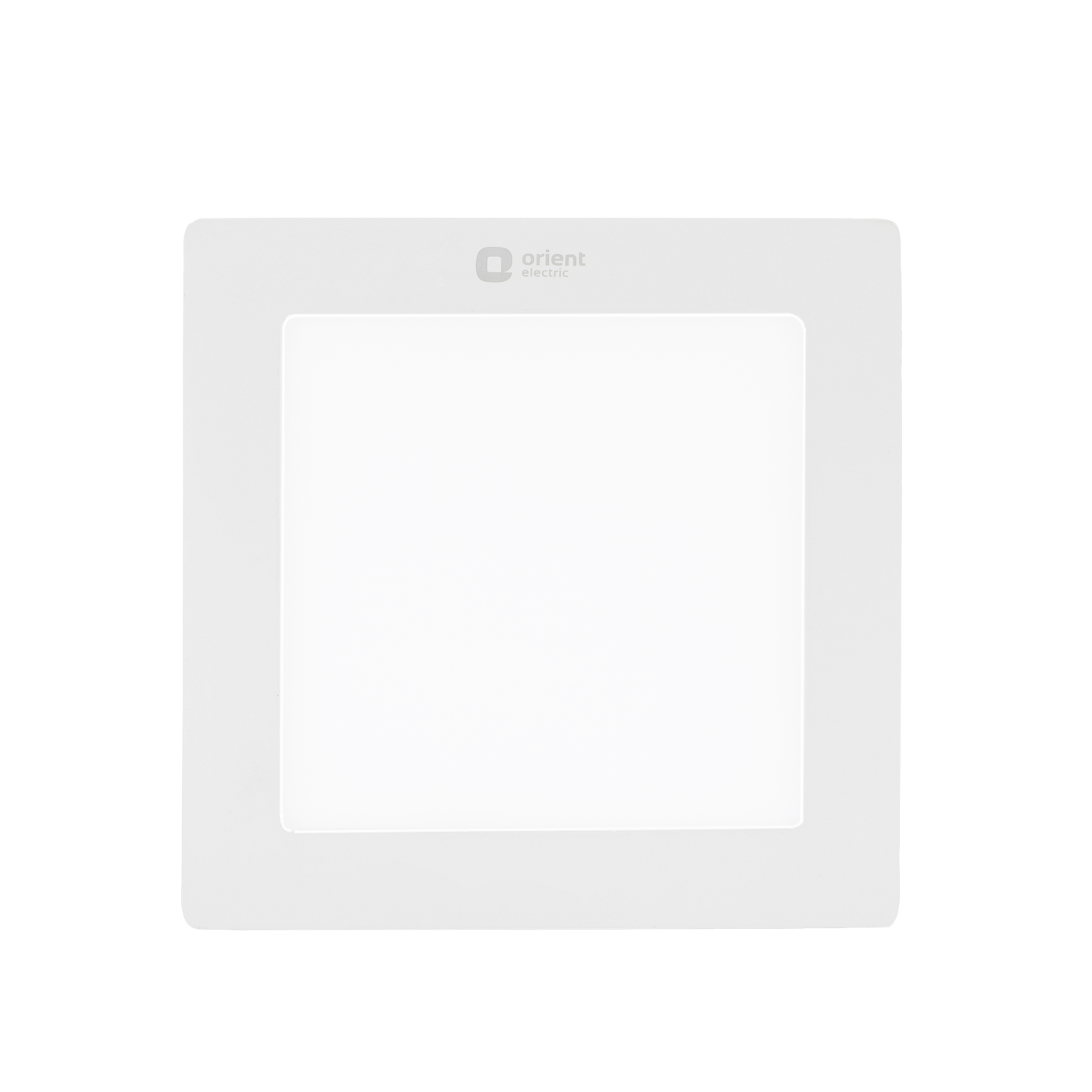

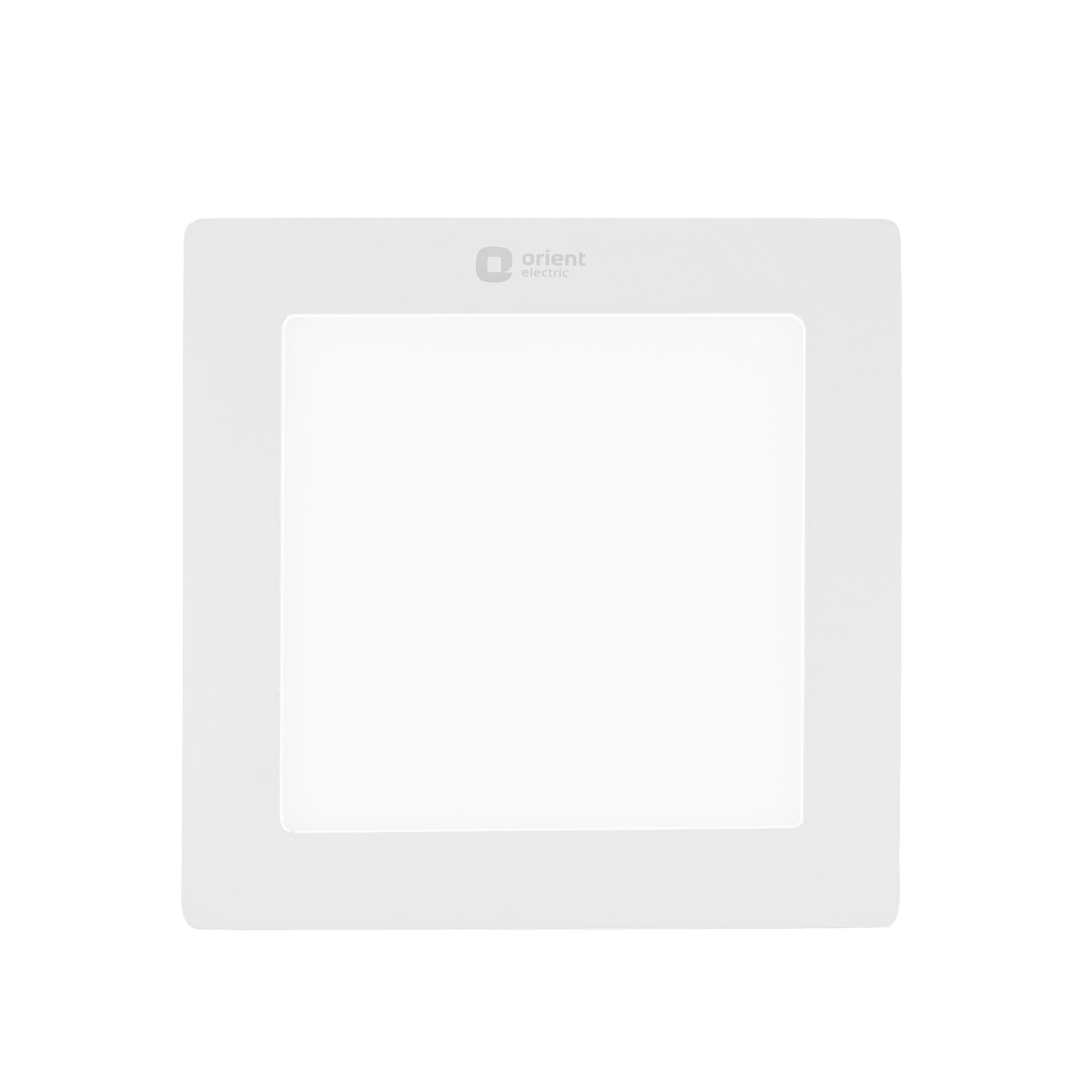

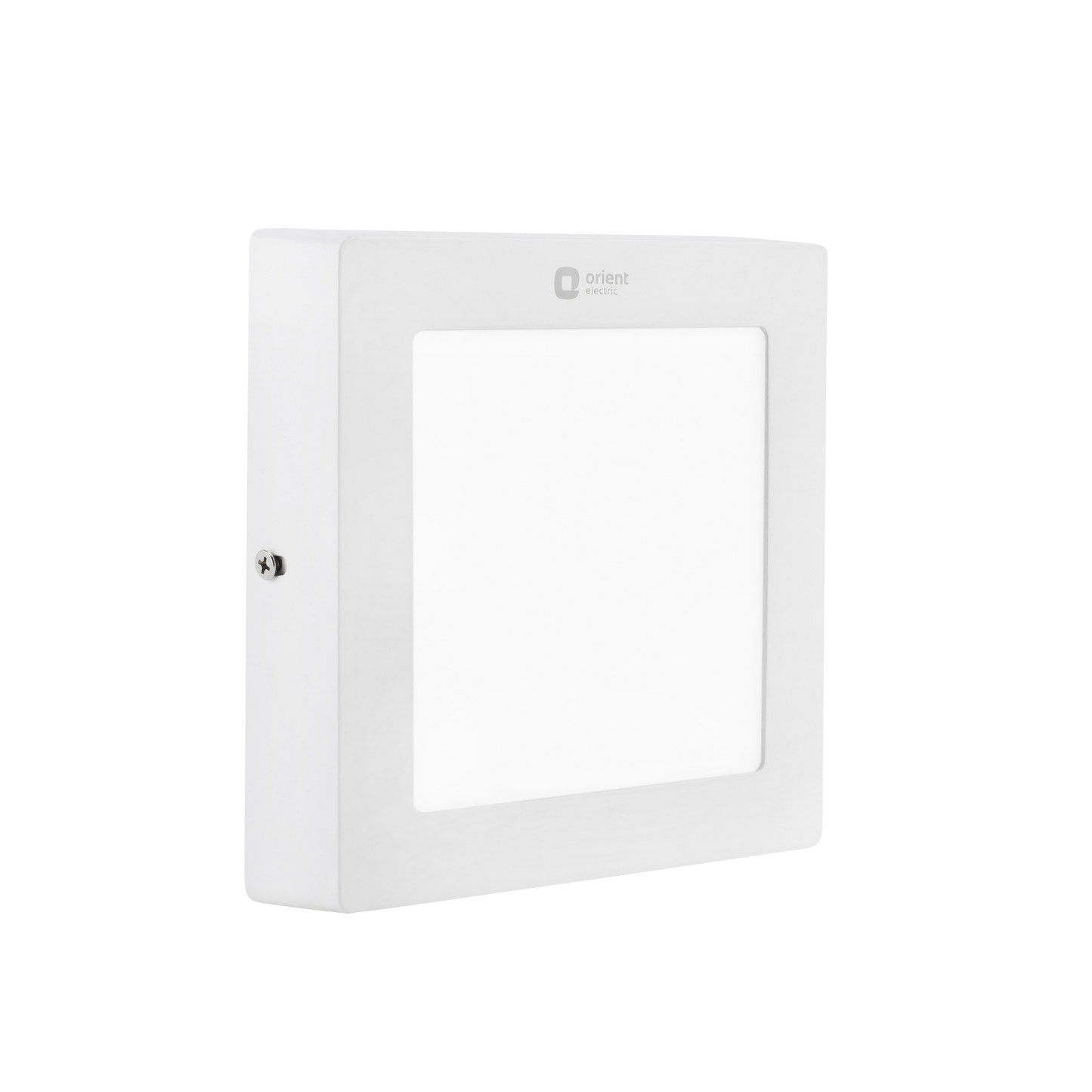

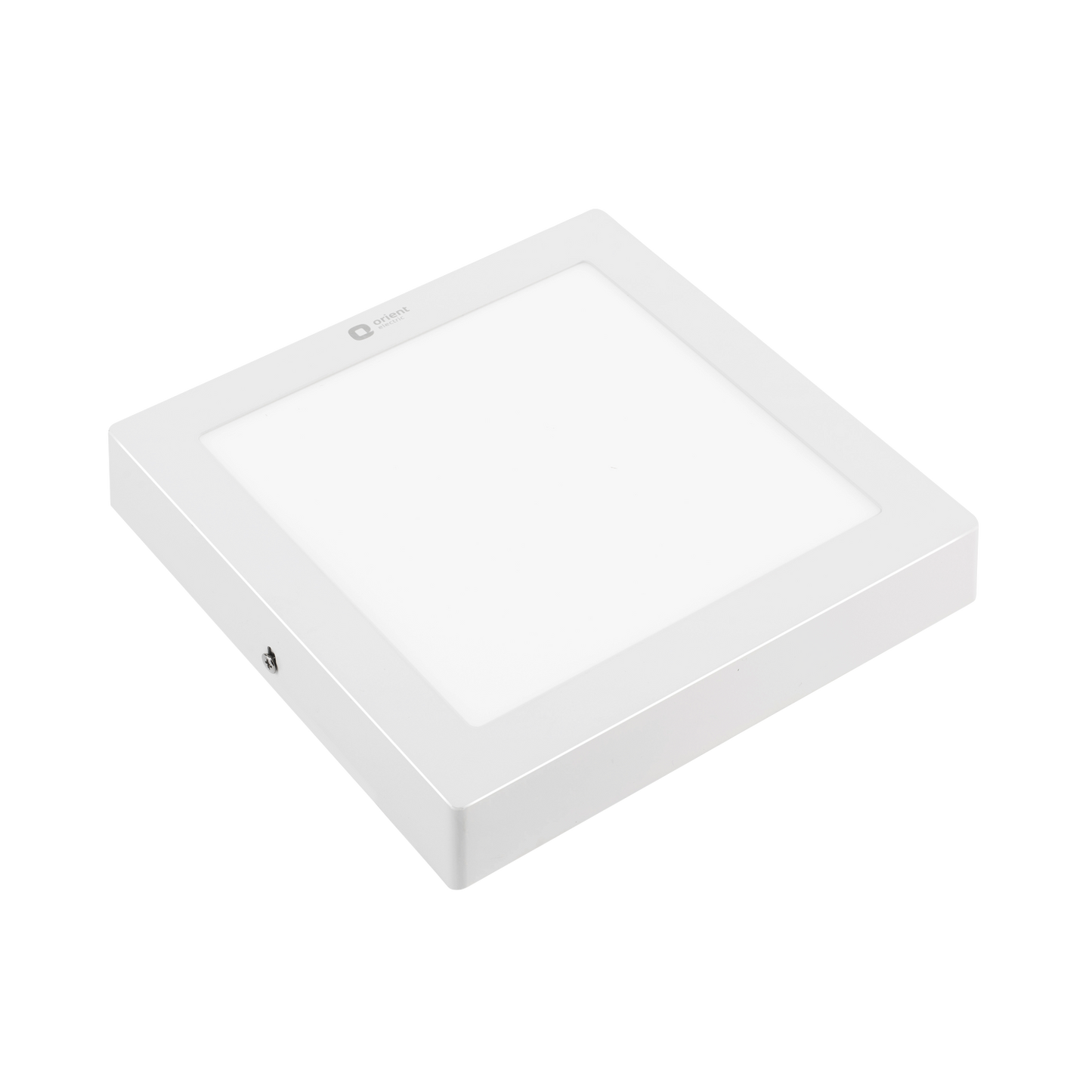

Ultra slim surface-mounting square LED downlighter designed with excellent thermally managed aluminium pressure die-cast housing with heat-dissipating large surface area finished in epoxy powder-coated white to deliver high-efficacy of light output and uniformity, utilising edge-lit technology.

Best suited for

Banking

Offices

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate frosted diffuser for glare free uniform light distribution.
    Mounting Surface mounting
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 6W, 12W, 18W, 24W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy (lm/w) ≥80 , ≥75 , ≥70
Edge surface square variants
Product Variants
Edge surface square

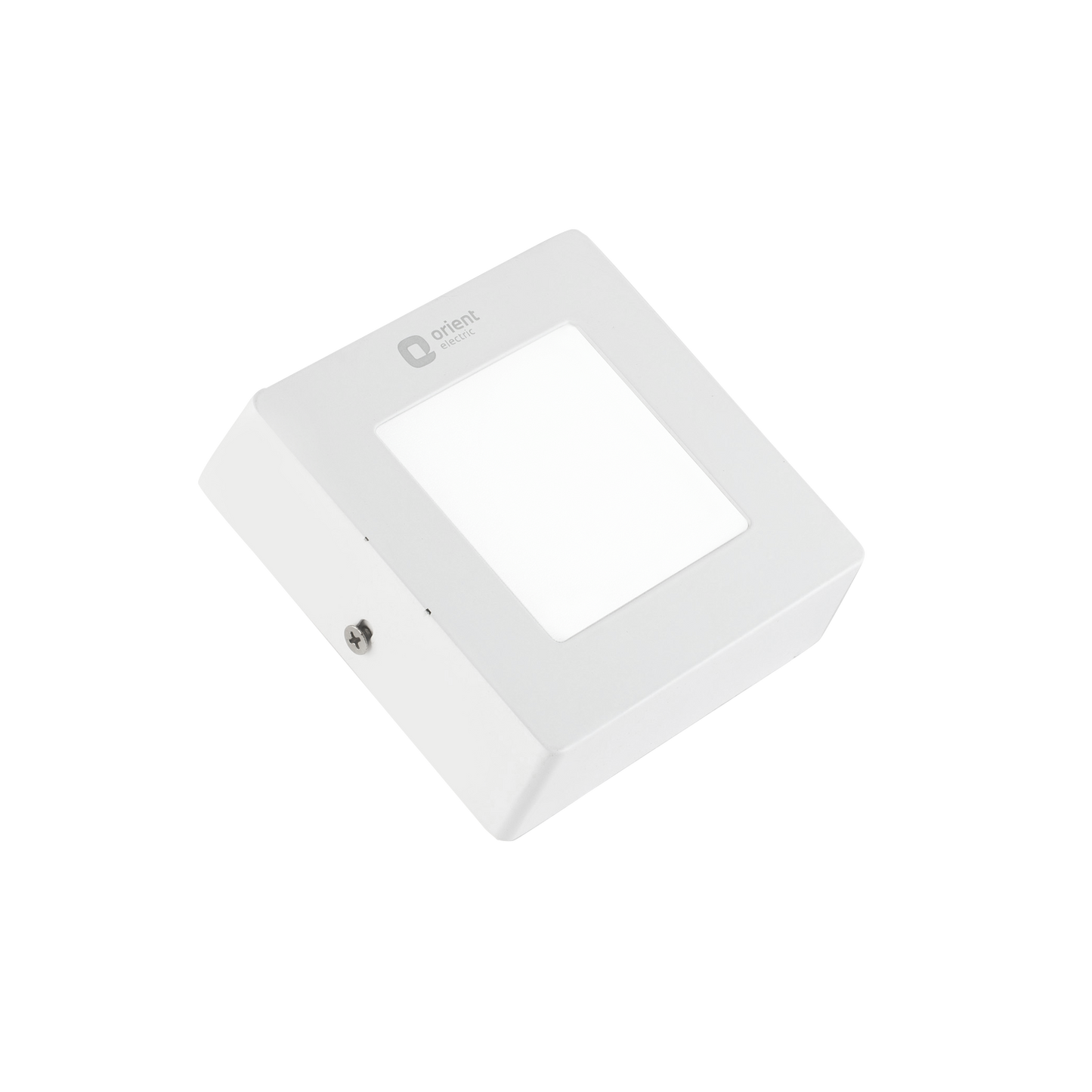

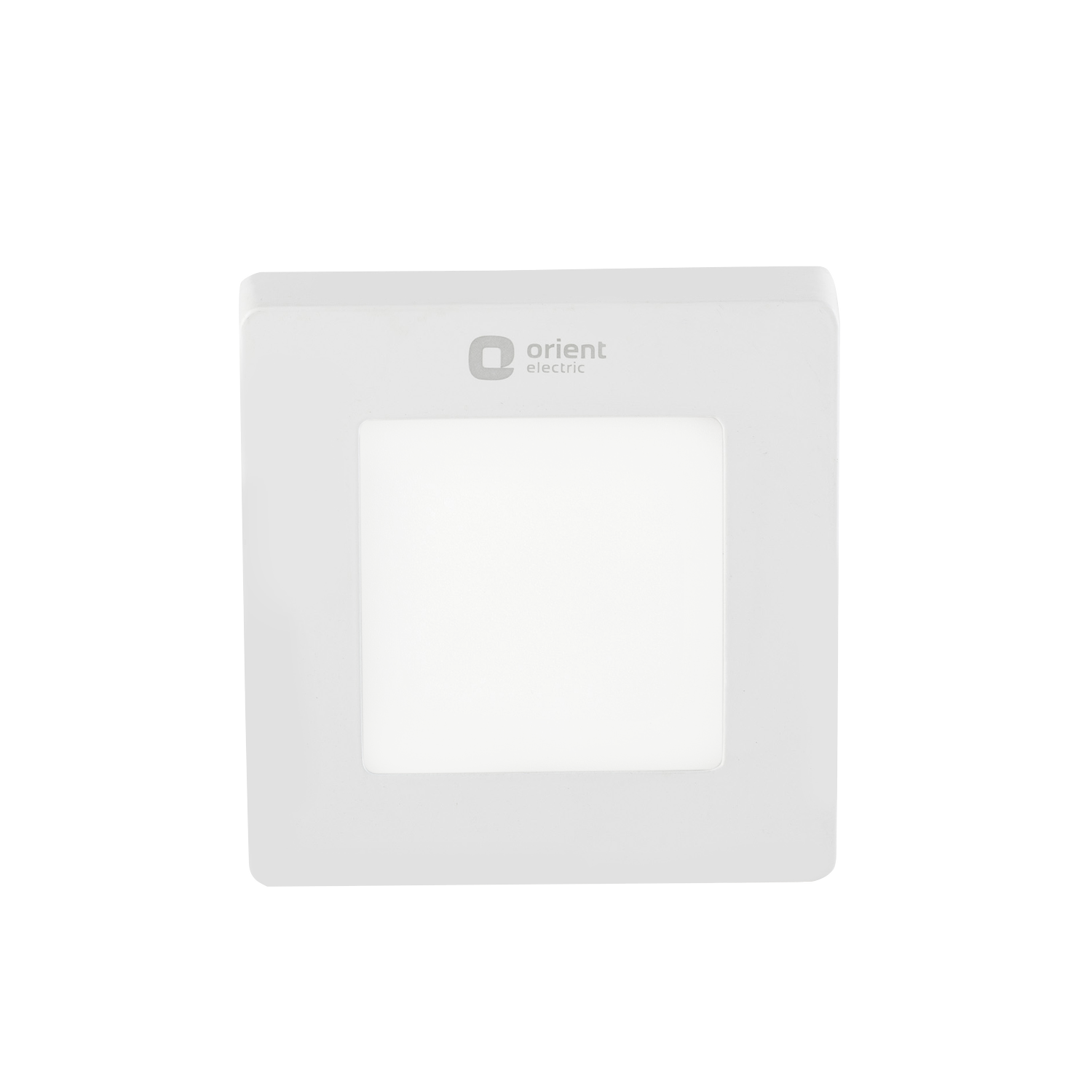

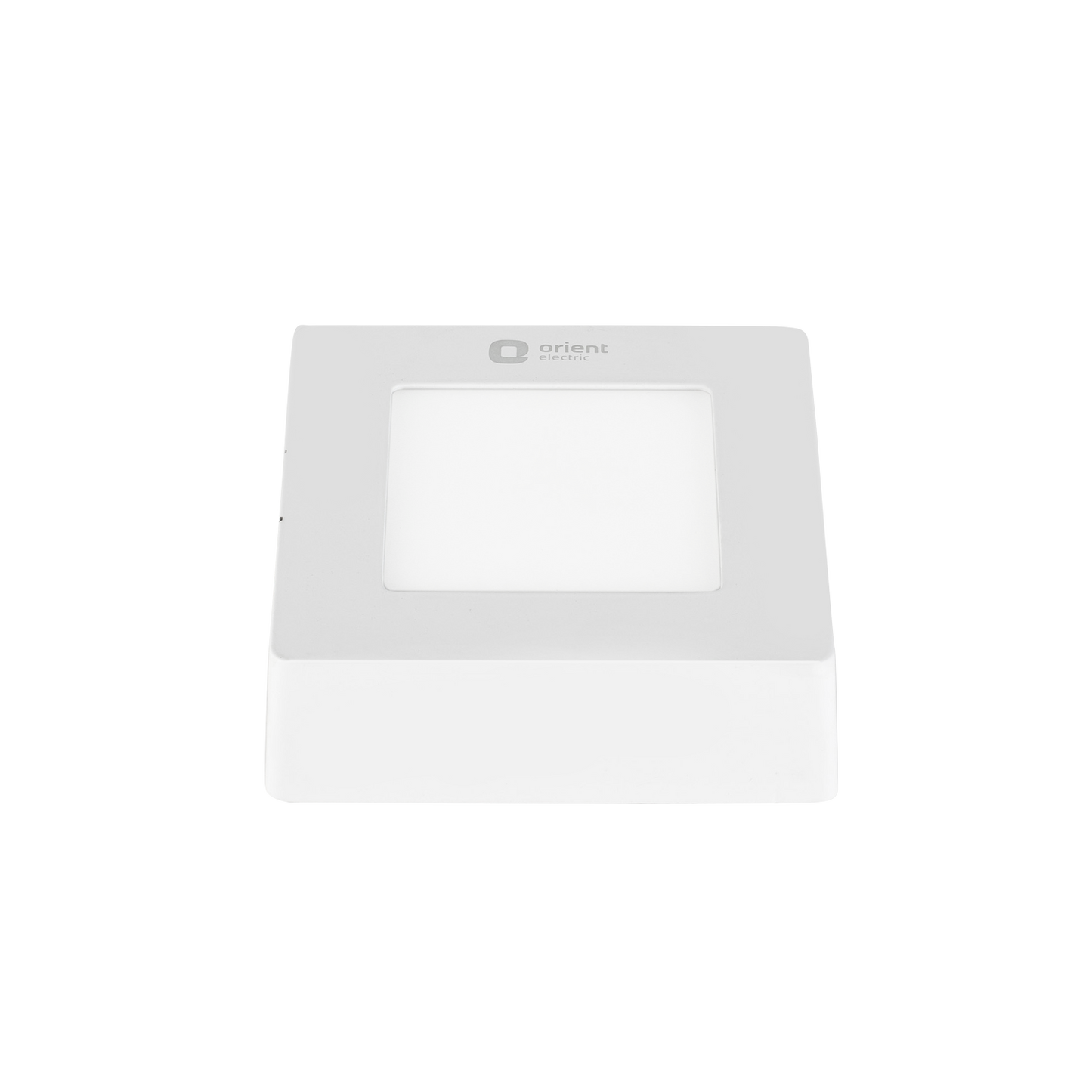

LDSES-06-C-V2
Edge surface square
LDSES-06-N-V2
Edge surface square
LDSES-06-W-V2
Edge surface square

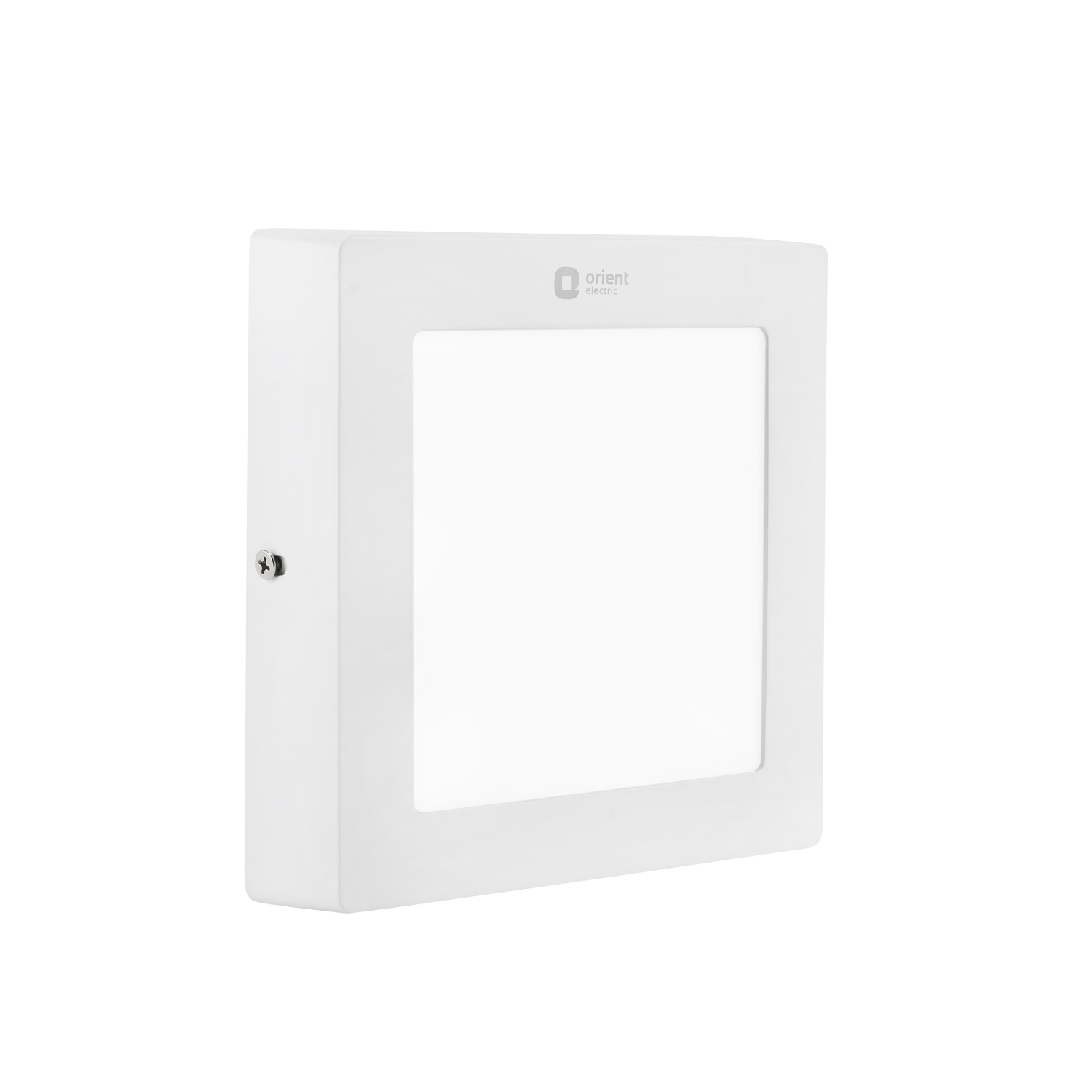

LDSES-12-C-V2
Edge surface square
LDSES-12-N-V2
Edge surface square
LDSES-12-W-V2
Edge surface square

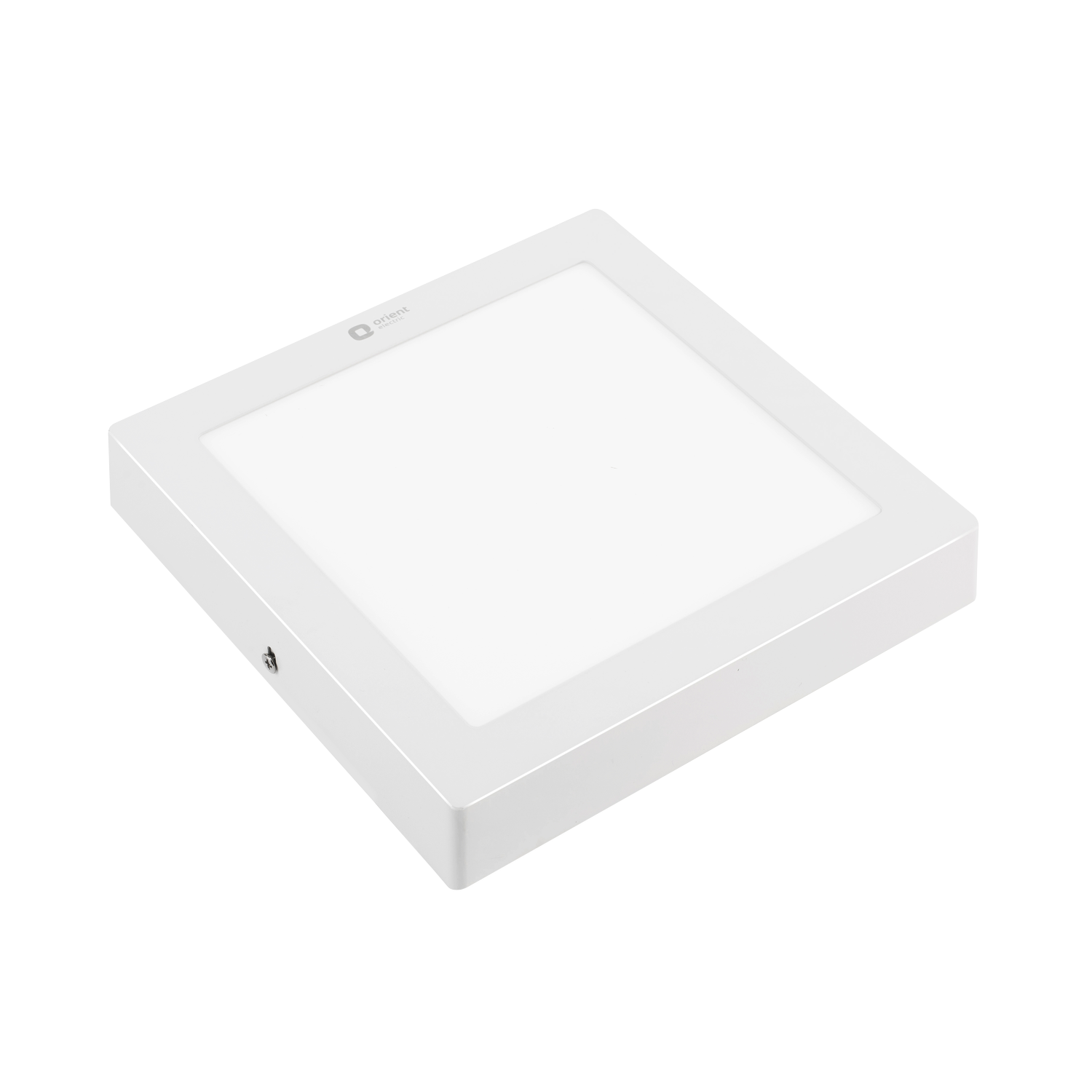

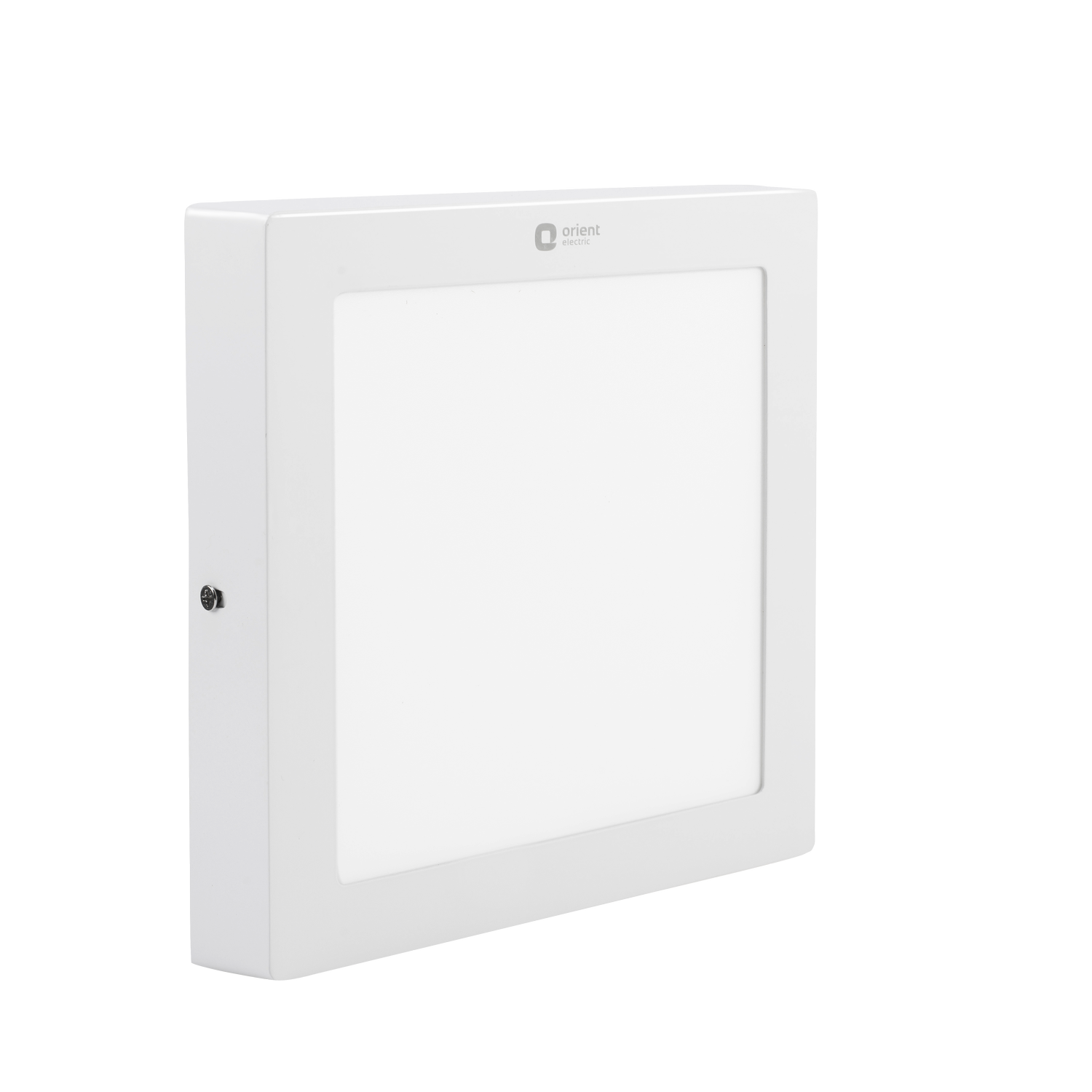

LDSES-18-C-V2
Edge surface square
LDSES-18-N-V2
Edge surface square
LDSES-18-W-V2
Edge surface square

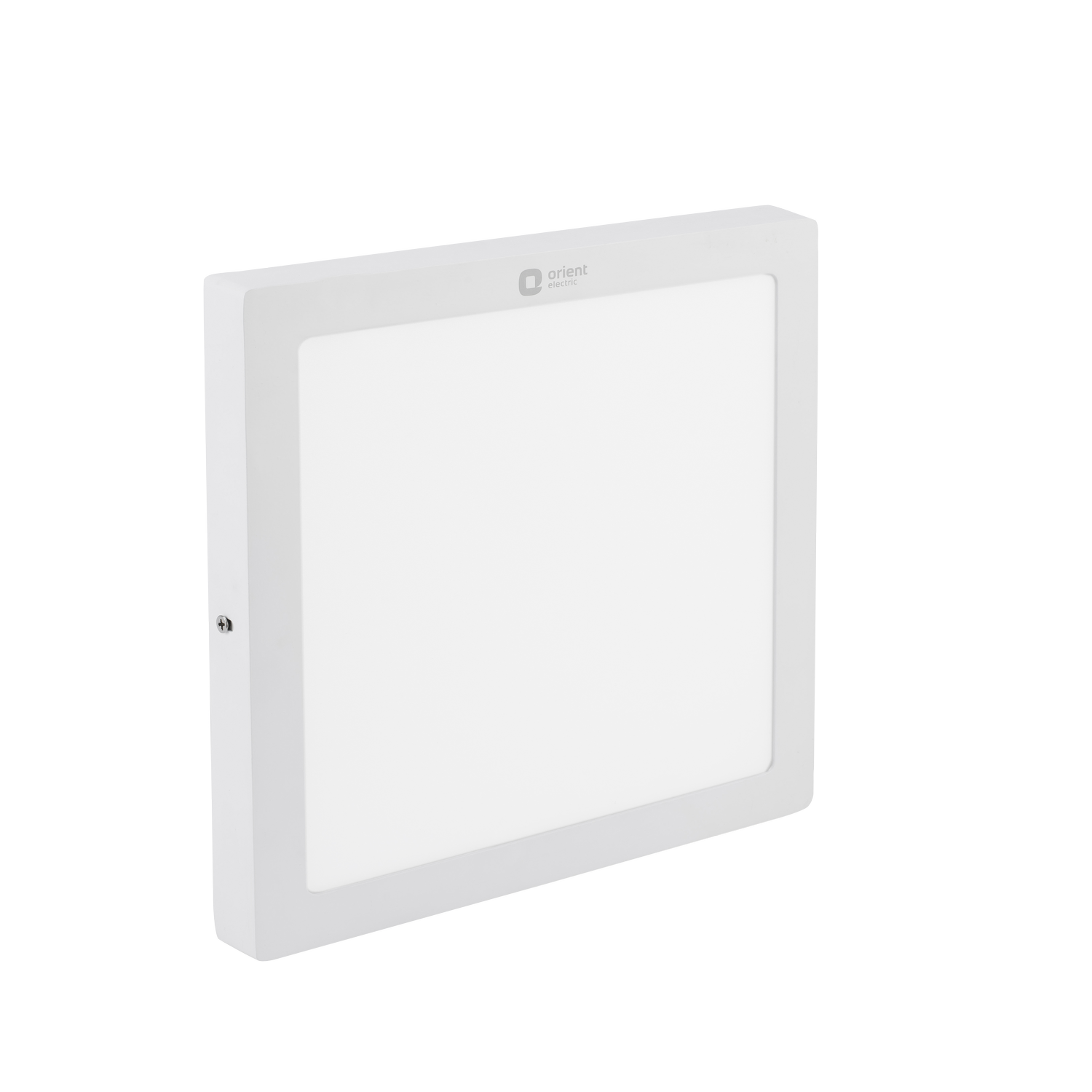

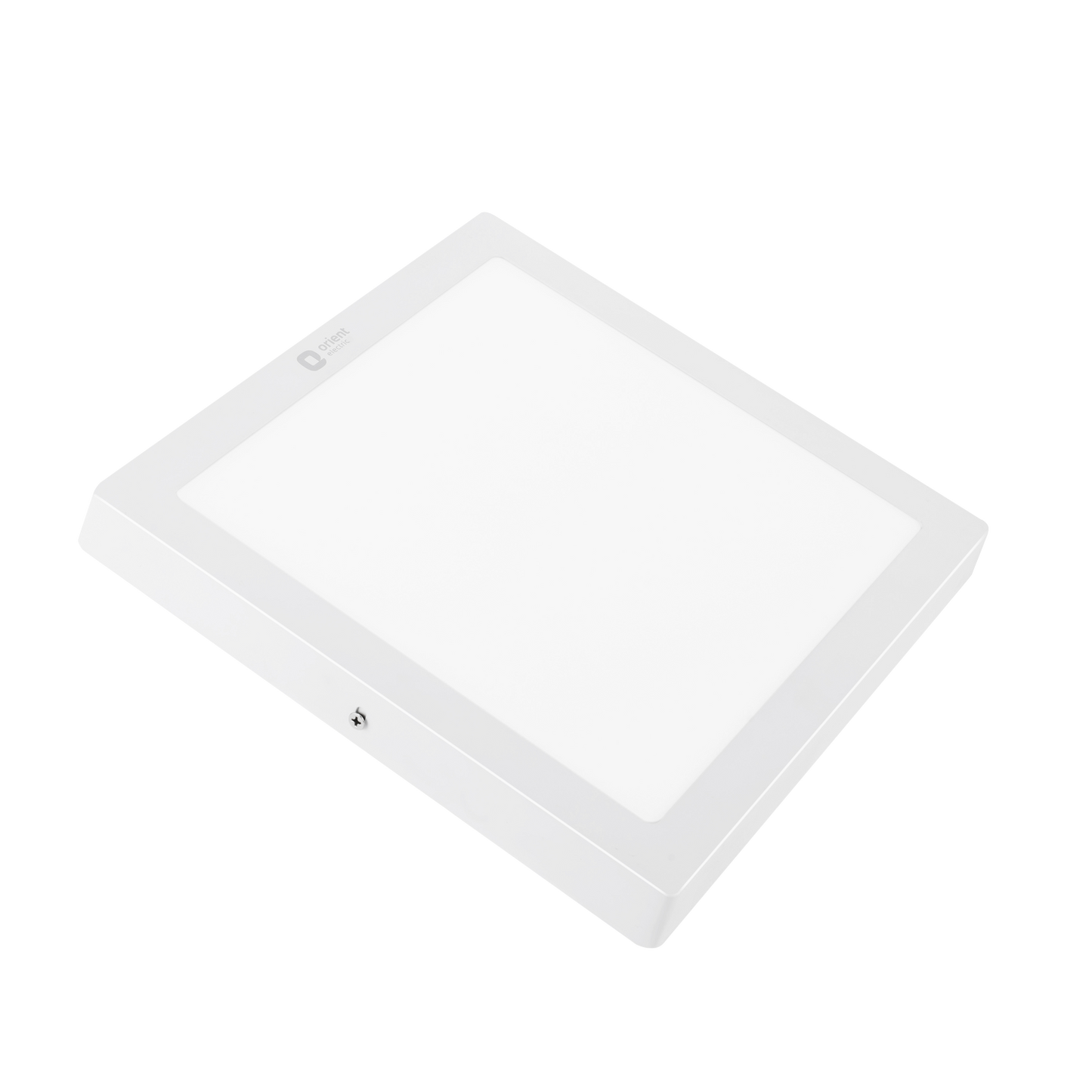

LDSES-24-C-V2
Edge surface square
LDSES-24-N-V2
Edge surface square
LDSES-24-W-V2
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer (in mm)
Height (in mm)
6W
6500K
≥80
240V AC
≥0.95
<15%
≥80
120x120
35
6W
4000K
≥80
240V AC
≥0.95
<15%
≥75
120x120
35
6W
3000K
≥80
240V AC
≥0.95
<15%
≥70
120x120
35
12W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170x170
35
12W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170x170
35
12W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170x170
35
18W
6500K
≥80
240V AC
≥0.95
<15%
≥80
225x225
35
18W
4000K
≥80
240V AC
≥0.95
<15%
≥75
225x225
35
18W
3000K
≥80
240V AC
≥0.95
<15%
≥70
225x225
35
24W
6500K
≥80
240V AC
≥0.95
<15%
≥80
295x295
35
24W
4000K
≥80
240V AC
≥0.95
<15%
≥75
295x295
35
24W
3000K
≥80
240V AC
≥0.95
<15%
≥70
295x295
35
