Edge surface square FC

Edge surface square FC

Edge surface square FC

Product Overview

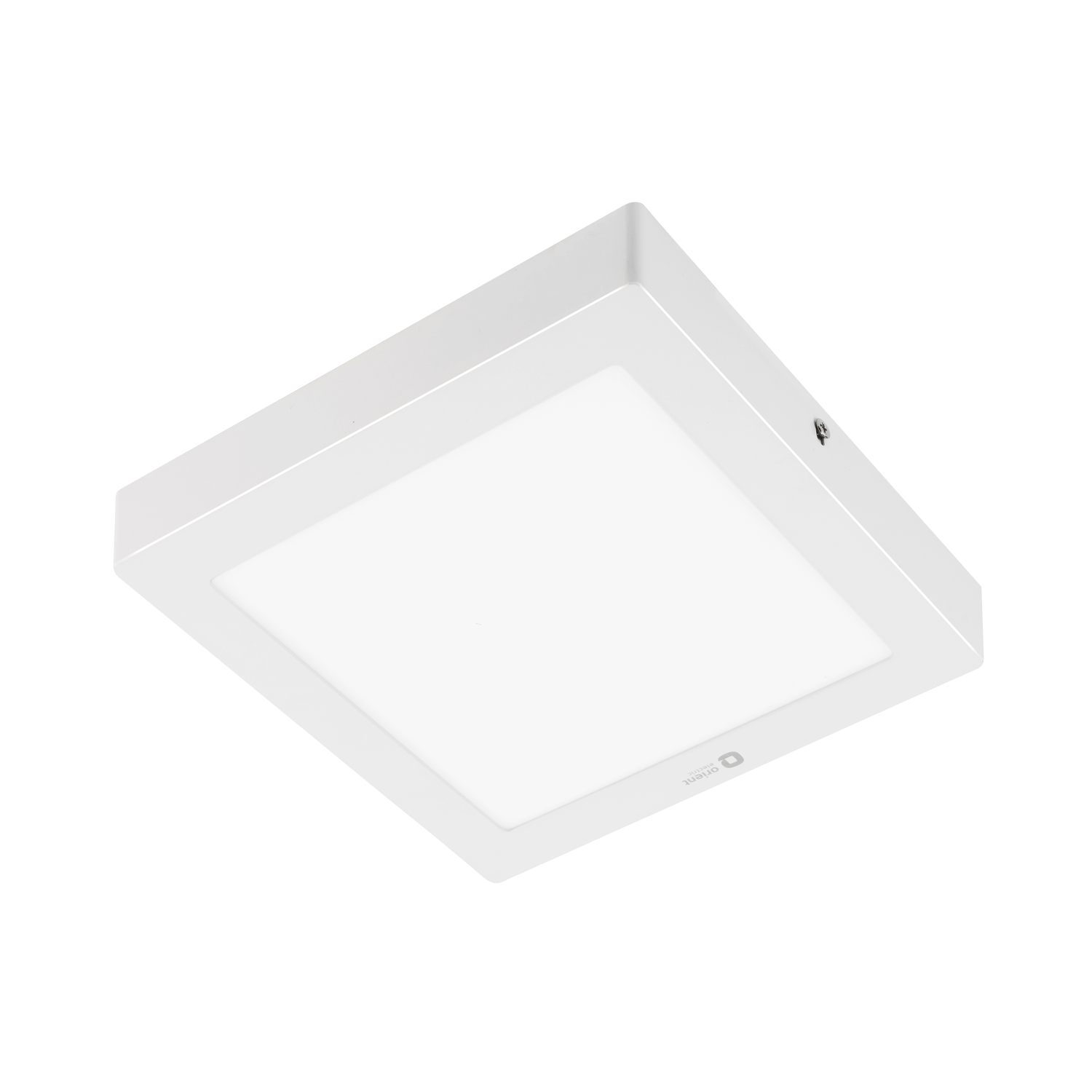

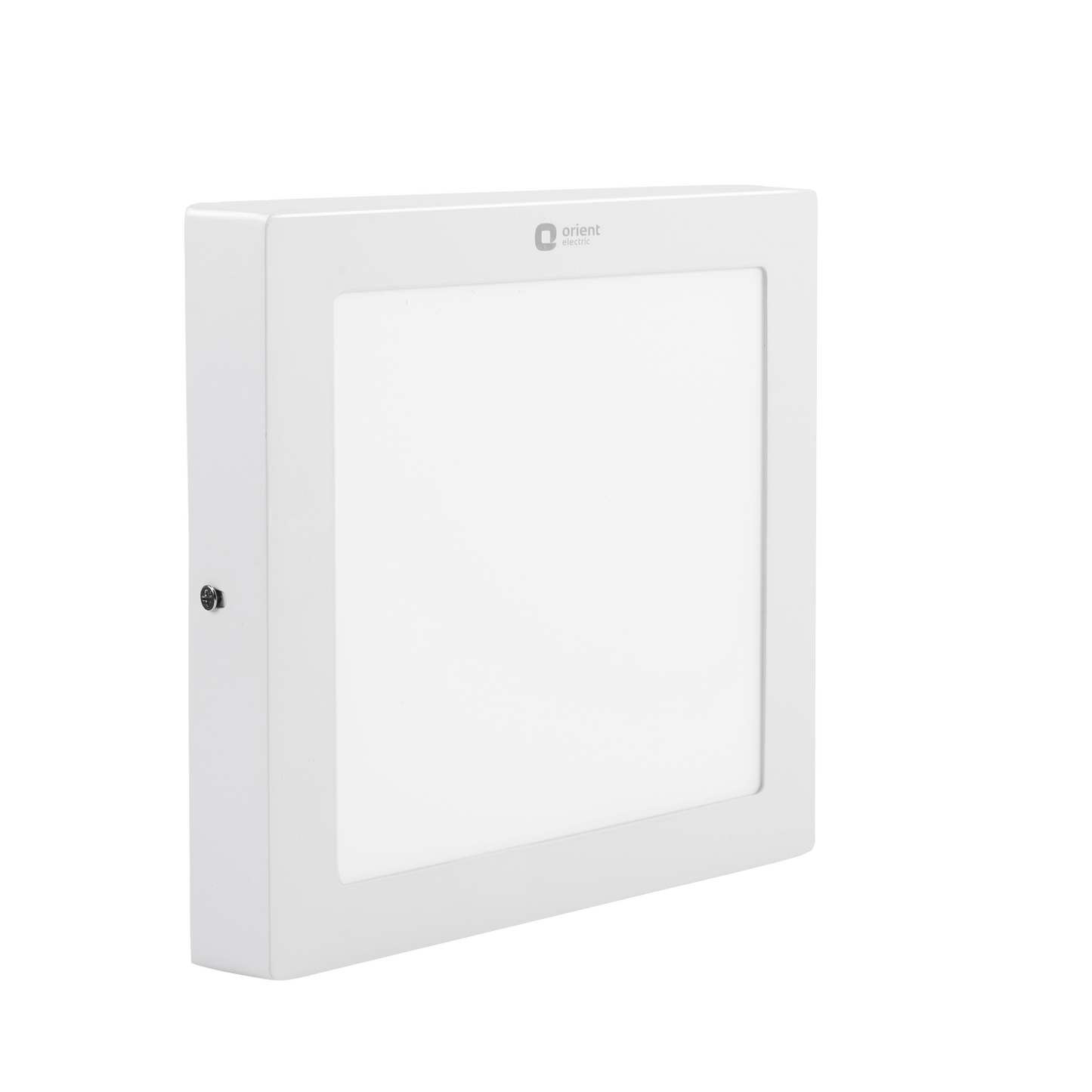

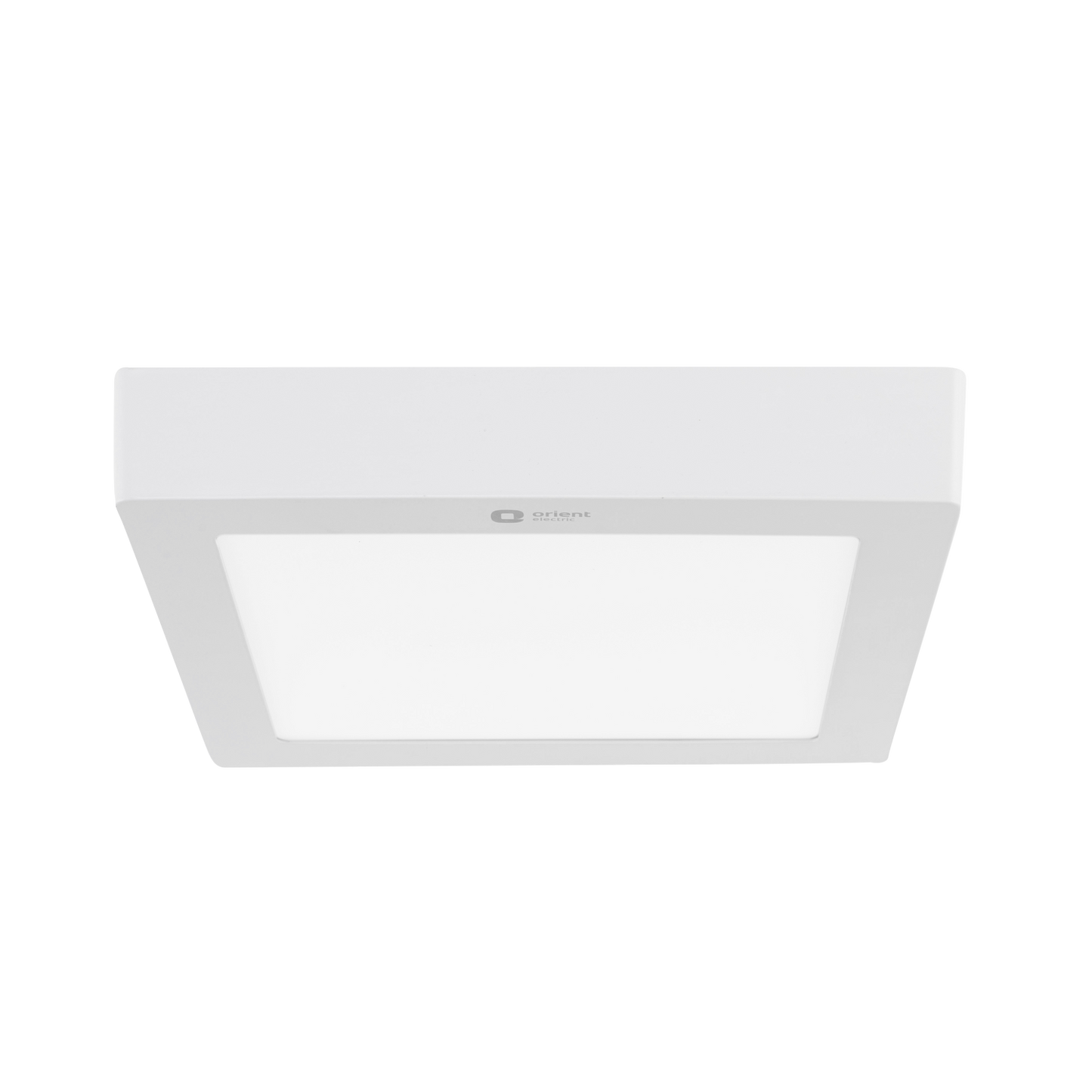

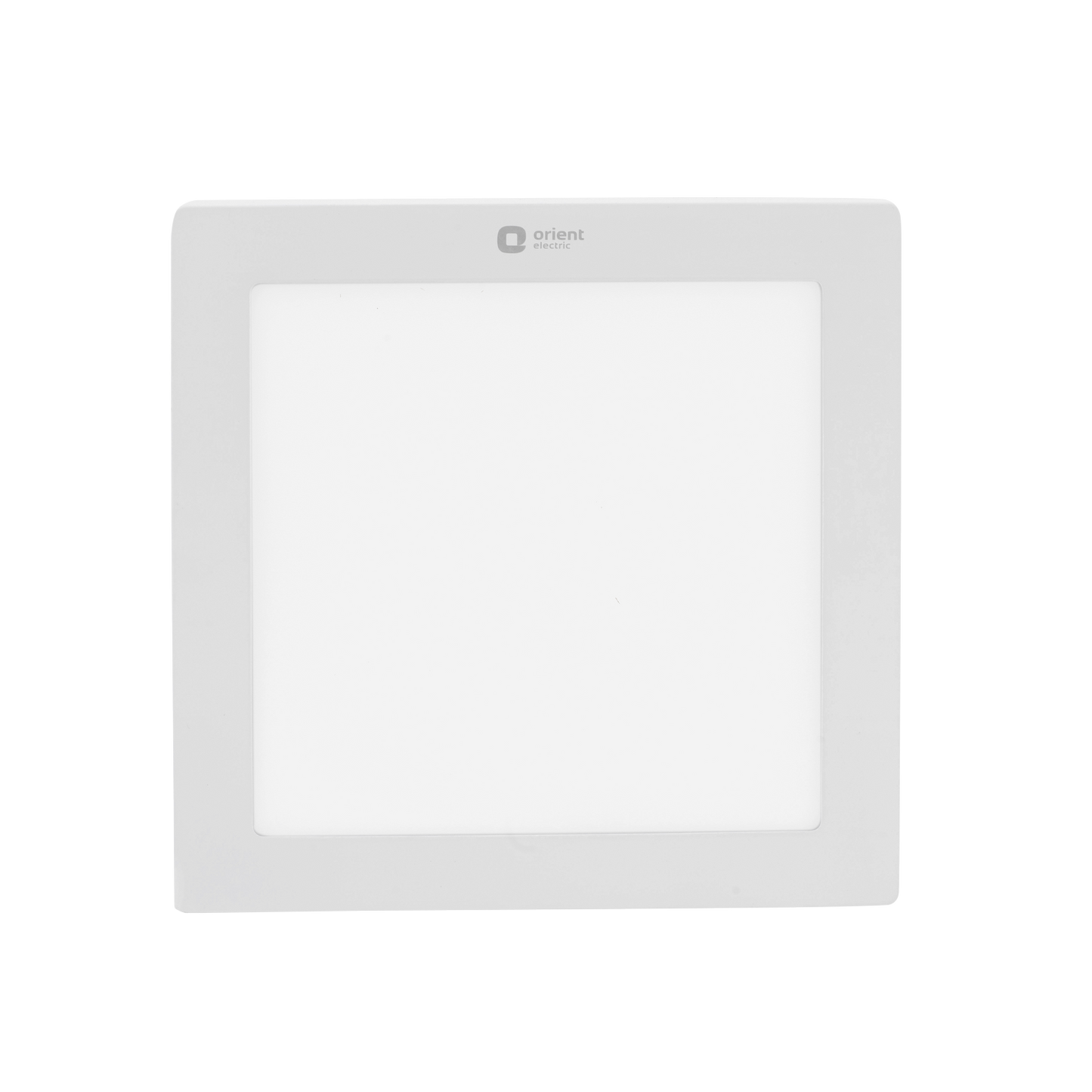

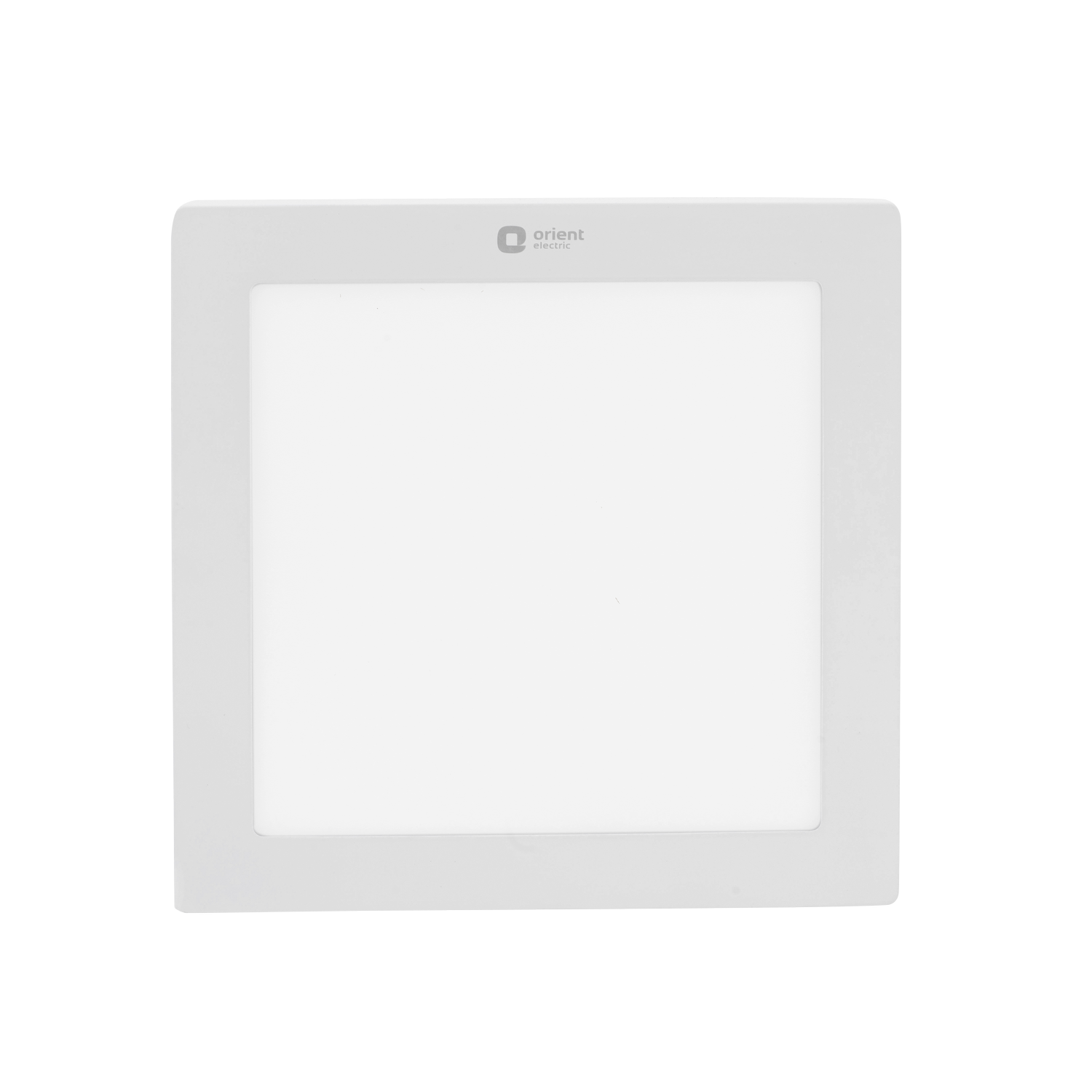

Surface-mounting low-height square edge lit LED downlighter designed in Aluminium housing with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

Best suited for

Banking

Offices

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate opal diffuser for glare-free uniform light distribution.
    Mounting Surface mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 15W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System efficacy (lm/W) ≥80,≥75,≥70
Edge surface square FC variants
Product Variants
Edge surface square FC
LDSES-15-C-V2-FC
Edge surface square FC
LDSES-15-N-V2-FC
Edge surface square FC
LDSES-15-W-V2-FC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
15W
6500K
≥80
240V AC
≥0.95
<15%
≥80
170 x 170
35
15W
4000K
≥80
240V AC
≥0.95
<15%
≥75
170 x 170
35
15W
3000K
≥80
240V AC
≥0.95
<15%
≥70
170 x 170
35
