Product Overview

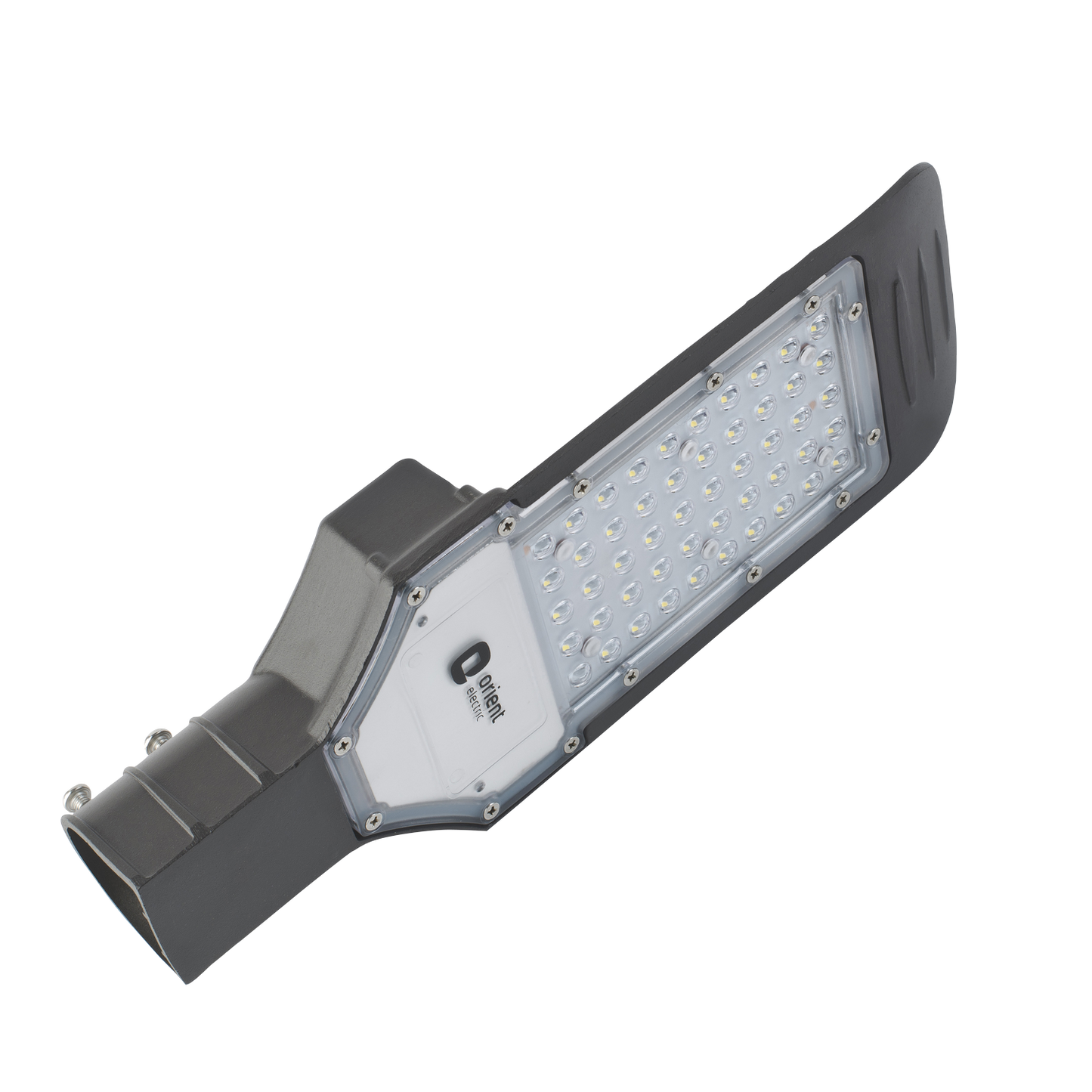

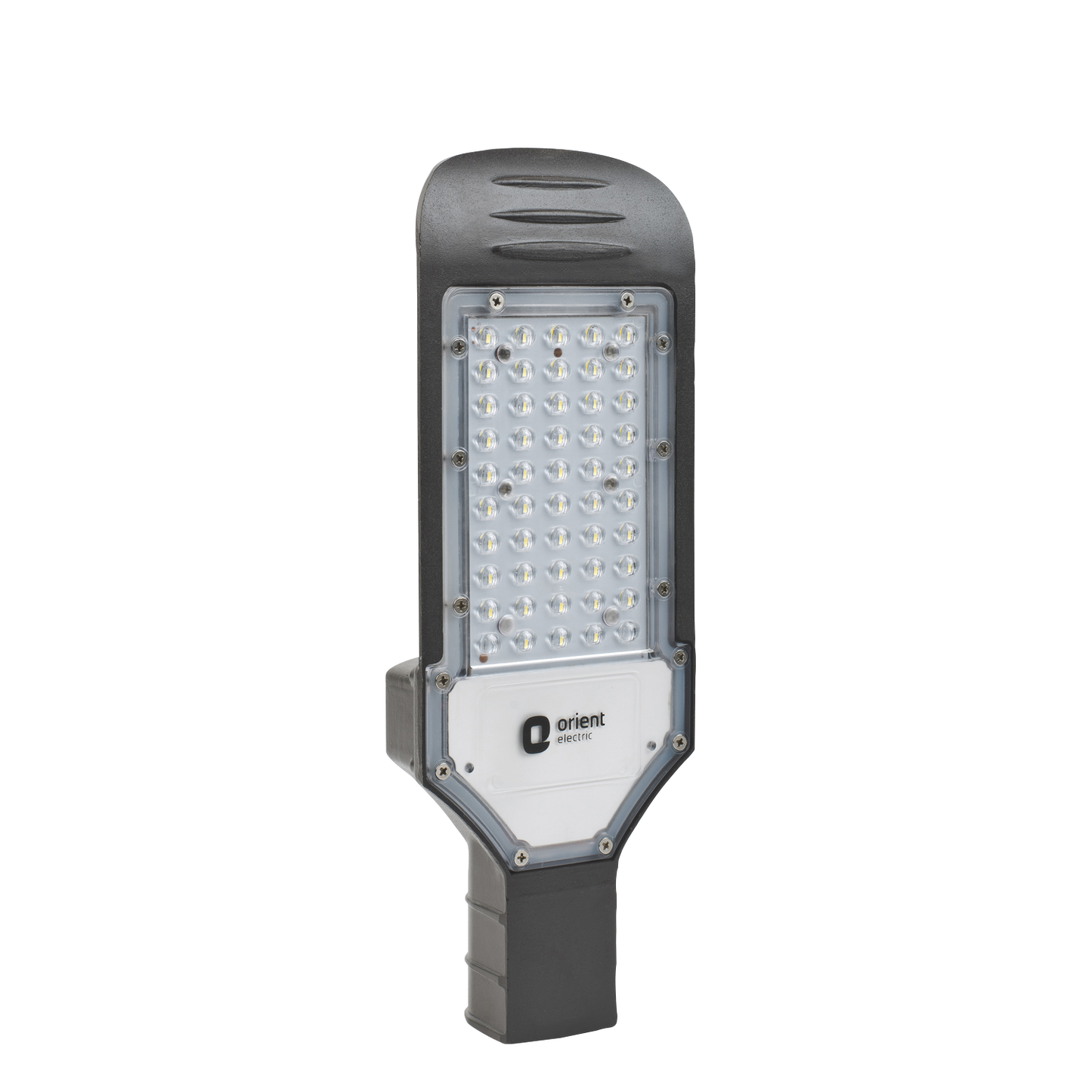

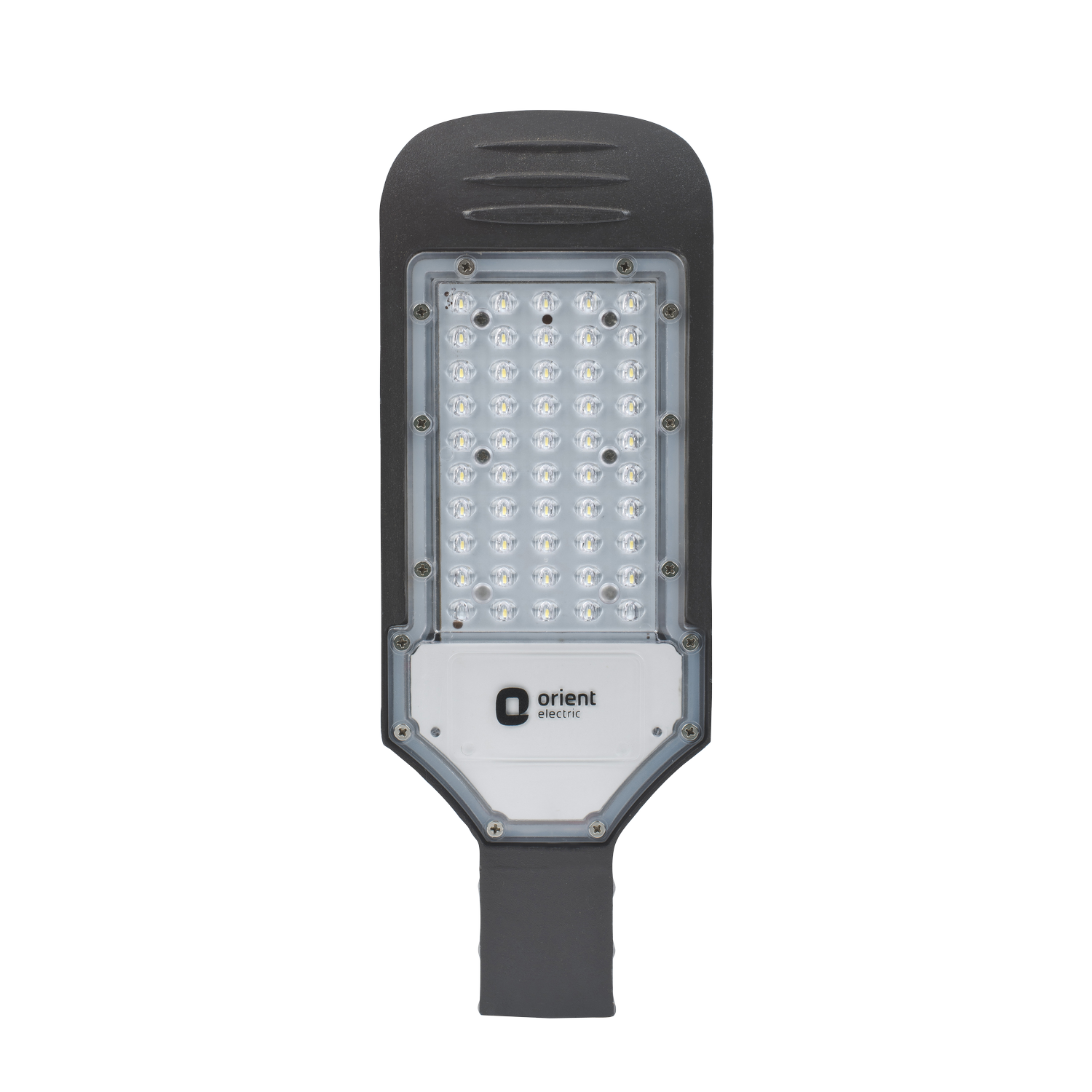

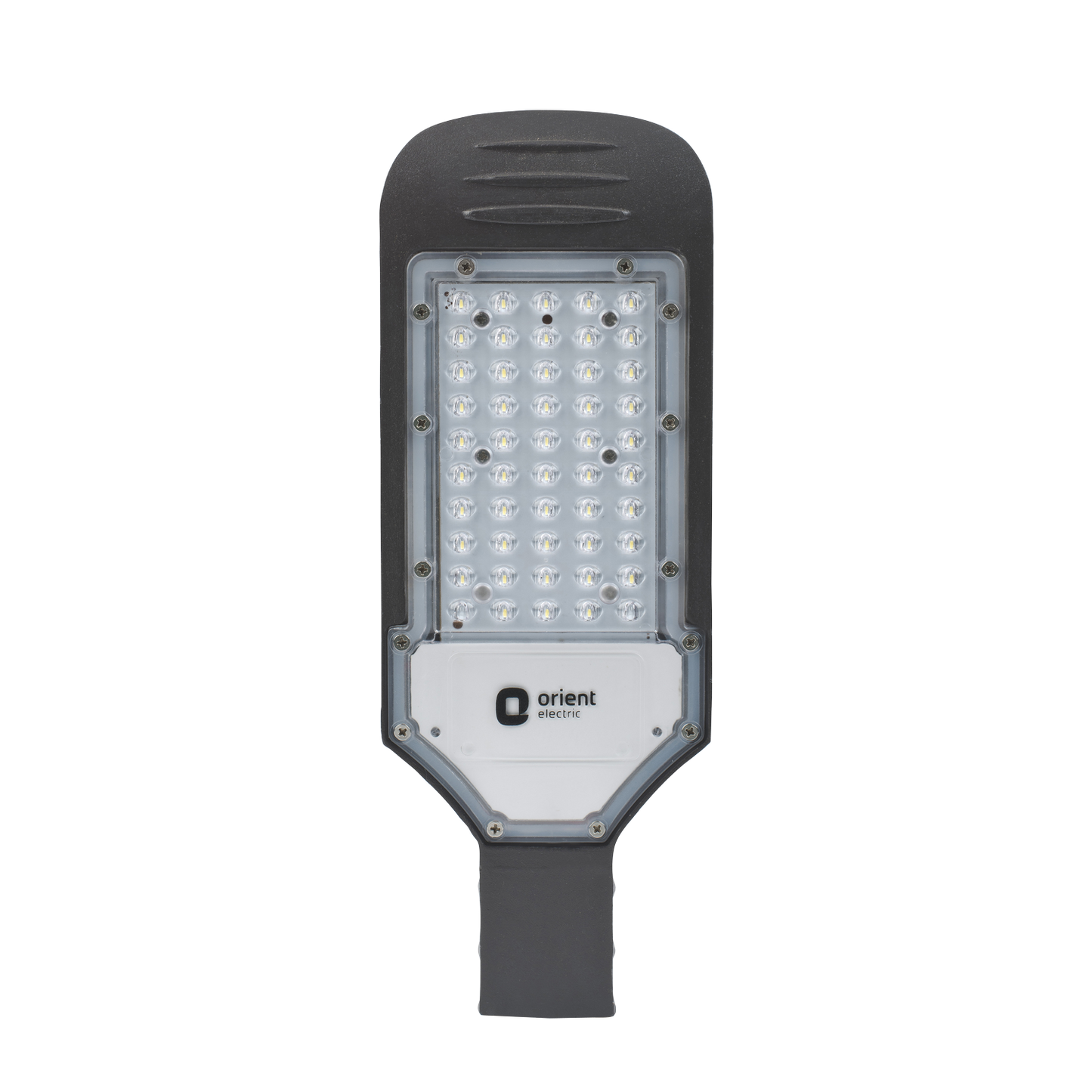

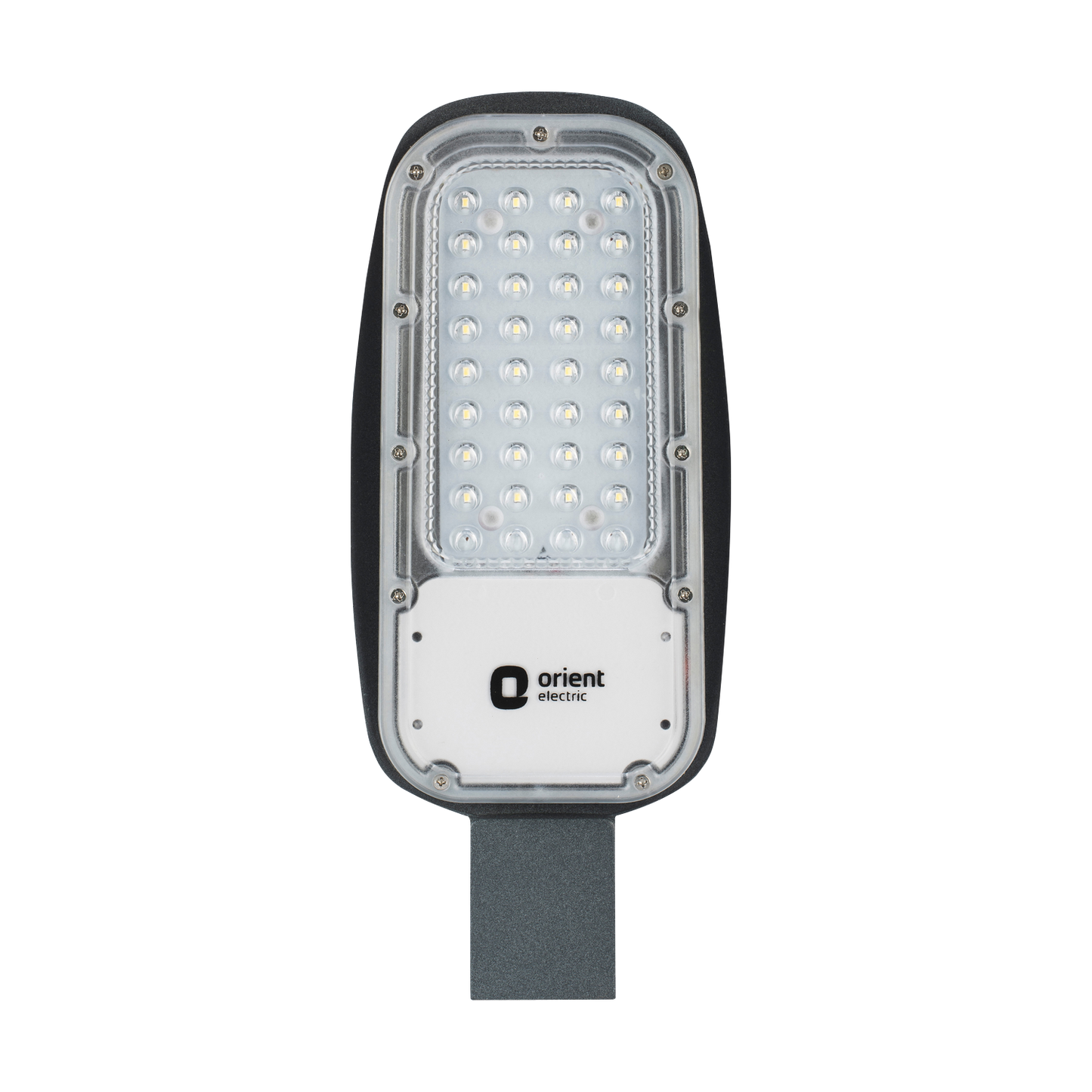

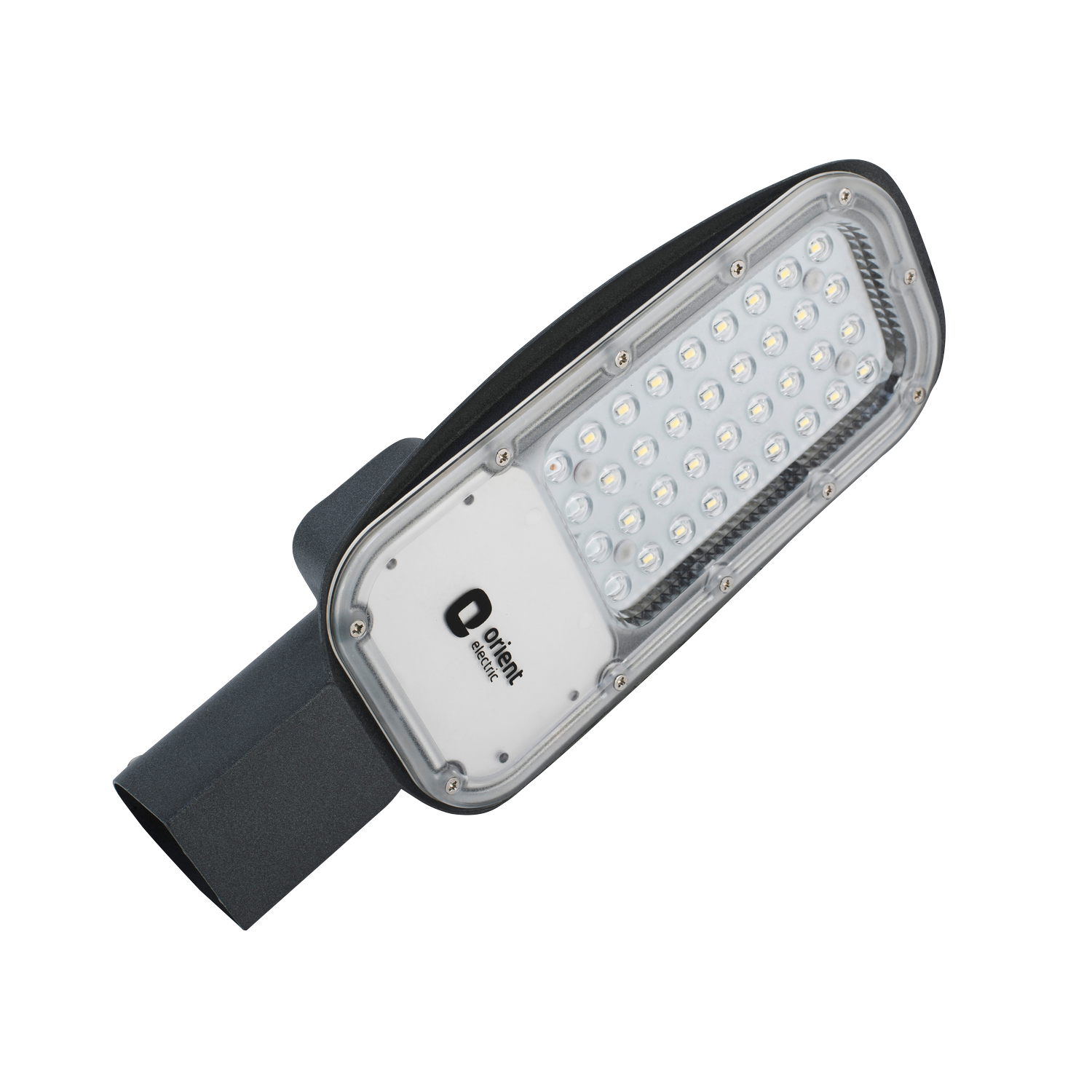

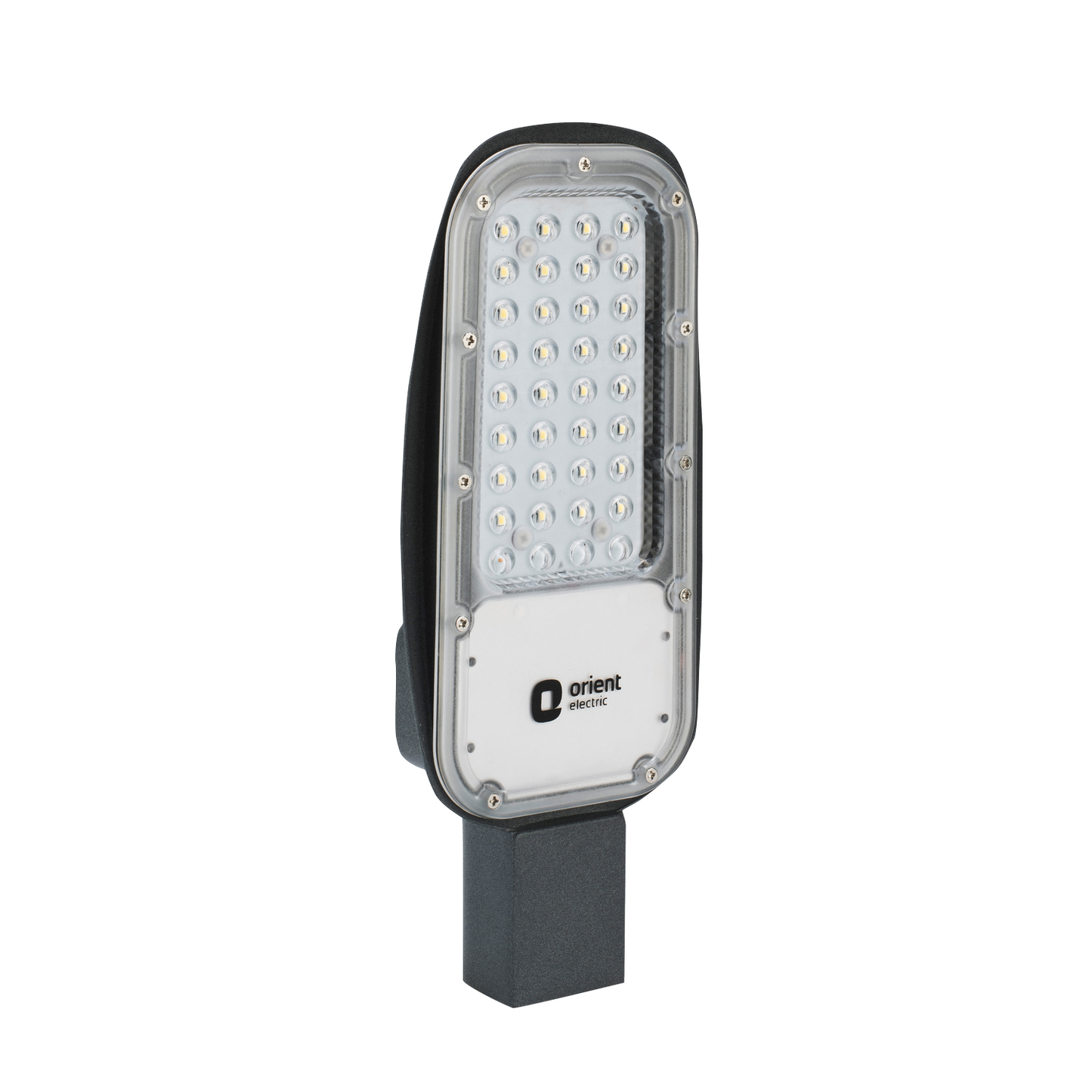

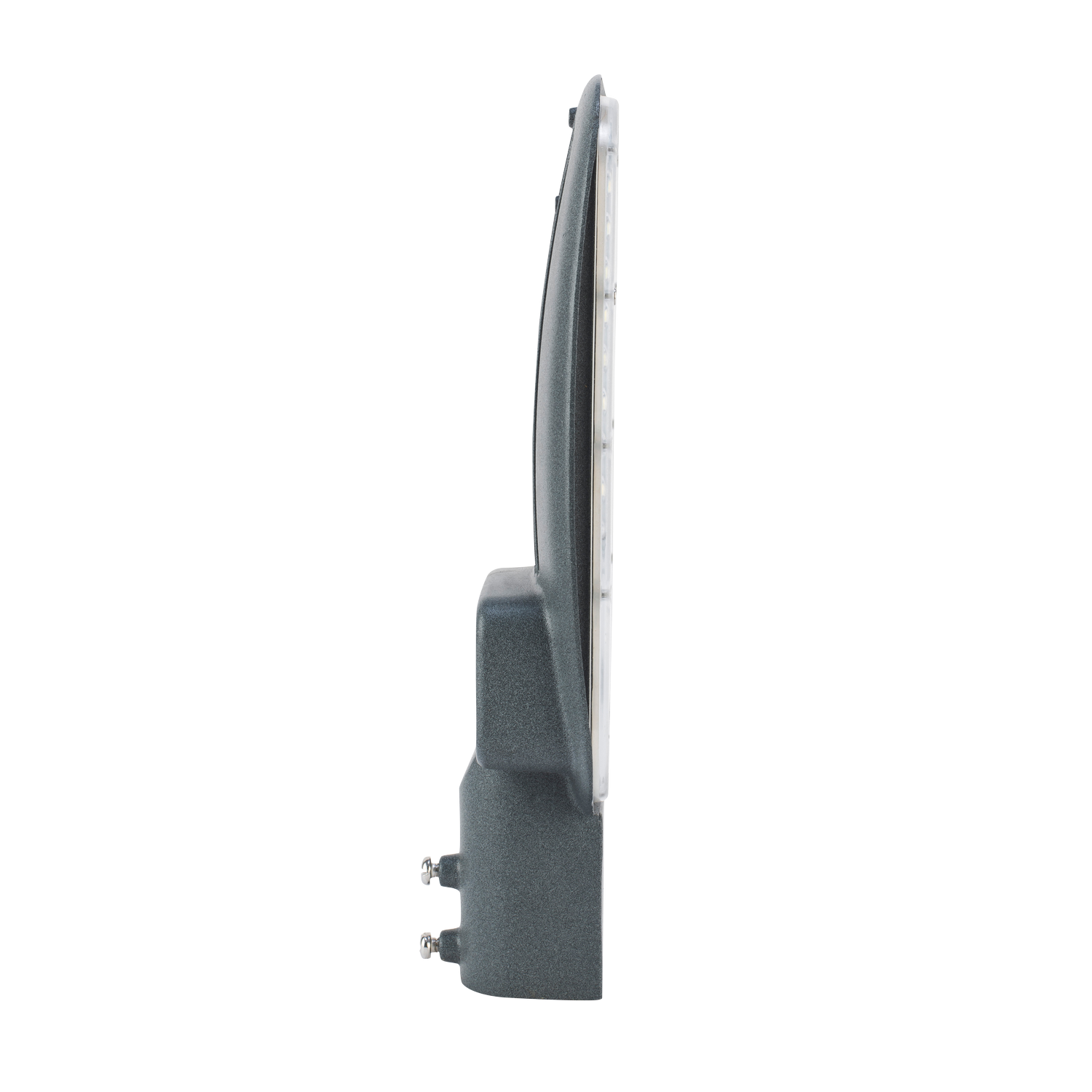

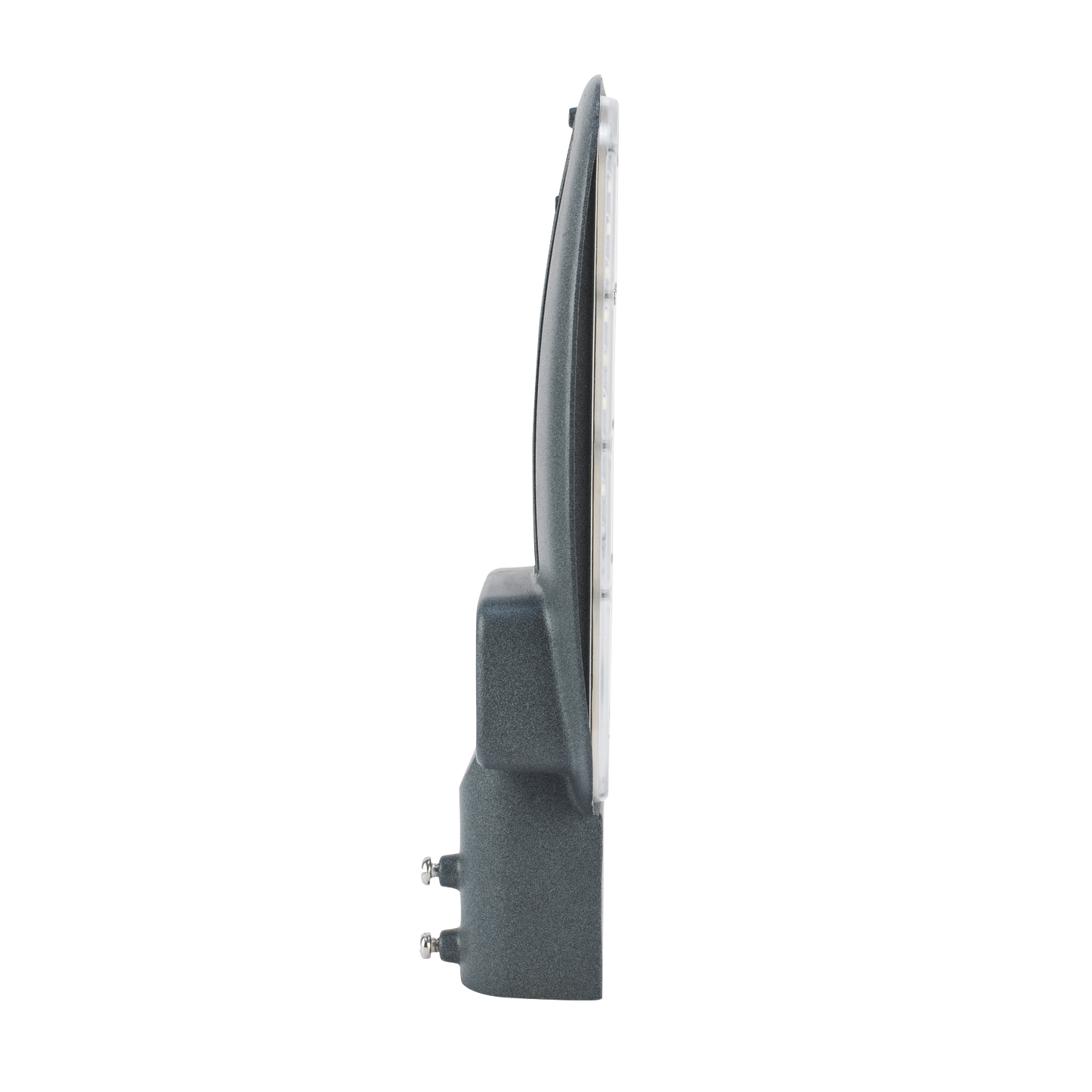

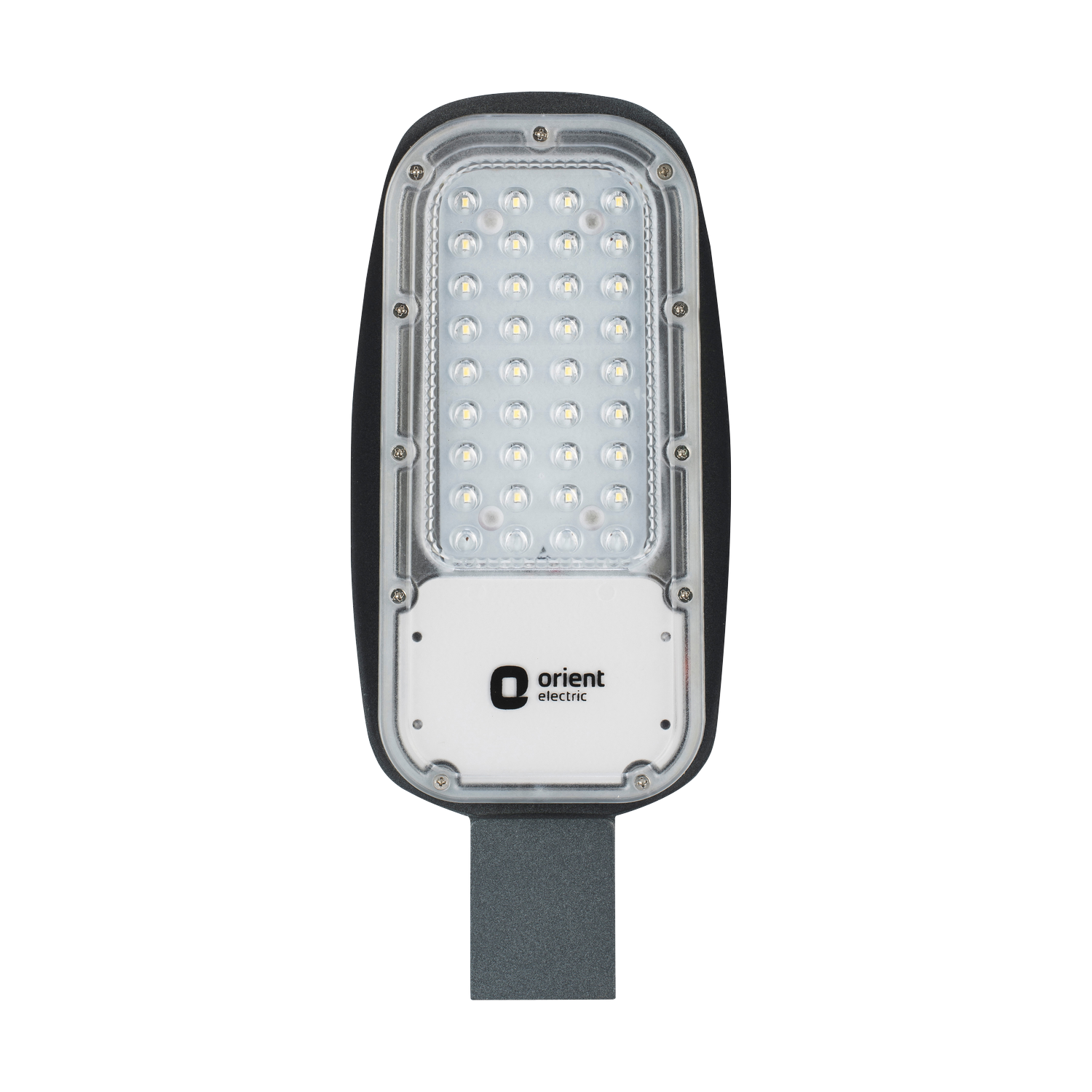

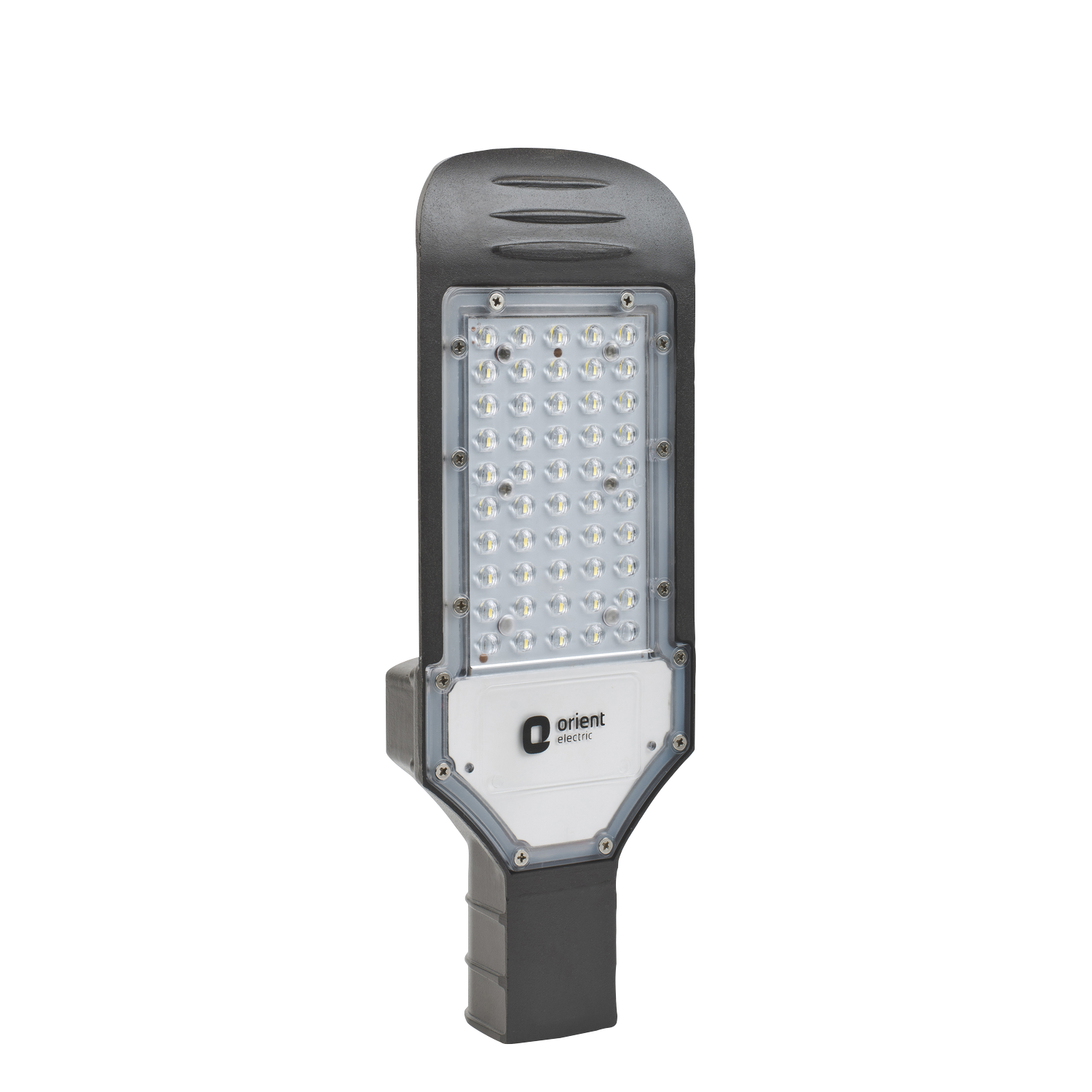

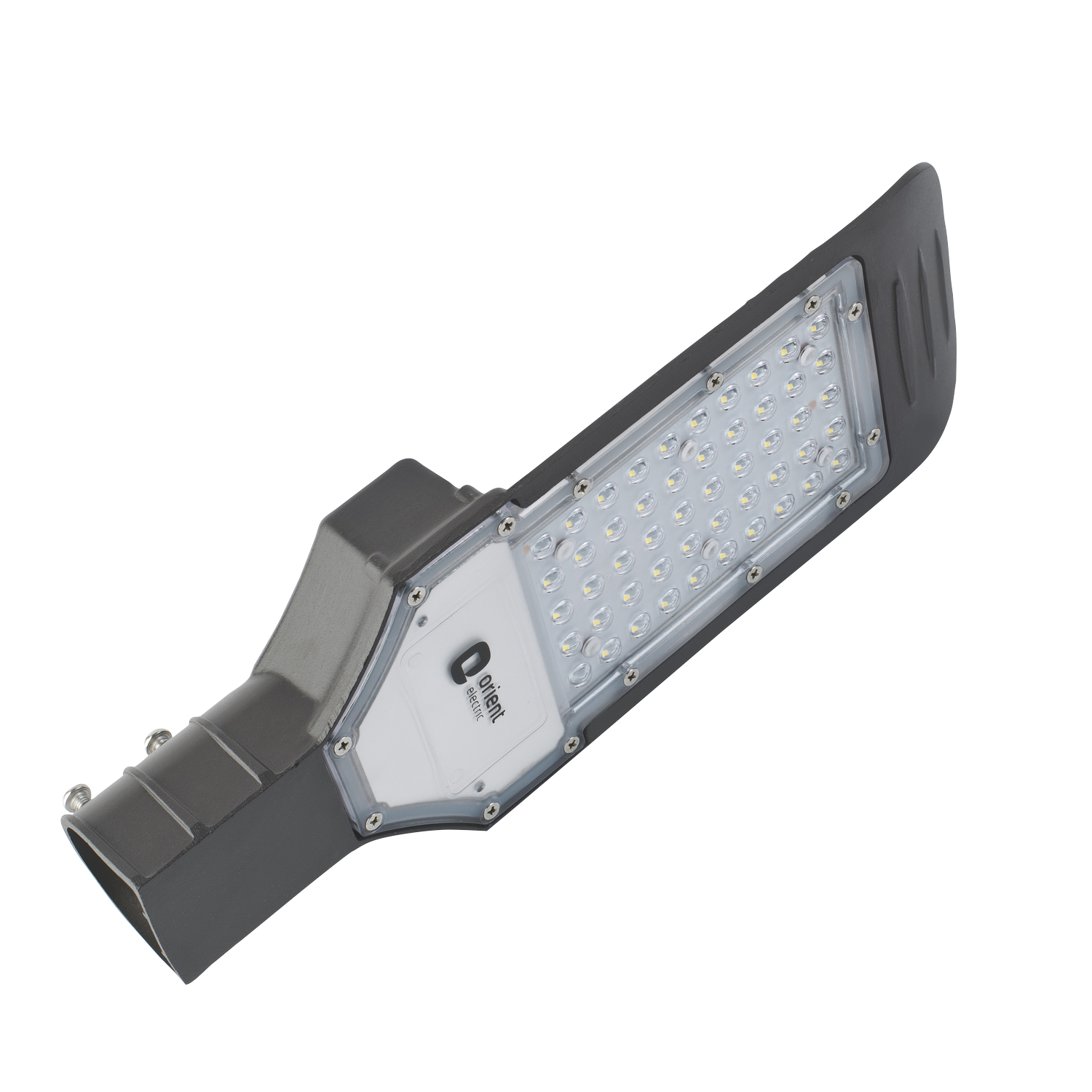

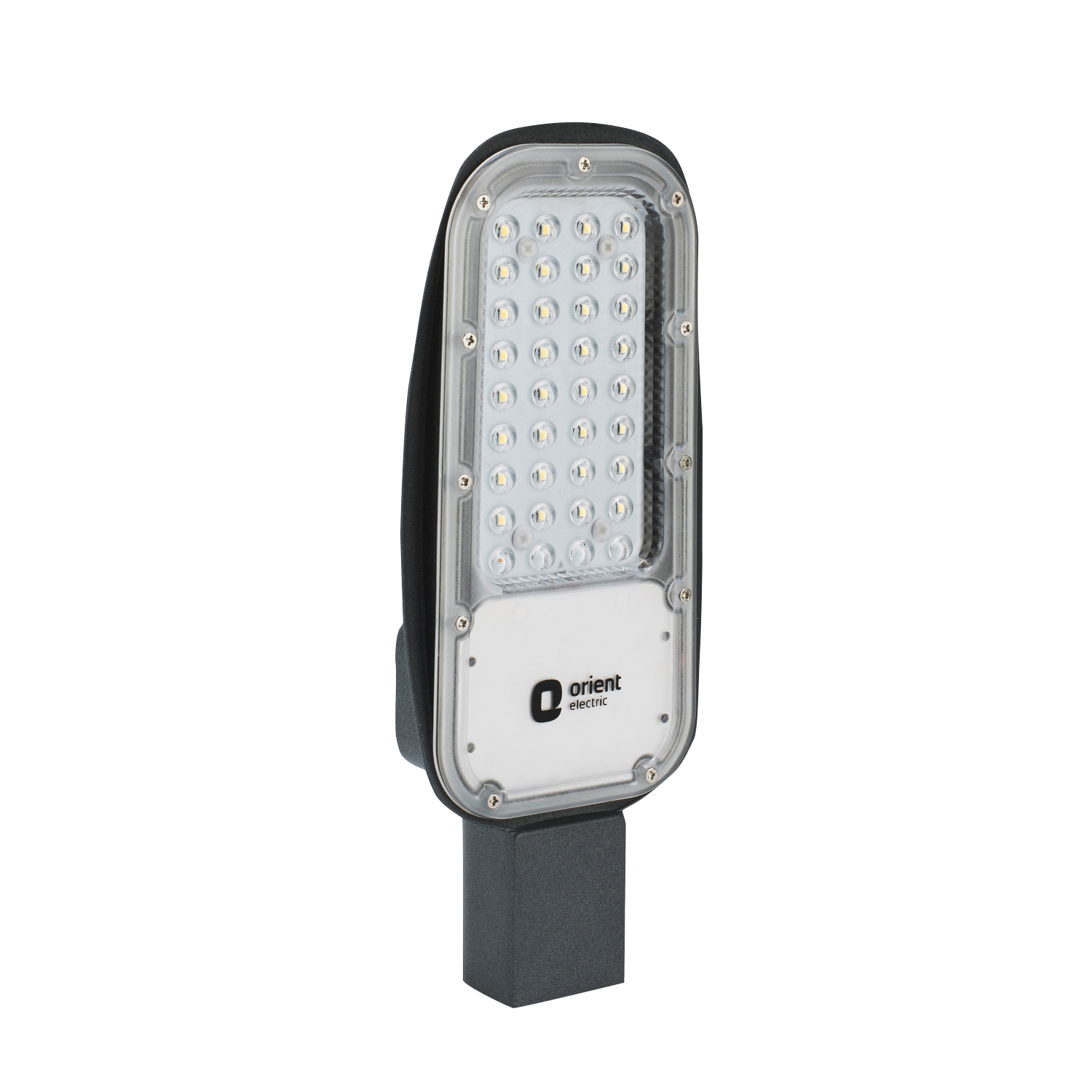

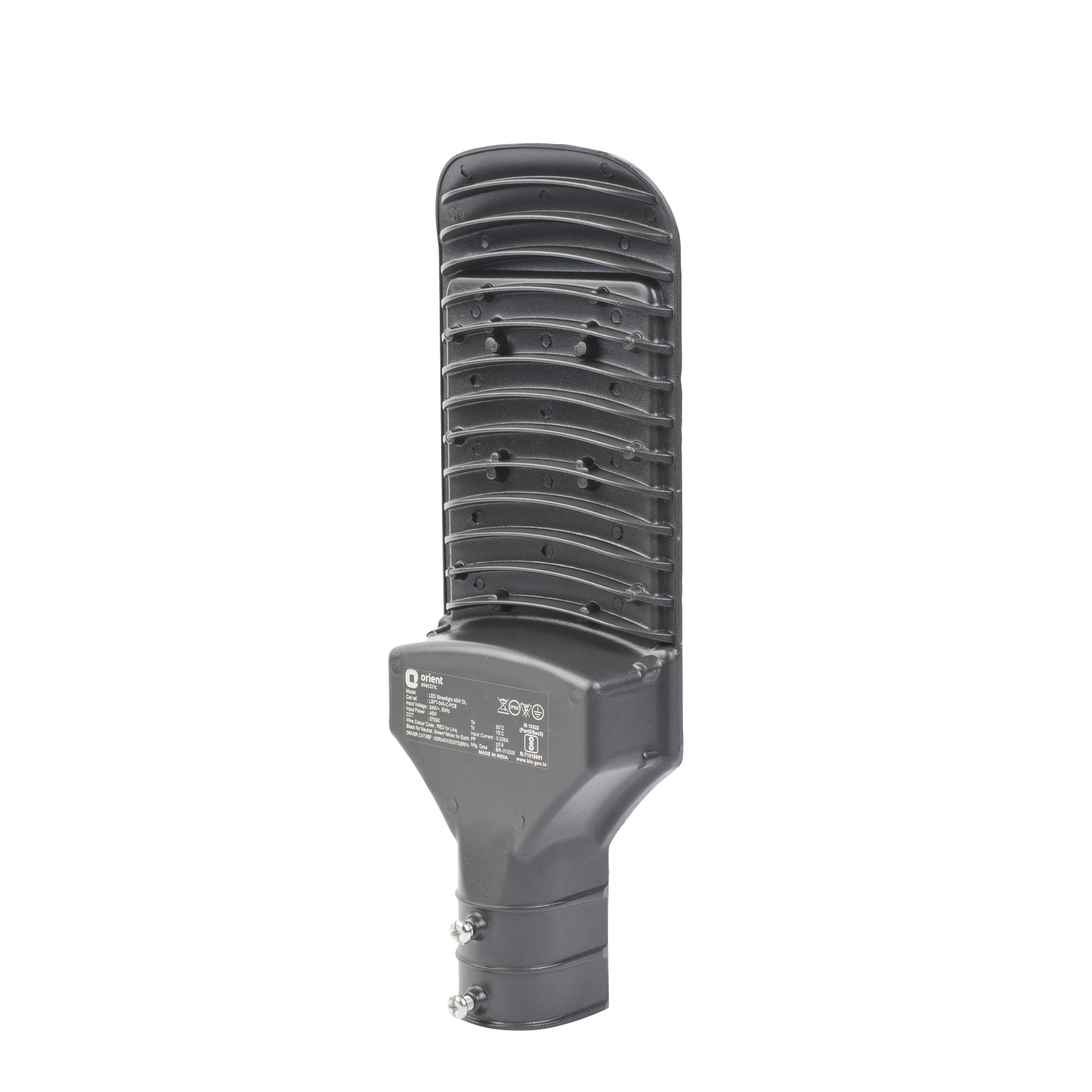

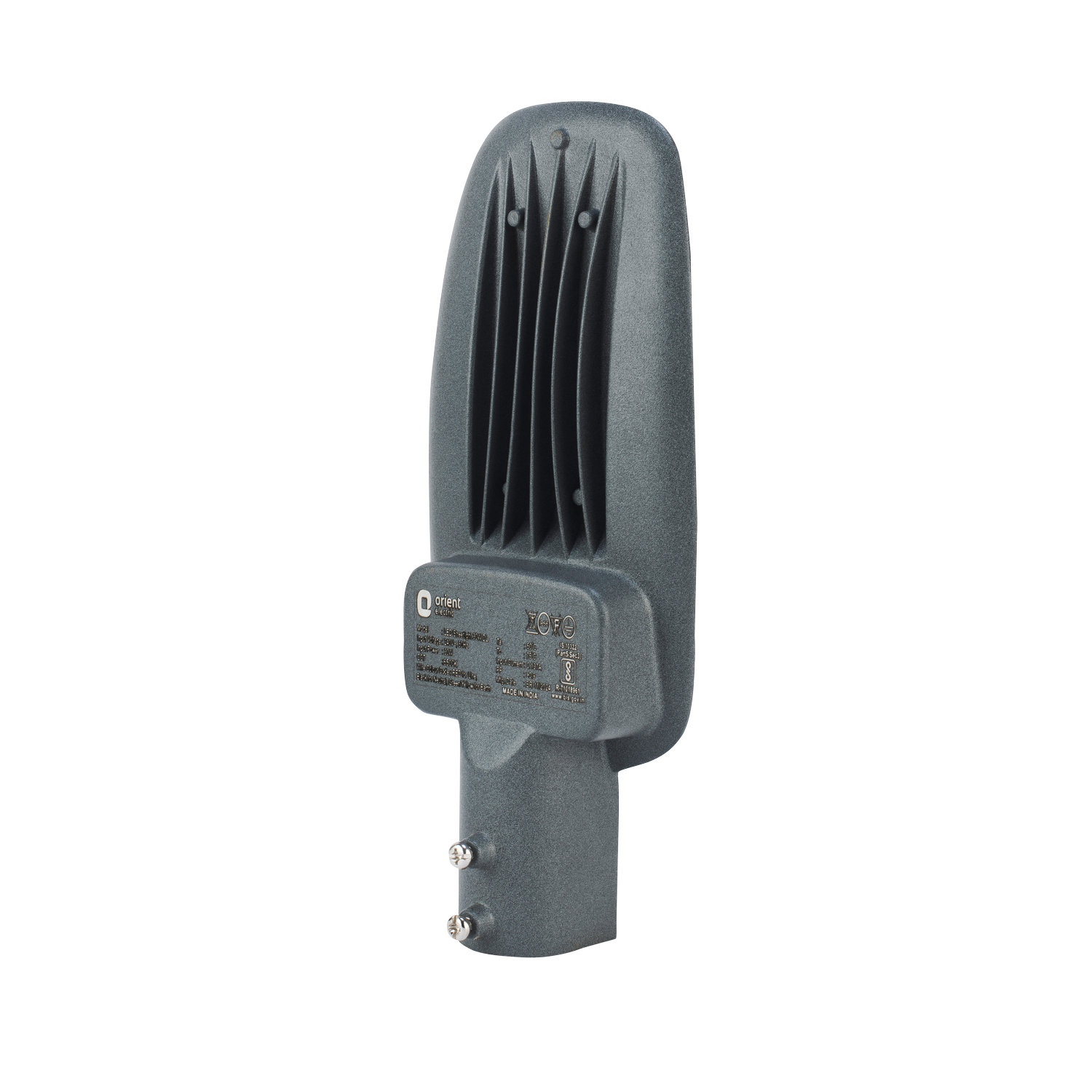

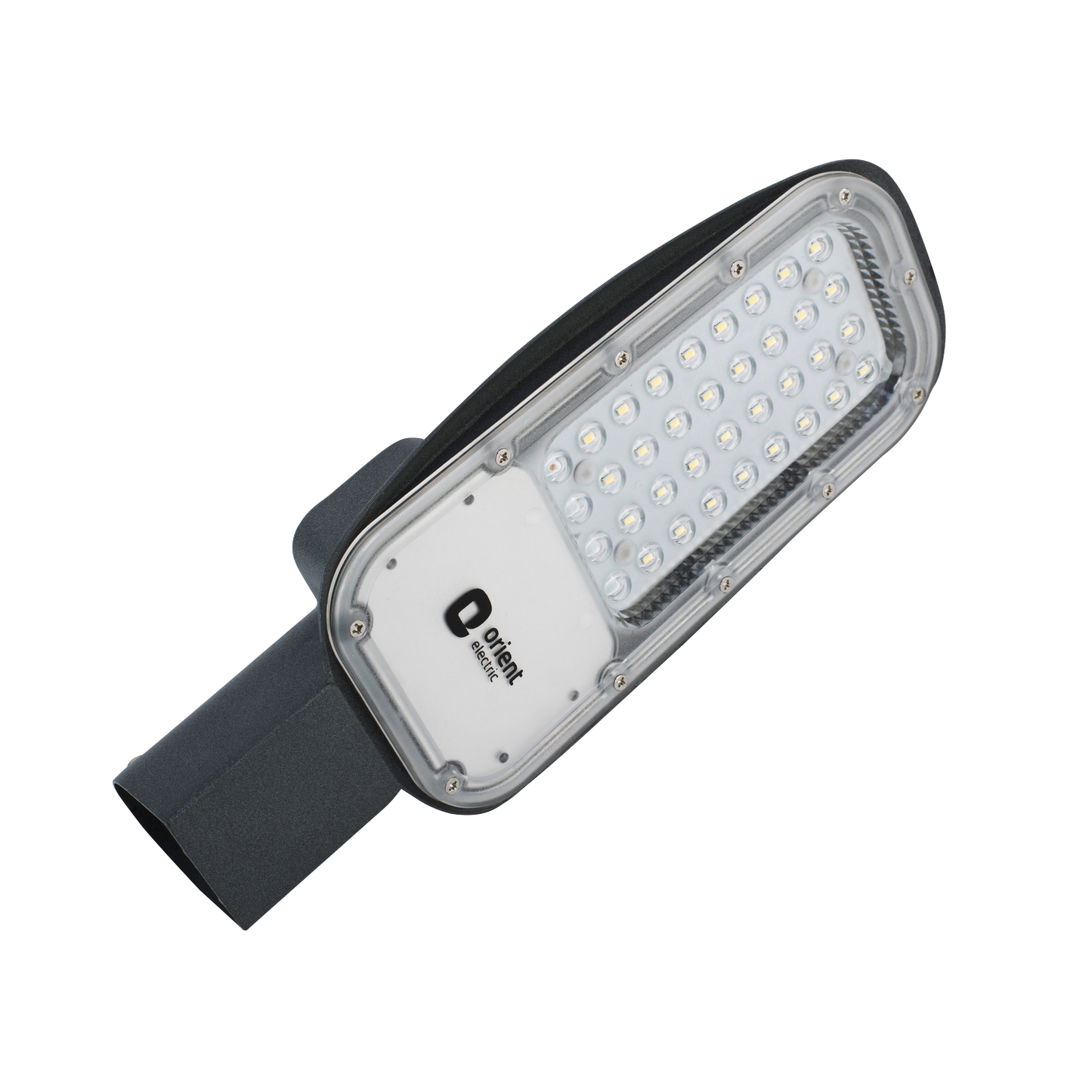

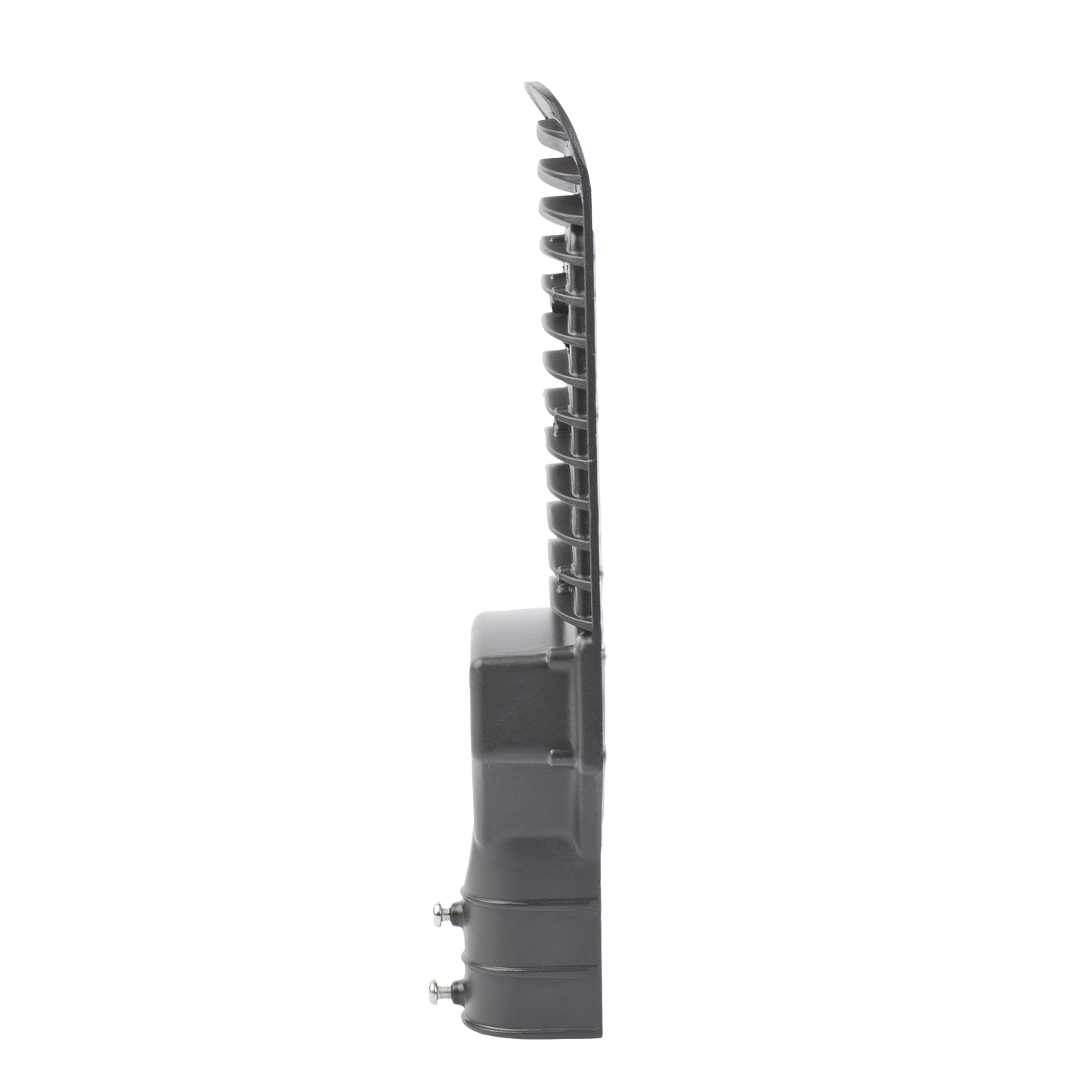

Highly efficient front-openable IP66 LED streetlight with aluminium pressure die-cast housing with integrated polycarbonate lens cover in the front for batwing light distribution to ensure uniform light distribution and higher spacing between poles.

Best suited for

Road lighting

Campus lighting

Industrial estates

Open parking

View full details
  • General specification

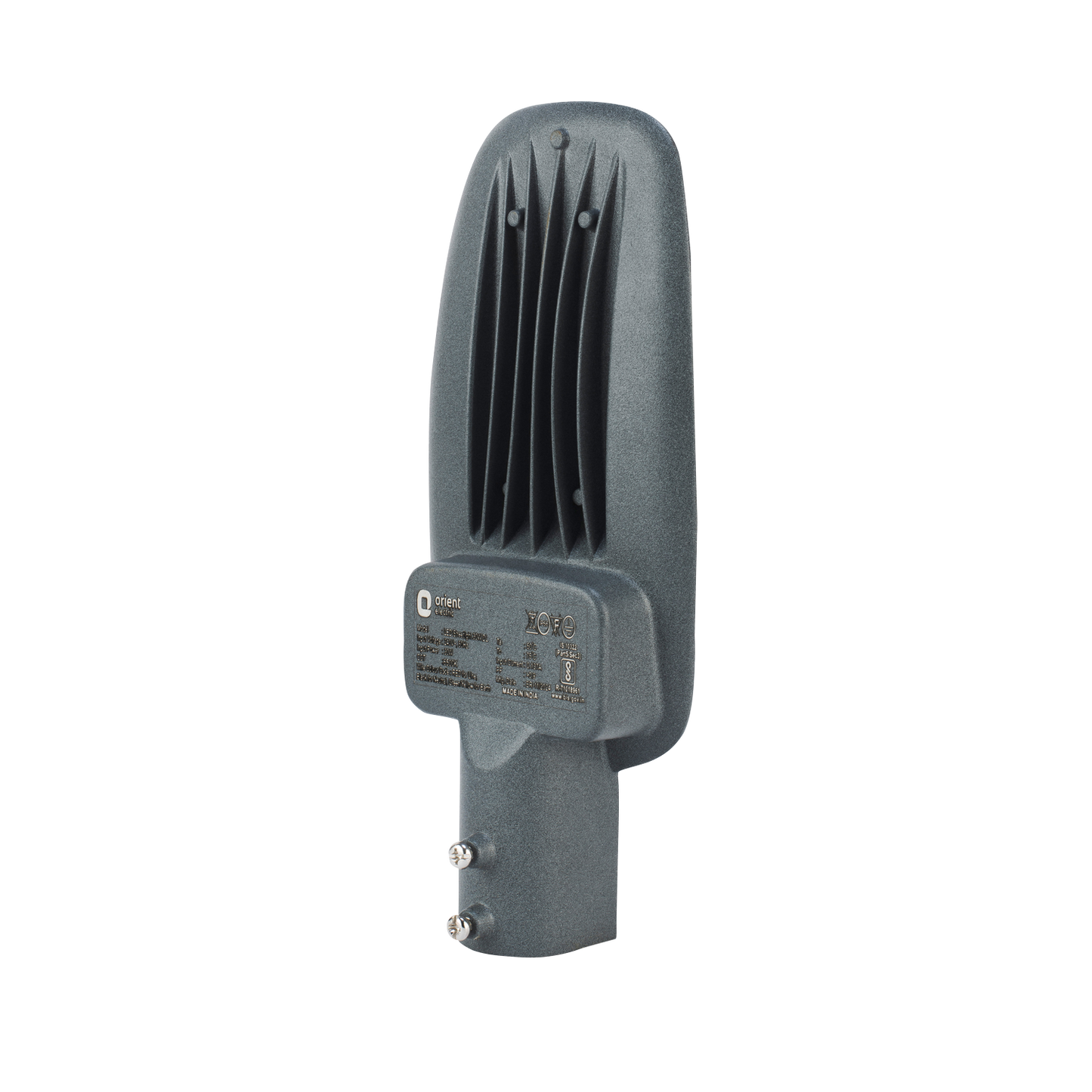

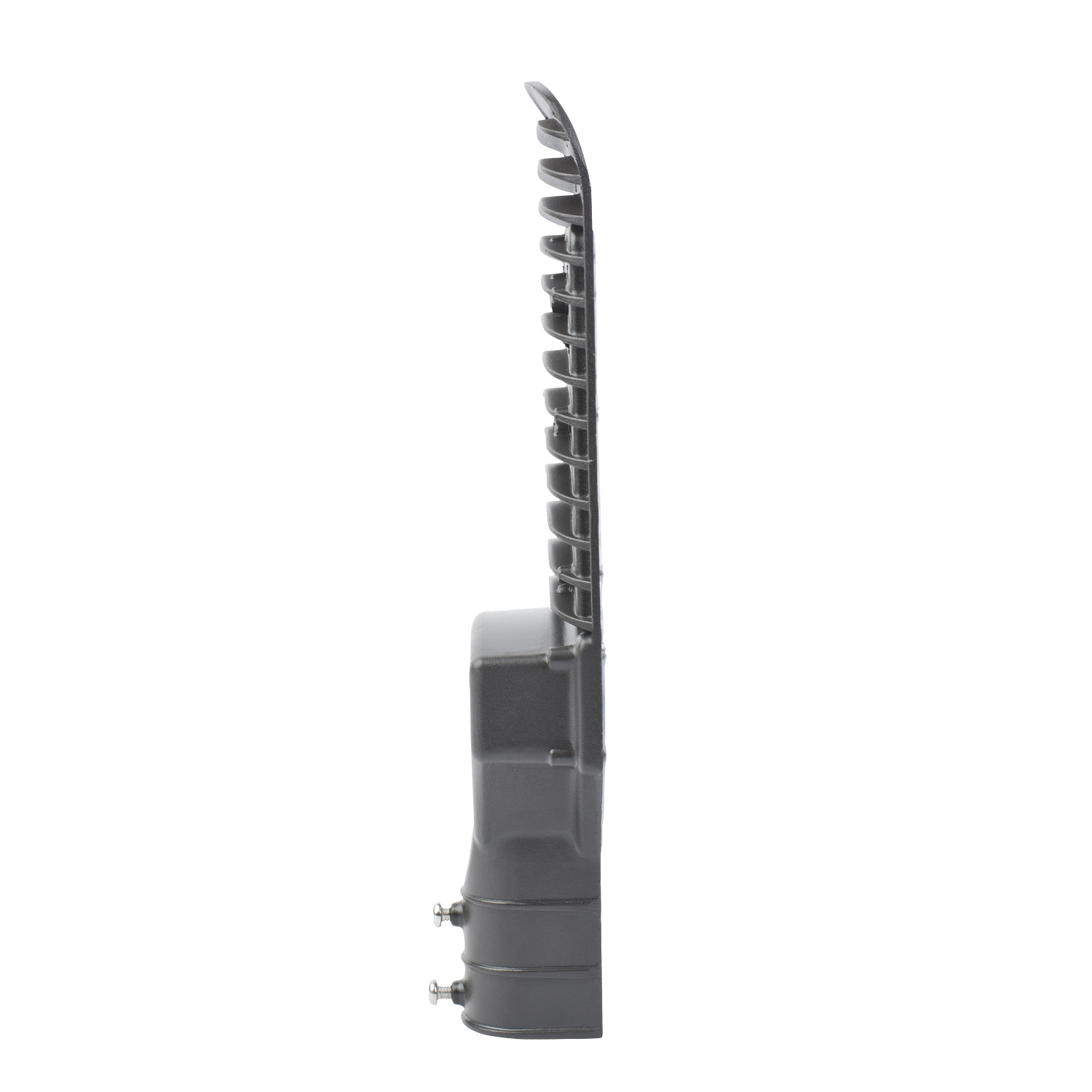

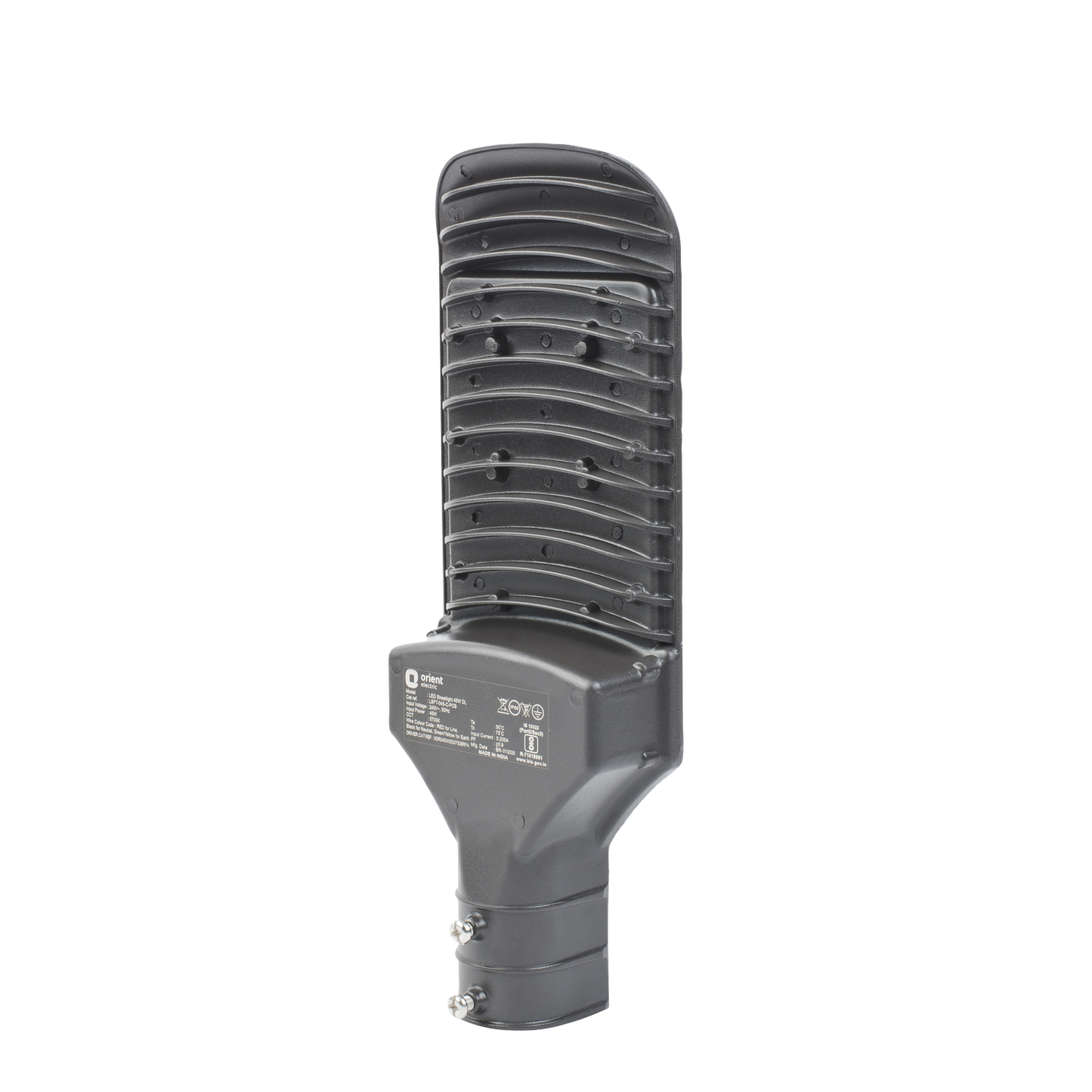

    Housing Excellent thermally managed Pressure die cast aluminum housing
    Optics Integrated polycarbonate lens cover in front of LEDs for batwing distribution of 135°x 85°.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV ;optional 10 KV external SPD
    IP 66
  • Technical Specifications
    System Wattage 20W, 25W, 30W, 36W, 45W, 50W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥110 , ≥100
Exter variants
Product Variants
Exter
LSET-020-C-PC
Exter
LSET-025-C-PC
Exter
LSET-030-C-PC
Exter
LSET-036-C-PC
Exter
LSET-045-C-PC
Exter
LSET-050-C-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
266
100
55
25W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
266
100
55
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
307
130
55
36W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
307
130
55
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
345
155
55
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
345
155
55
