Product Overview

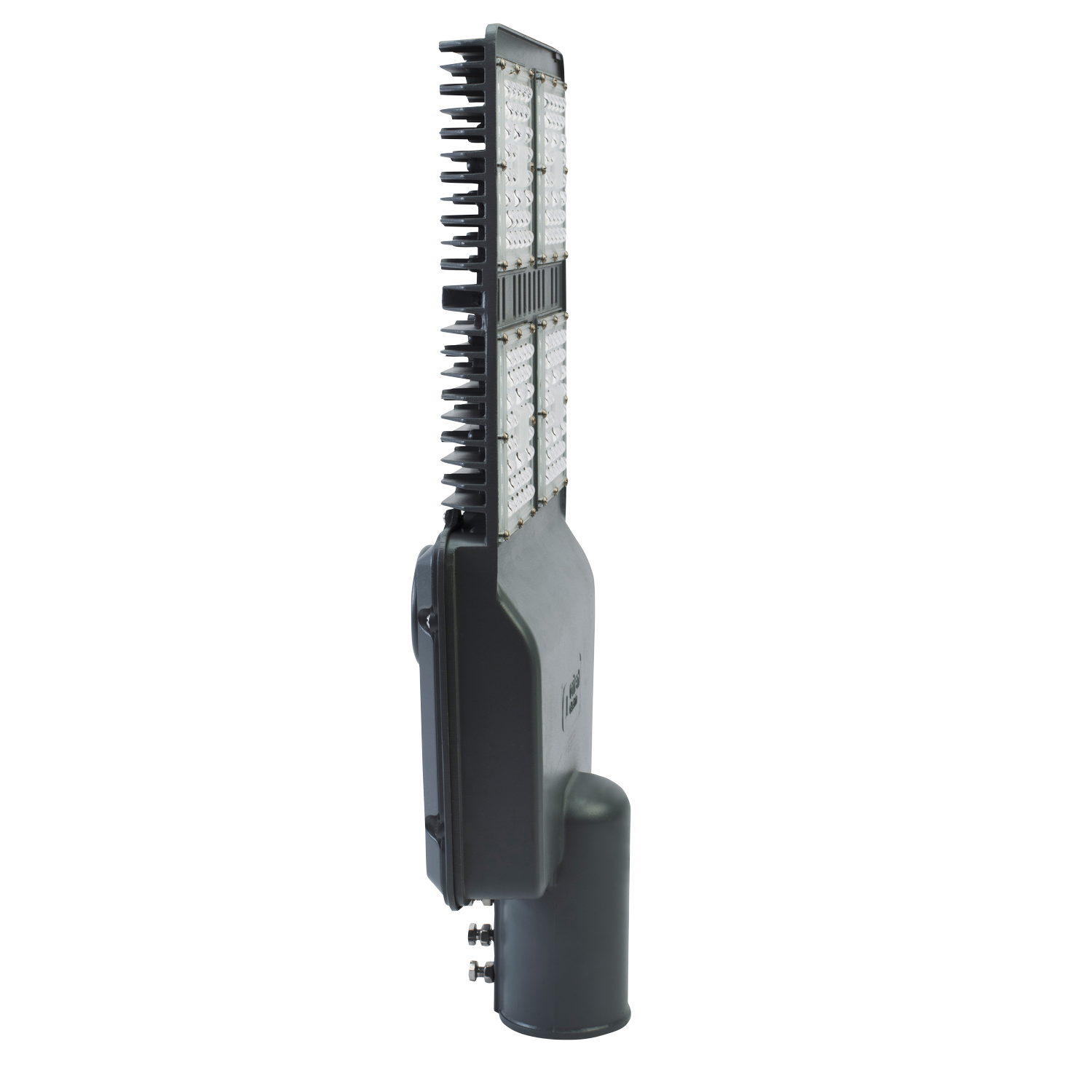

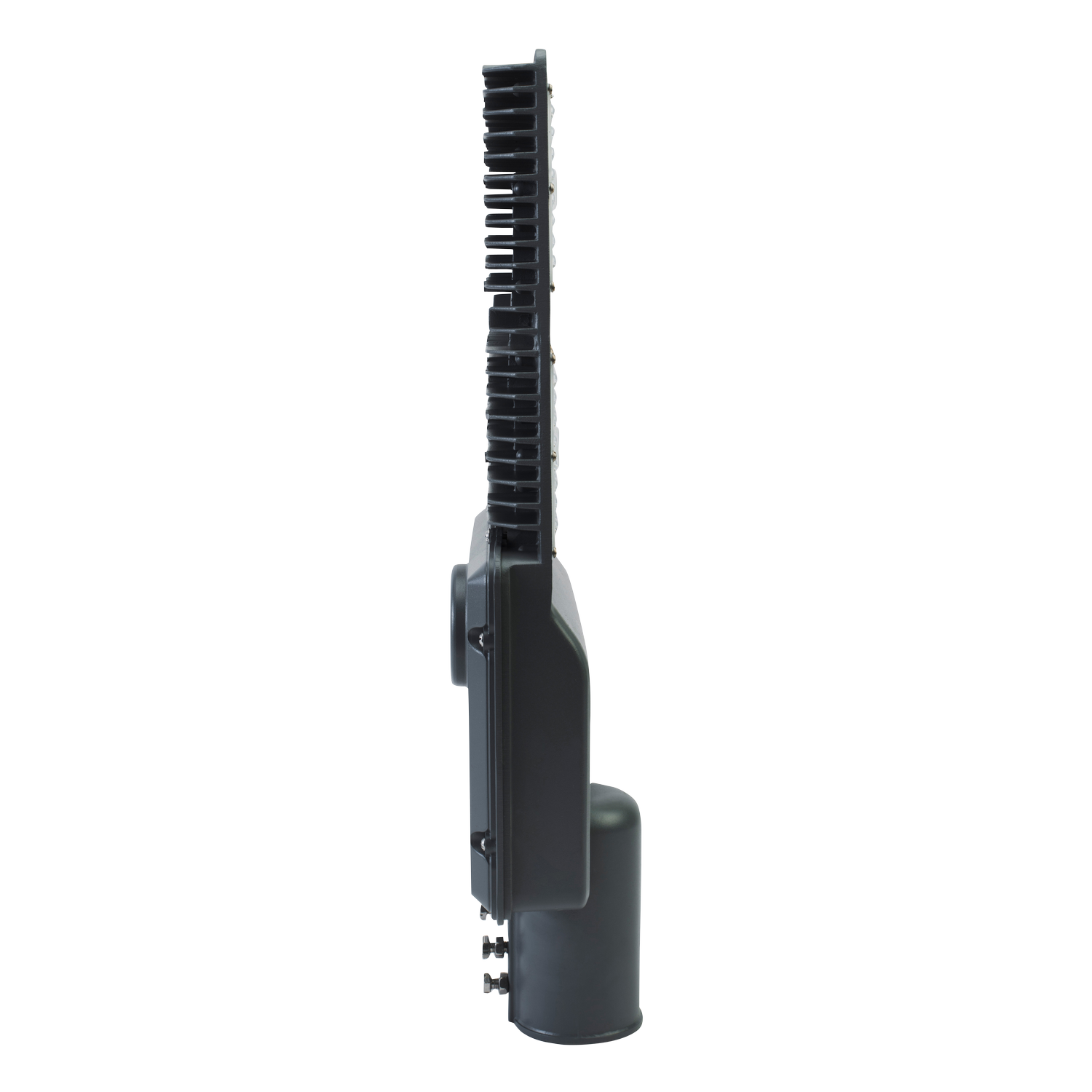

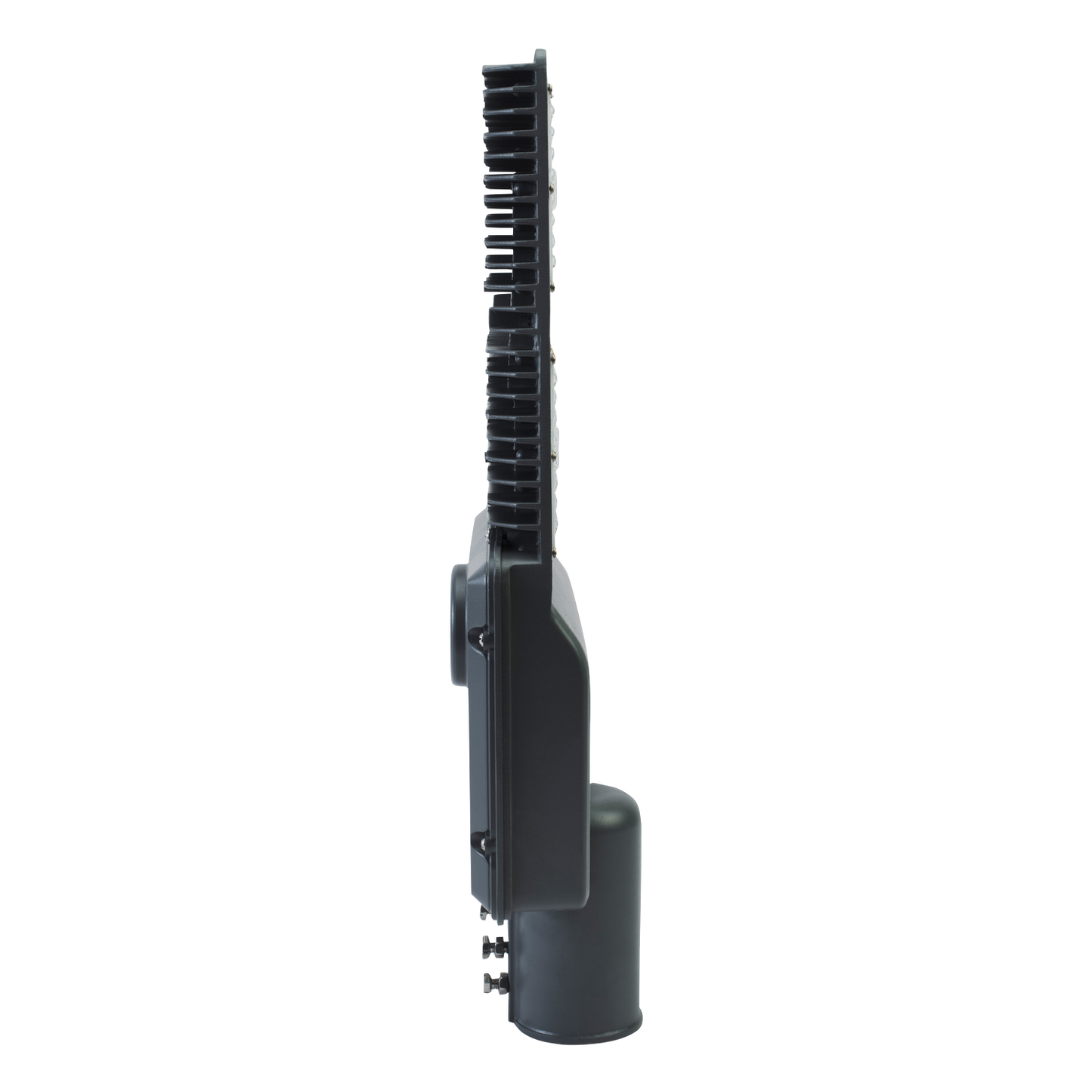

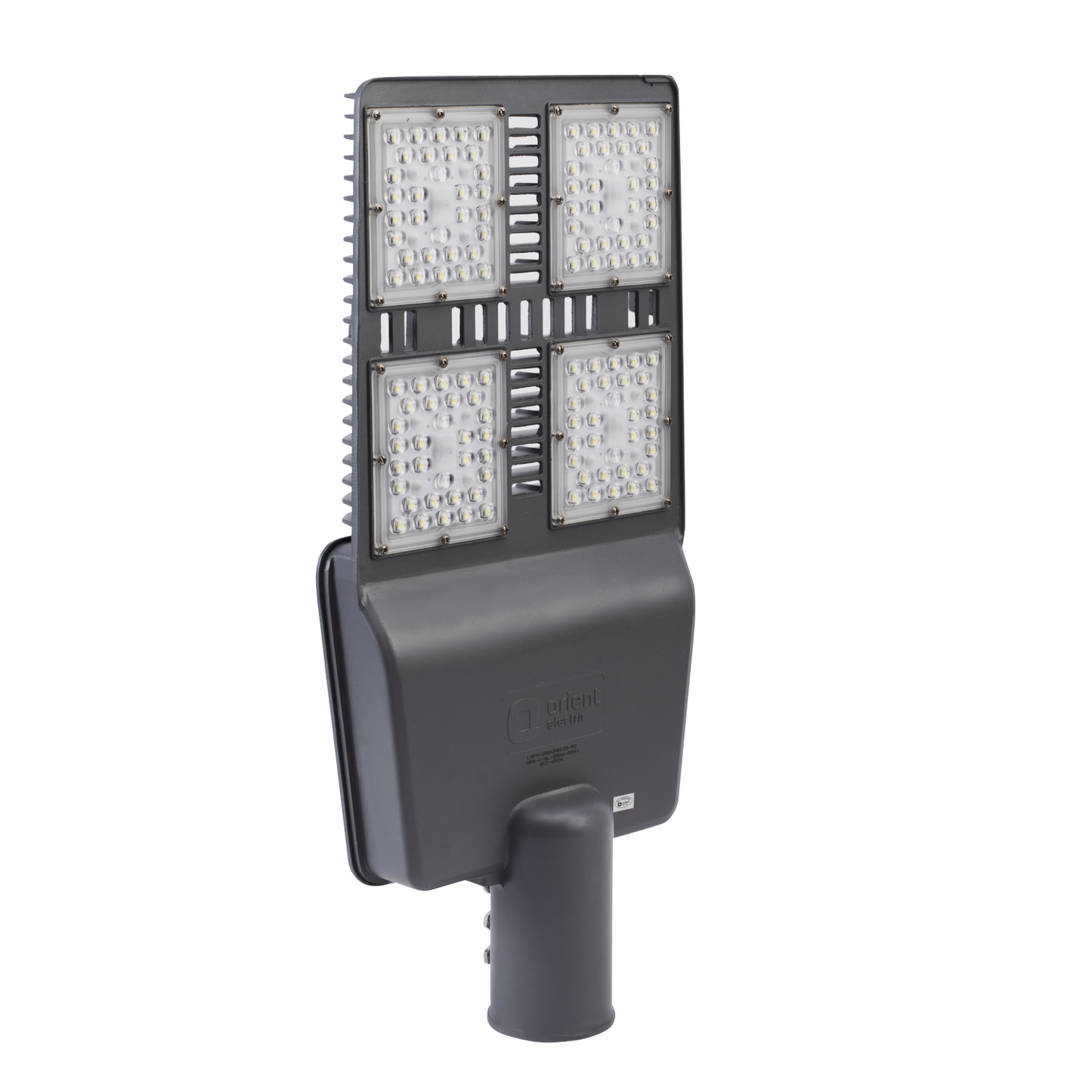

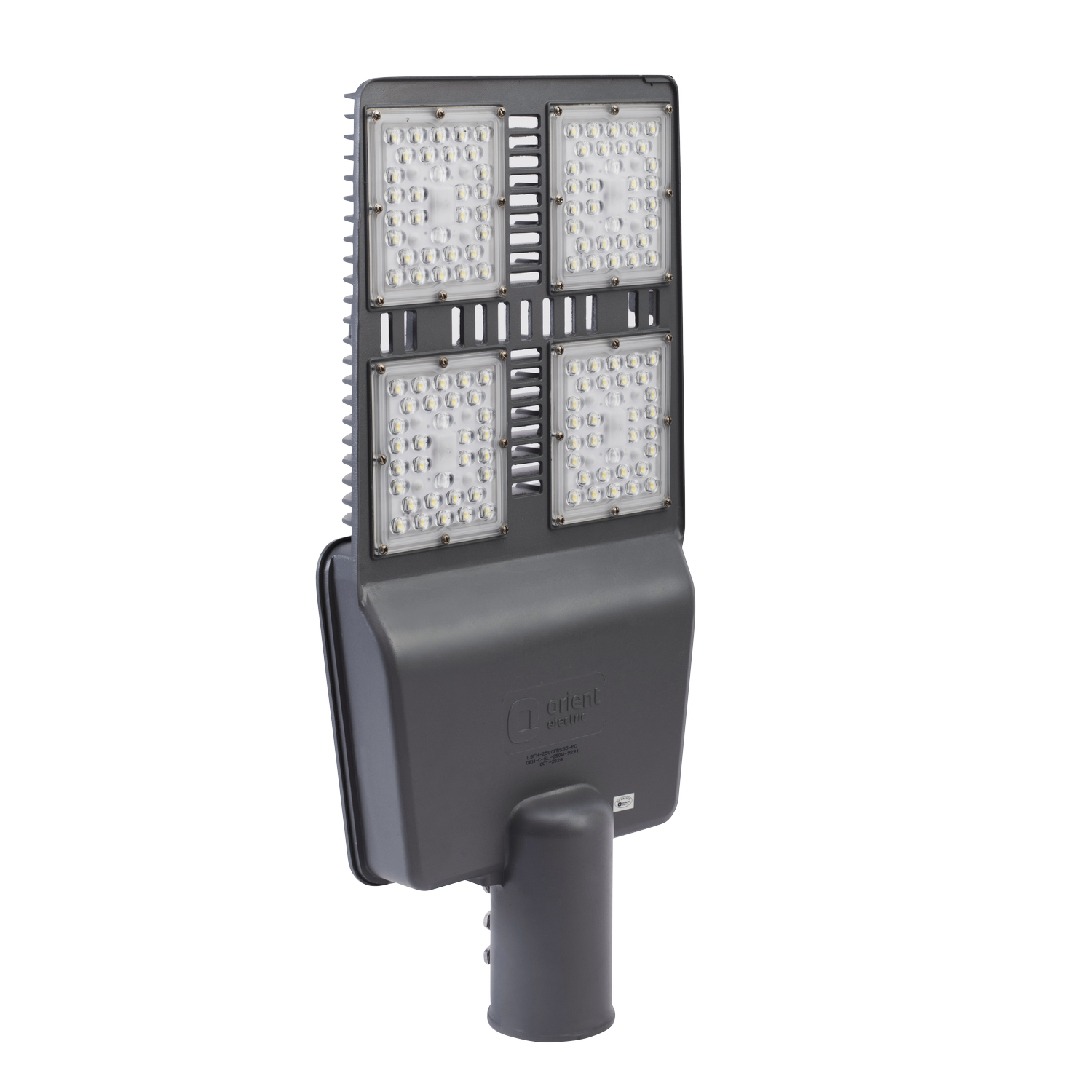

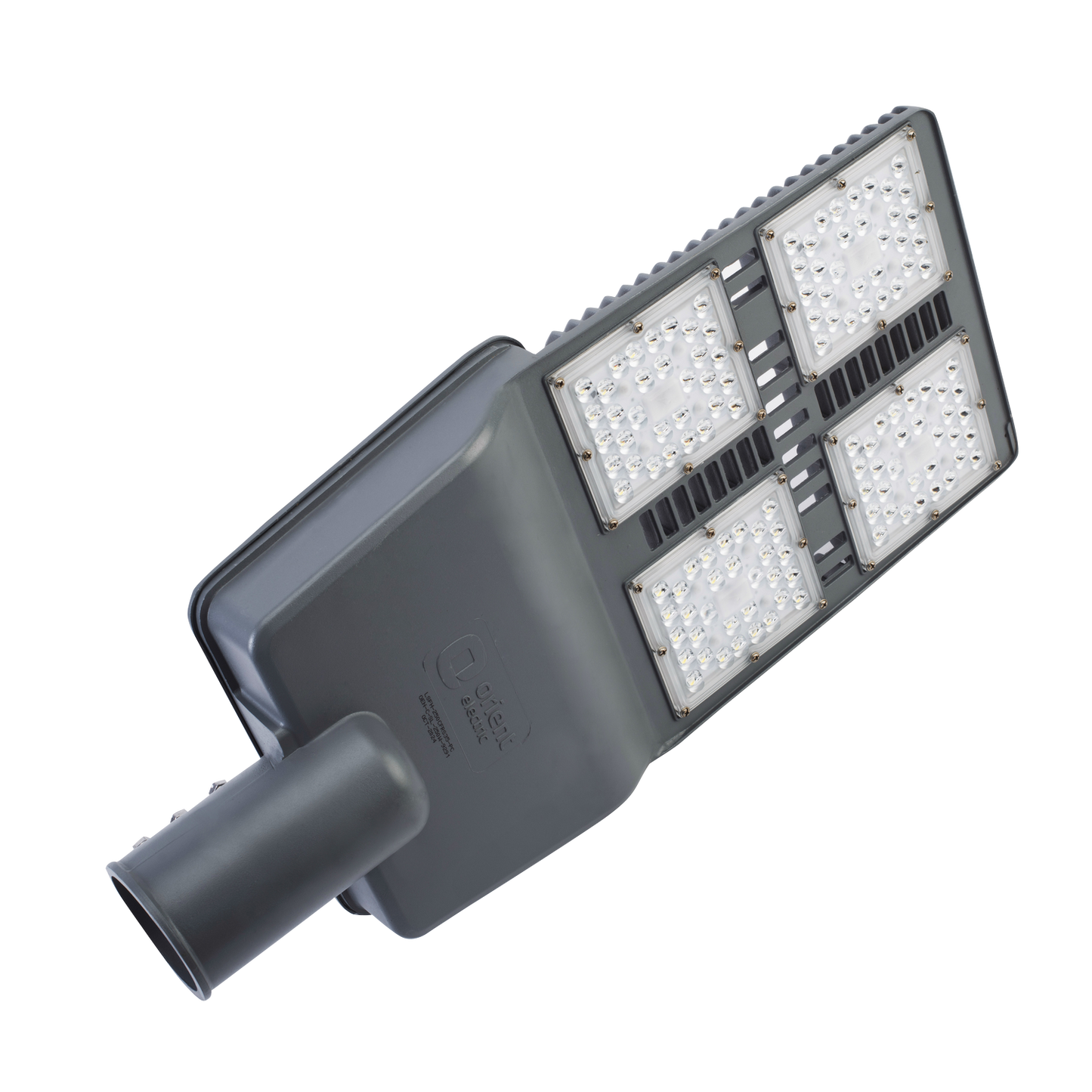

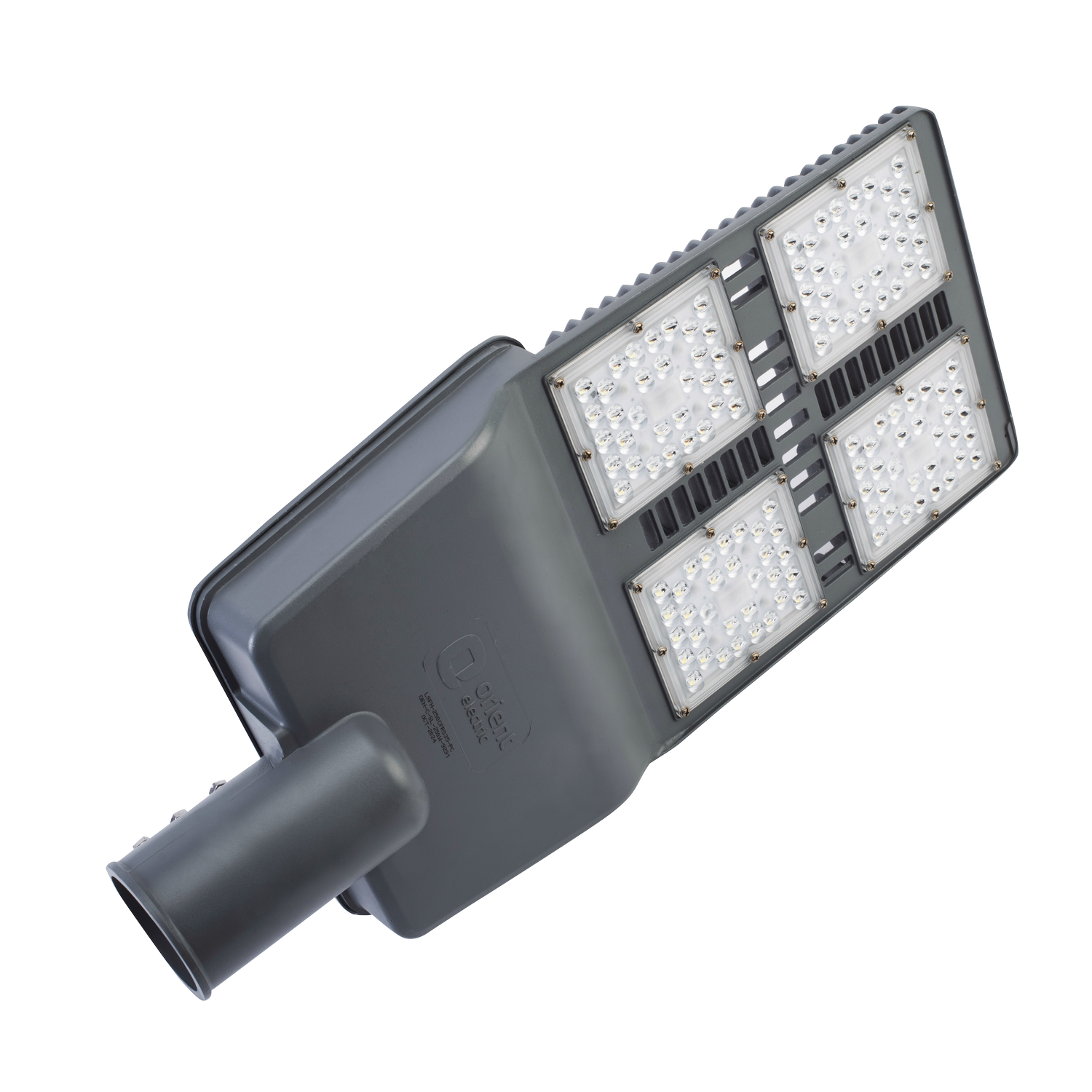

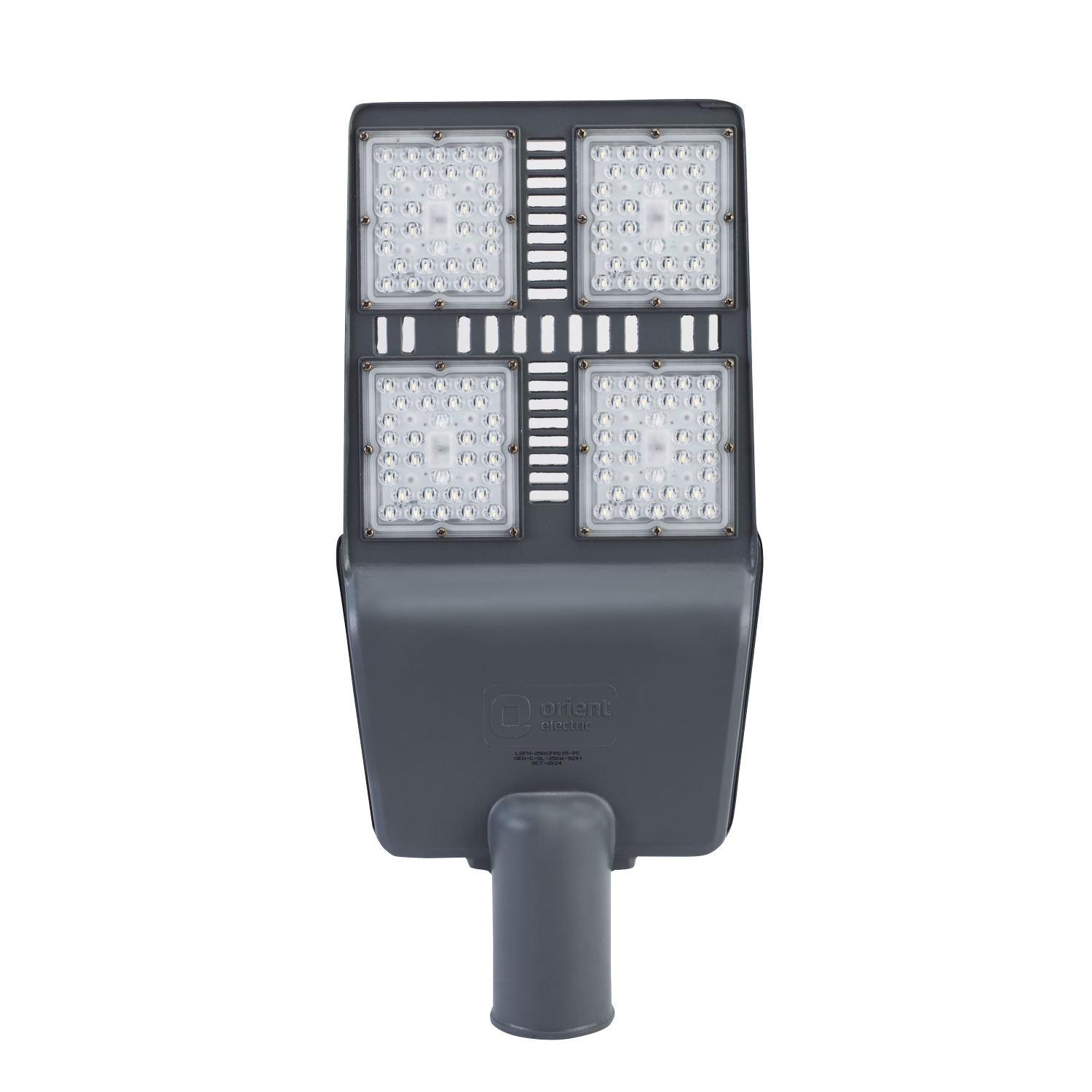

Highly efficient IP66 LED streetlight with high-power LEDs having aluminium pressure die-cast housing and PC cover in the front and lens for batwing light distribution with ≥130lm/W suitable for highways and expressways for optimised lighting solution with higher pole spacing.

View full details
  • General specification
    Housing Excellent thermally managed Pressure die cast aluminum housing
    Optics Integrated polycarbonate lens cover in front of LEDs for batwing distribution.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV; 10 KV external SPD
    IP 66
  • Technical Specifications
    System Wattage 150W, 180W, 200W, 220W, 250W, 300W, 350W
    CCT 5700K ,3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥130 ,≥120
Falcon variants
Product Variants
Falcon
LSFH-150CFRS35-PC
Falcon
LSFH-180CFRS35-PC
Falcon
LSFH-200CFRS35-PC
Falcon
LSFH-220CFRS35-PC
Falcon
LSFH-250CFRS35-PC
Falcon
LSFH-300CFRS35-PC
Falcon
LSFH-350CFRS35-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Pole OD (in mm)
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
595
285
117
64
180W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
595
285
117
64
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
595
285
117
64
220W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
595
285
117
64
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
595
285
117
64
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
618
437
138
64
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥130
618
437
138
64
