Fiesta Plus PC

Fiesta Plus PC

Fiesta Plus PC

Product Overview

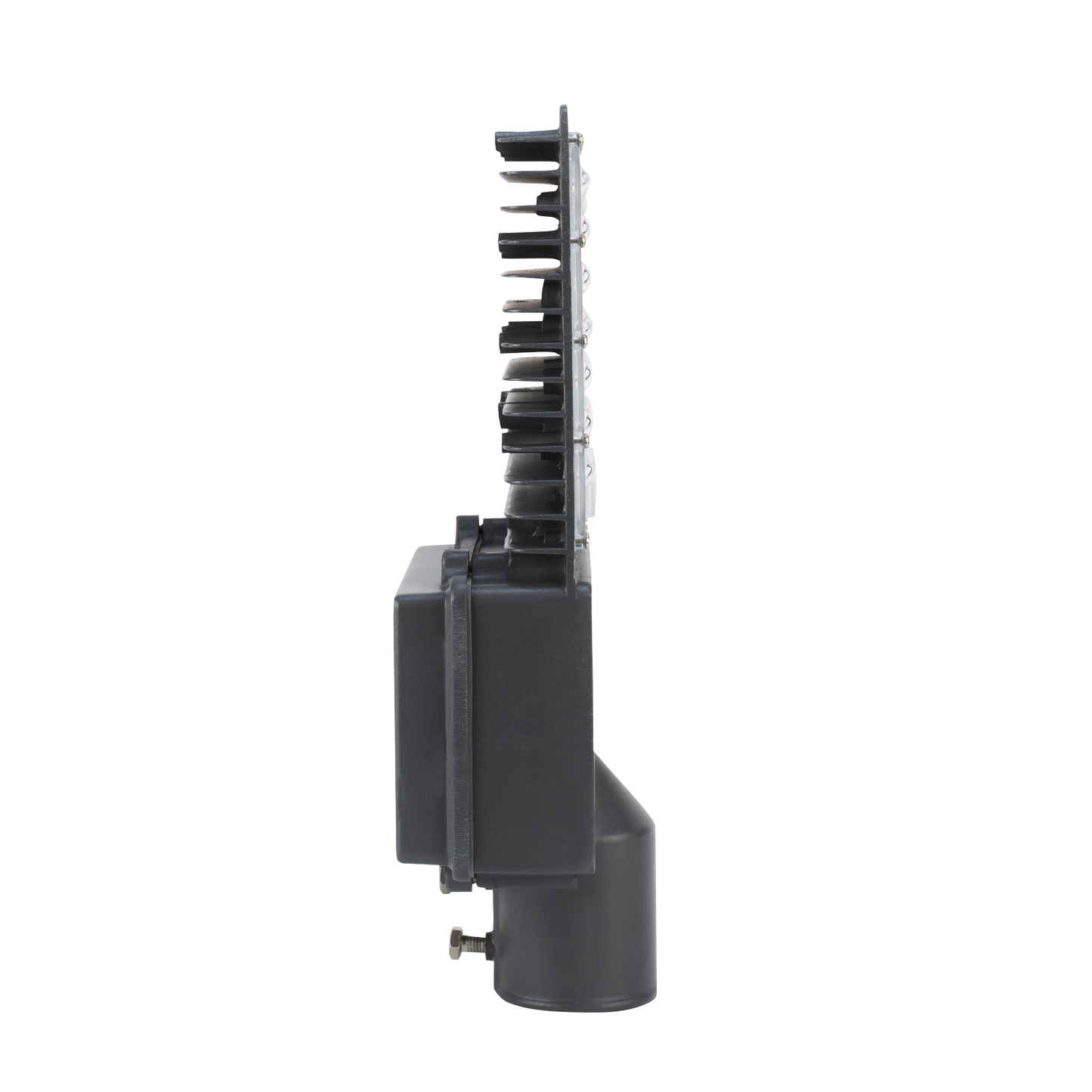

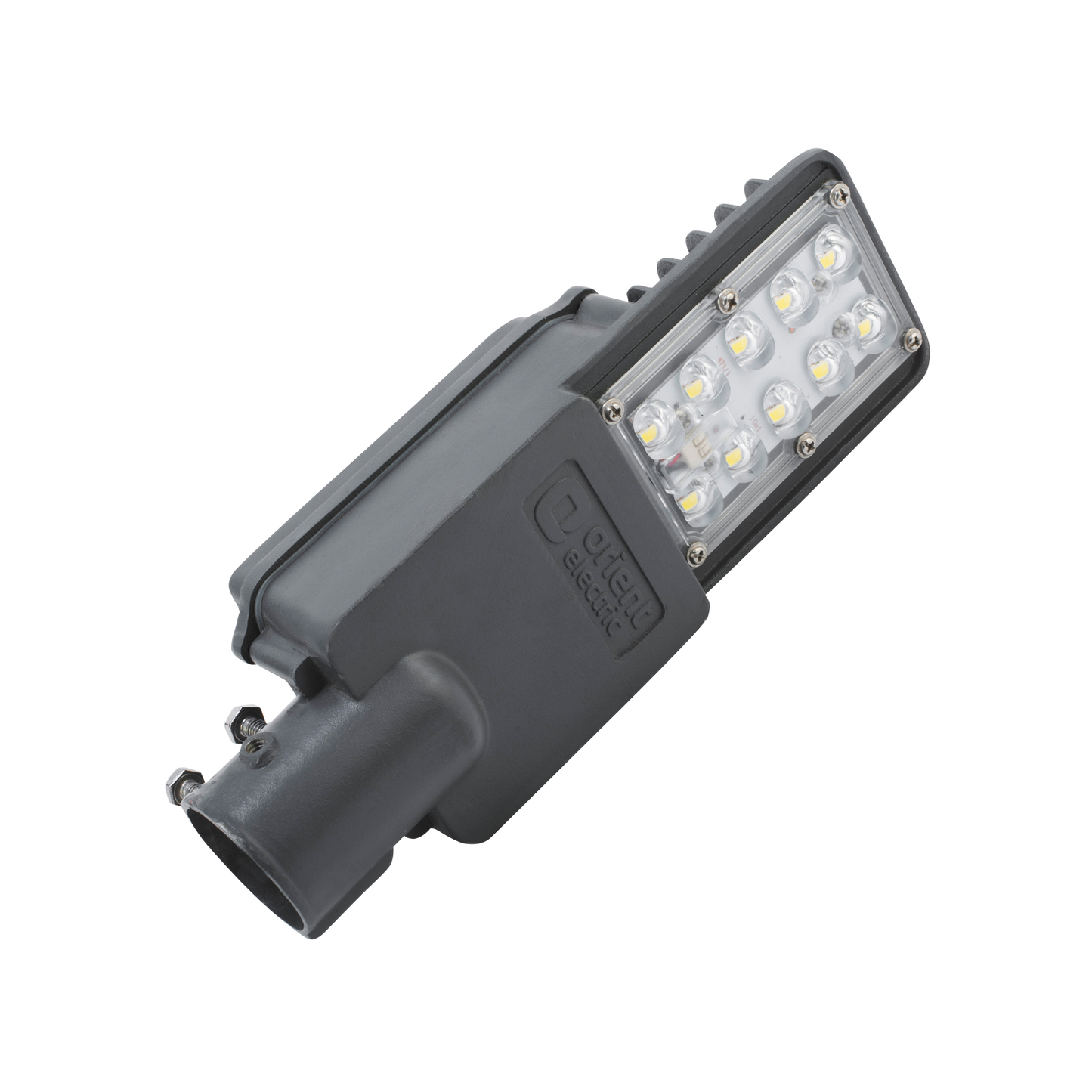

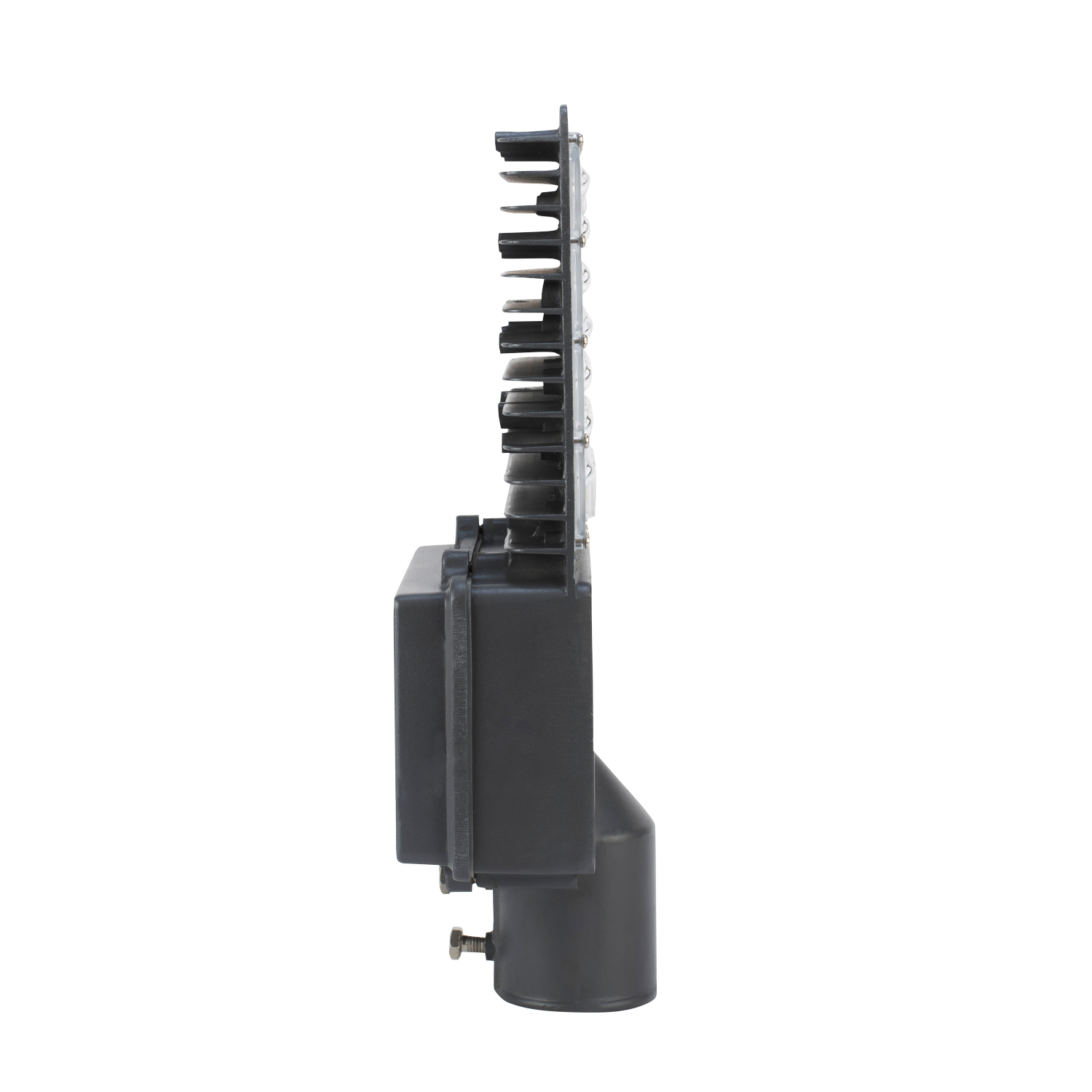

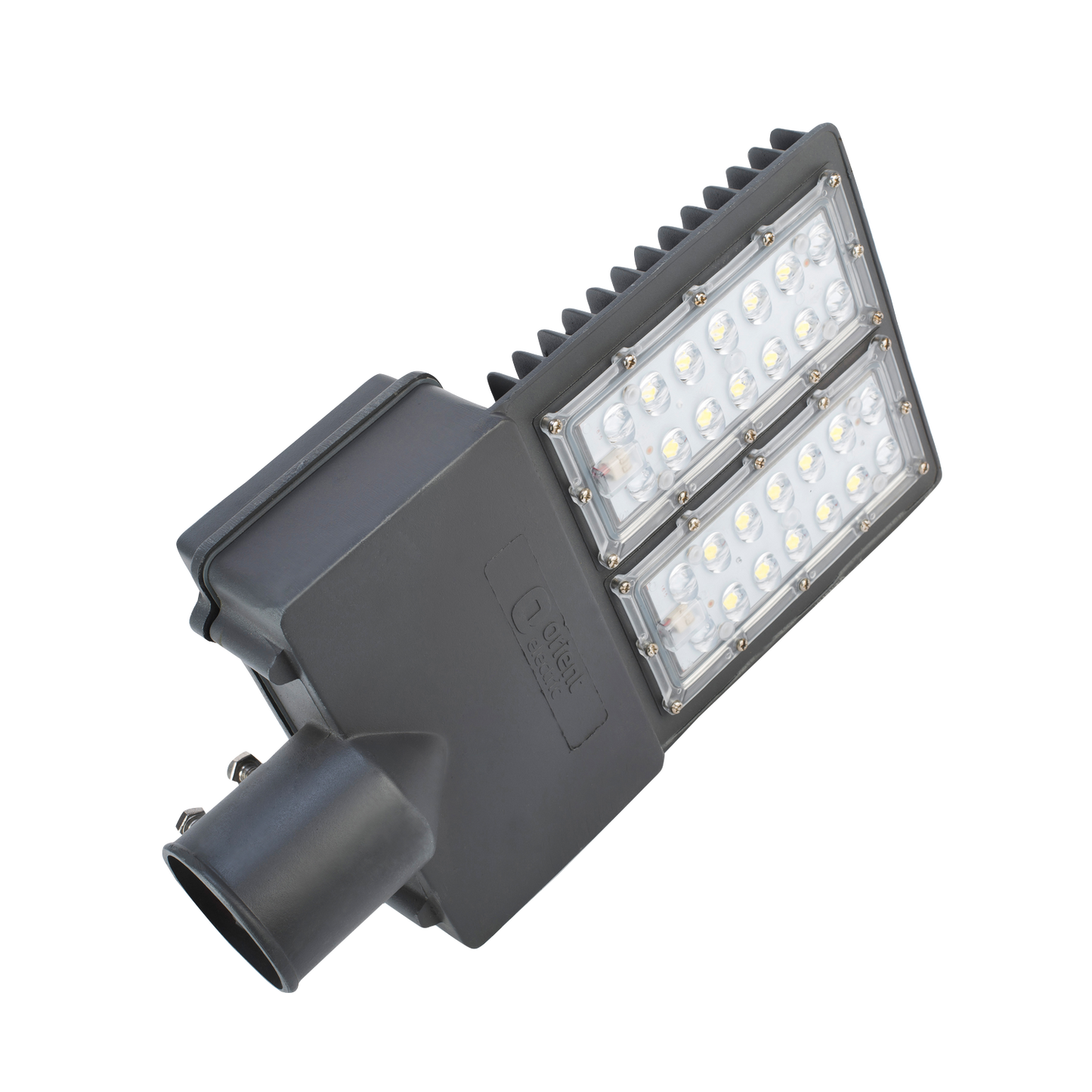

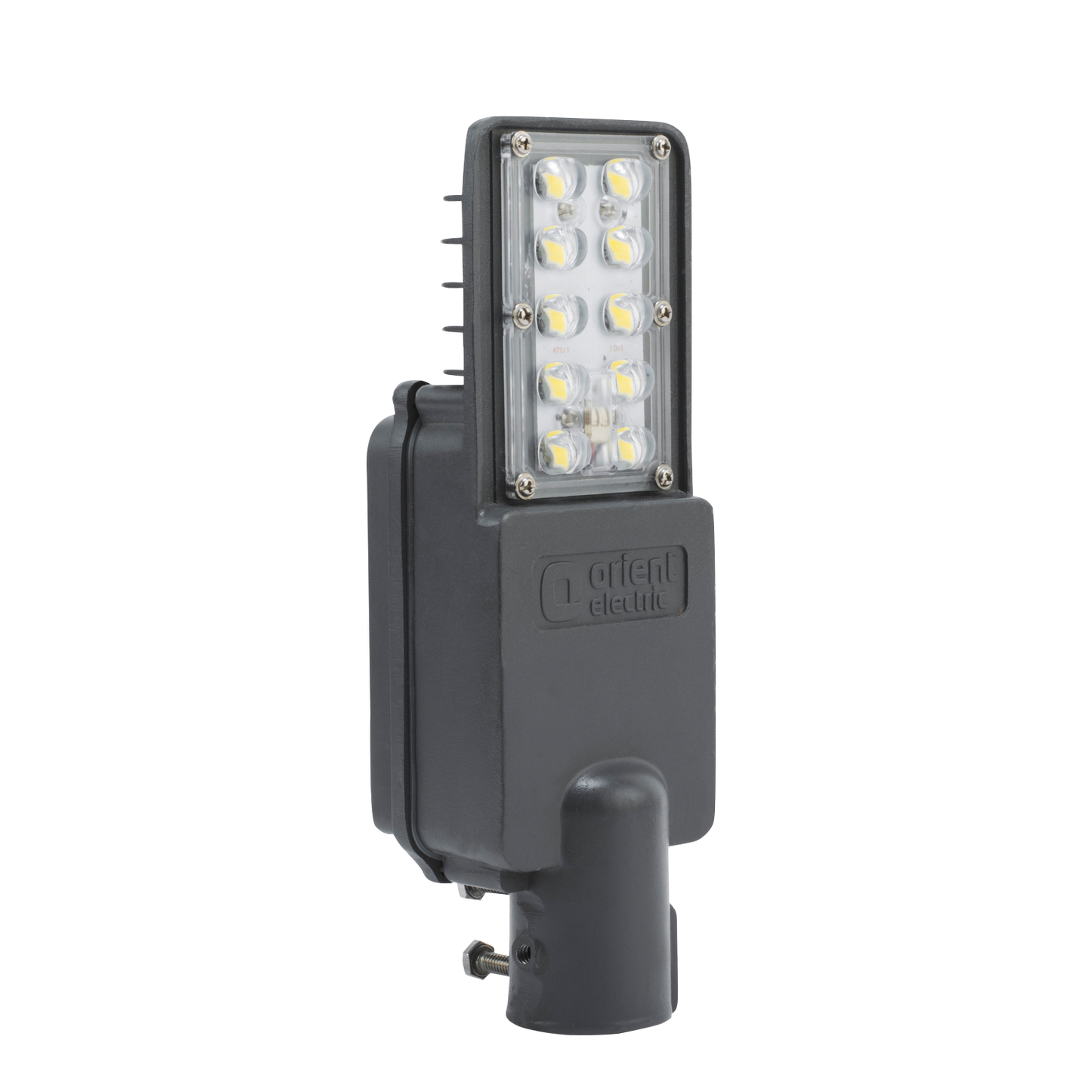

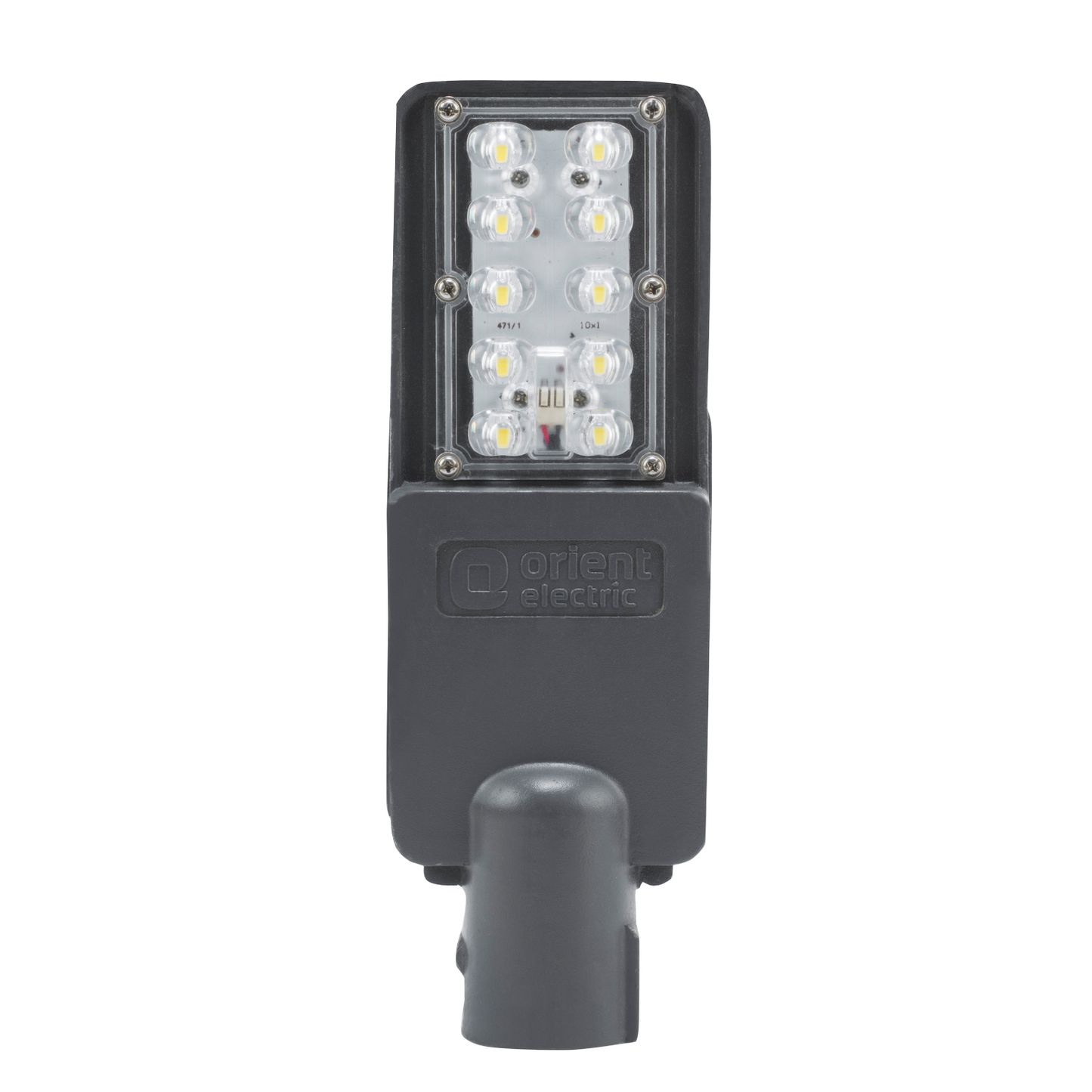

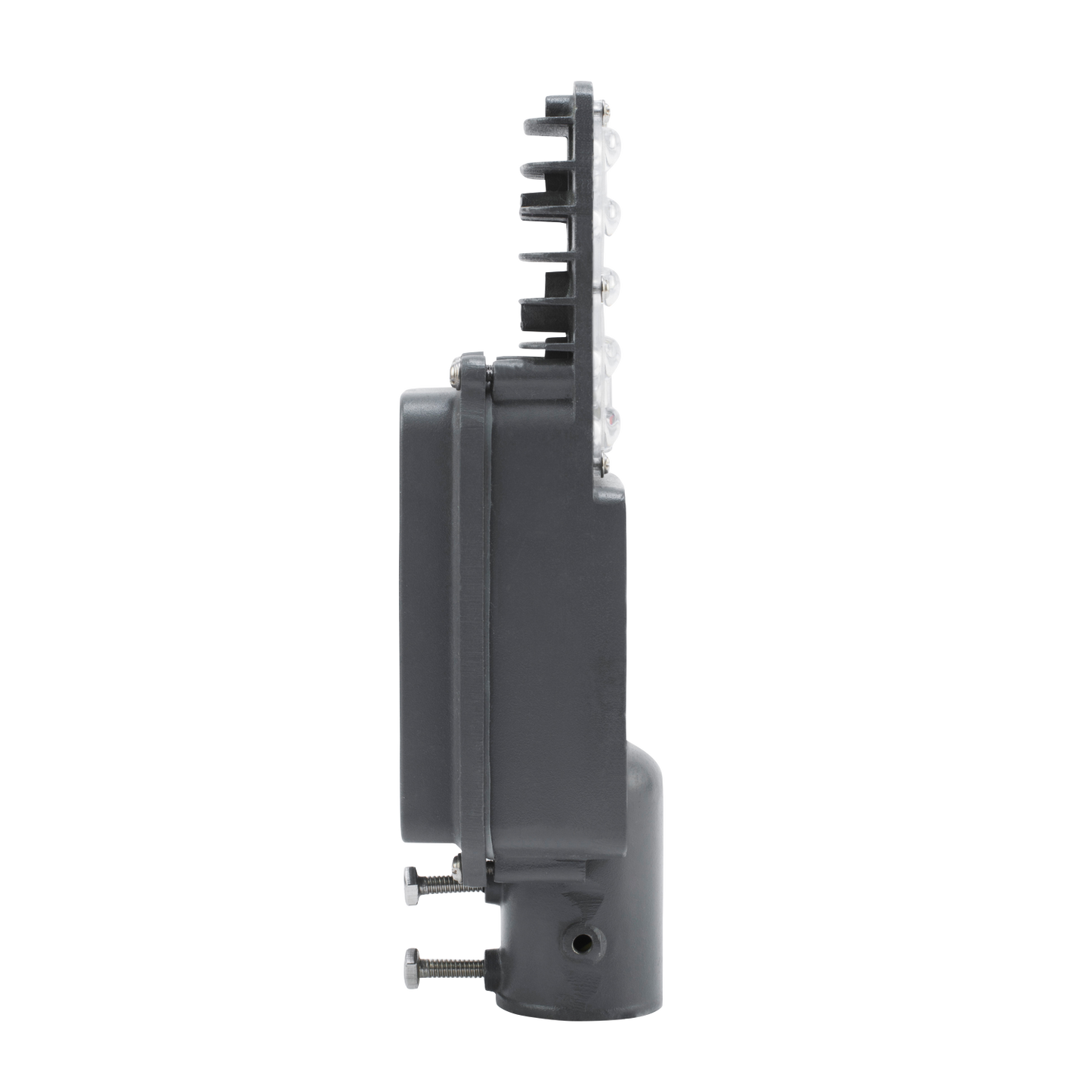

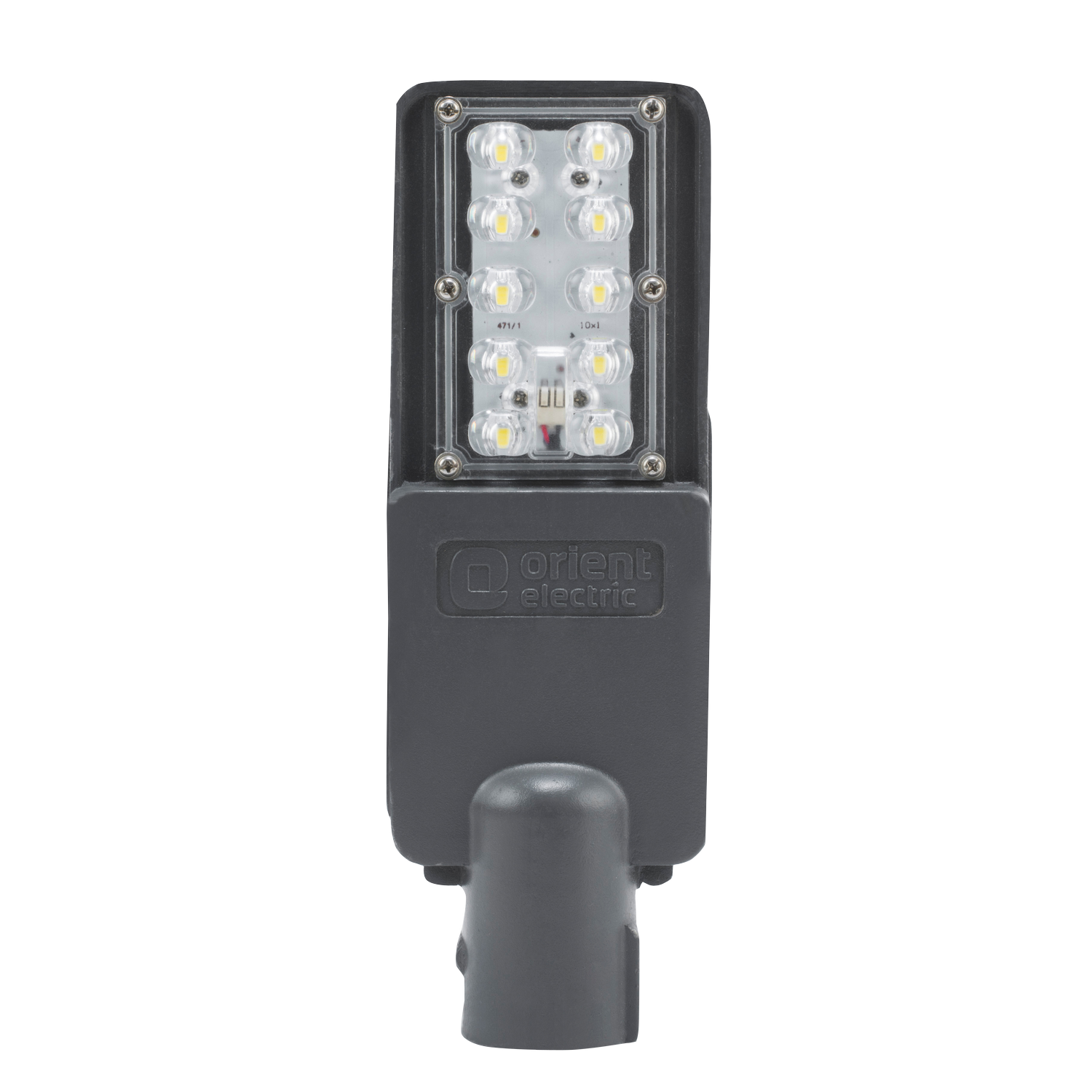

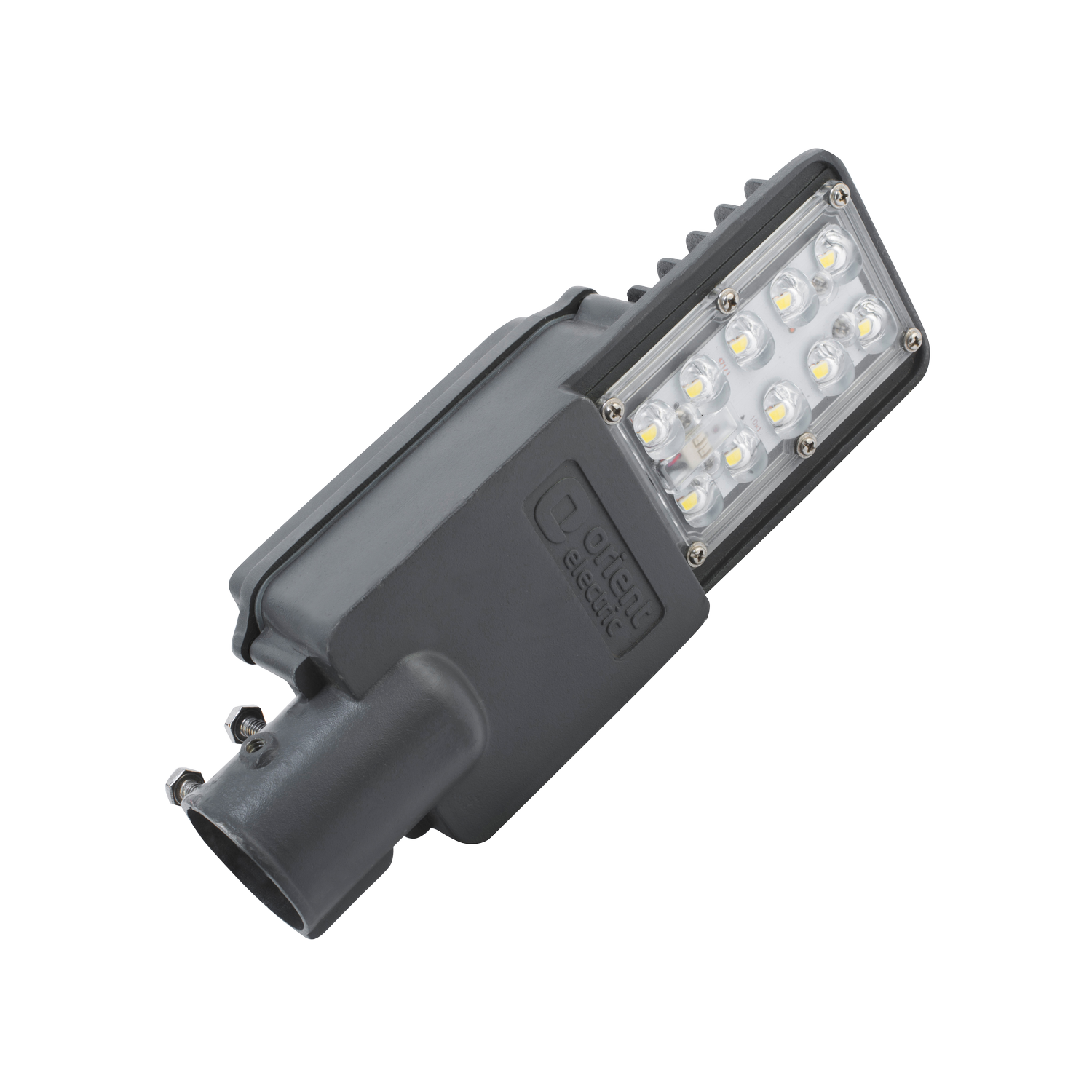

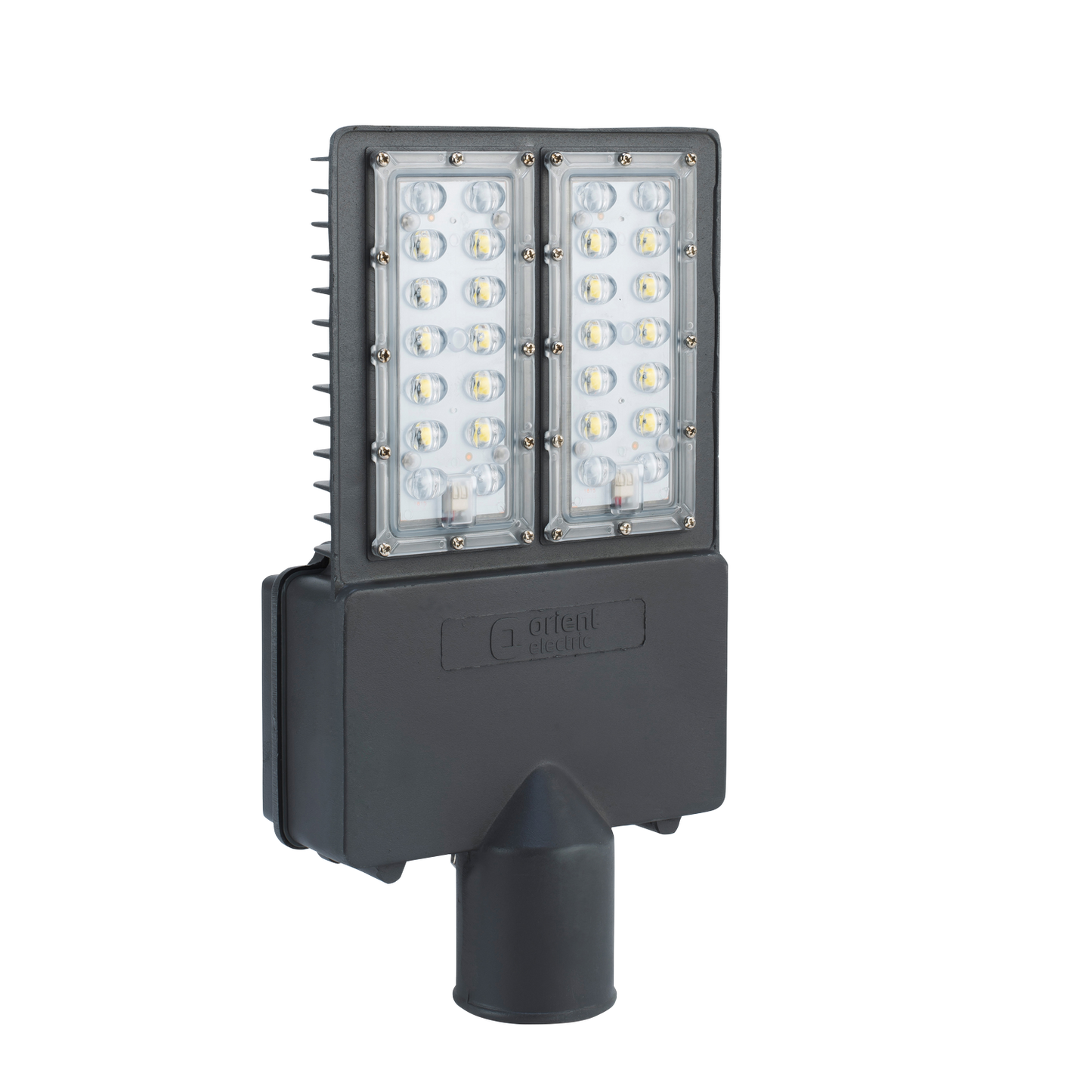

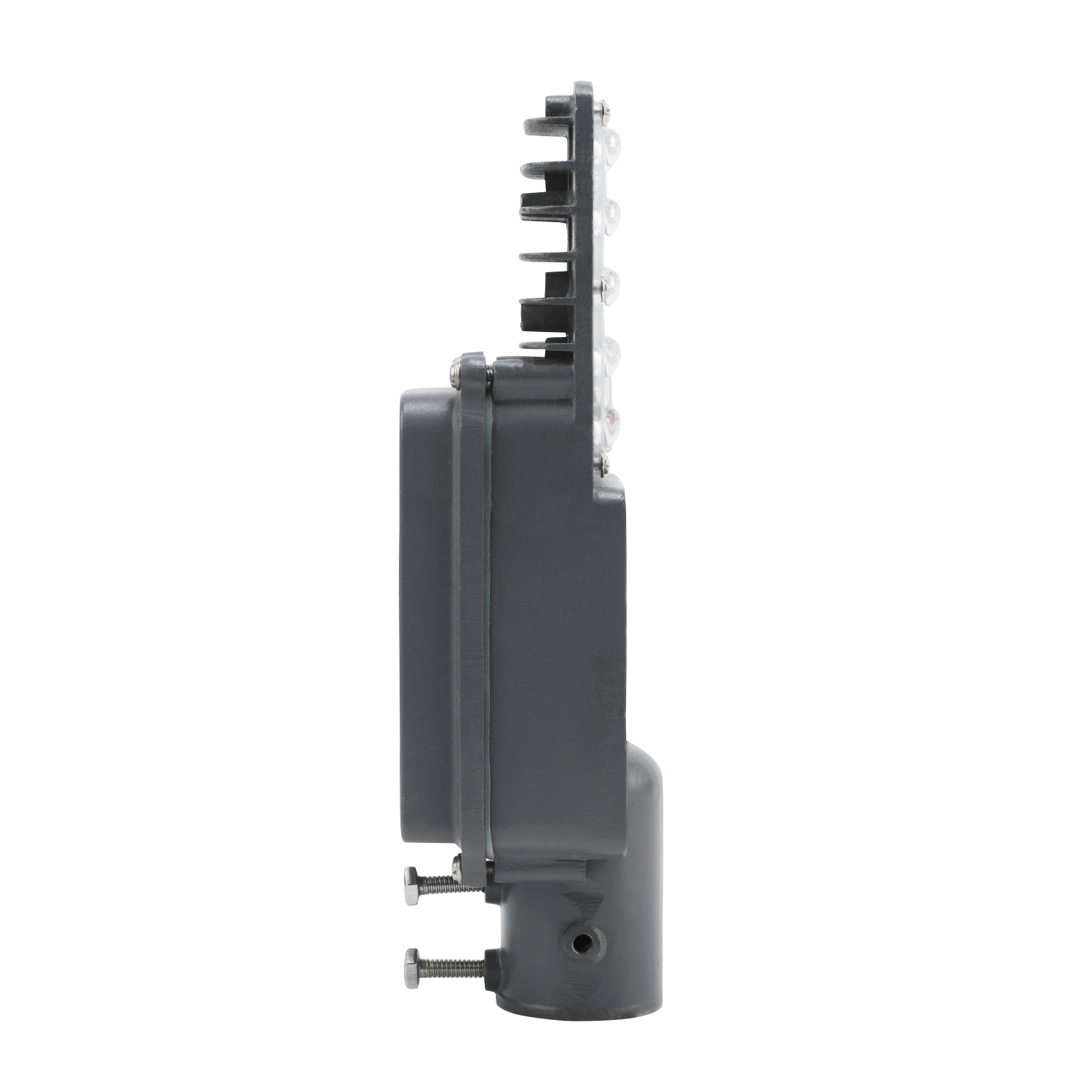

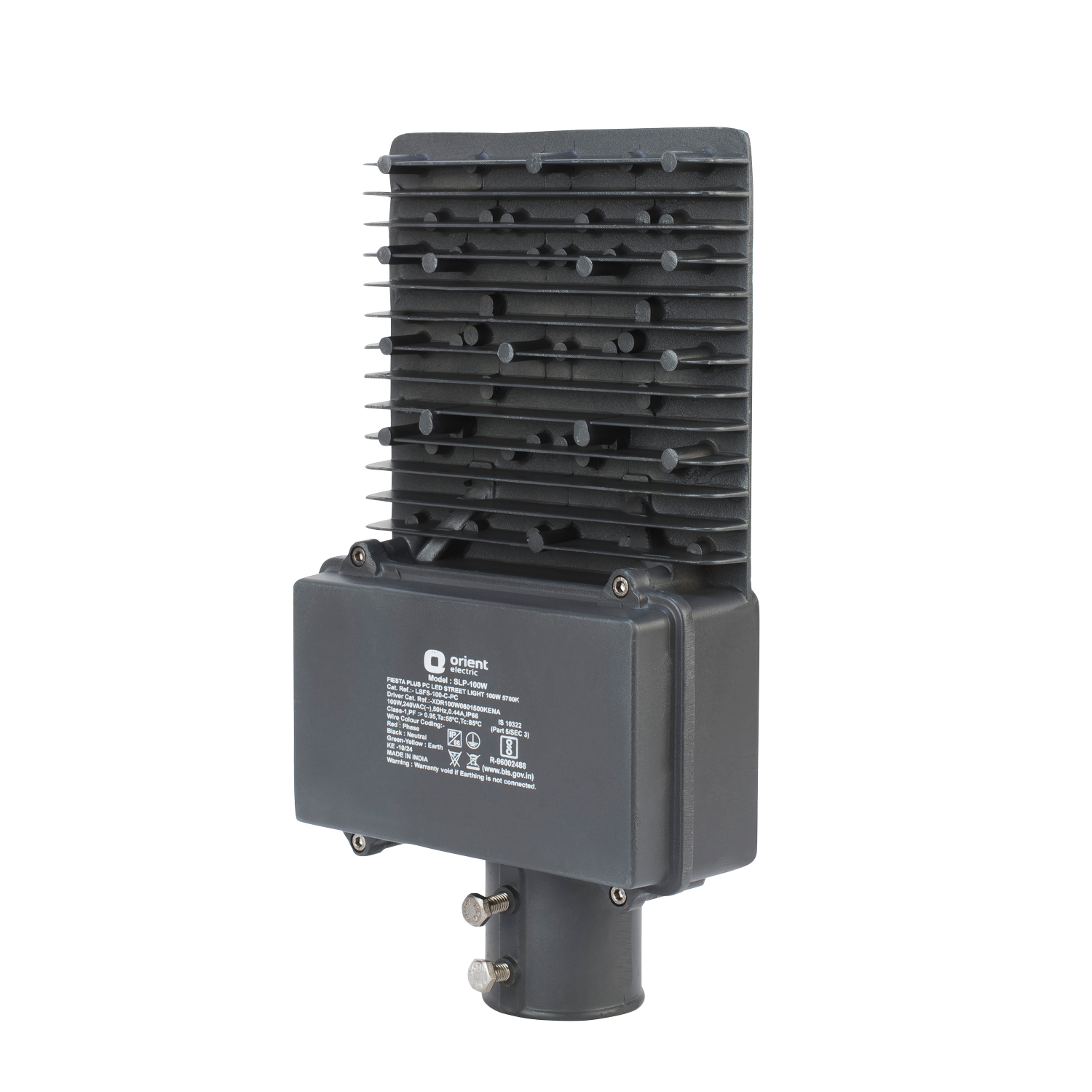

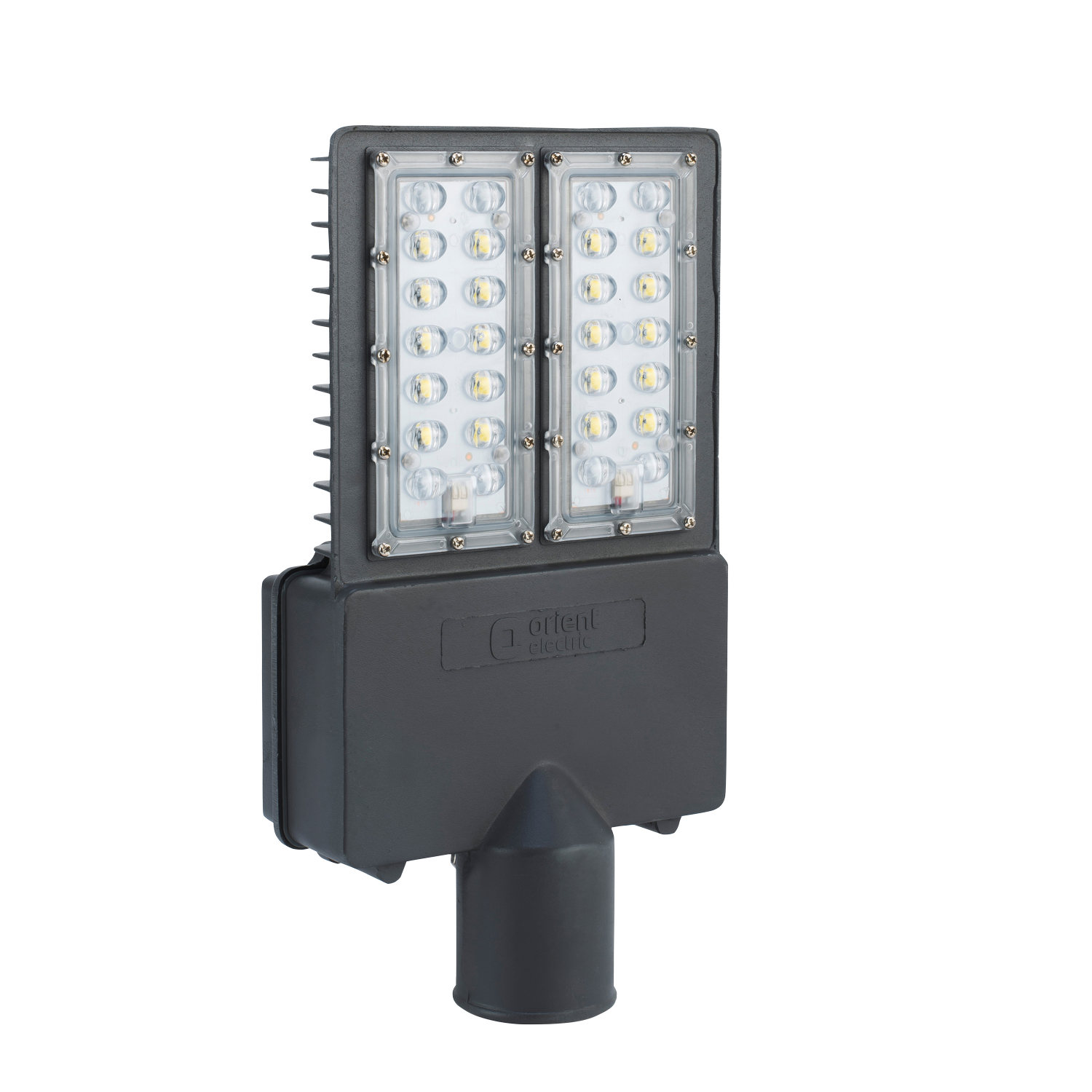

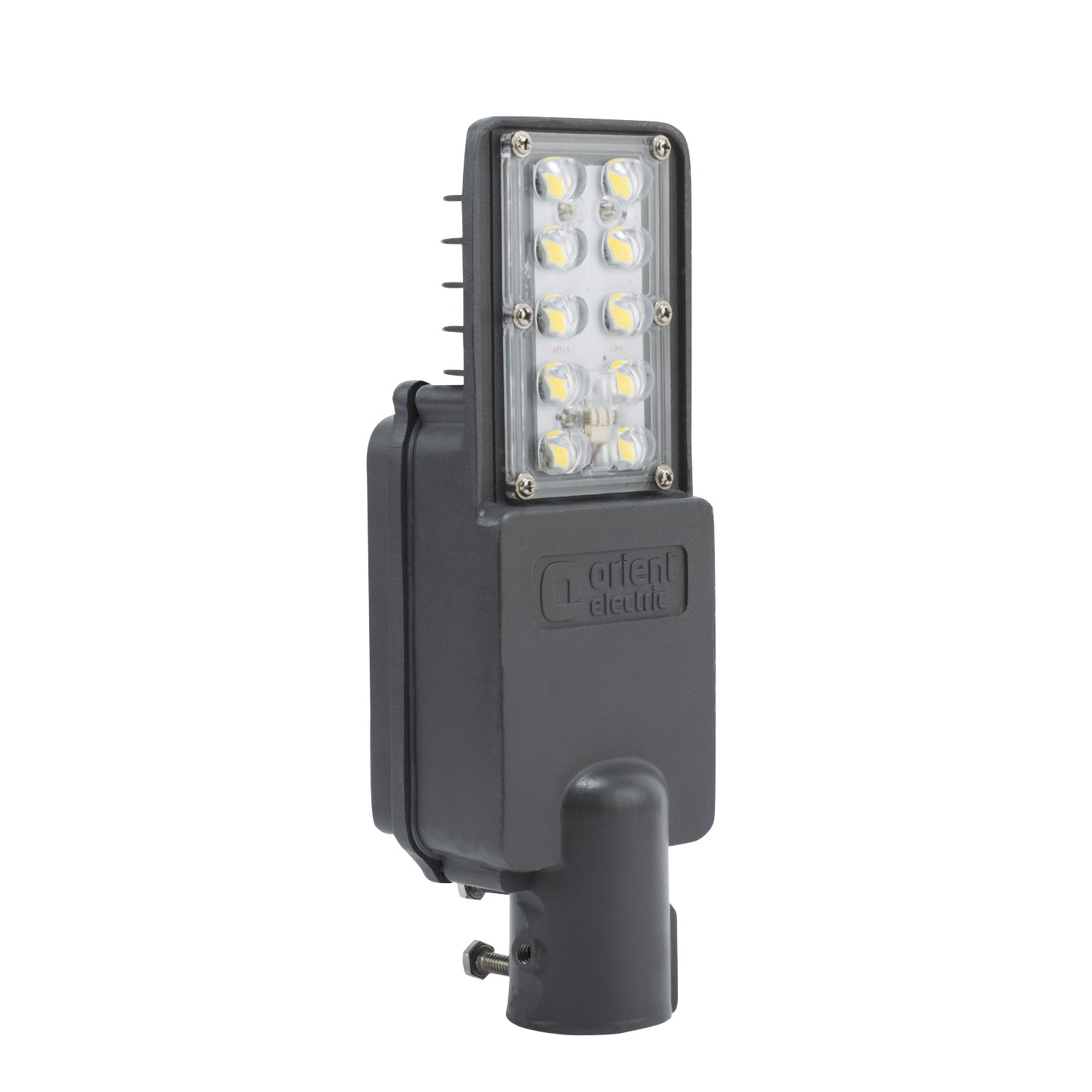

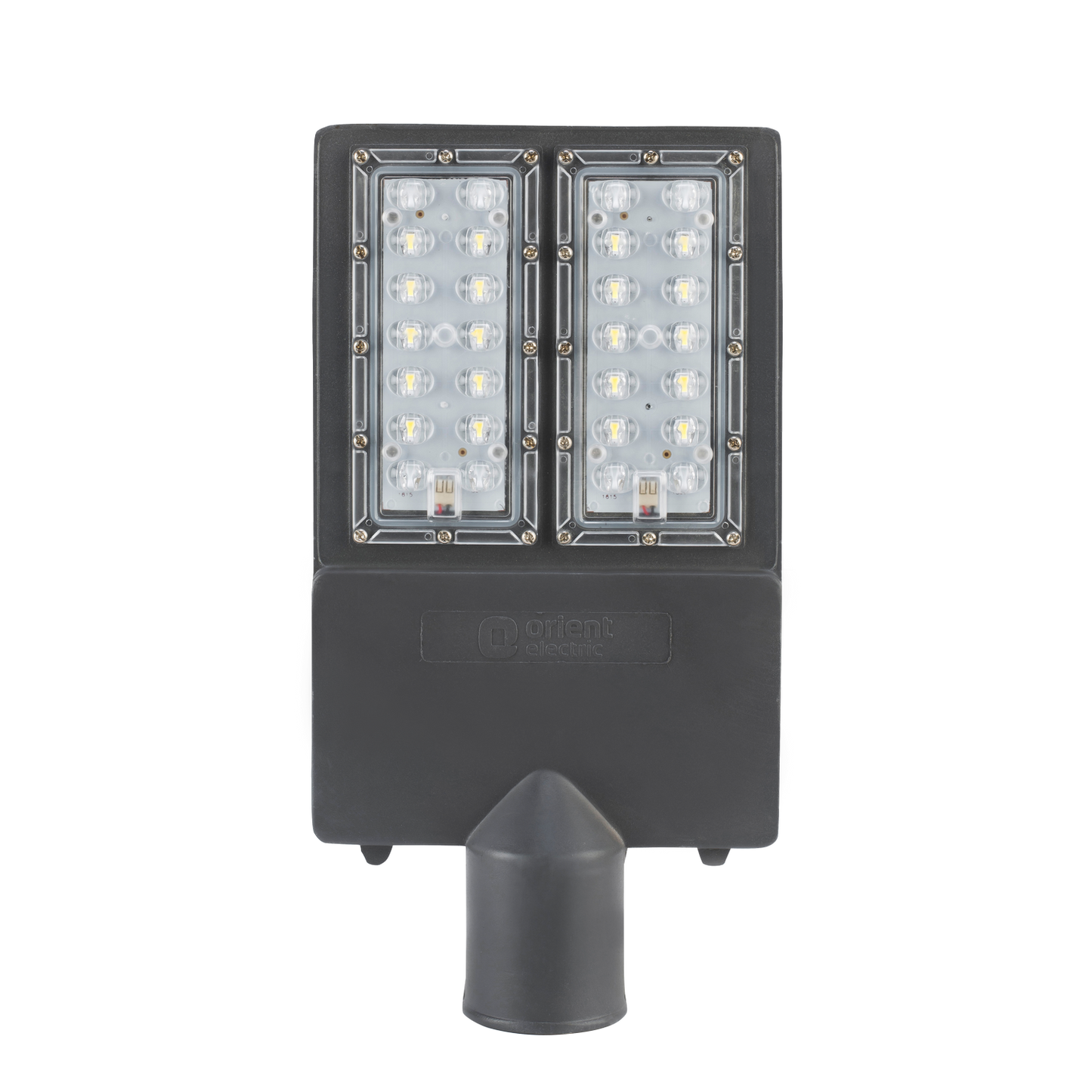

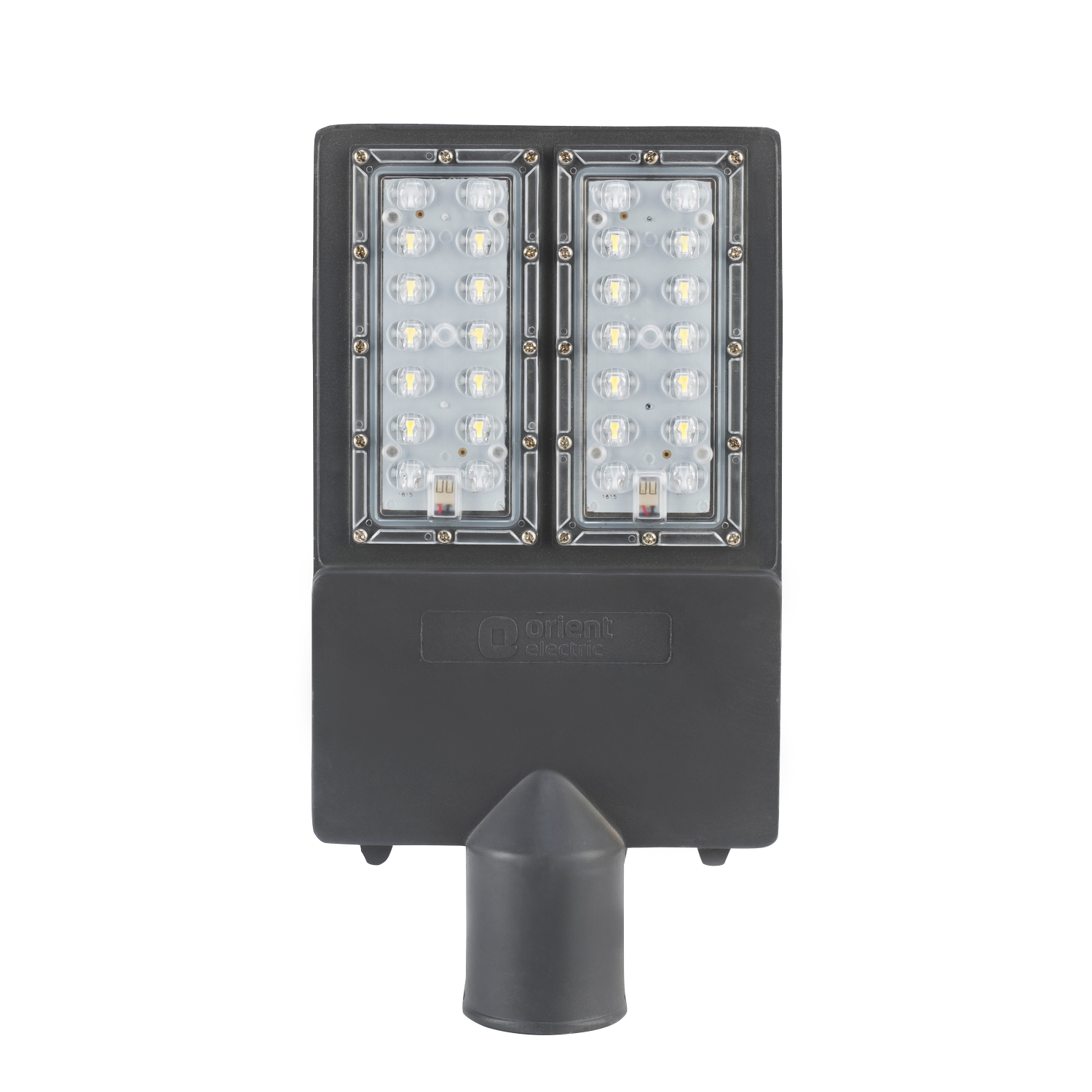

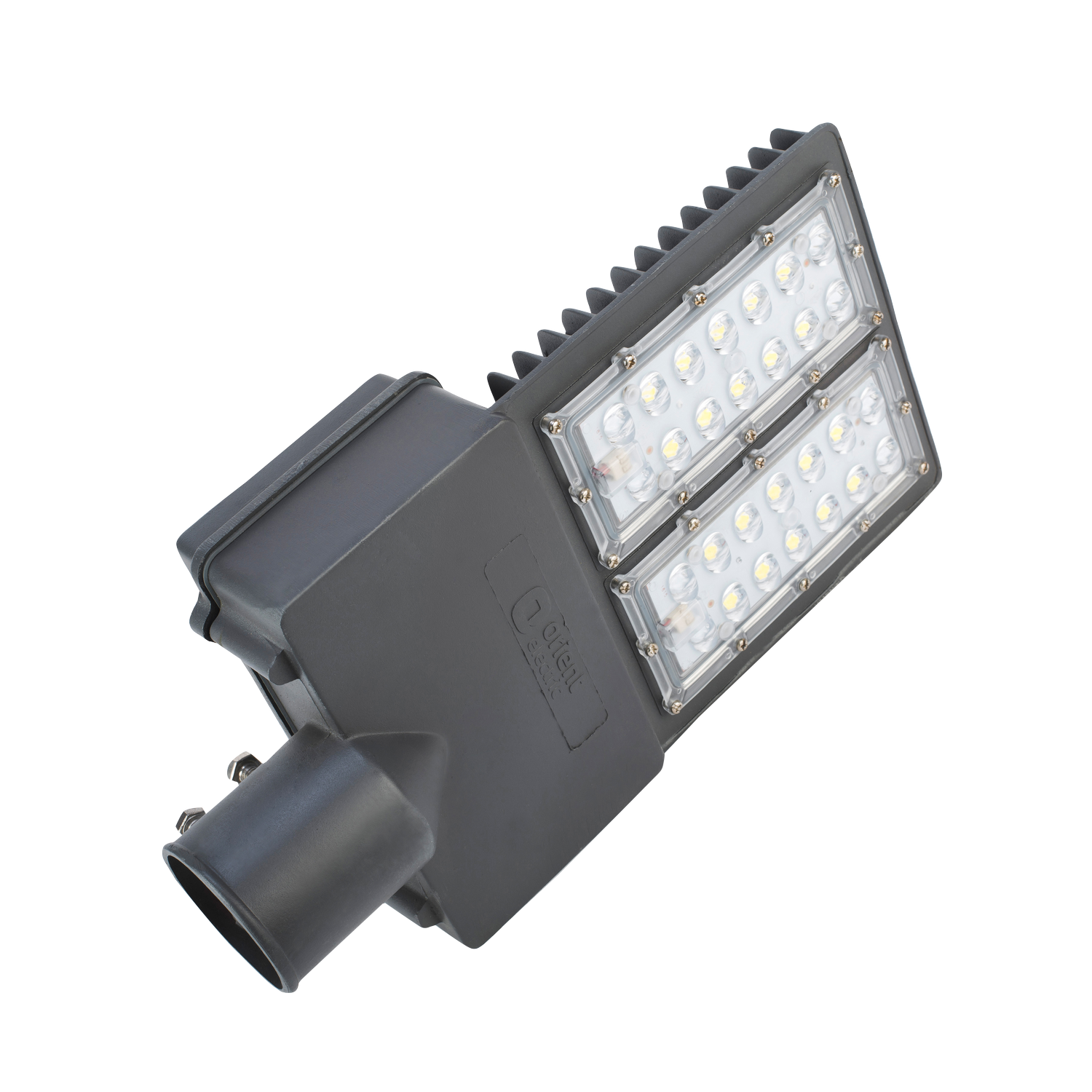

Highly efficient top-openable IP66 LED streetlight with aluminium pressure die-cast housing with integrated polycarbonate lens cover in the front for batwing light distribution to ensure uniform light distribution and higher spacing between poles.

View full details
  • General specification

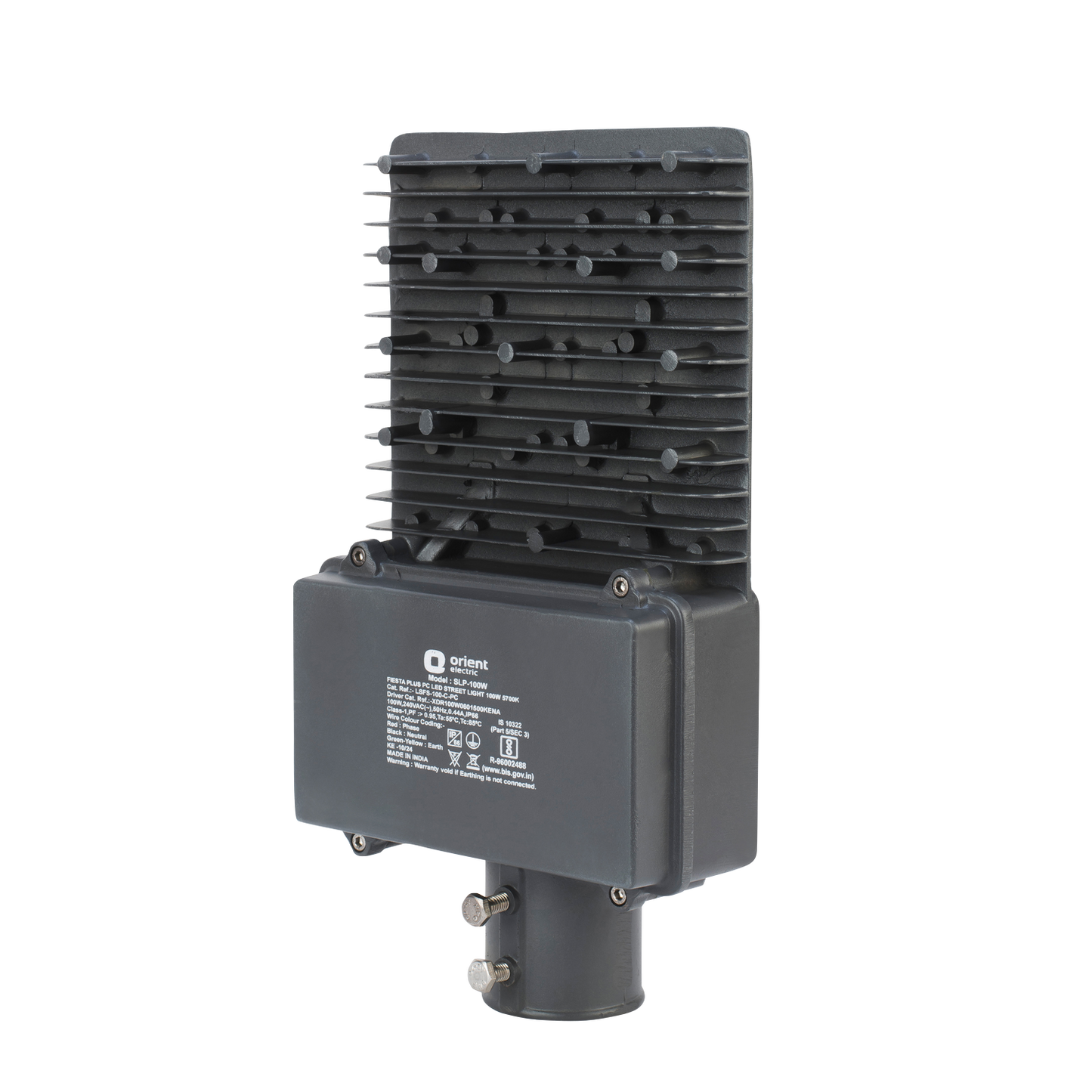

    Housing Excellent thermally managed Pressure die cast aluminum housing
    Optics Integrated polycarbonate lens cover in front of LEDs for batwing distribution of 135°x 85°.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV; optional 10 KV external SPD
    IP 66
  • Technical Specifications
    System Wattage 30W, 45W, 60W, 70W, 90W, 100W, 120W, 150W, 180W, 200W
    CCT 5700K , 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100, ≥90
Fiesta Plus PC variants
Product Variants
Fiesta Plus PC
LSFS-030-C-PC
Fiesta Plus PC
LSFS-030-W-PC
Fiesta Plus PC
LSFS-045-C-PC
Fiesta Plus PC
LSFS-045-W-PC
Fiesta Plus PC
LSFS-060-C-PC
Fiesta Plus PC
LSFS-060-W-PC
Fiesta Plus PC
LSFS-070-C-PC
Fiesta Plus PC
LSFS-070-W-PC
Fiesta Plus PC
LSFS-090-C-PC
Fiesta Plus PC
LSFS-090-W-PC
Fiesta Plus PC
LSFS-100-C-PC
Fiesta Plus PC
LSFS-100-W-PC
Fiesta Plus PC
LSFS-120-C-PC
Fiesta Plus PC
LSFS-120-W-PC
Fiesta Plus PC
LSFS-150-C-PC
Fiesta Plus PC
LSFS-150-W-PC
Fiesta Plus PC
LSFS-180-C-PC
Fiesta Plus PC
LSFS-180-W-PC
Fiesta Plus PC
LSFS-200-C-PC
Fiesta Plus PC
LSFS-200-W-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
255
89
74
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
255
89
74
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
255
89
74
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
255
89
74
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
300
153
93
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
300
153
93
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
300
153
93
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
300
153
93
90W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
300
153
93
90W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
300
153
93
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
366
198
105
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
366
198
105
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
366
198
105
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
366
198
105
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
480
212
95
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
480
212
95
180W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
566
212
115
180W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
566
212
115
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
566
212
115
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
566
212
115
