Fiesta Plus PC HL

Fiesta Plus PC HL

Fiesta Plus PC HL

Product Overview

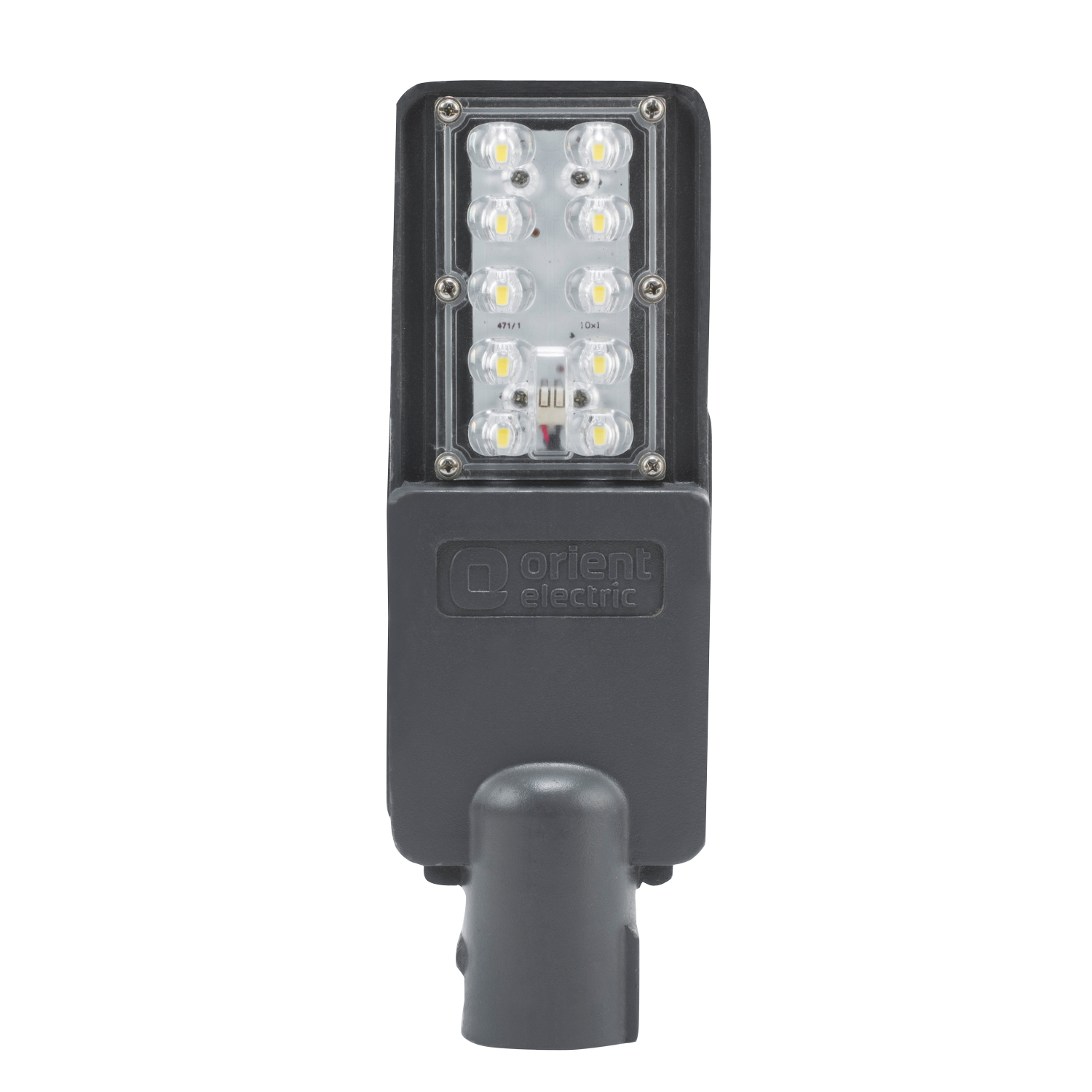

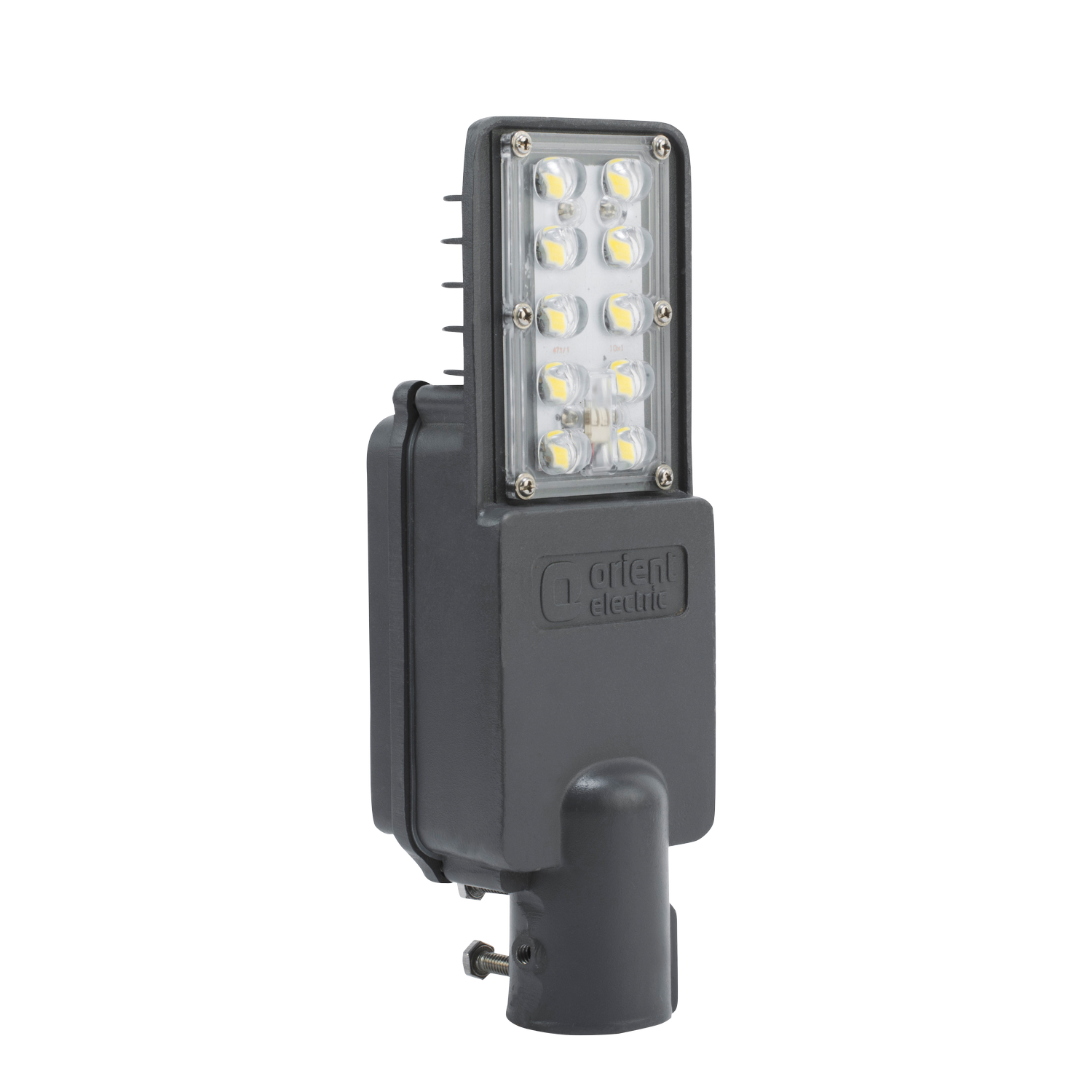

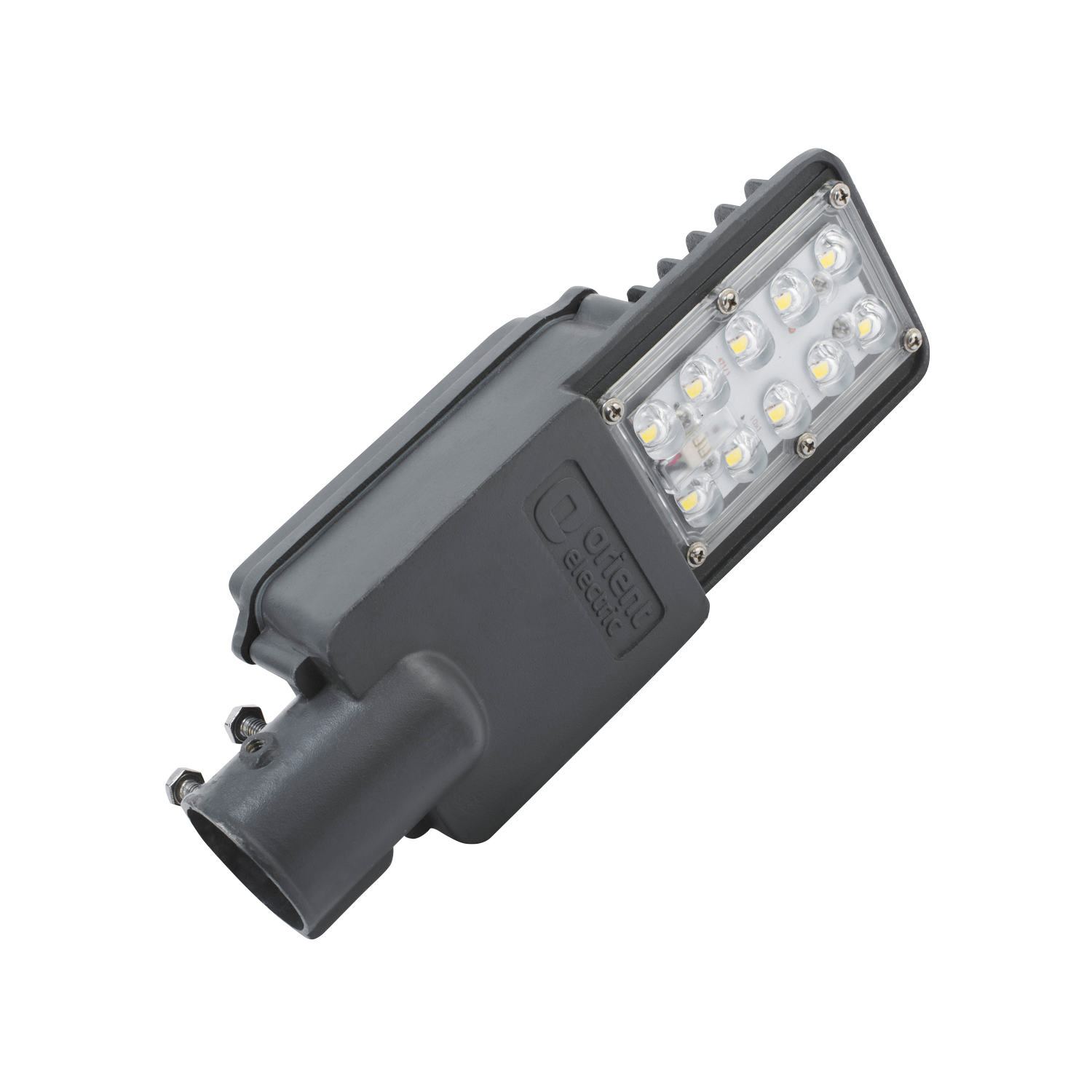

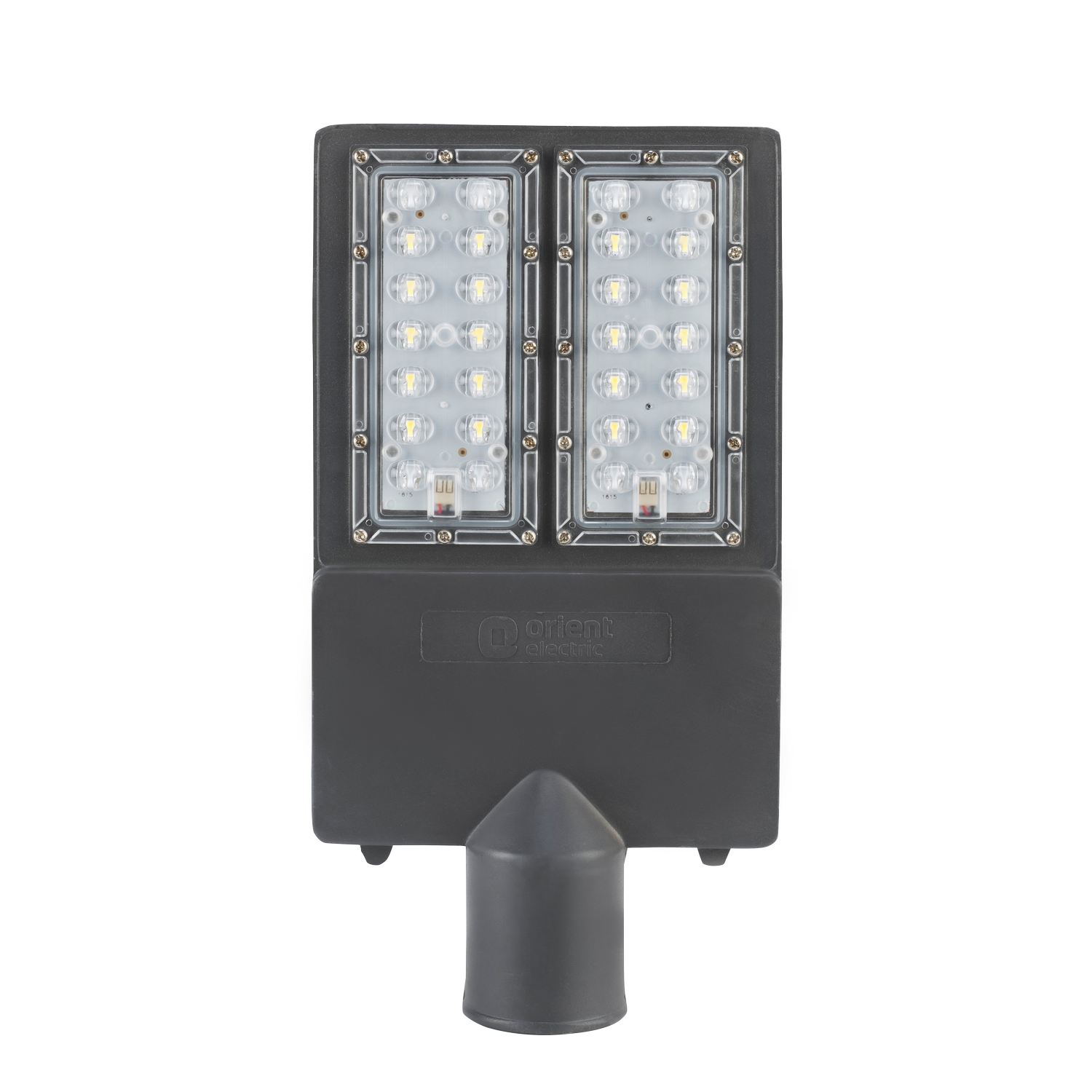

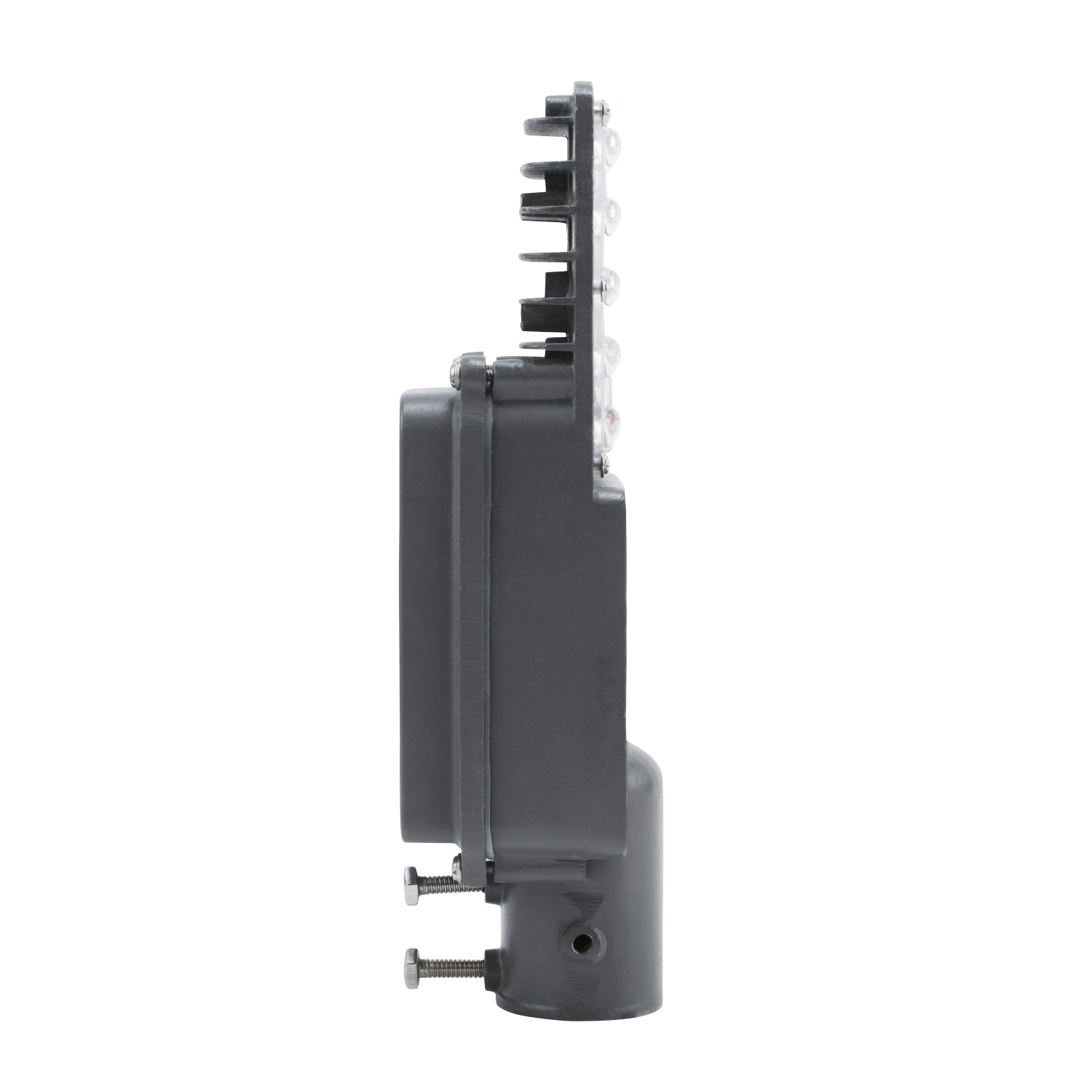

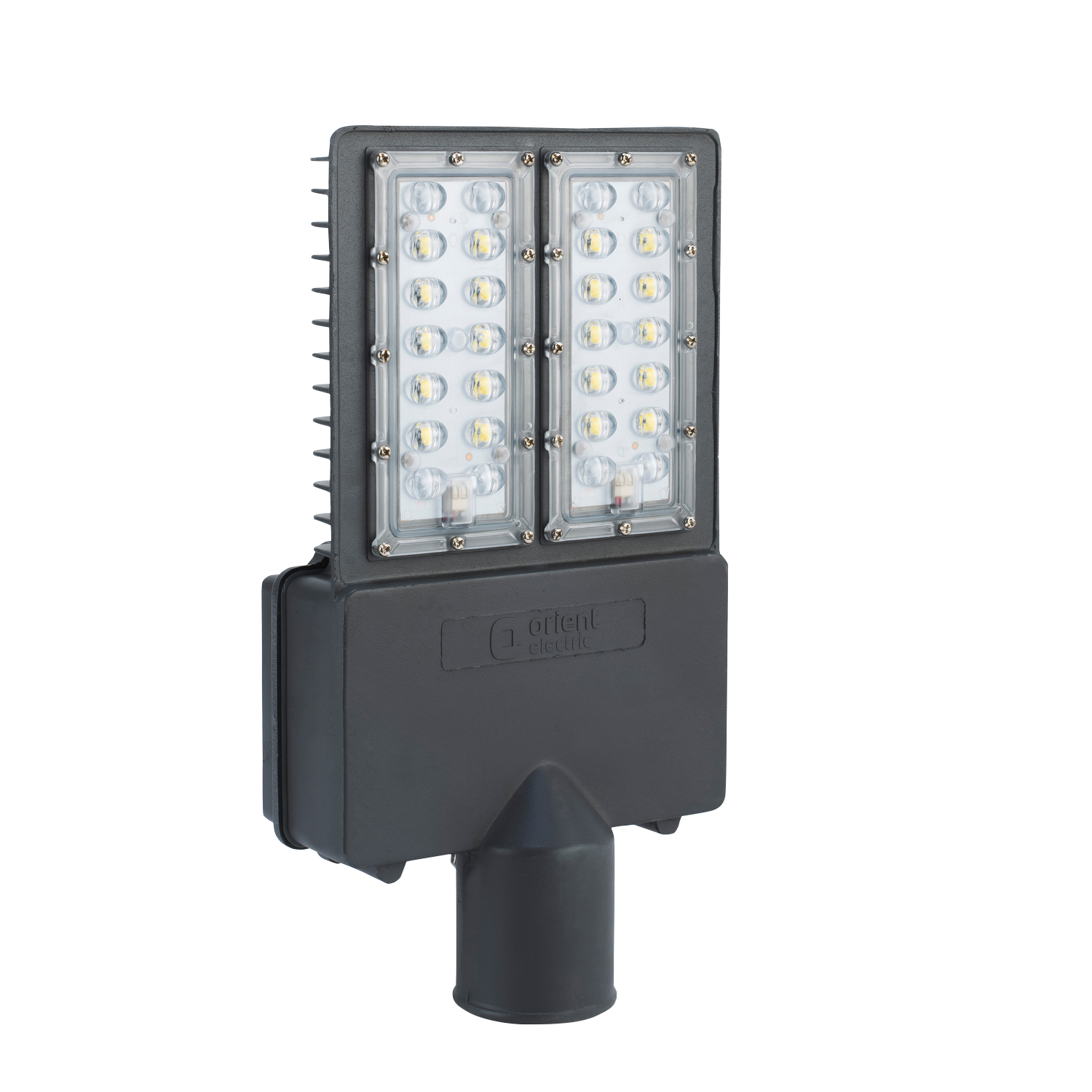

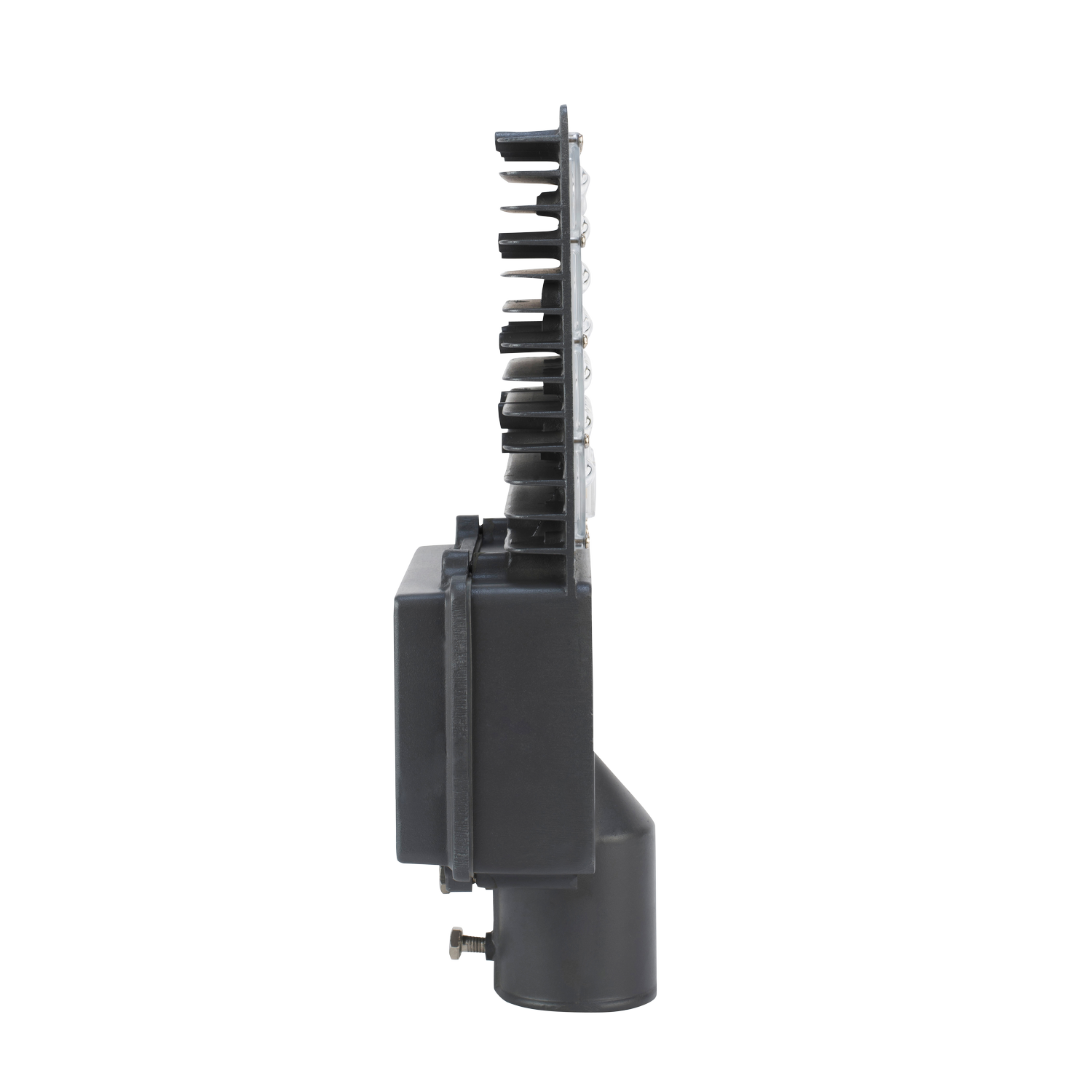

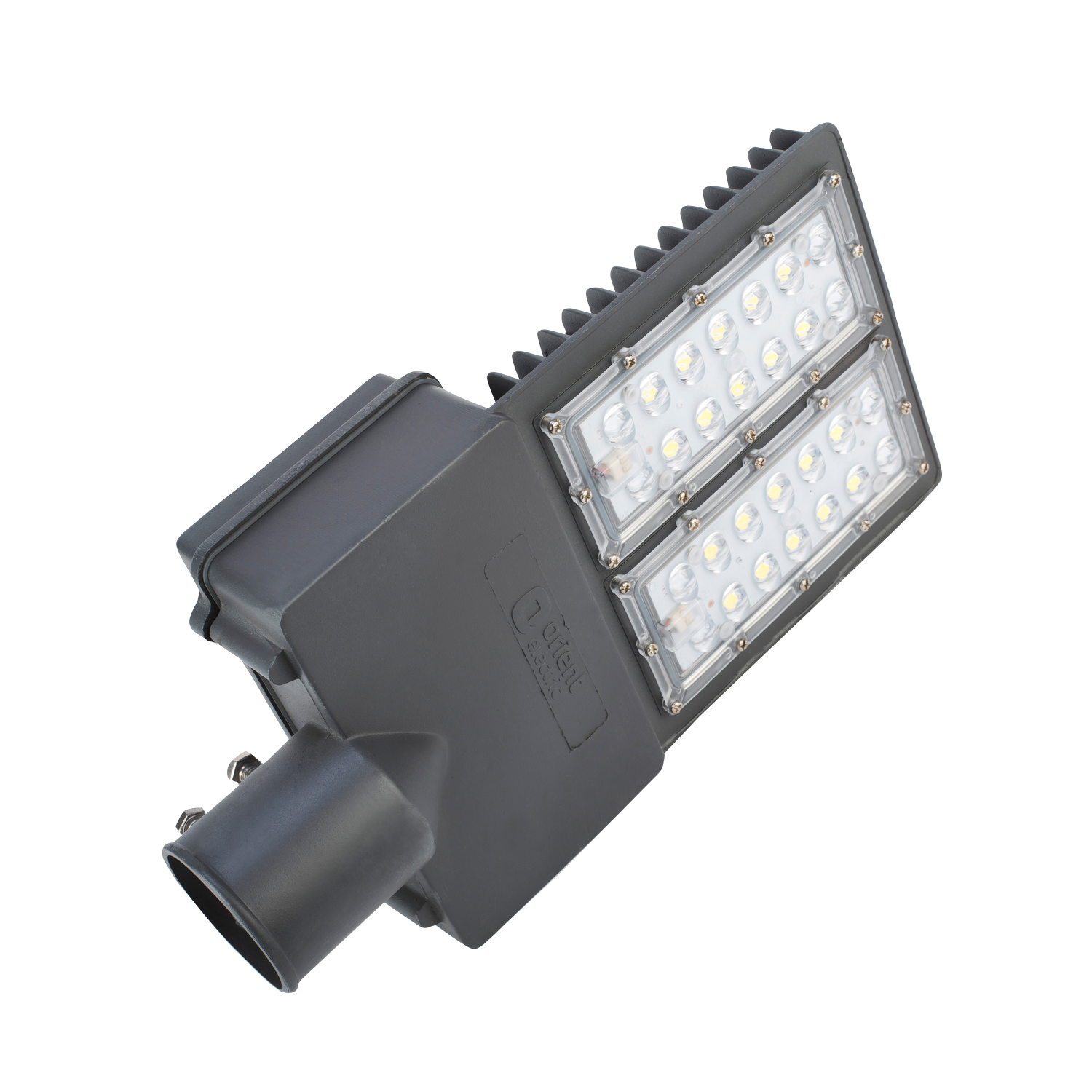

Top-openable IP66 LED streetlight with high efficacy of ≥110 lm/W with aluminium pressure die-cast housing with integrated polycarbonate lens cover in the front for batwing light distribution to ensure uniform light distribution and higher spacing between poles.

Best suited for

Road lighting

Campus lighting

Industrial estates

Open parking

View full details
  • General specification

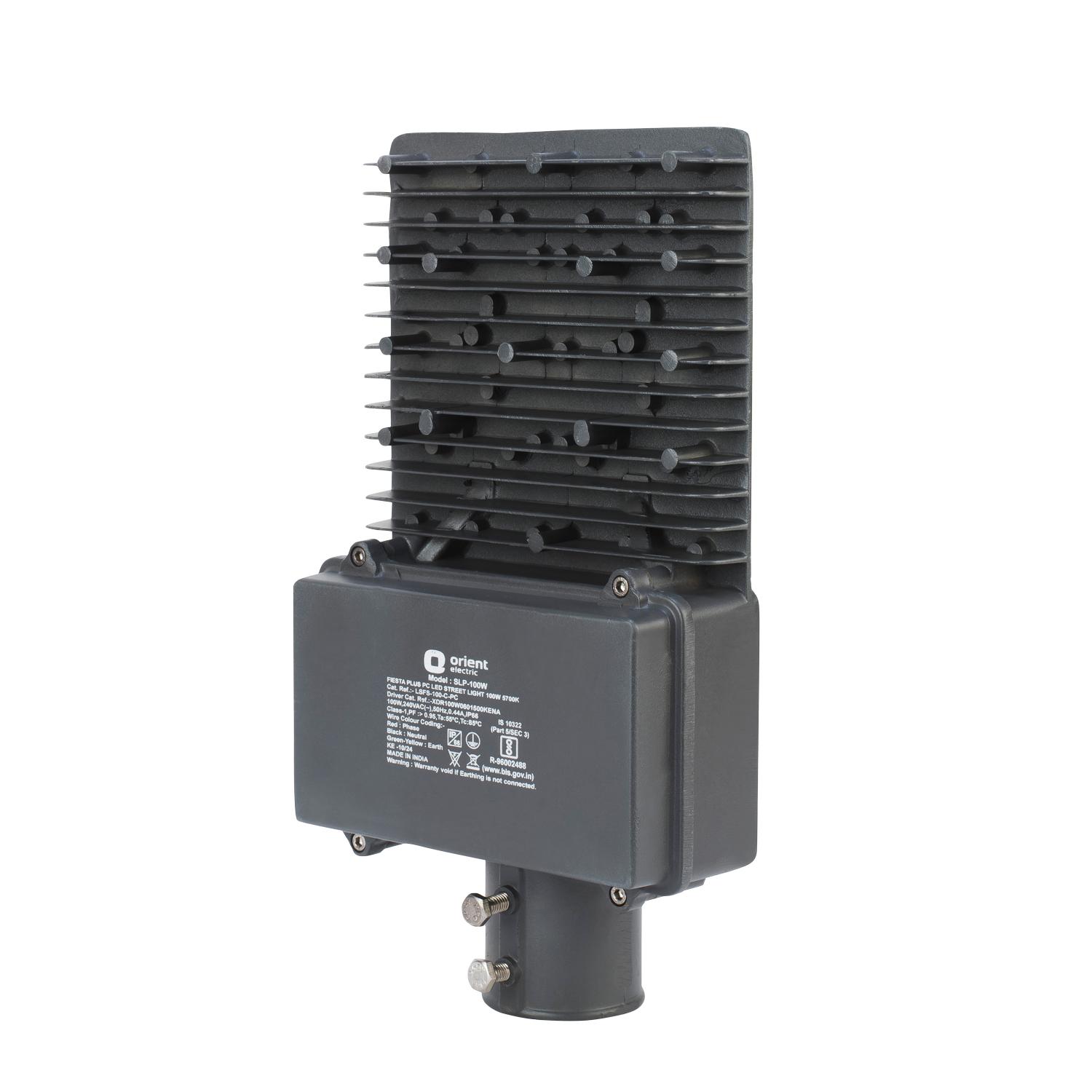

    Housing Excellent thermally managed Pressure die cast aluminum housing
    Optics Integrated polycarbonate lens cover in front of LEDs for batwing distribution of 135°x 85°.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV ;optional 10 KV external SPD
    IP 66
  • Technical Specifications
    System Wattage 30W, 45W, 60W, 70W, 90W, 100W, 120W, 150W, 180W, 200W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (in mm) ≥110, ≥100
Fiesta Plus PC HL variants
Product Variants
Fiesta Plus PC HL
LSFS-030-C-PC-HL
Fiesta Plus PC HL
LSFS-045-C-PC-HL
Fiesta Plus PC HL
LSFS-060-C-PC-HL
Fiesta Plus PC HL
LSFS-070-C-PC-HL
Fiesta Plus PC HL
LSFS-090-C-PC-HL
Fiesta Plus PC HL
LSFS-100-C-PC-HL
Fiesta Plus PC HL
LSFS-120-C-PC-HL
Fiesta Plus PC HL
LSFS-150-C-PC-HL
Fiesta Plus PC HL
LSFS-180-C-PC-HL
Fiesta Plus PC HL
LSFS-200-C-PC-HL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
255
89
74
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
255
89
74
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
300
153
93
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
300
153
93
90W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
300
153
93
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
366
198
105
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
366
198
105
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
480
212
95
180W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
566
212
115
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
566
212
115
