Fiesta Plus PC UHL

Fiesta Plus PC UHL

Fiesta Plus PC UHL

Product Overview

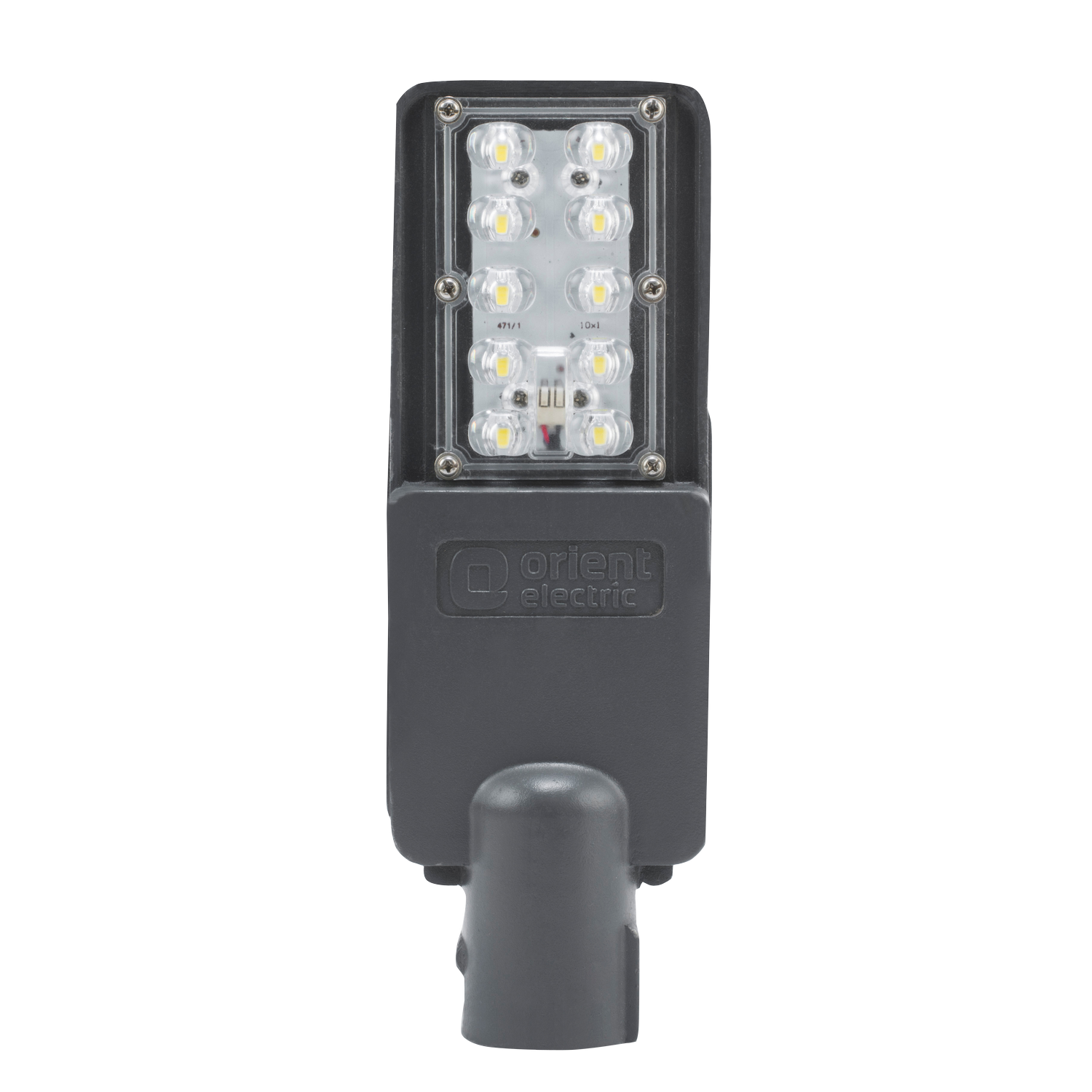

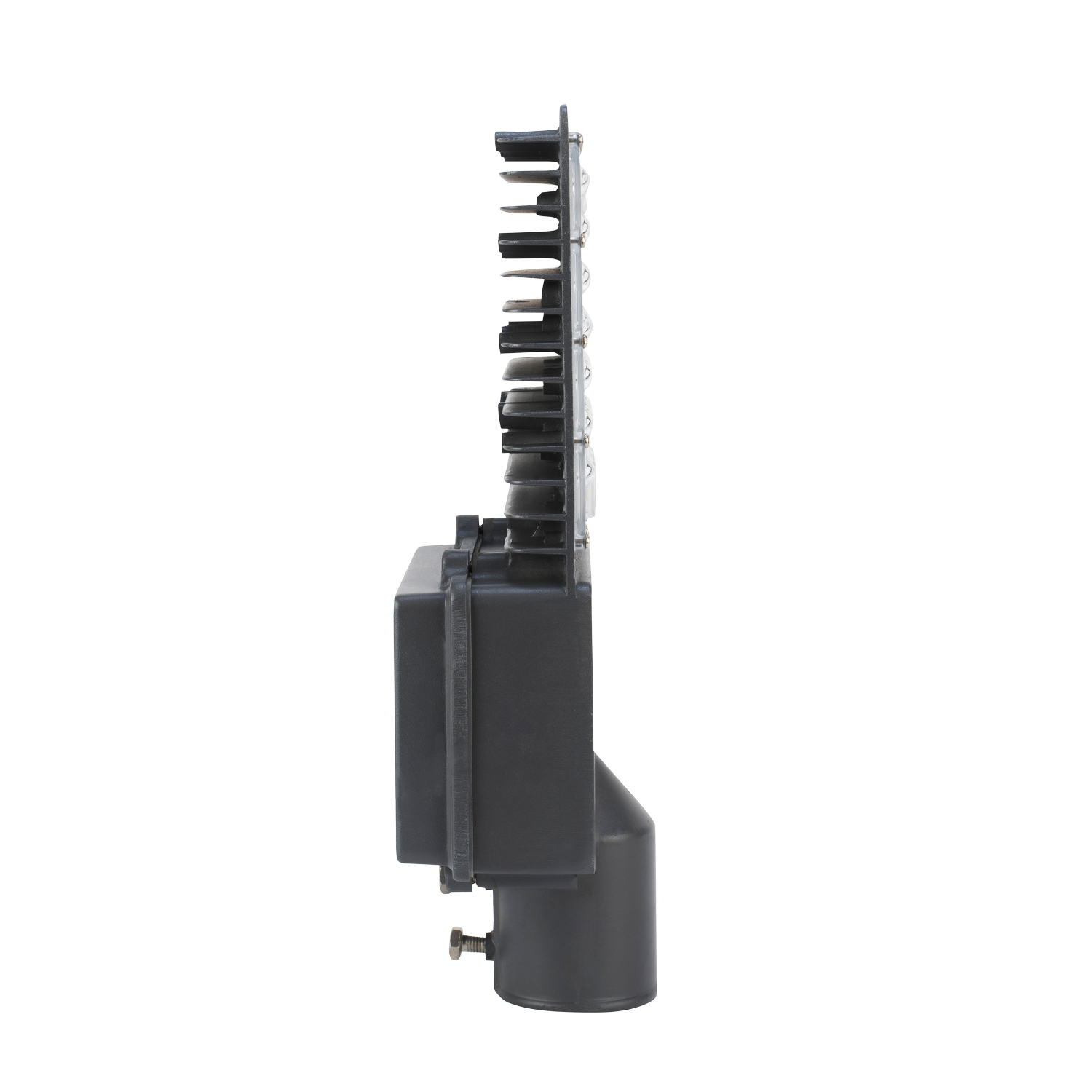

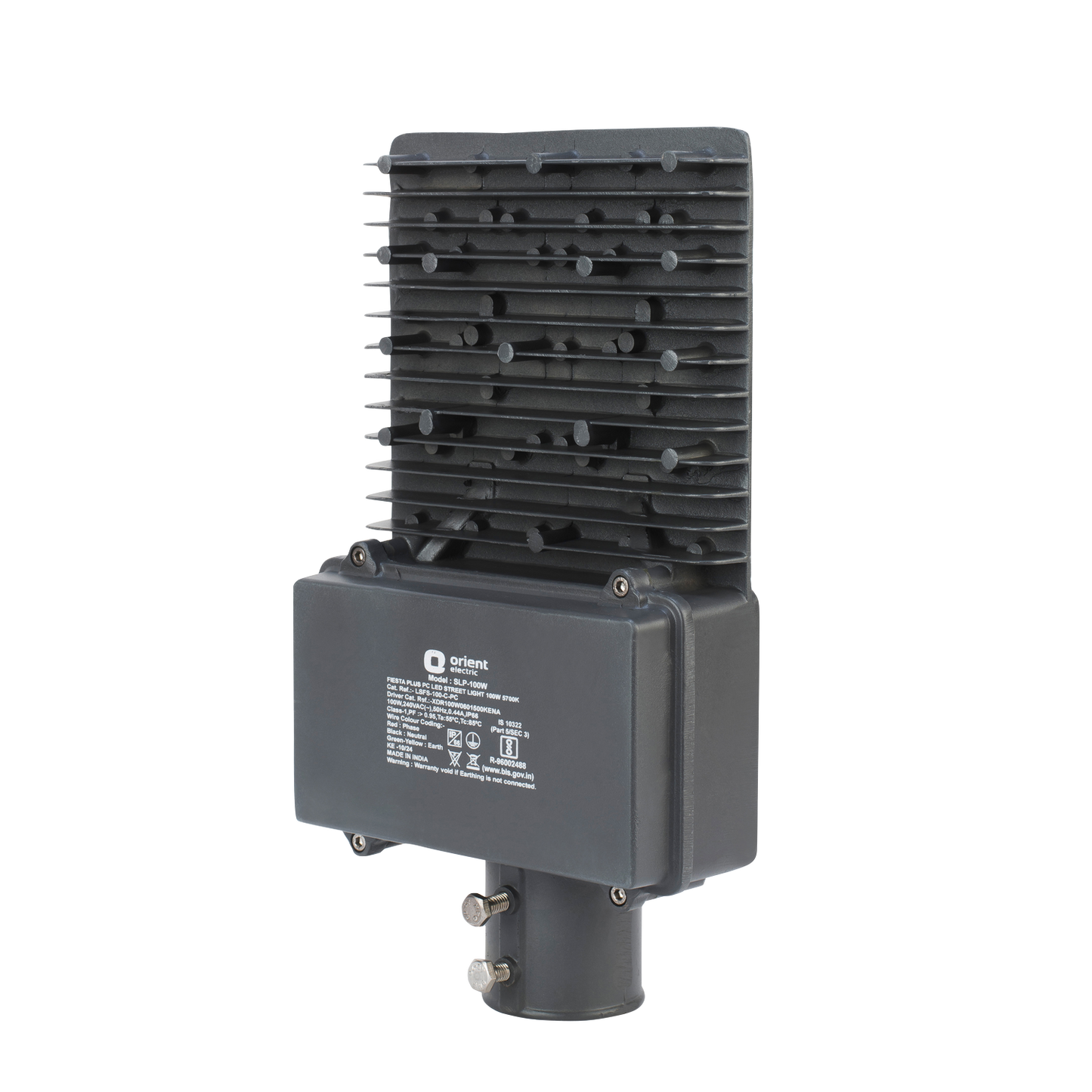

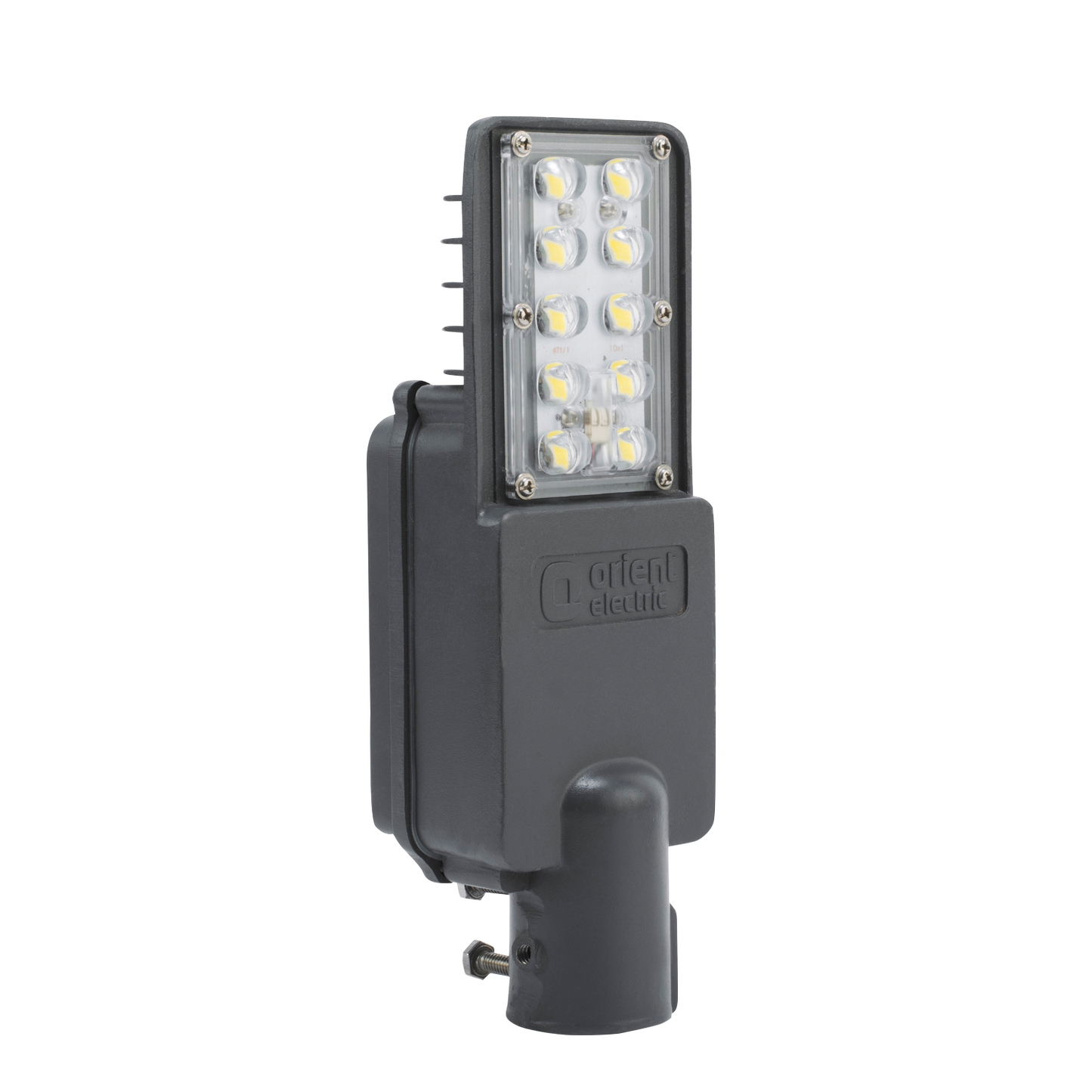

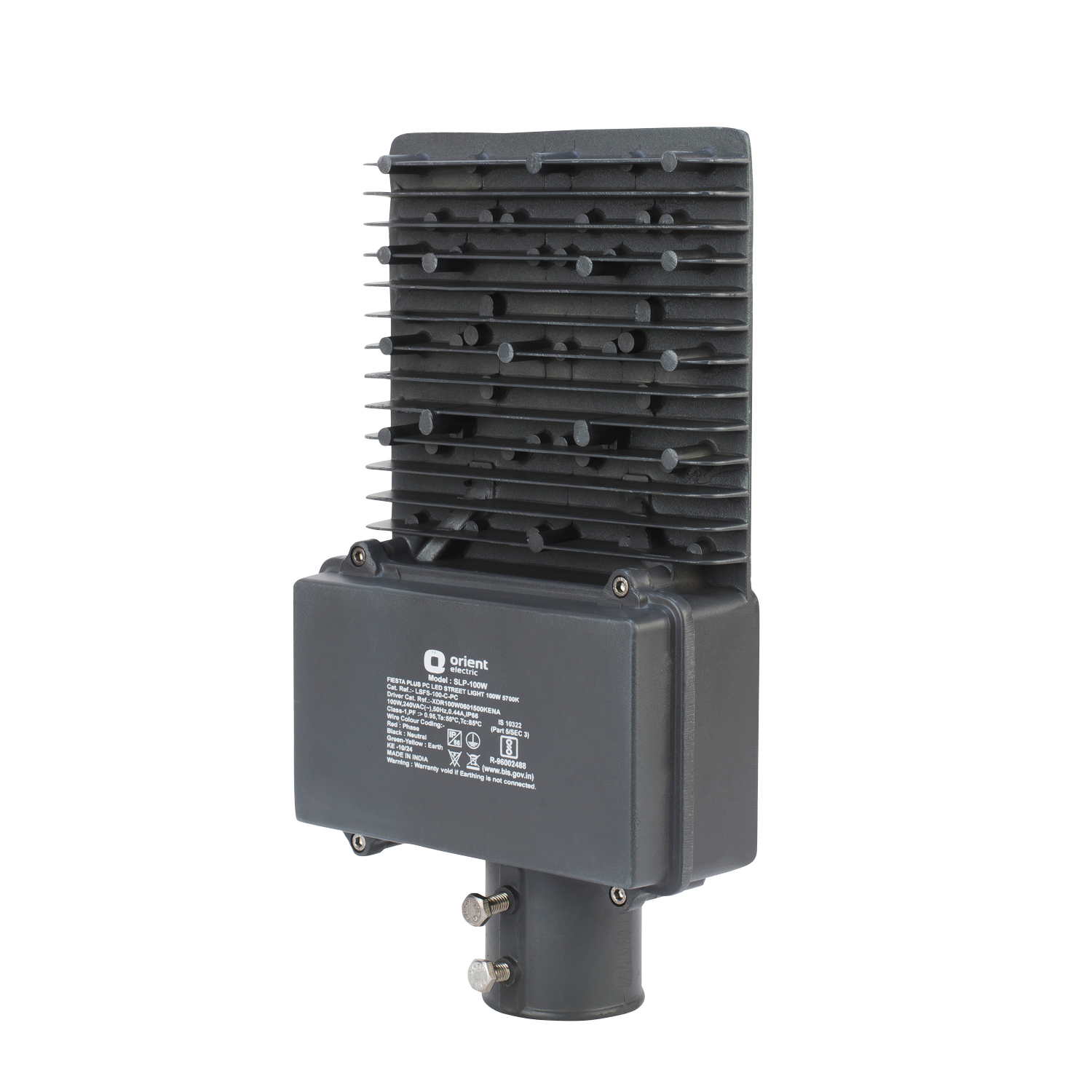

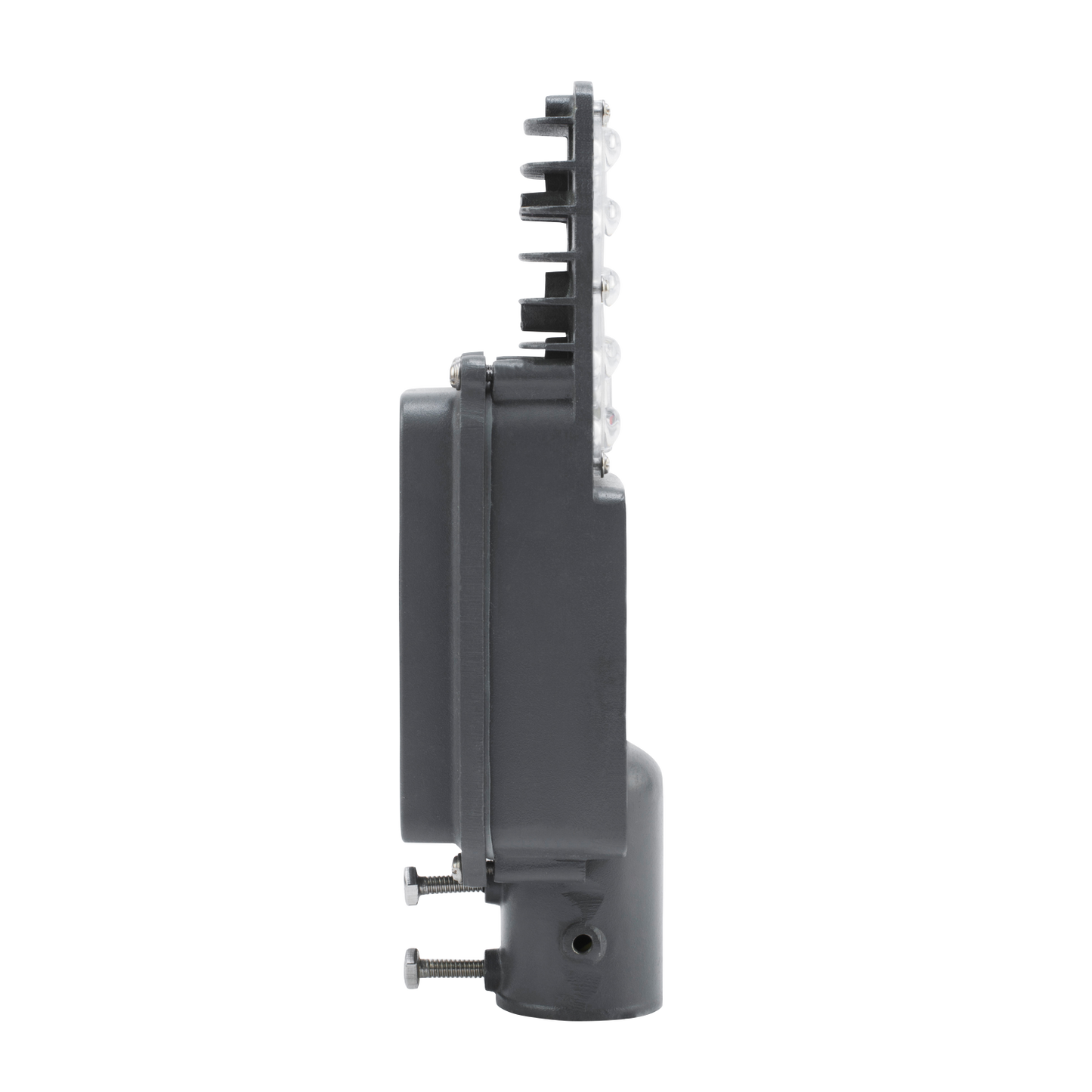

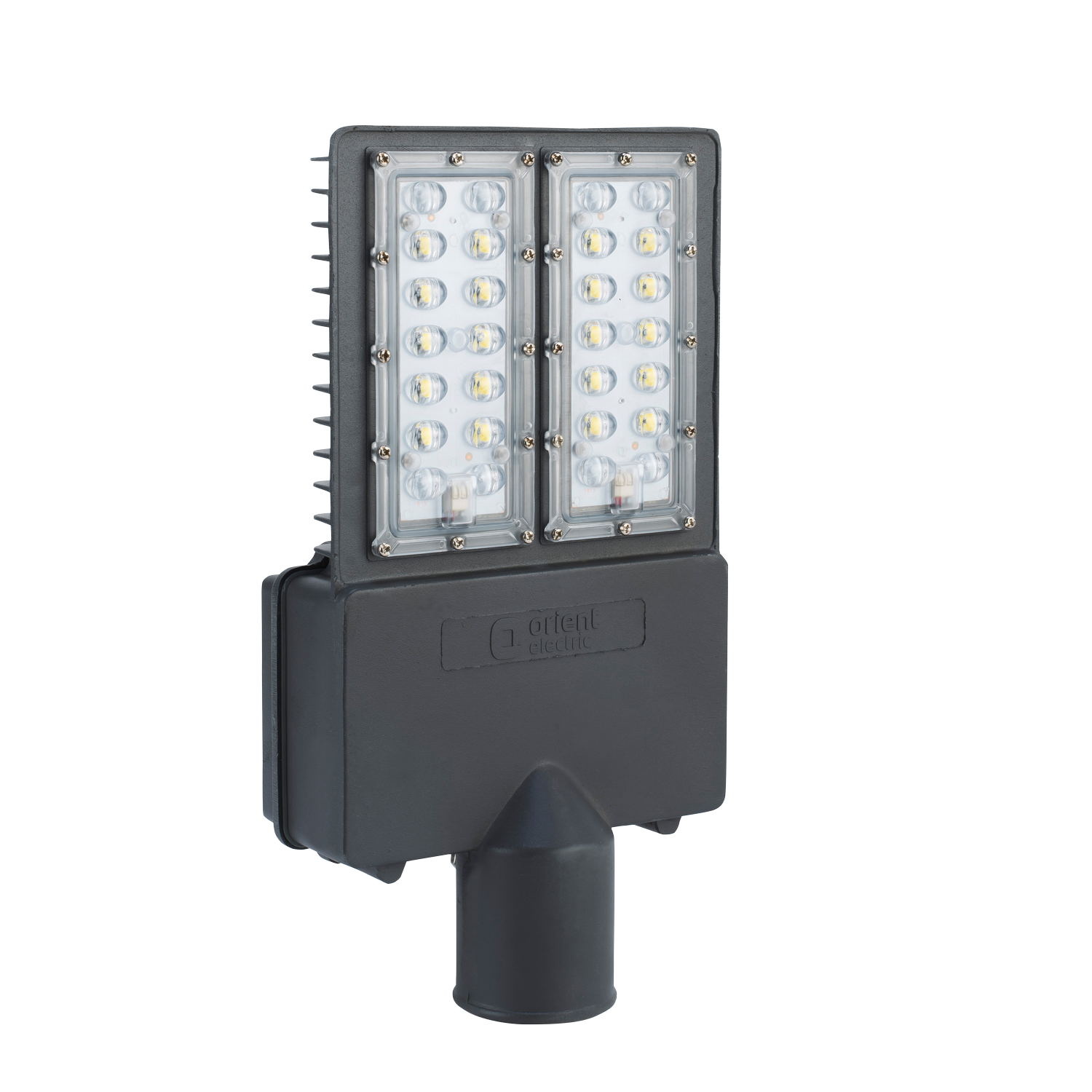

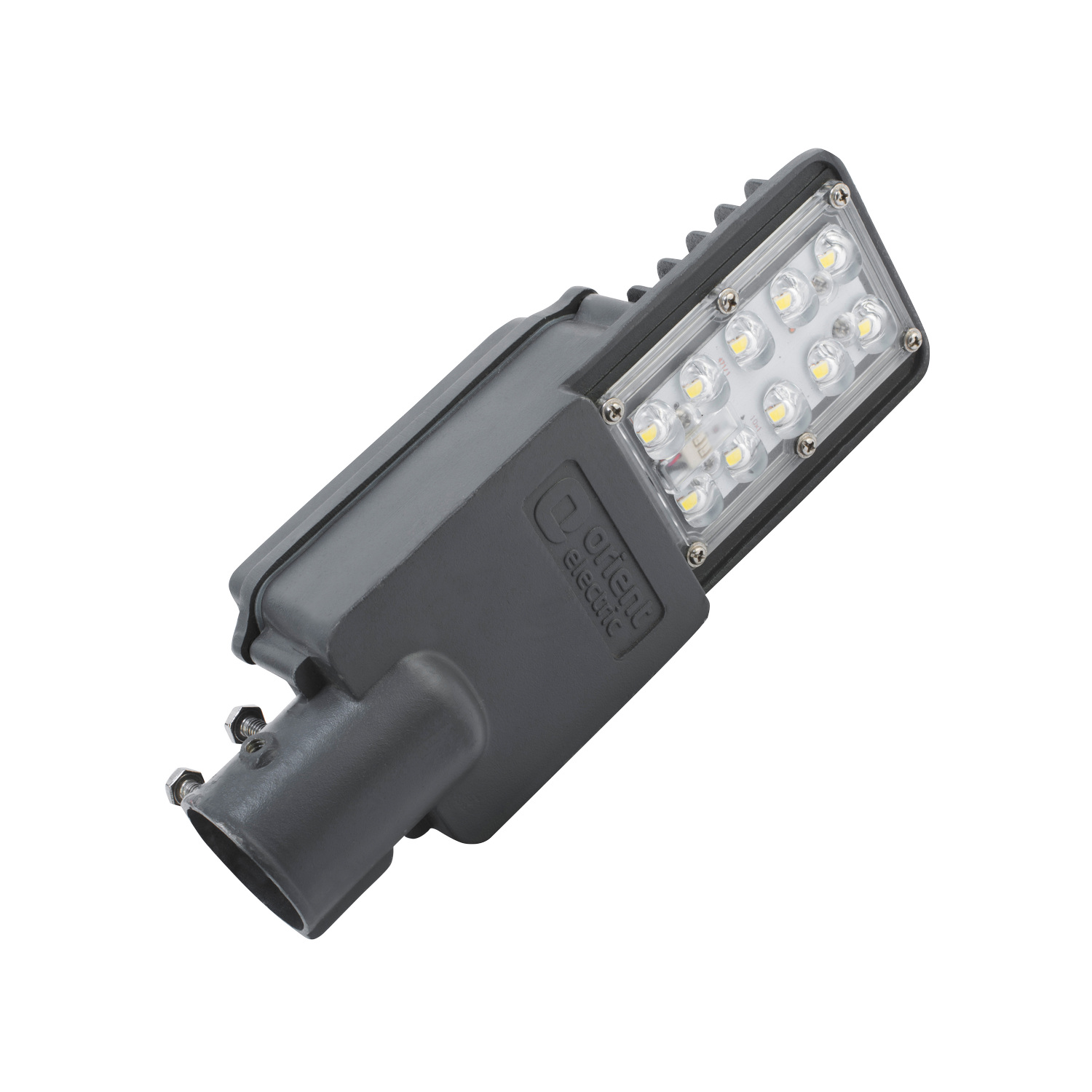

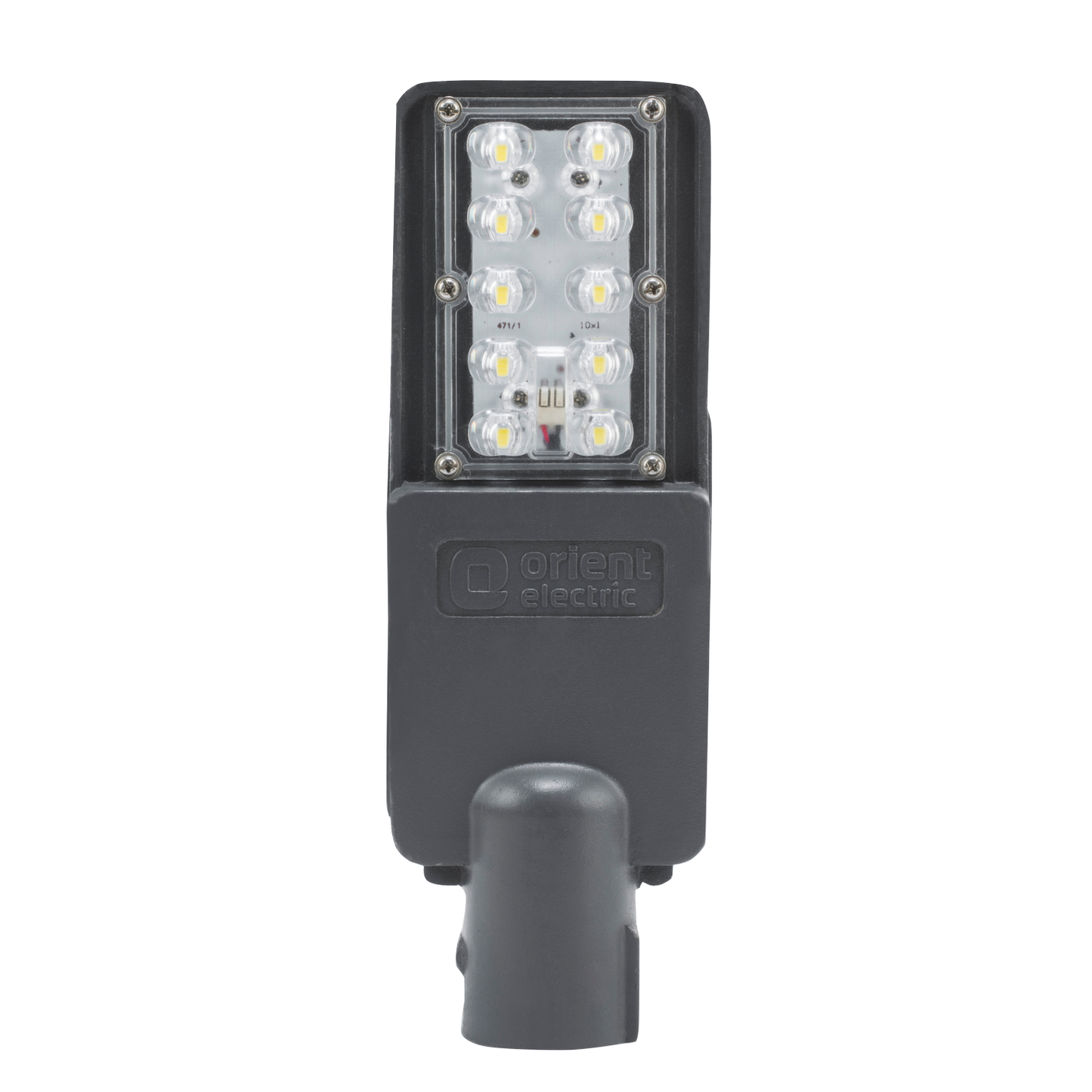

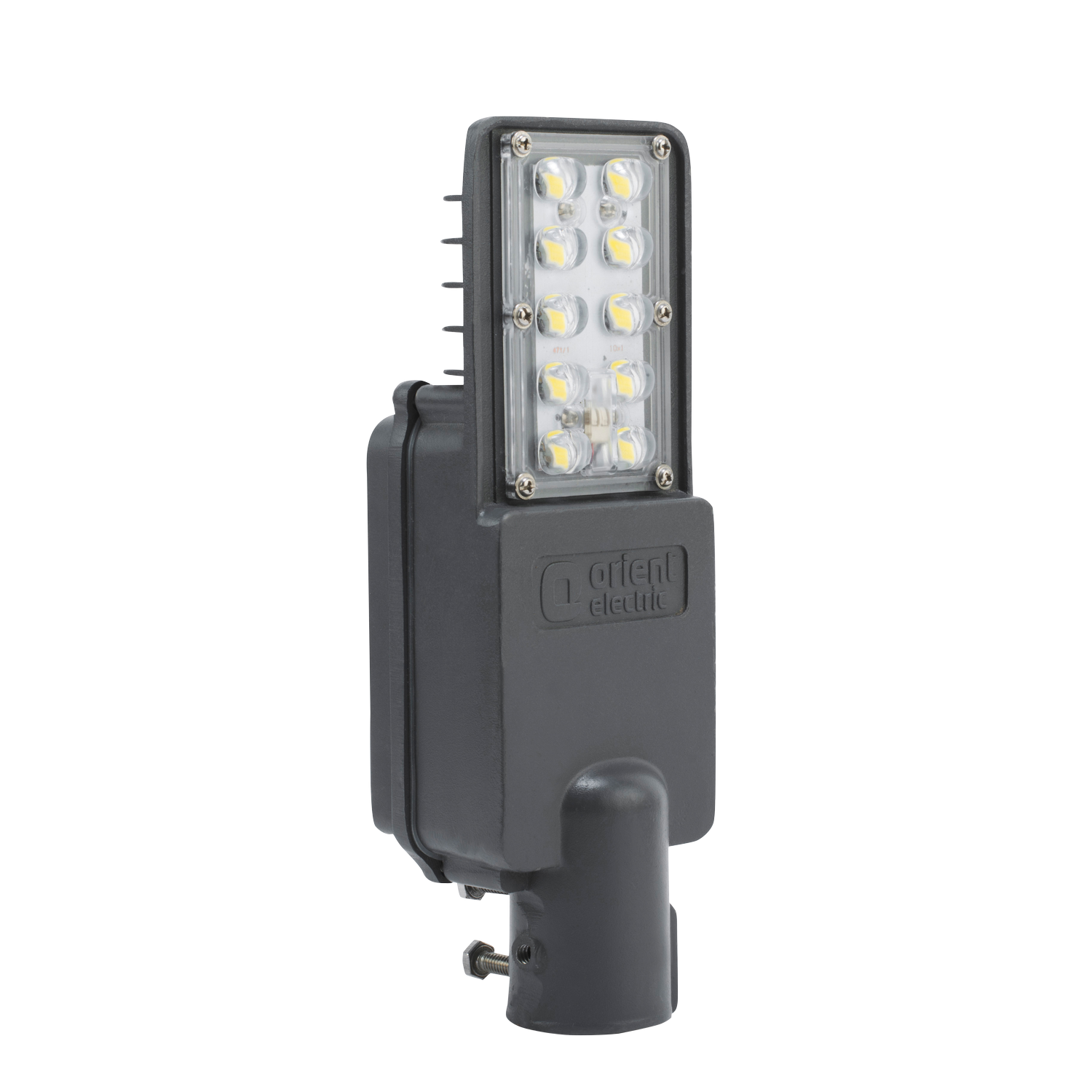

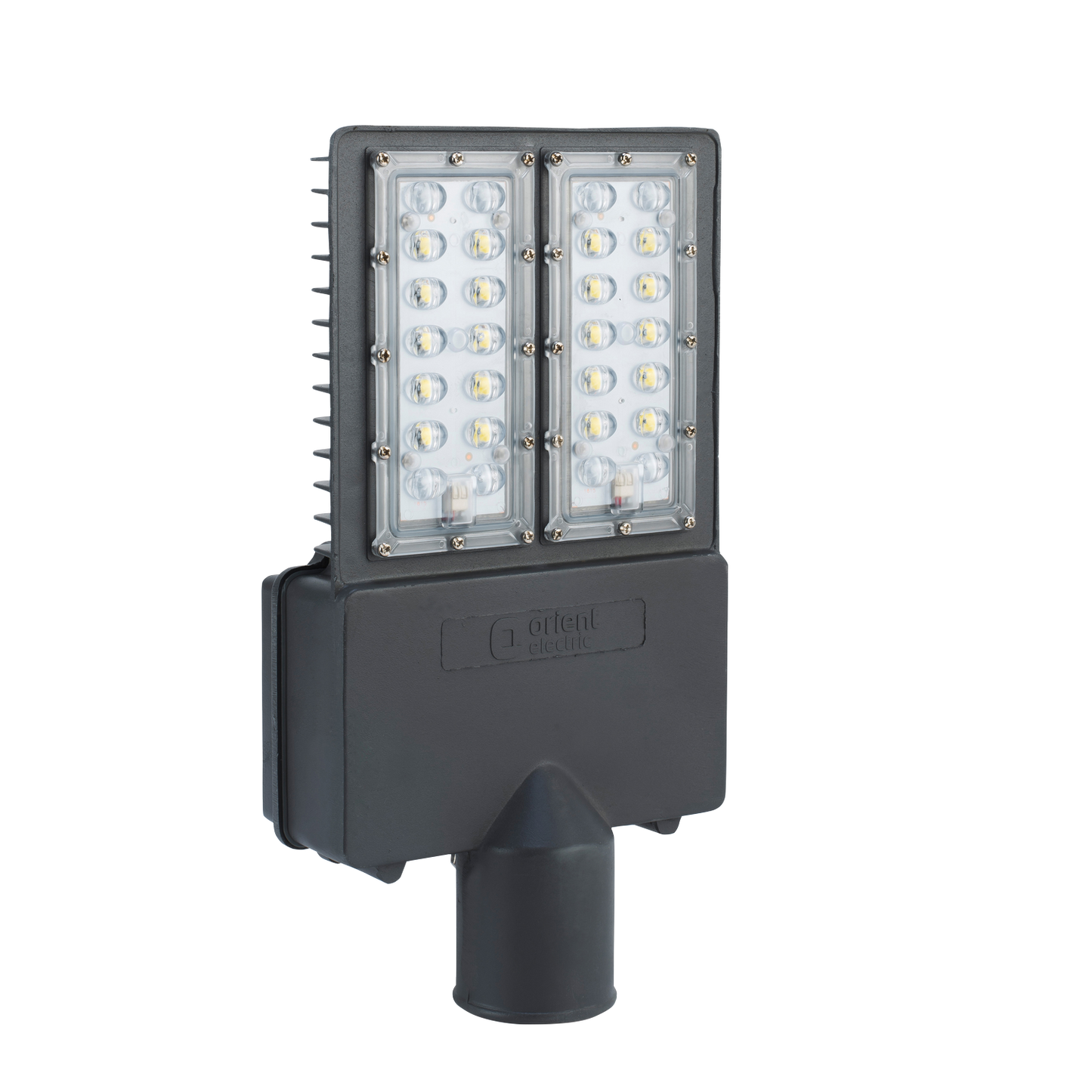

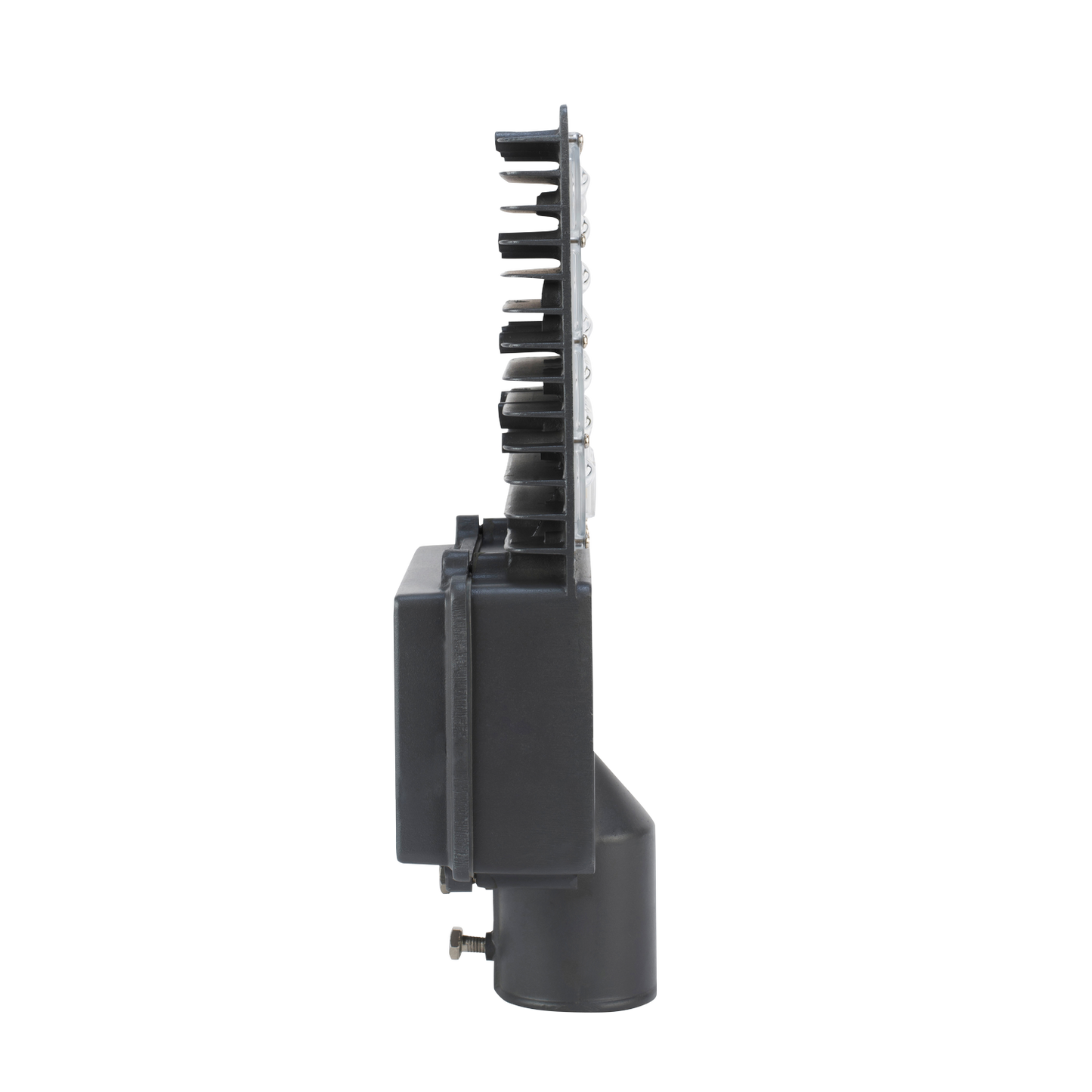

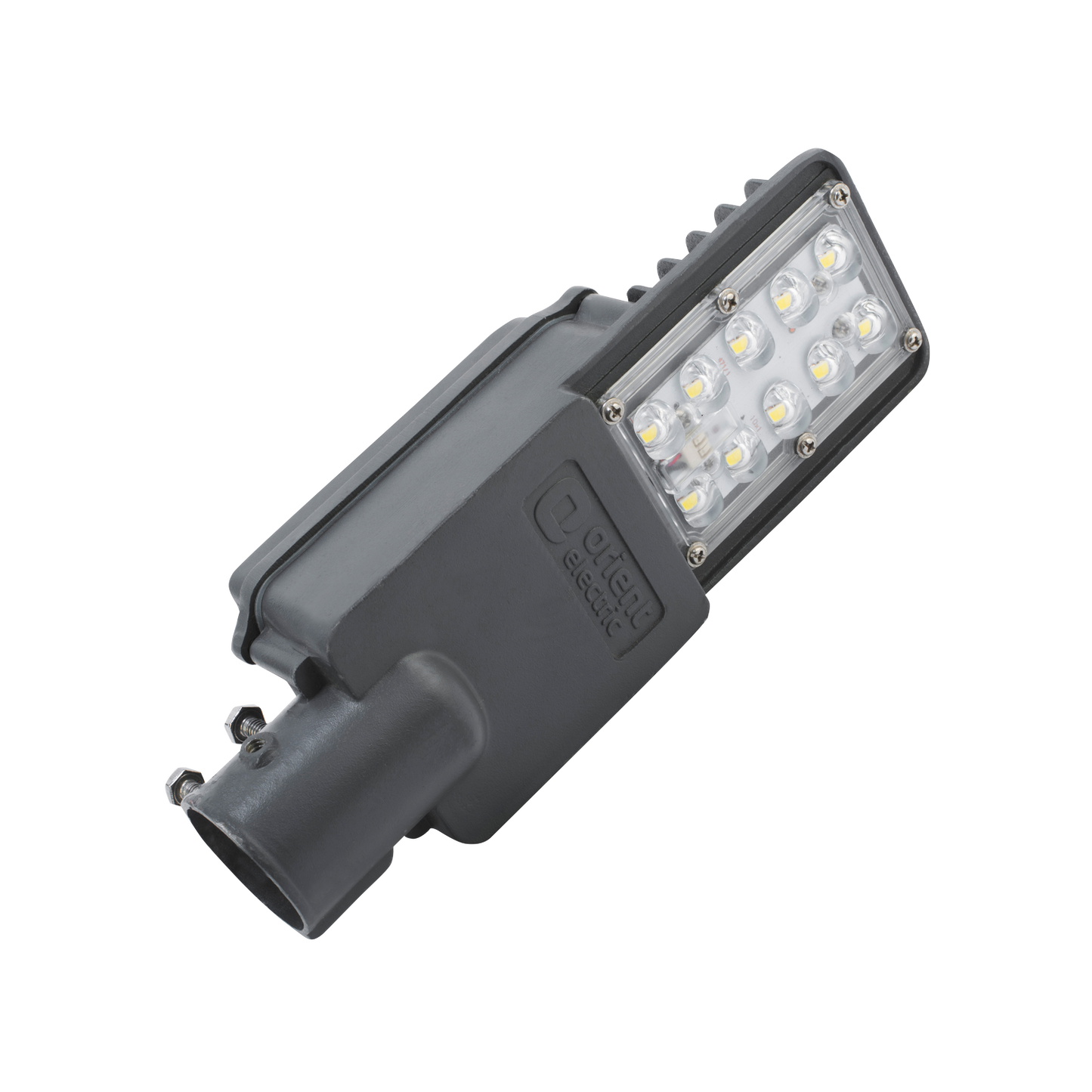

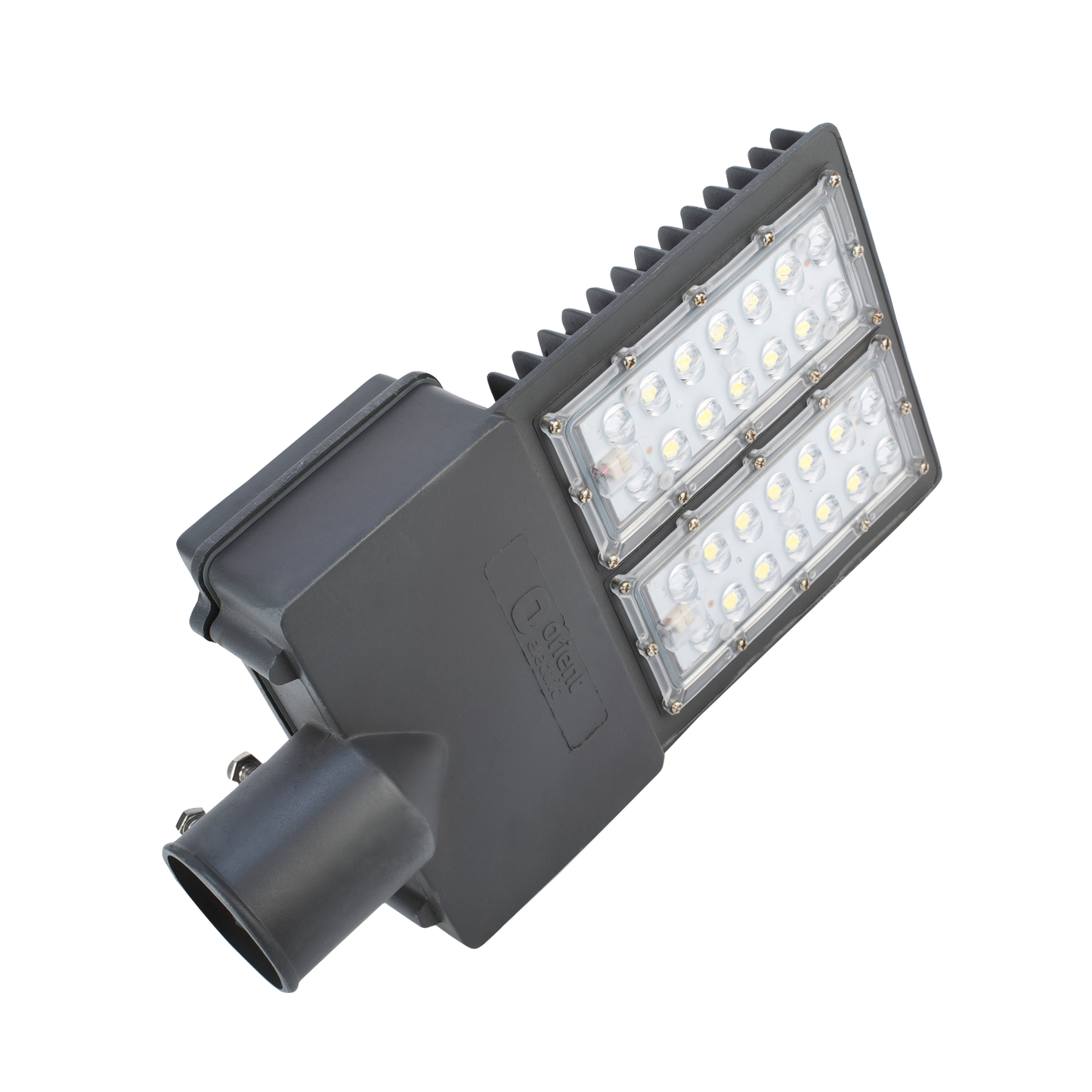

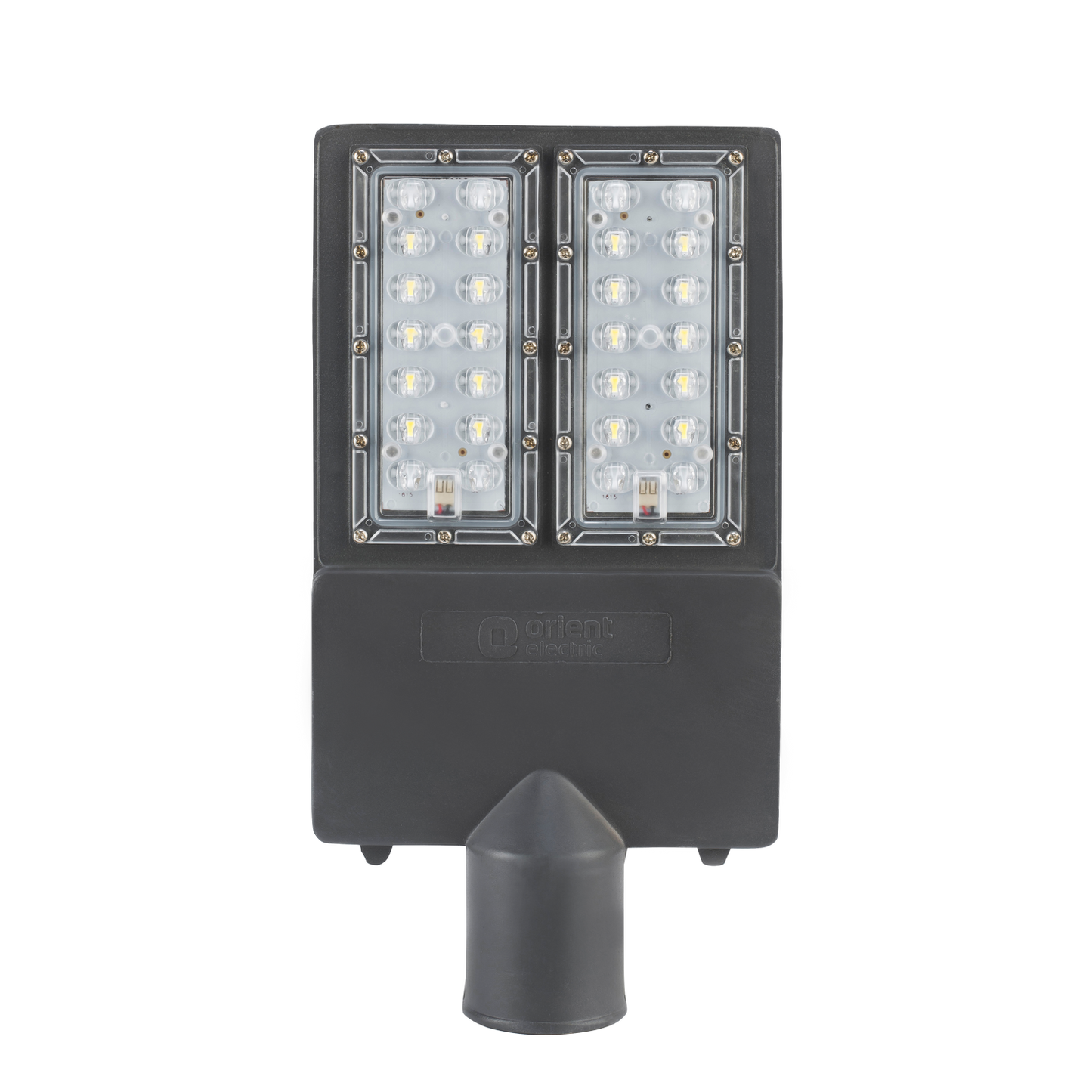

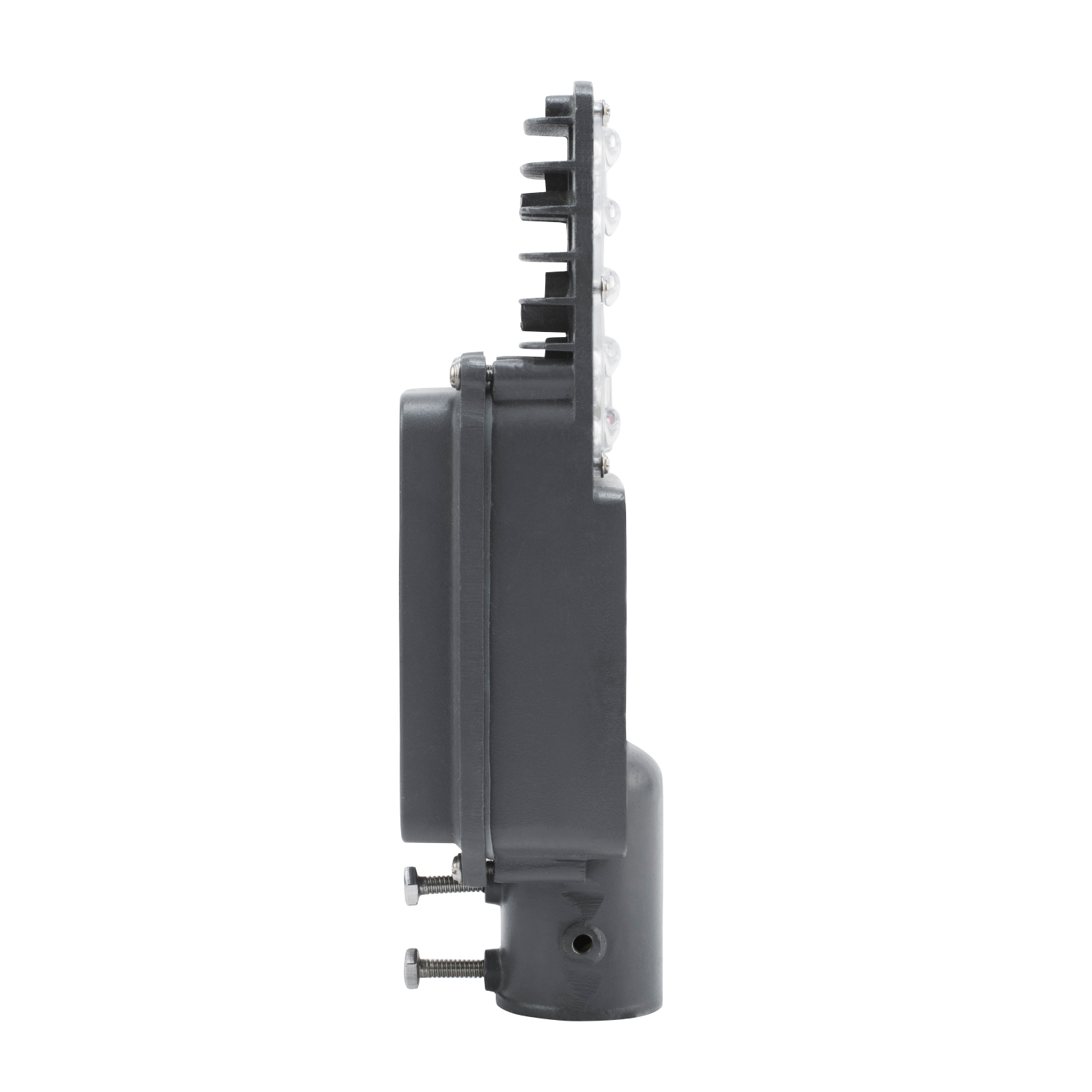

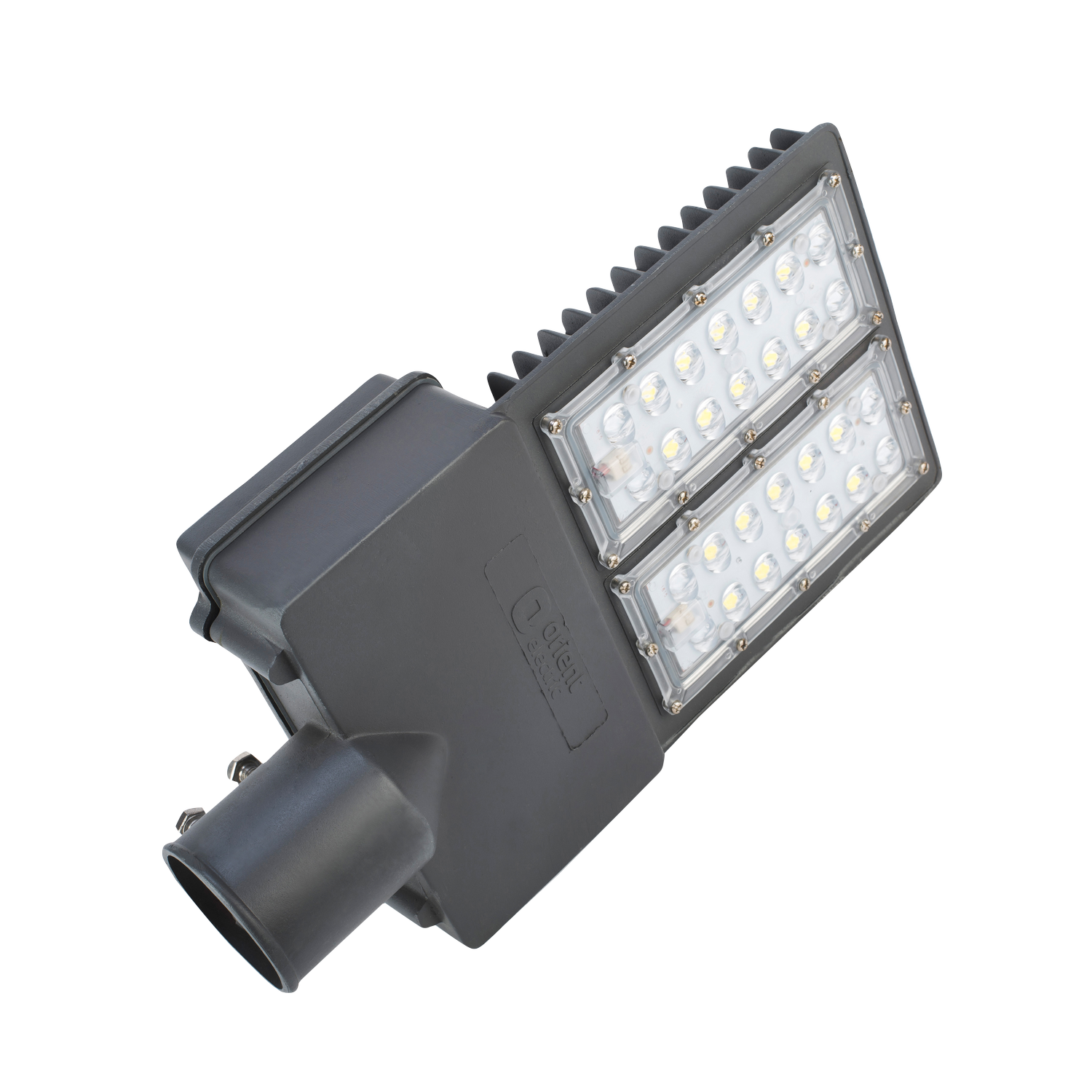

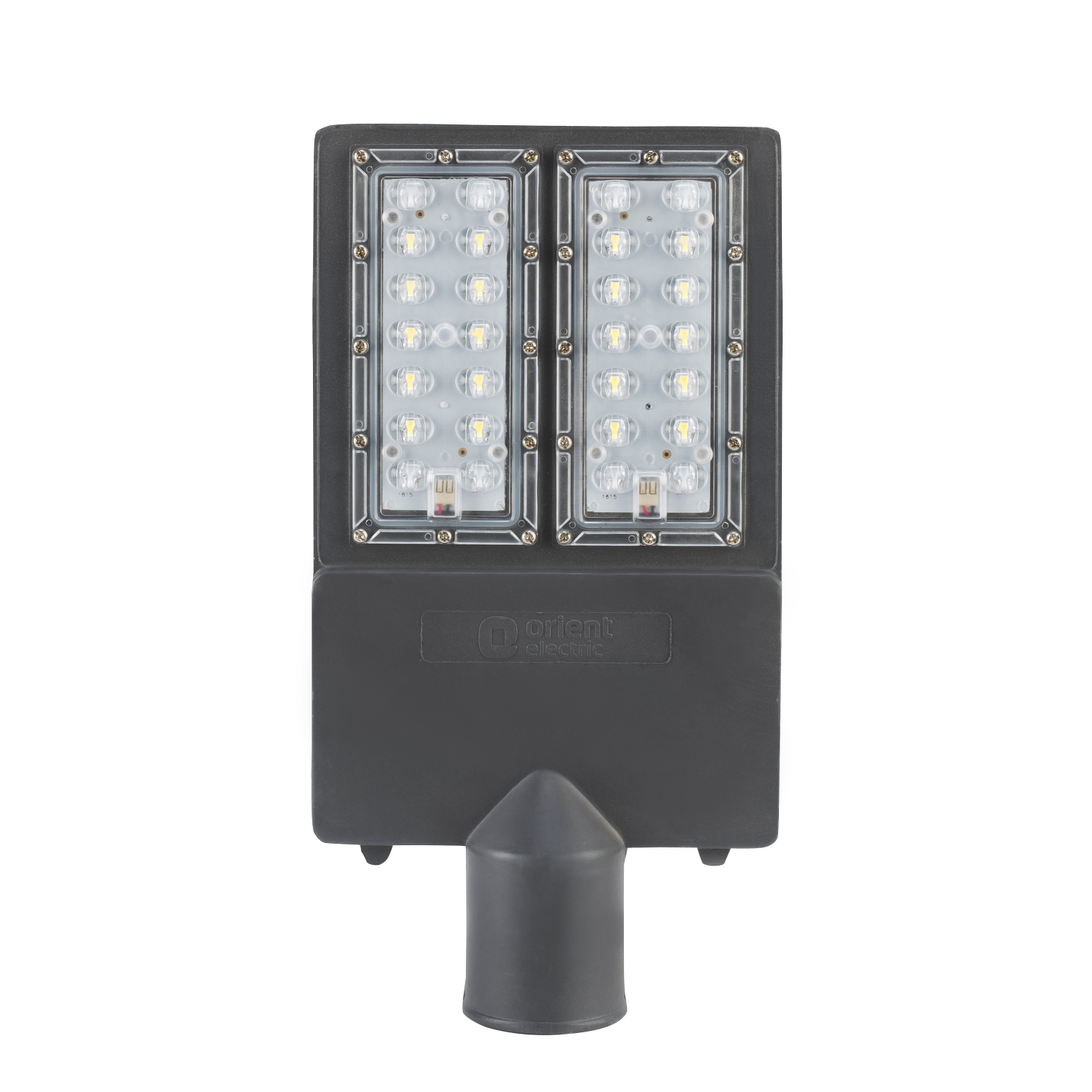

Top-openable IP66 LED streetlight with high efficacy of ≥120 lm/W with aluminium pressure die-cast housing with integrated polycarbonate lens cover in the front for batwing light distribution to ensure uniform light distribution and higher spacing between poles.

View full details
  • General specification
    Housing Excellent thermally managed Pressure die cast aluminum housing
    Optics Integrated polycarbonate lens cover in front of LEDs for batwing distribution of 135°x 85°.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV ;optional 10 KV external SPD
    IP 66
  • Technical Specifications
    System Wattage 30W, 45W, 60W, 70W, 90W, 100W, 120W, 150W, 180W, 200W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥120, ≥110
Fiesta Plus PC UHL variants
Product Variants
Fiesta Plus PC UHL
LSFS-030-C-PCUHL
Fiesta Plus PC UHL
LSFS-030-W-PCUHL
Fiesta Plus PC UHL
LSFS-045-C-PCUHL
Fiesta Plus PC UHL
LSFS-045-W-PCUHL
Fiesta Plus PC UHL
LSFS-060-C-PCUHL
Fiesta Plus PC UHL
LSFS-060-W-PCUHL
Fiesta Plus PC UHL
LSFS-070-C-PCUHL
Fiesta Plus PC UHL
LSFS-070-W-PCUHL
Fiesta Plus PC UHL
LSFS-090-C-PCUHL
Fiesta Plus PC UHL
LSFS-090-W-PCUHL
Fiesta Plus PC UHL
LSFS-100-C-PCUHL
Fiesta Plus PC UHL
LSFS-100-W-PCUHL
Fiesta Plus PC UHL
LSFS-120-C-PCUHL
Fiesta Plus PC UHL
LSFS-120-W-PCUHL
Fiesta Plus PC UHL
LSFS-150-C-PCUHL
Fiesta Plus PC UHL
LSFS-150-W-PCUHL
Fiesta Plus PC UHL
LSFS-180-C-PCUHL
Fiesta Plus PC UHL
LSFS-180-W-PCUHL
Fiesta Plus PC UHL
LSFS-200-C-PCUHL
Fiesta Plus PC UHL
LSFS-200-W-PCUHL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
333
123
88
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
333
123
88
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
388
120
75
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
388
120
75
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
388
120
75
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
388
120
75
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
388
120
87
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
388
120
87
90W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
388
120
87
90W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
388
120
87
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
366
198
105
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
366
198
105
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
366
198
105
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
366
198
105
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
480
212
95
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
480
212
95
180W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
566
212
115
180W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
566
212
115
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
566
212
115
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
566
212
115
