Flameproof Wellglass

Flameproof Wellglass

Flameproof Wellglass

Product Overview

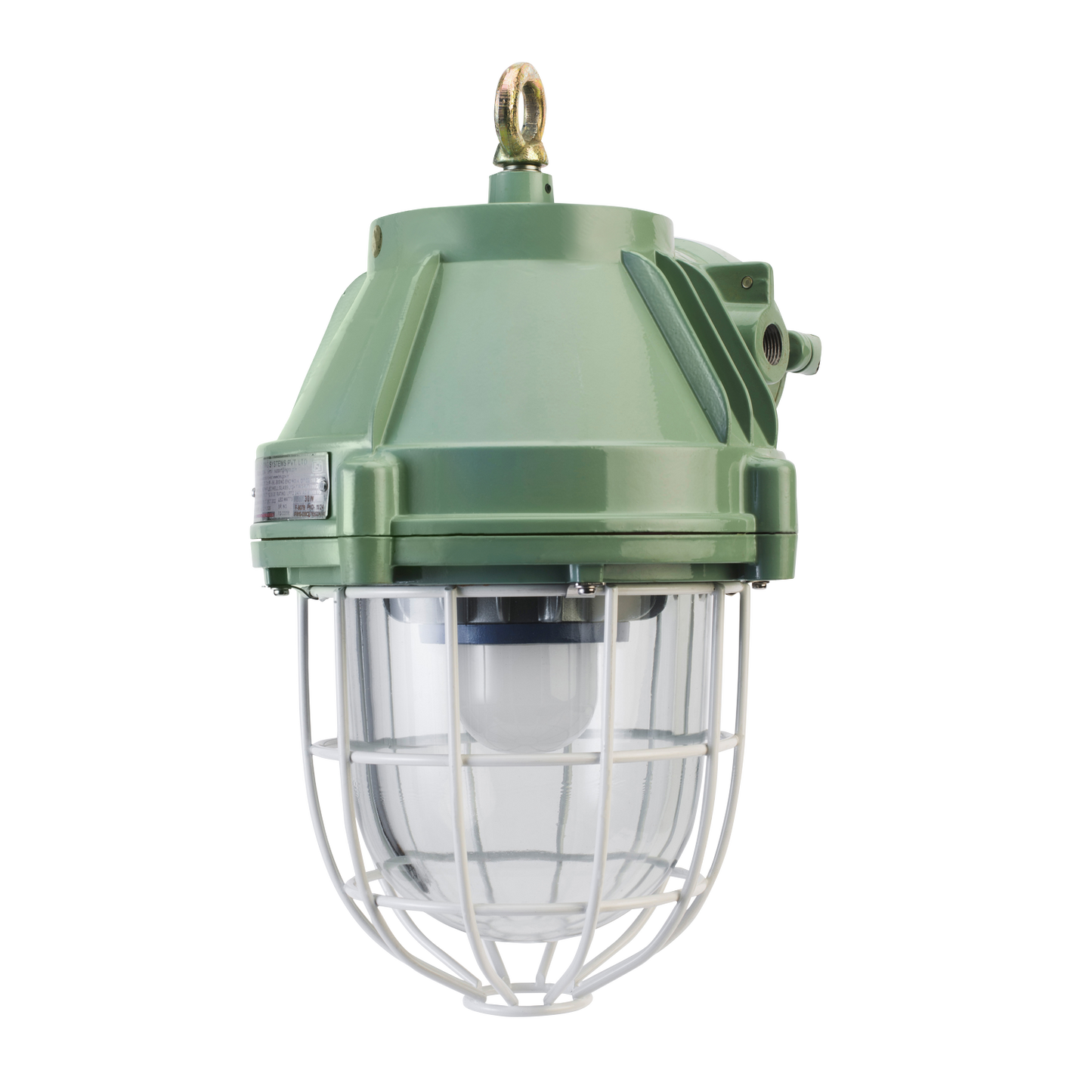

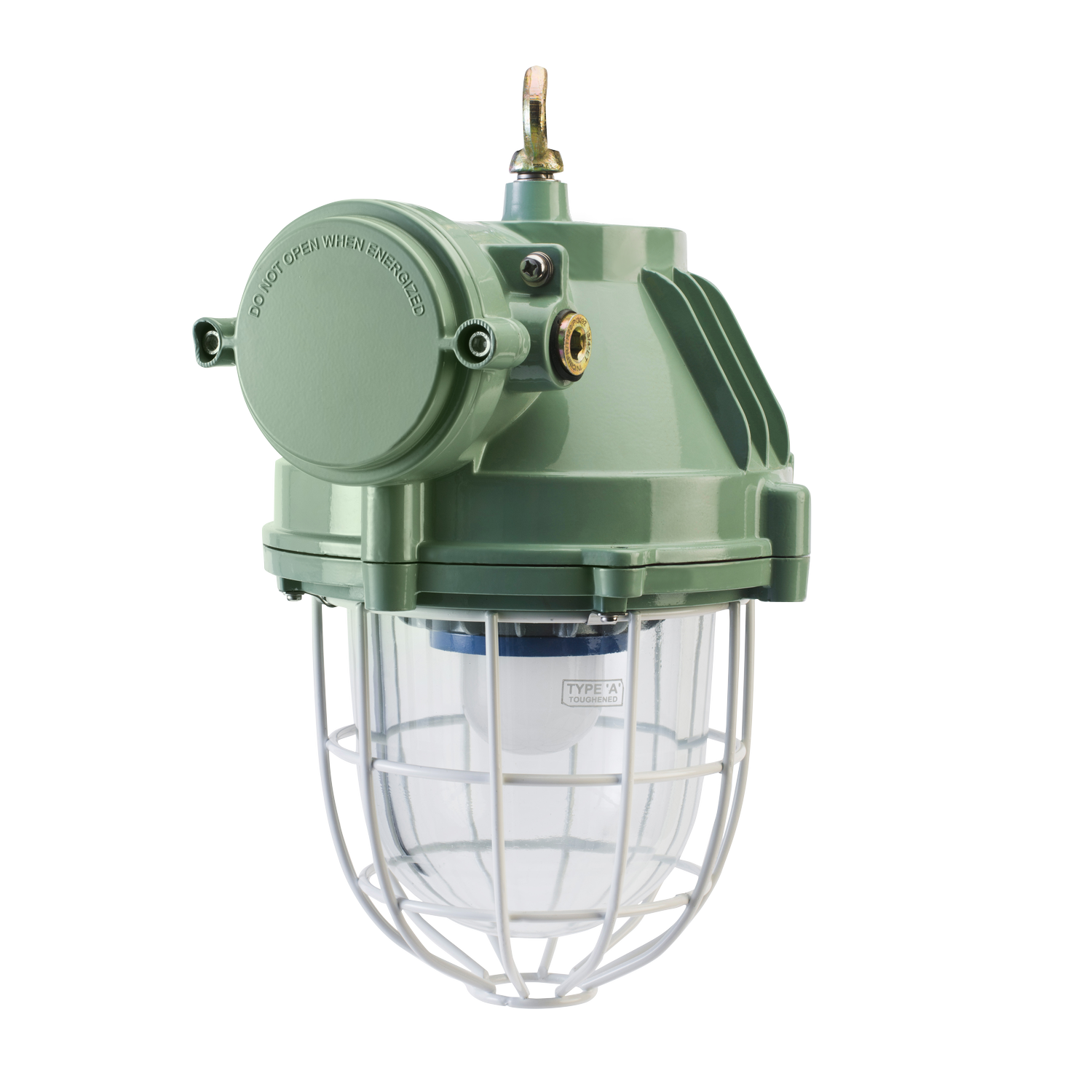

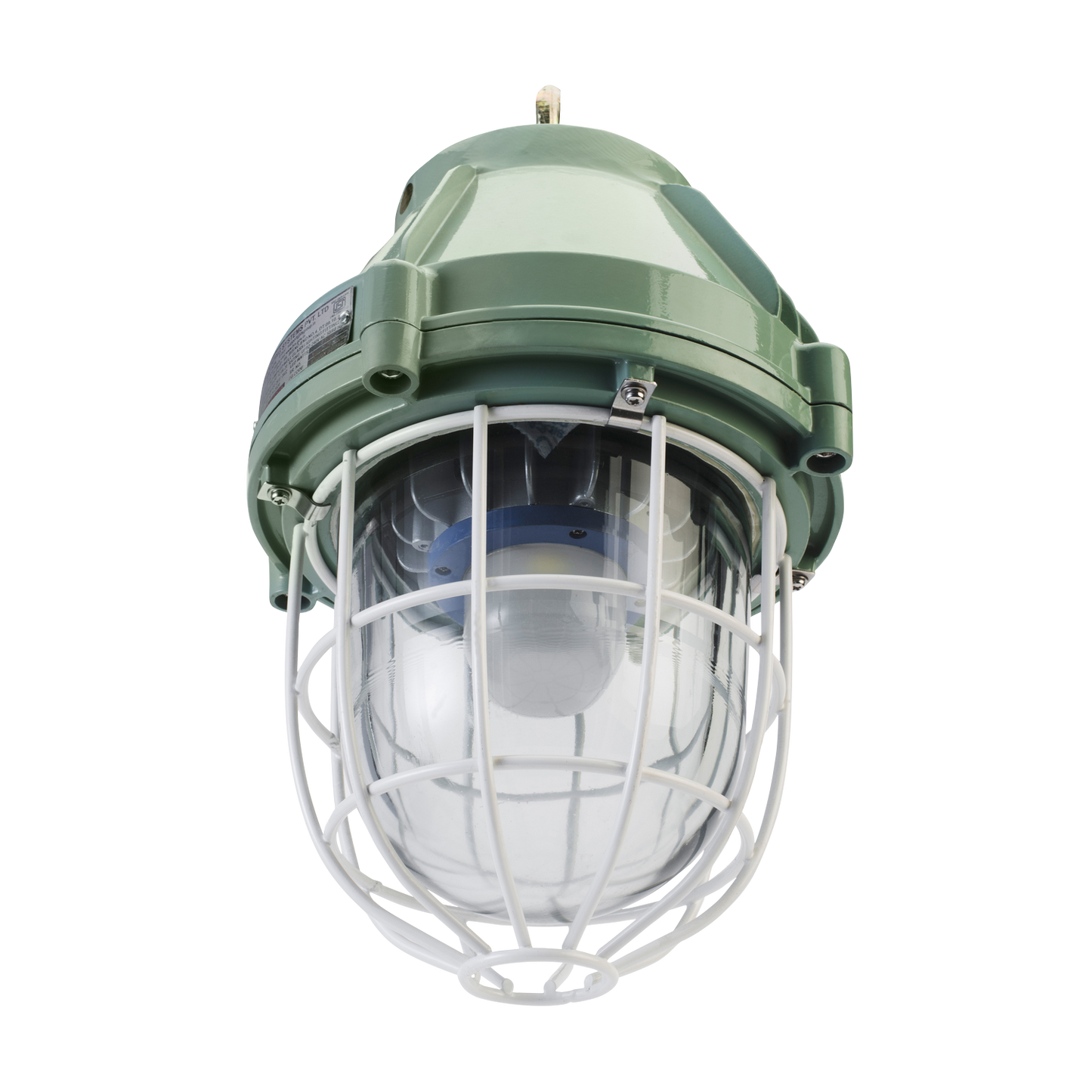

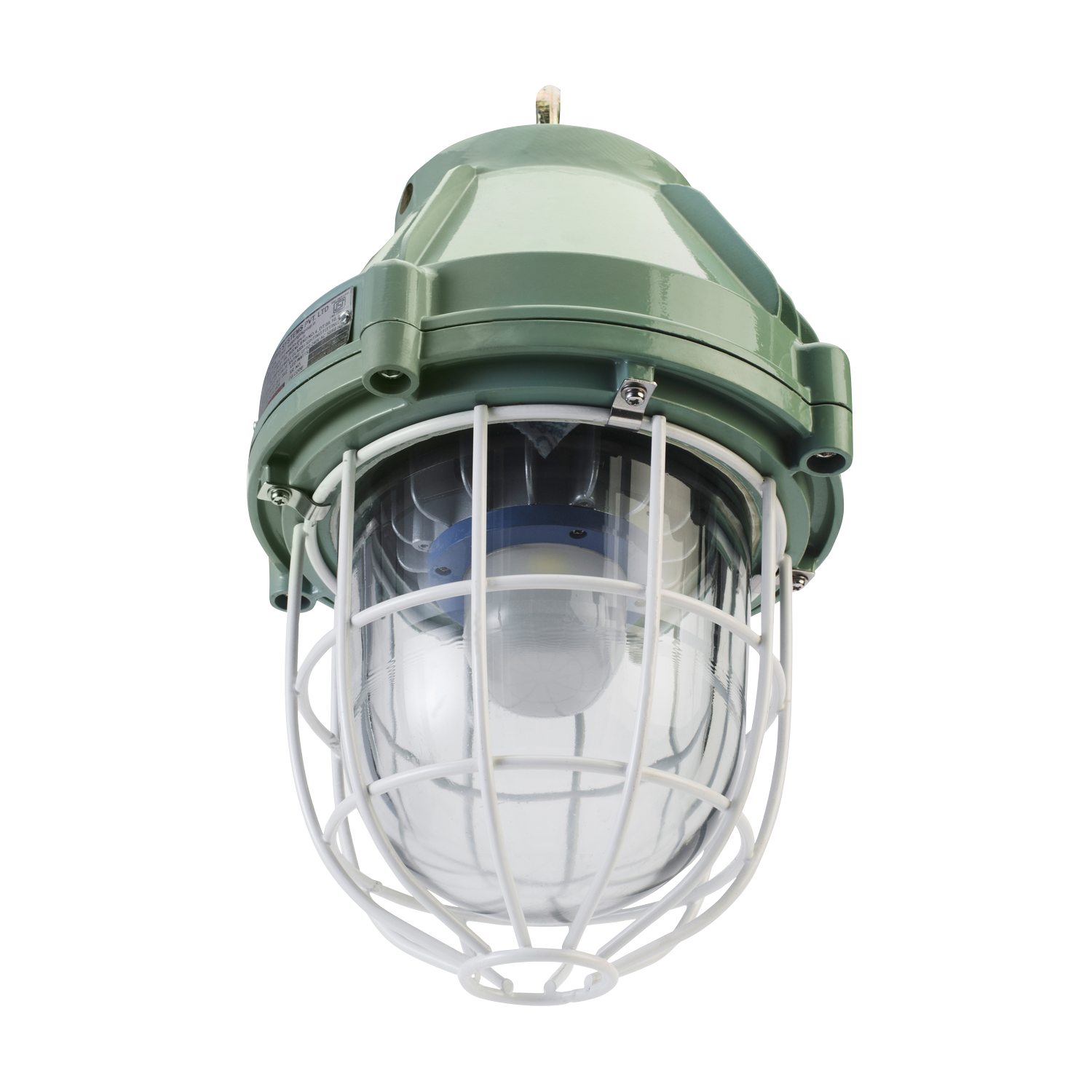

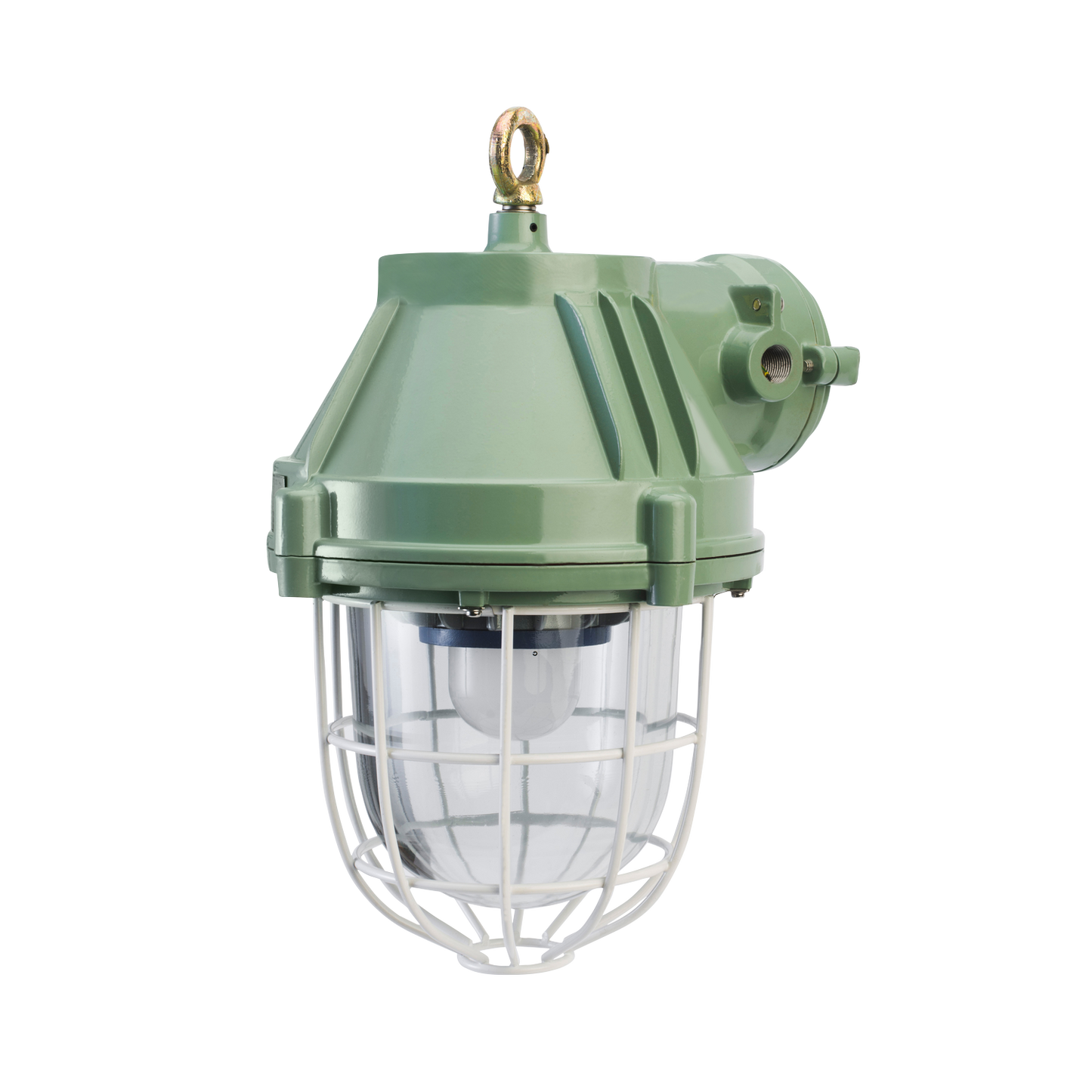

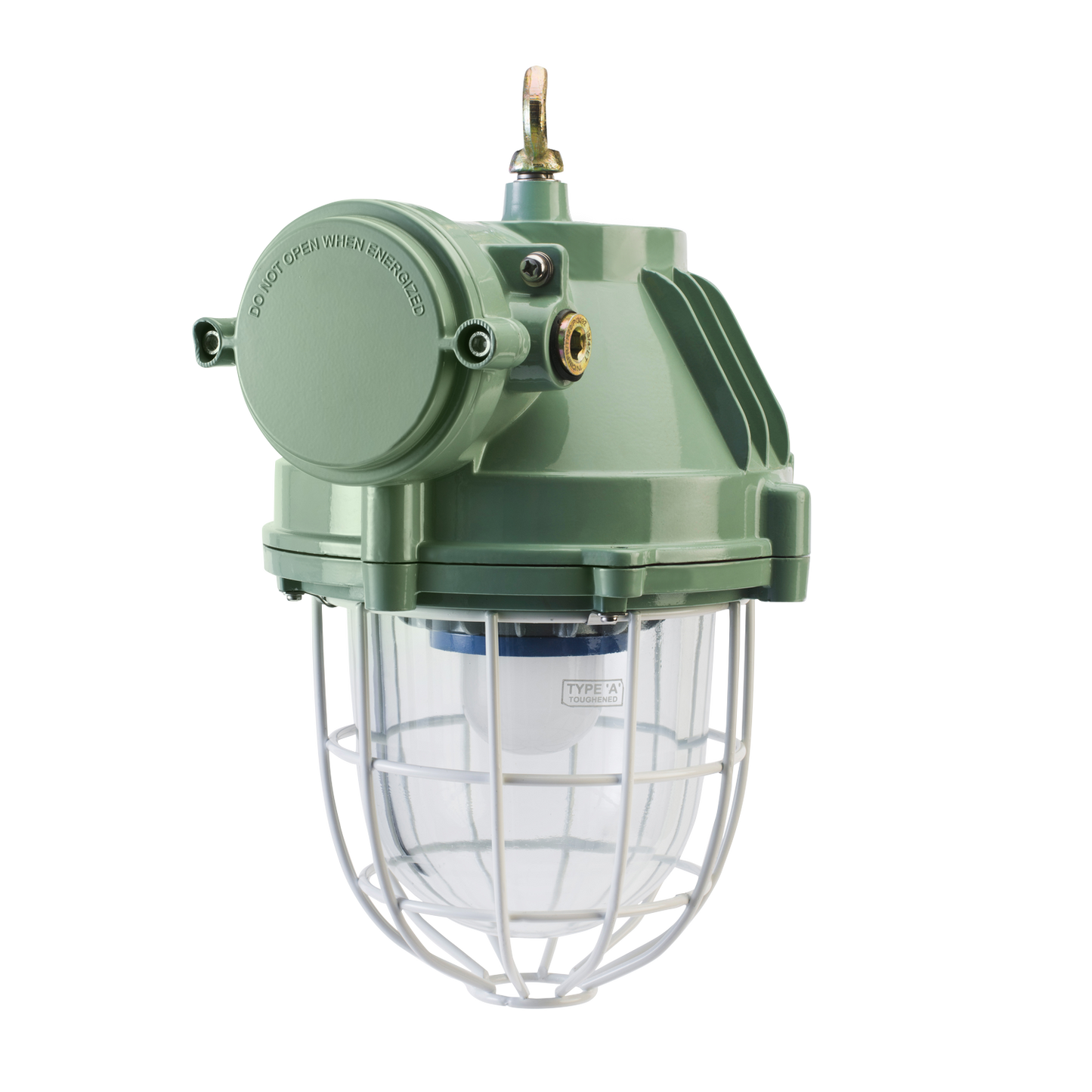

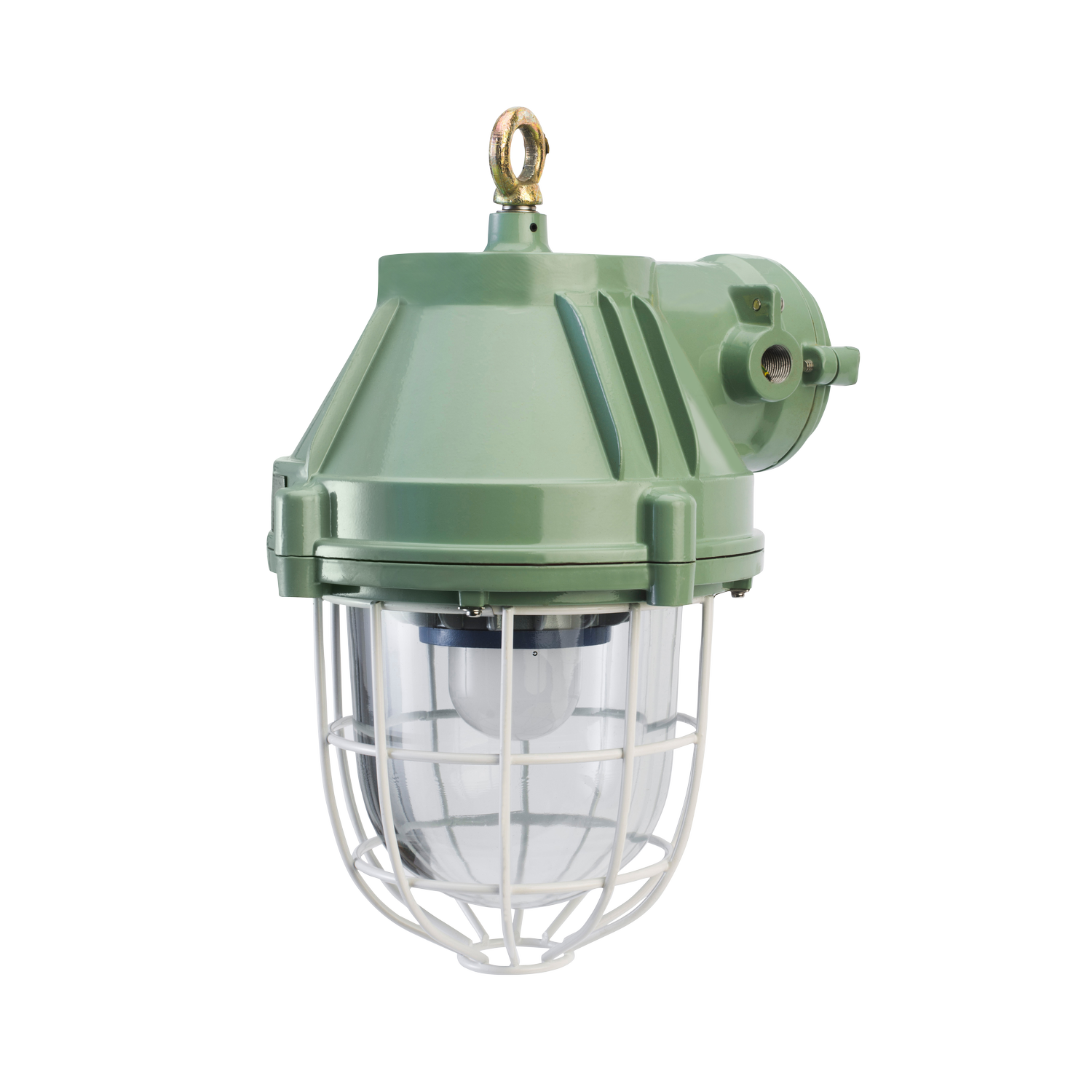

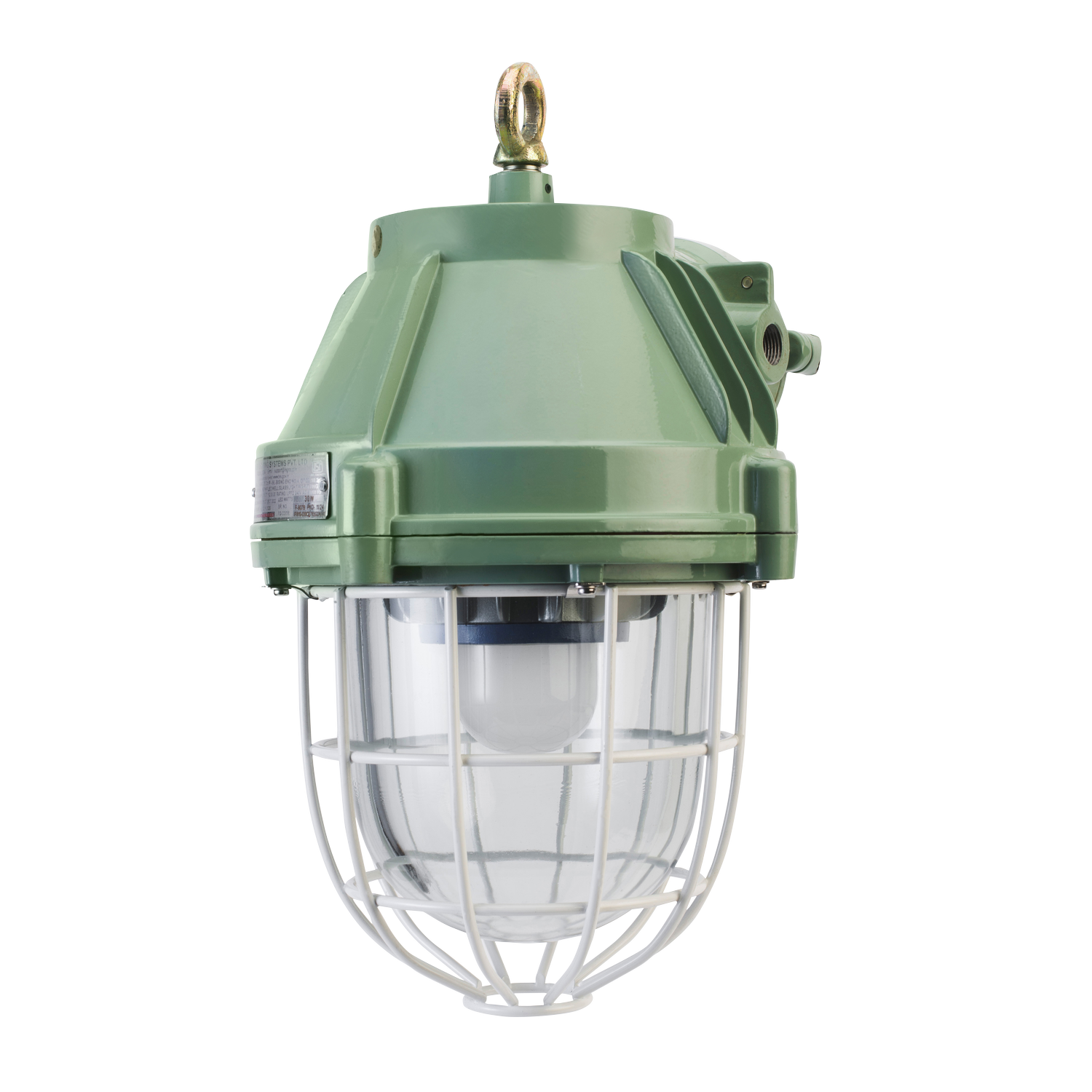

High-efficiency IP66 flame proof wellglass with pressure die-cast housing with toughened glass in front designed to meet the stringent requirements of ensuring safety in hazardous locations classified as Zone 1 and Zone 2 with Gas Groups IIA and IIB.Built with advanced flameproof technology, this luminaire is engineered to operate safely in areas with potential exposure to flammable gases, vapors, or dust.

Best suited for

Oil and gas

Chemical Industries

View full details
  • General specification
    Housing Excellent thermally managed PDC Aluminum Housing
    Optics Secondary optics 120 degree with toughened glass in front
    Mounting Hook mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV
    IP 66
  • Technical Specifications
    System Wattage 30W , 40W , 45W , 60W
    CCT 6500K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100
Flameproof Wellglass variants
Product Variants
Flameproof Wellglass
LWFLP-30-C
Flameproof Wellglass
LWFLP-40-C
Flameproof Wellglass
LWFLP-45-C
Flameproof Wellglass
LWFLP-60-C
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
30W
6500K
≥70
240V AC
≥0.95
≤10%
≥100
268
403
40W
6500K
≥70
240V AC
≥0.95
≤10%
≥100
268
403
45W
6500K
≥70
240V AC
≥0.95
≤10%
≥100
268
403
60W
6500K
≥70
240V AC
≥0.95
≤10%
≥100
268
403
