Product Overview

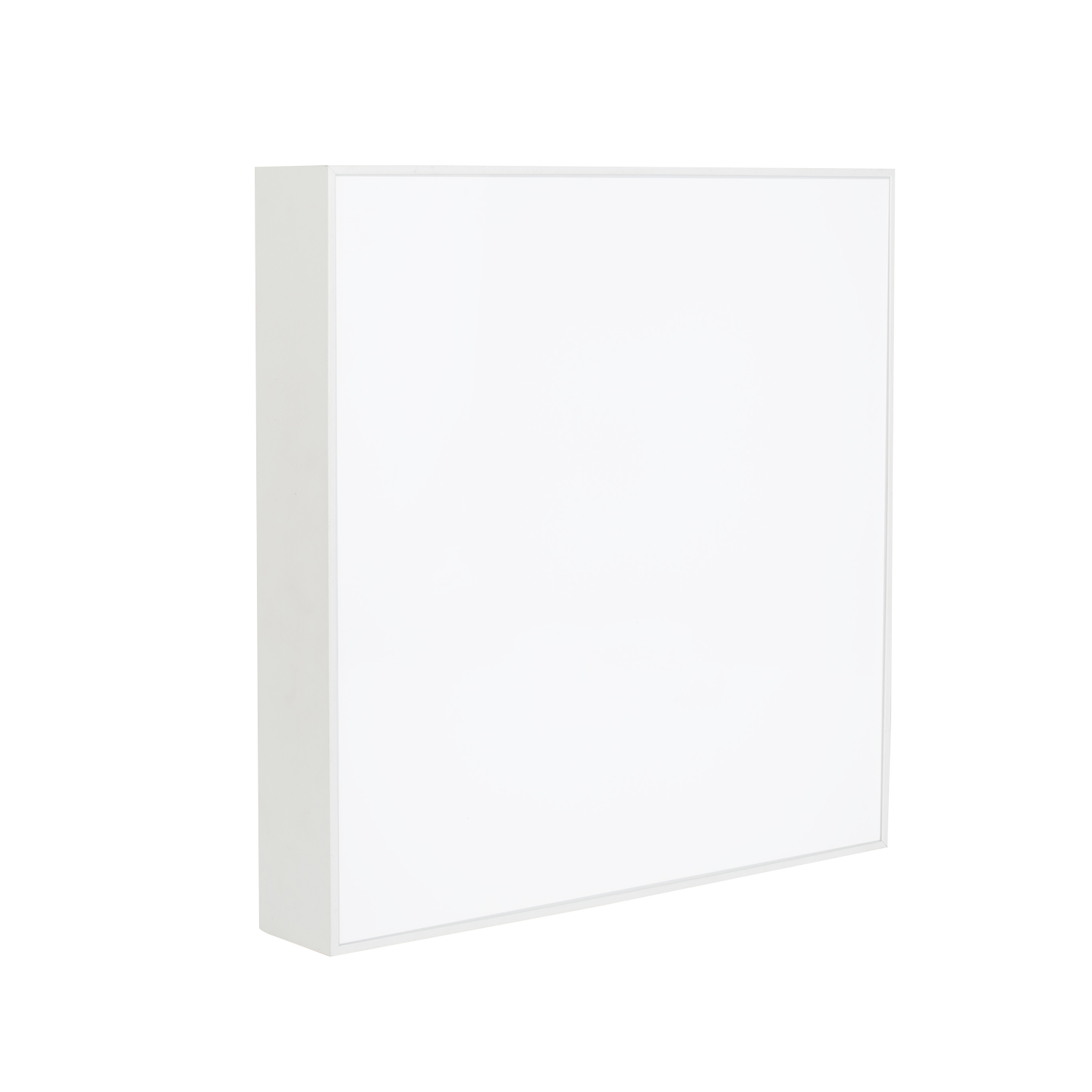

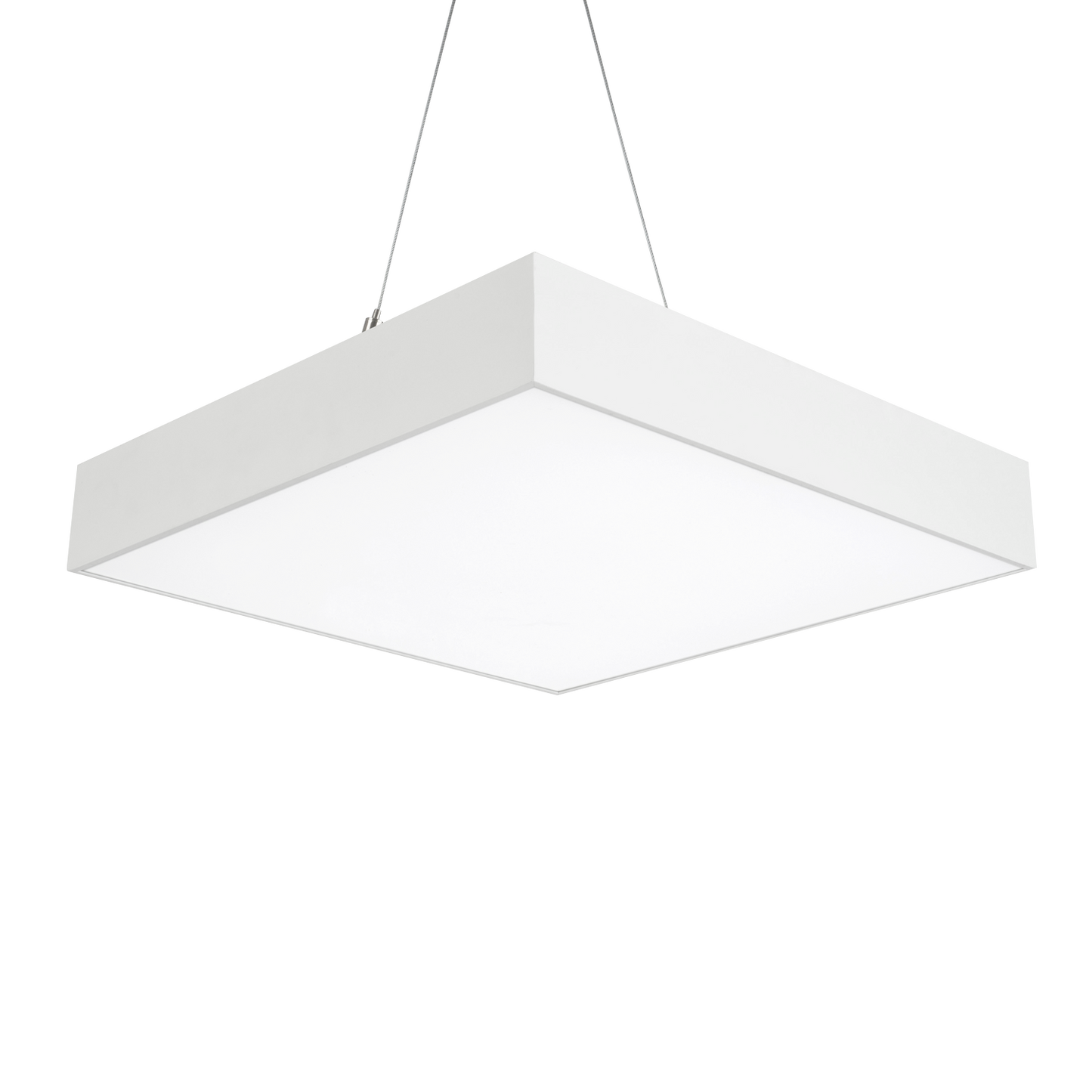

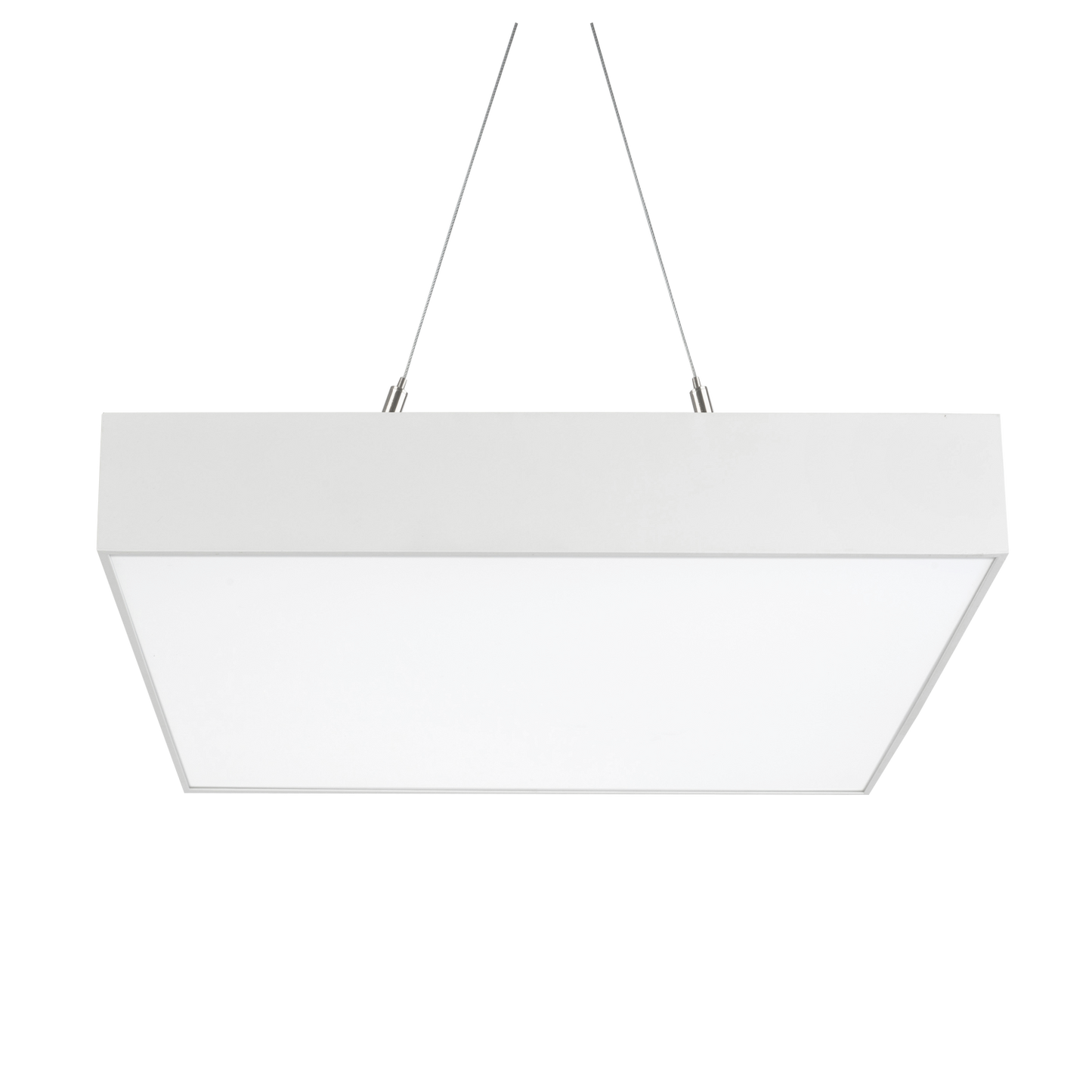

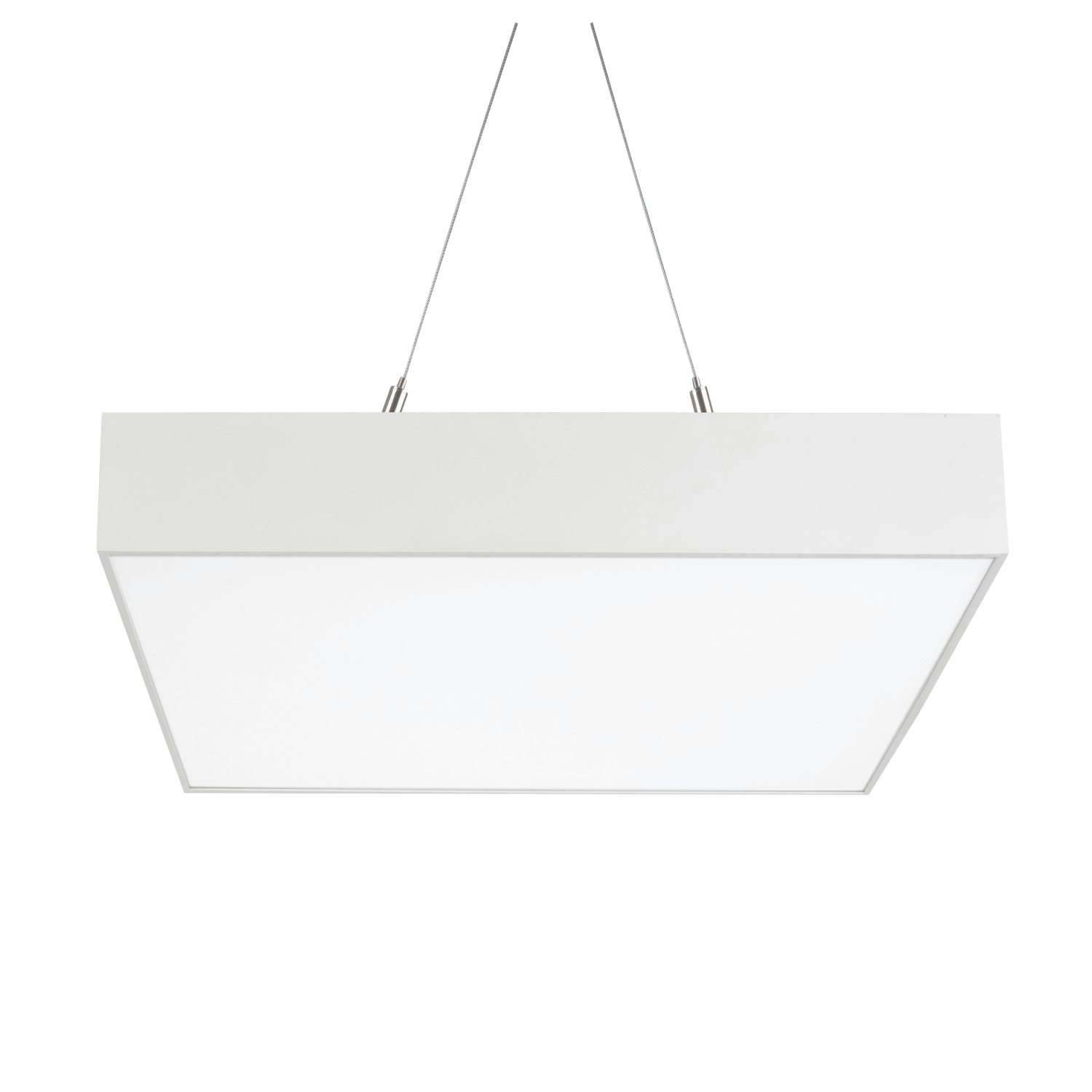

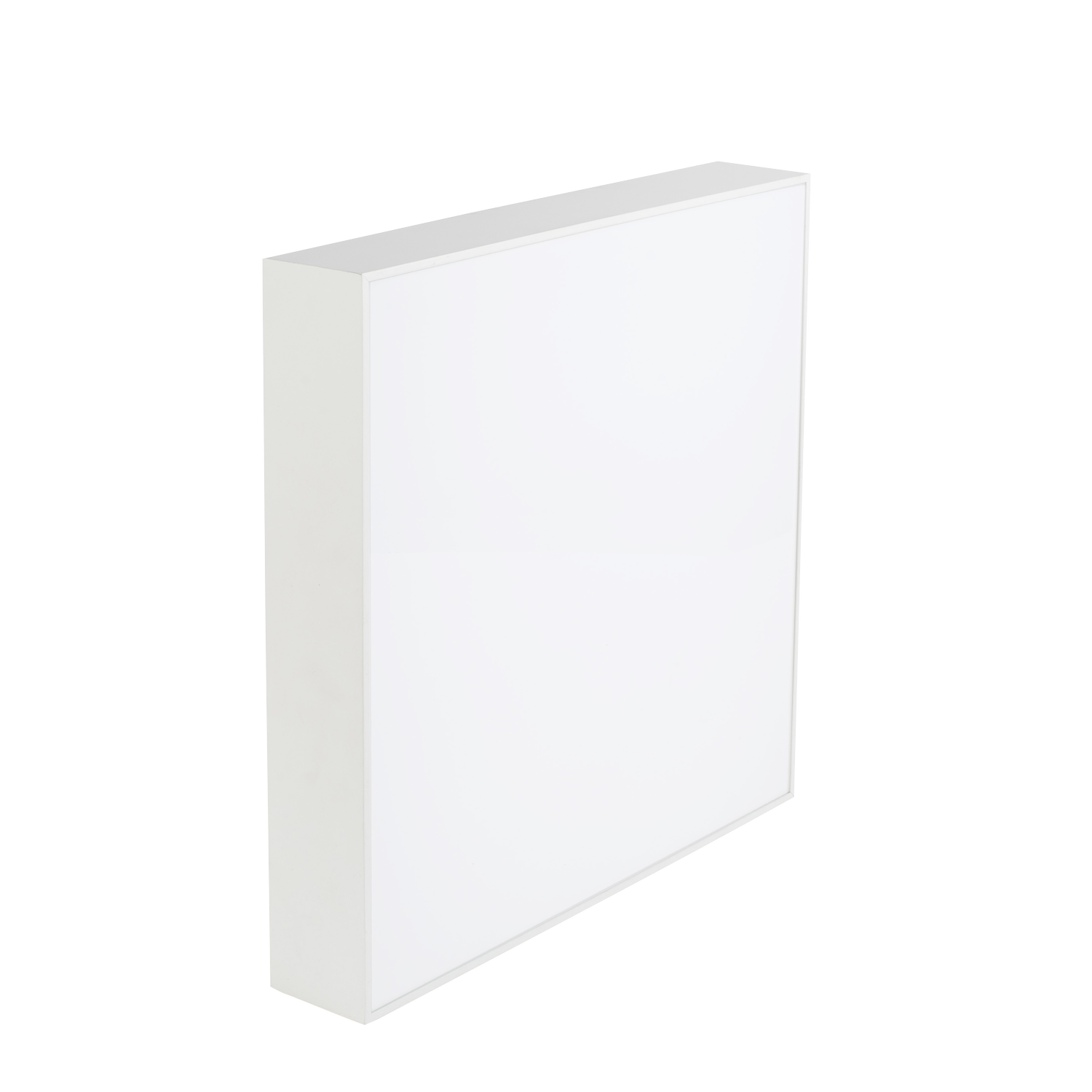

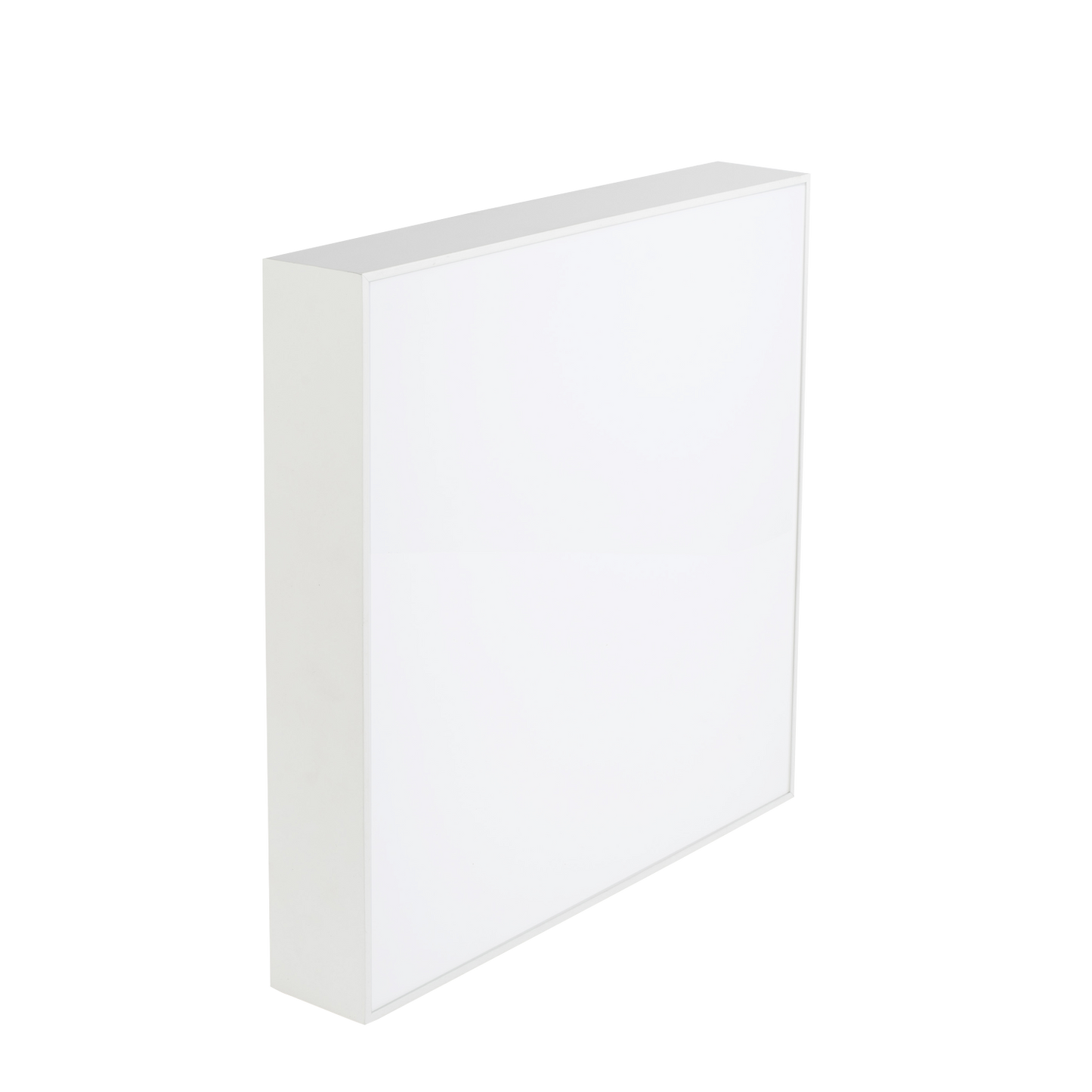

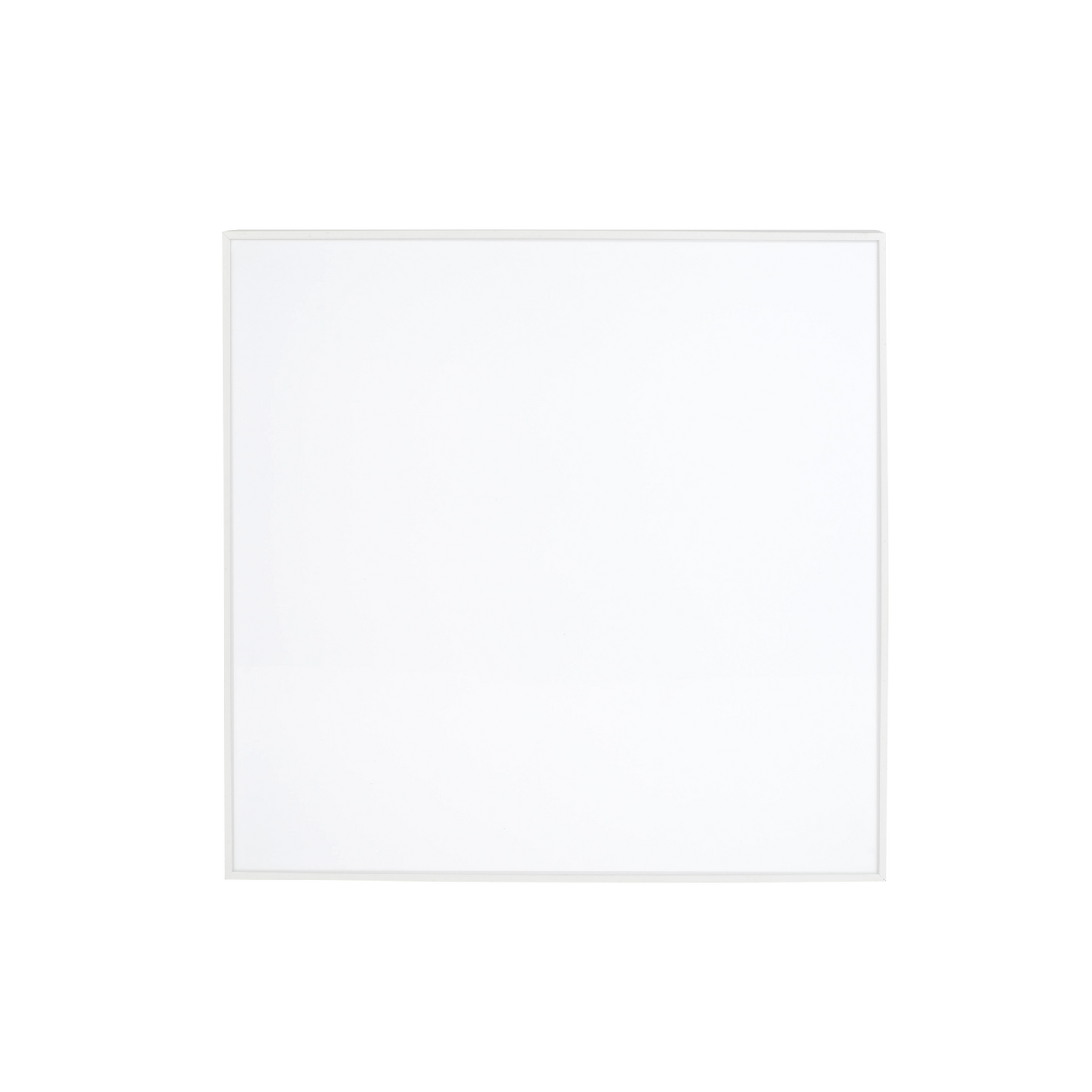

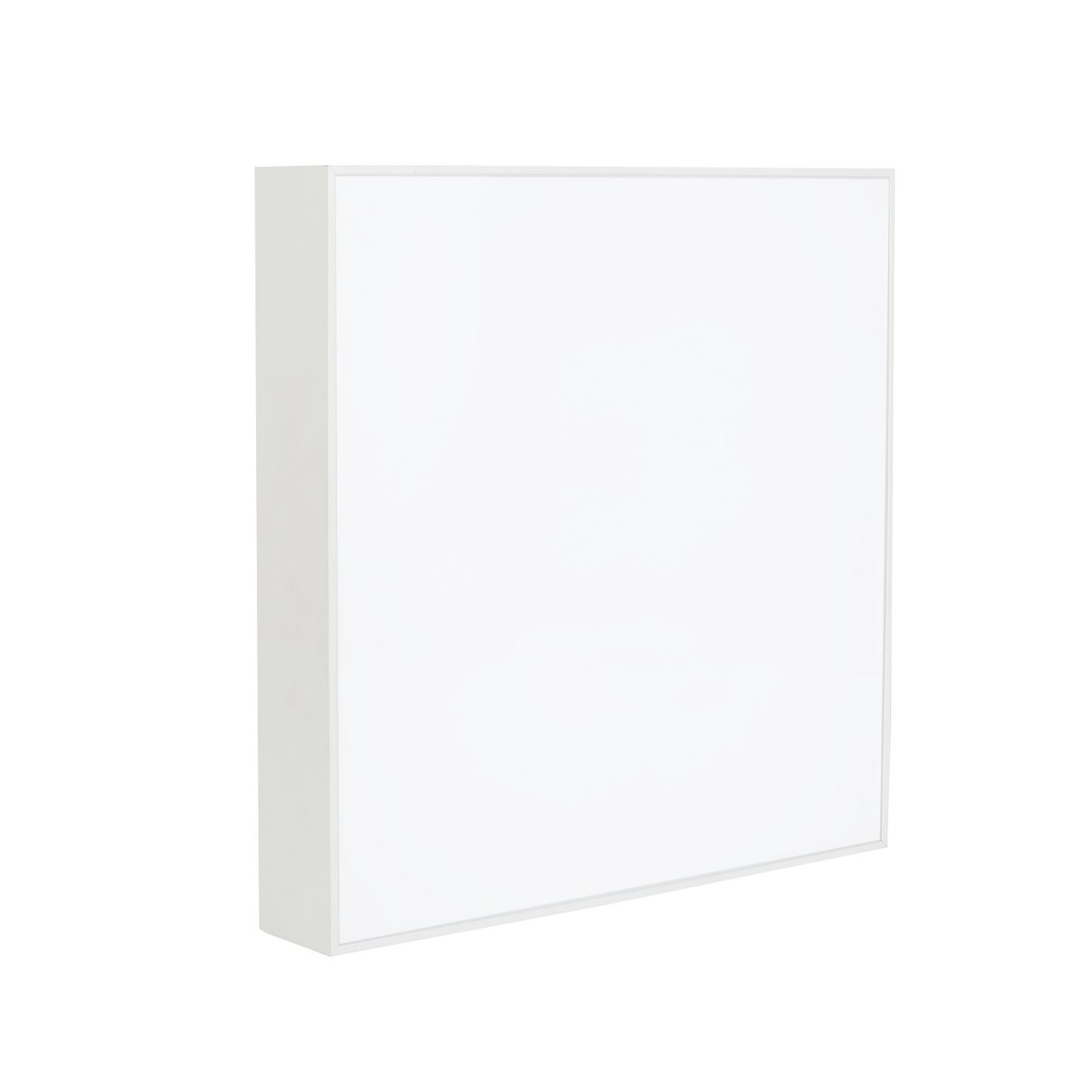

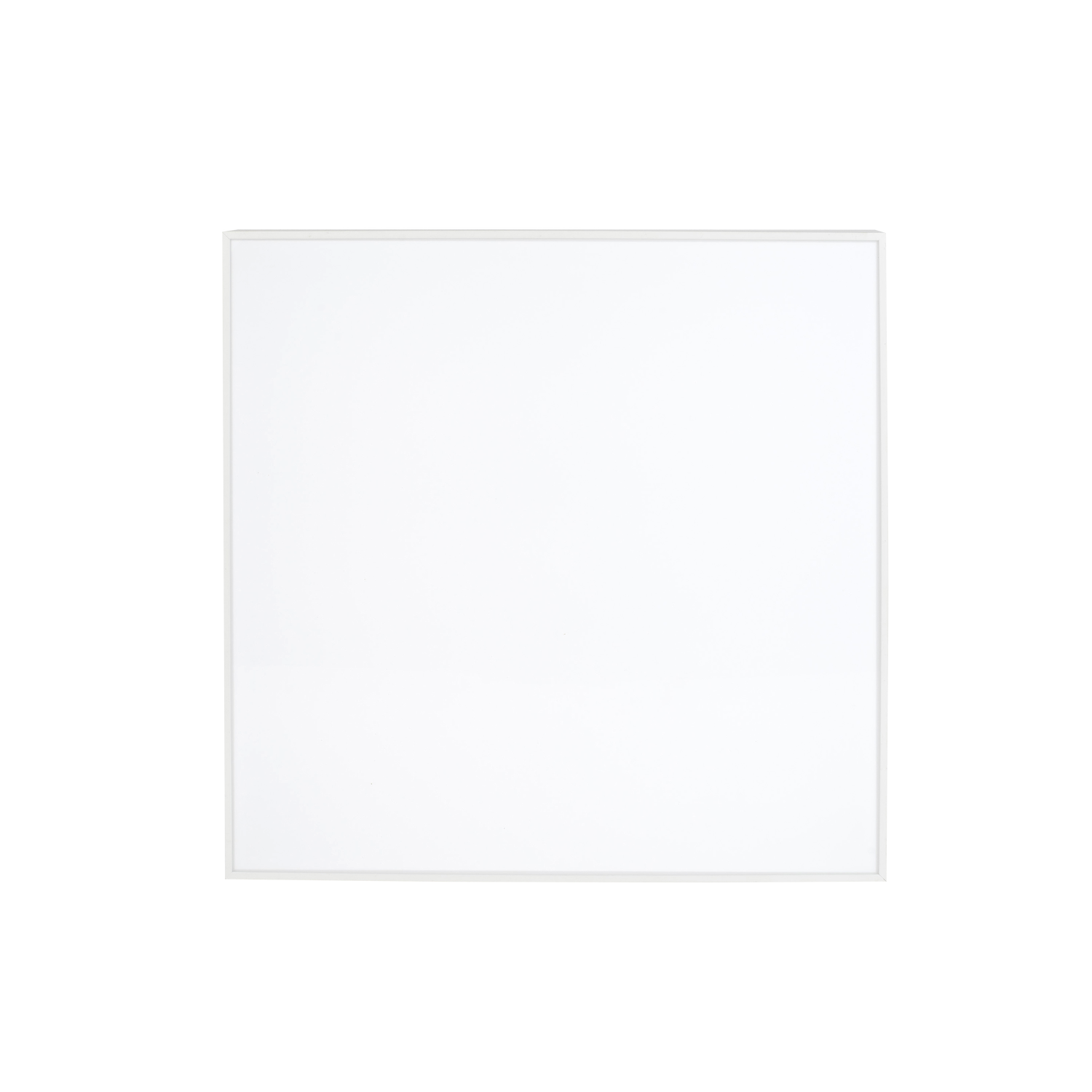

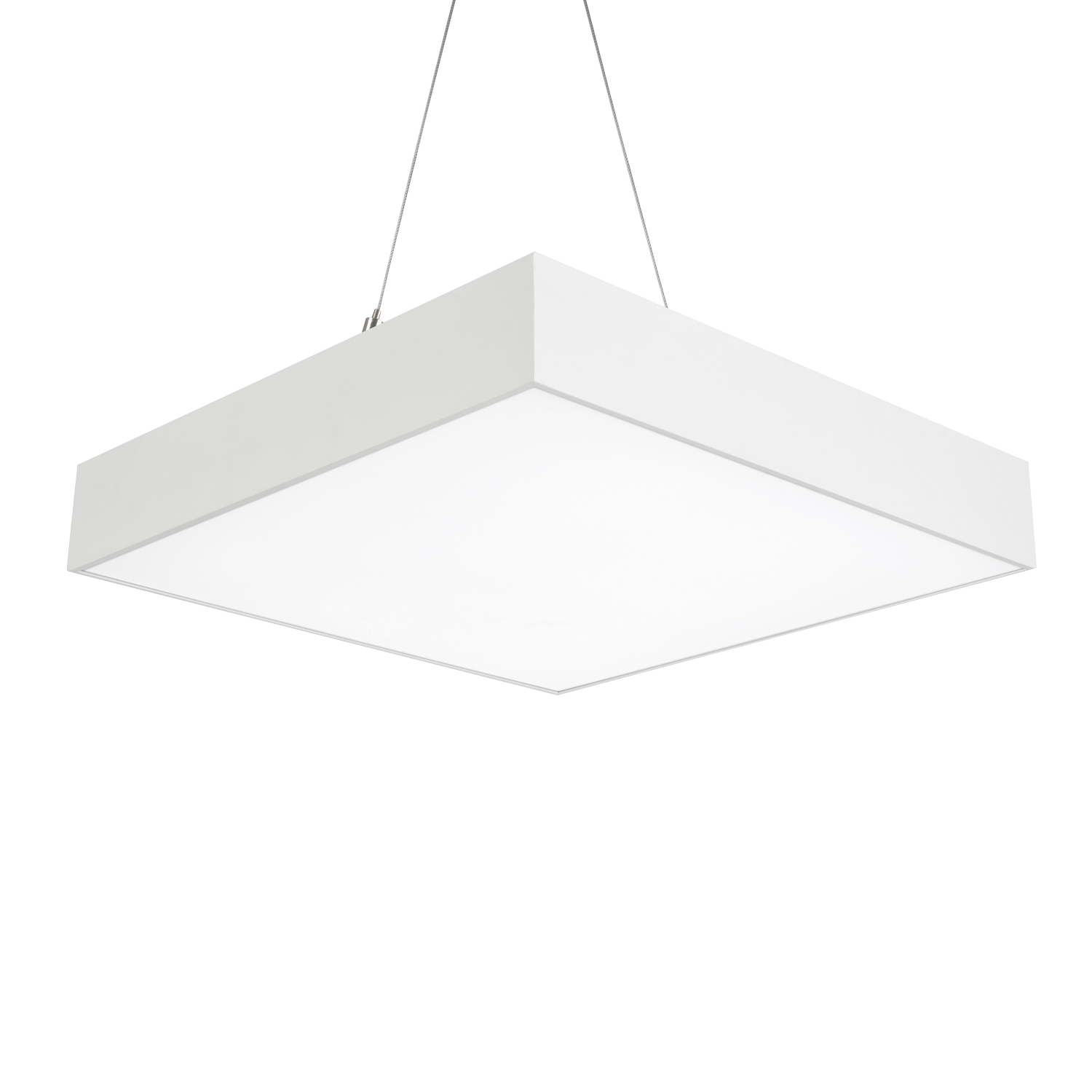

Backlit pendant/surface-mounting square LED luminaire designed with aluminium housing and opal polycarbonate cover to deliver high-efficacy light output and uniformity.

Best suited for

Reception

Waiting Lounge

Meeting Rooms

Food courts

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare free uniform light distribution.
    Mounting Pendant or surface mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 24W, 30W, 40W
    CCT 5700K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <20%
    System Efficacy (lm/W) ≥100, ≥90, ≥85
Glimmer Square variants
Product Variants
Glimmer Square
LTPGMS-24-C
Glimmer Square
LTPGMS-24-N
Glimmer Square
LTPGMS-24-W
Glimmer Square
LTPGMS-30-C
Glimmer Square
LTPGMS-30-N
Glimmer Square
LTPGMS-30-W
Glimmer Square
LTPGMS-40-C
Glimmer Square
LTPGMS-40-N
Glimmer Square
LTPGMS-40-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
24W
5700K
≥80
240V AC
≥0.95
<20%
≥100
300
300
75
24W
4000K
≥80
240V AC
≥0.95
<20%
≥90
300
300
75
24W
3000K
≥80
240V AC
≥0.95
<20%
≥80
300
300
75
30W
5700K
≥80
240V AC
≥0.95
<20%
≥100
450
450
75
30W
4000K
≥80
240V AC
≥0.95
<20%
≥90
450
450
75
30W
3000K
≥80
240V AC
≥0.95
<20%
≥80
450
450
75
40W
5700K
≥80
240V AC
≥0.95
<20%
≥100
600
600
75
40W
4000K
≥80
240V AC
≥0.95
<20%
≥90
600
600
75
40W
3000K
≥80
240V AC
≥0.95
<20%
≥80
600
600
75
