Krypton Pro HL

Krypton Pro HL

Krypton Pro HL

Product Overview

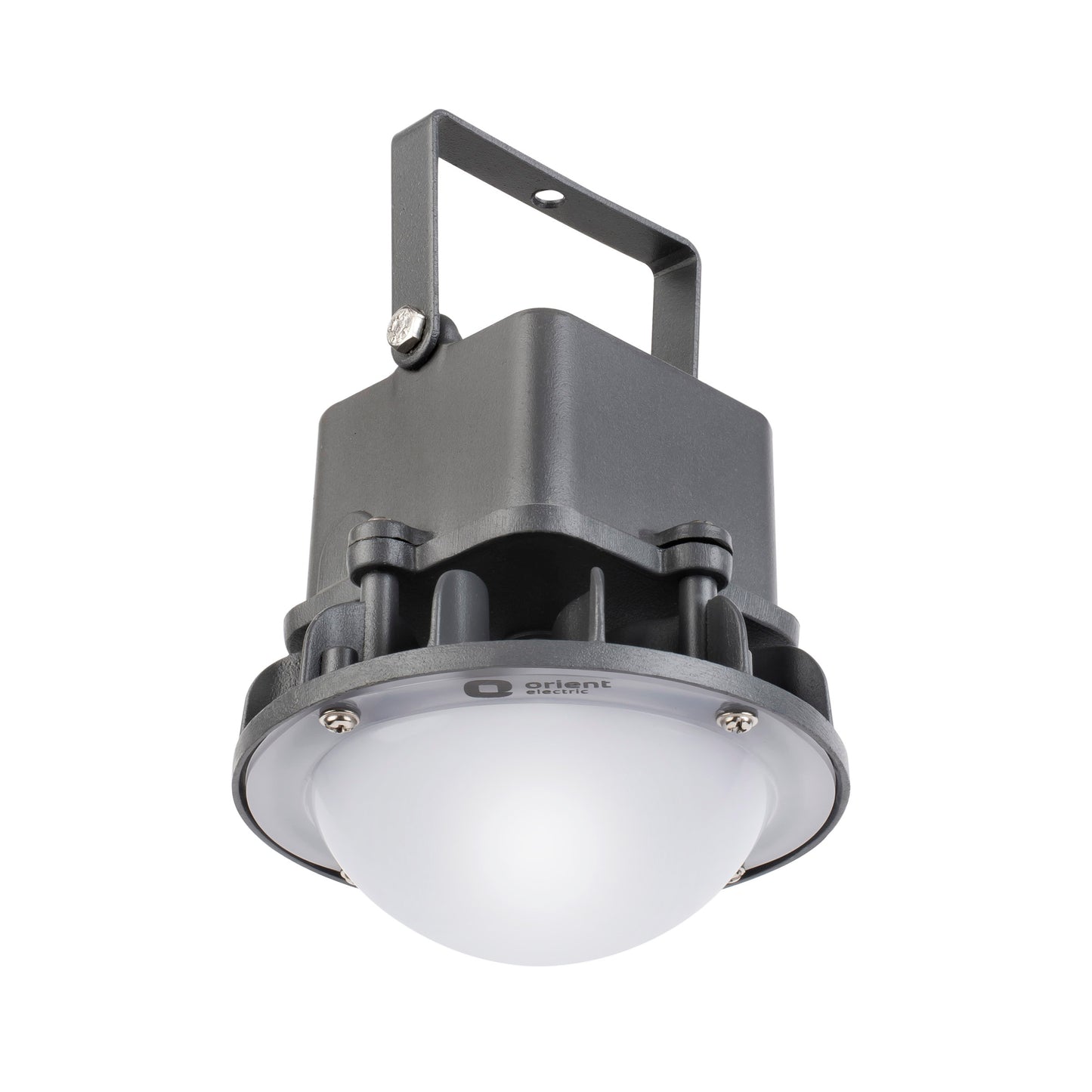

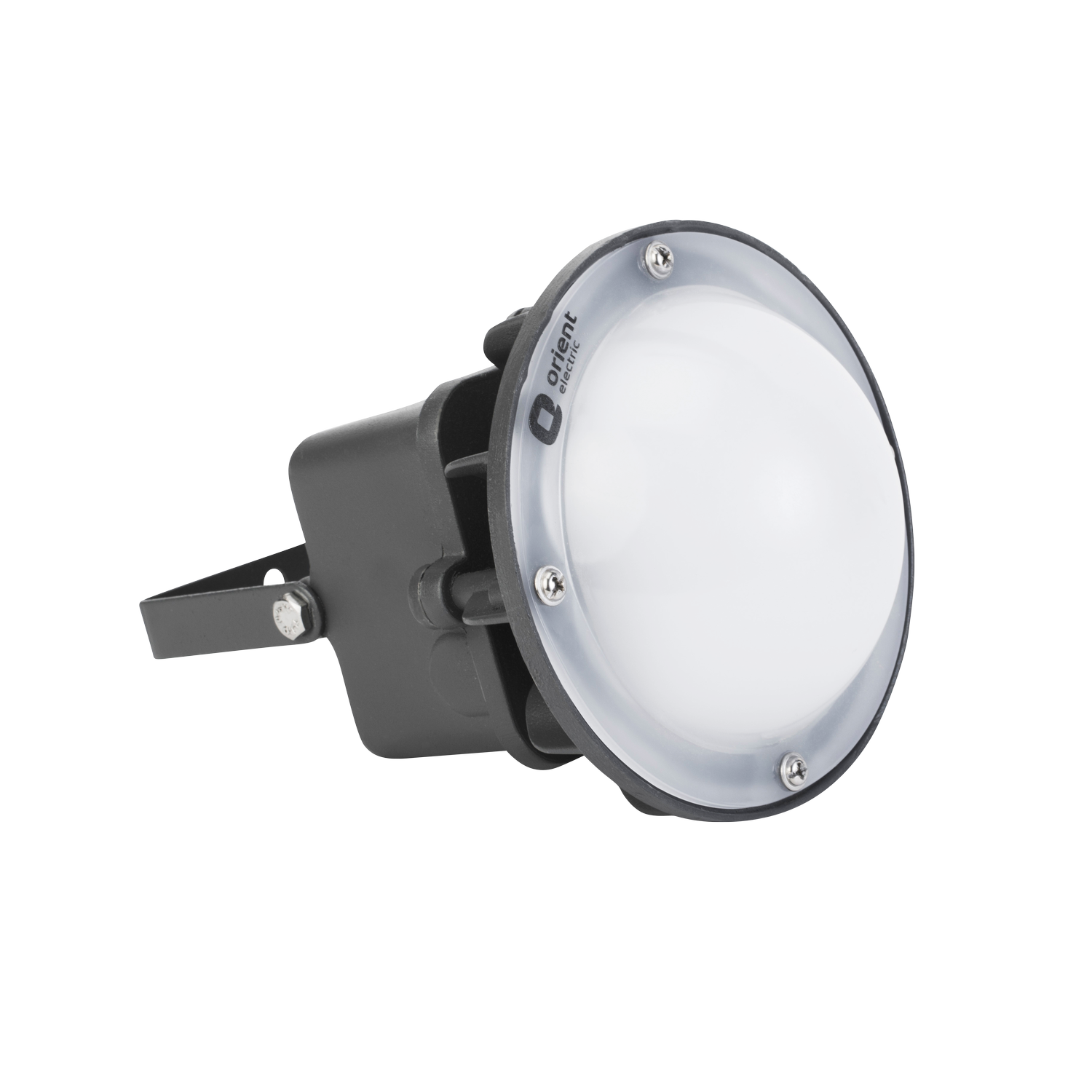

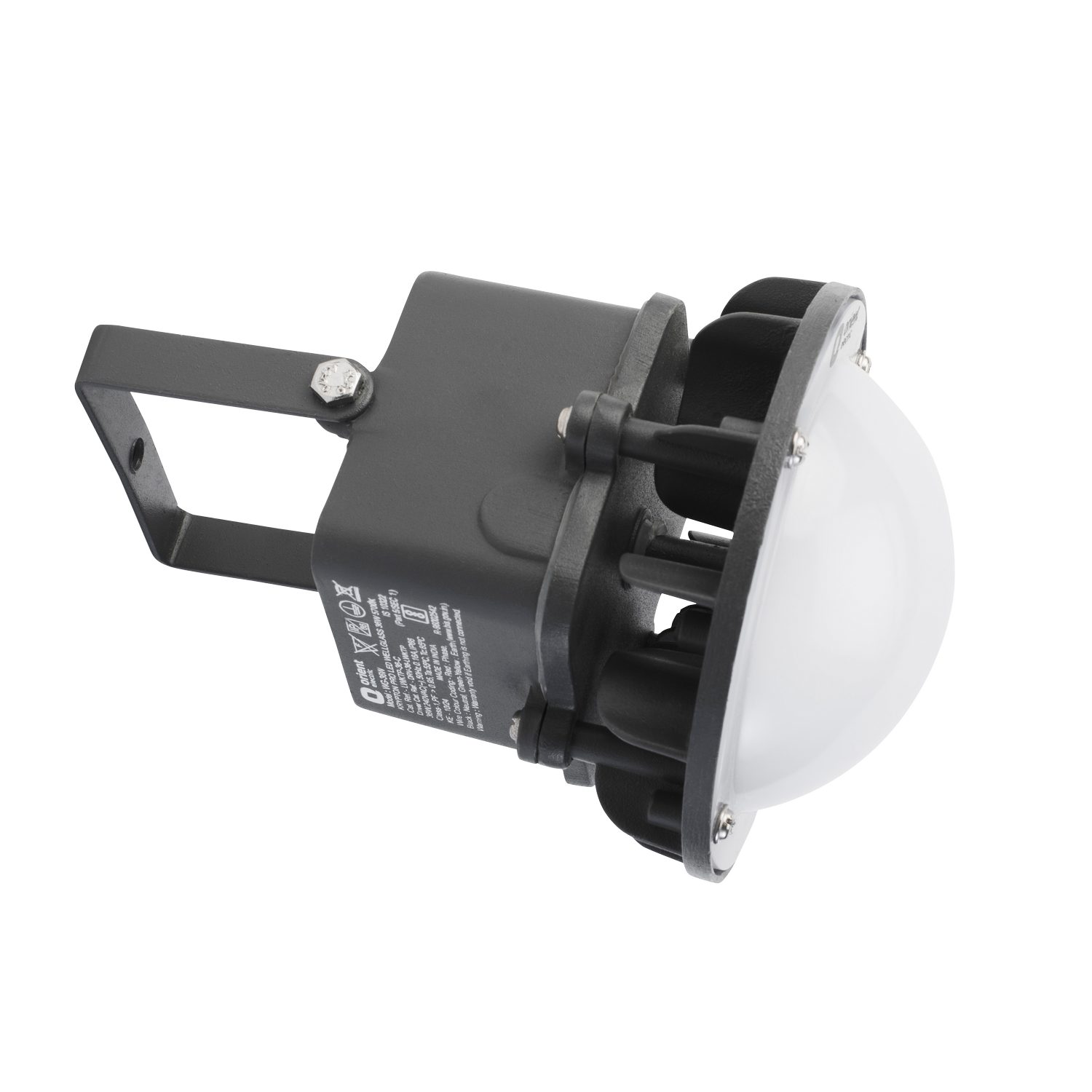

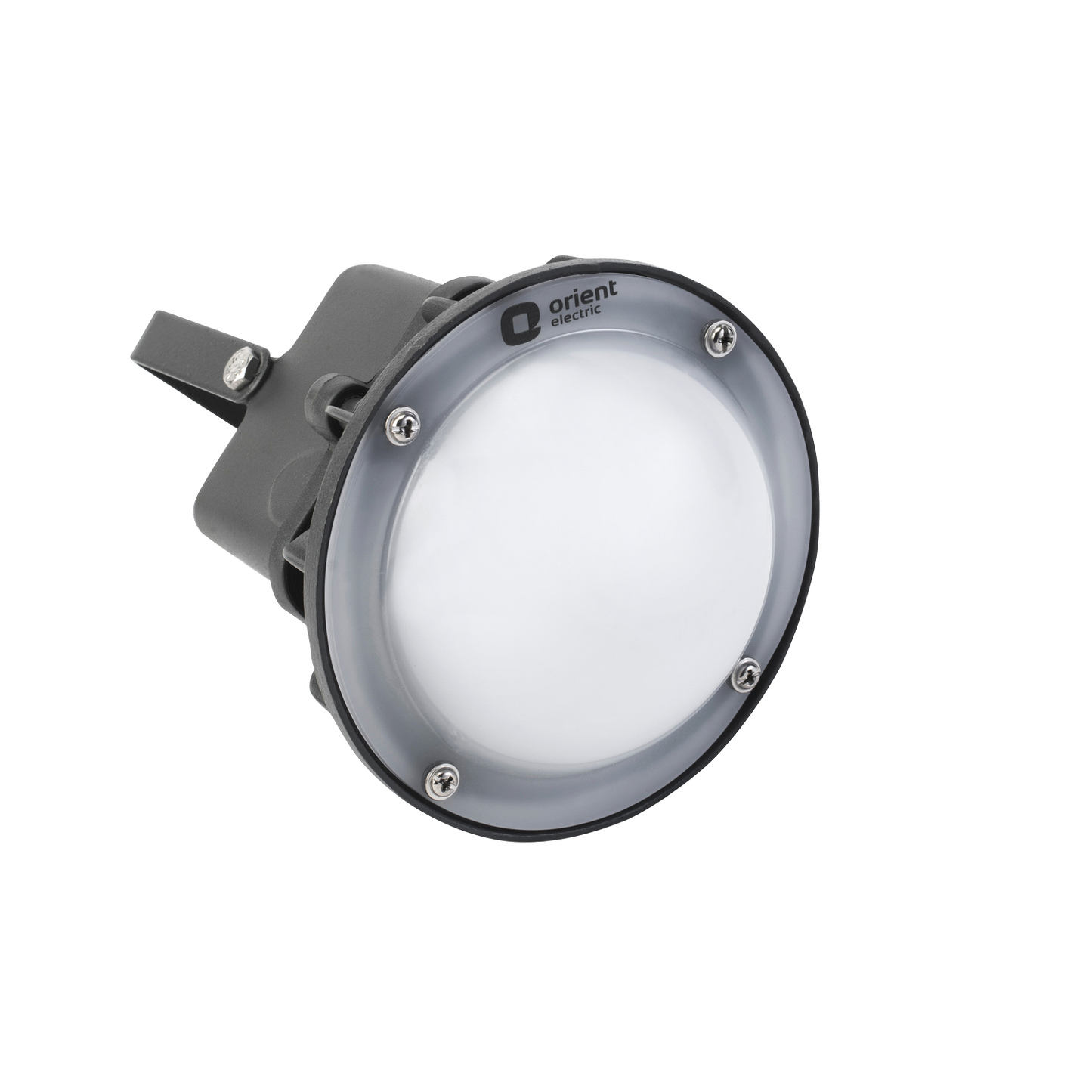

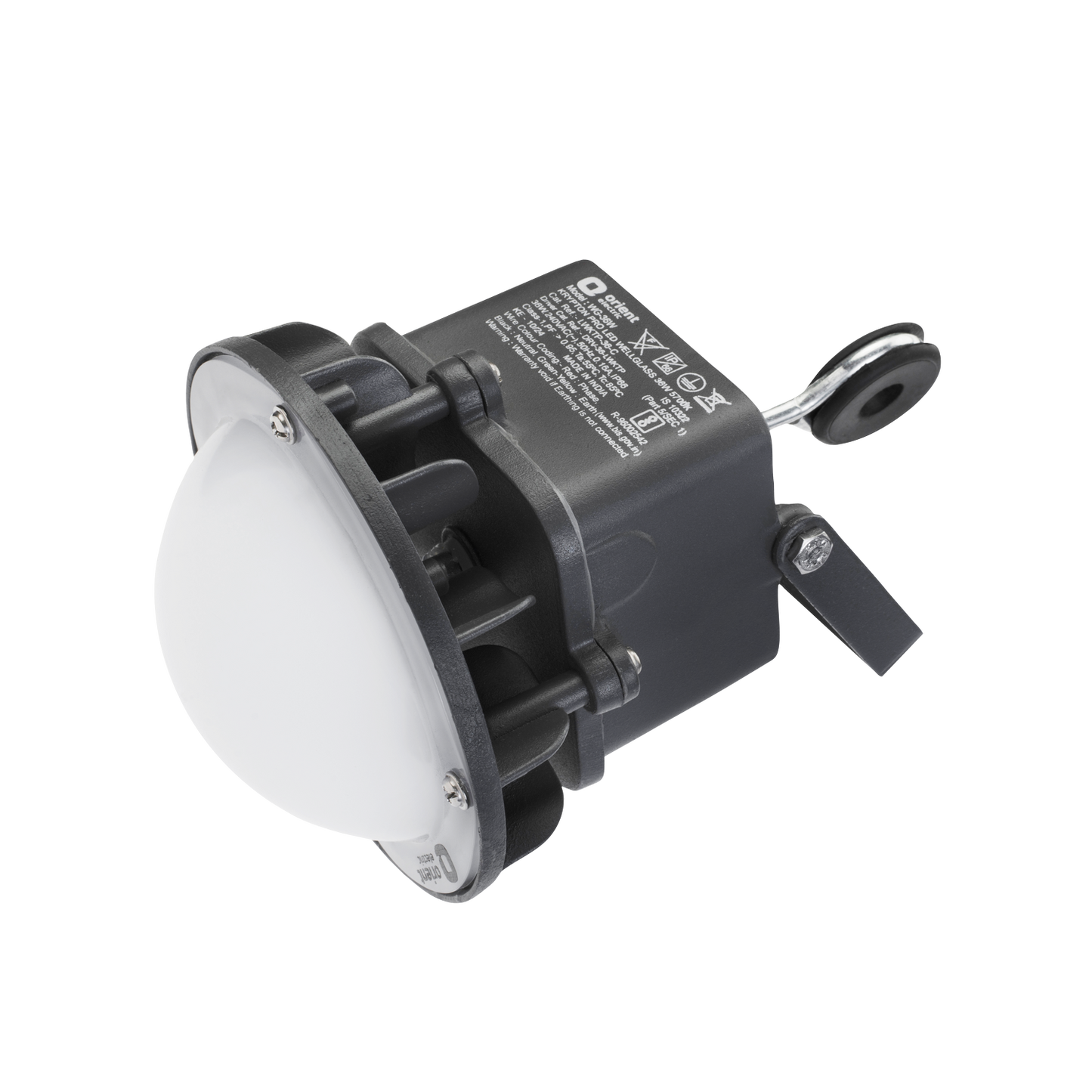

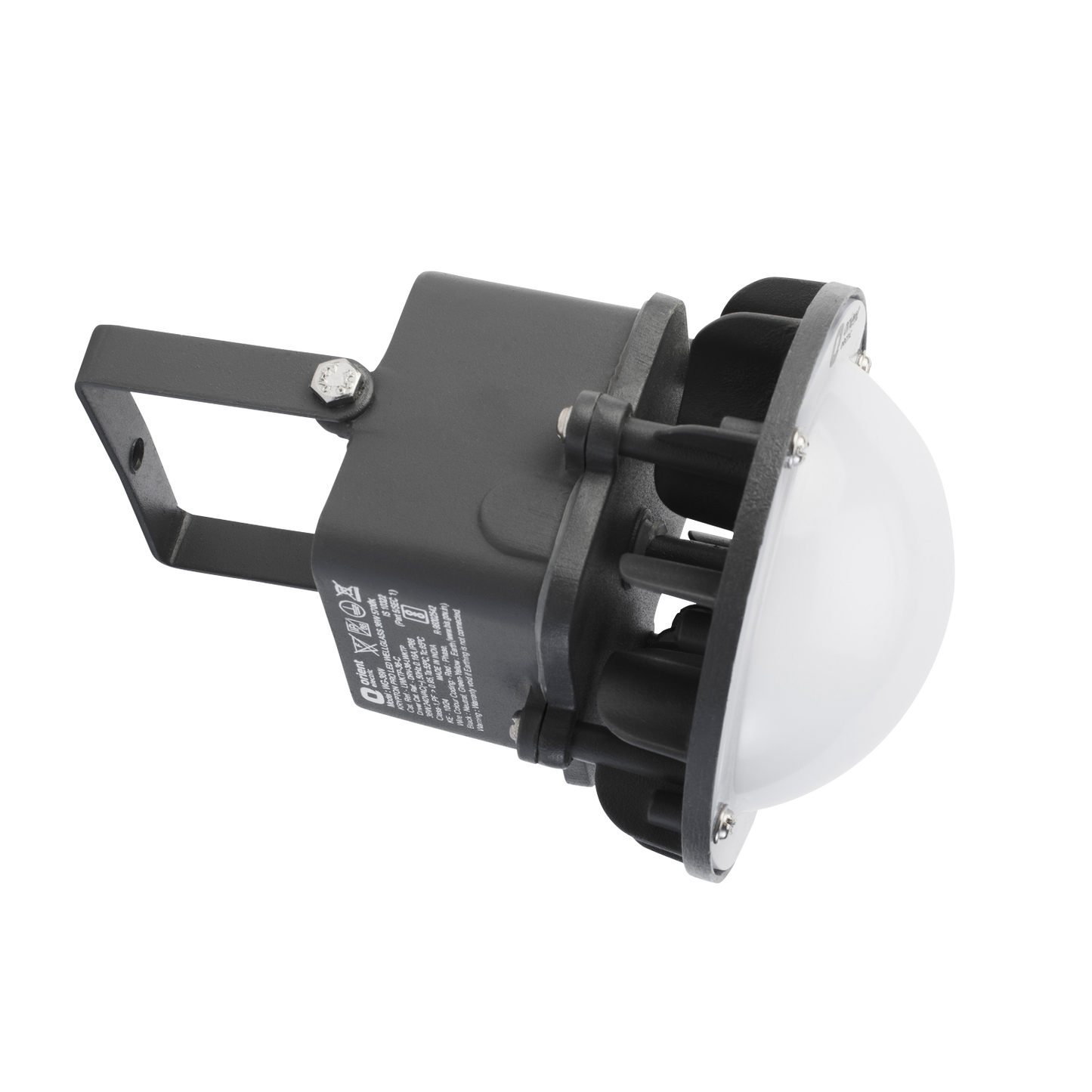

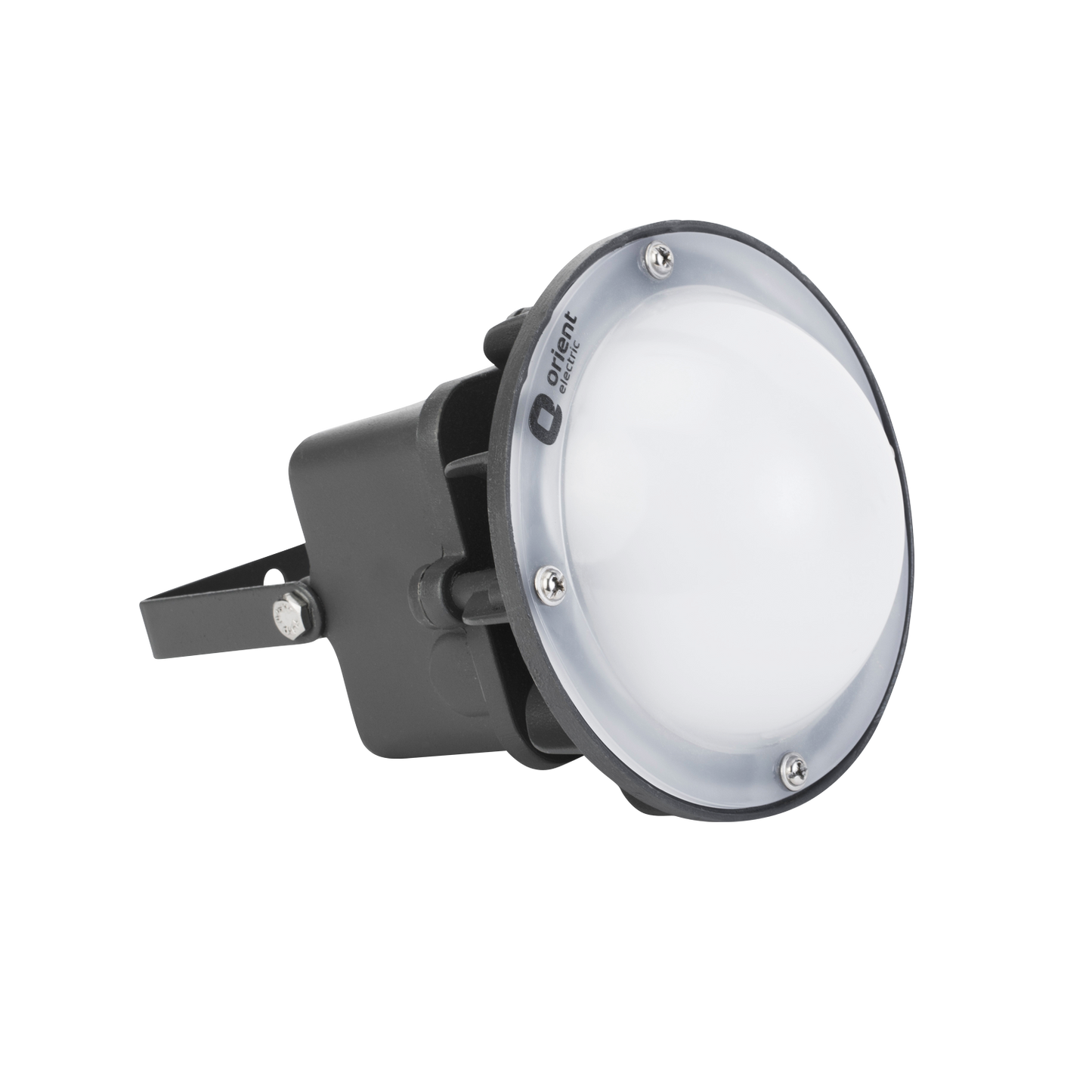

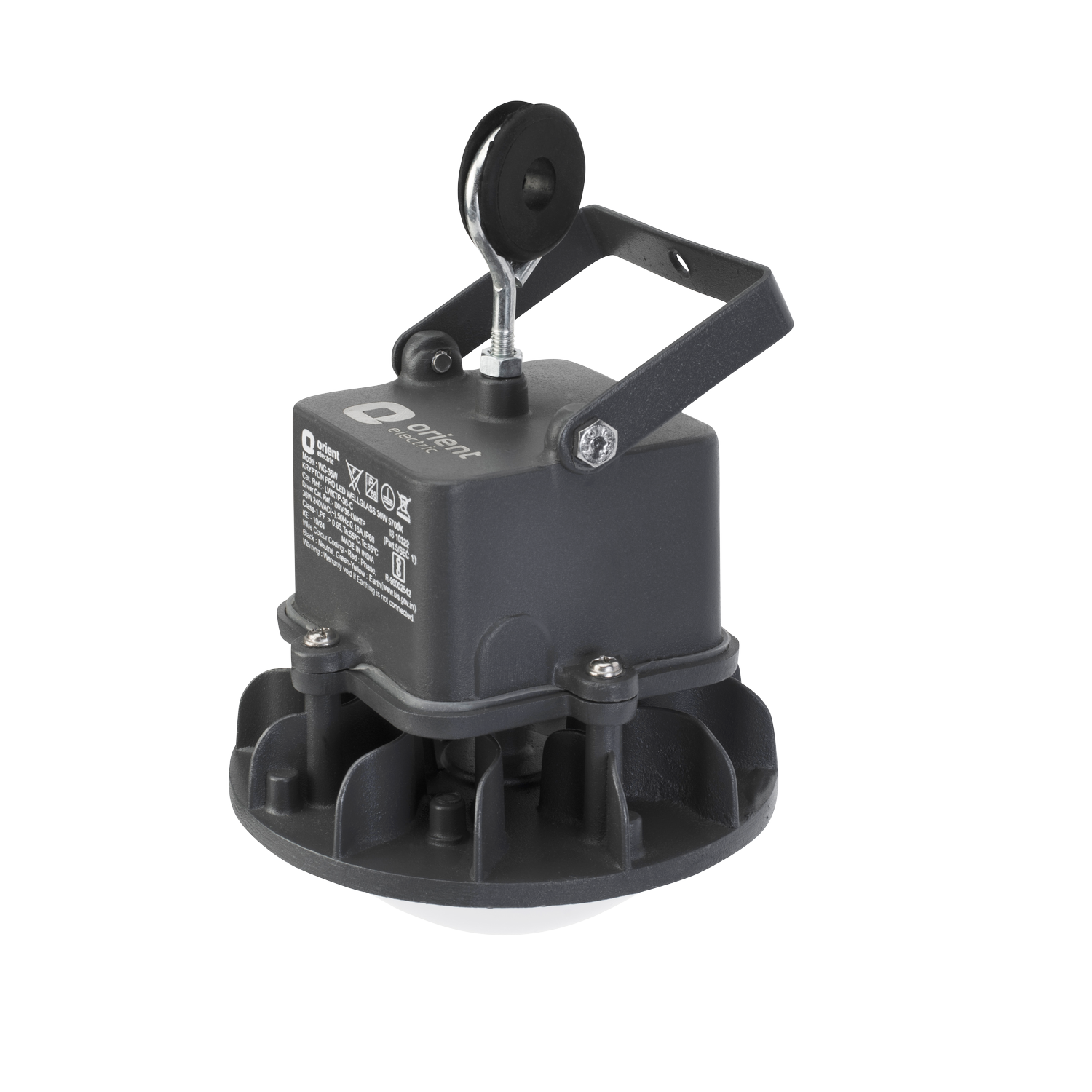

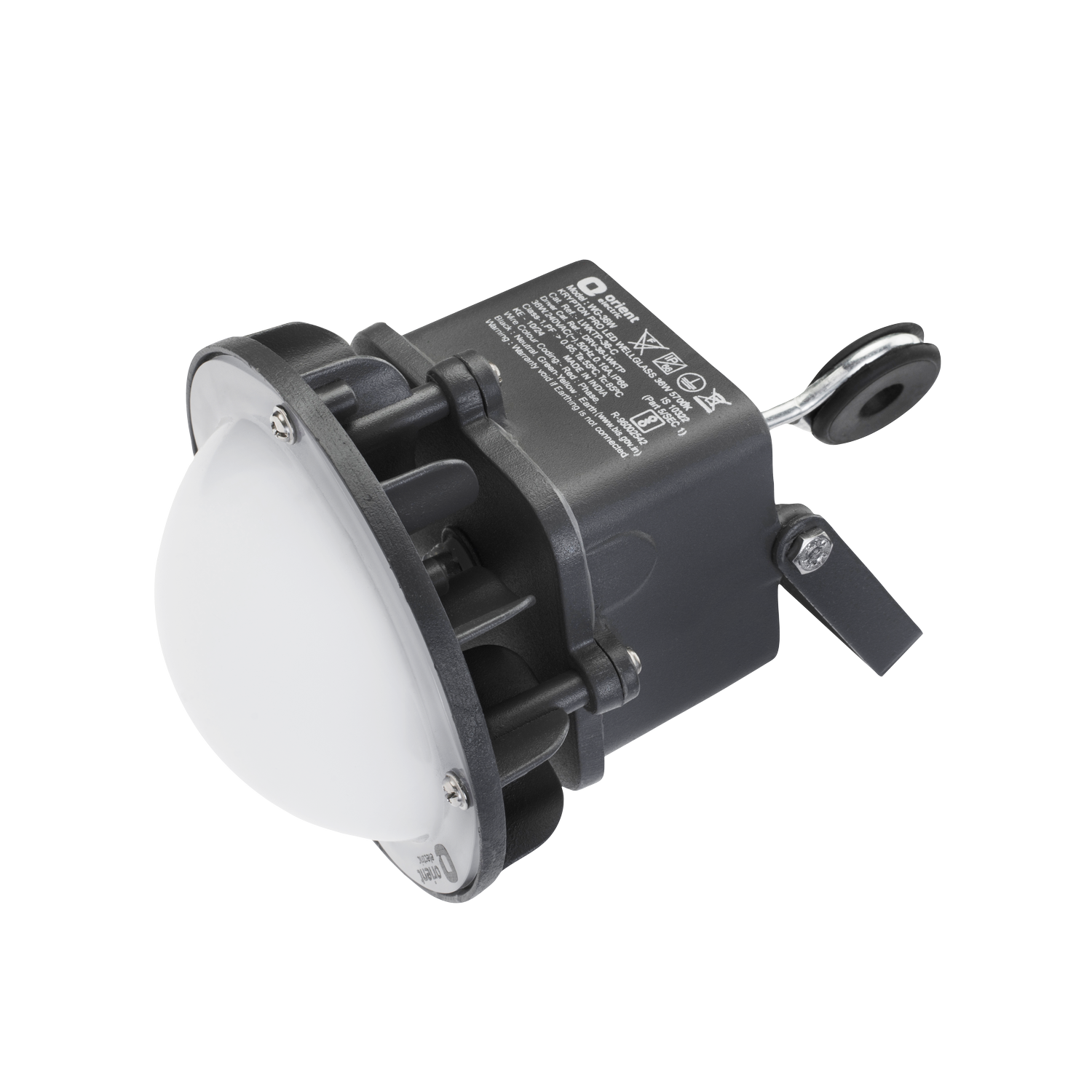

LED Wellglass designed with excellent thermally managed aluminium die cast housing with heat resistant polycarbonate diffuser in front with high system lumen efficacy of ≥110 lm/W.

Best suited for

Cement plants

Power plants

Conveyor belt

Material handling areas

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing.
    Optics Heat resistant Polycarbonate diffuser

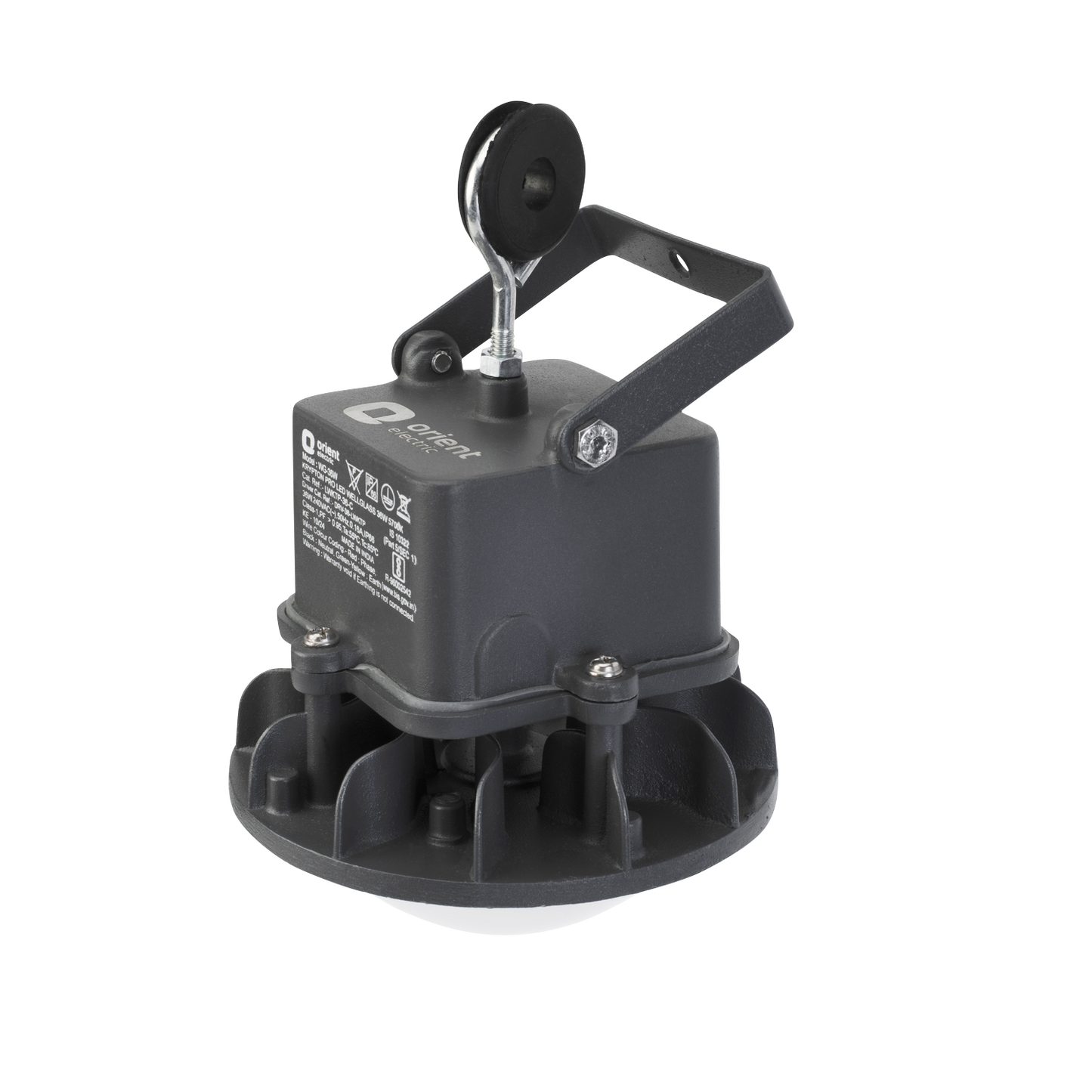

    Mounting Eyebolt provided for chain suspension
    Control Gear circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV (optional 10 KV SPD)
    IP 65
  • Technical Specifications
    System Wattage 25W, 30W, 36W, 40W, 45W
    CCT 5700K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥110
Krypton Pro HL variants
Product Variants
Krypton Pro HL
LWKTP-25-C-HL
Krypton Pro HL
LWKTP-25-W-HL
Krypton Pro HL
LWKTP-30-C-HL
Krypton Pro HL
LWKTP-30-W-HL
Krypton Pro HL
LWKTP-36-C-HL
Krypton Pro HL
LWKTP-36-W-HL
Krypton Pro HL
LWKTP-40-C-HL
Krypton Pro HL
LWKTP-40-W-HL
Krypton Pro HL
LWKTP-45-C-HL
Krypton Pro HL
LWKTP-45-W-HL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
25W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
135
143
25W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
135
143
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
135
143
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
135
143
36W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
135
143
36W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
135
143
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
135
143
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
135
143
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
135
143
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
135
143
