Linear Canopy

Linear Canopy

Linear Canopy

Product Overview

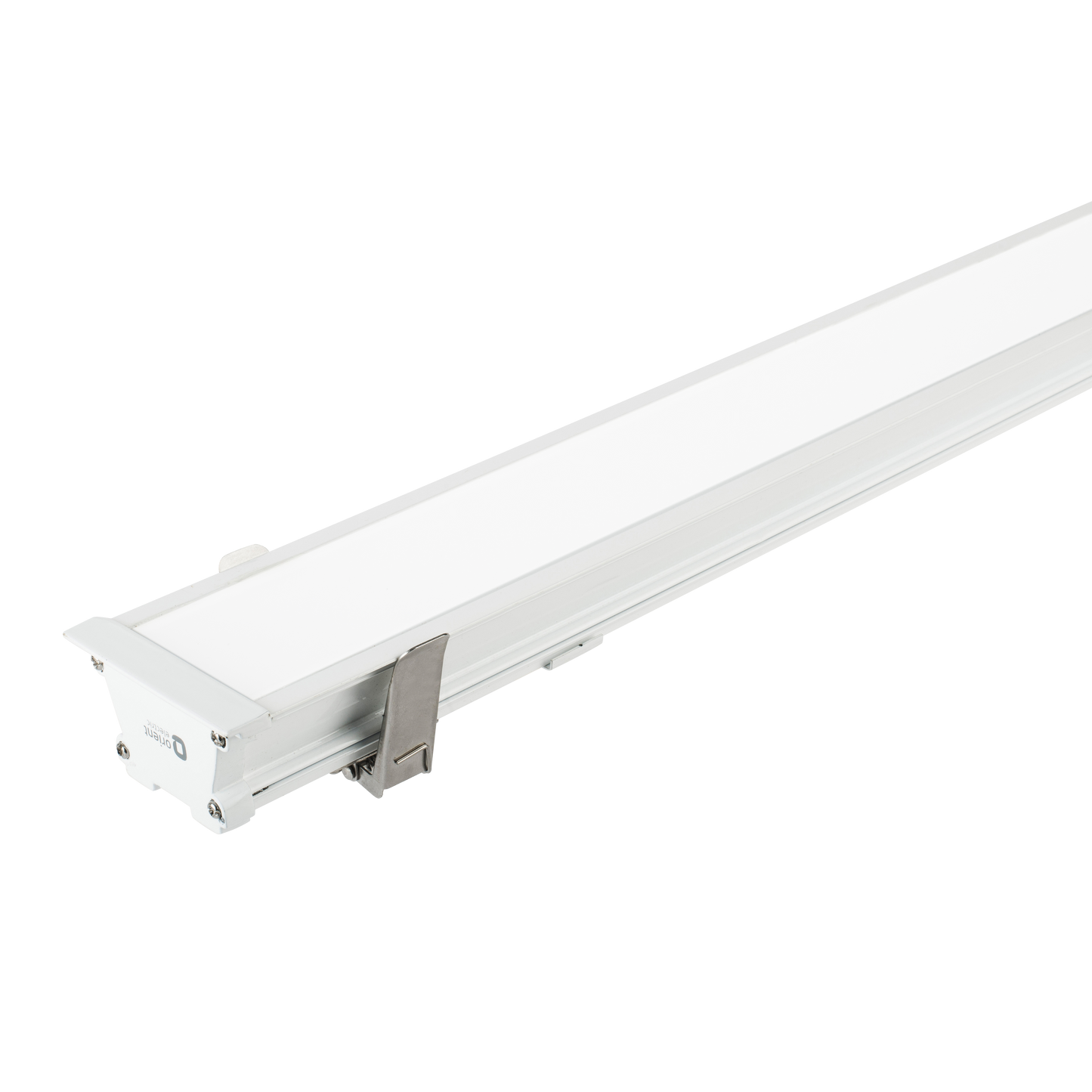

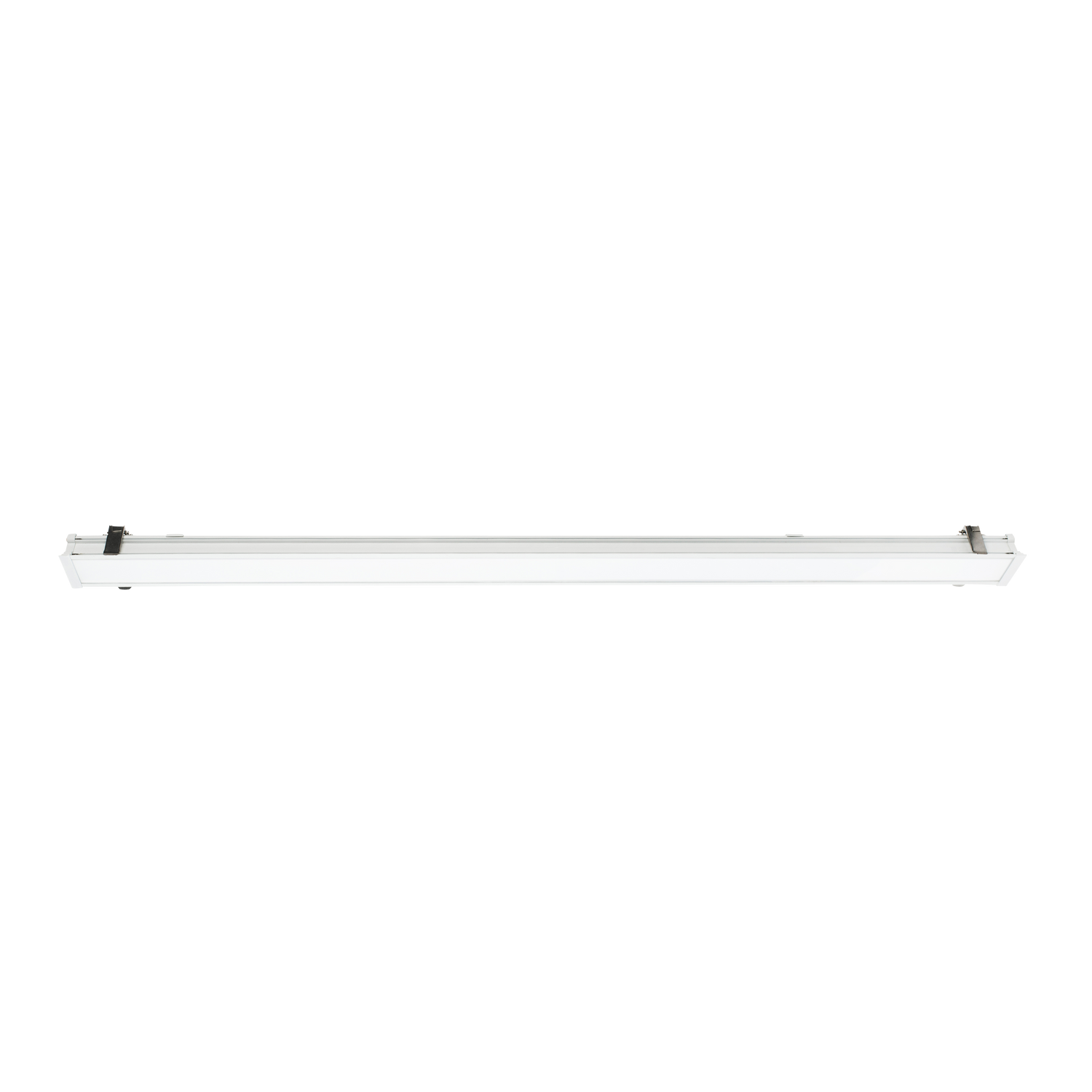

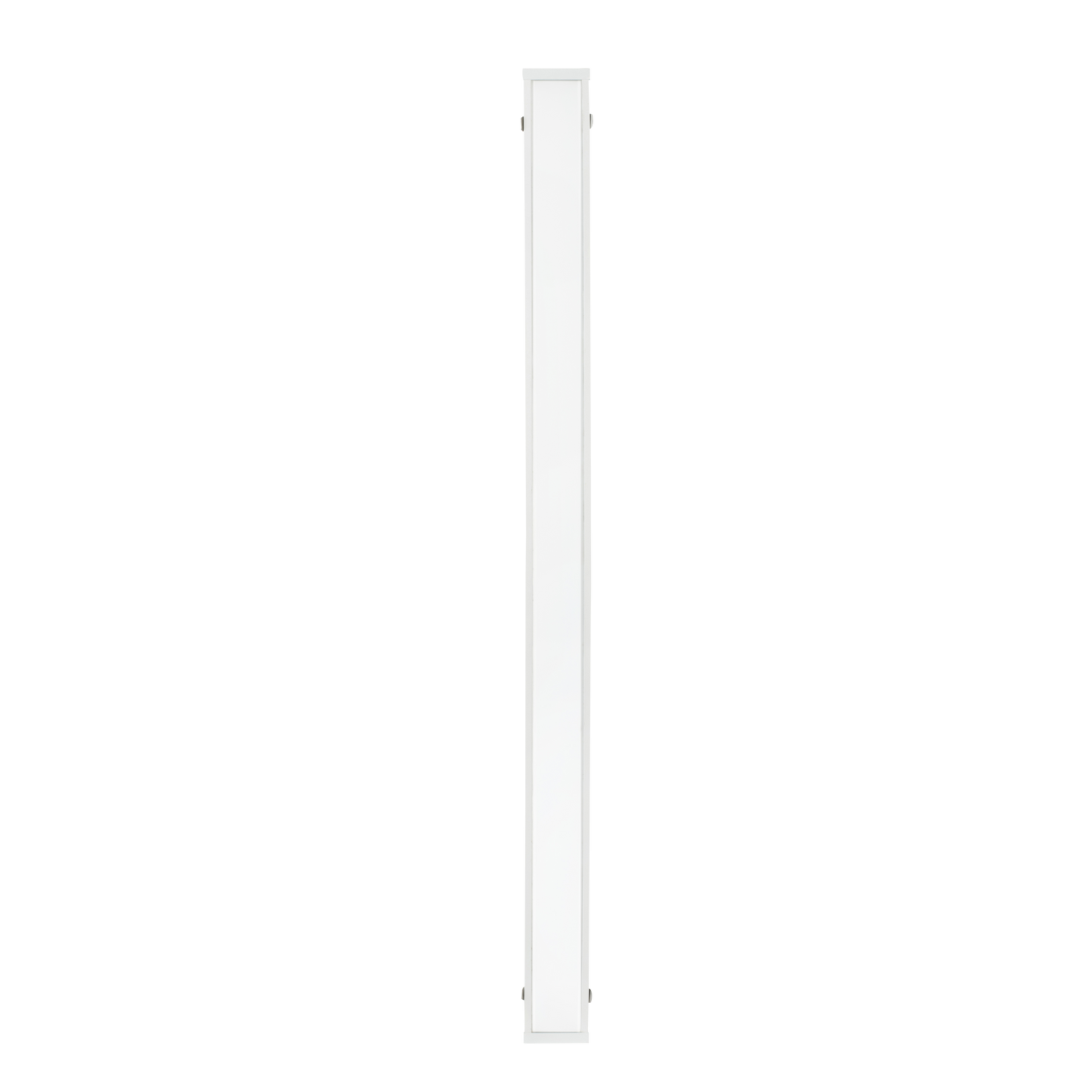

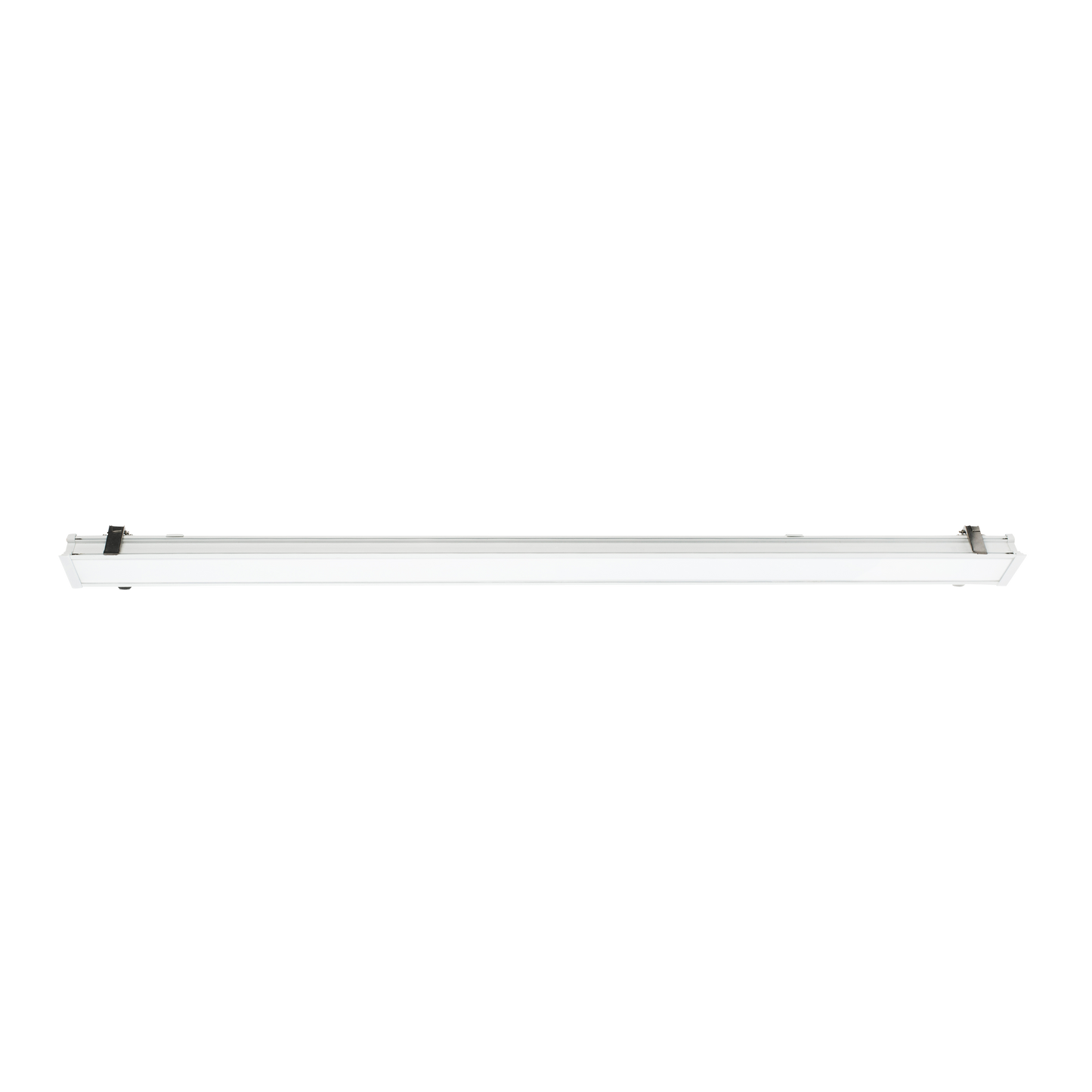

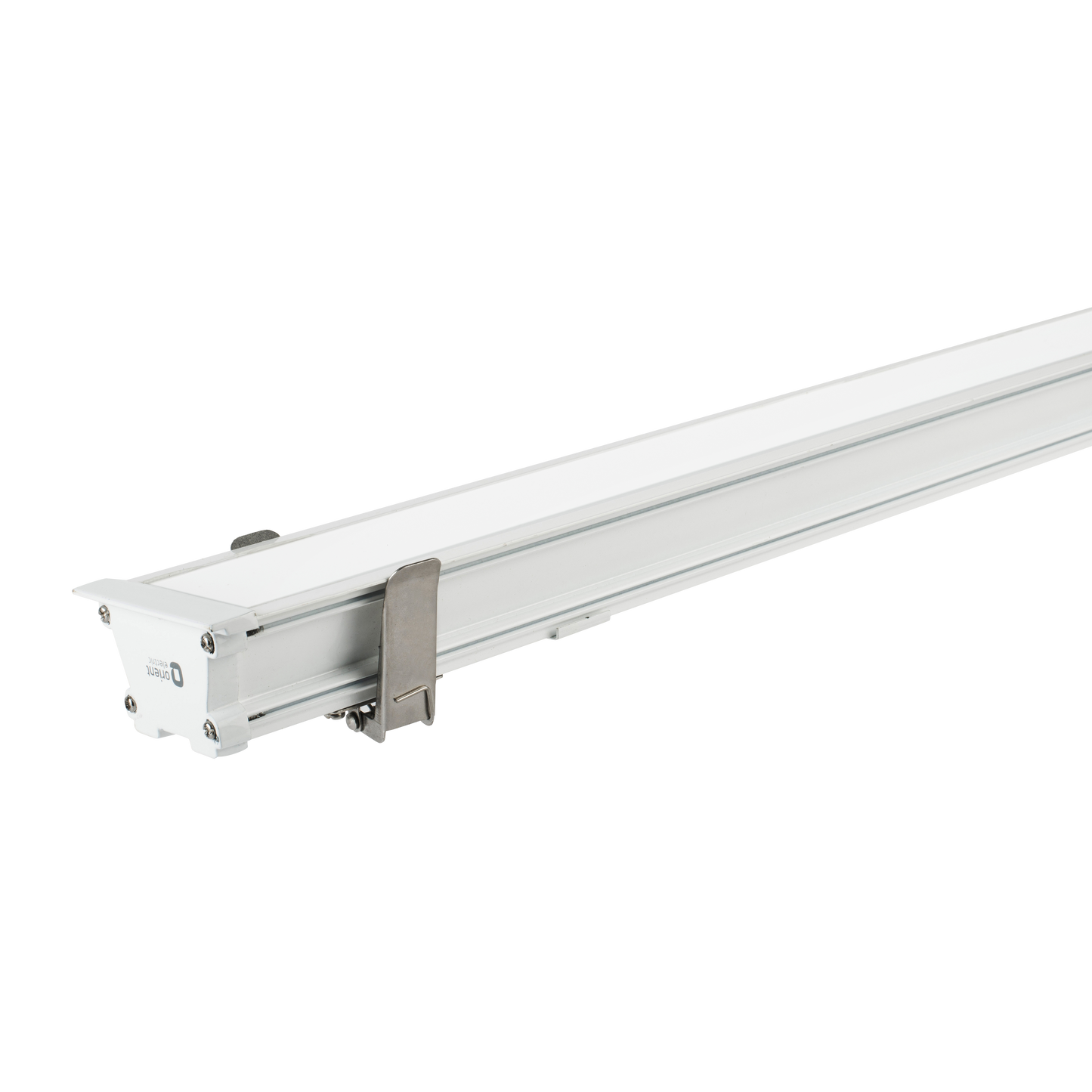

Innovatively designed Linear recess-mounting bottom-opening LED canopy light, IP65 high-grade  aluminium housing with frame, and elegantly designed extruded aluminium heat sink for efficient thermal management, sturdiness, excellent corrosion resistance, dust-free and zero-maintenance luminaire suitable for fuel station lighting.

Best suited for

Fuel stations

Toll plazas

View full details
  • General specification
    Housing Excellent thermally managed high-grade aluminium extrusion housing.
    Optics High lumen efficacy LED Module with SMD LED Package mounted with opal PC cover for better uniformity.
    Mounting Recess mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (internal); 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 20W, 40W, 80W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥100, ≥90
Linear Canopy variants
Product Variants
Linear Canopy
LICPRL2-20-C
Linear Canopy
LICPRL2-20-W
Linear Canopy
LICPRL4-40-C
Linear Canopy
LICPRL4-40-W
Linear Canopy
LICPRL8-80-C
Linear Canopy
LICPRL8-80-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
610
80
43
600x73
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
610
80
43
600x73
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
1210
80
43
1200x73
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
1210
80
43
1200x73
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
2410
80
43
2400x73
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
2410
80
43
2400x73
