Product Overview

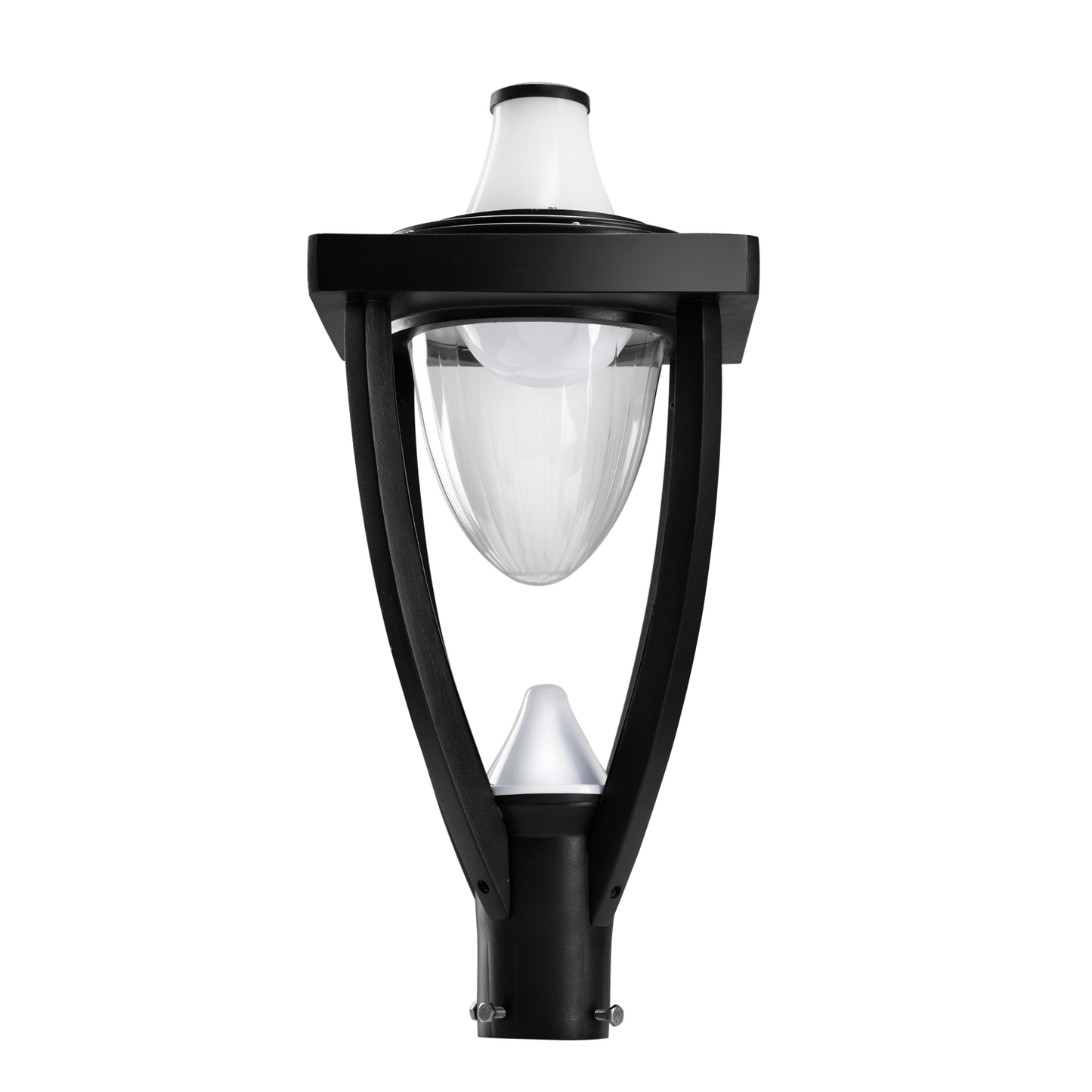

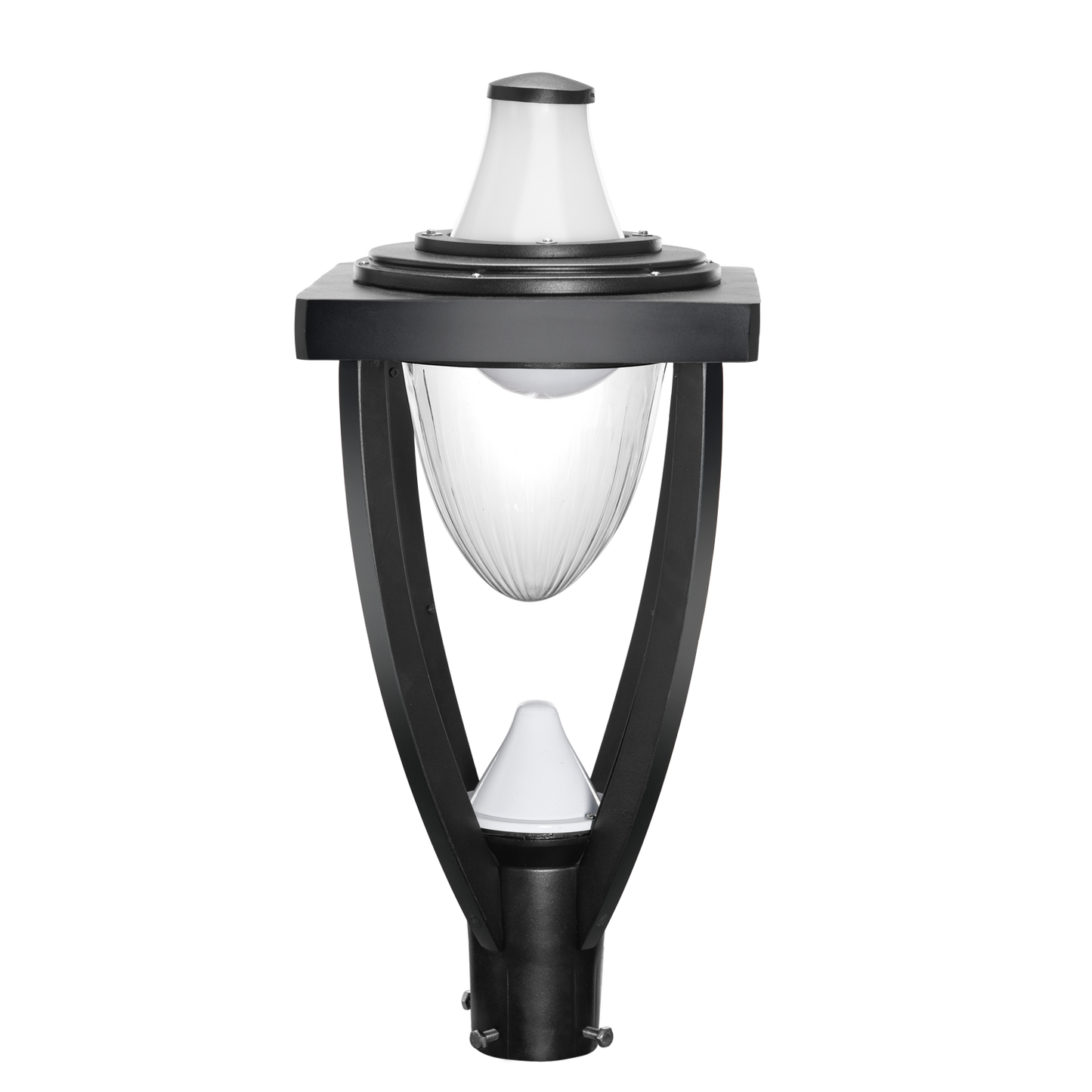

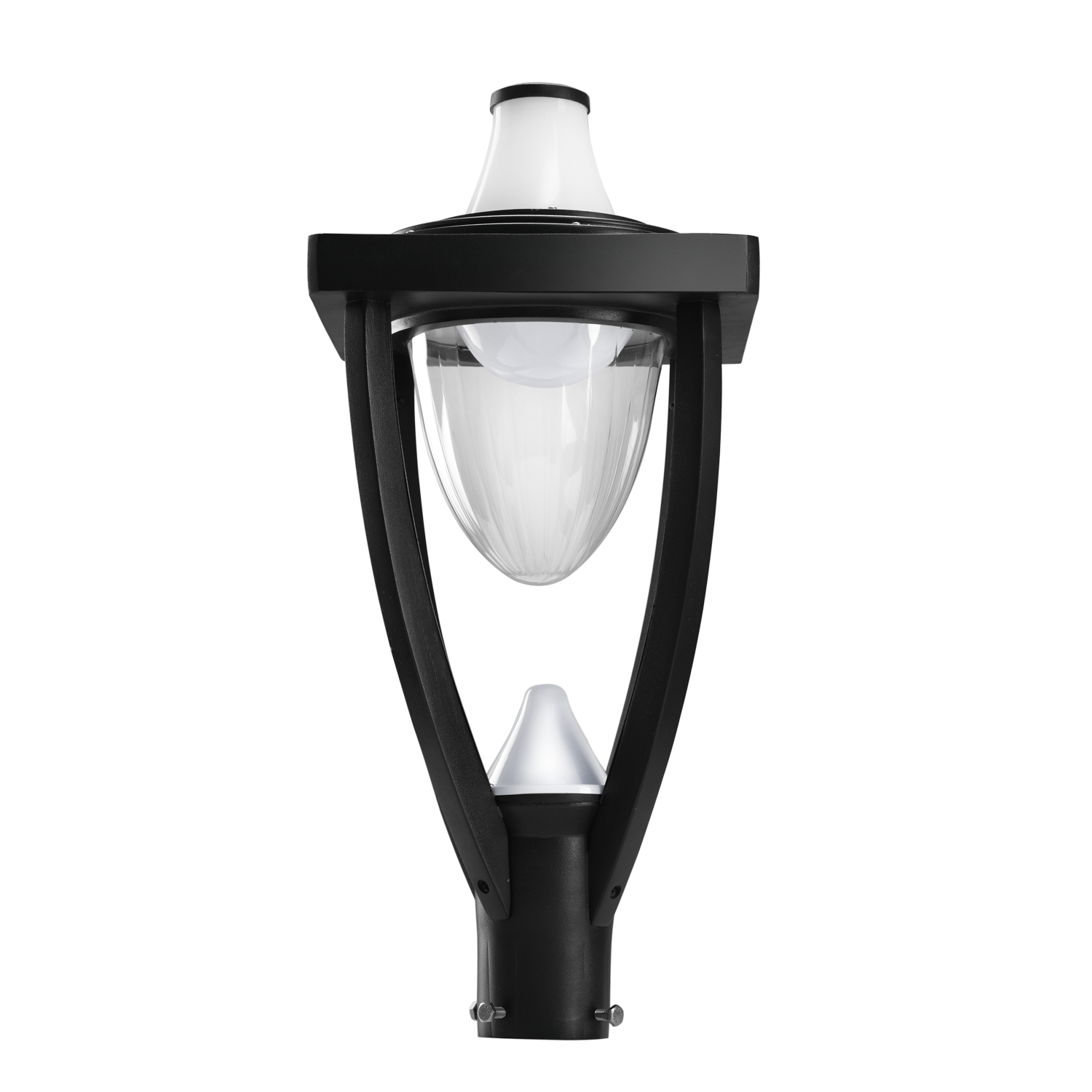

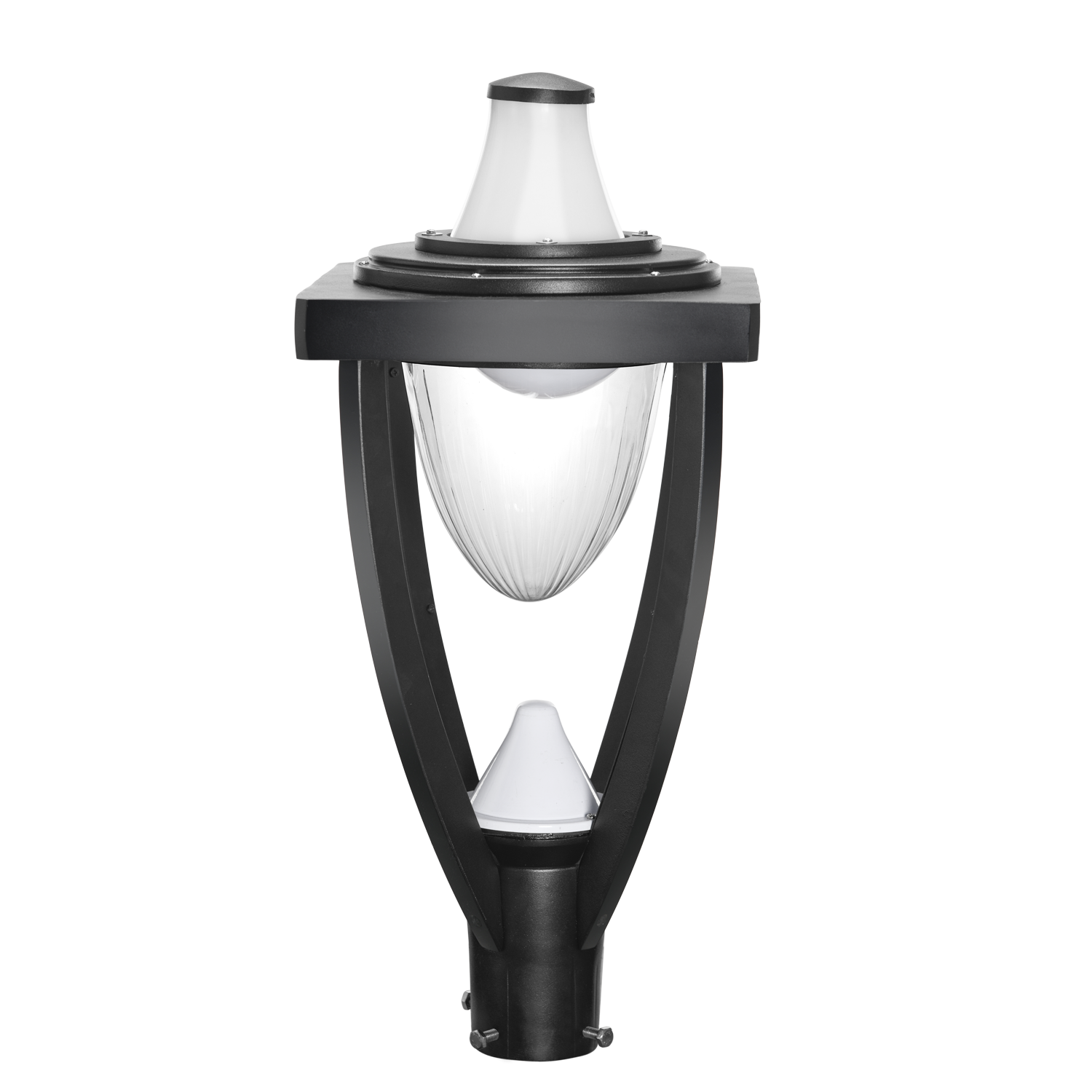

Energy saving, long life aesthetically designed die-cast aluminium landscape luminaire with high power LED as light source.

Best suited for

Parks and Garden Lighting

Street Lanterns

Pathway Lighting

Driveways

View full details
  • General specification
    Housing cast aluminum arms are provided to support the housing. Powder coated black after phosphochromate treatment.
    Optics life LEDs with high lumen efficacies are used.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic driver with output short circuit protection, surge protection & other safety tests.
    Surge Protection Upto 3.5 KV(Internal); optional 10KV external SPD
    IP 65
  • Technical Specifications
    System Wattage 30W, 45W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90, ≥80
Meridian variants
Product Variants
Meridian
LLMD-30-C
Meridian
LLMD-30-W
Meridian
LLMD-45-C
Meridian
LLMD-45-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
300
300
695
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
300
300
695
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
300
300
695
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
300
300
695
