Product Overview

LED Sports floodlight designed with high efficacy ≥120lm/W with excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating and fitted with integrated polycarbonate modular lens cover in front.

Best suited for

Recreational Sports facilities

Sports arena

Stadium lighting

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating.
    Optics High lumen efficacy LED Module with SMD LED Package fitted with integrated polycarbonate modular lens cover in front.Available in 16°,30°,60° & 90°

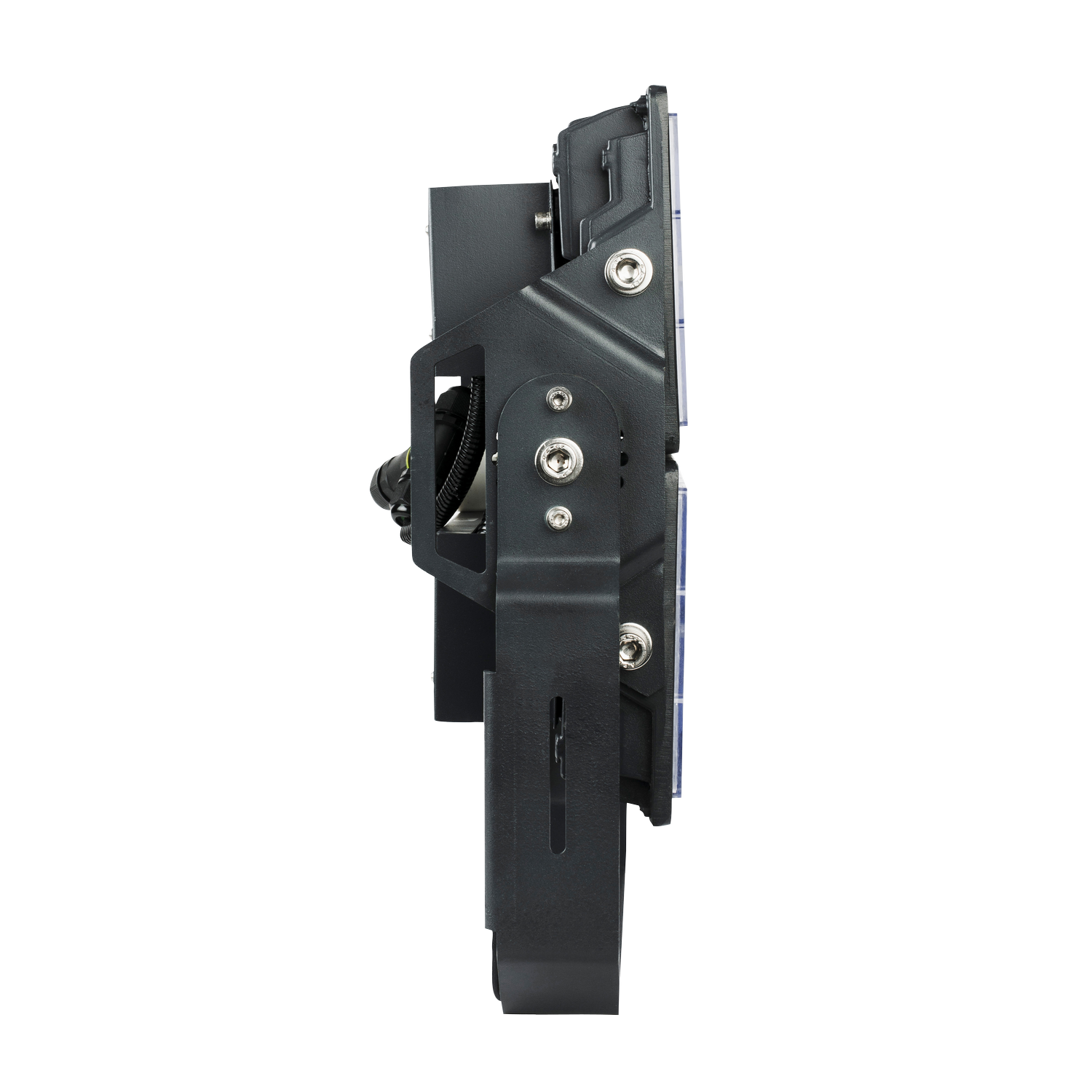

    Mounting Mounting using adjustable cradle
    Control Gear circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV (internal) ;inbuilt 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 500W, 1000W, 1200W, 1500W
    CCT 5700K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥120
New Gen 2 variants
Product Variants
New Gen 2

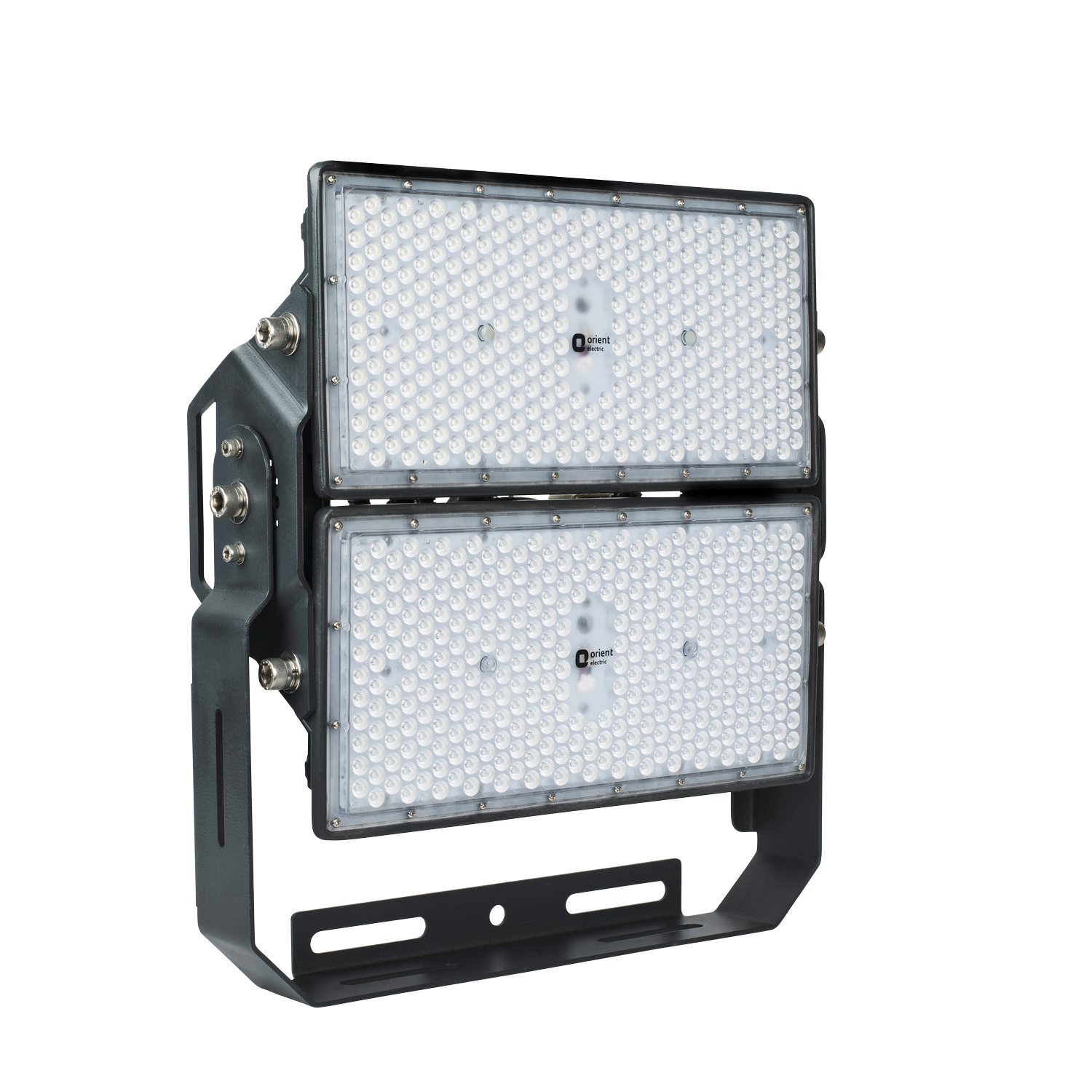

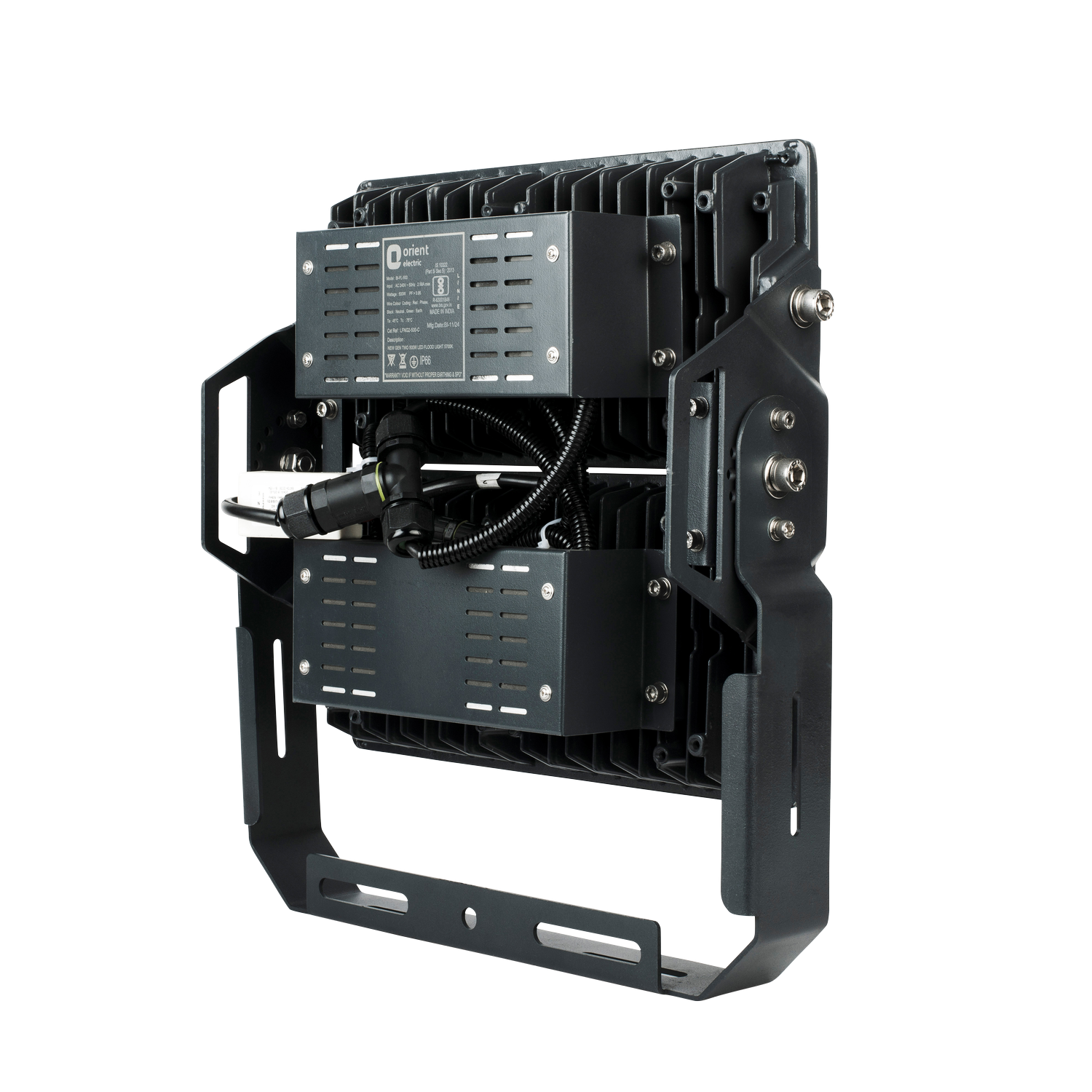

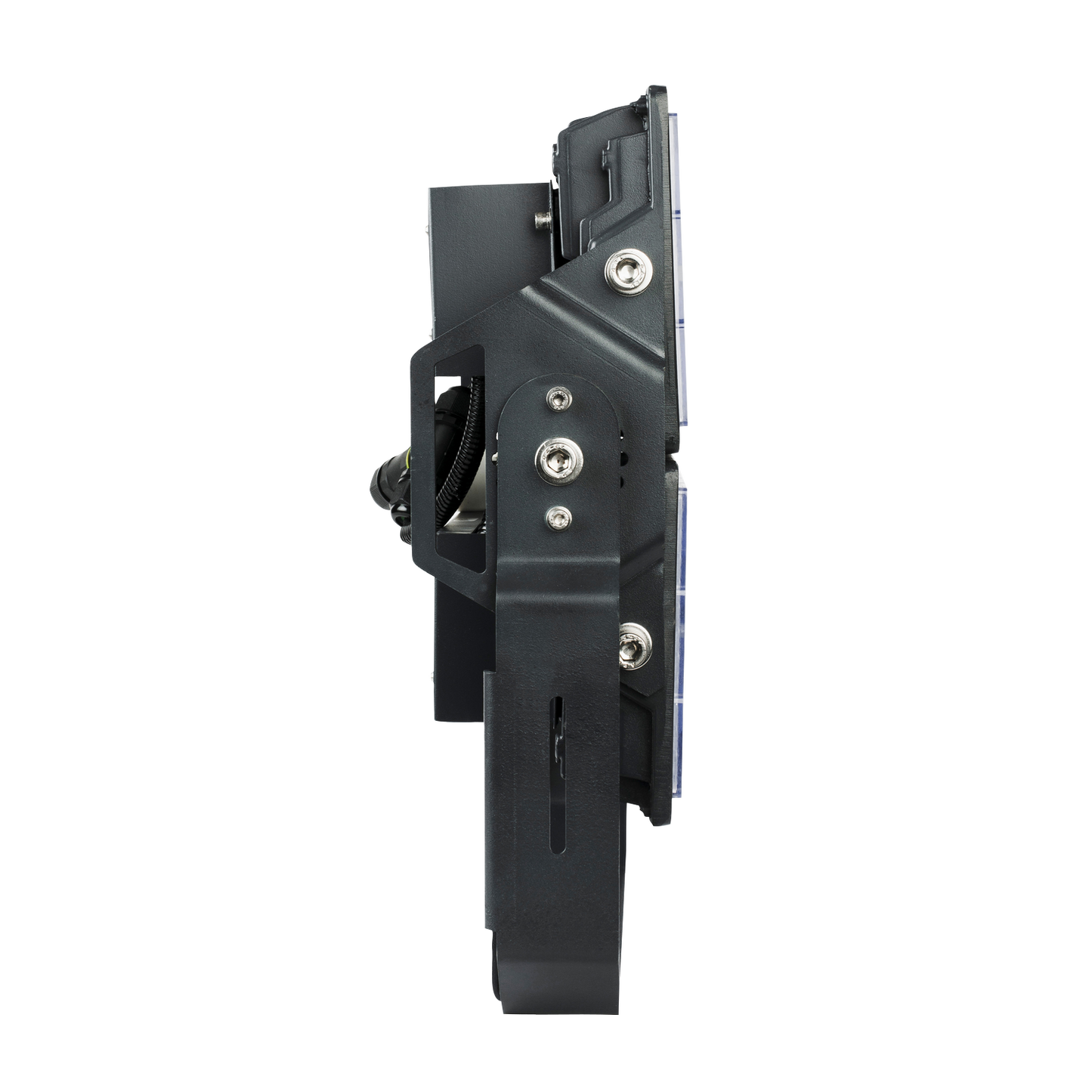

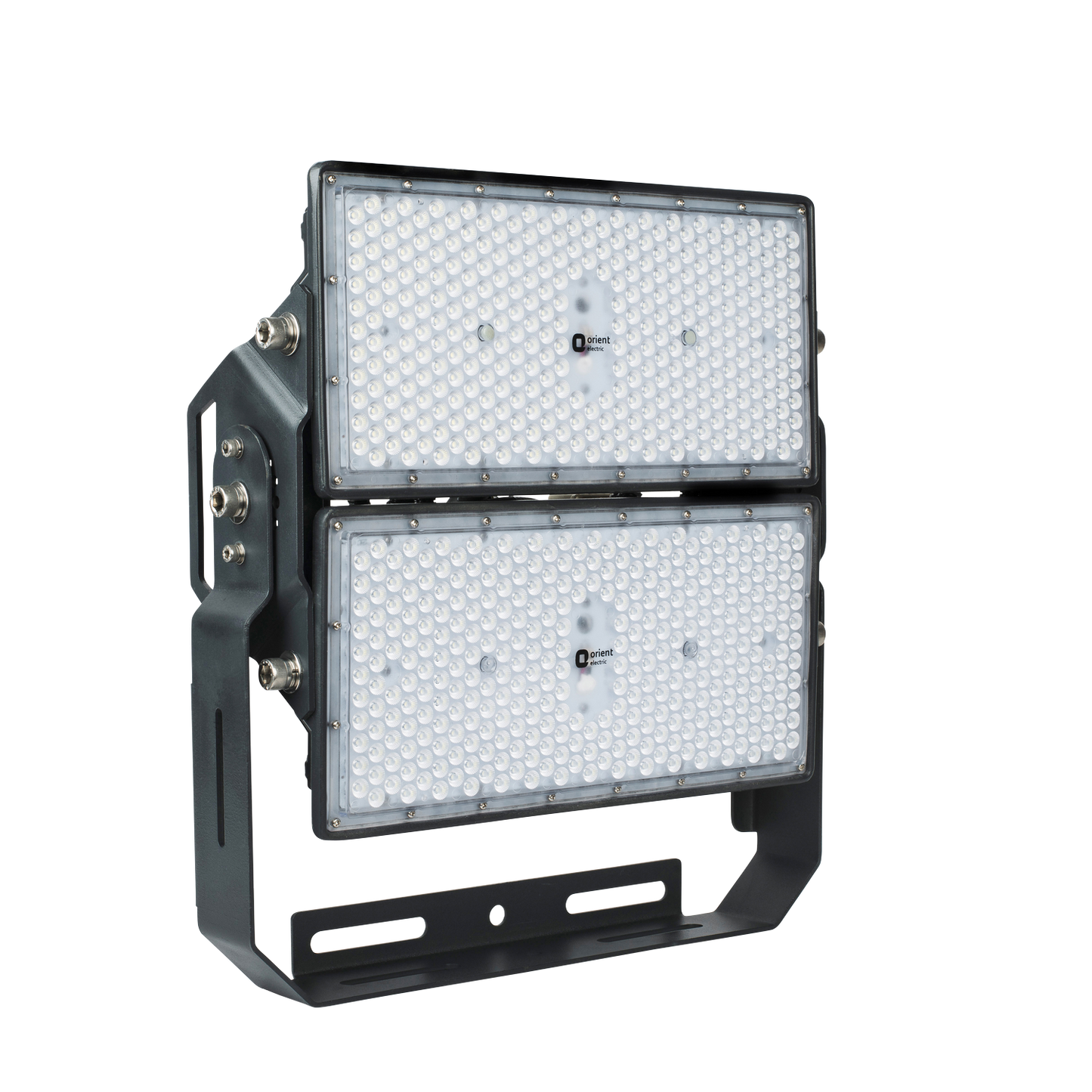

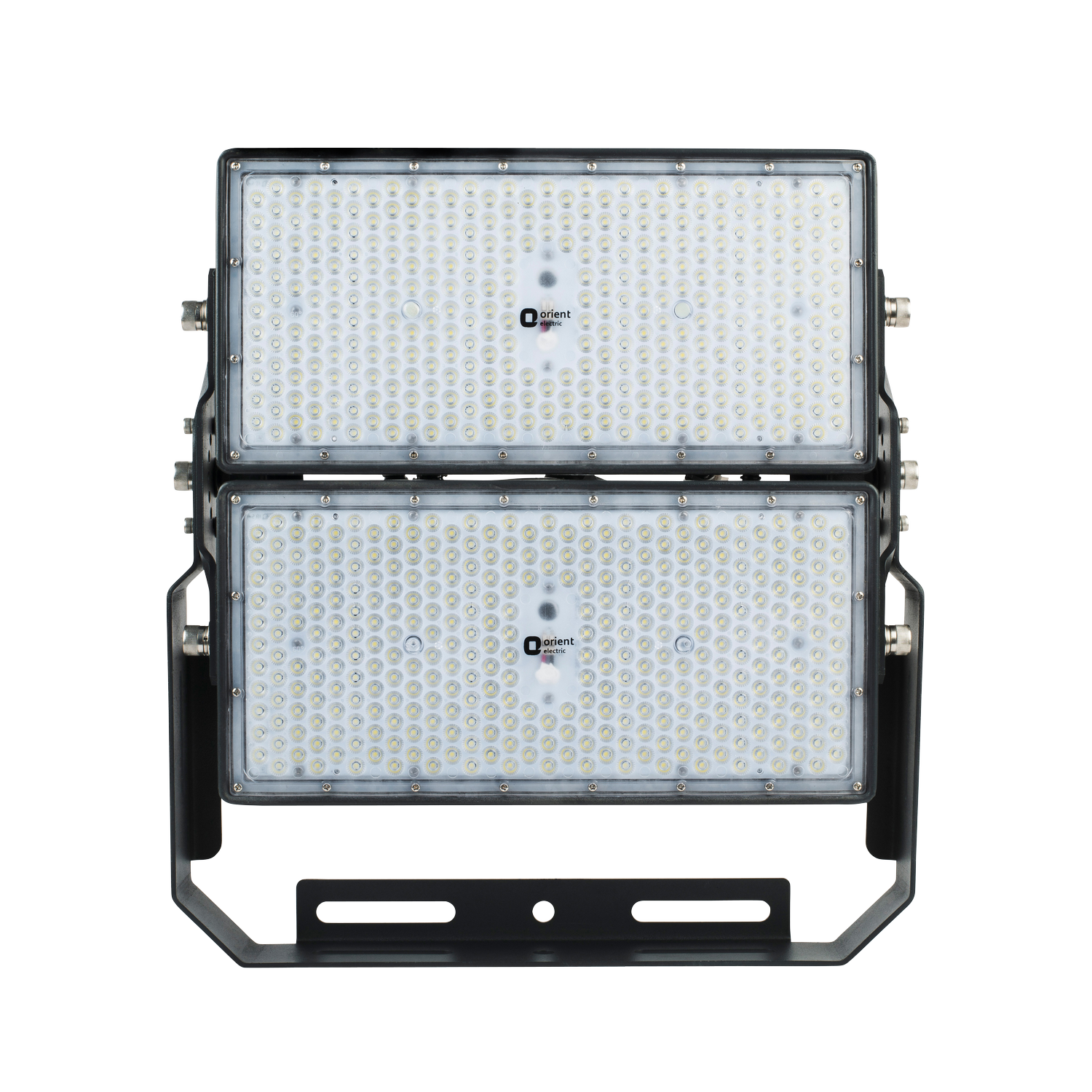

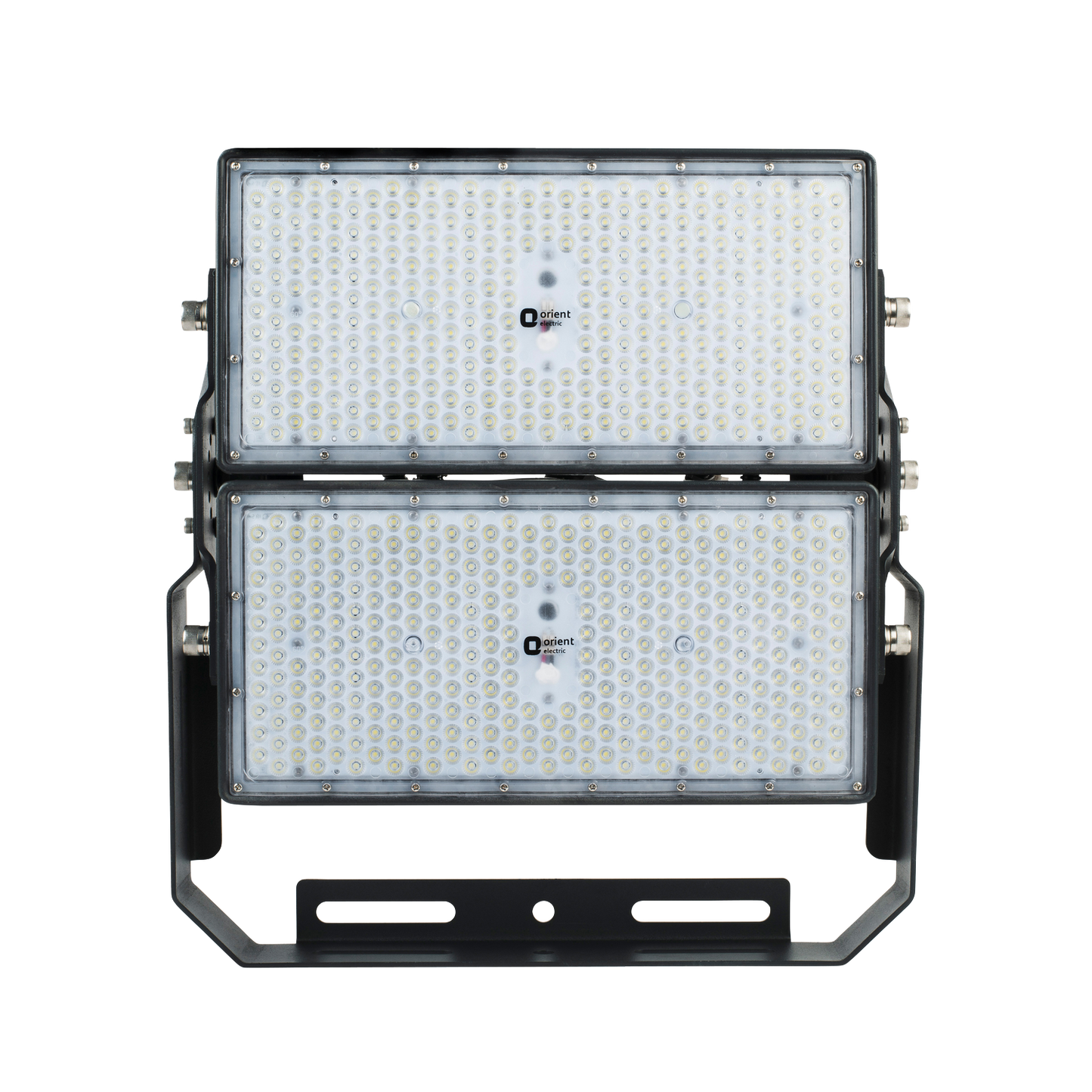

LFNG2-500-C
New Gen 2

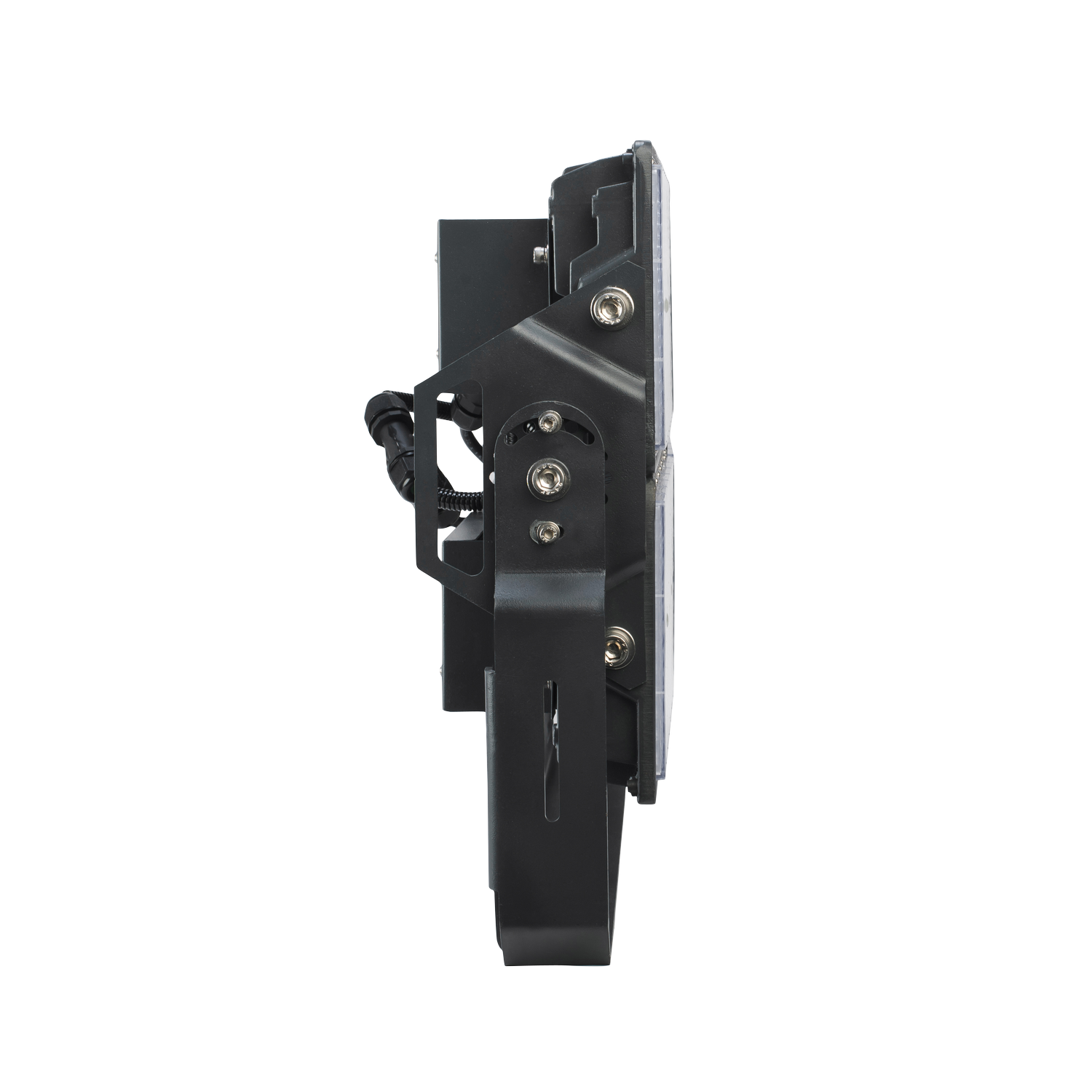

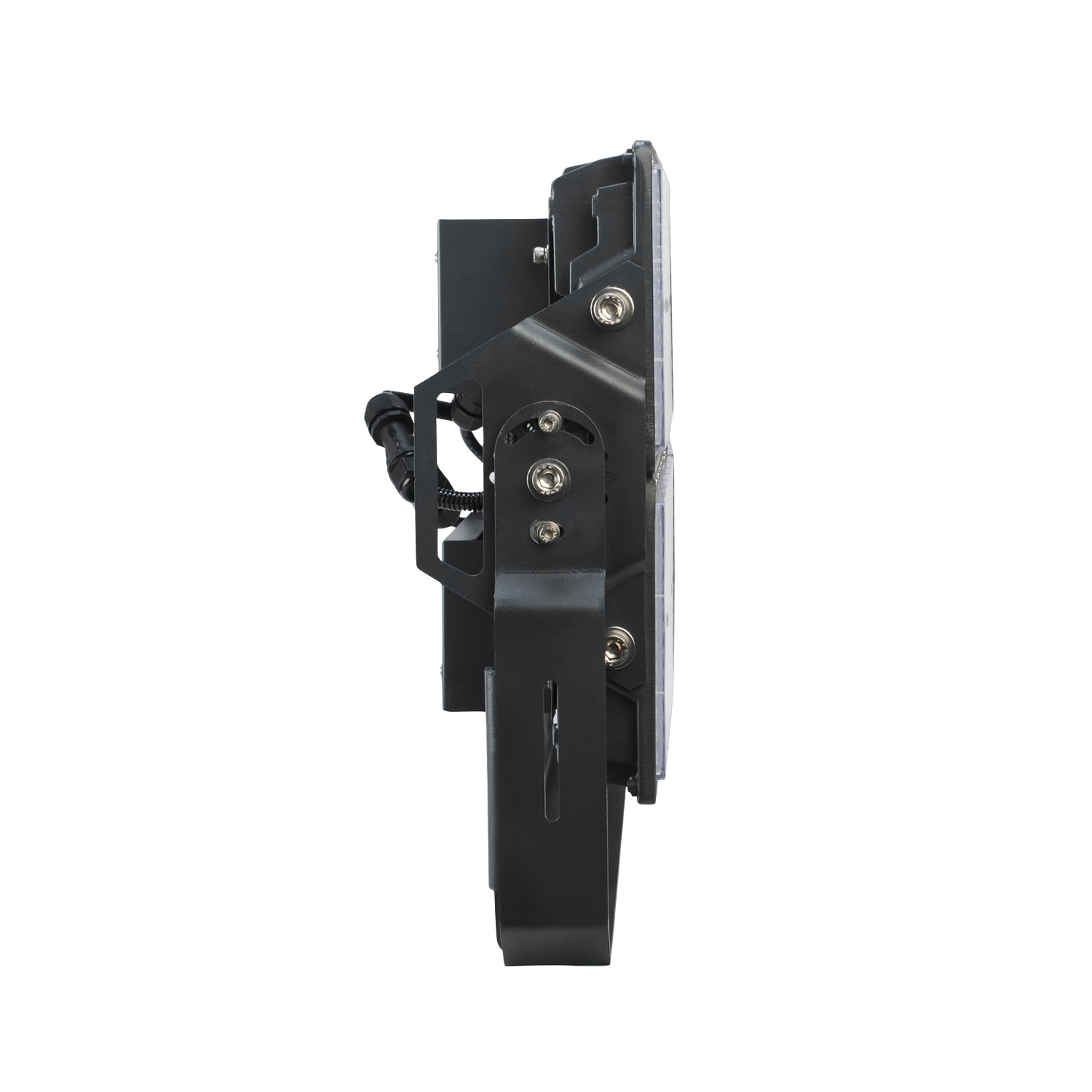

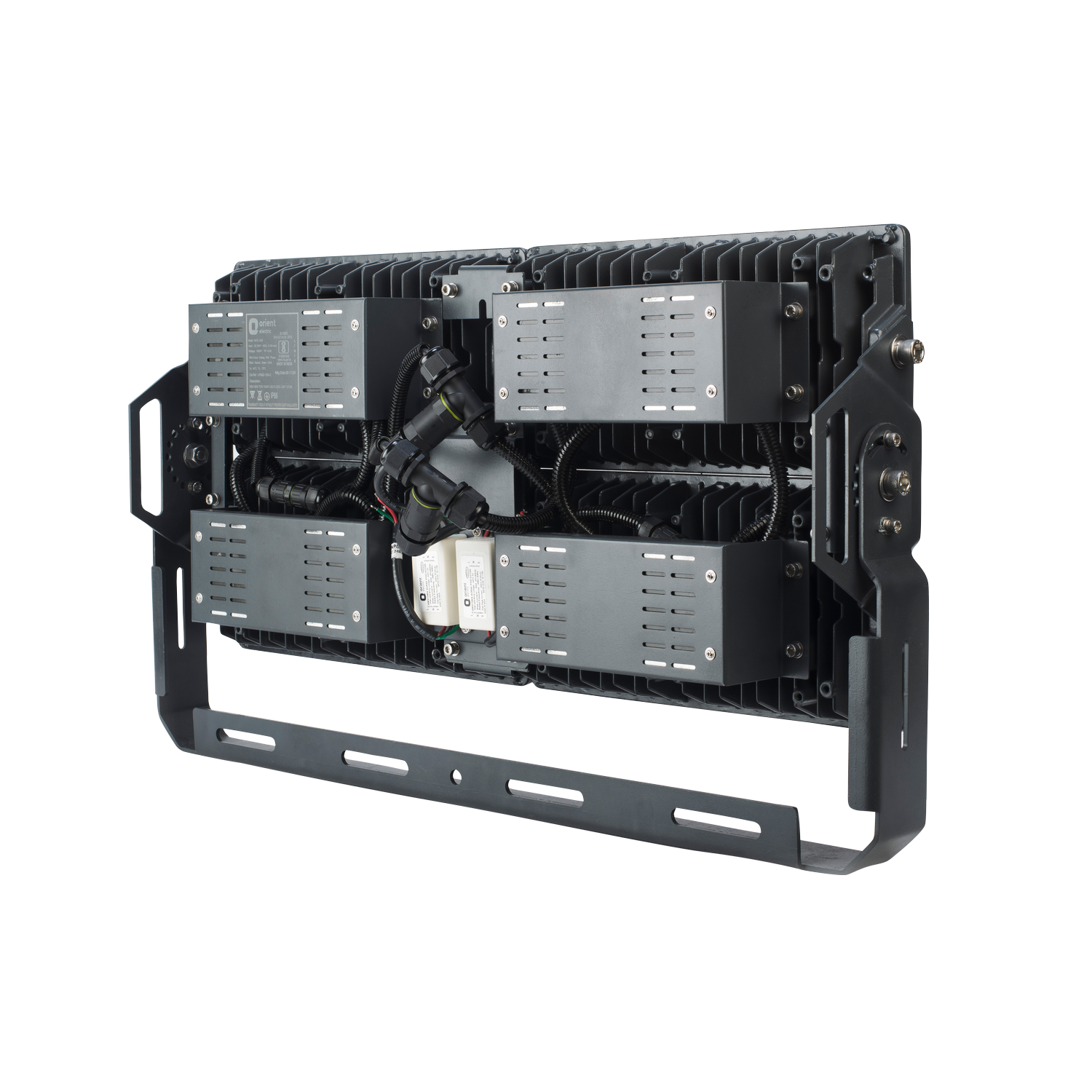

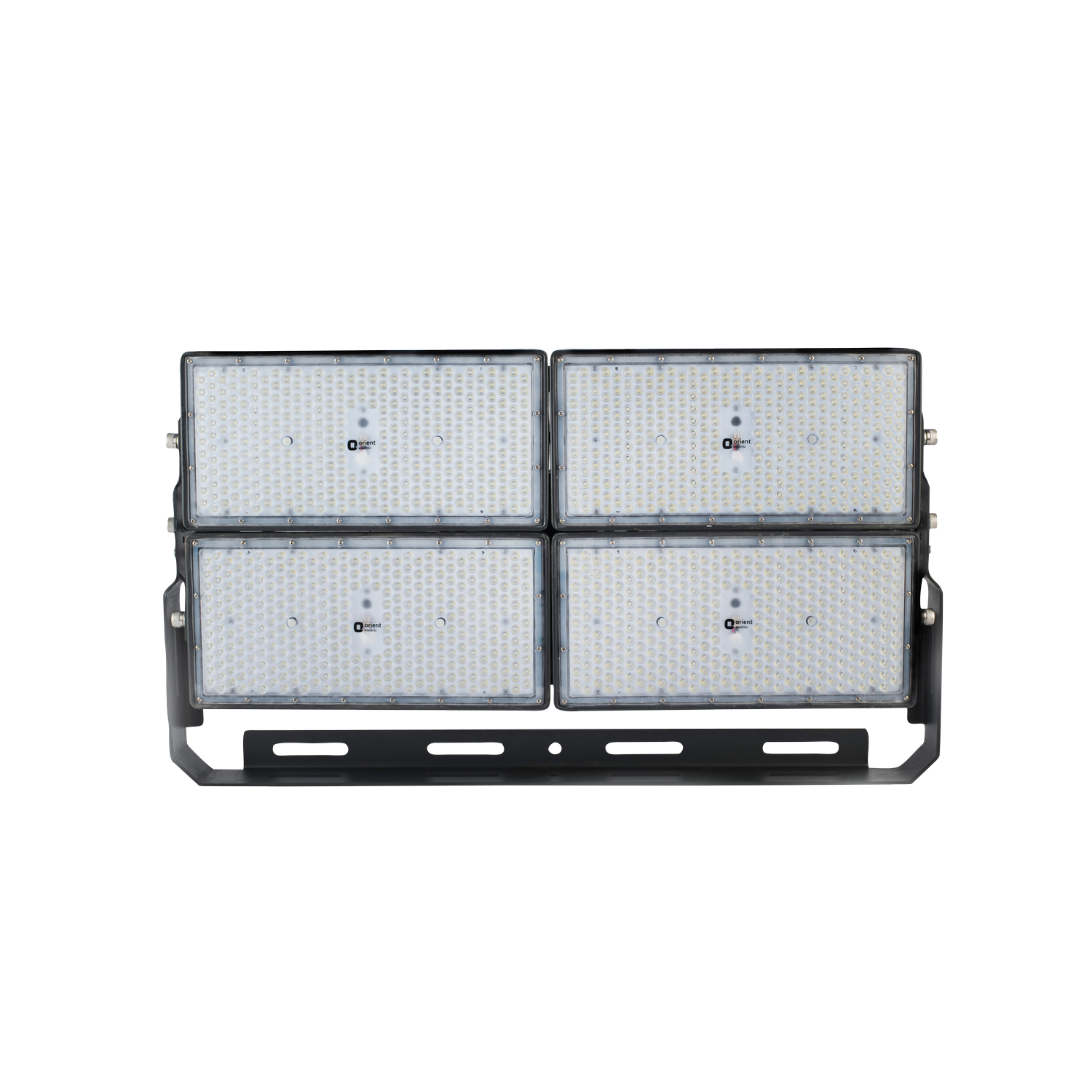

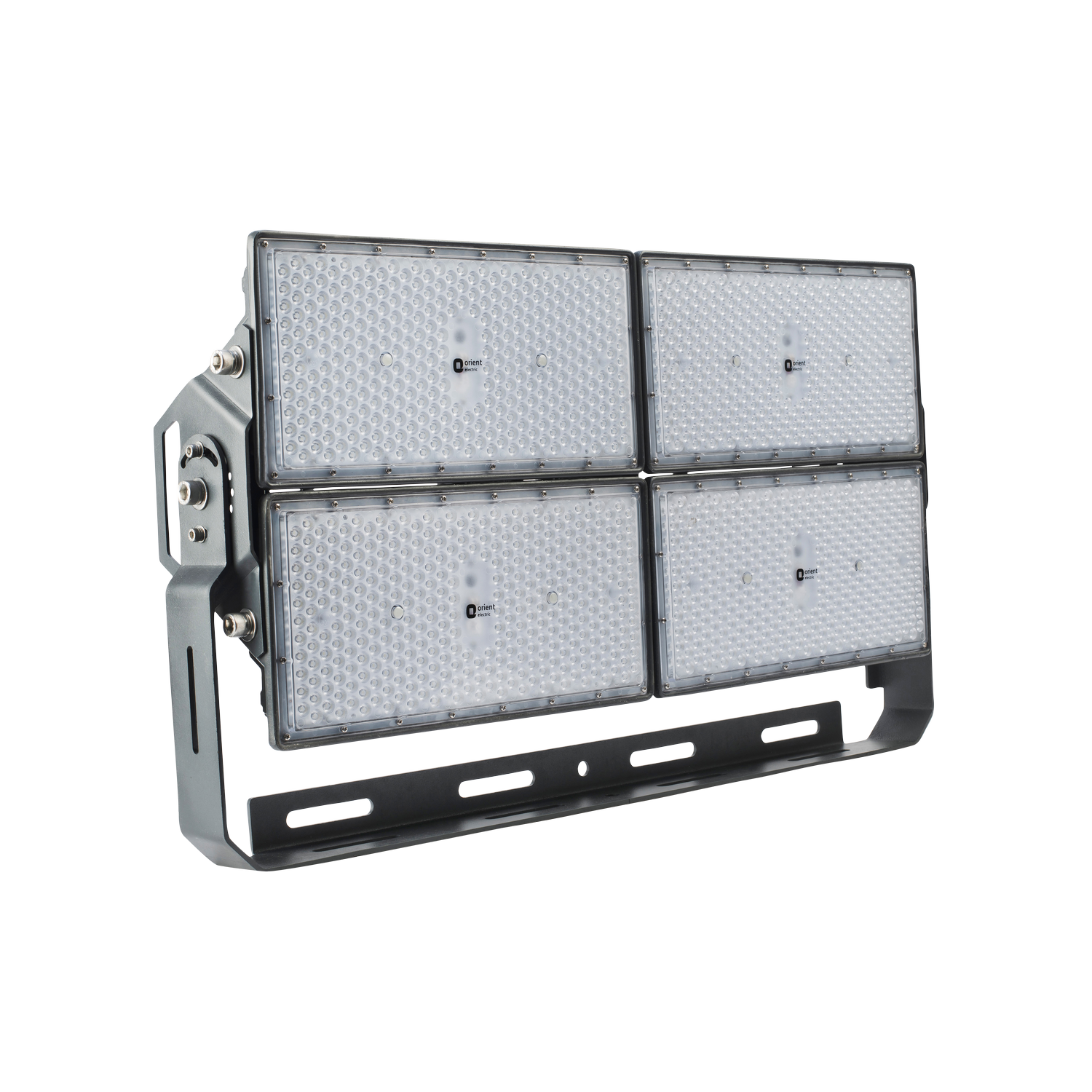

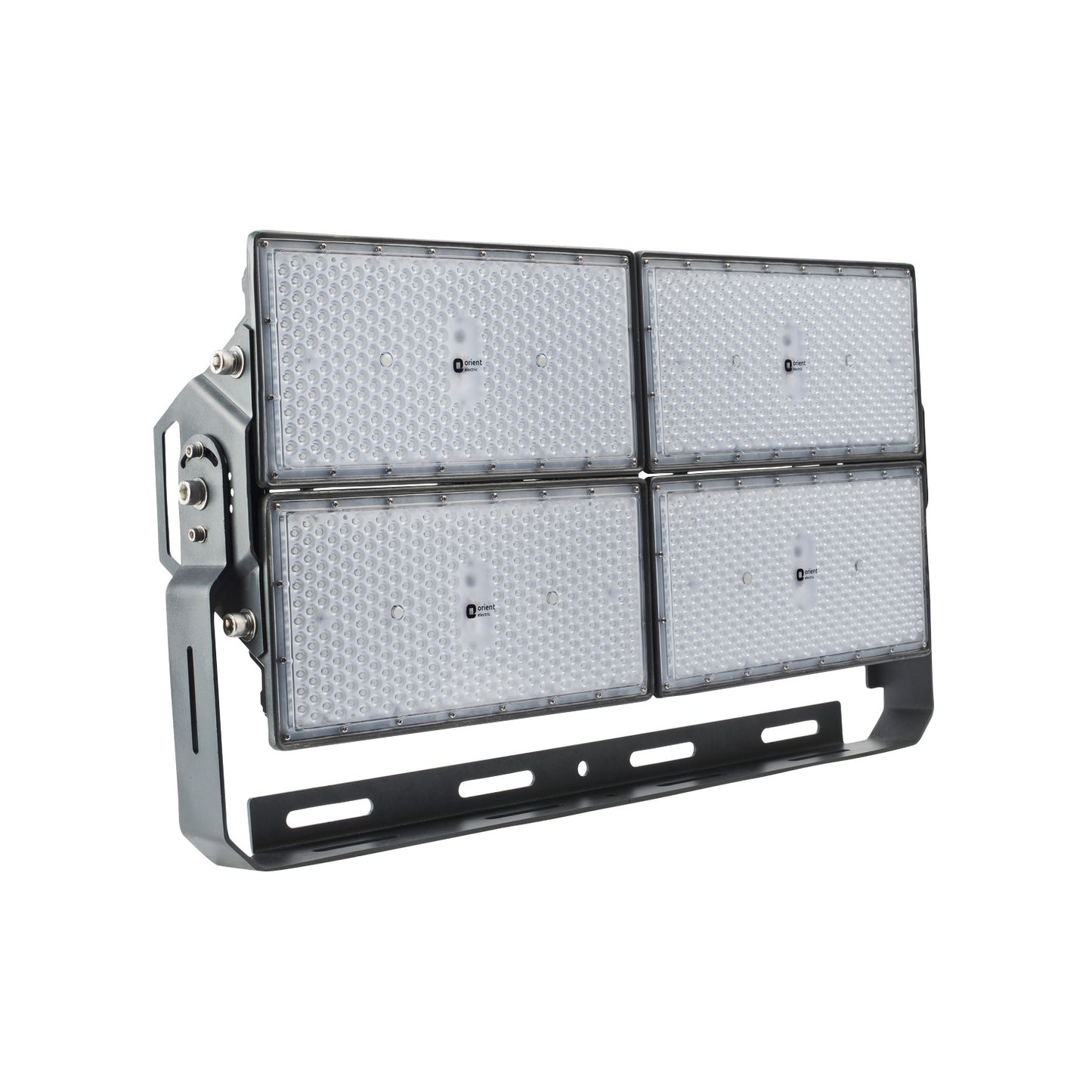

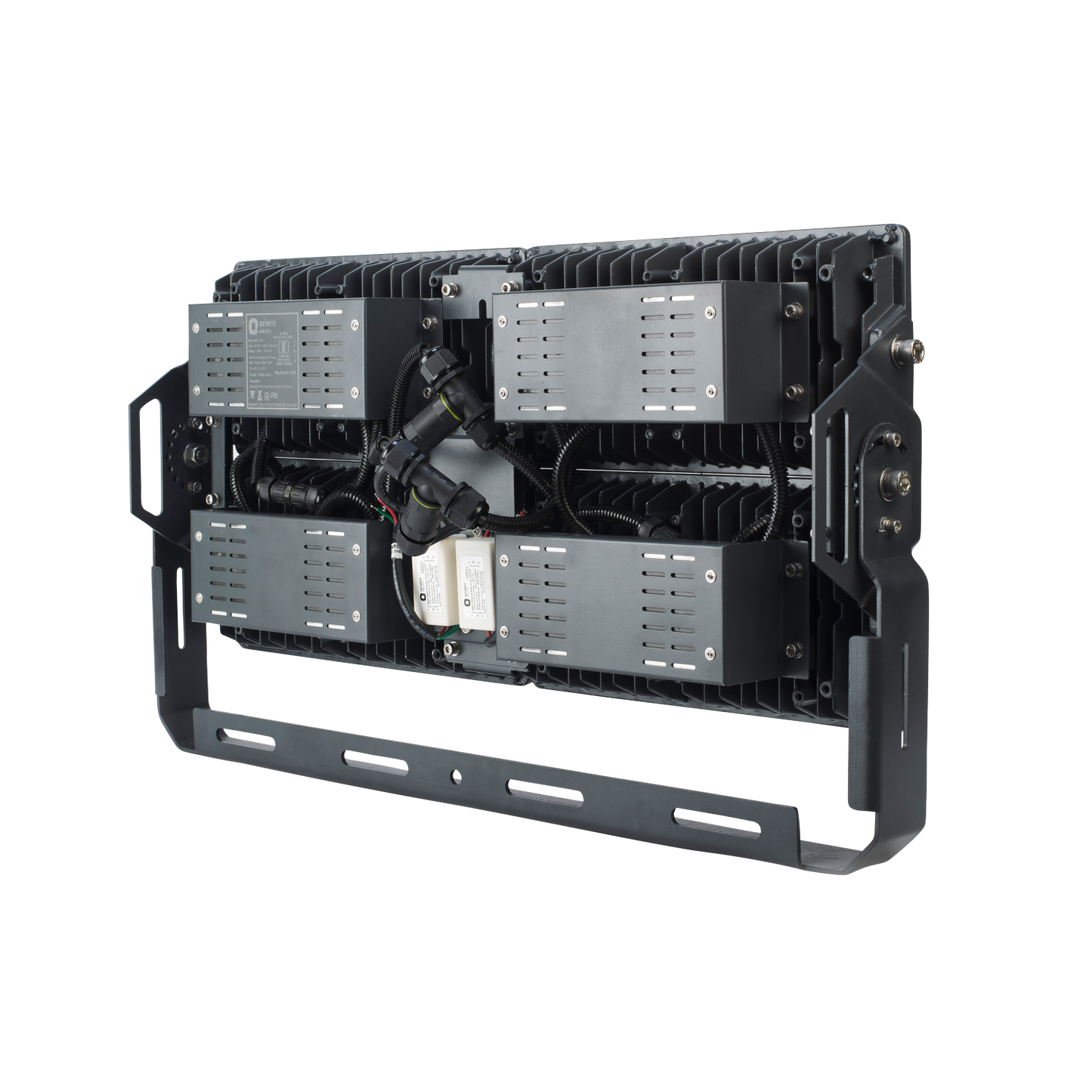

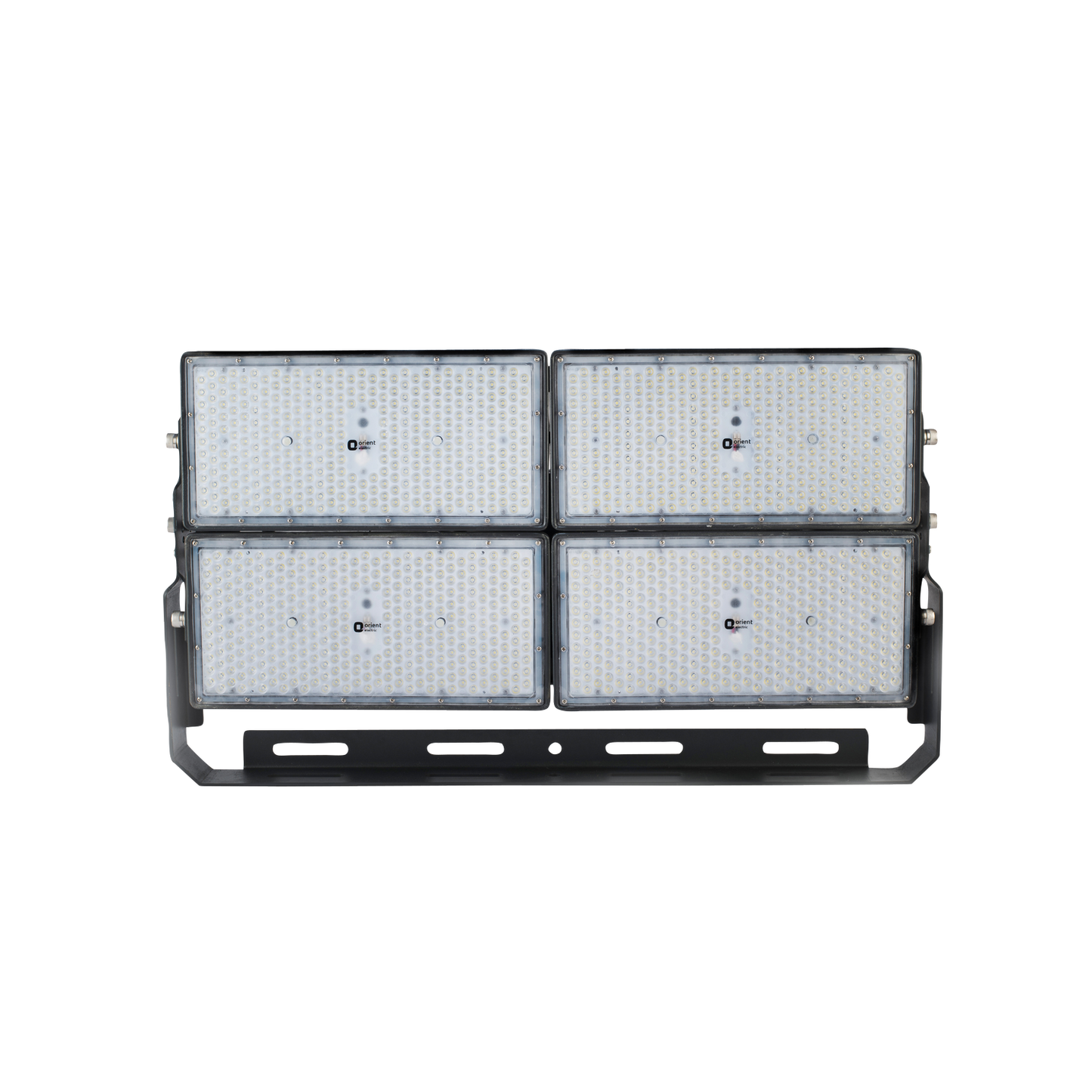

LFNG2-1000-C
New Gen 2

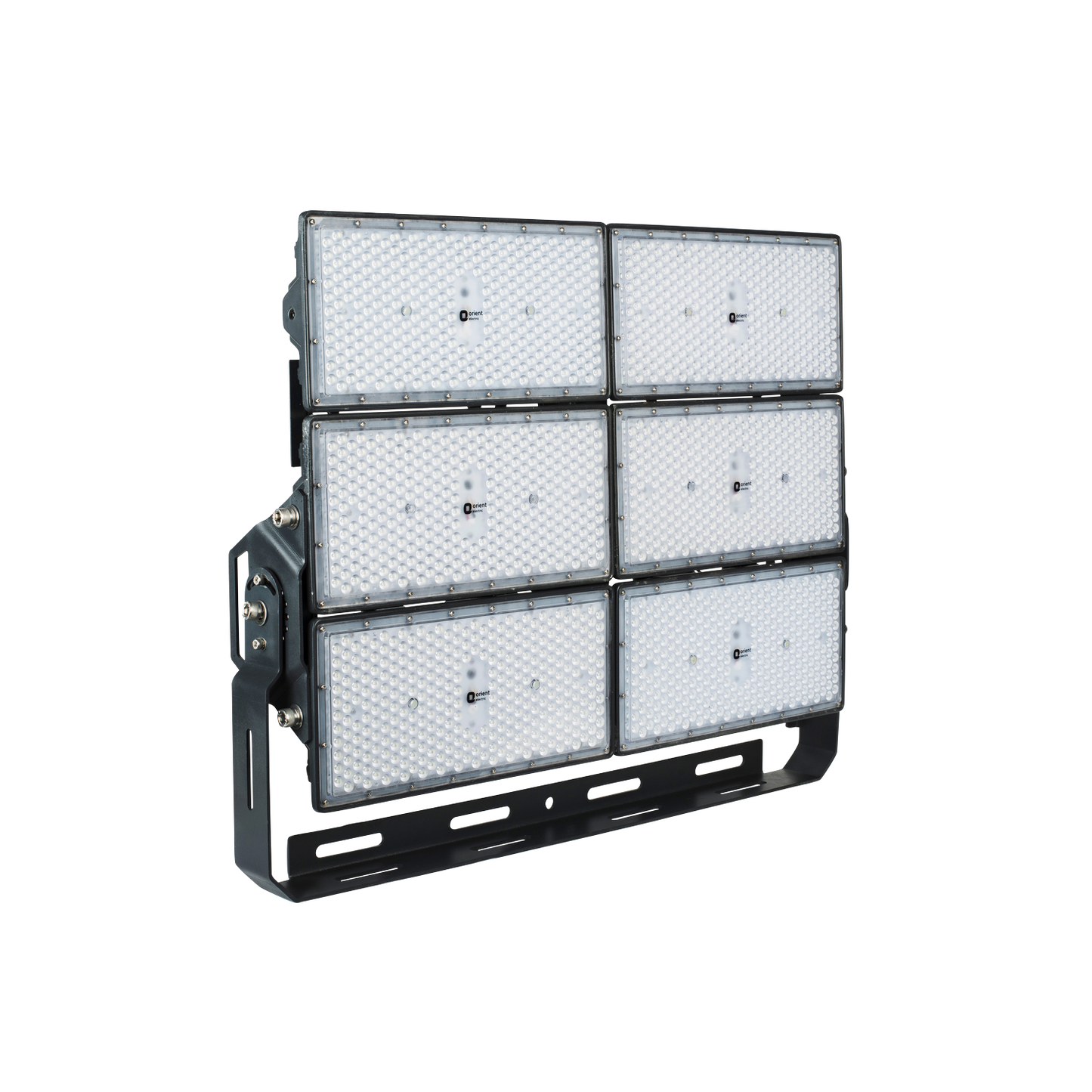

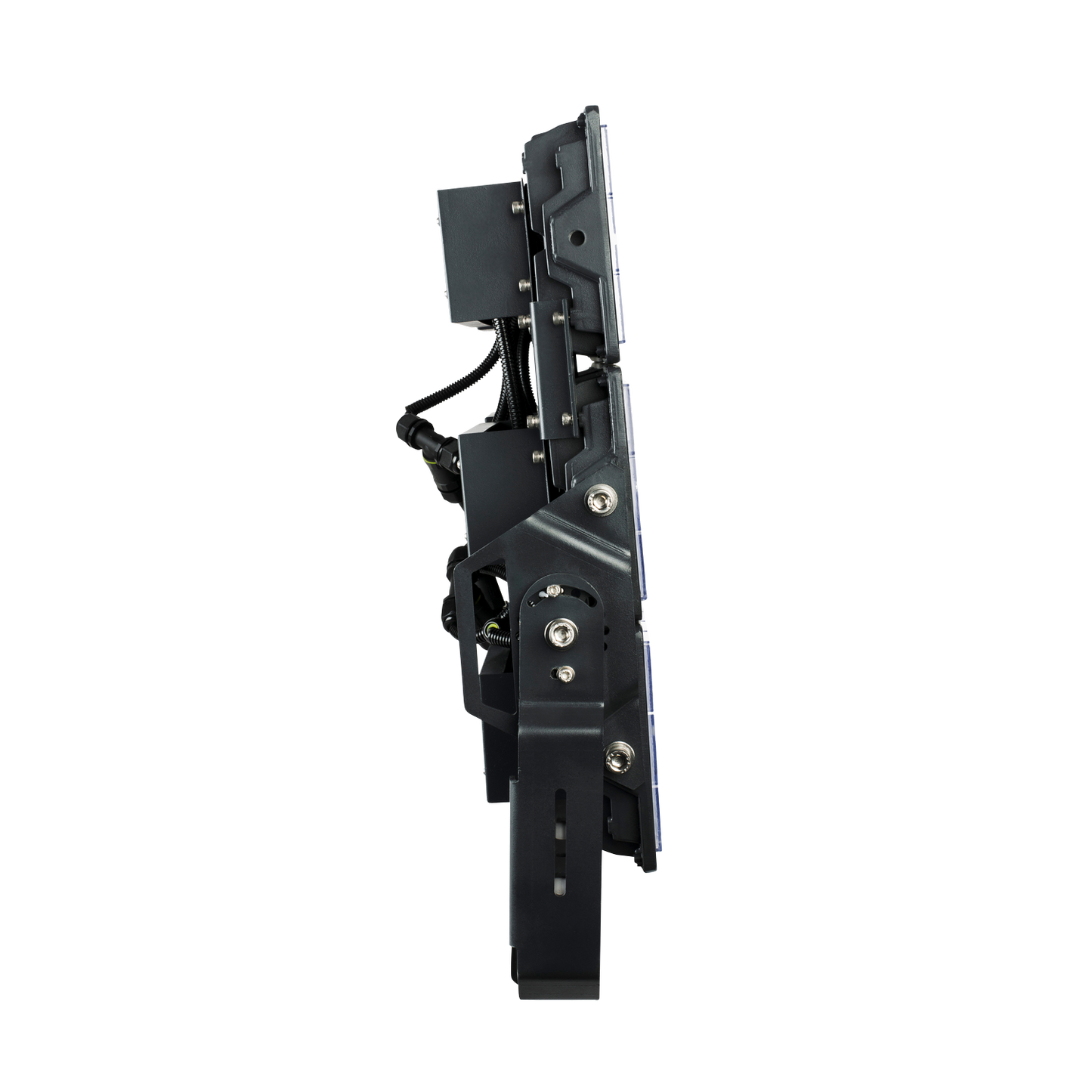

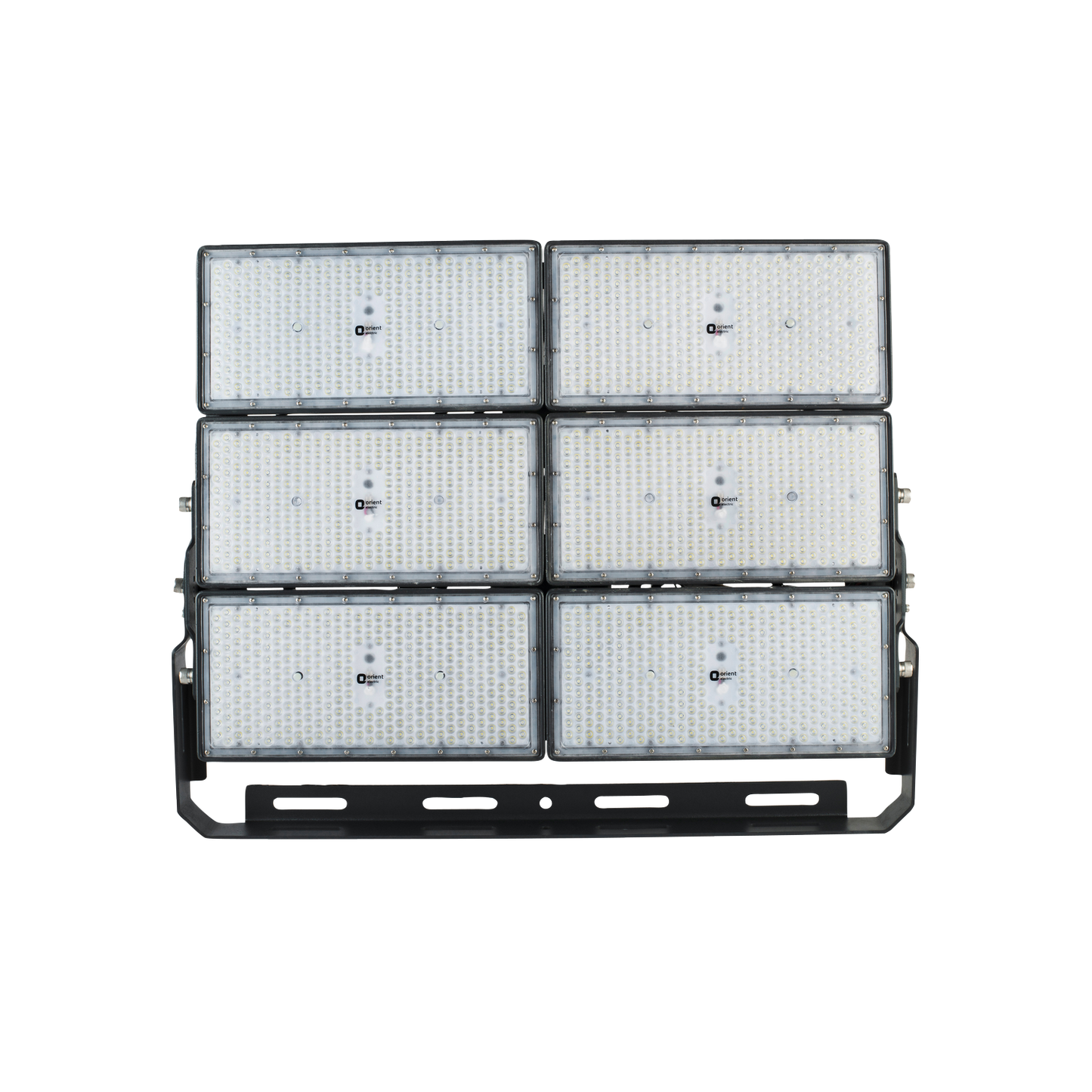

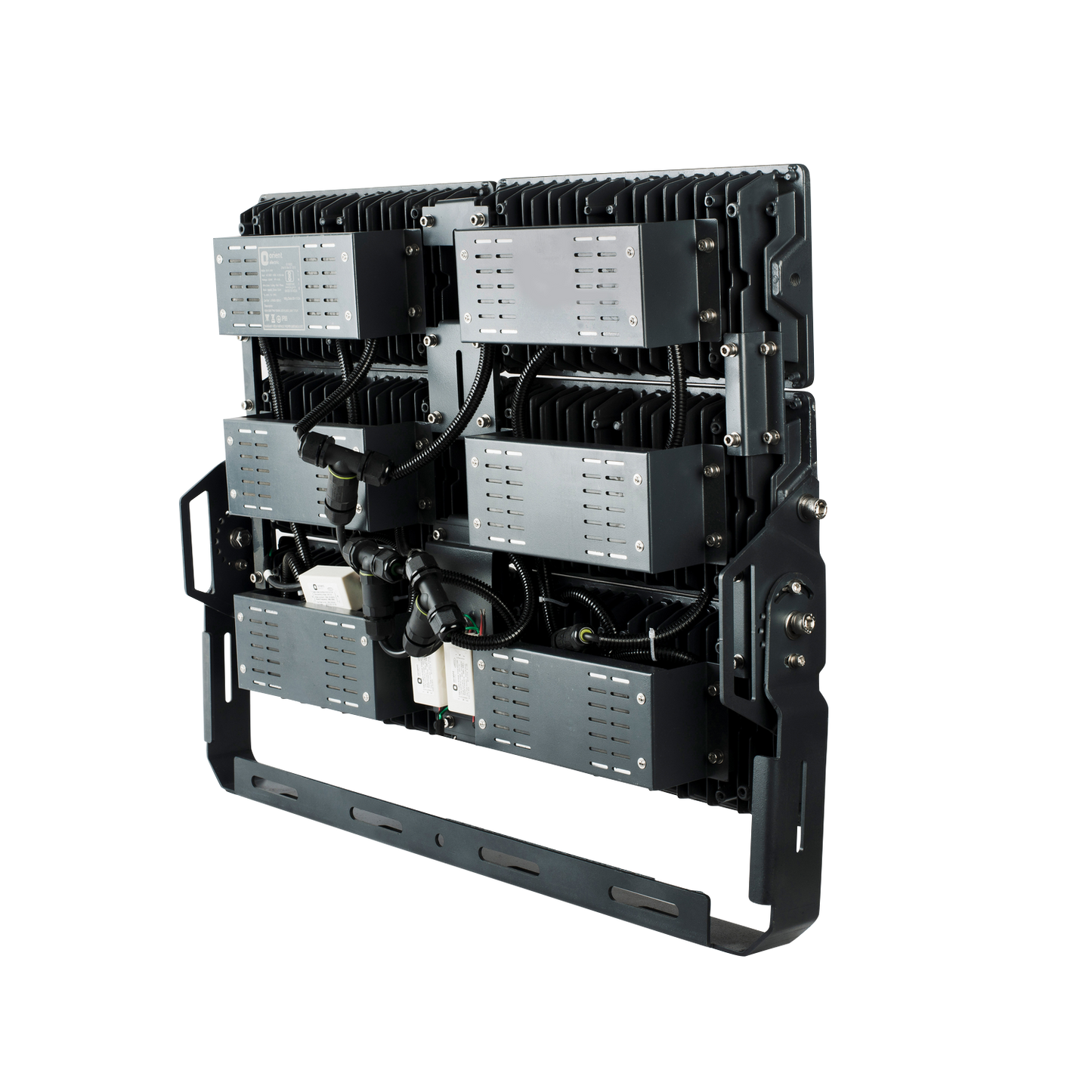

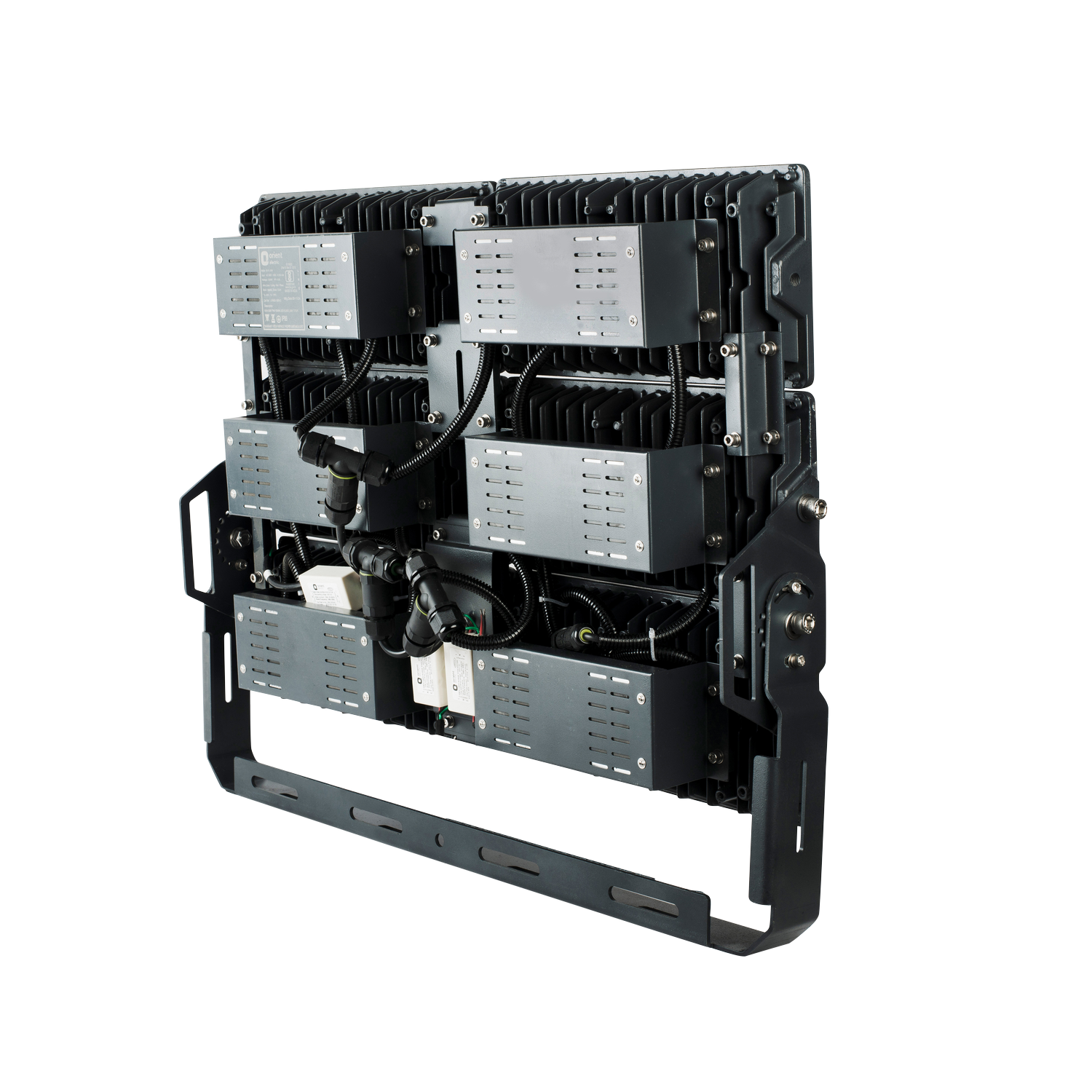

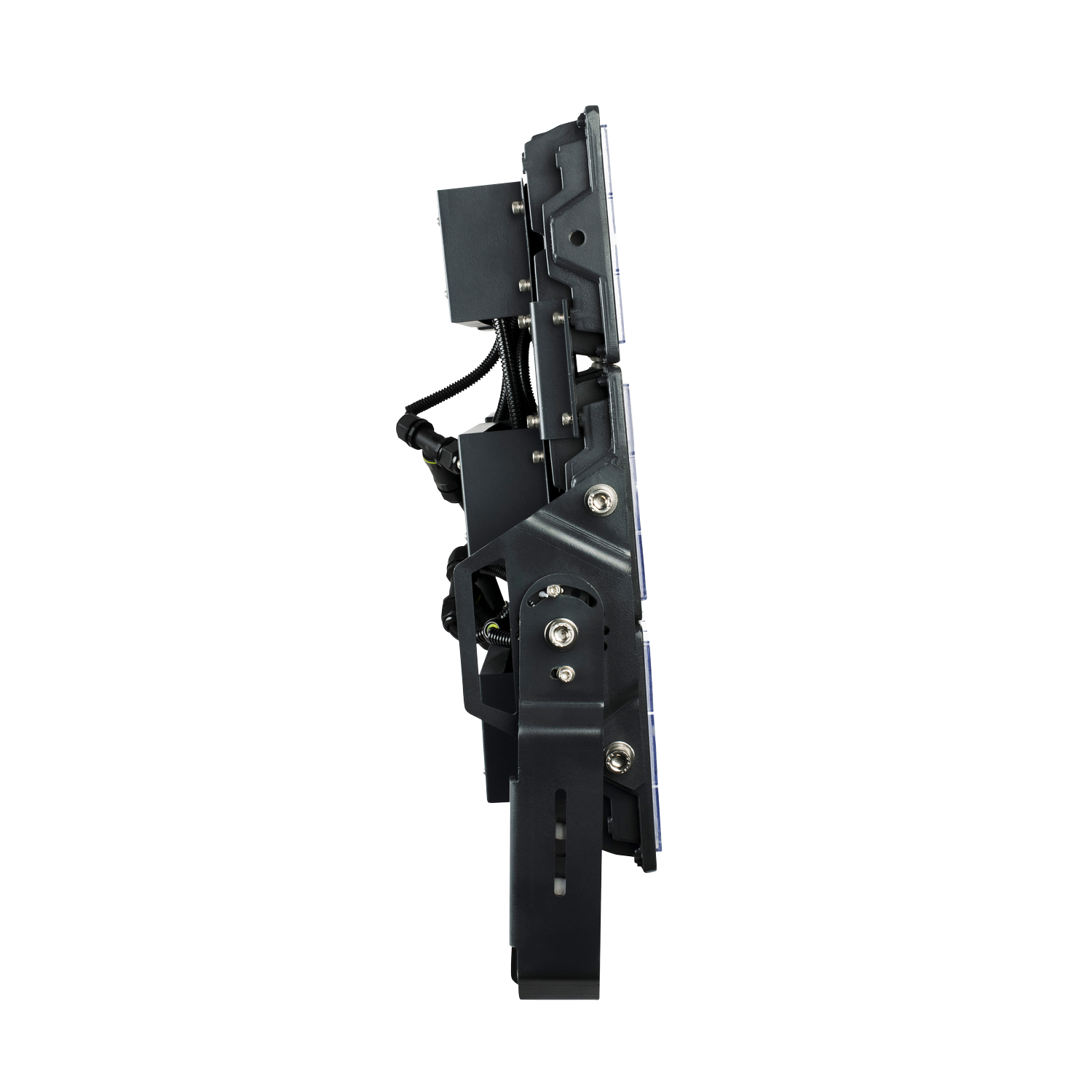

LFNG2-1200-C
New Gen 2
LFNG2-1500-C
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
500W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
373
370
120
1000W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
368
744
120
1200W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
555
746
120
1500W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
555
746
120
