Product Overview

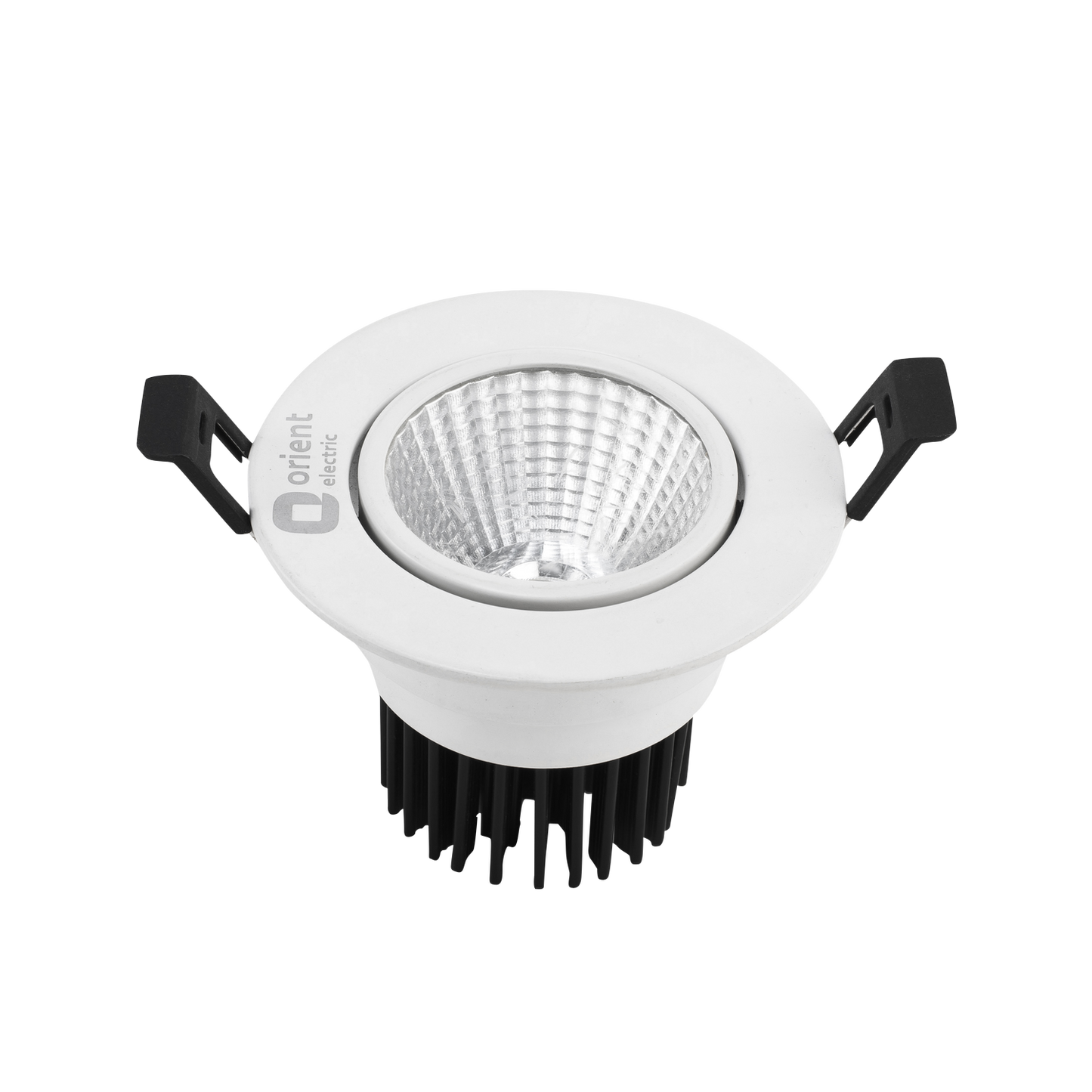

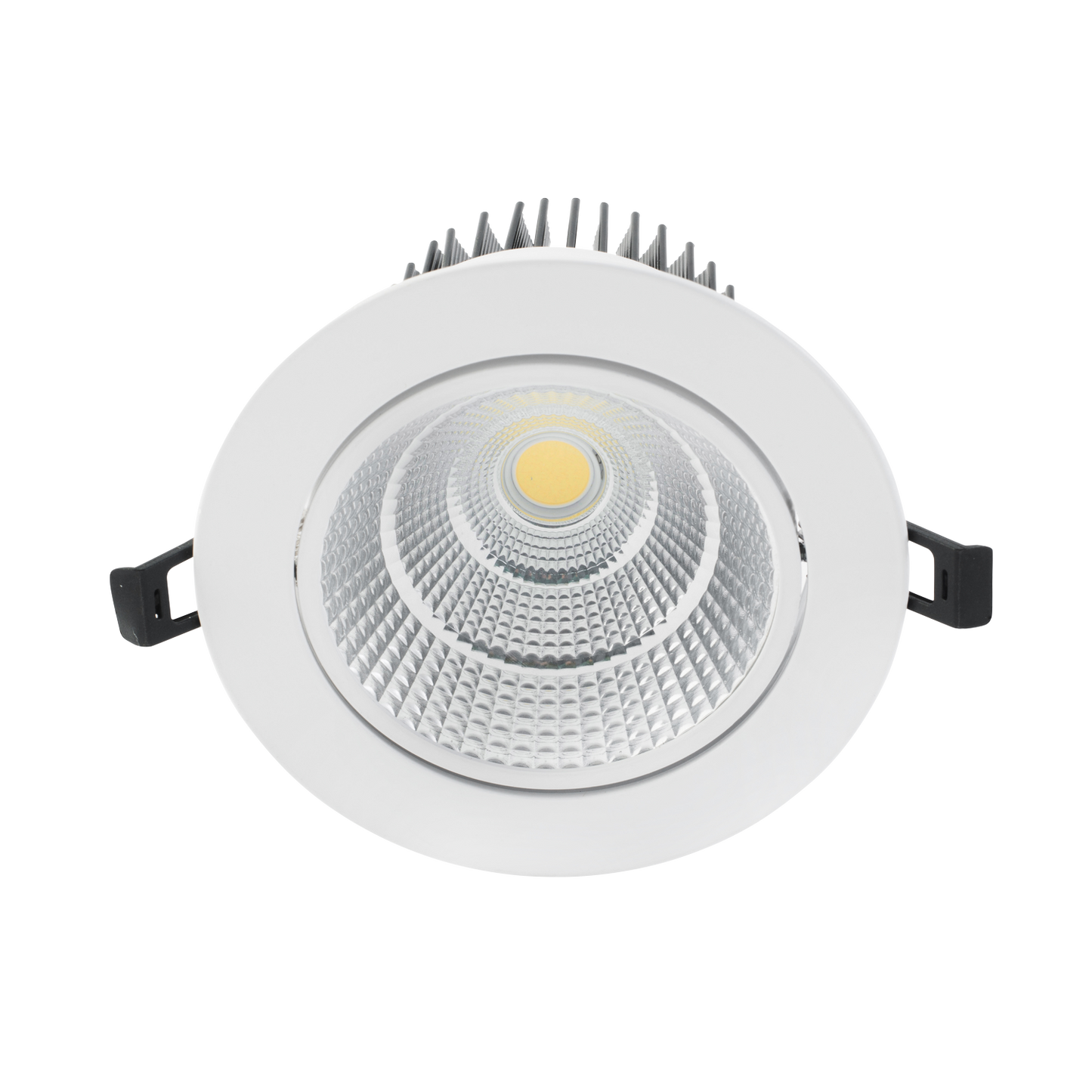

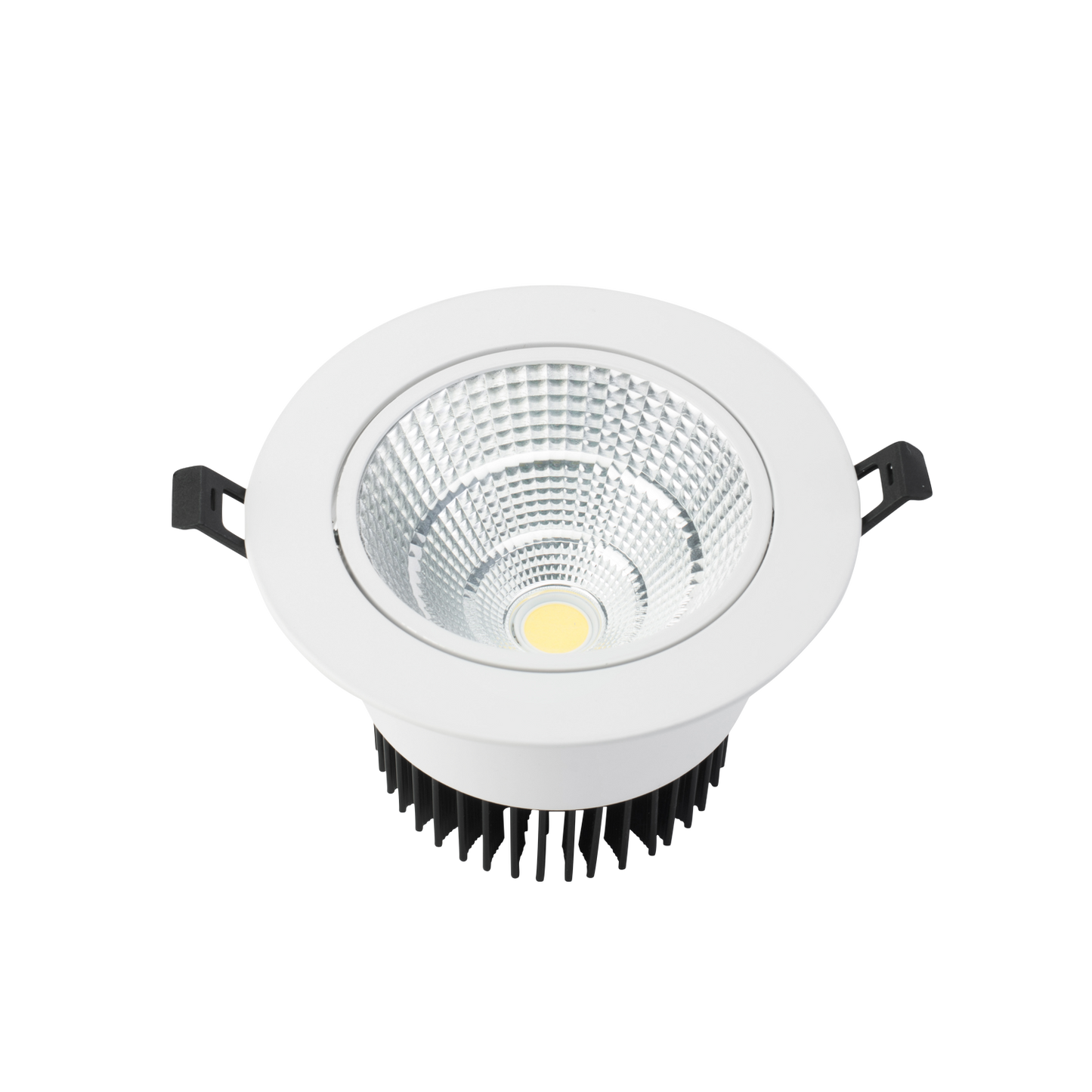

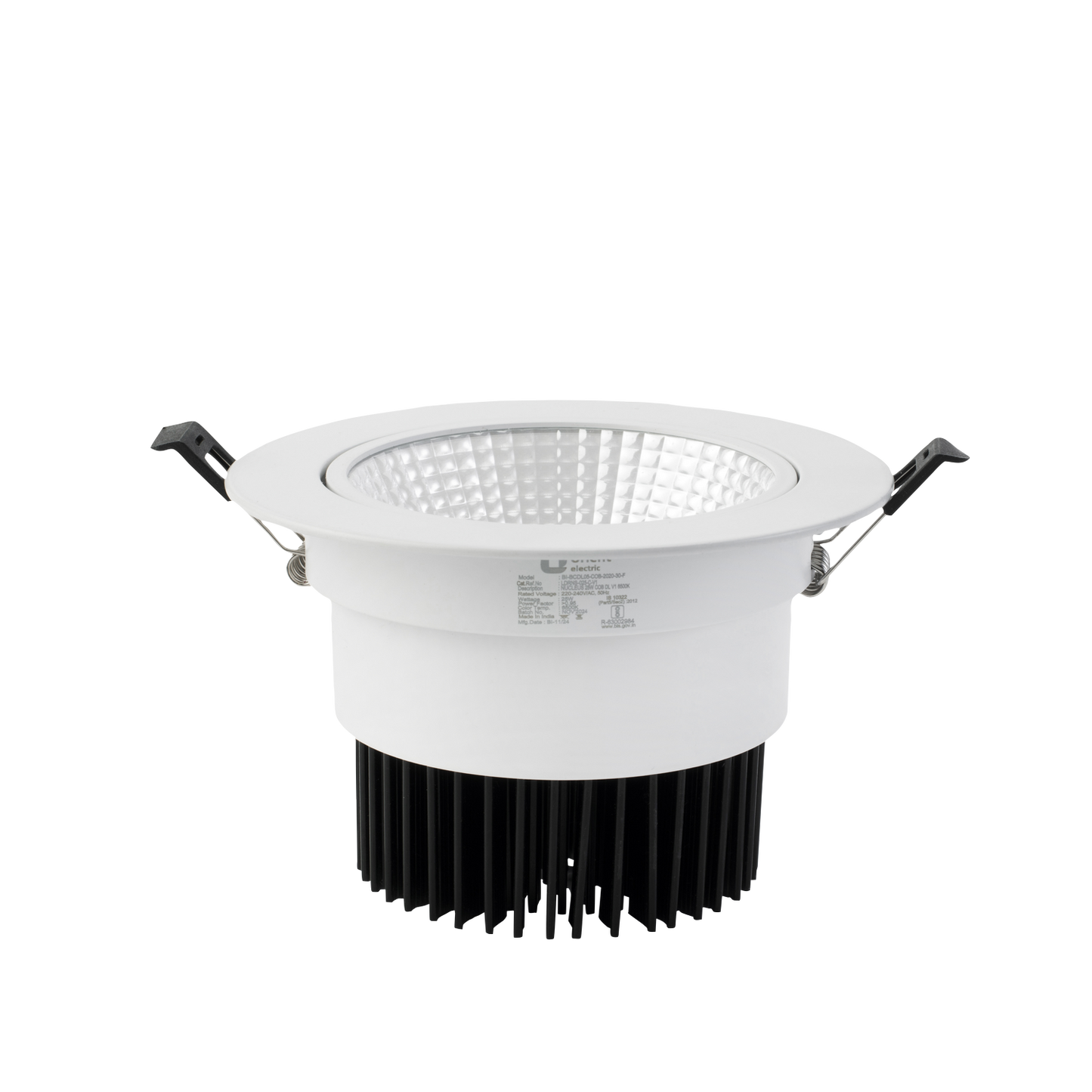

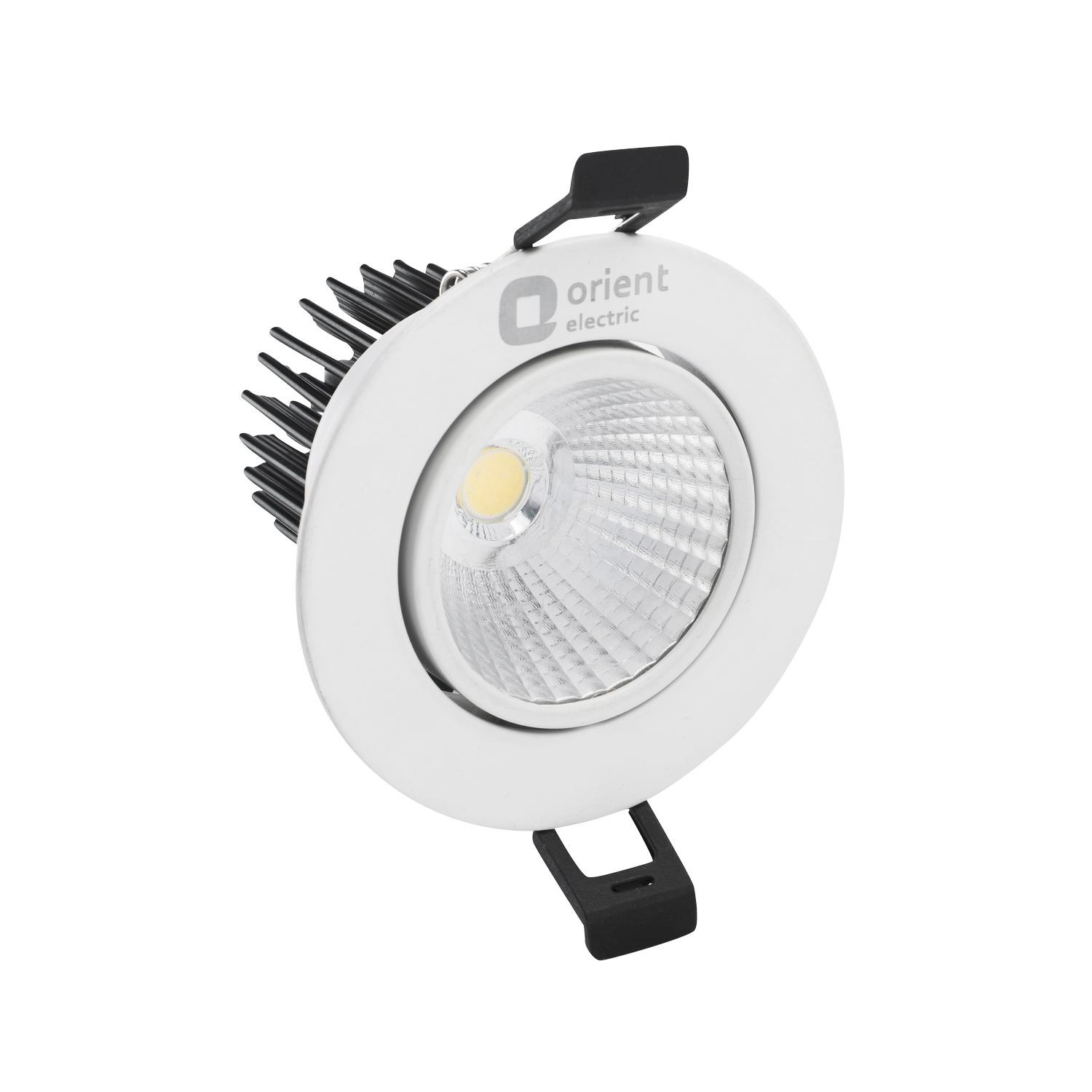

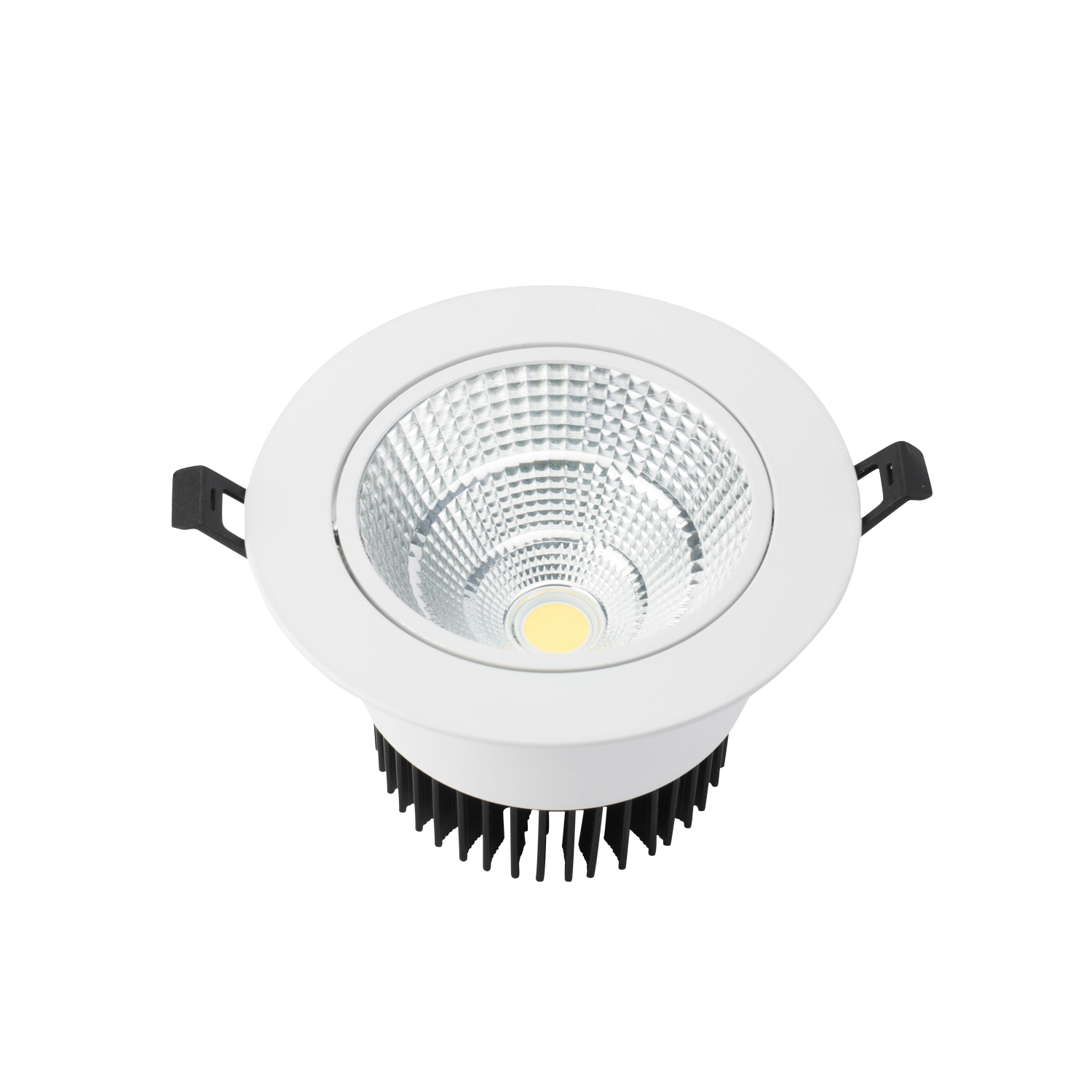

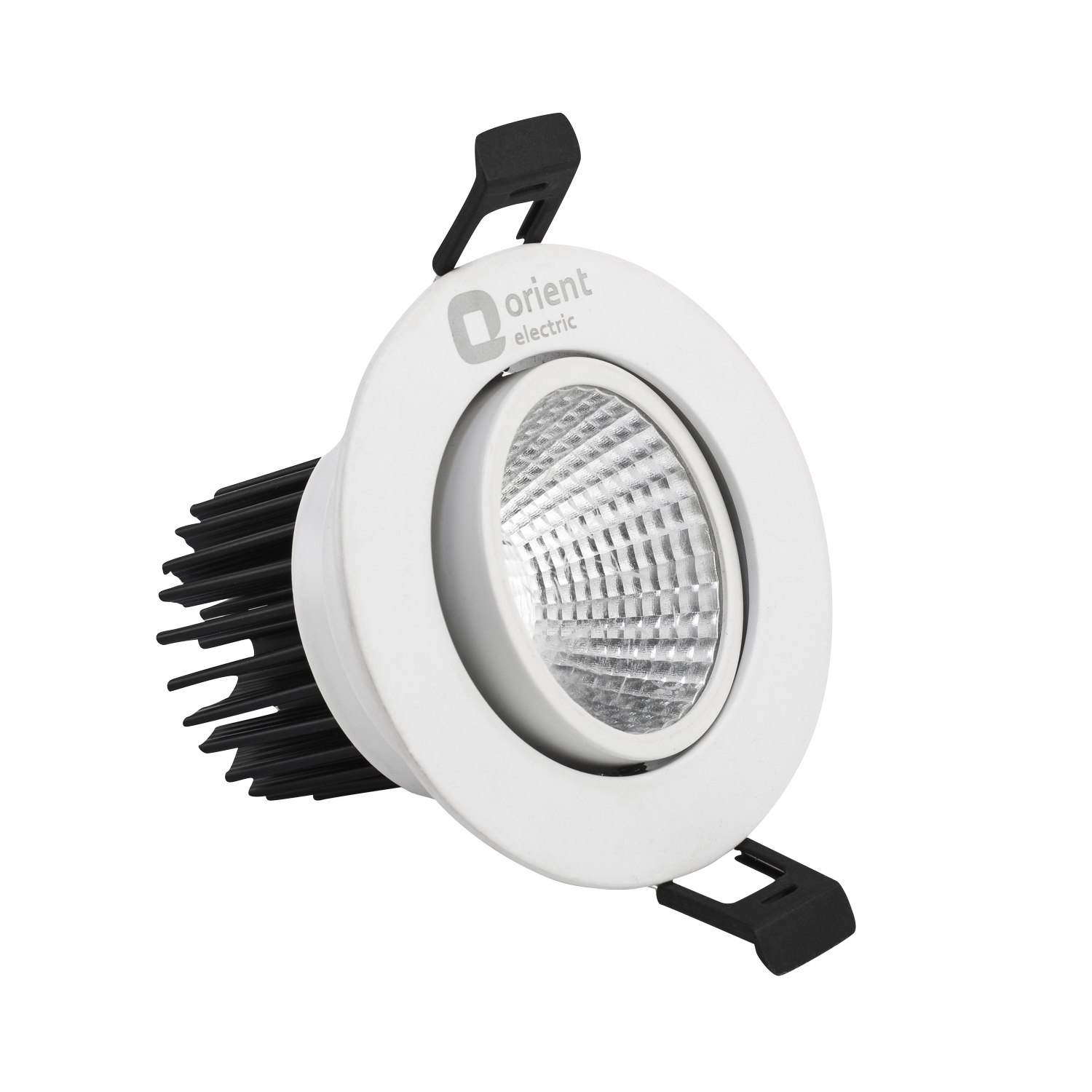

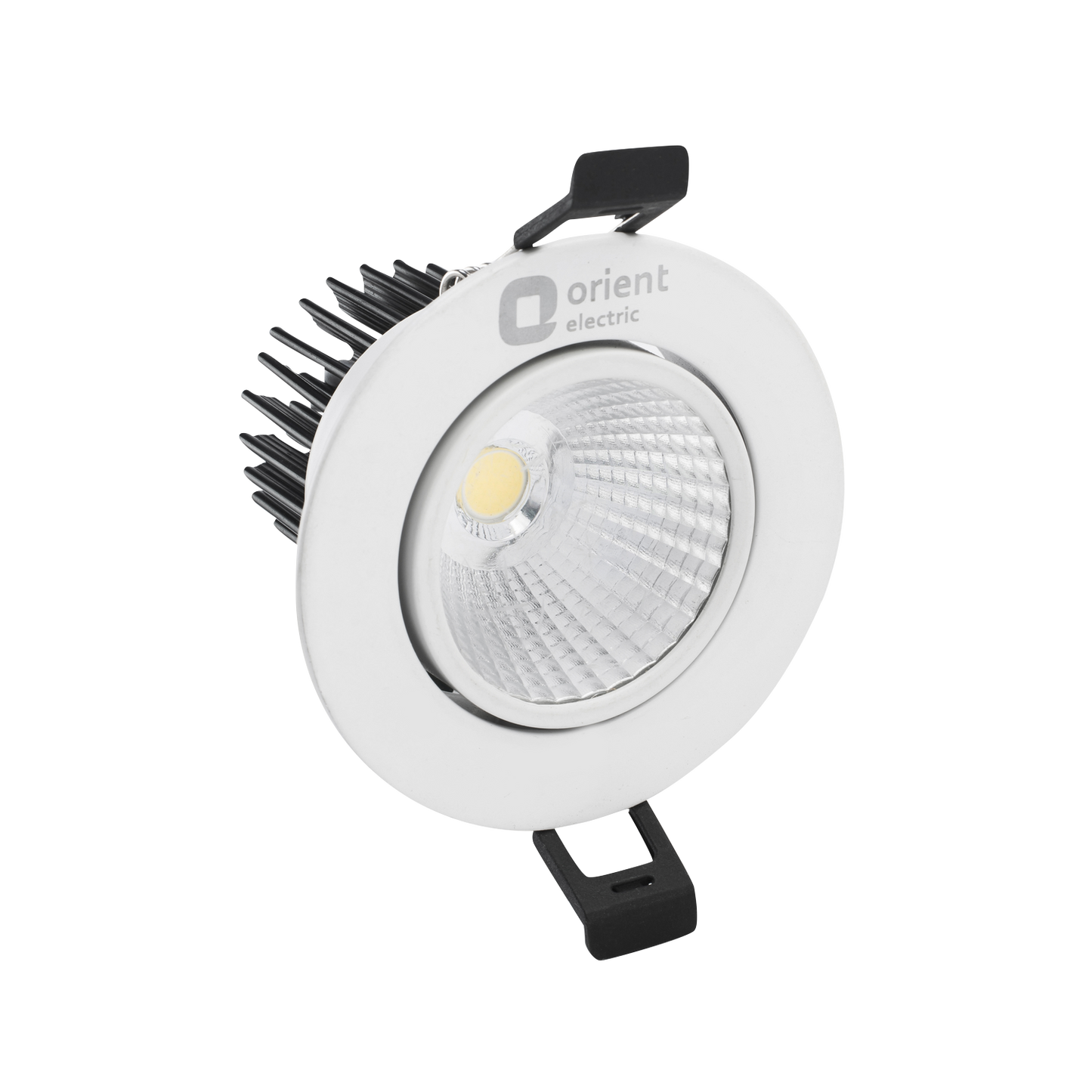

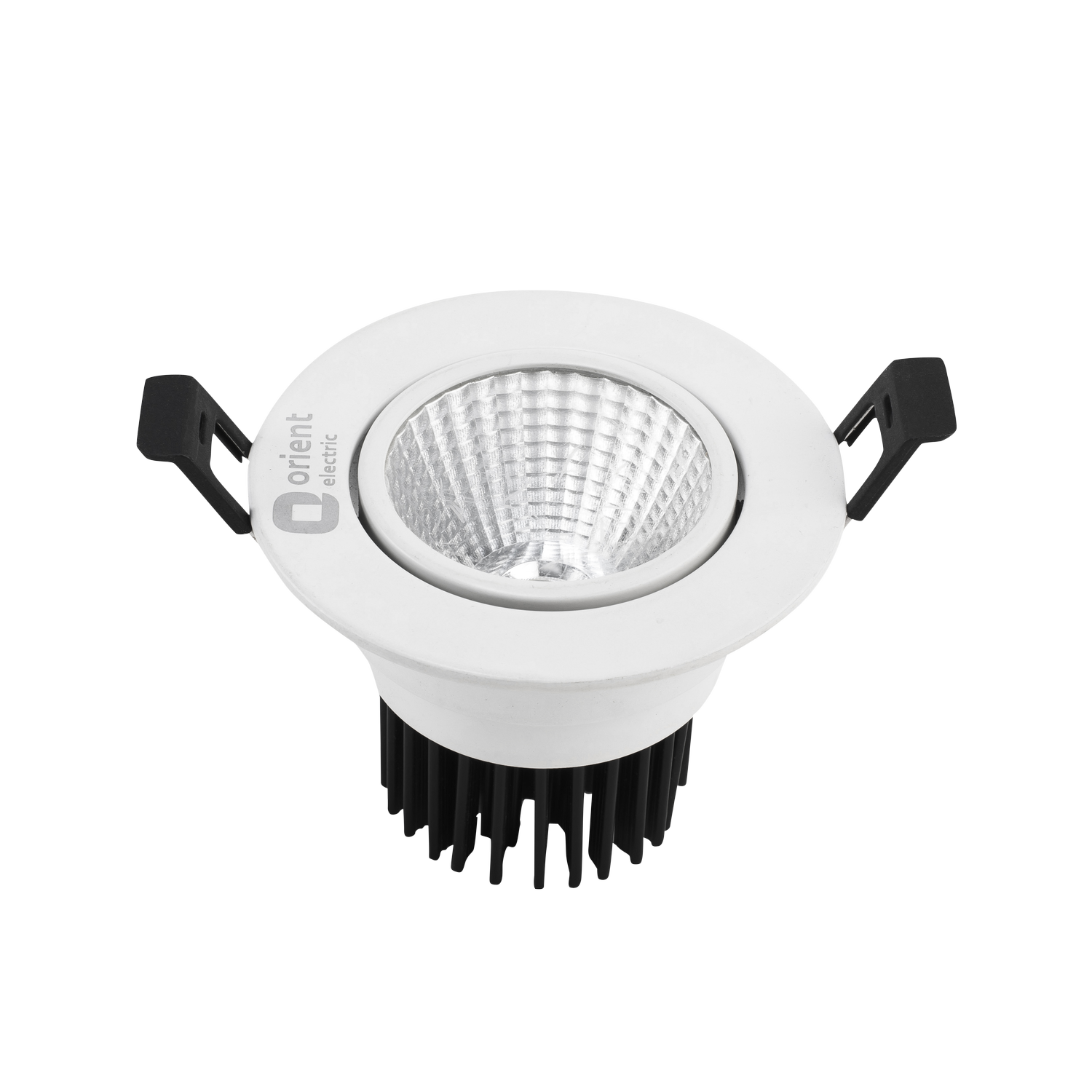

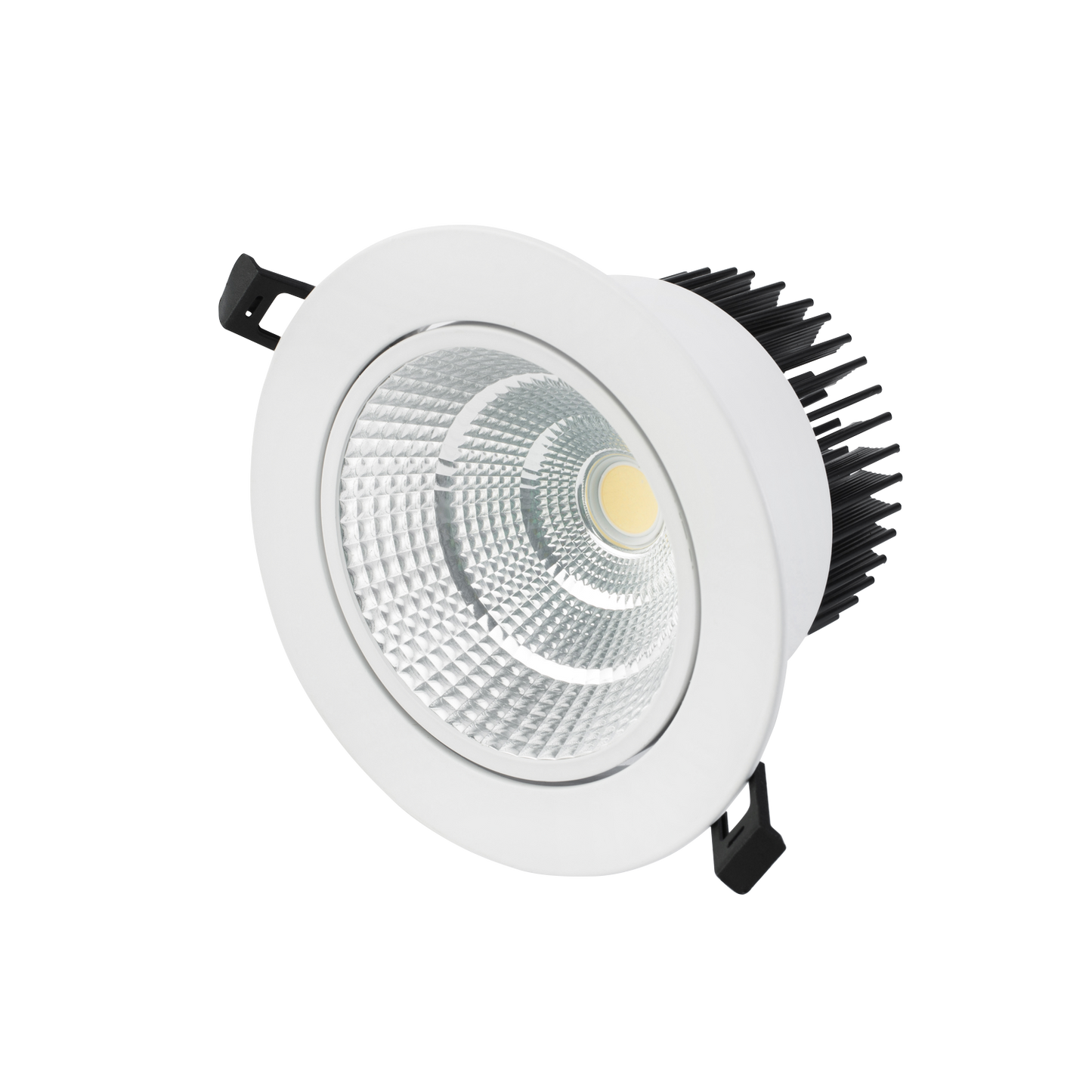

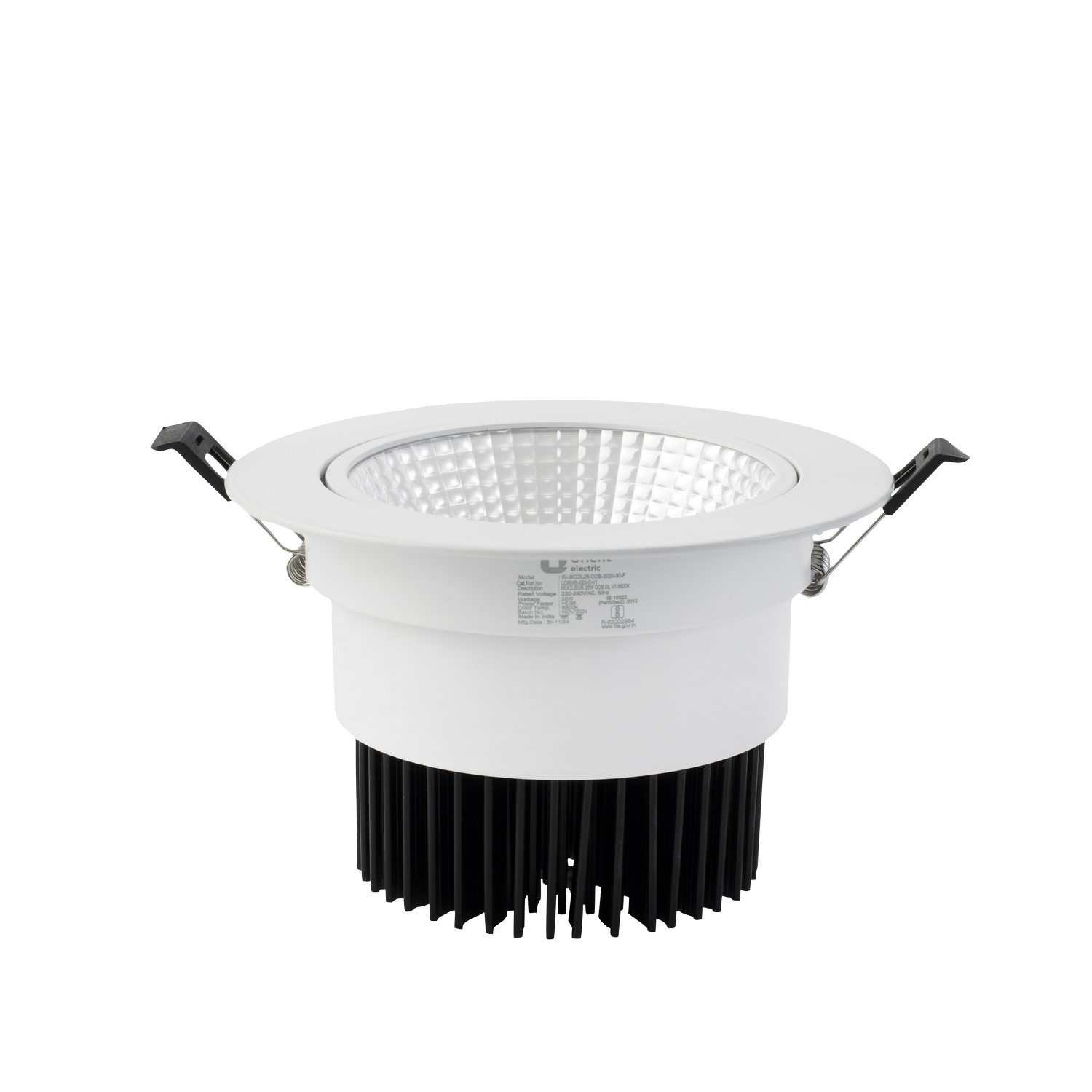

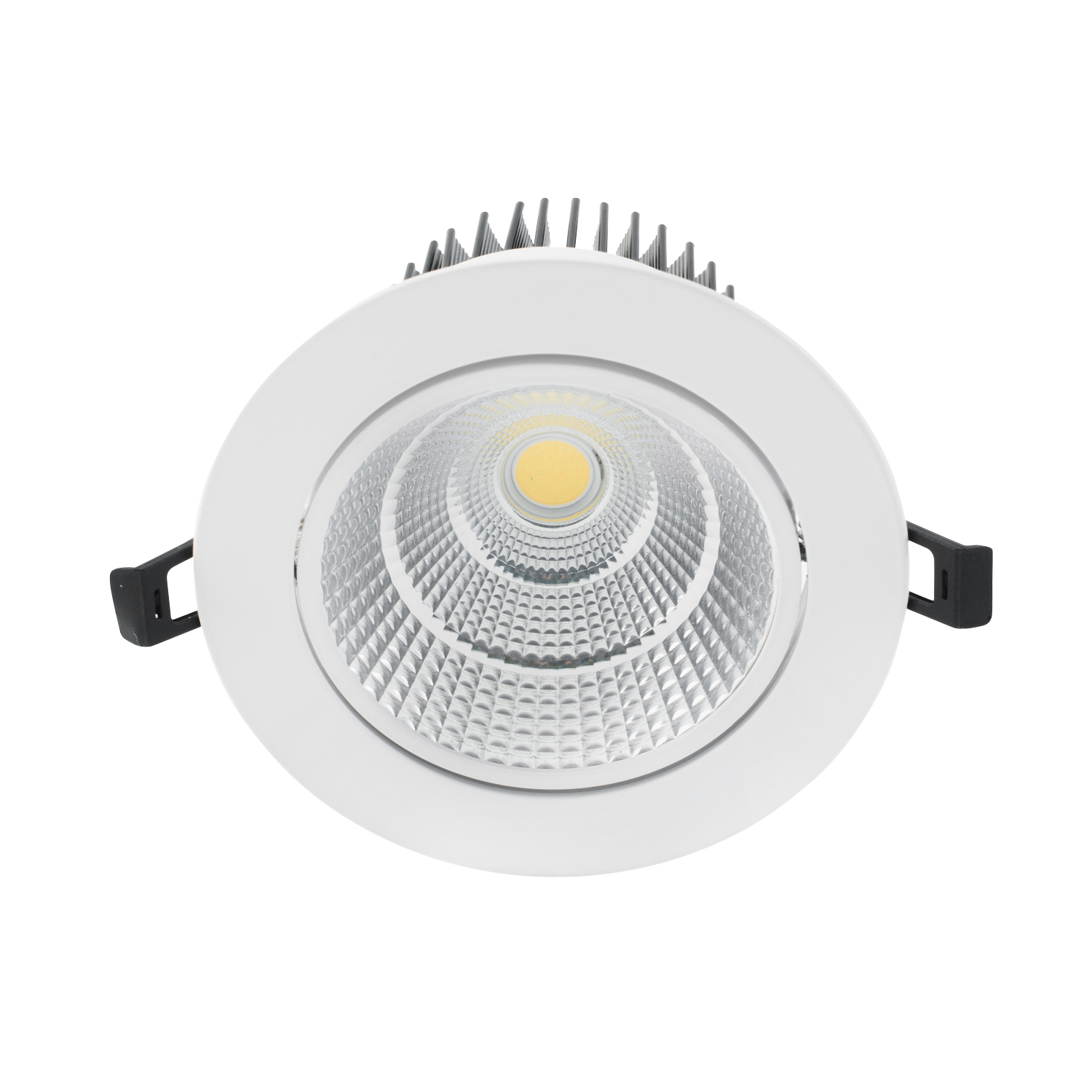

Recess-mounting adjustable COB LED downlights made of extruded aluminium fins and high-lumen LED as a light source with clear diffuser and separate electronic driver.

Best suited for

Corporate Offices

Restaurants

Hotel

Waiting Areas

Modern Gym & Spa

View full details
  • General specification
    Housing Extruded aluminium heat sink for efficient heat dissipation with clear diffuser.
    Optics High efficiency and long-life COB LED with high lumen efficacy. High purity anodised glossy stepped type reflector to enhance the lumen output of the fixture. Available in narrow beam angles.
    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 3W, 6W, 10W, 15W, 20W, 25W, 30W
    CCT 6500K, 4000K, 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤20%
    System efficacy (lm/W) ≥80 ,≥75 , ≥70
Nucleus recess variants
Product Variants
Nucleus recess
LDRNS-03-C-V1
Nucleus recess
LDRNS-03-N-V1
Nucleus recess
LDRNS-03-W-V1
Nucleus recess
LDRNS-06-C-V1
Nucleus recess
LDRNS-06-N-V1
Nucleus recess
LDRNS-06-W-V1
Nucleus recess
LDRNS-010-C-V1
Nucleus recess
LDRNS-010-N-V1
Nucleus recess
LDRNS-010-W-V1
Nucleus recess
LDRNS-015-C-V1
Nucleus recess
LDRNS-015-N-V1
Nucleus recess
LDRNS-015-W-V1
Nucleus recess
LDRNS-020-C-V1
Nucleus recess
LDRNS-020-N-V1
Nucleus recess
LDRNS-020-W-V1
Nucleus recess
LDRNS-025-C-V1
Nucleus recess
LDRNS-025-N-V1
Nucleus recess
LDRNS-025-W-V1
Nucleus recess
LDRNS-030-C-V1
Nucleus recess
LDRNS-030-N-V1
Nucleus recess
LDRNS-030-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (Im /W)
Outer Diameter (in mm)
Height (in mm)
Cut out Diameter (in mm)
3W
6500K
≥80
240V AC
≥0.95
≤20%
≥70
70
50
58
3W
4000K
≥80
240V AC
≥0.95
≤20%
≥65
70
50
58
3W
3000K
≥80
240V AC
≥0.95
≤20%
≥60
70
50
58
6W
6500K
≥80
240V AC
≥0.95
≤20%
≥70
84
65
74
6W
4000K
≥80
240V AC
≥0.95
≤20%
≥65
84
65
74
6W
3000K
≥80
240V AC
≥0.95
≤20%
≥60
84
65
74
10W
6500K
≥80
240V AC
≥0.95
≤20%
≥80
84
65
74
10W
4000K
≥80
240V AC
≥0.95
≤20%
≥75
84
65
74
10W
3000K
≥80
240V AC
≥0.95
≤20%
≥70
84
65
74
15W
6500K
≥80
240V AC
≥0.95
≤20%
≥80
110
85
95
15W
4000K
≥80
240V AC
≥0.95
≤20%
≥75
110
85
95
15W
3000K
≥80
240V AC
≥0.95
≤20%
≥70
110
85
95
20W
6500K
≥80
240V AC
≥0.95
≤20%
≥80
138
85
115
20W
4000K
≥80
240V AC
≥0.95
≤20%
≥75
138
85
115
20W
3000K
≥80
240V AC
≥0.95
≤20%
≥70
138
85
115
25W
6500K
≥80
240V AC
≥0.95
≤20%
≥80
138
85
115
25W
4000K
≥80
240V AC
≥0.95
≤20%
≥75
138
85
115
25W
3000K
≥80
240V AC
≥0.95
≤20%
≥70
138
85
115
30W
6500K
≥80
240V AC
≥0.95
≤20%
≥80
138
100
115
30W
4000K
≥80
240V AC
≥0.95
≤20%
≥75
138
100
115
30W
3000K
≥80
240V AC
≥0.95
≤20%
≥70
138
100
115
