Nucleus Surface

Nucleus Surface

Nucleus Surface

Product Overview

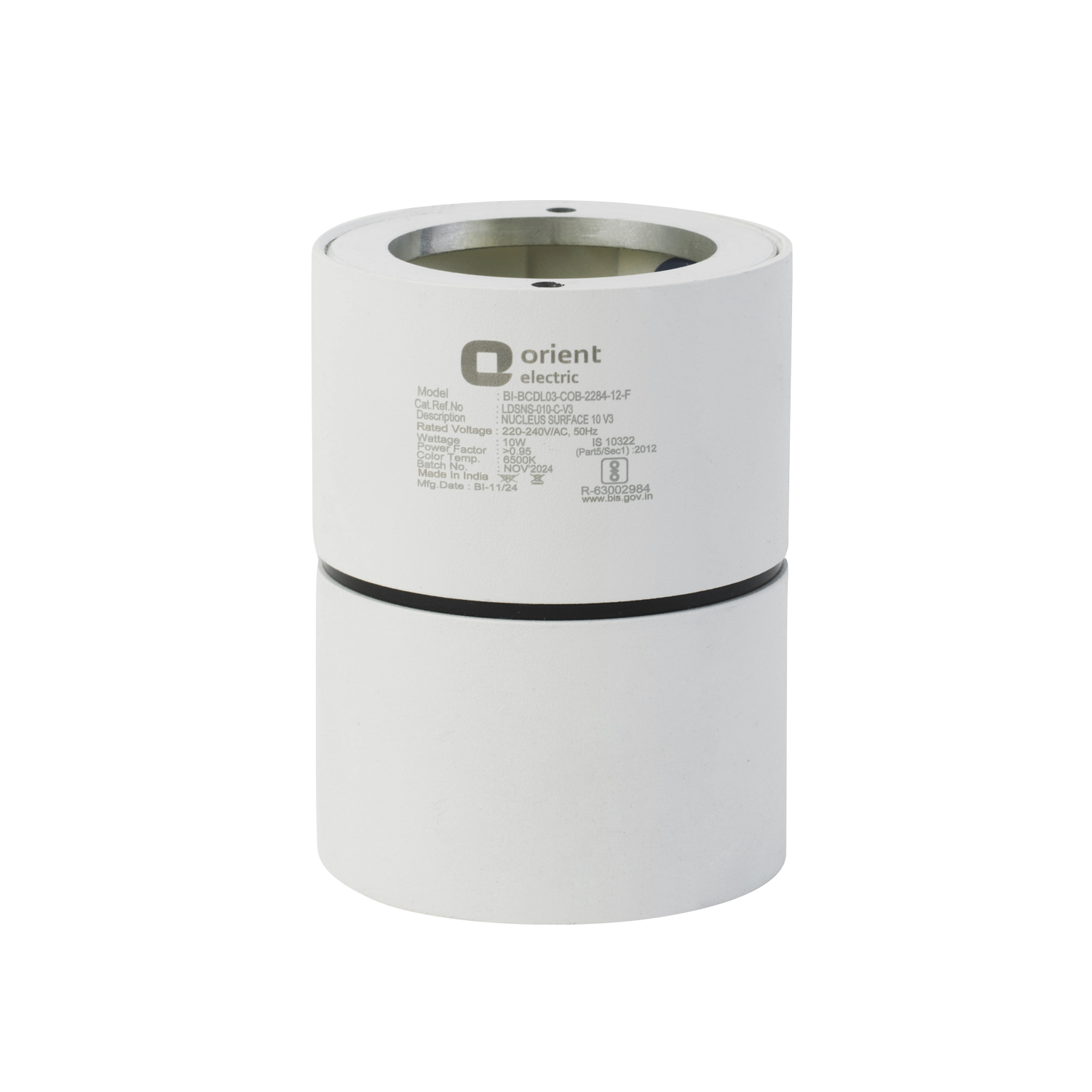

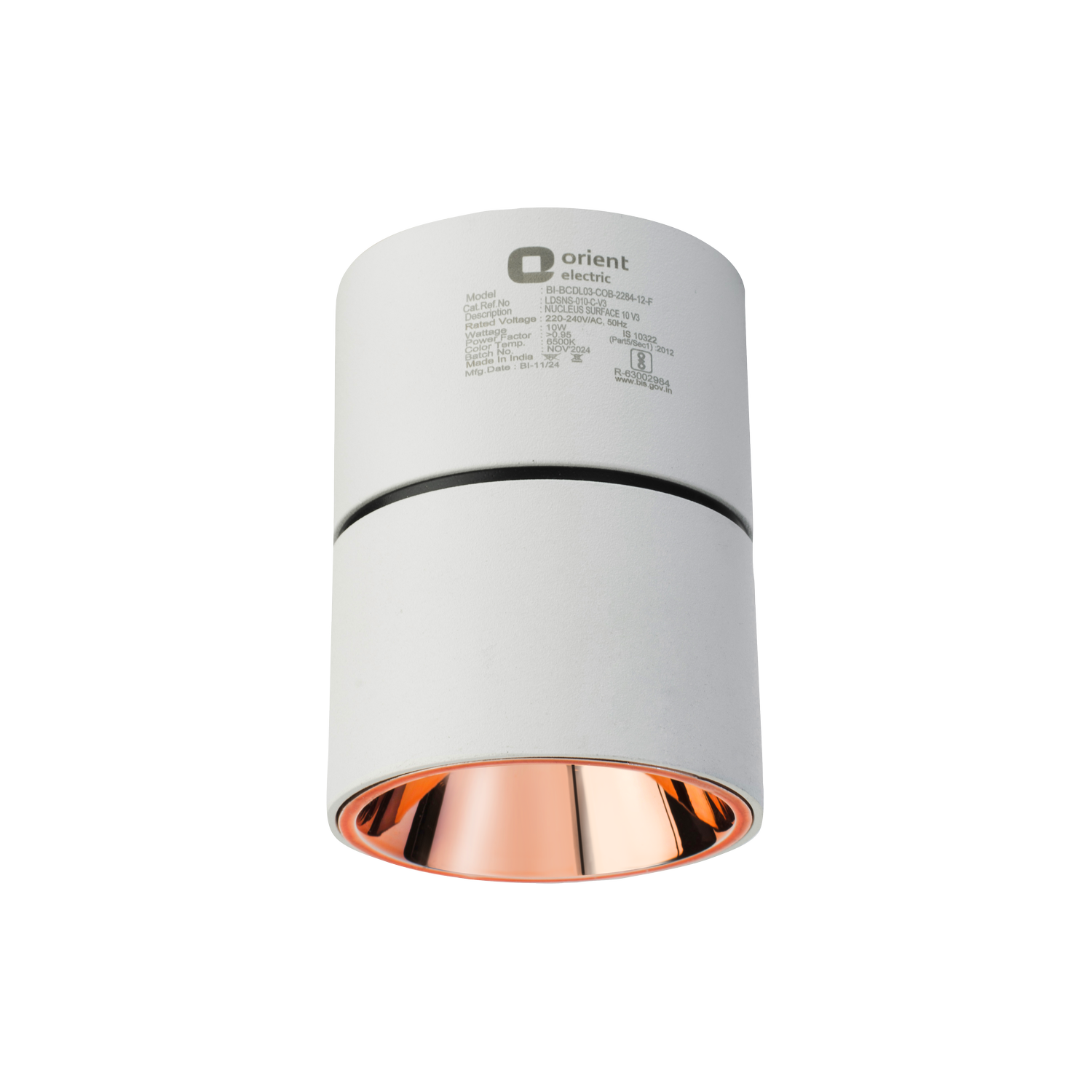

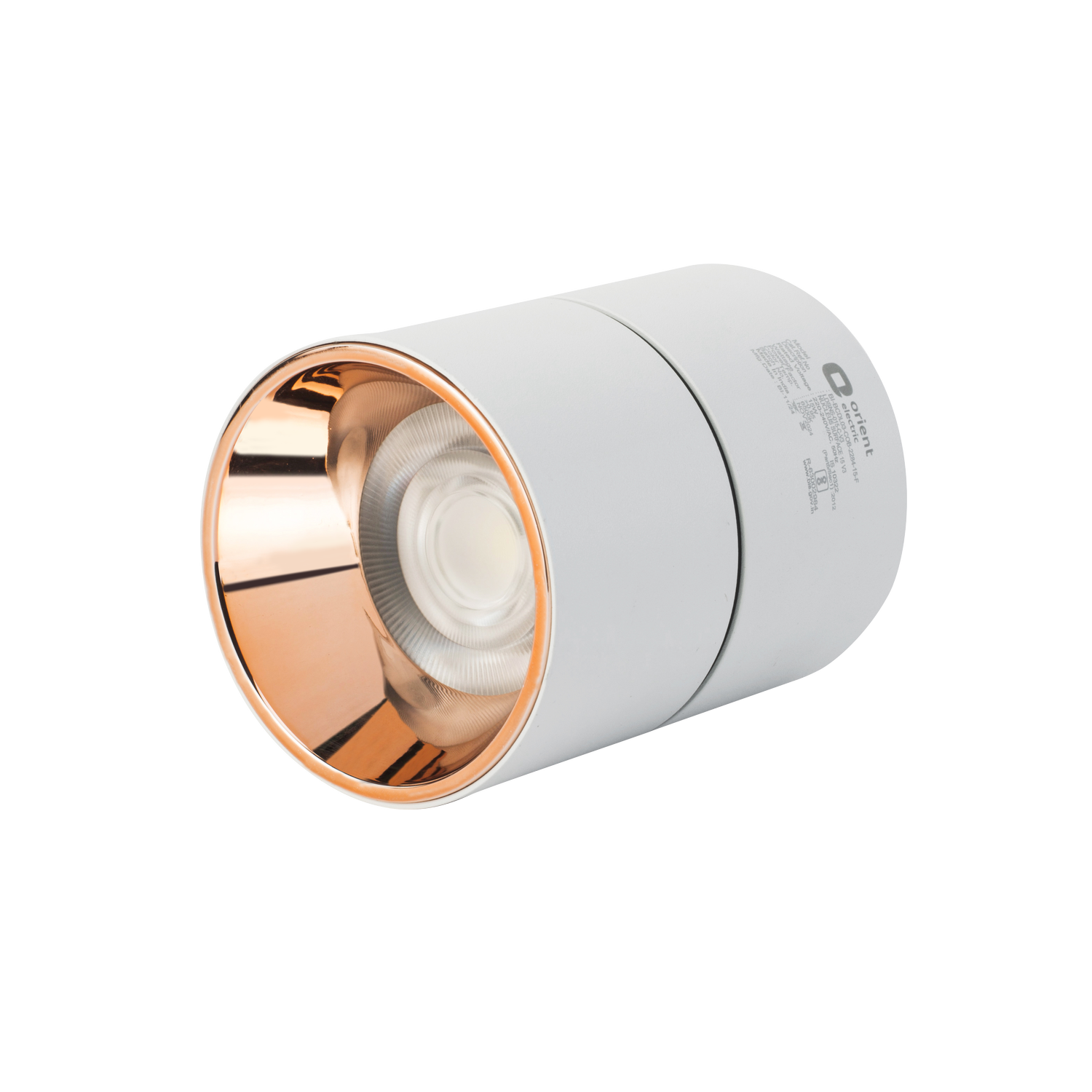

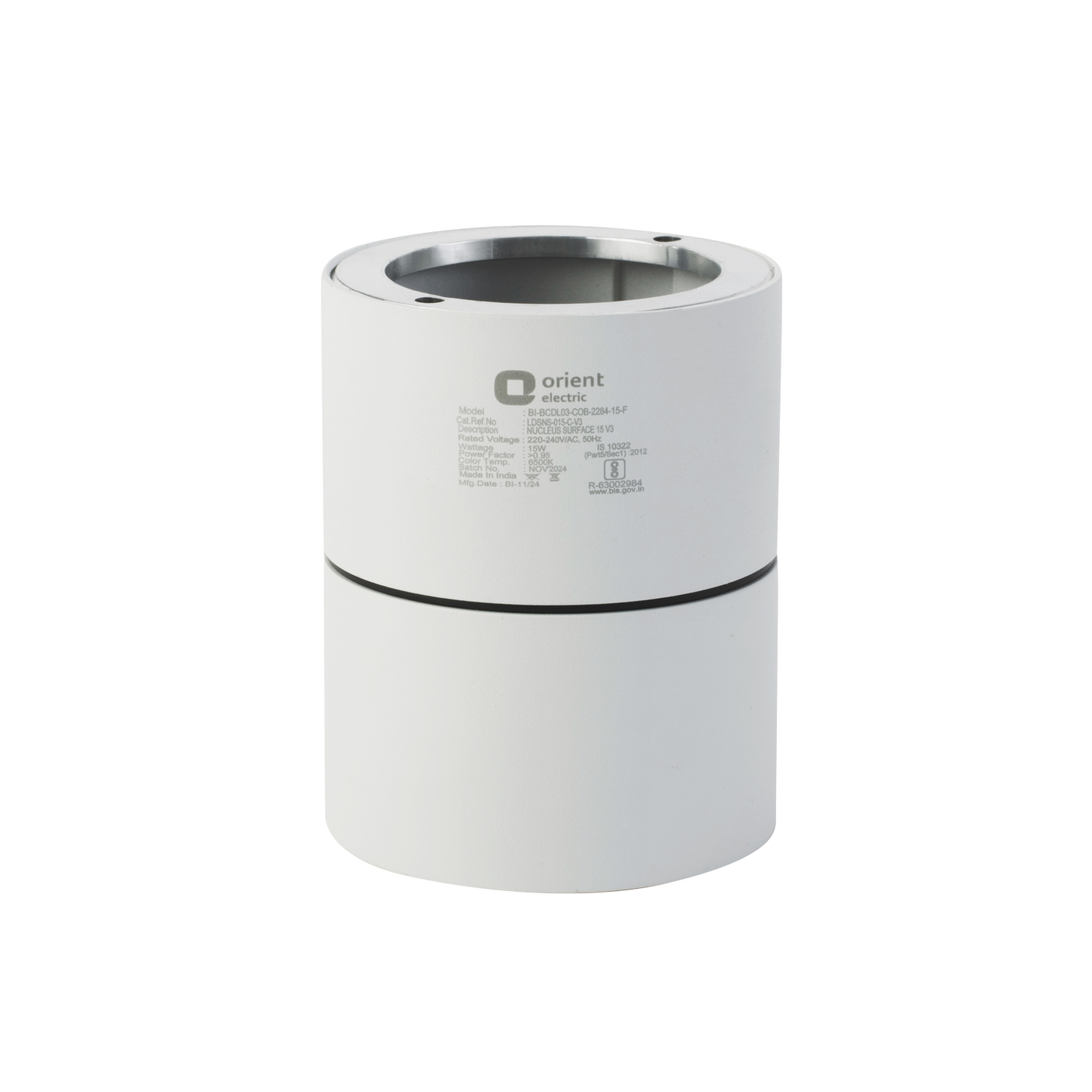

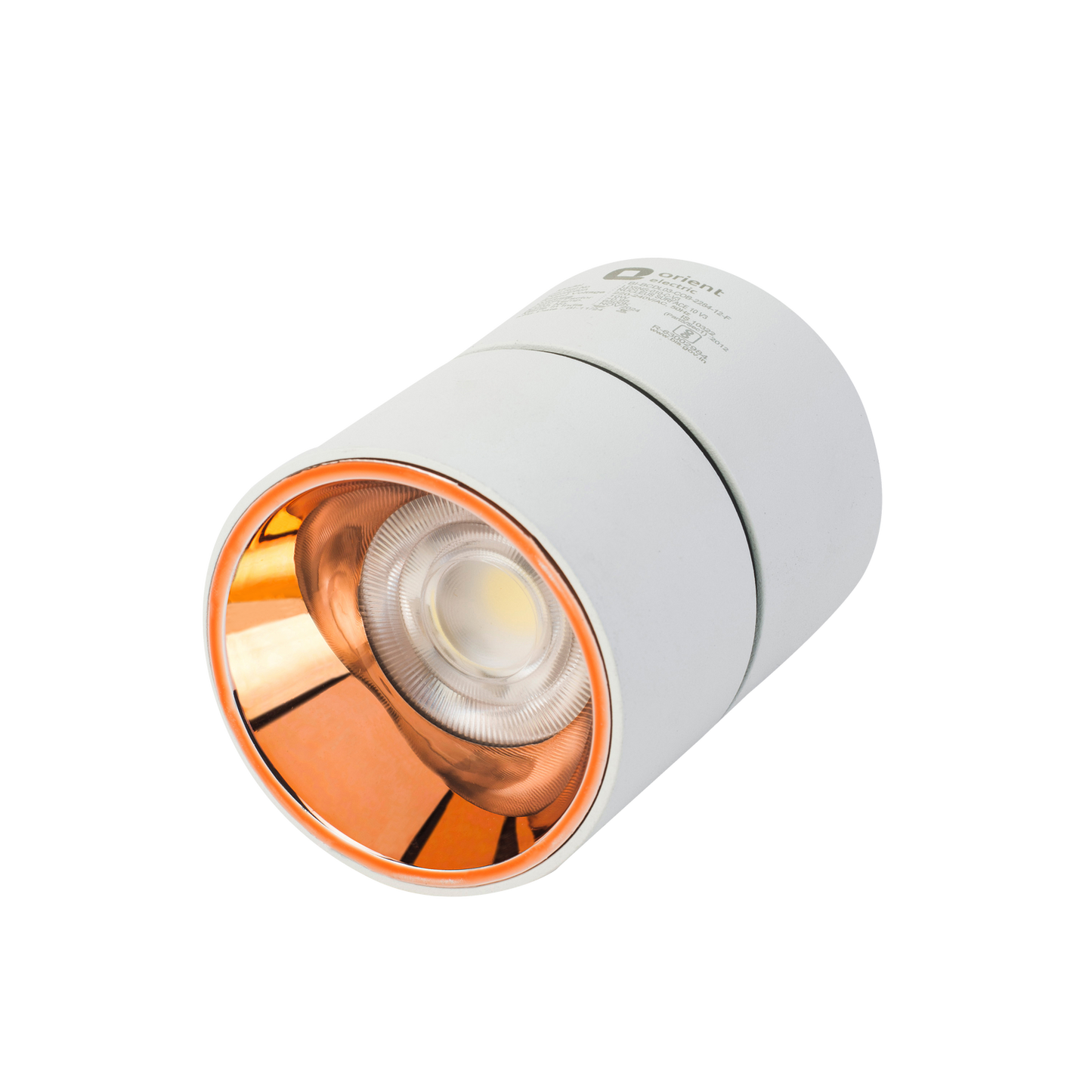

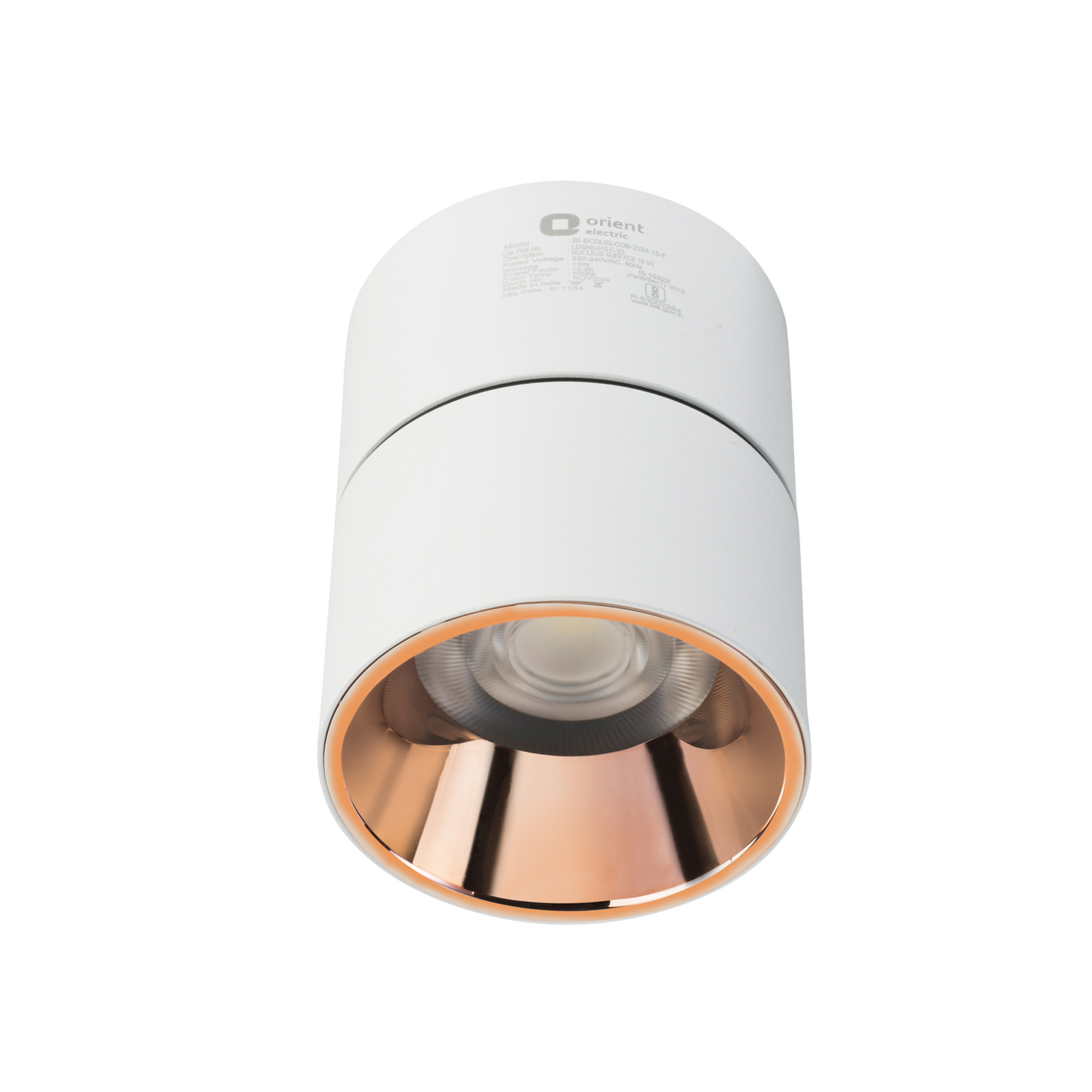

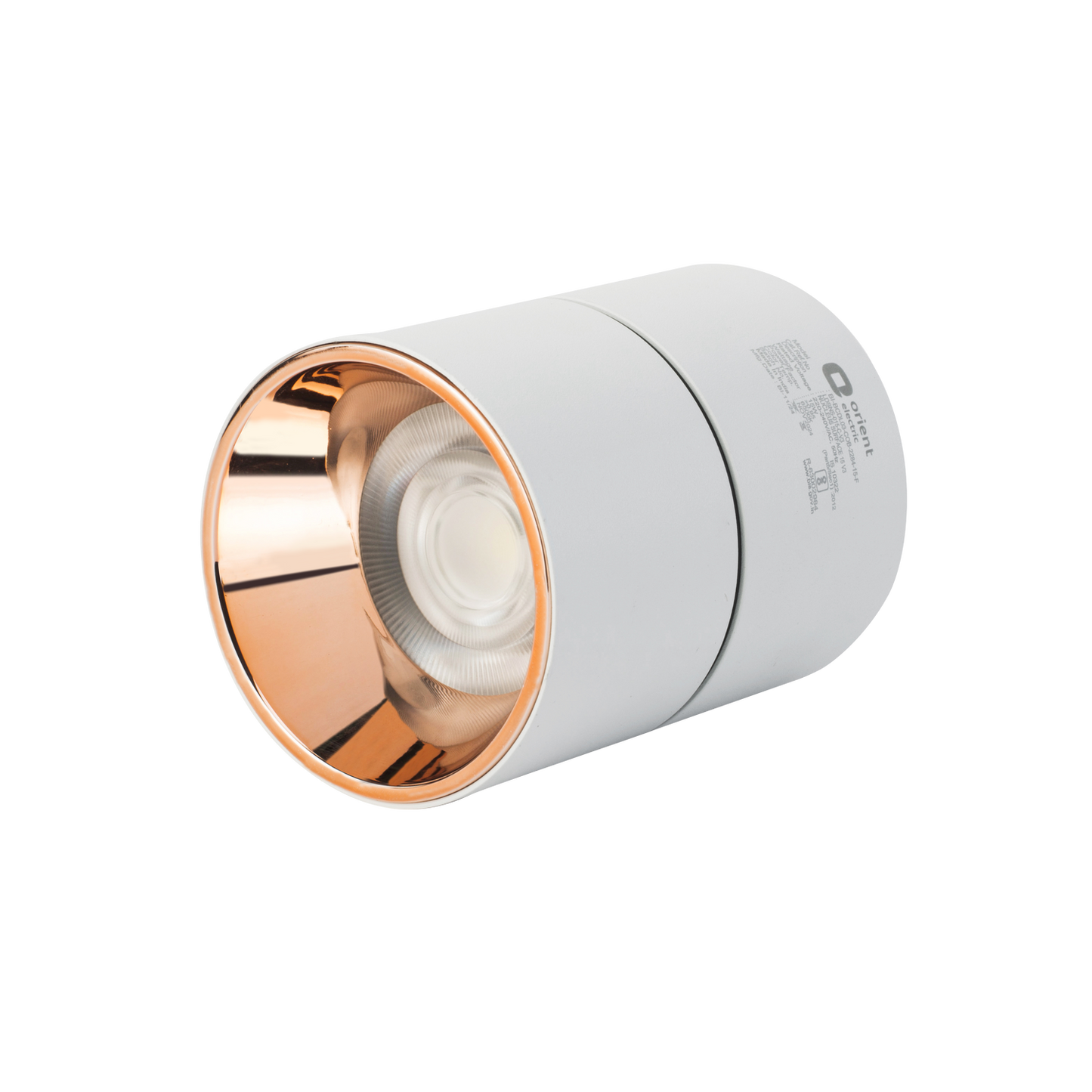

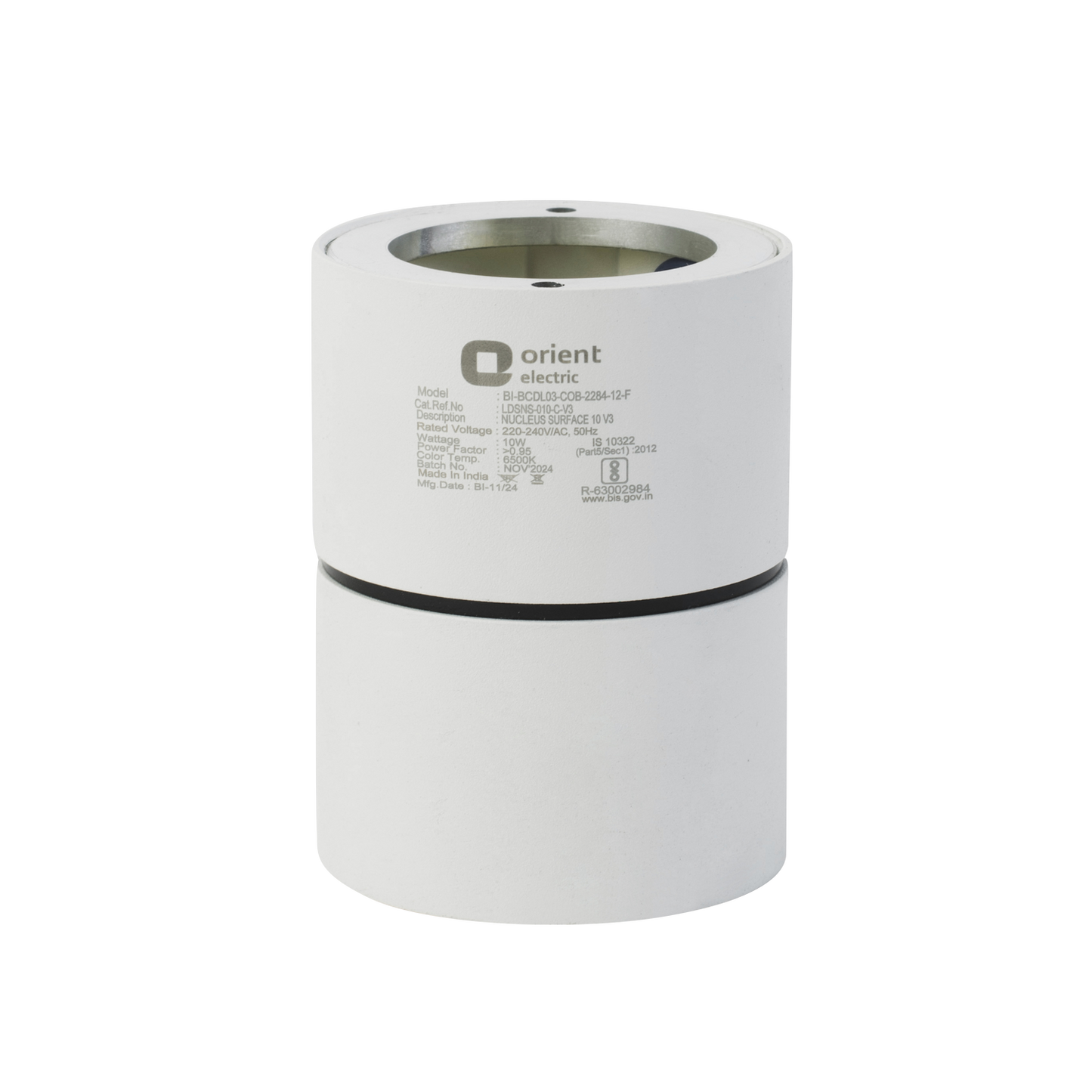

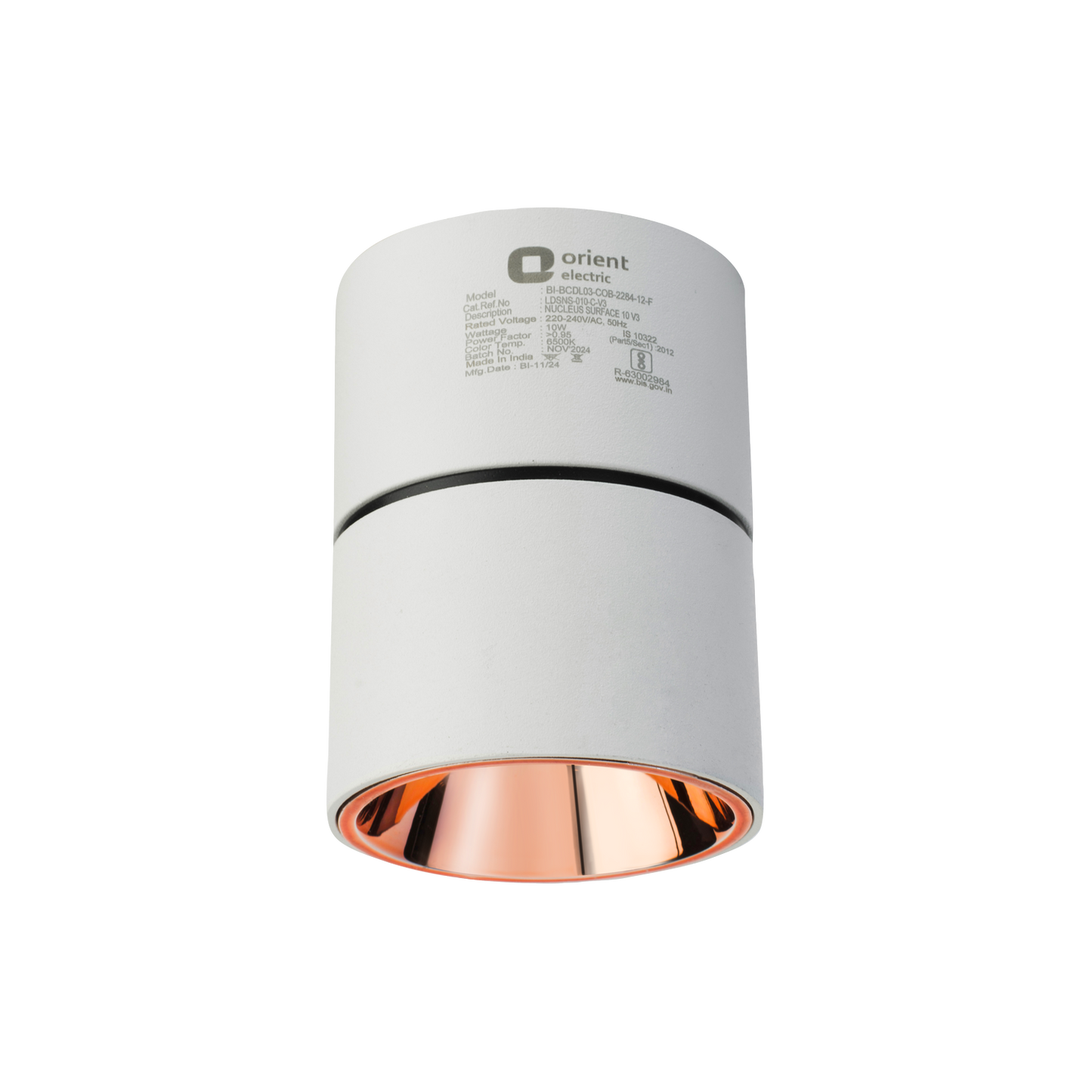

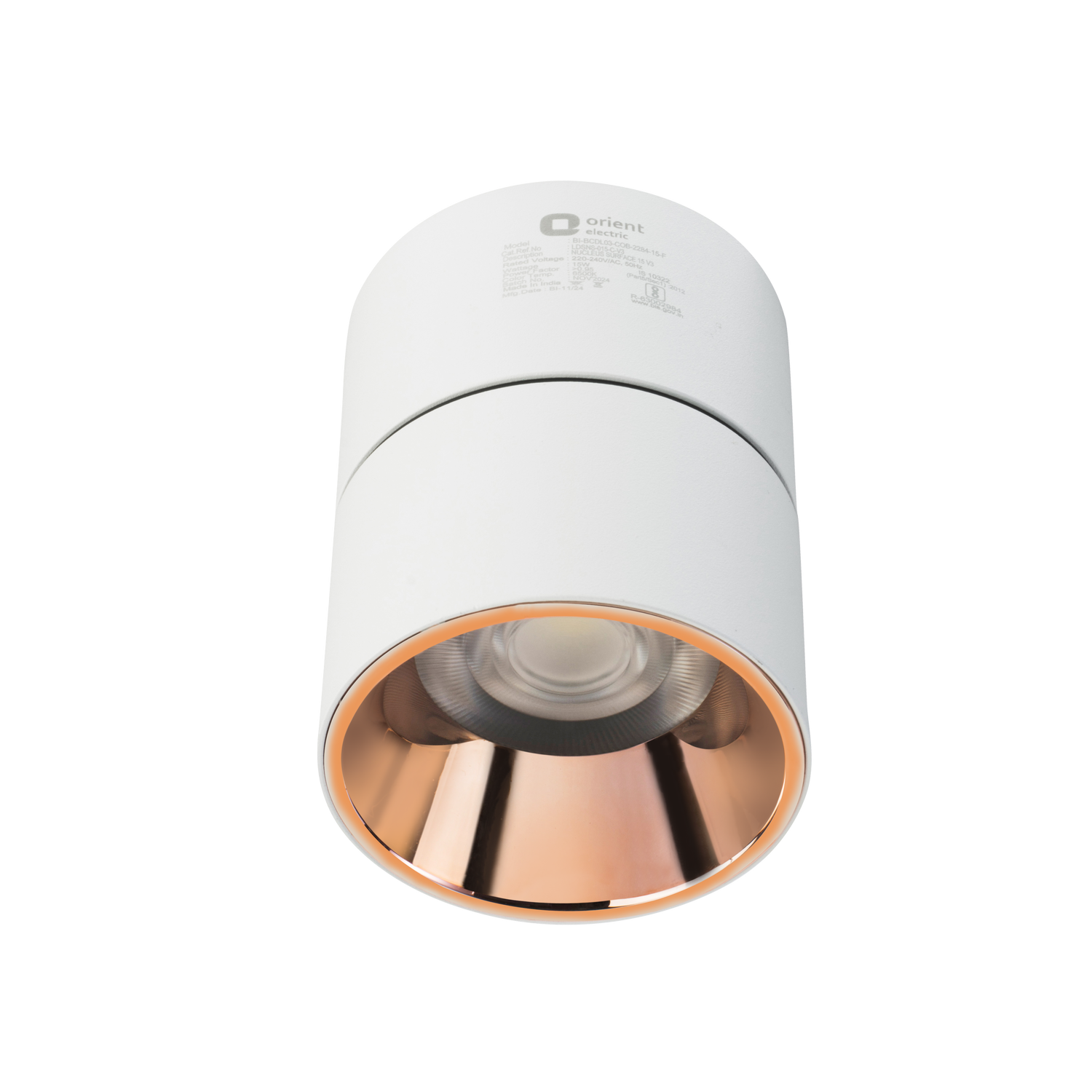

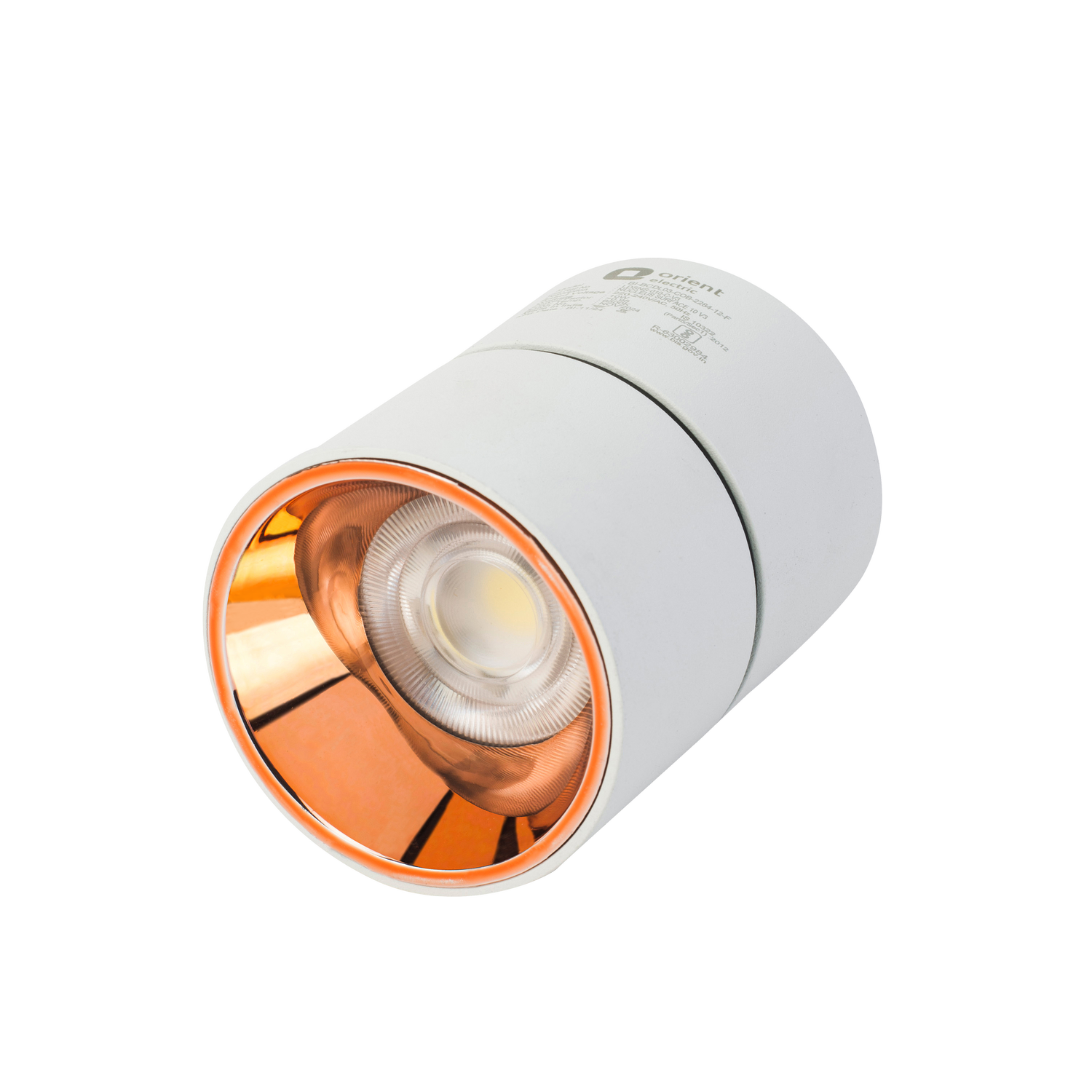

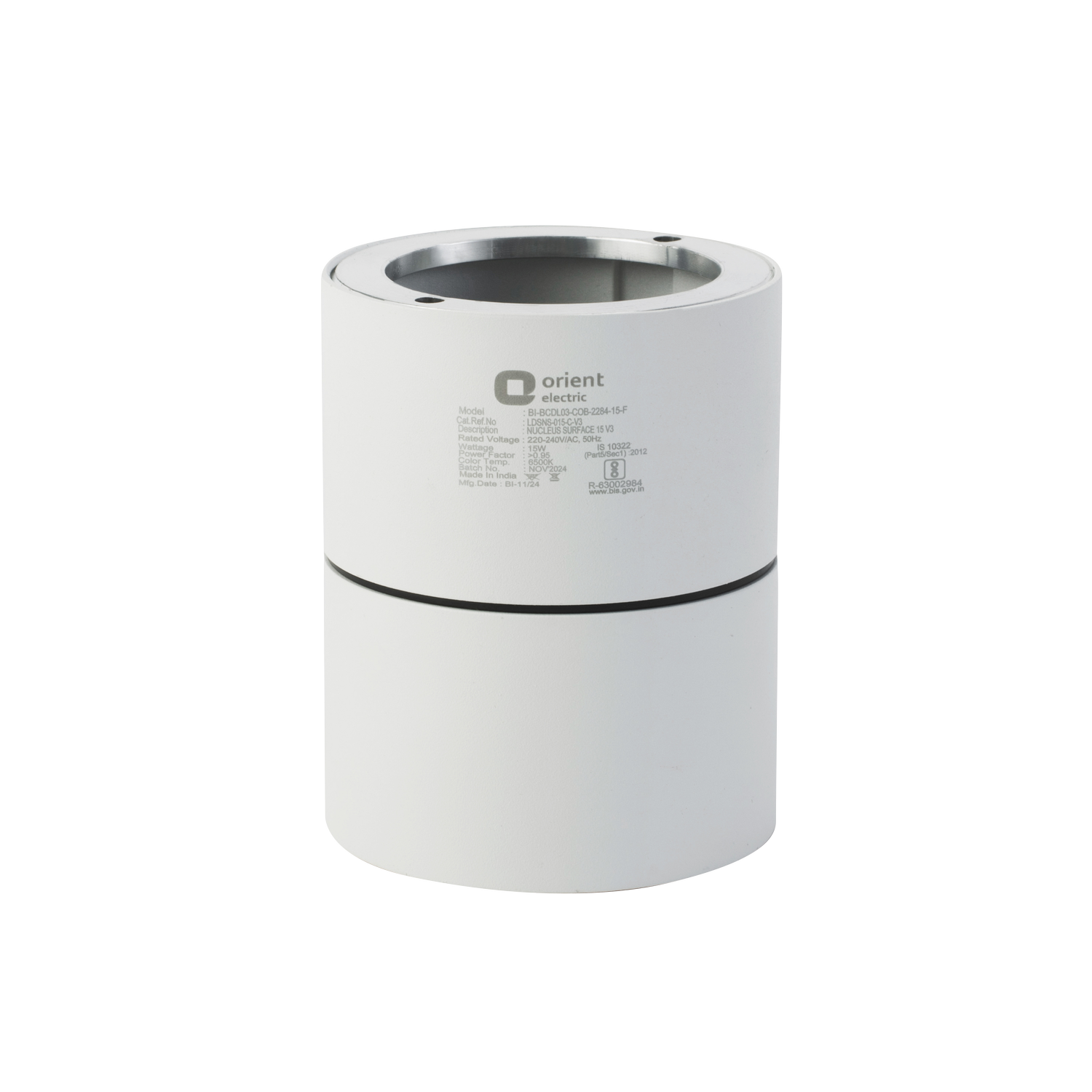

Cylindrical surface-mounting round LED downlighter designed with excellent thermally managed aluminium pressure die-cast housing finished in epoxy powder-coated white to deliver high efficacy light output and uniformity by utilising COB technology.

Best suited for

Corporate Offices

Restaurants

Hotel

Waiting Areas

Modern Gym & Spa

View full details
  • General specification
    Housing Aluminium heat sink for efficient heat dissipation with clear diffuser.
    Optics High-efficiency and long-life COB LED with high lumen efficacy. High-purity anodised glossy stepped-type reflector to enhance the lumen output of the fixture. Available in narrow beam angles.
    Mounting Surface mounted
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 10W ,15W, 18W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.9
    THD ≤20%
    System efficacy (lm/W) ≥90 , ≥85 , ≥80
Nucleus Surface variants
Product Variants
Nucleus Surface
LDSNS-010-C-V3
Nucleus Surface
LDSNS-010-N-V3
Nucleus Surface
LDSNS-010-W-V3
Nucleus Surface
LDSNS-015-C-V3
Nucleus Surface
LDSNS-015-N-V3
Nucleus Surface
LDSNS-015-W-V3
Nucleus Surface
LDSNS-018-C-V3
Nucleus Surface
LDSNS-018-N-V3
Nucleus Surface
LDSNS-018-W-V3
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
10W
6500K
≥80
240V AC
≥0.9
≤20%
≥90
72
90
10W
4000K
≥80
240V AC
≥0.9
≤20%
≥85
72
90
10W
3000K
≥80
240V AC
≥0.9
≤20%
≥80
72
90
15W
6500K
≥80
240V AC
≥0.9
≤20%
≥90
95
100
15W
4000K
≥80
240V AC
≥0.9
≤20%
≥85
95
100
15W
3000K
≥80
240V AC
≥0.9
≤20%
≥80
95
100
18W
6500K
≥80
240V AC
≥0.9
≤20%
≥90
95
100
18W
40000K
≥80
240V AC
≥0.9
≤20%
≥85
95
100
18W
3000K
≥80
240V AC
≥0.9
≤20%
≥80
95
100
