Opaline

Opaline

Opaline

Product Overview

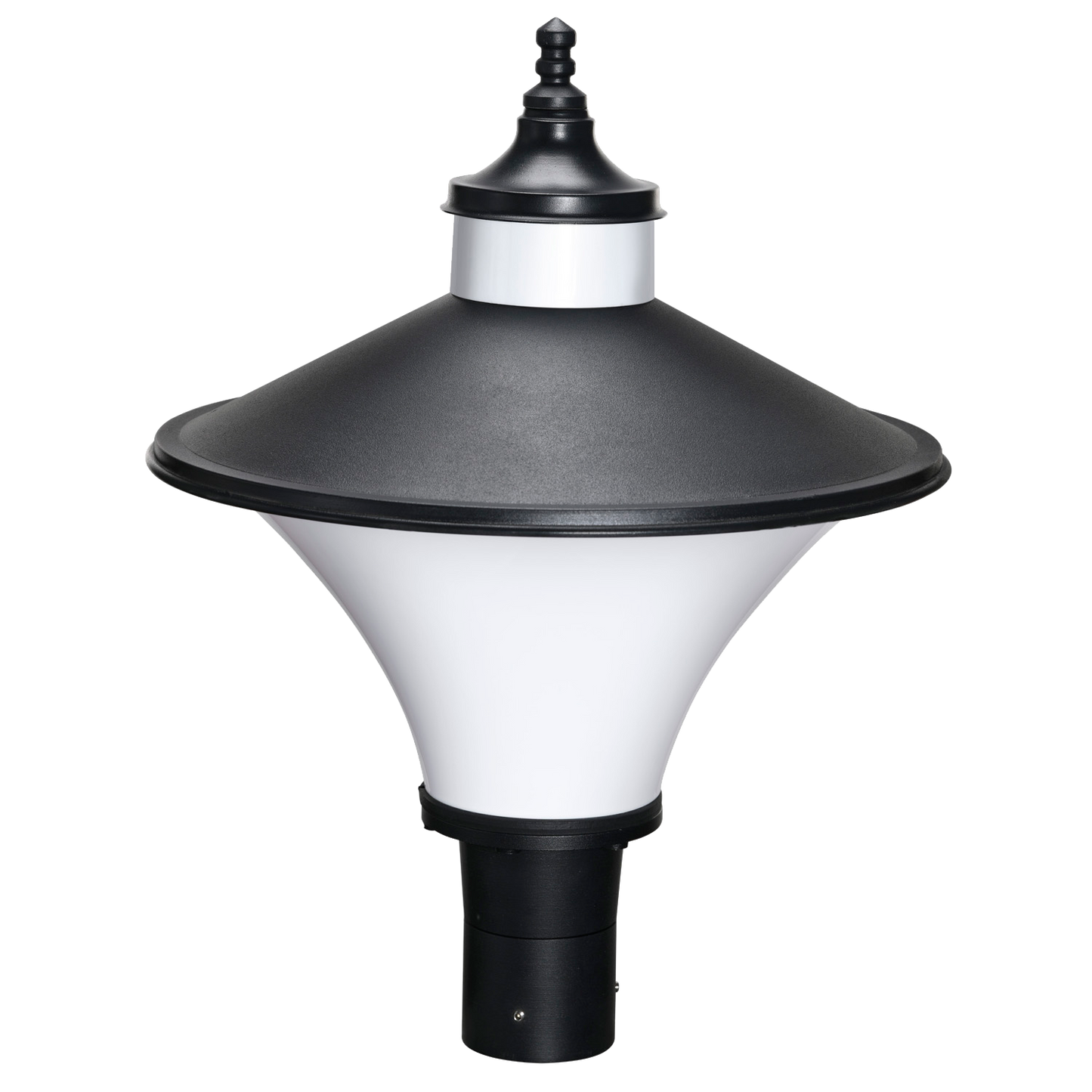

LED post-top IP65 die-cast aluminium spigot for mounting LED driver and spun aluminium canopy which is painted white inside. Epoxy powder-coated matte black finish after phosphochromate treatment.

View full details
  • General specification
    Housing Die-cast aluminium spigot for mounting LED driver and spun aluminium canopy which is painted white insiee. Epoxy powder- coated matte black finish after phosphochromate treatment.
    Optics Opal diffuser is used for glare-free uniform light distribution. High efficiency and long-life LEDs with high lumen efficacies are used.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic driver with output Short-Circuit Protection, Surge Protection & other safety tests.
    Surge Protection Upto 3.5 KV(Internal):optional 10KV external SPD
    IP 65
  • Technical Specifications
    System Wattage 30W,45W
    CCT 3000K
    CRI ≥70
    Rated Voltage ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥80
Opaline variants
Product Variants
Opaline
LLOP-30-C
Opaline
LLOP-30-W
Opaline
LLOP-45-C
Opaline
LLOP-45-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
445
528
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
445
528
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
445
528
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
445
528
