Orbit

Orbit

Orbit

Product Overview

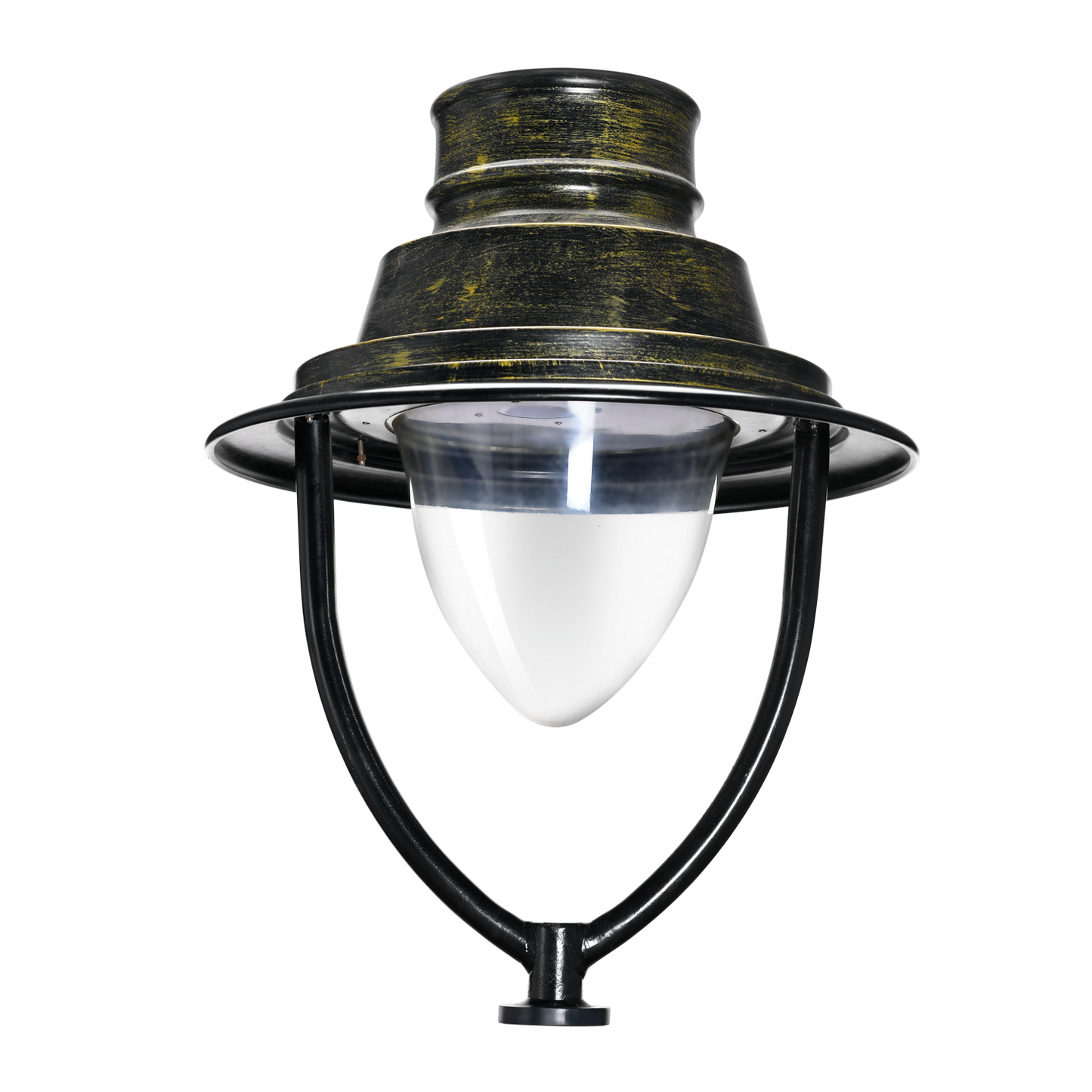

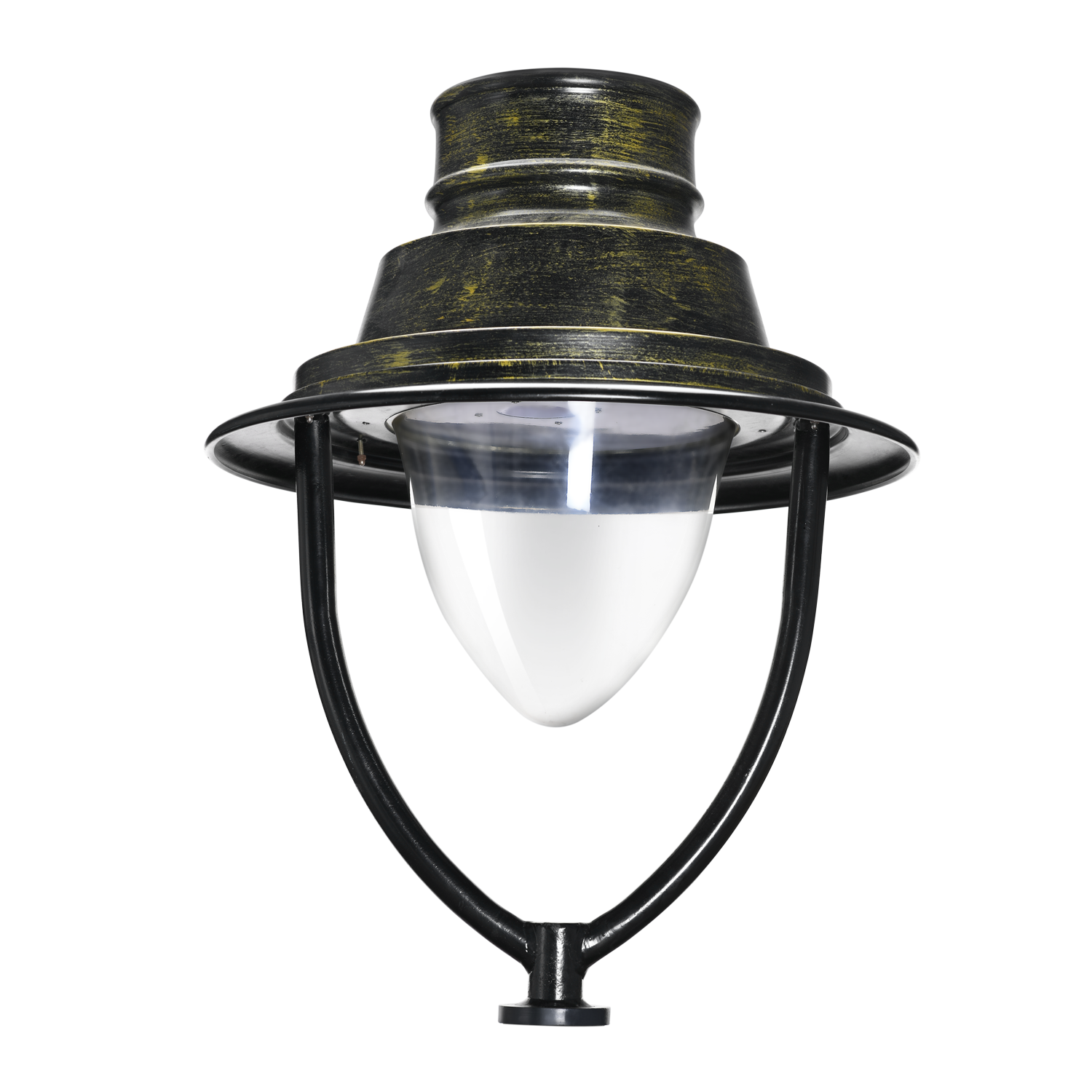

IP65 energy saving, long life aesthetically designed die-cast aluminium landscape luminaire with high power LED as light source.

View full details
  • General specification
    Housing Elegantly designed spun aluminum housing and heat sink for efficient thermal management, sturdiness and excellent corrosion resistance. Two nos. aluminum arms are provided to support the housing. Powder coated black after phosphochromate treatment.
    Optics life LEDs with high lumen efficacies are used.
    Mounting Pole Mounting
    Control Gear Powered by an integral electronic driver with output short circuit protection, surge protection & other safety tests.
    Surge Protection Upto 3.5 KV(Internal); optional 10KV external SPD
    IP 65
  • Technical Specifications
    System Wattage 60W, 90W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90, ≥80
Orbit variants
Product Variants
Orbit
LLOT-60-C
Orbit
LLOT-60-W
Orbit
LLOT-90-C
Orbit
LLOT-90-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Diameter (in mm)
Height (in mm)
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
625
860
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
625
860
90W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
625
860
90W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
625
860
