Product Overview

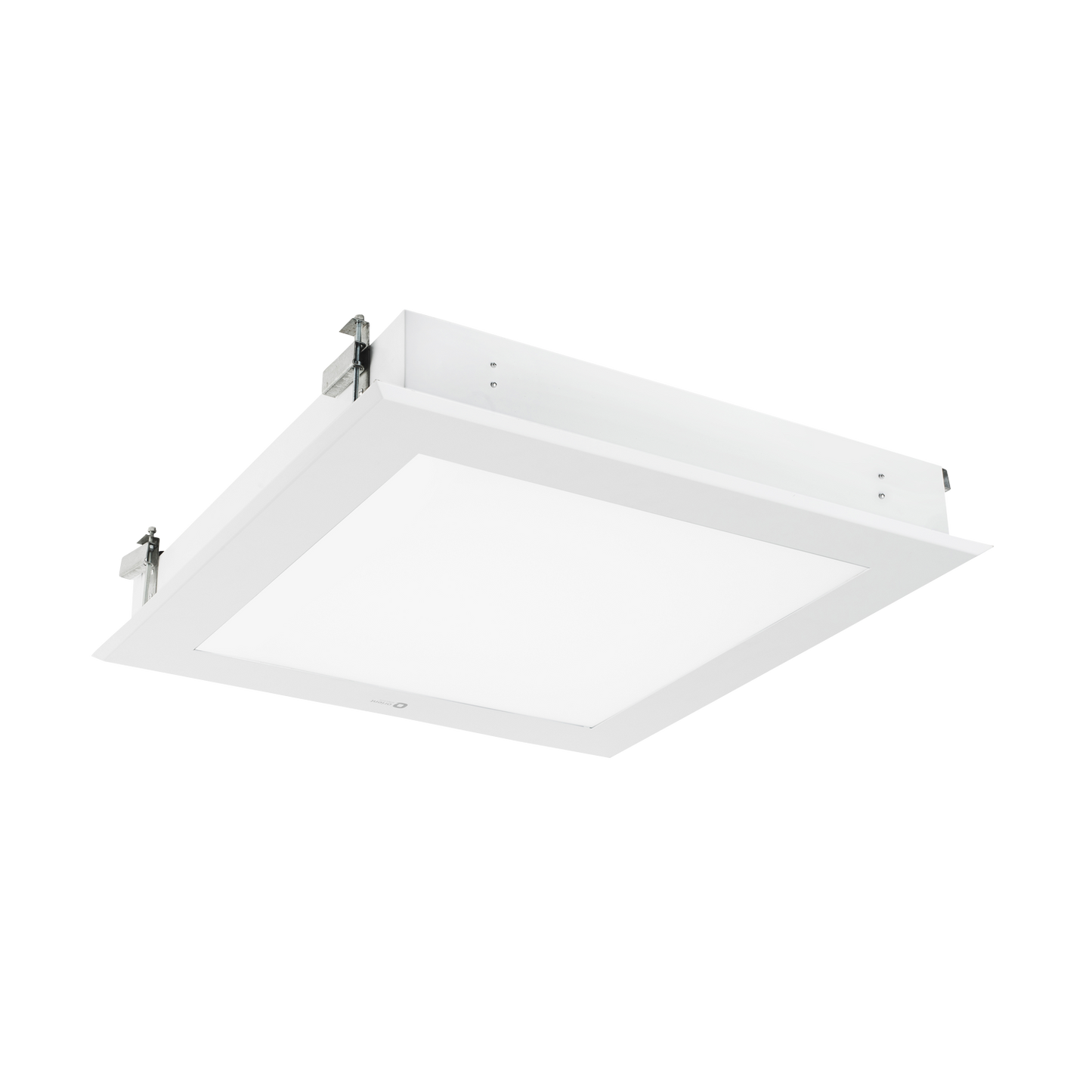

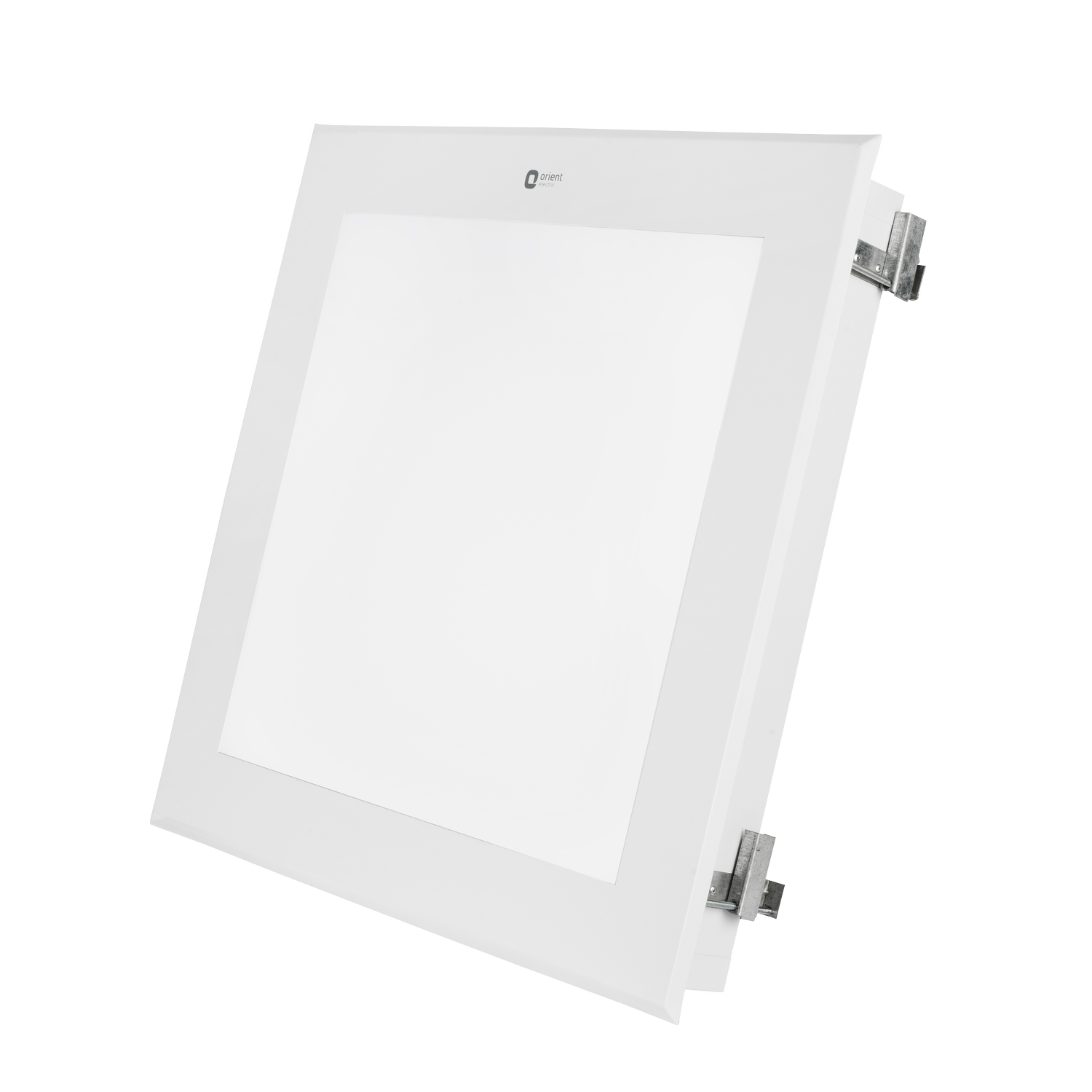

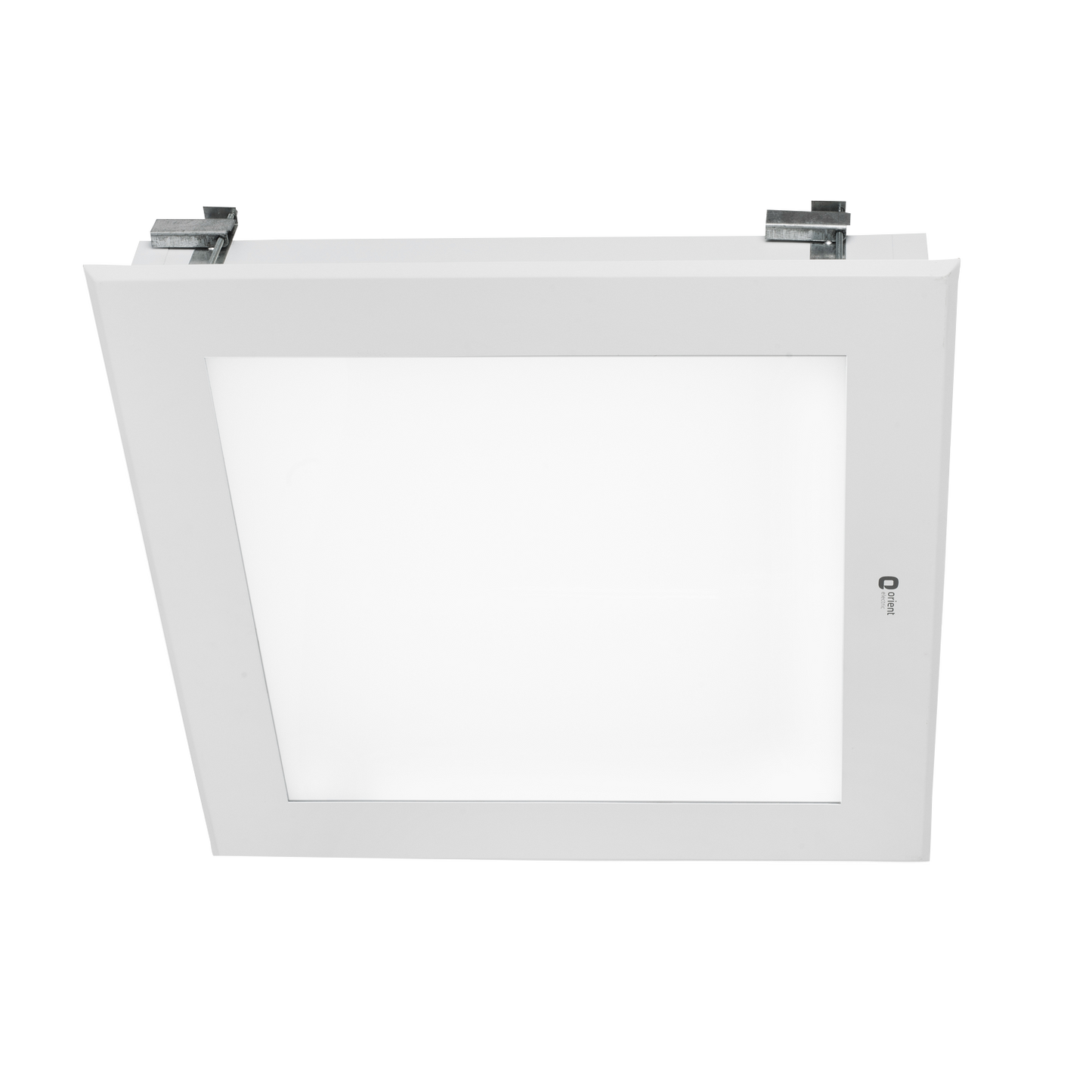

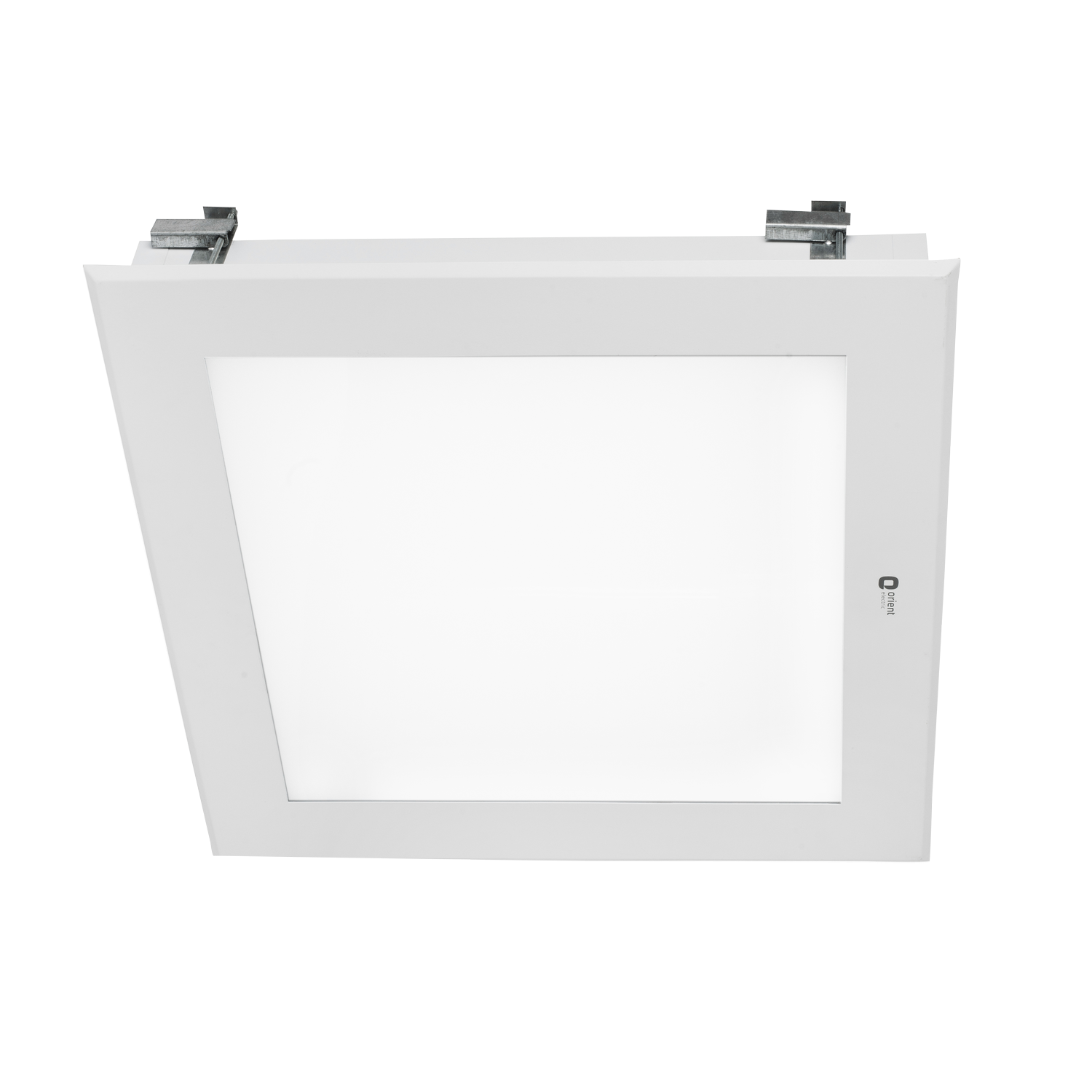

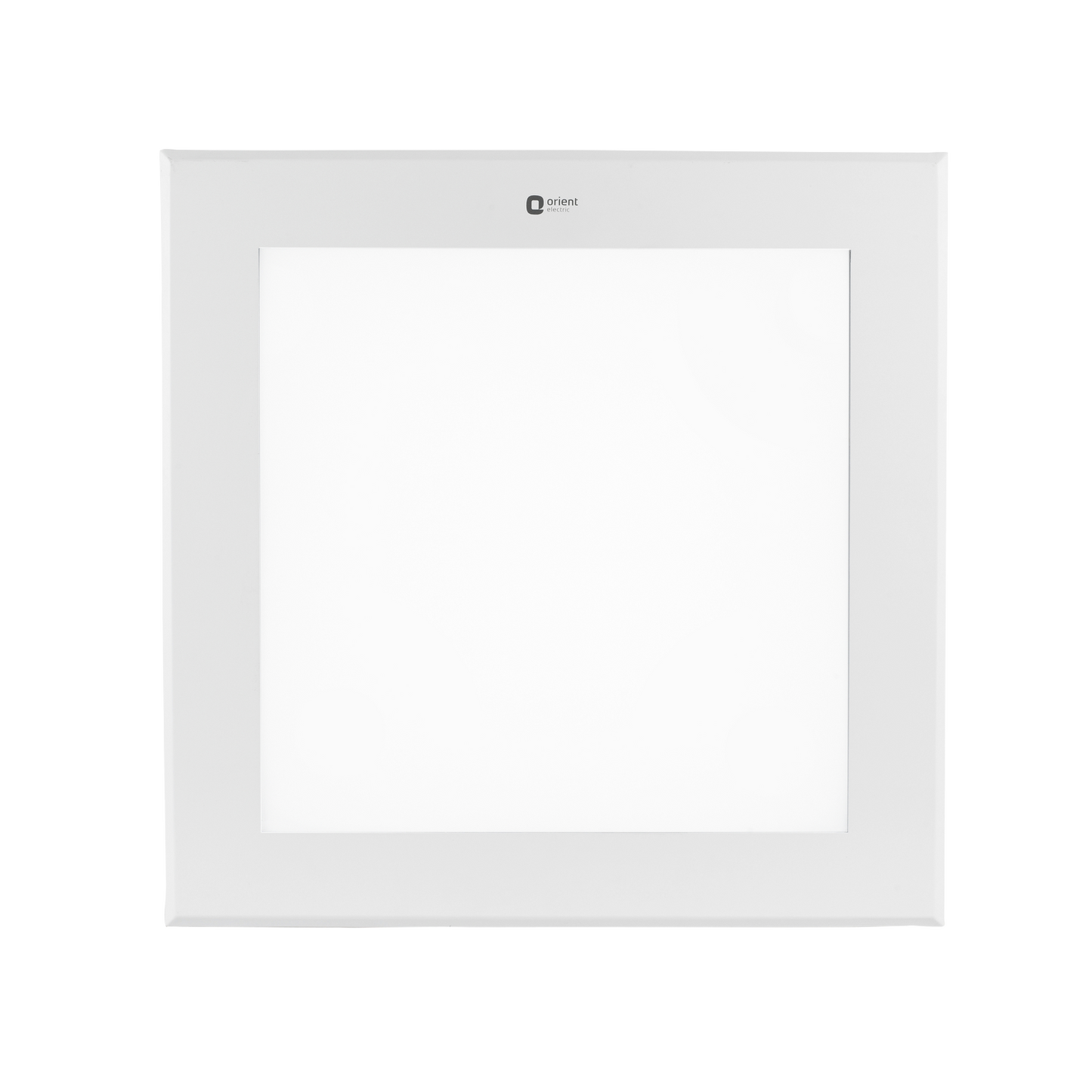

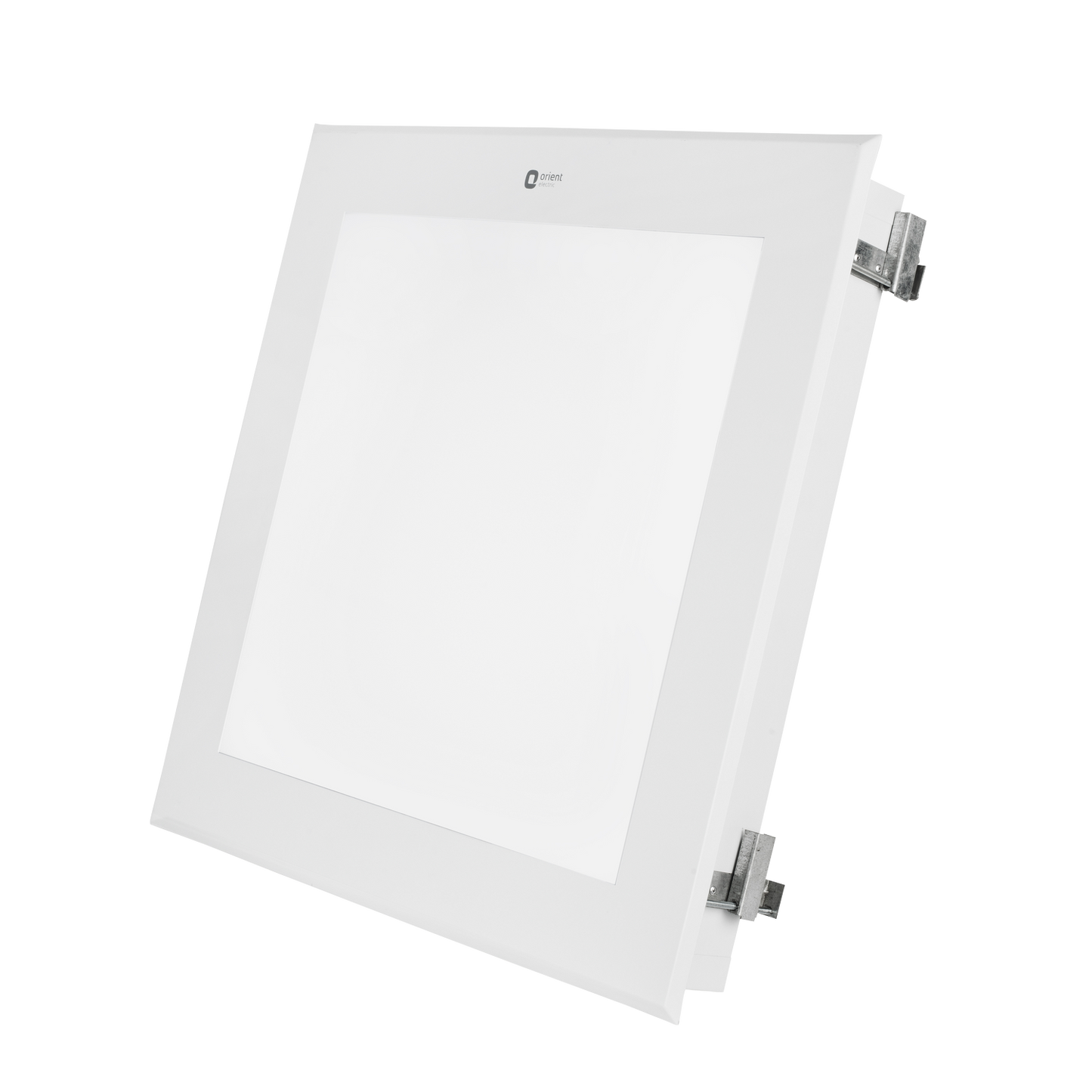

Recess-mounting back-lit bottom openable LED 2X2 Cleanroom Panel in CRCA housing with full-opal diffuser suitable for highly hygienic facilities like F&B and Pharma industries.

View full details
  • General specification
    Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance opal diffuser for glare free symmetric light. High efficiency long life LED package in integral module with lumen efficacy of ≥140 lm/W and viewing angle of 120° to ensure better uniformity.
    Mounting Recessed mounted
    Control Gear Powered by an electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 65 from Front
  • Technical Specifications
    System Wattage 24W, 36W, 45W, 60W
    CCT 6500K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90
Ozon BO variants
Product Variants
Ozon BO
LTRCO-24-C-BO
Ozon BO
LTRCO-36-C-BO
Ozon BO
LTRCO-45-C-BO
Ozon BO
LTRCO-60-C-BO
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
24W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
340
340
105
295x295
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
600
600
105
565x565
45W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
600
600
105
565x565
60W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
600
600
105
565x565
