Product Overview

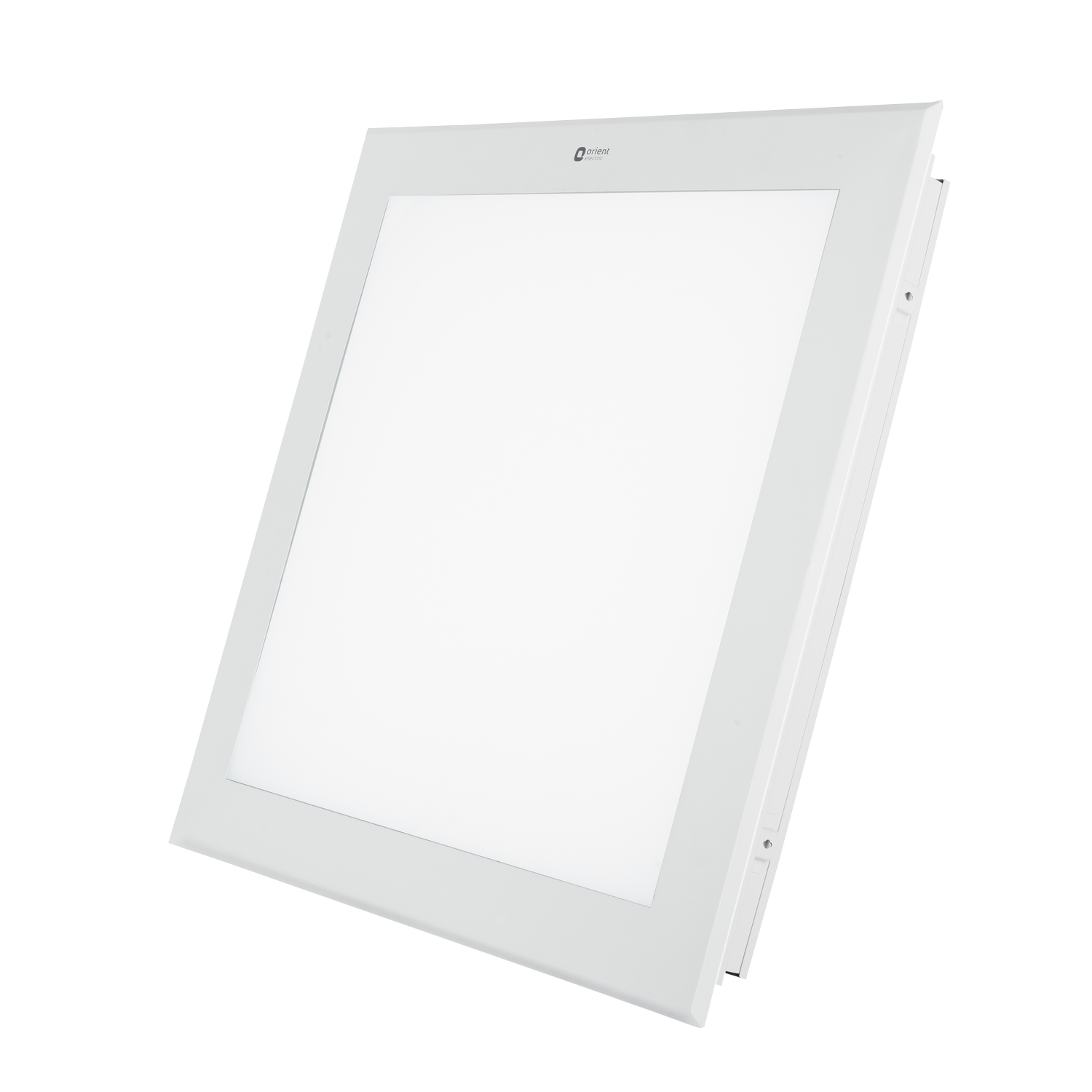

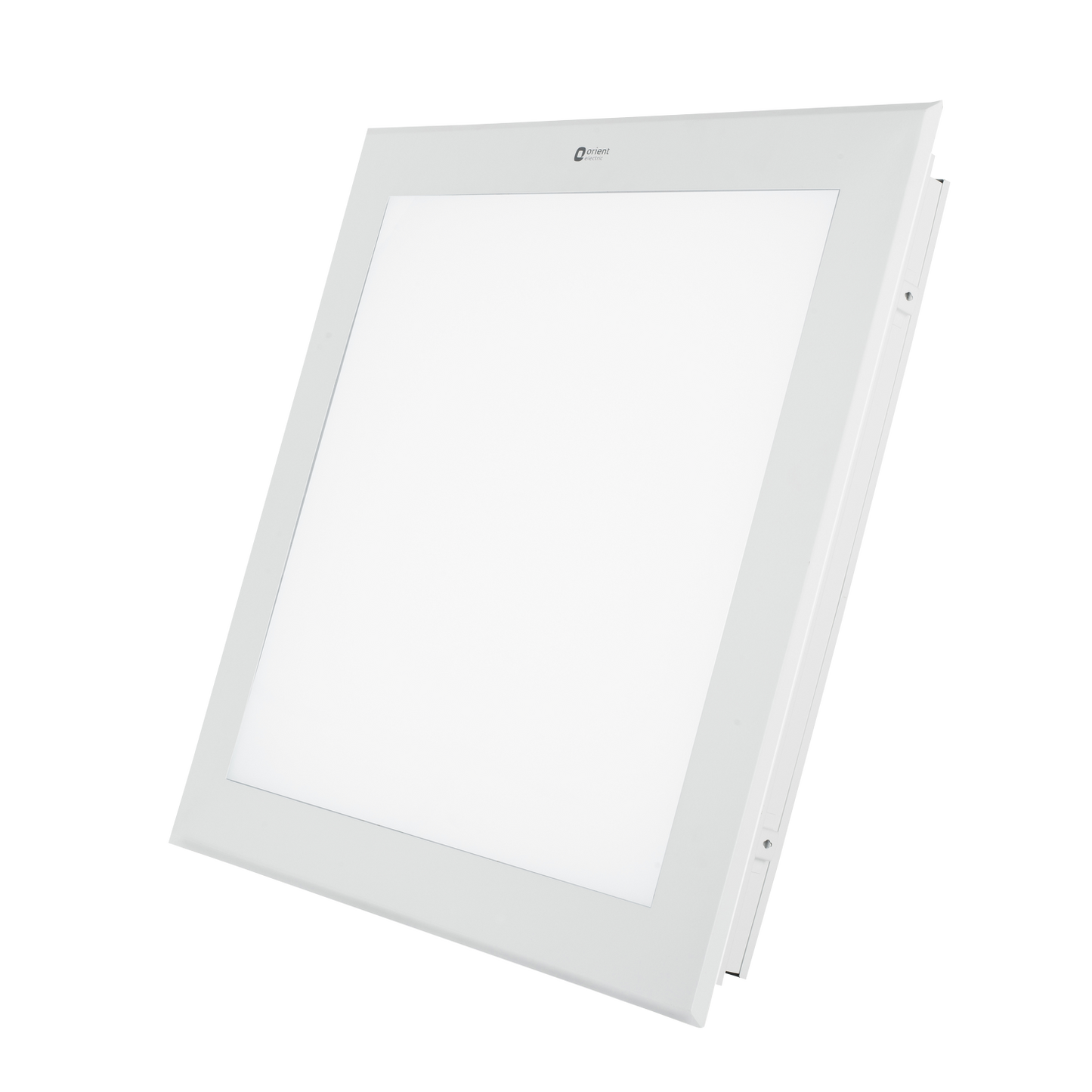

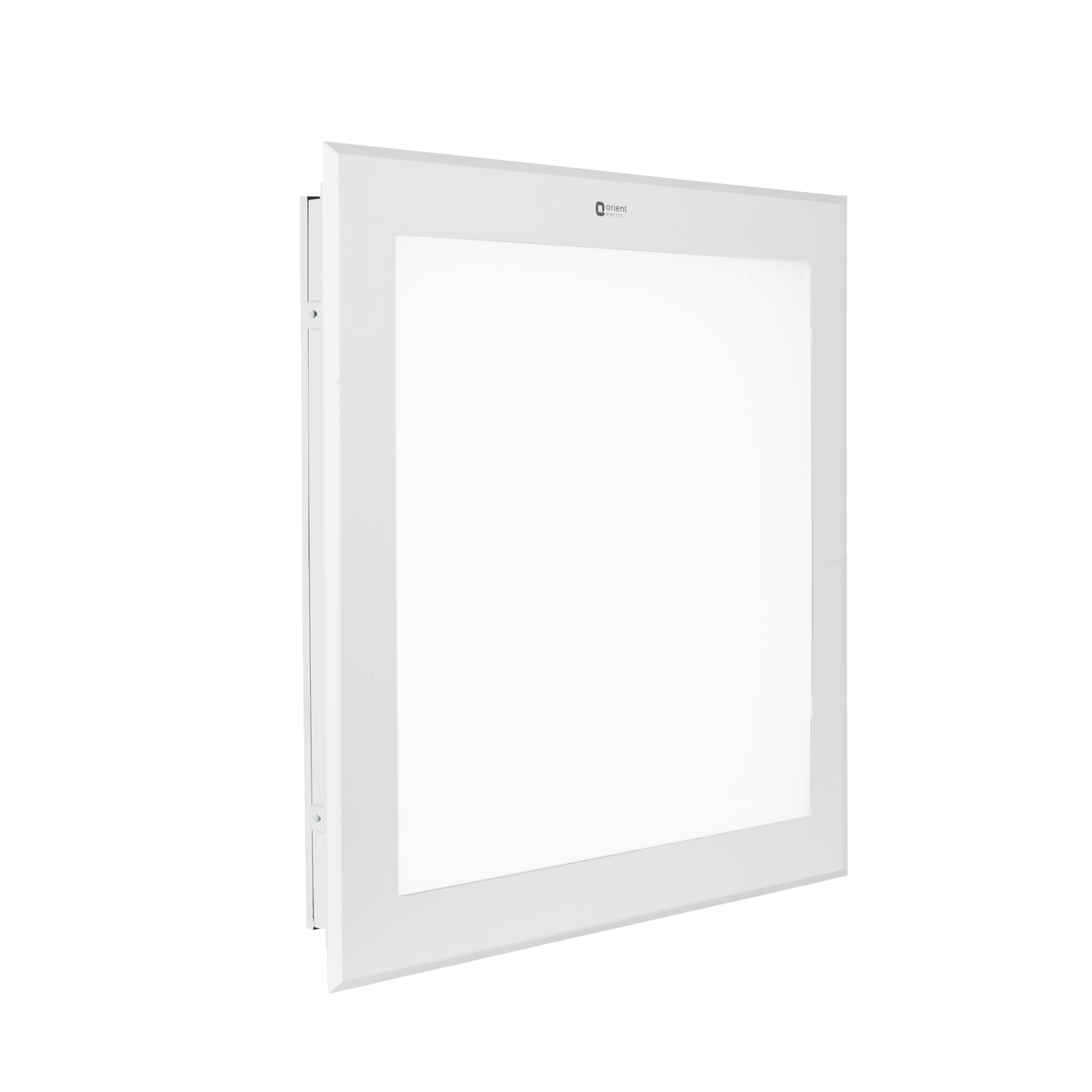

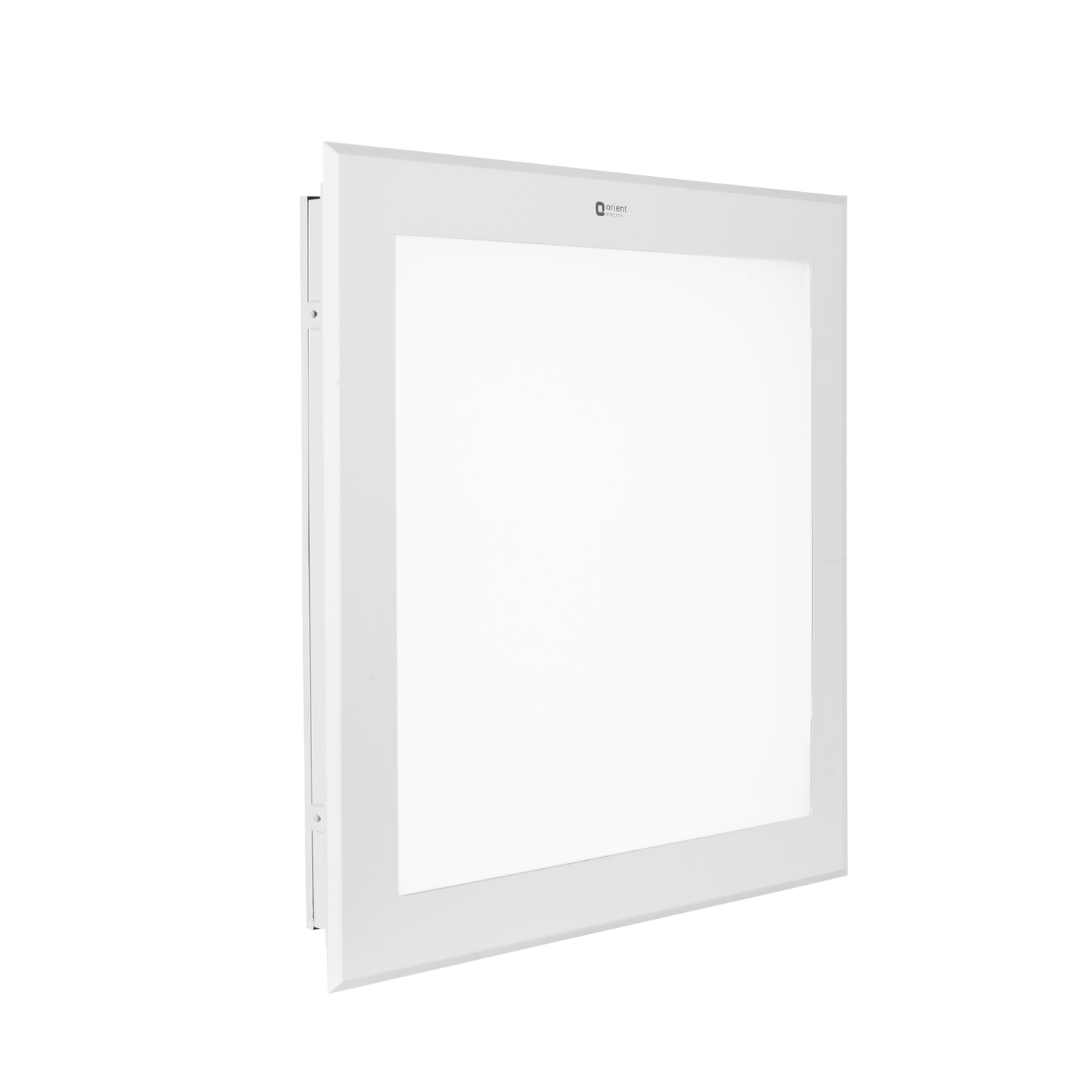

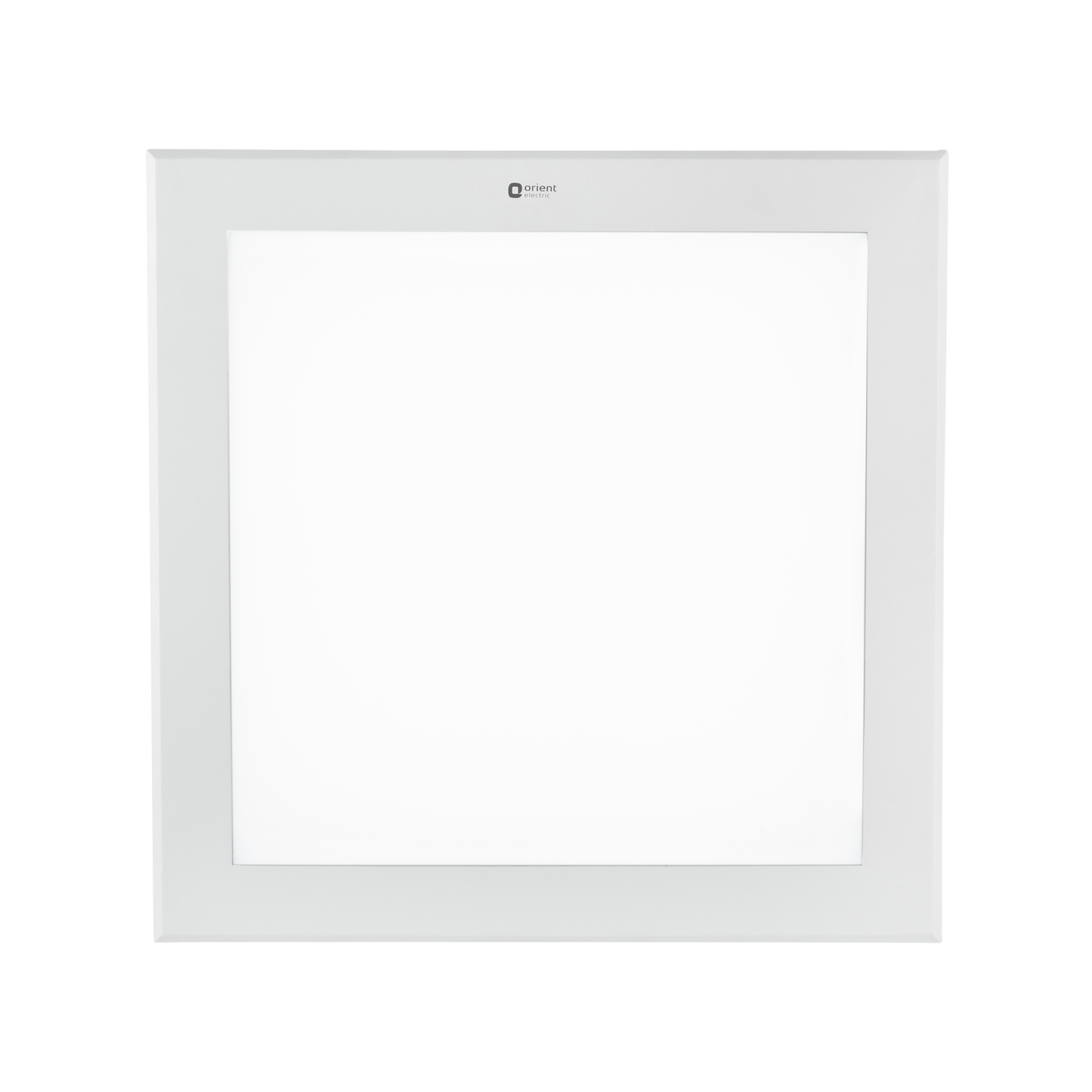

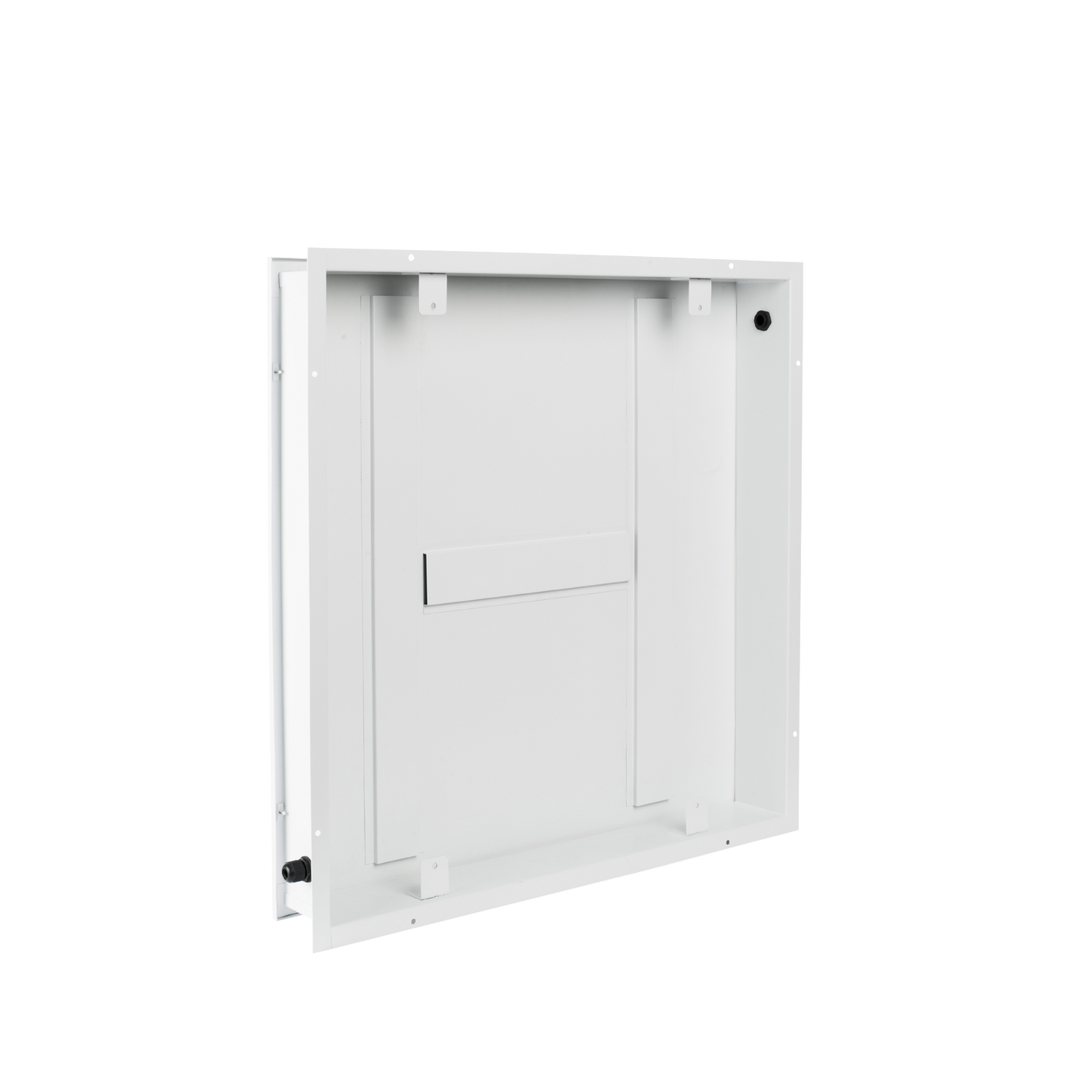

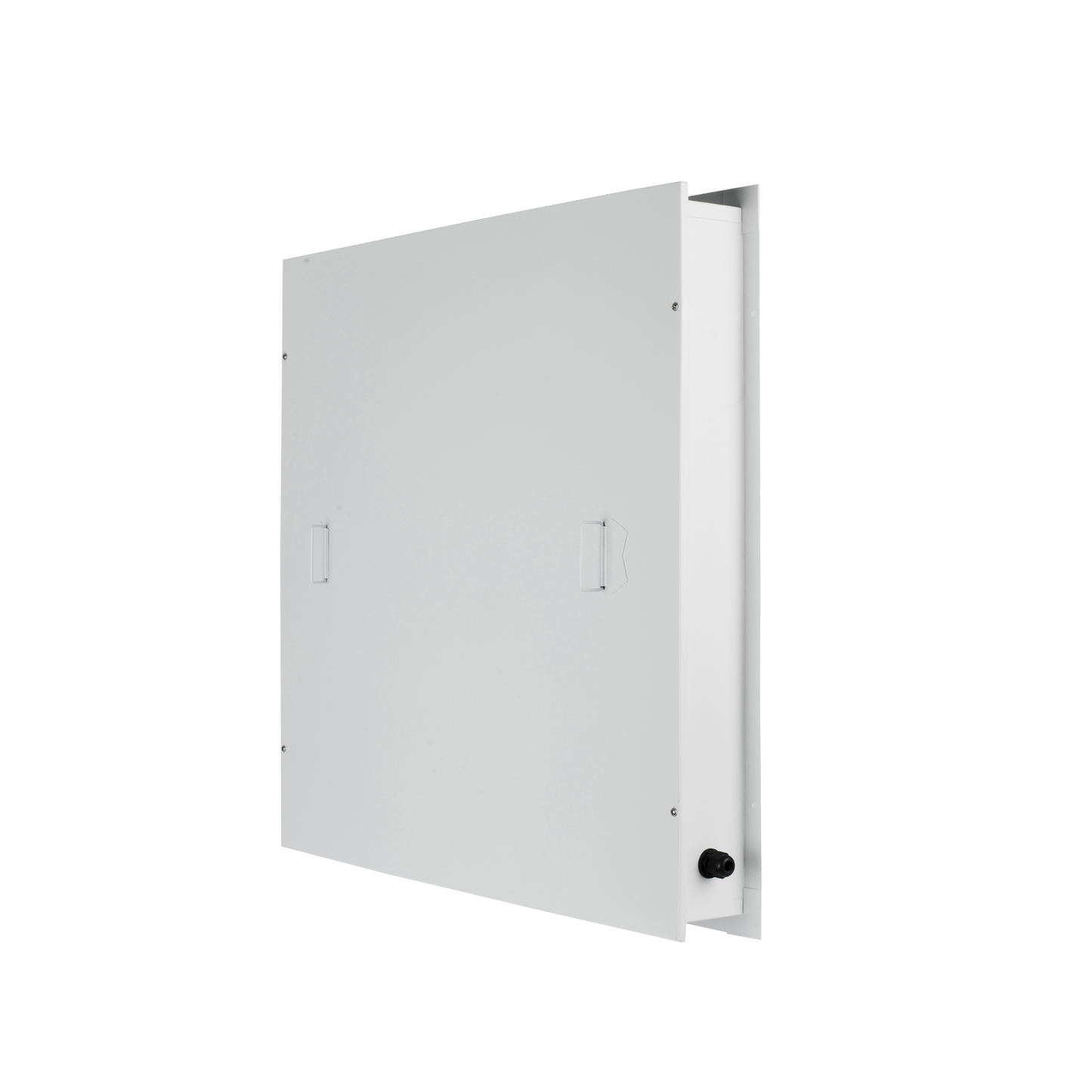

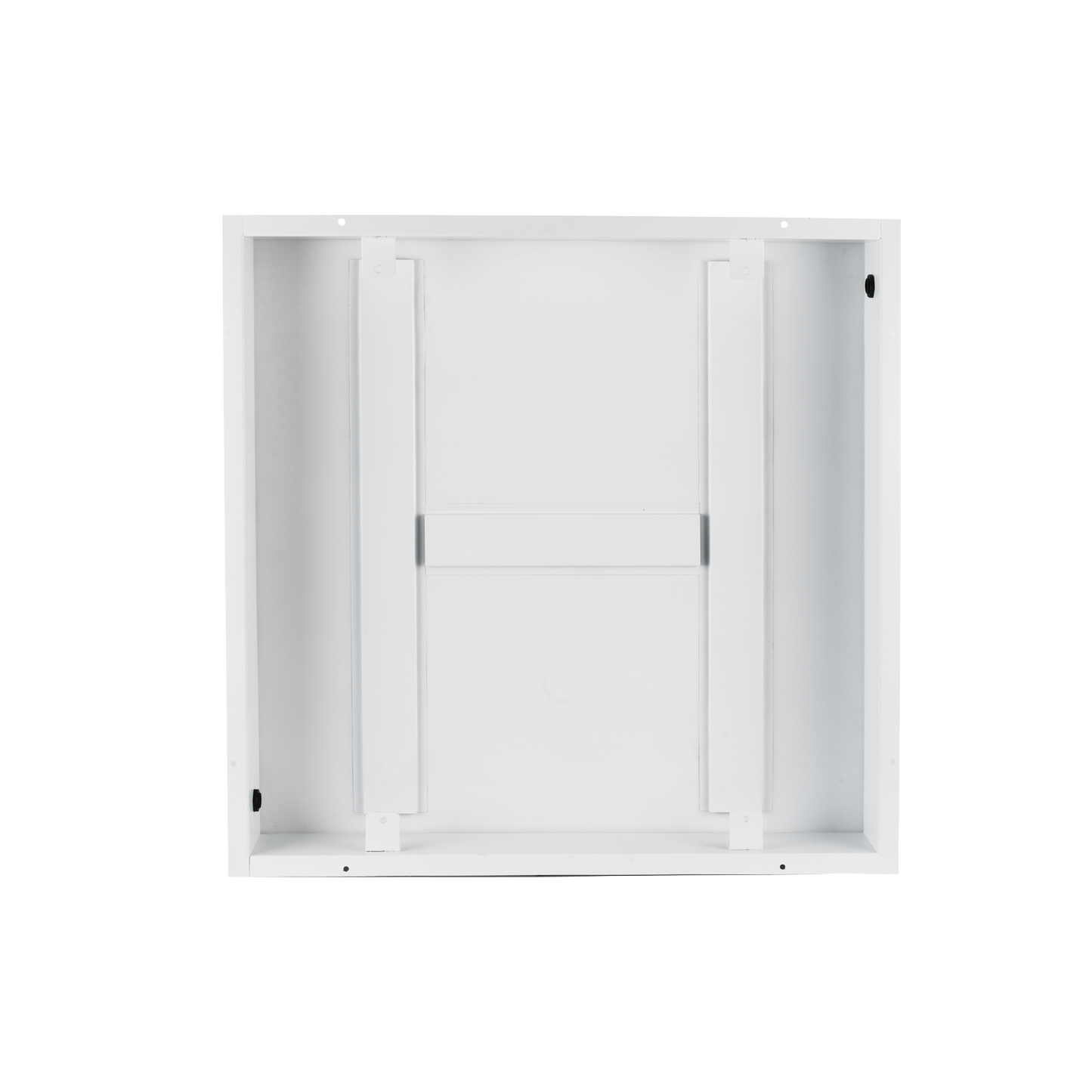

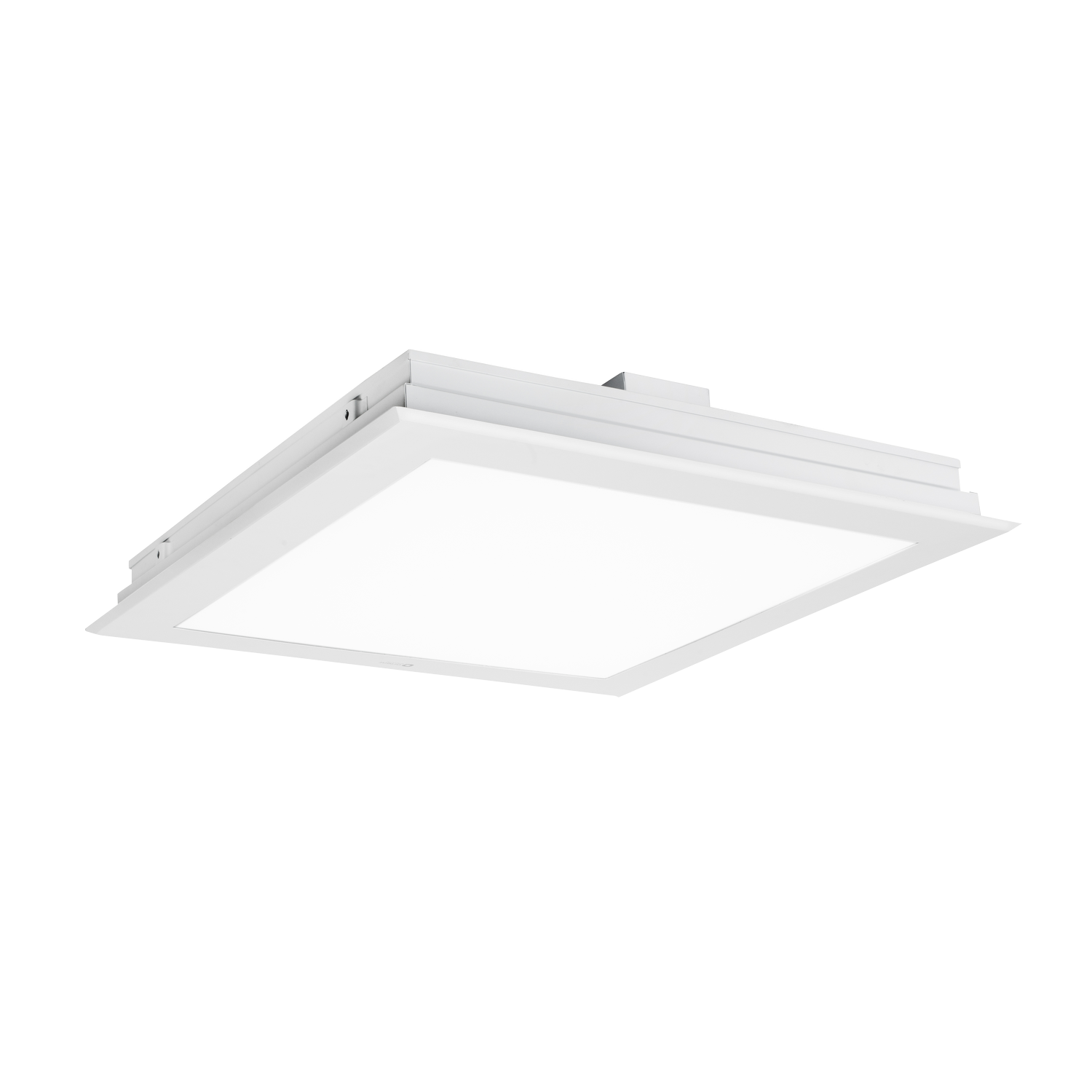

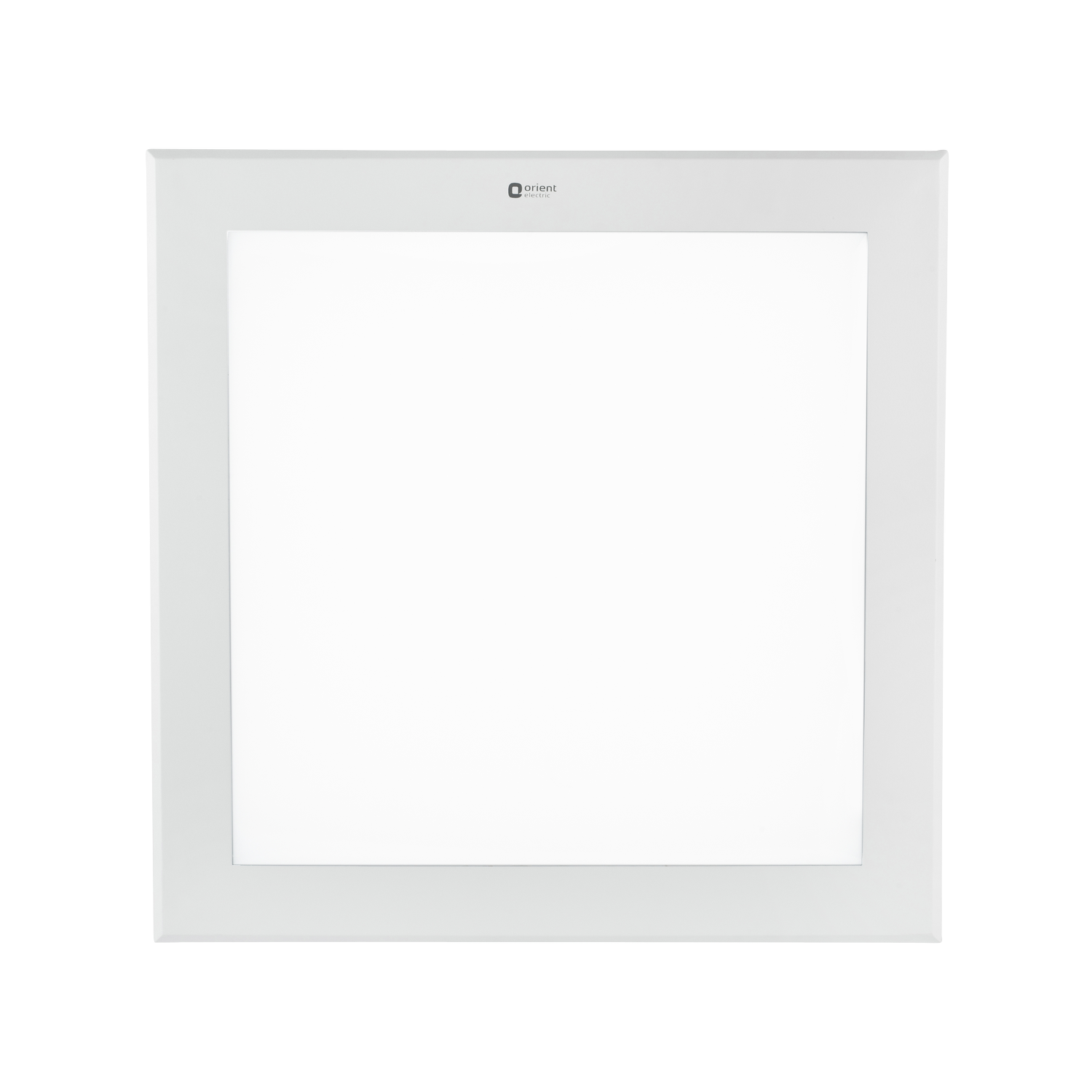

Recess-mounting back-lit top openable LED 2X2 Cleanroom Panel in CRCA housing with full-opal diffuser suitable for highly hygienic facilities like F&B and Pharma industries.

Best suited for

Hospitals

Pharmaceutical industry

View full details
  • General specification

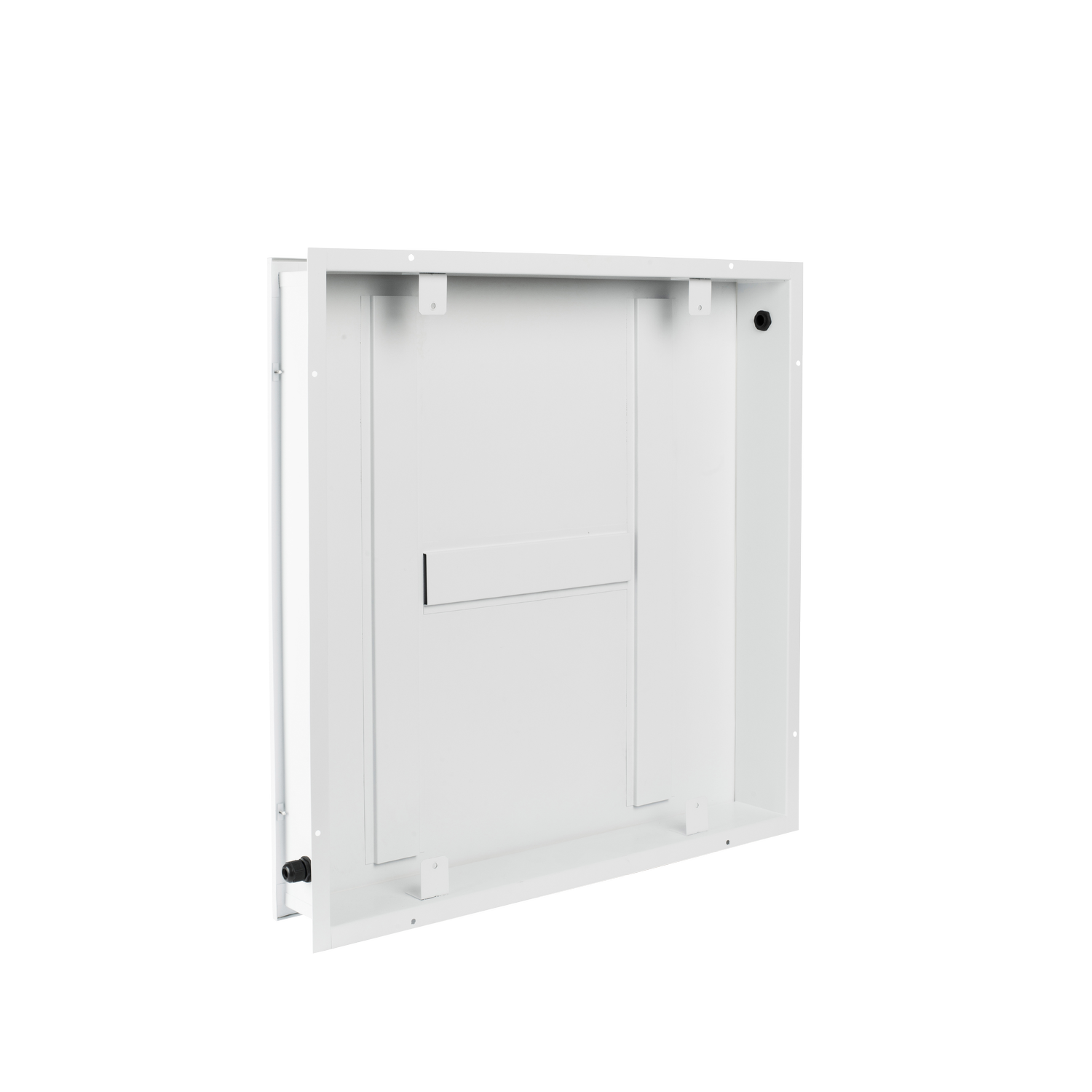

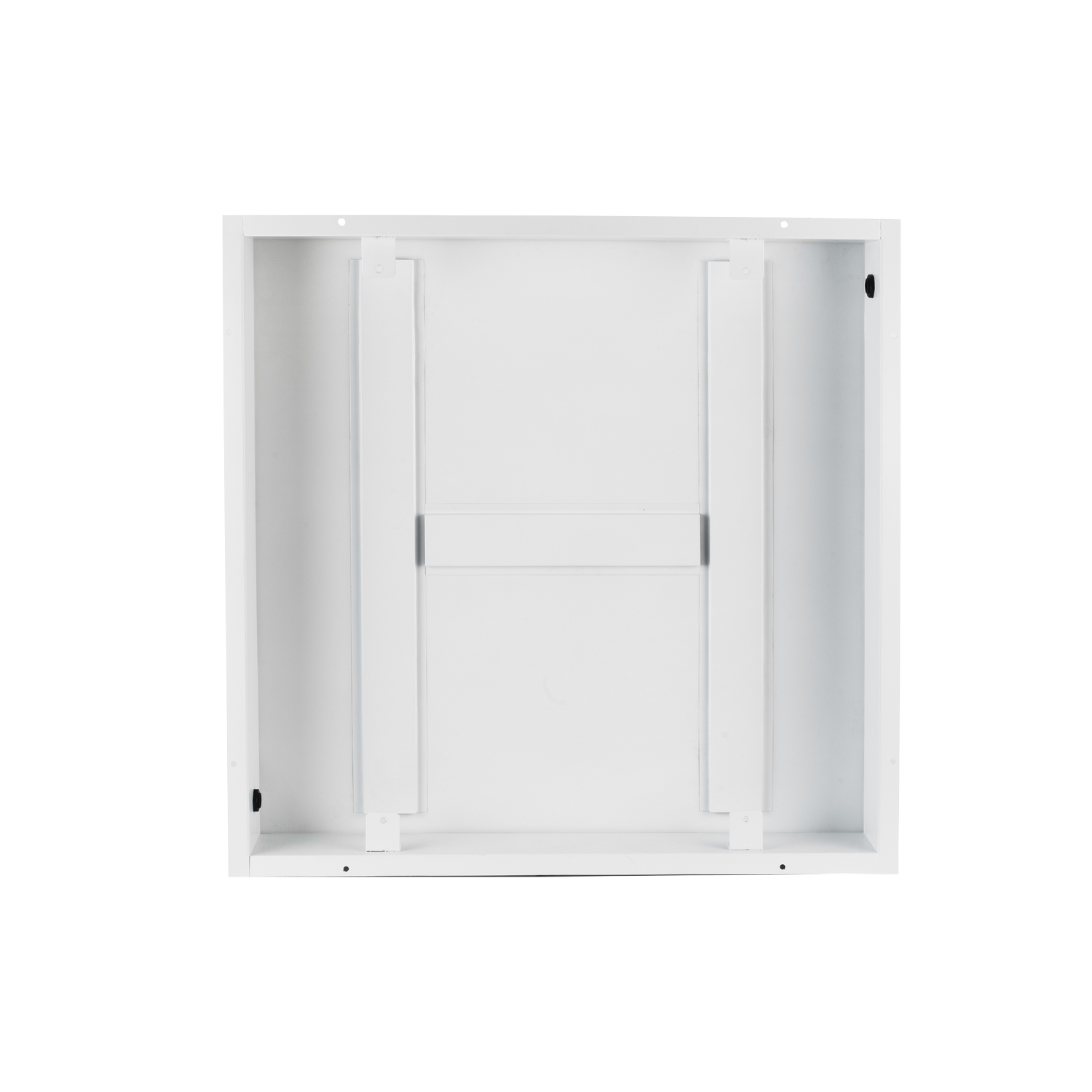

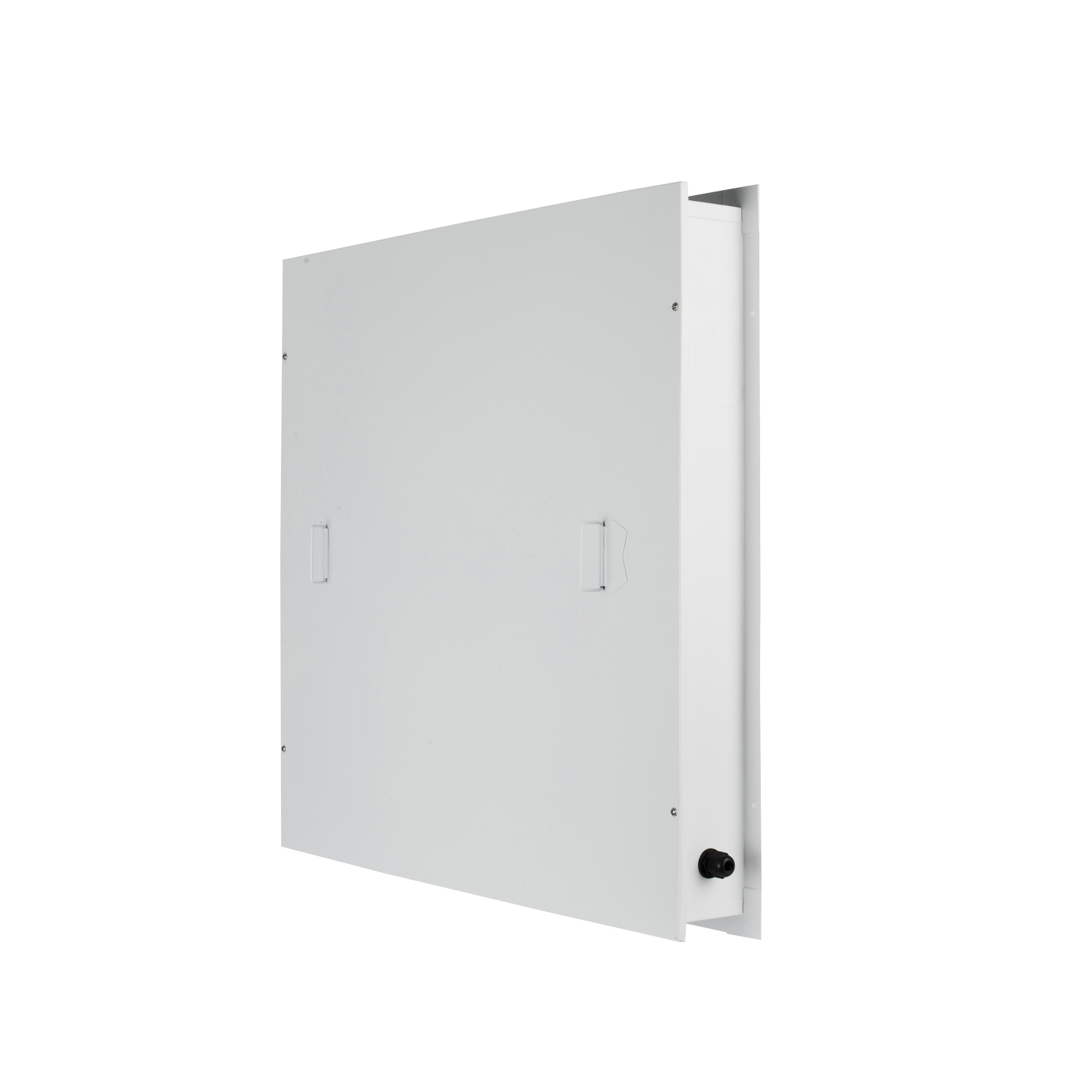

    Housing Excellent thermally managed housing in CRCA powder coated white after phosphochromate treatment.
    Optics High transmittance opal diffuser for glare free symmetric light.High efficiency long life LED package in integral module with lumen efficacy of ≥140 lm/W and viewing angle of 120° to ensure better uniformity.
    Mounting Recessed mounted
    Control Gear Powered by an electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 65 from front
  • Technical Specifications
    System Wattage 24W, 36W, 45W, 60W
    CCT 6500K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90
Ozon TO variants
Product Variants
Ozon TO
LTRCO-24-C-TO
Ozon TO
LTRCO-36-C-TO
Ozon TO
LTRCO-45-C-TO
Ozon TO
LTRCO-60-C-TO
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Cutout (in mm)
24W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
330
330
144
300 X 300
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
630
630
144
600 X 600
45W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
630
630
144
600 X 600
60W
6500K
≥80
240V AC
≥0.95
≤10%
≥90
630
630
144
600 X 600
