Pluto

Pluto

Pluto

Product Overview

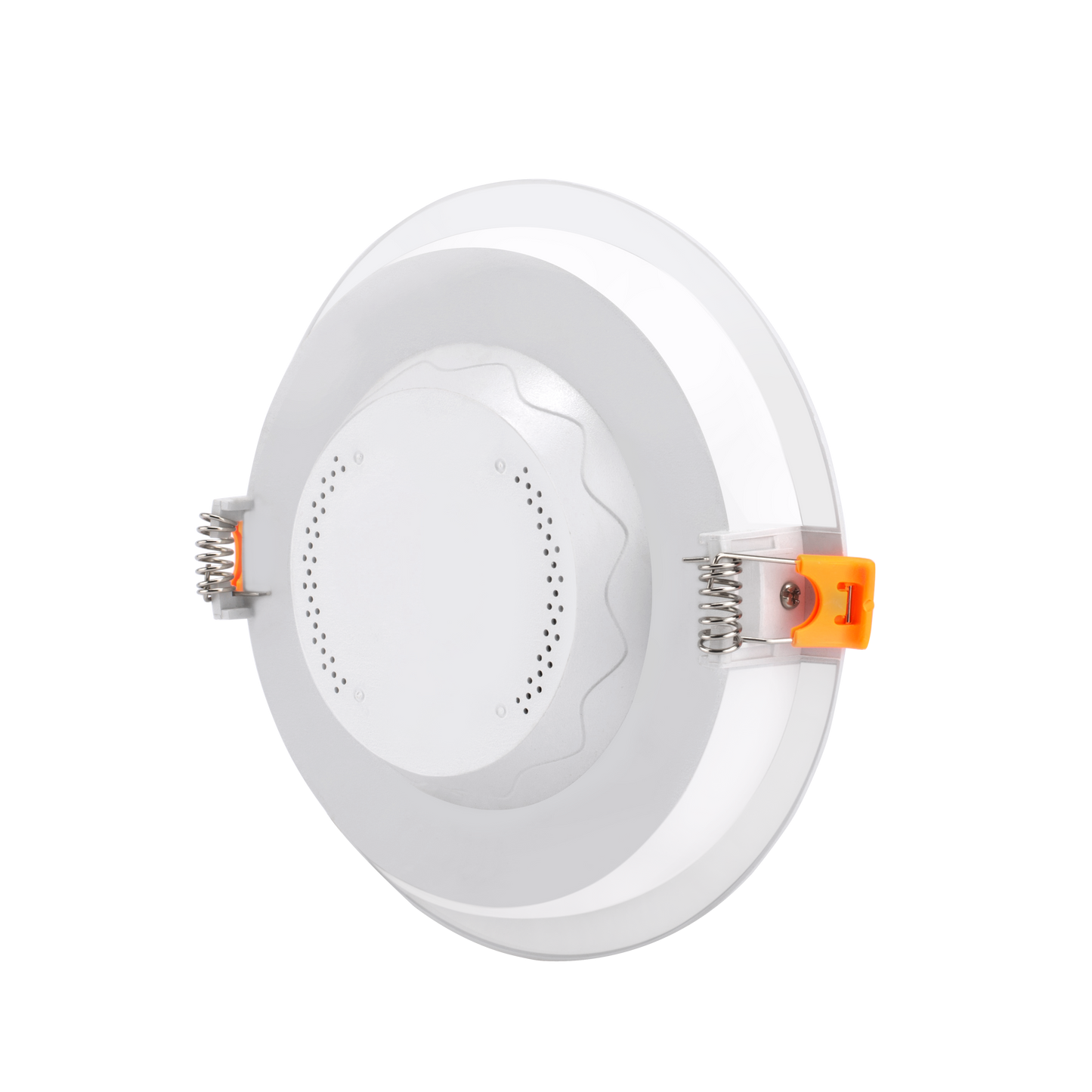

Backlit recess-mounting round LED downlighter designed with polycarbonate housing to deliver high-efficacy light output and uniformity, utilising back-lit technology.

View full details
  • General specification
    Housing Designed with excellent thermally managed polycarbonate housing with heat dissipating larger surface area.
    Optics High quality polycarbonate opal diffuser for glare free uniform light distribution.
    Mounting Fixing into false ceiling by means of spring & clips provided.
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 6W, 12W, 15W, 18W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System efficacy (lm/W) ≥100, ≥90, ≥85
Pluto variants
Product Variants
Pluto
LDRPR-06-C-P
Pluto
LDRPR-06-N-P
Pluto
LDRPR-06-W-P
Pluto
LDRPR-12-C-P
Pluto
LDRPR-12-N-P
Pluto
LDRPR-12-W-P
Pluto
LDRPR-15-C-P
Pluto
LDRPR-15-N-P
Pluto
LDRPR-15-W-P
Pluto
LDRPR-18-C-P
Pluto
LDRPR-18-N-P
Pluto
LDRPR-18-W-P
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Cut out Diameter (in mm)
Height (in mm)
6W
6500K
≥80
240V AC
≥0.95
<15%
≥100
118
35
100
6W
4000K
≥80
240V AC
≥0.95
<15%
≥90
118
35
100
6W
3000K
≥80
240V AC
≥0.95
<15%
≥85
118
35
100
12W
6500K
≥80
240V AC
≥0.95
<15%
≥100
145
35
125
12W
4000K
≥80
240V AC
≥0.95
<15%
≥90
145
35
125
12W
3000K
≥80
240V AC
≥0.95
<15%
≥85
145
35
125
15W
6500K
≥80
240V AC
≥0.95
<15%
≥100
170
35
150
15W
4000K
≥80
240V AC
≥0.95
<15%
≥90
170
35
150
15W
3000K
≥80
240V AC
≥0.95
<15%
≥85
170
35
150
18W
6500K
≥80
240V AC
≥0.95
<15%
≥100
220
35
200
18W
4000K
≥80
240V AC
≥0.95
<15%
≥90
220
35
200
18W
3000K
≥80
240V AC
≥0.95
<15%
≥85
220
35
200
