POWERLINE SP

POWERLINE SP

POWERLINE SP

Product Overview

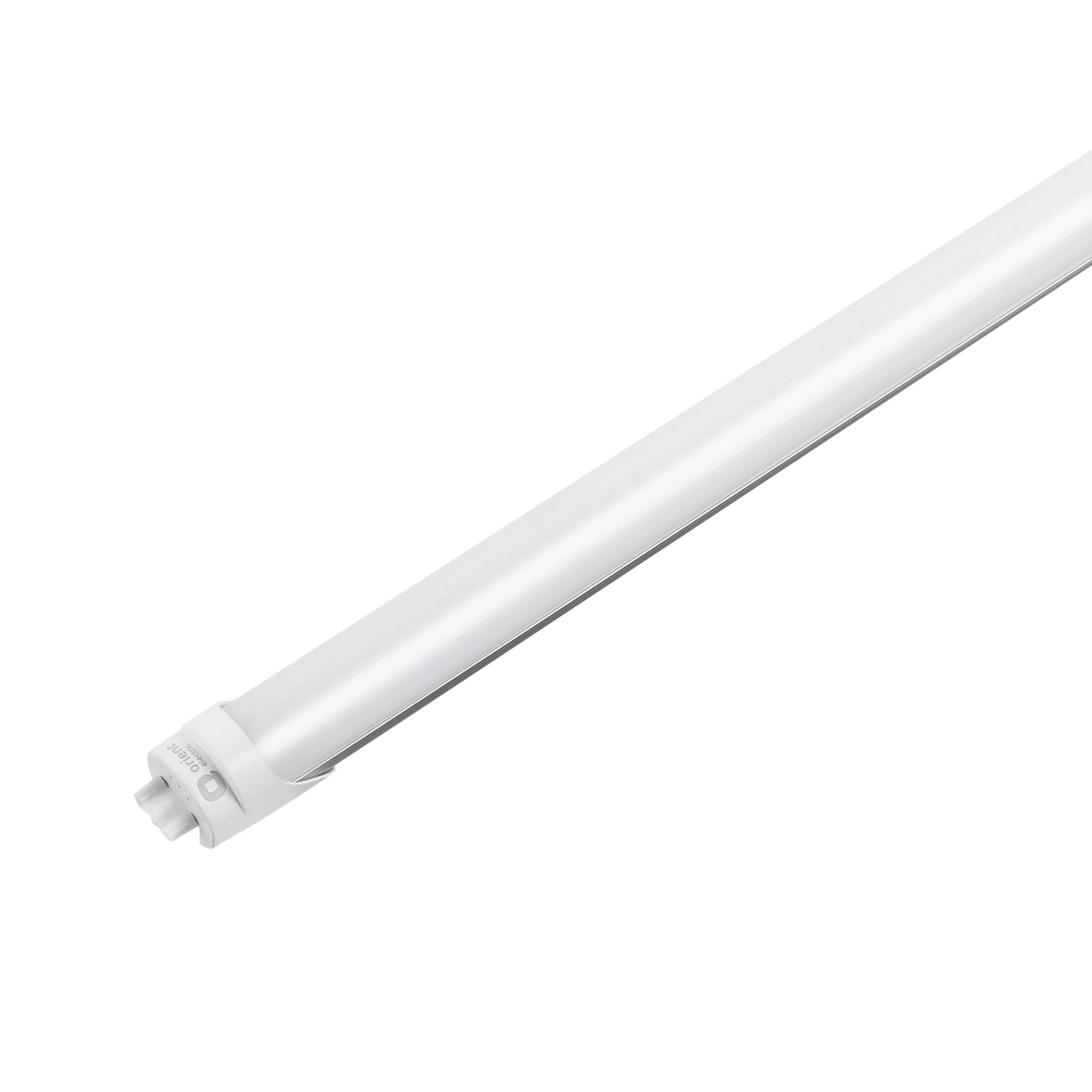

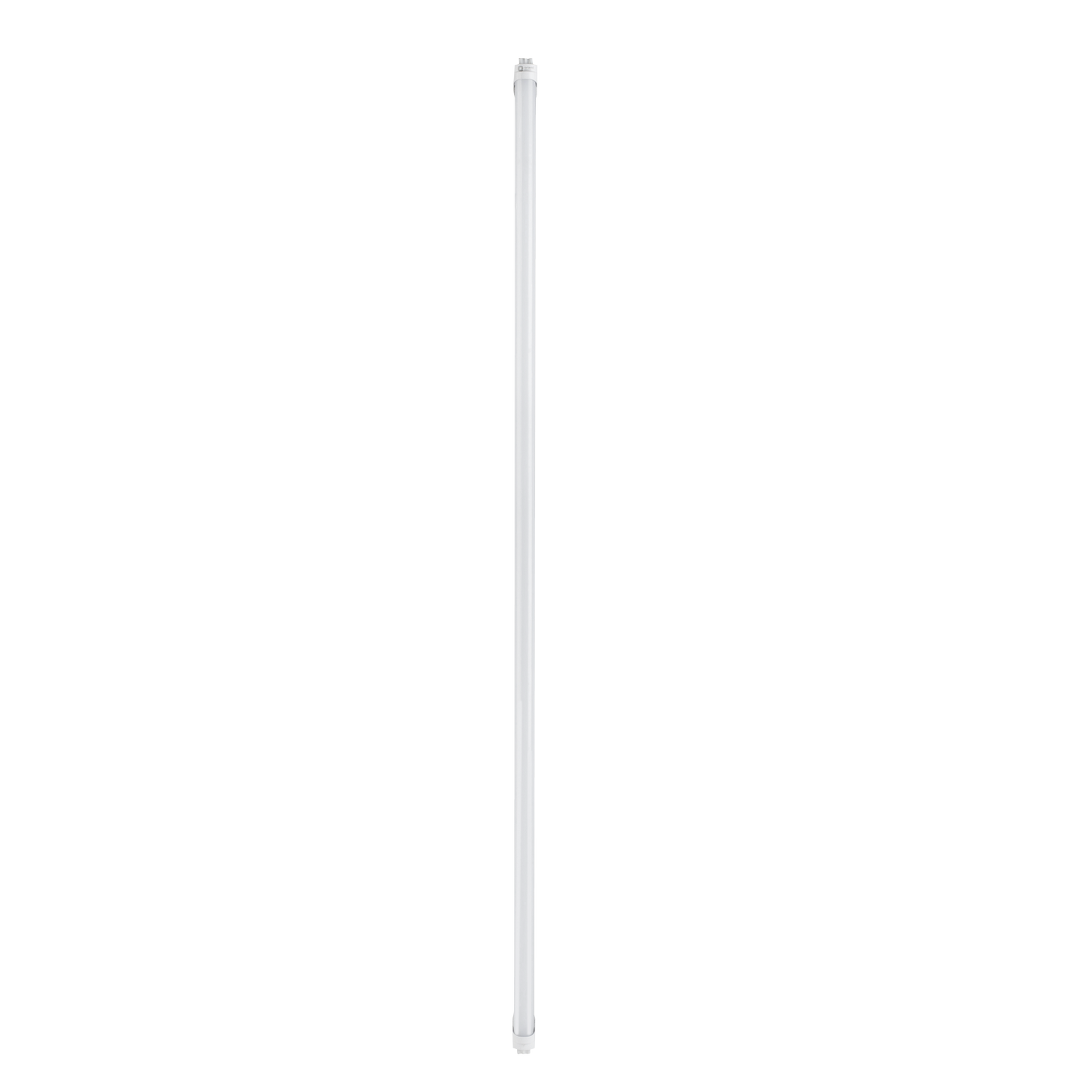

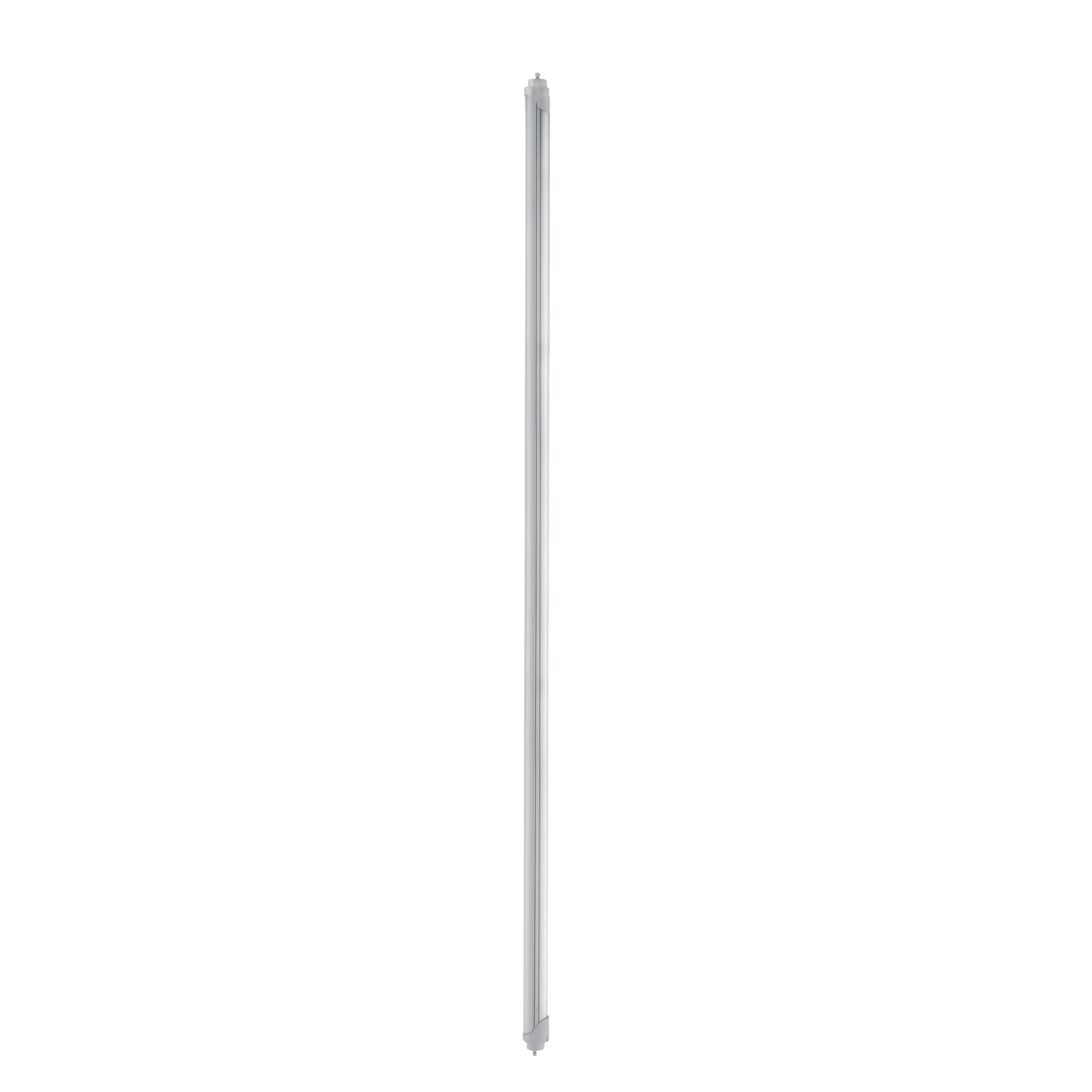

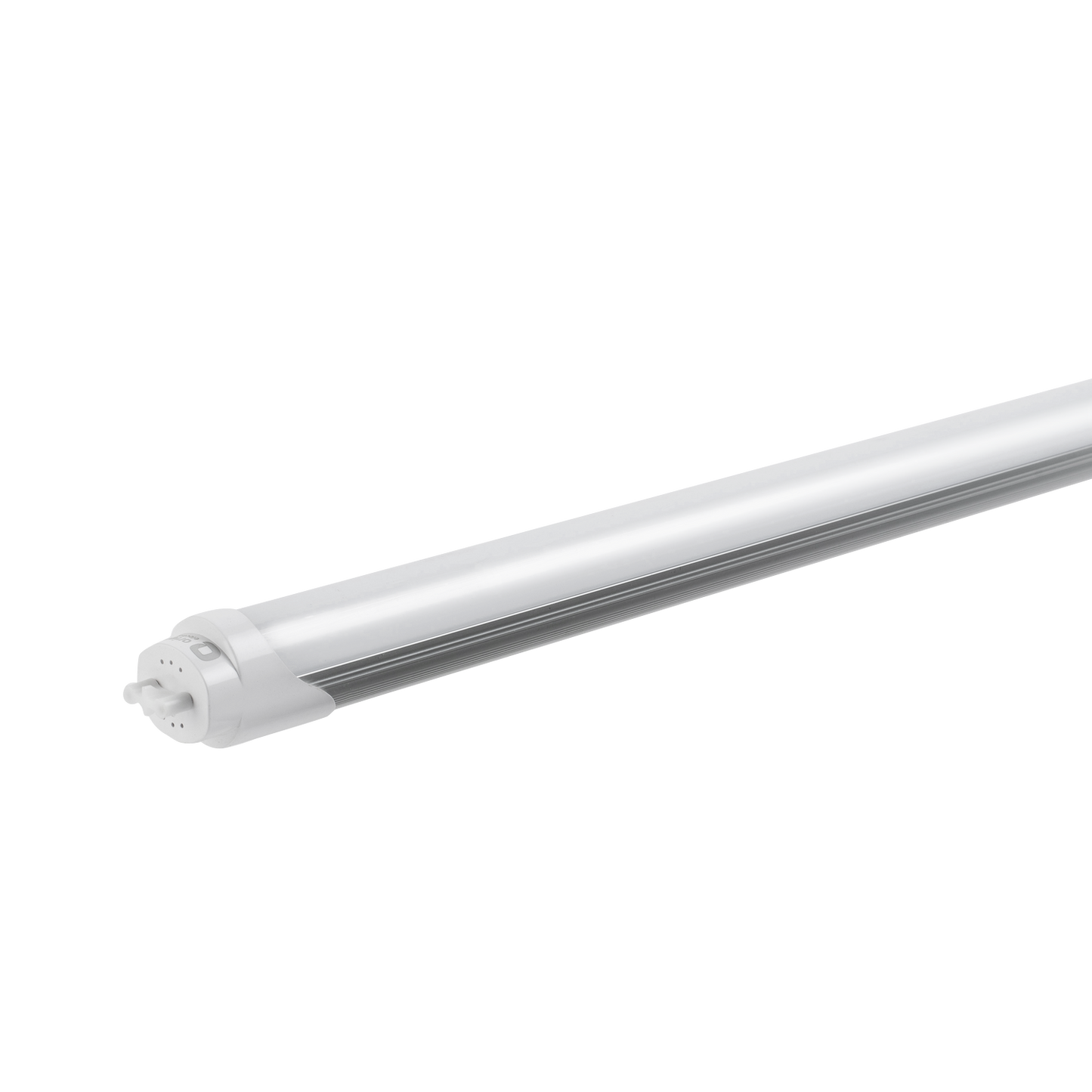

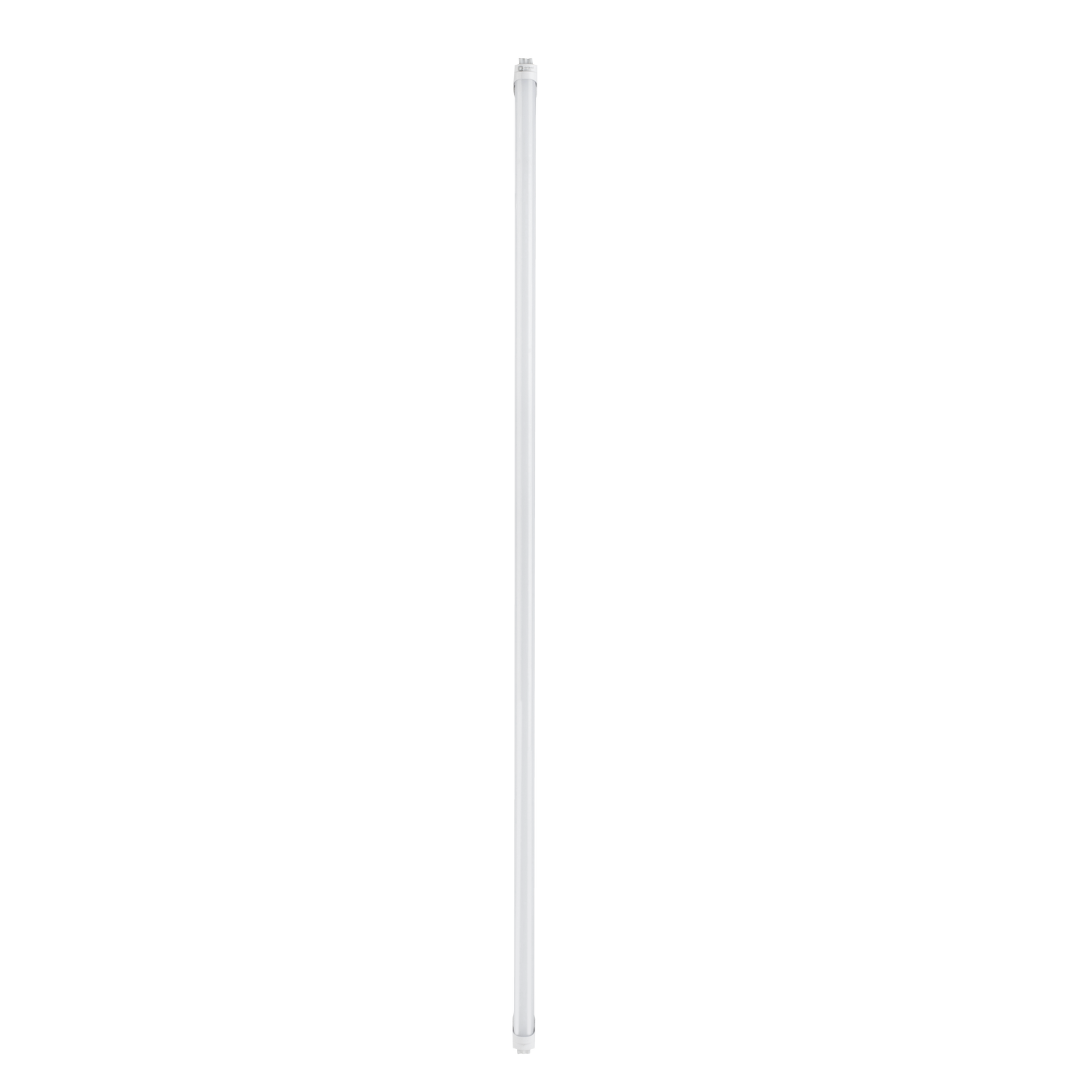

Ultrabright LED retrofit tube light with aluminium housing and polycarbonate diffuser high efficacy suitable for replacement of existing T8 & T12 fluorescent tube light with G13 lamp holder with double sided connection.

Best suited for

Staircase

Parking

Common utility areas

Warehouses

View full details
  • General specification
    Housing Elegantly designed aluminium housing designed for better heat dissipation.
    Optics Polycarbonate diffuser to provide glare - free uniform light distribution. High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Directly installed in existing T8/T12 FTL conventional lighting fixtures.
    Control Gear Powered by an integral constant - current driver suitable for 120-280 V AC working range.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 18W, 20W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy (lm/W) ≥100 , ≥90 , ≥85
POWERLINE SP variants
Product Variants
POWERLINE SP
LTPS-18-C-V1
POWERLINE SP
LTPS-18-N-V1
POWERLINE SP
LTPS-18-W-V1
POWERLINE SP
LTPS-20-C-V1
POWERLINE SP
LTPS-20-N-V1
POWERLINE SP
LTPS-20-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Height (in mm)
18W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1212
31
18W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1212
31
18W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1212
31
20W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1212
31
20W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1212
31
20W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1212
31
