Rail Tunnel

Rail Tunnel

Rail Tunnel

Product Overview

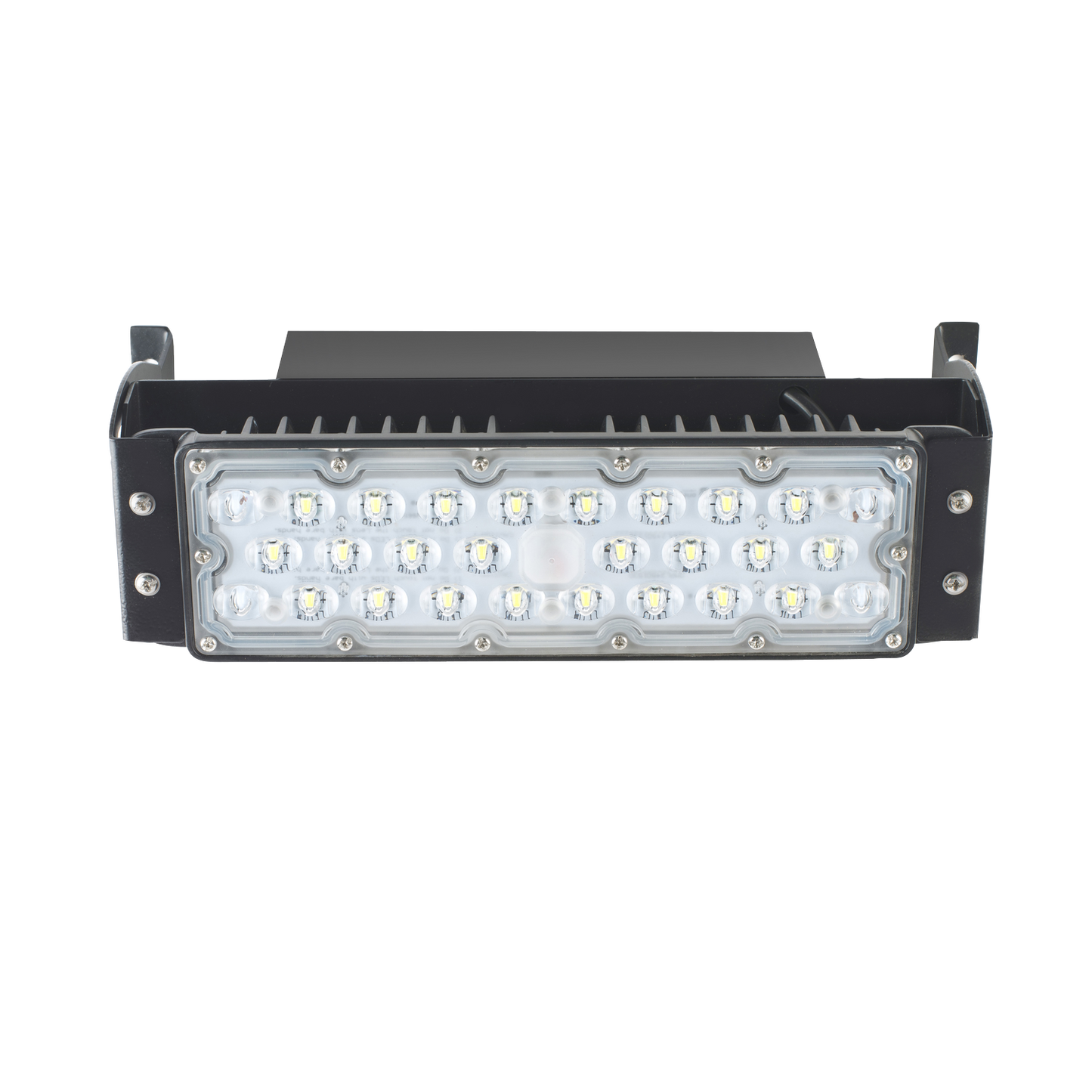

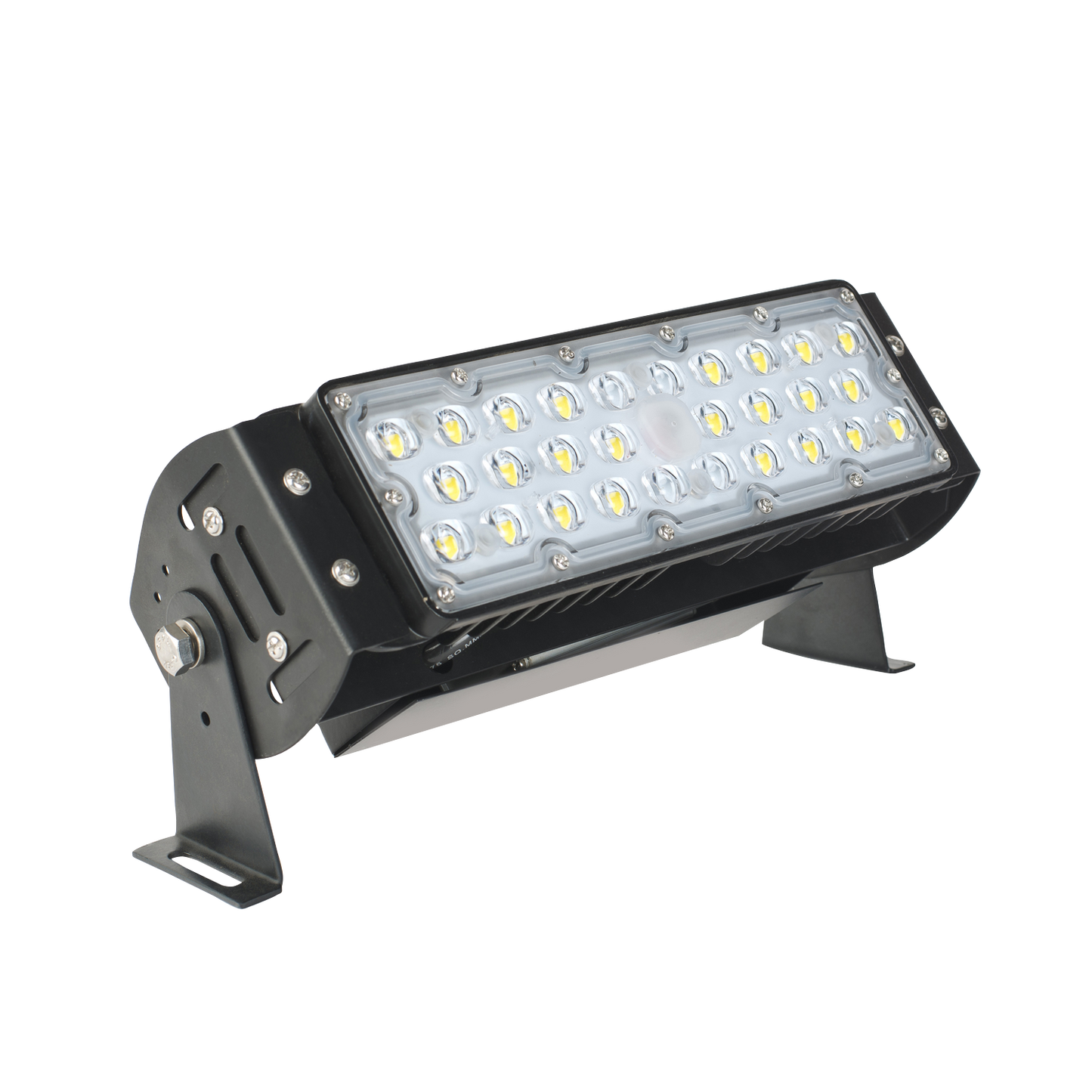

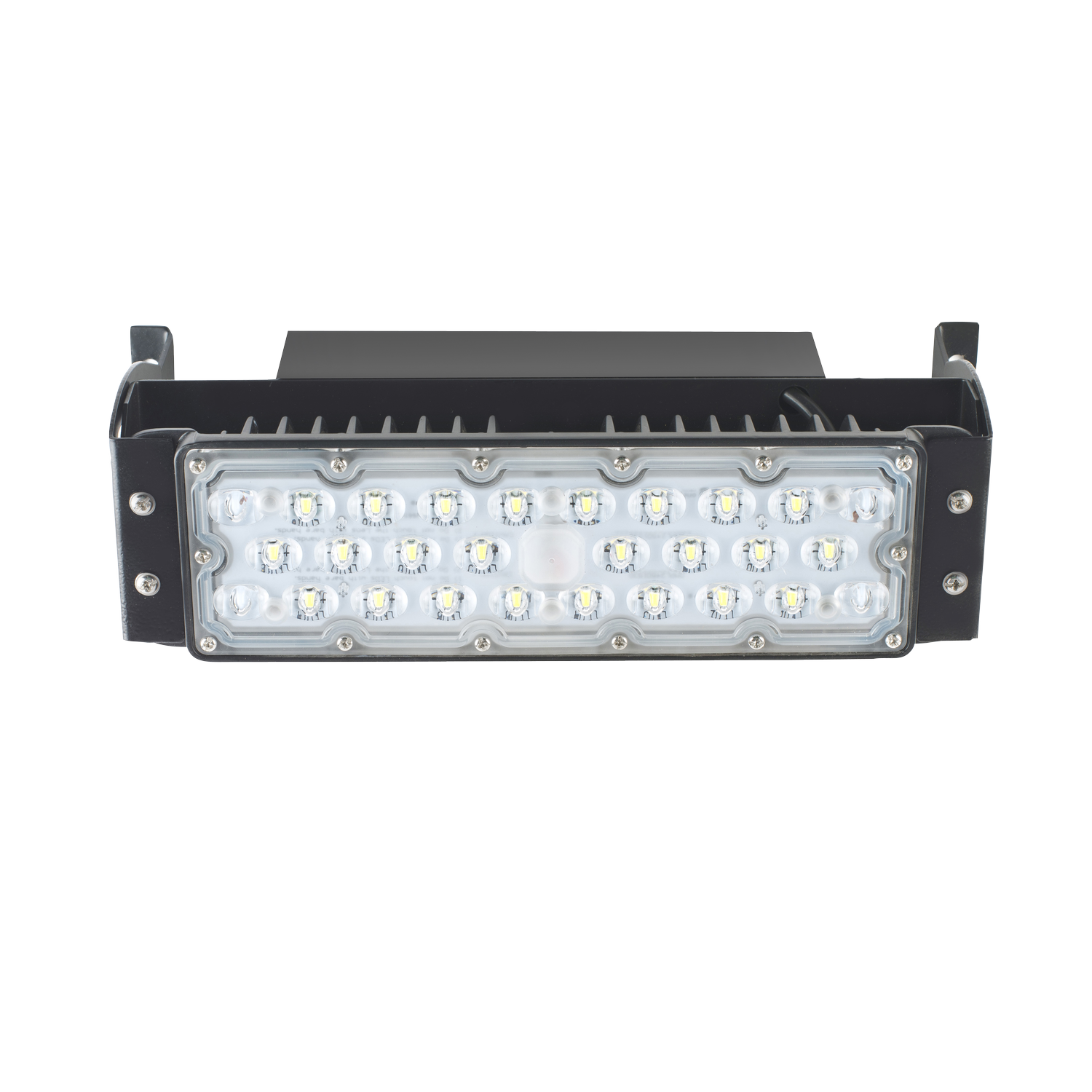

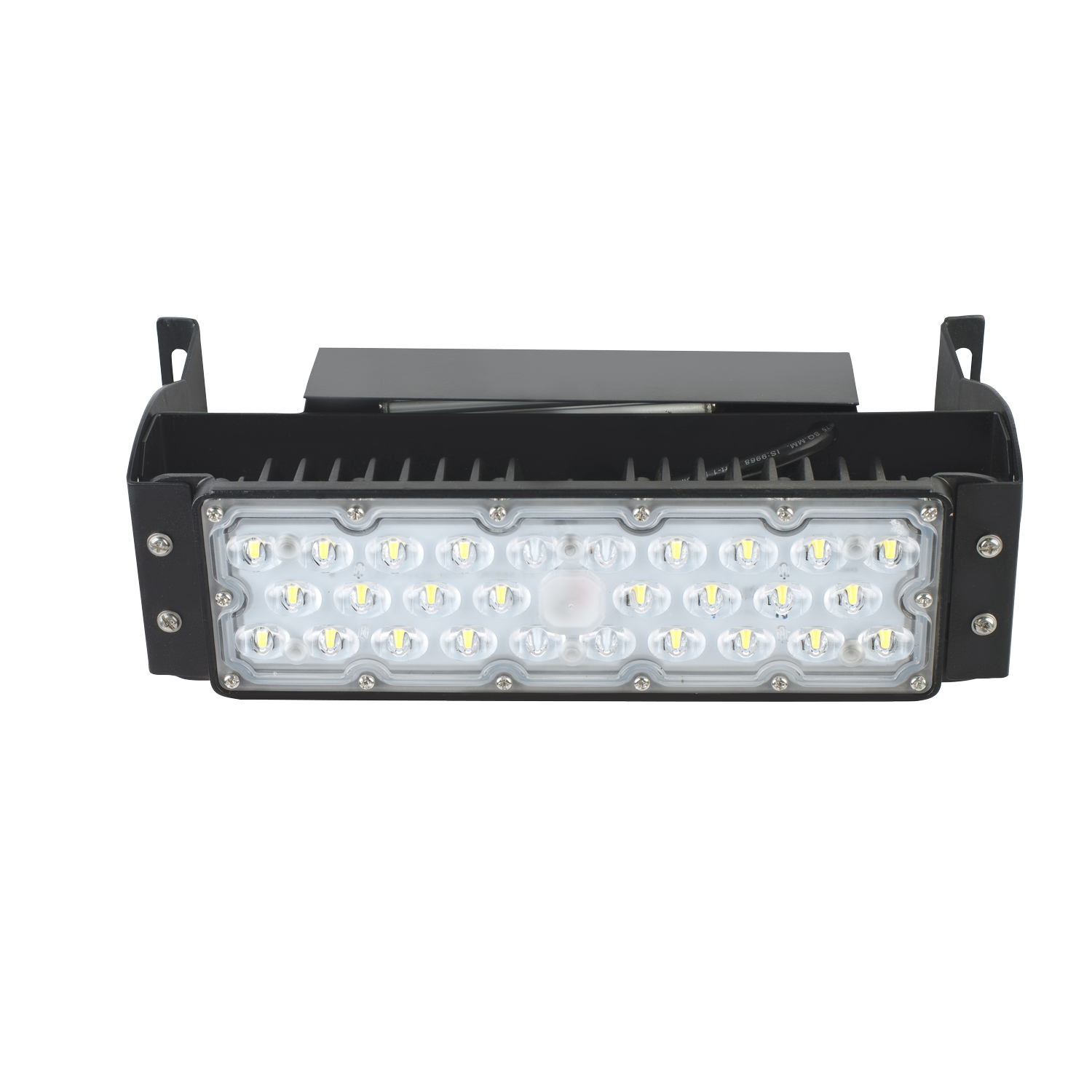

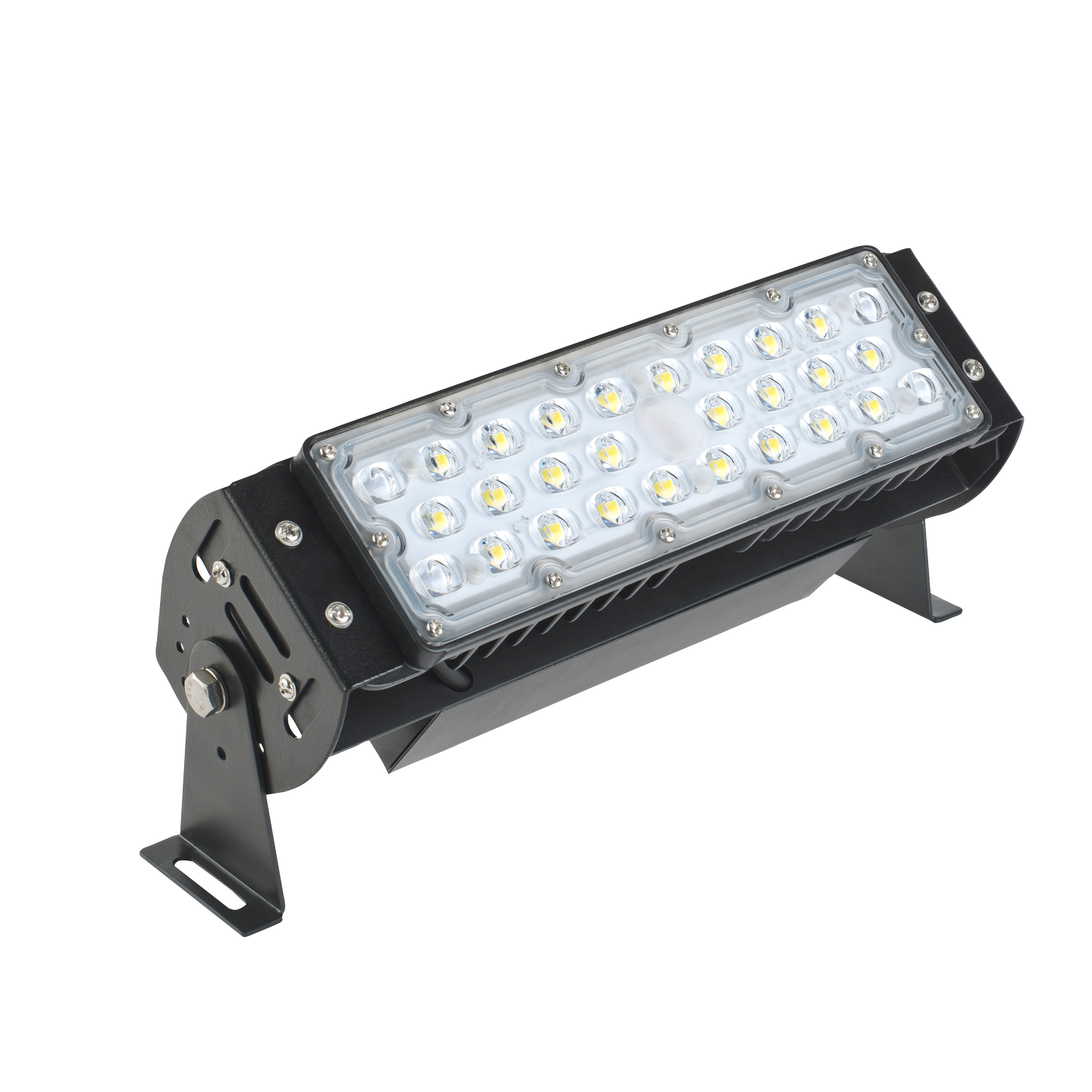

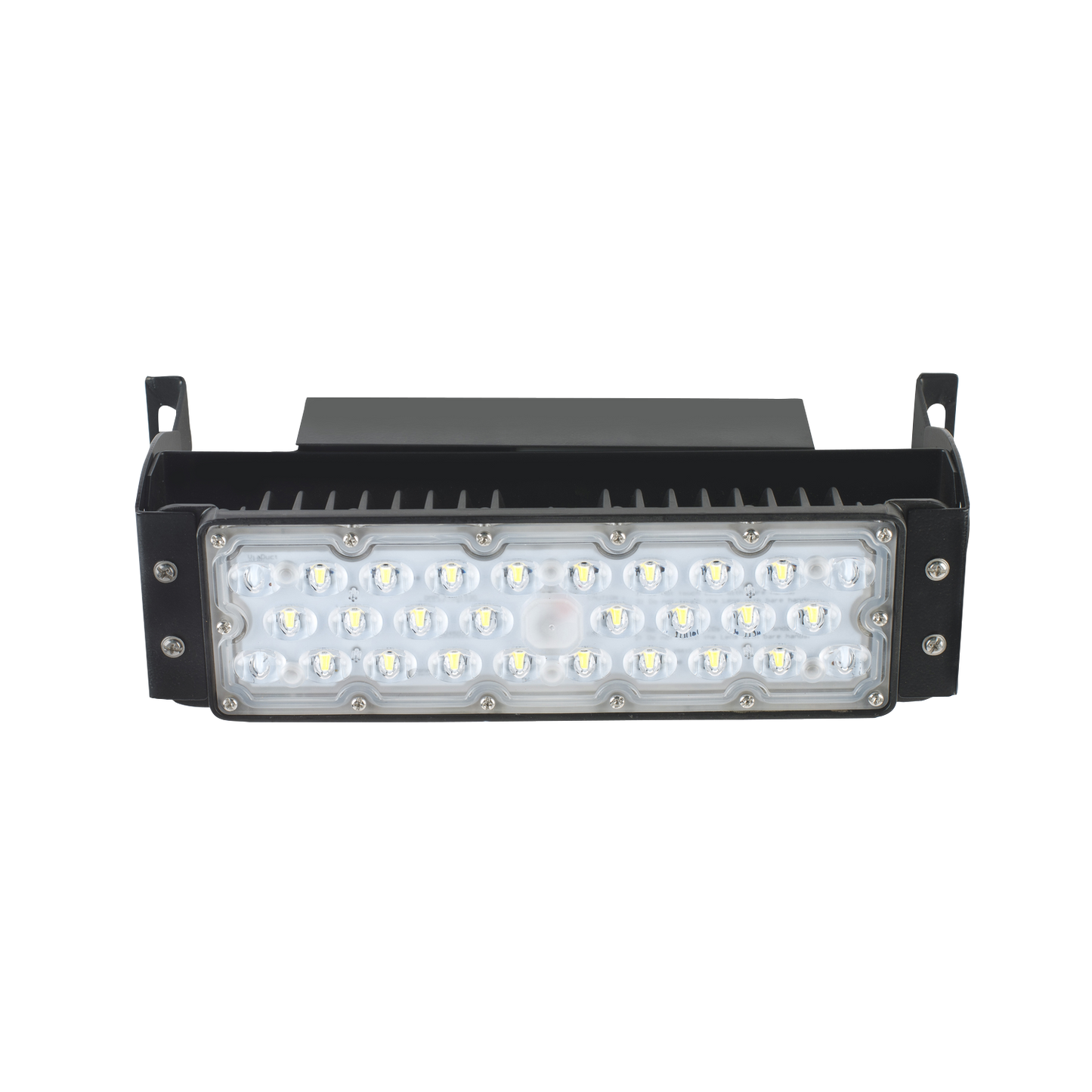

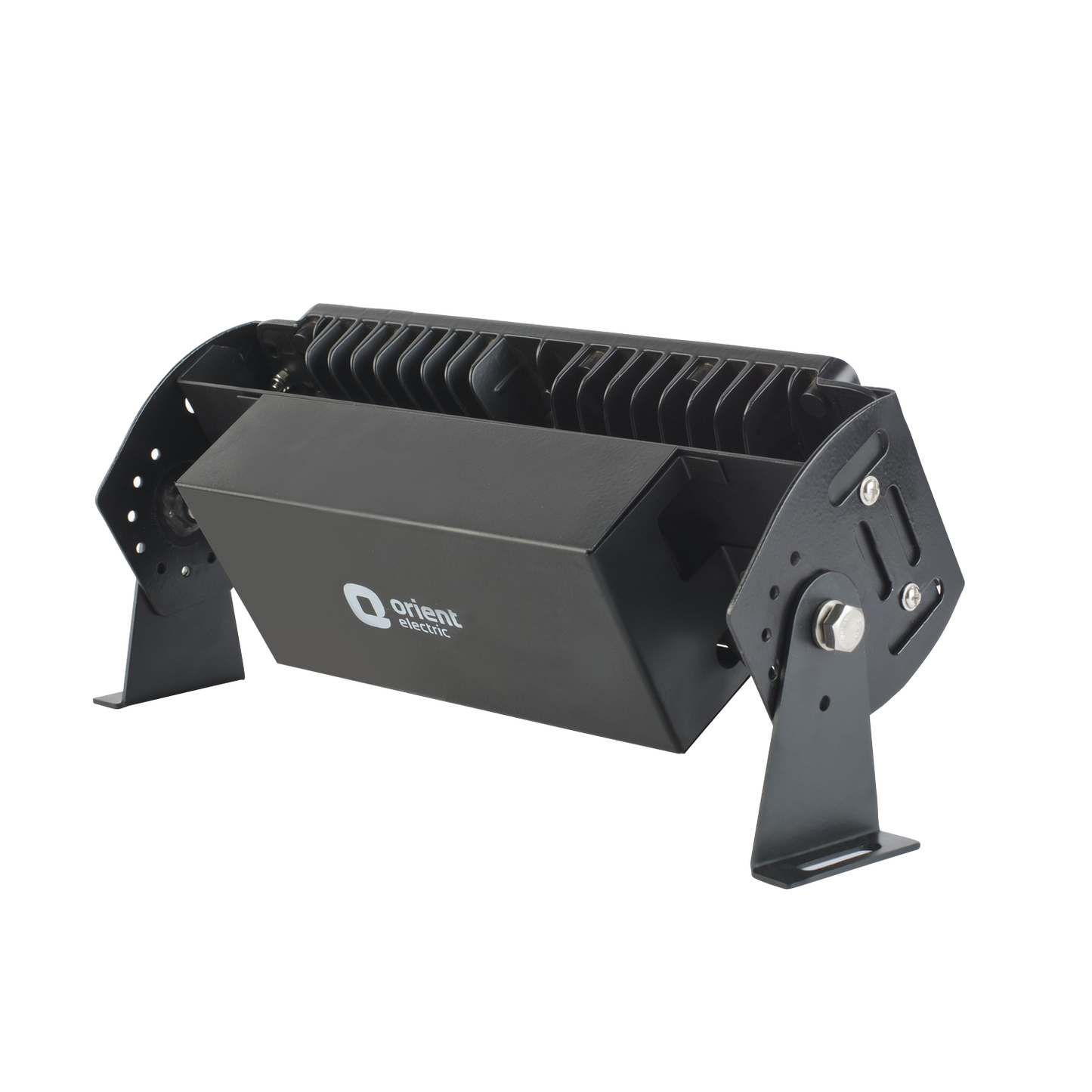

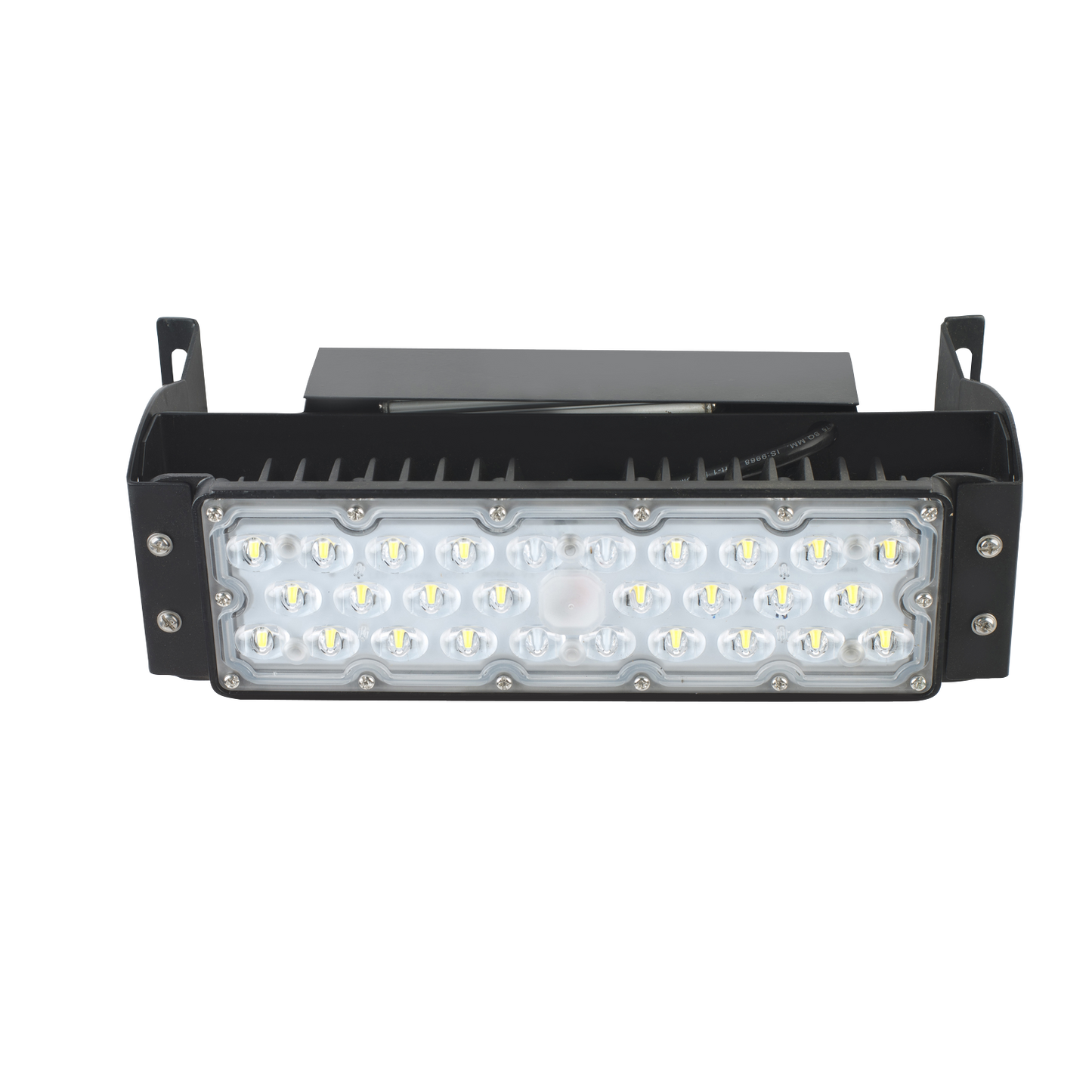

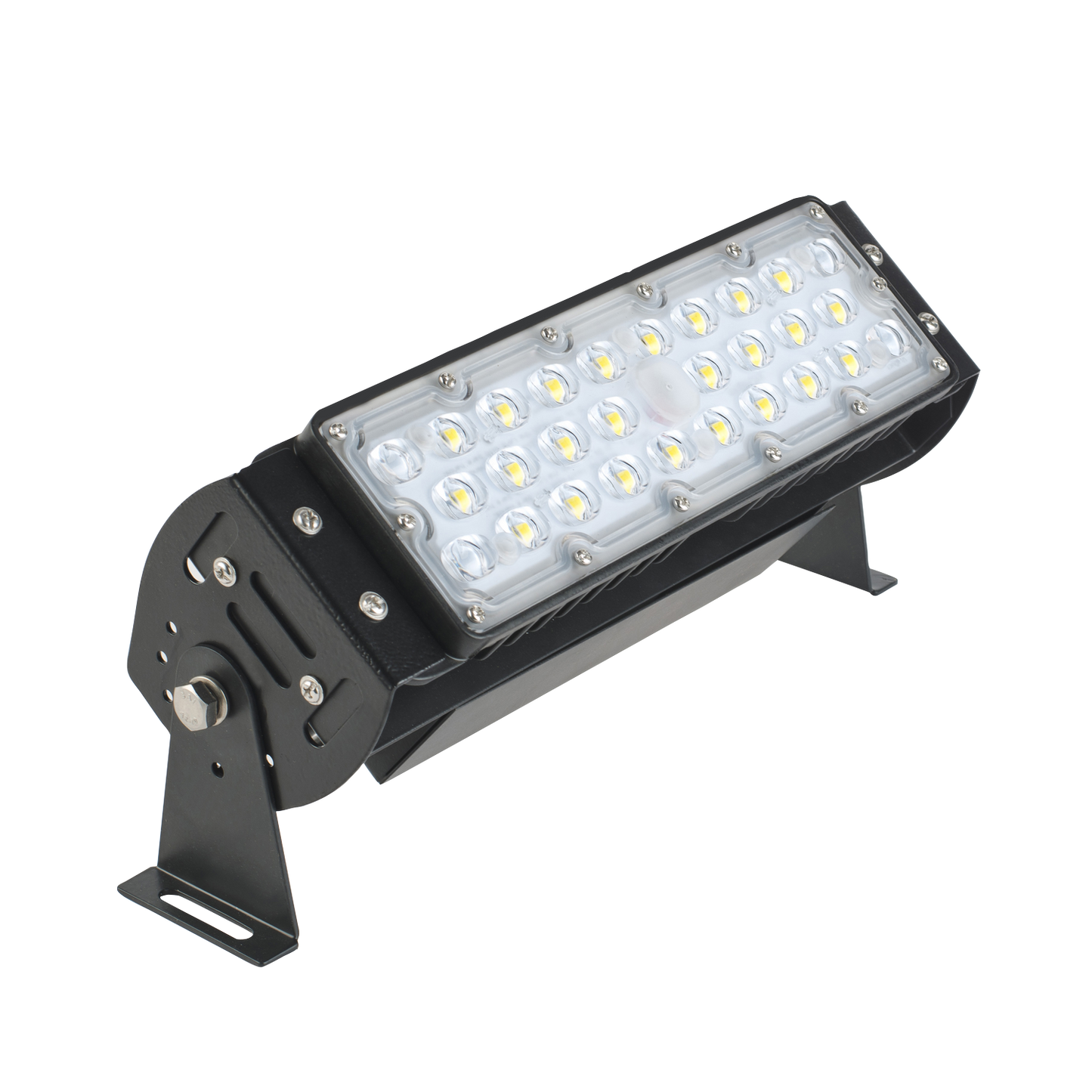

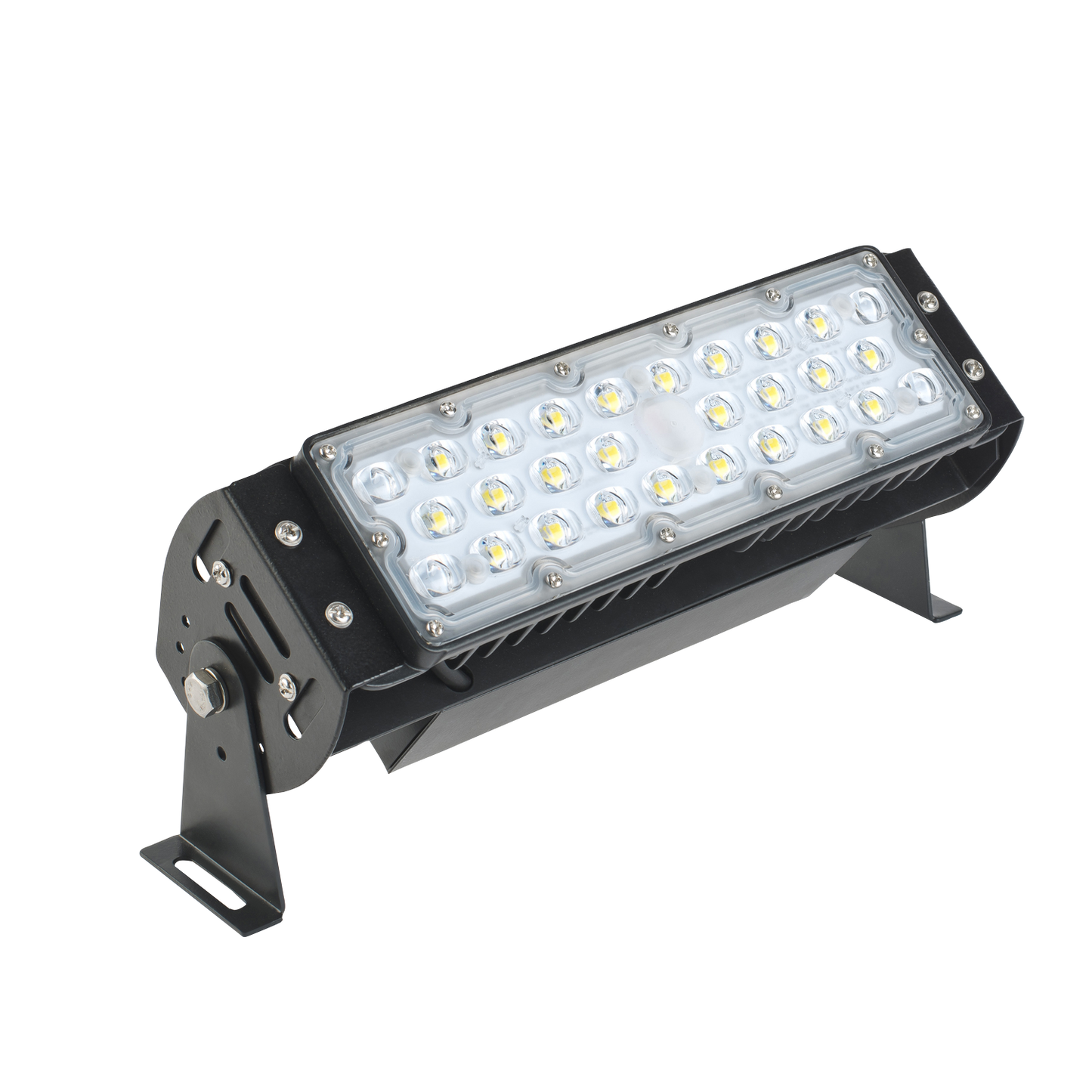

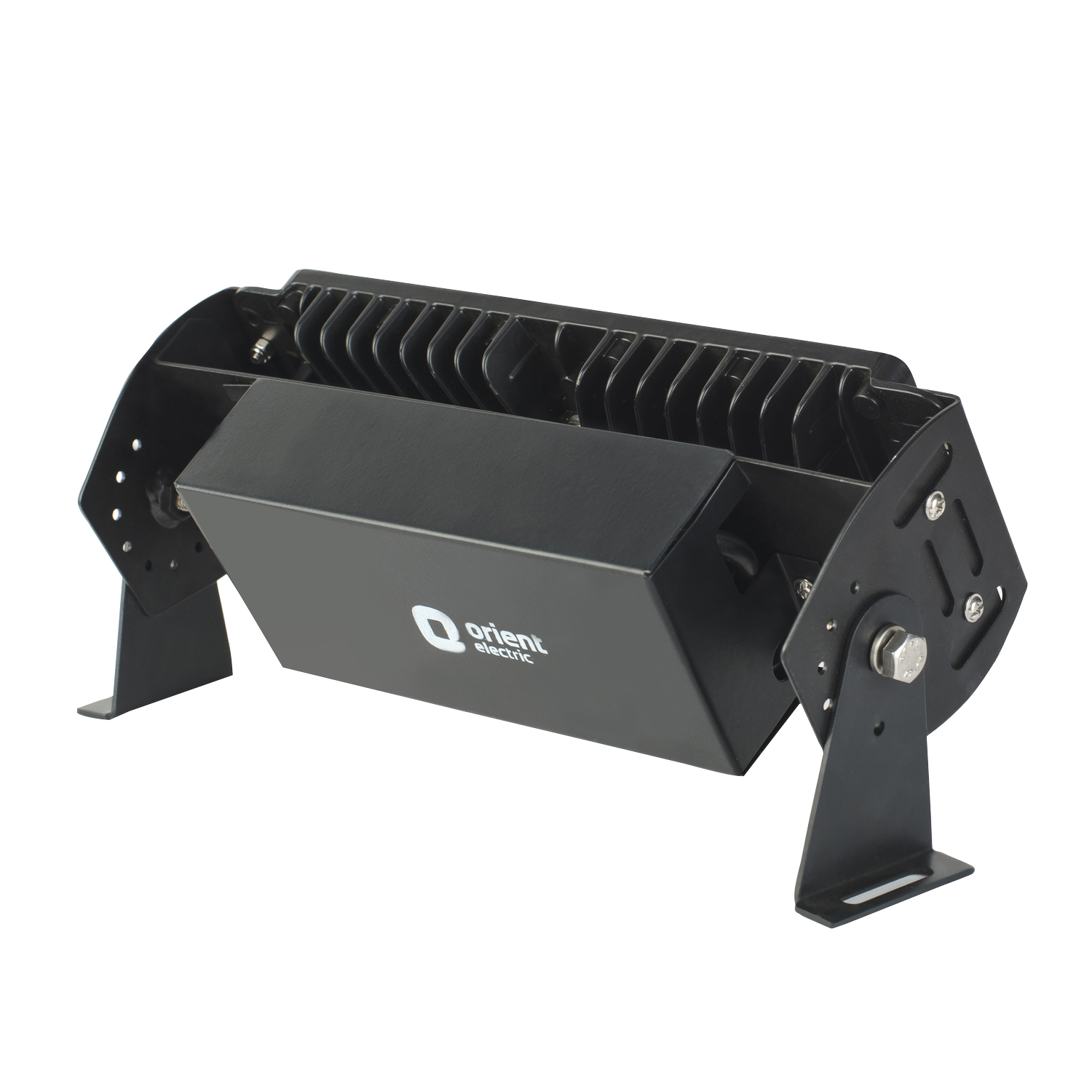

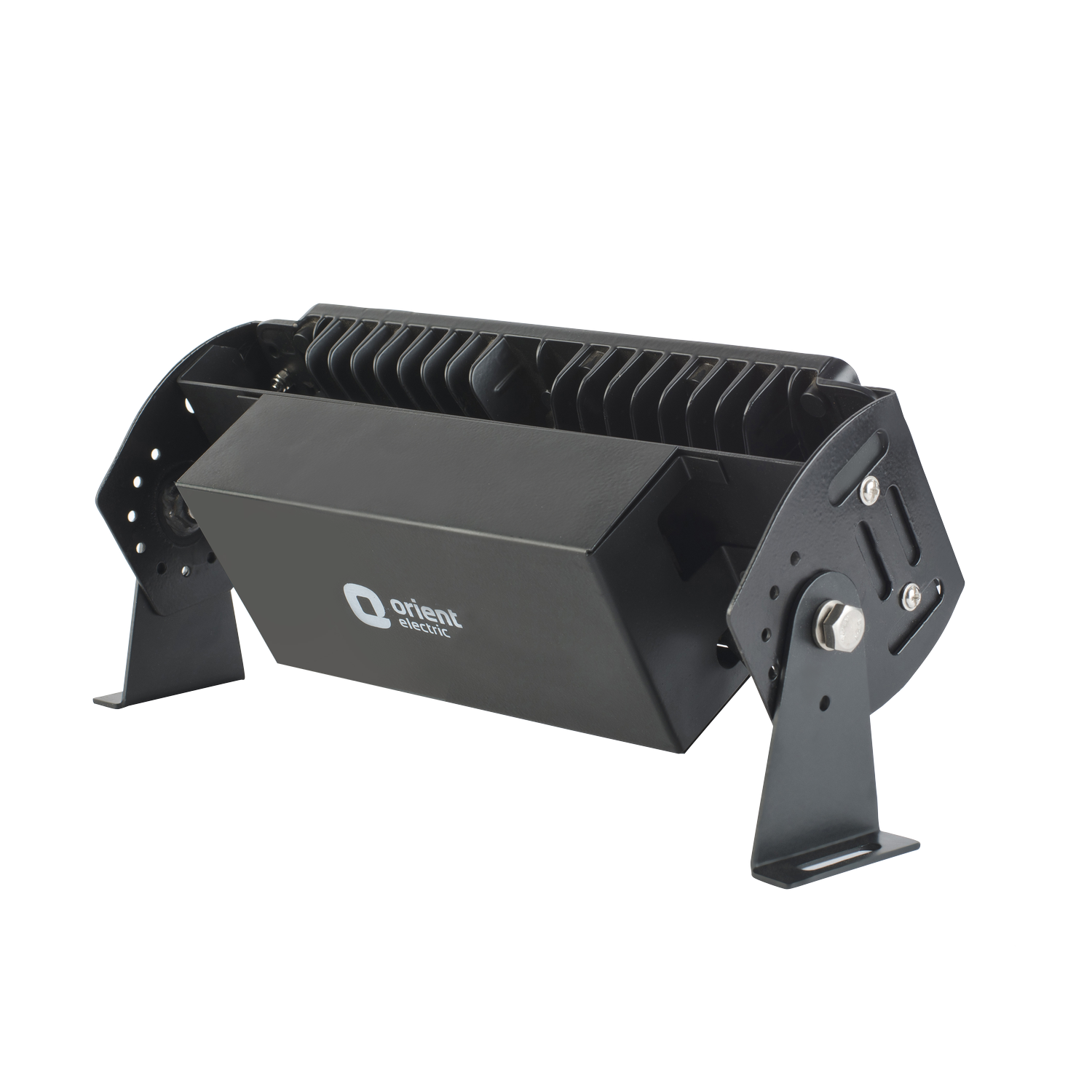

High-efficiency LED rail tunnel light with uniform illumination, low glare optics, and IP66/IK10-rated durability. Engineered for harsh environments with vibration resistance, long lifespan, and minimal maintenance.

View full details
  • General specification

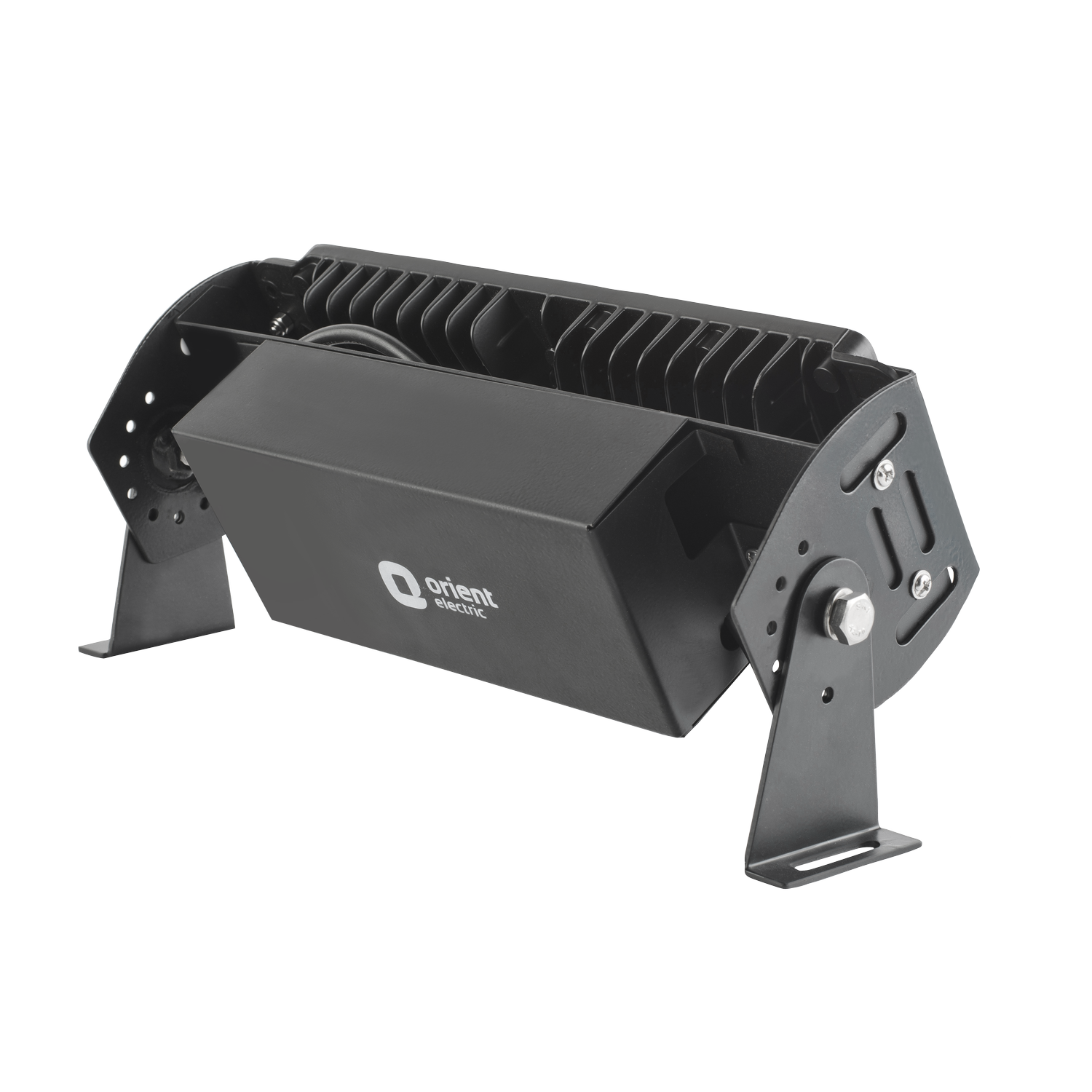

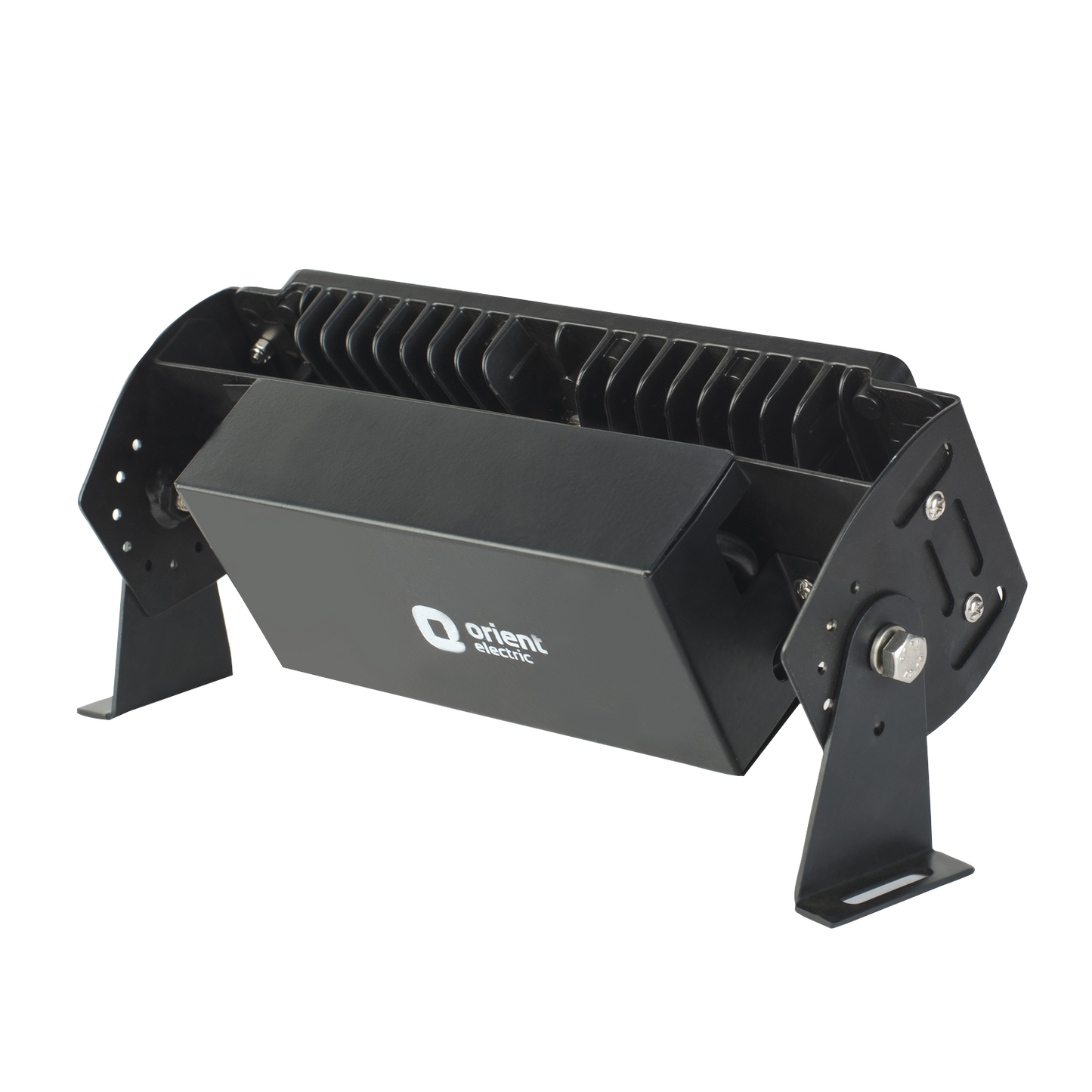

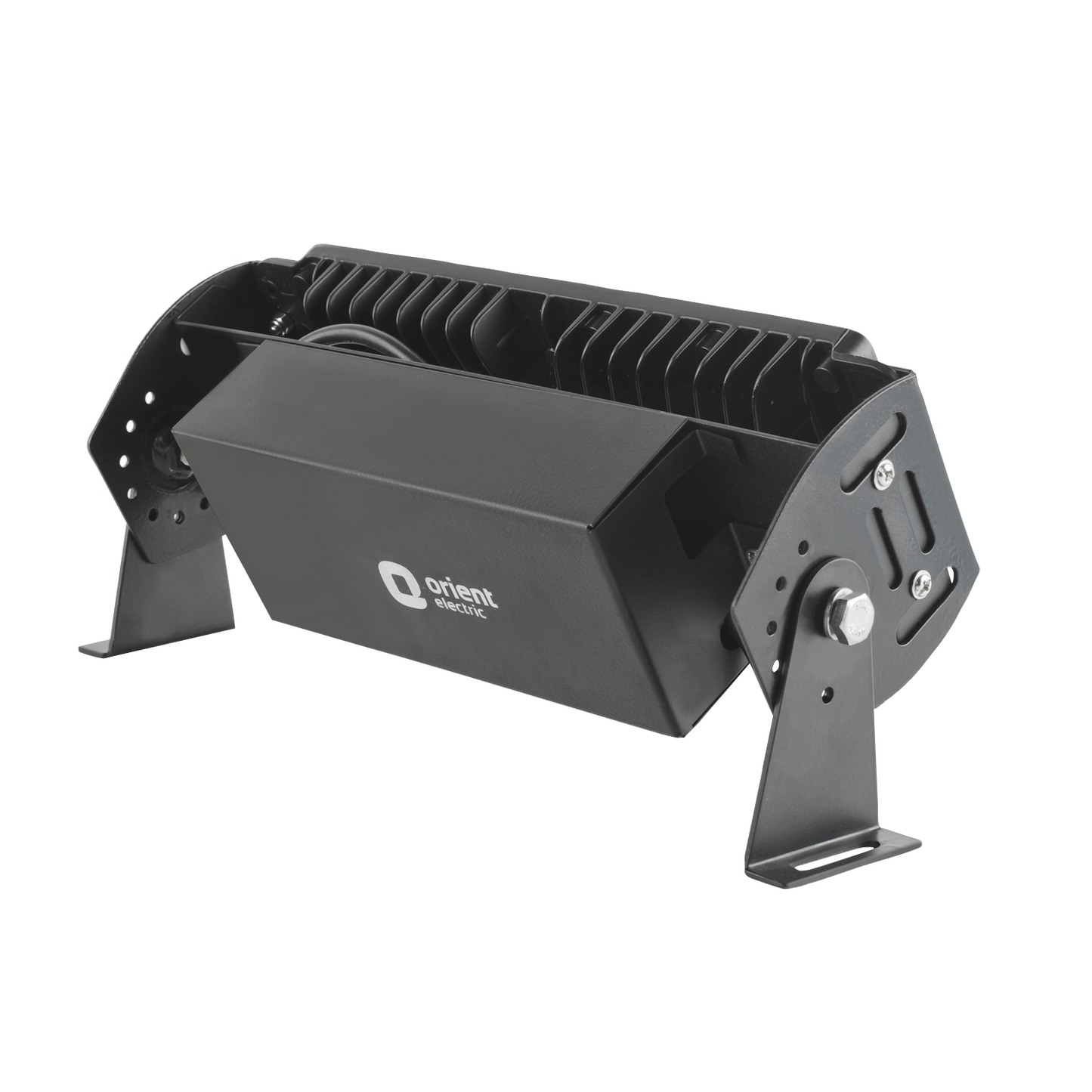

    Housing Excellent thermally managed aluminium die cast housing.
    Optics PC diffuser with integrated Lens
    Mounting Bracket provided for mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests
    Surge Protection Upto 4 KV (optional 10 KV SPD)
    IP 66
  • Technical Specifications
    System Wattage 20W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥120 , ≥110
Rail Tunnel variants
Product Variants
Rail Tunnel
LFRLTL-20-C
Rail Tunnel
LFRLTL-20-W
Rail Tunnel
LFRLTL-30-C
Rail Tunnel
LFRLTL-30-W
Rail Tunnel
LFRLTL-50-C
Rail Tunnel
LFRLTL-50-W
Rail Tunnel
LFRLTL-70-C
Rail Tunnel
LFRLTL-70-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
549
93
125
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
549
93
125
