Product Overview

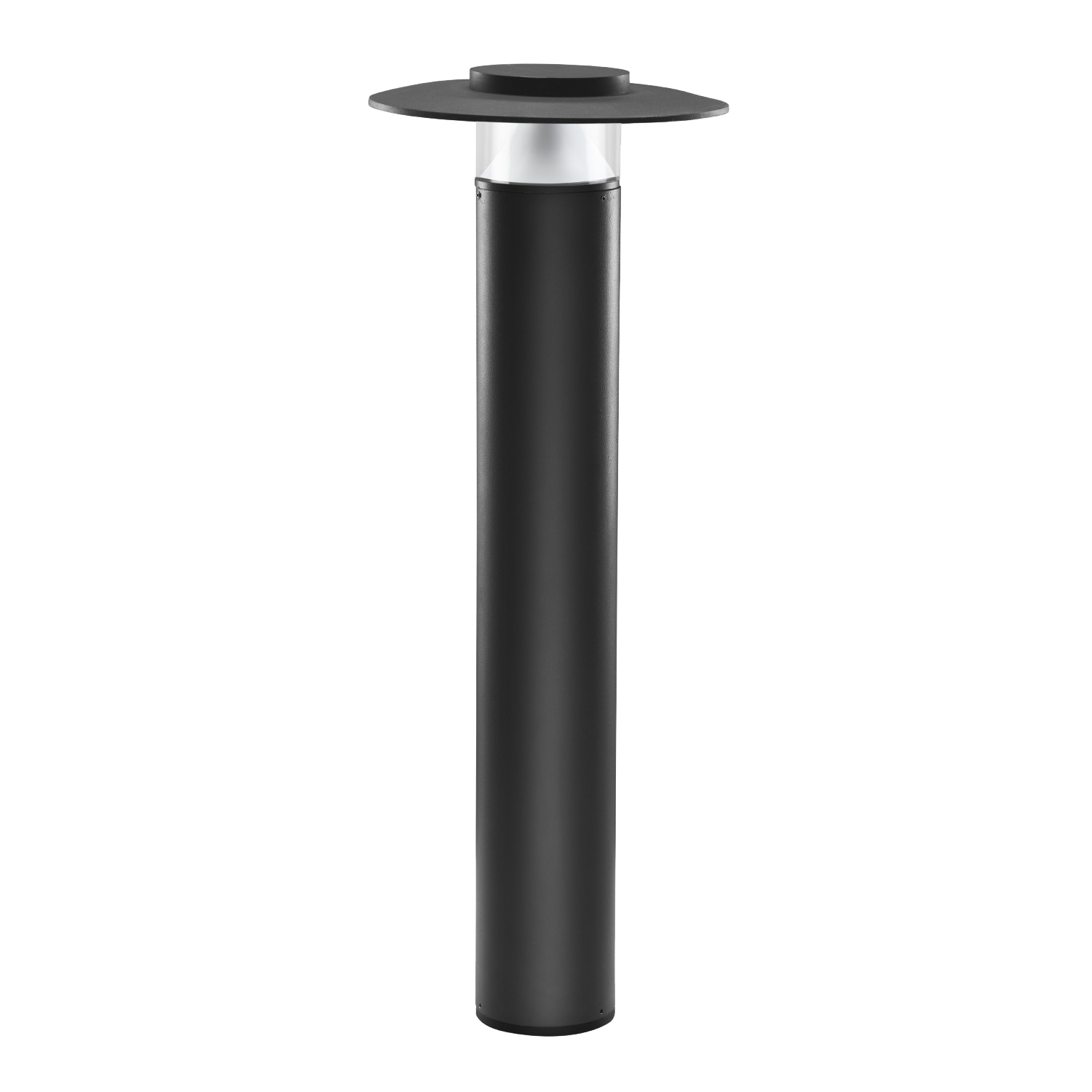

LED Bollard made in aluminium housing with top cover in pressure die cast housing for restricting upward light output ratio with Polycarbonate cover for glare-free symmetric light with minimum ULOR best suitable to illuminate walkways, steps or pathways.

Best suited for

Parks and garden

Townships

Squares Plazas

Walkways

View full details
  • General specification
    Housing Excellent thermally managed Aluminium housing with top in pressure die cast.
    Optics Polycarbonate diffuser for glare free symmetric light with minimum ULOR.
    Mounting Fixed on Ground
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 65
  • Technical Specifications
    System Wattage 15W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90, ≥80
Ring variants
Product Variants
Ring
LLRBL-15-W
Ring
LLRBL-15-W-B
Ring
LLRBL-15-C
Ring
LLRBL-15-C-B
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Diameter (in mm)
Height (in mm)
15W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
100
600
15W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
100
800
15W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
100
600
15W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
100
800
