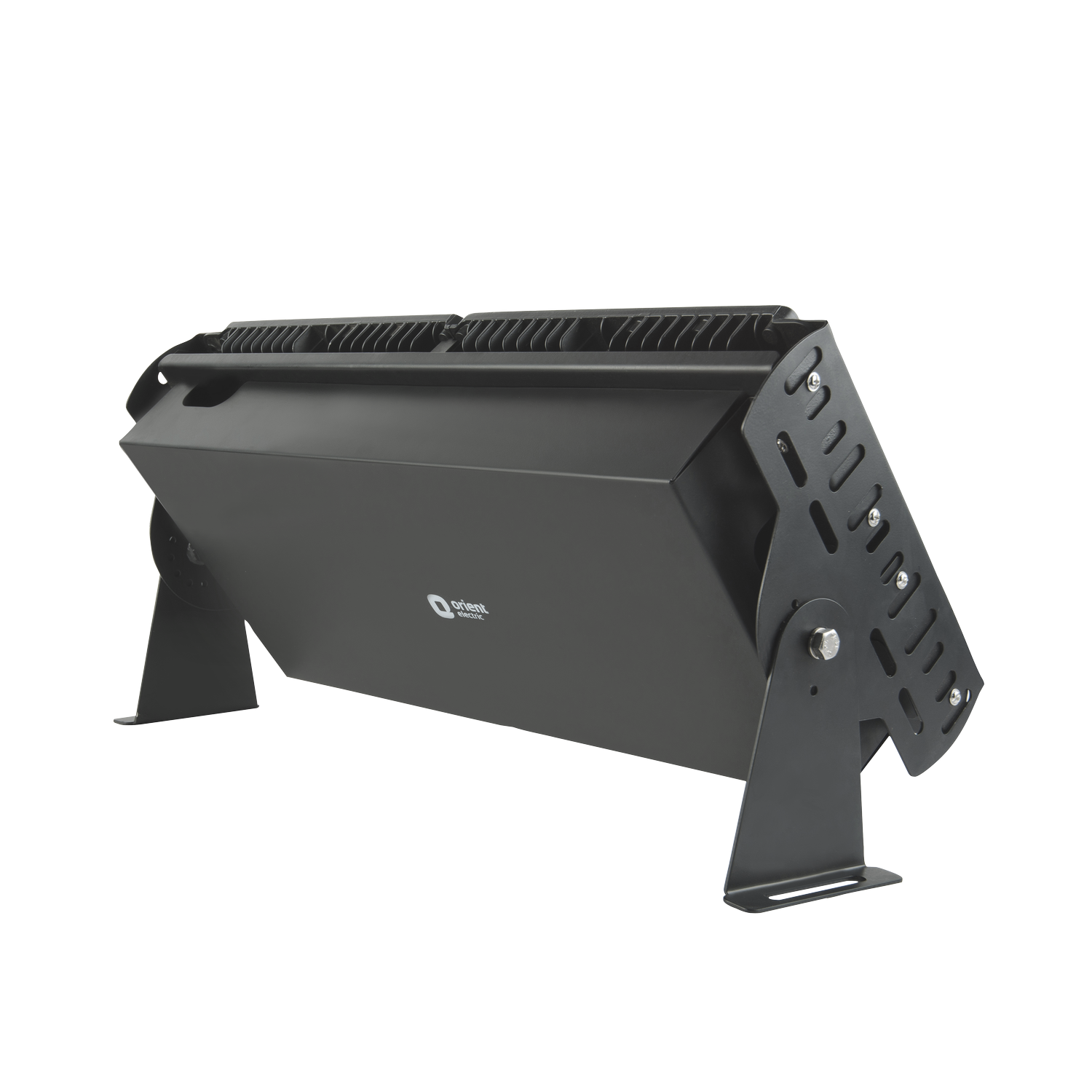

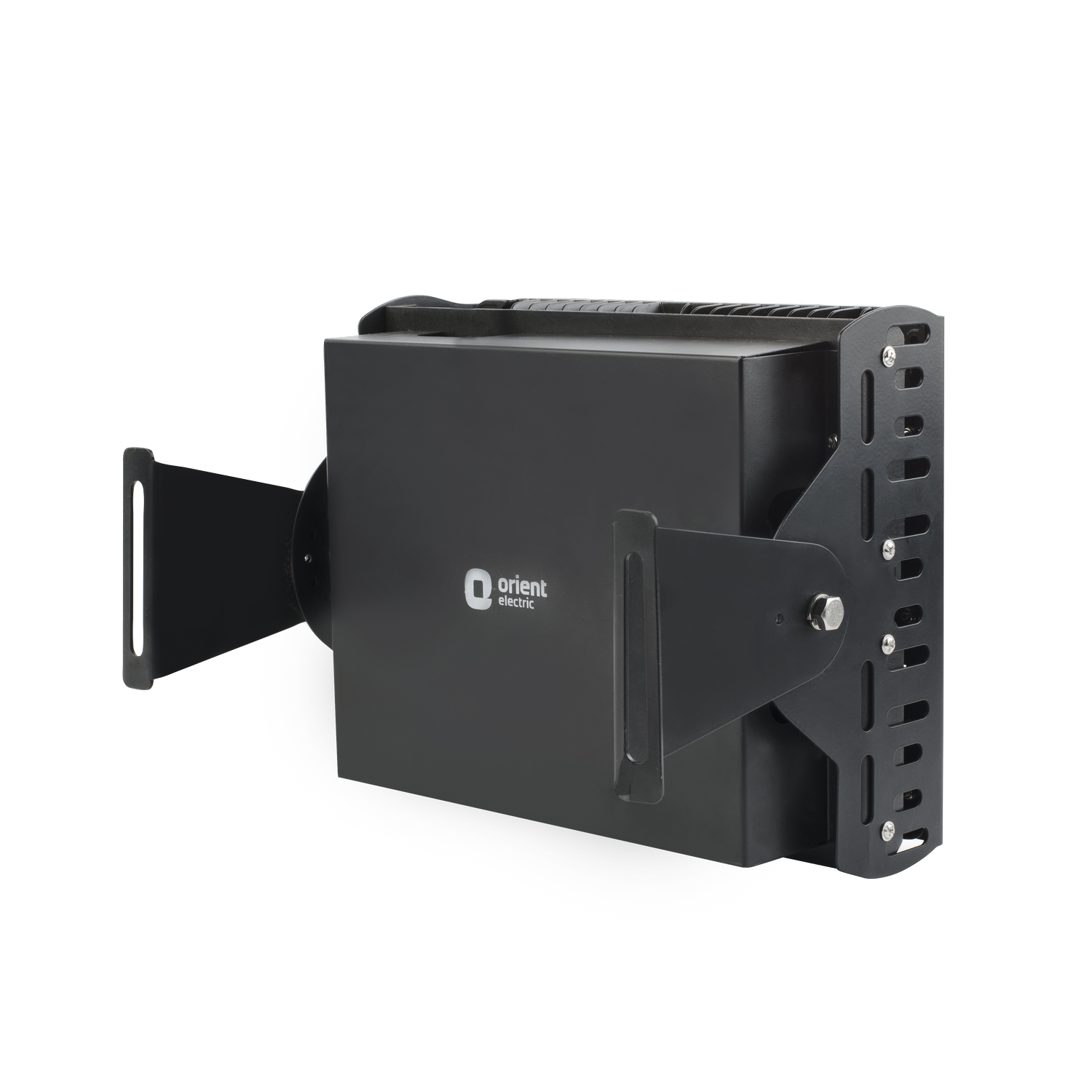

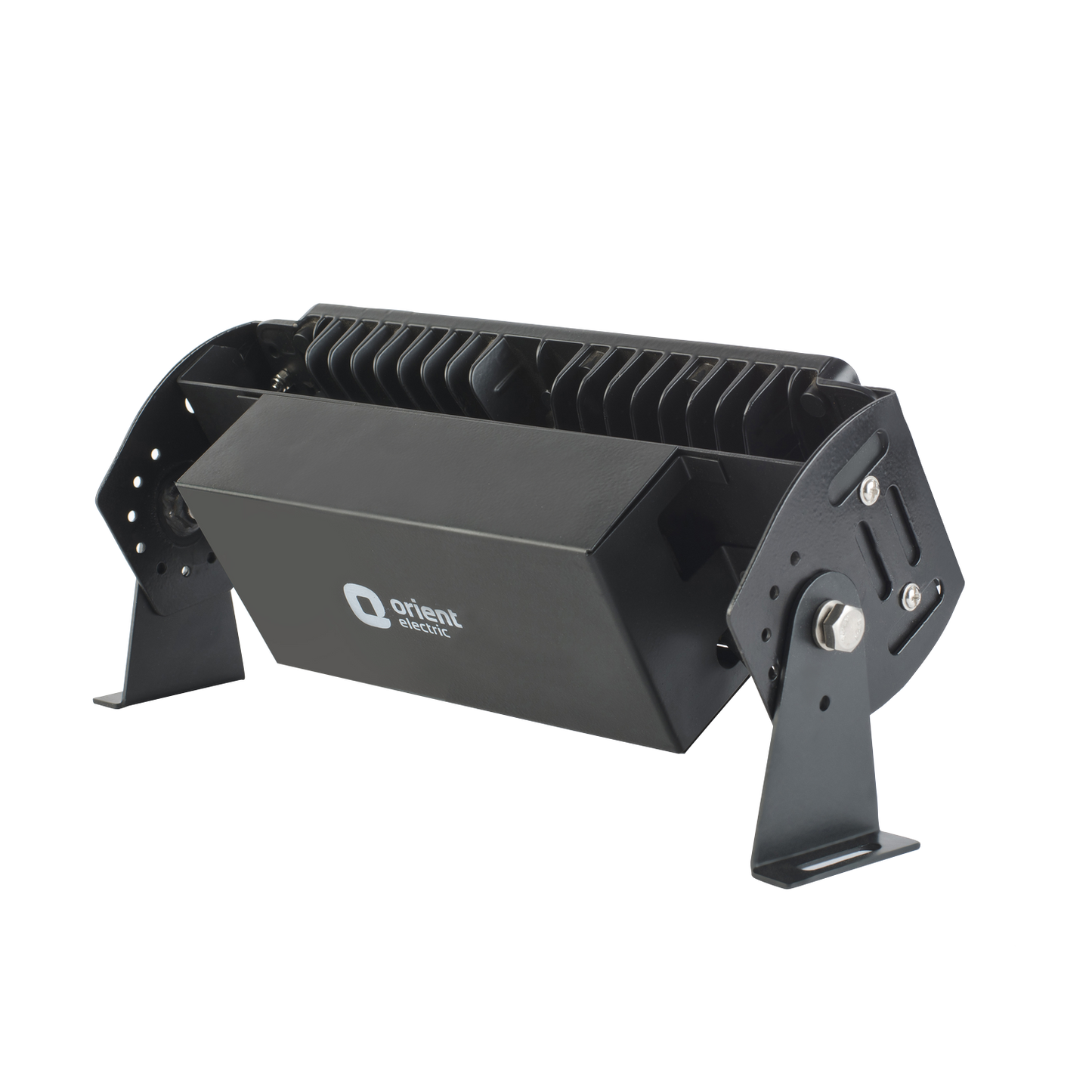

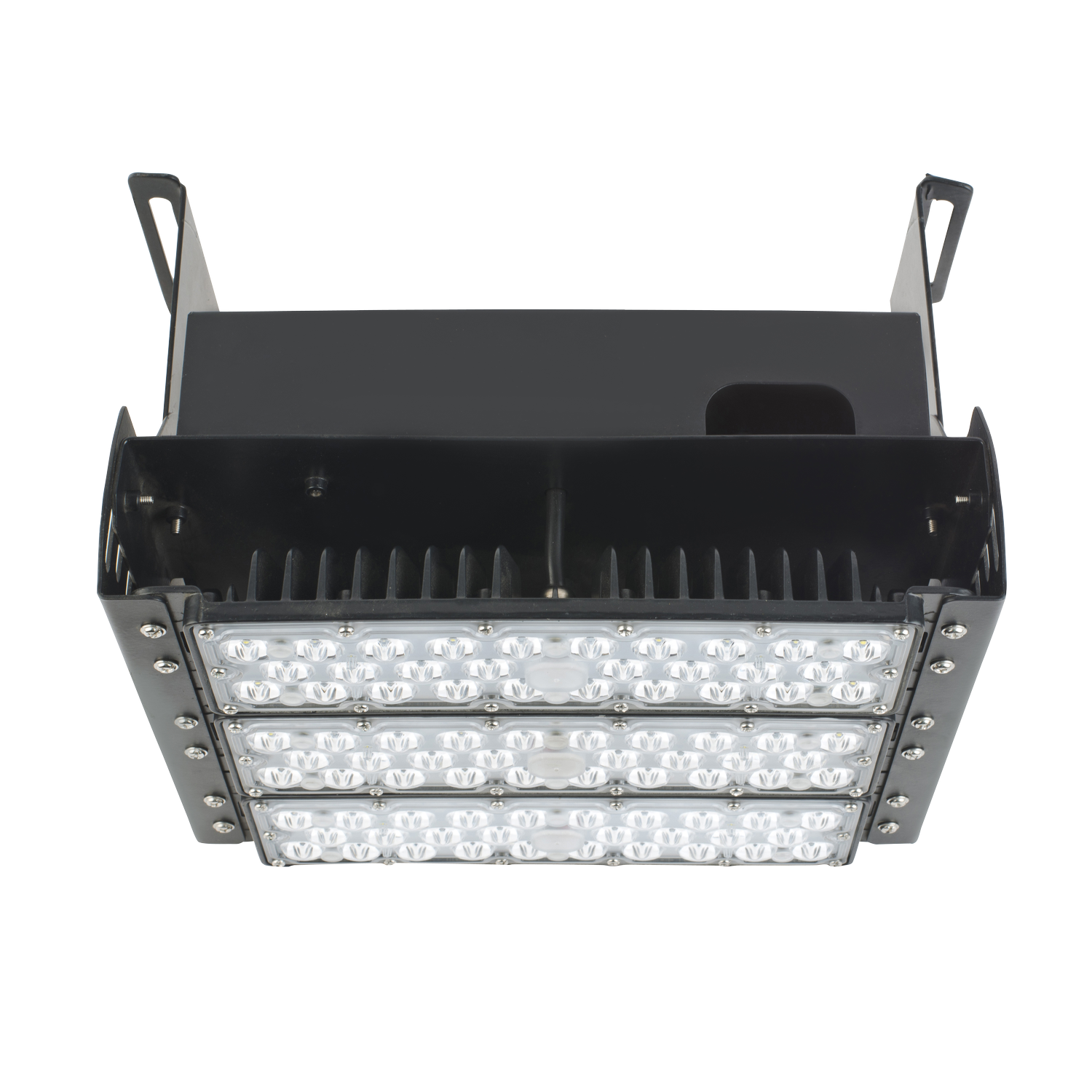

Road Tunnel

Road Tunnel

Road Tunnel

Product Overview

High- performance LED road tunnel lighting system with precision-engineered optics for uniform luminance, high-lumen efficacy, and advanced glare control. Designed for extreme environments with IP66/IK10-rated housing, high vibration resistance, thermal management, and compliance with tunnel lighting standards to ensure optimal visibility, safety, and energy efficiency.

Best suited for

Road Tunnels

Underpass

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing.
    Optics PC diffuser with integrated Lens
    Mounting Bracket provided for mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests
    Surge Protection Upto 4 KV (optional 10 KV SPD)
    IP 66
  • Technical Specifications
    System Wattage 20W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm"W) ≥120 , ≥110
Road Tunnel variants
Product Variants
Road Tunnel

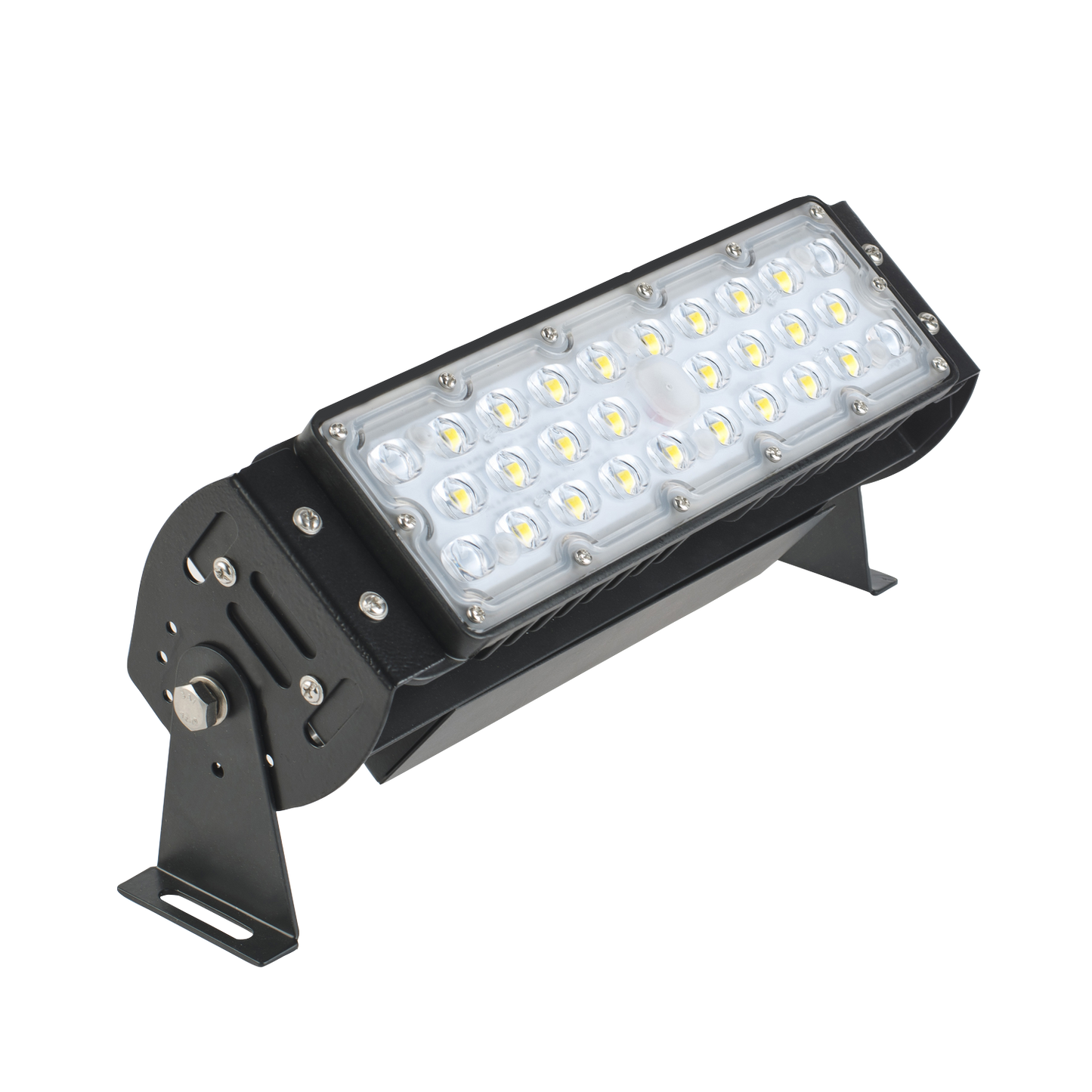

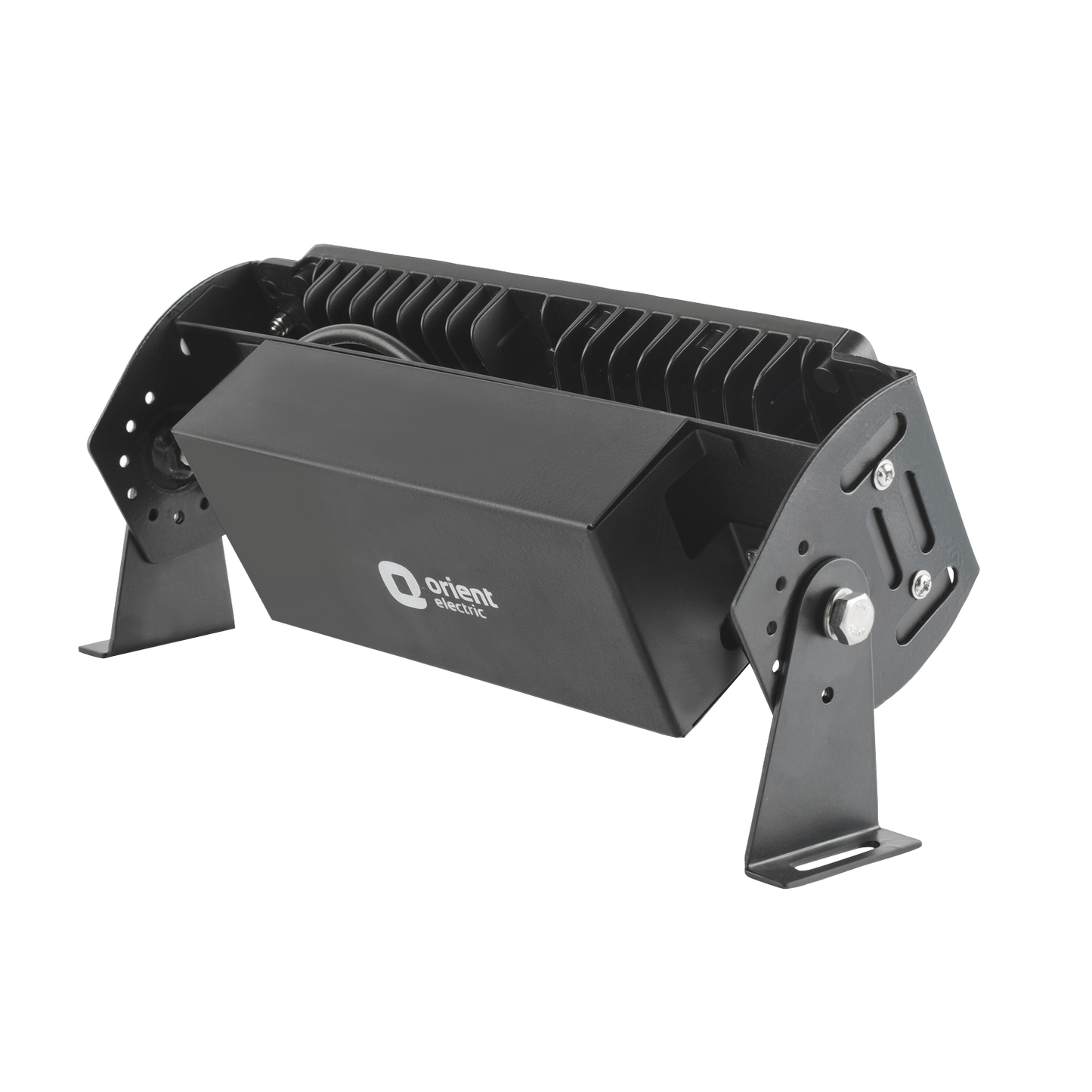

LFRDTL-20-C
Road Tunnel
LFRDTL-20-W
Road Tunnel

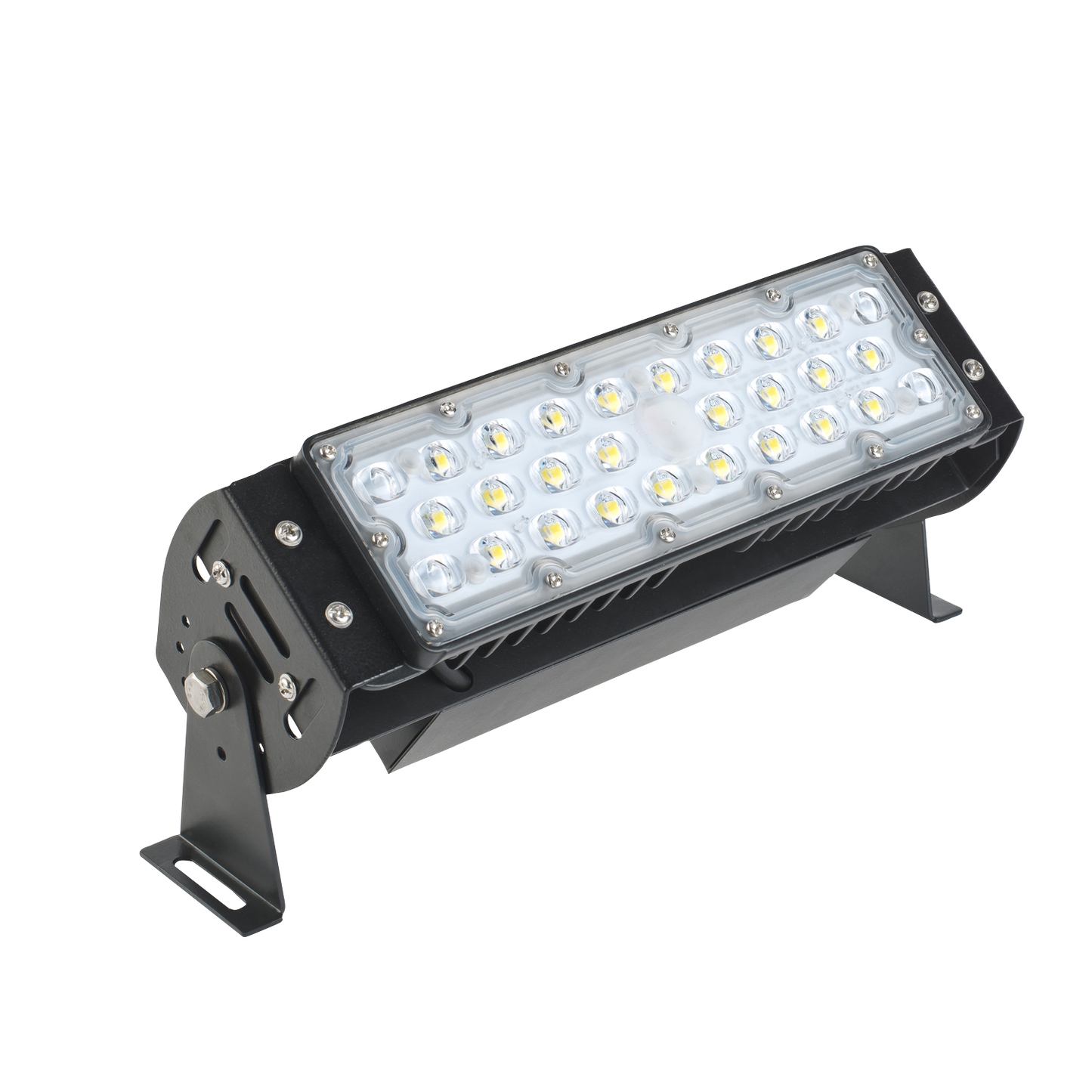

LFRDTL-30-C
Road Tunnel
LFRDTL-30-W
Road Tunnel

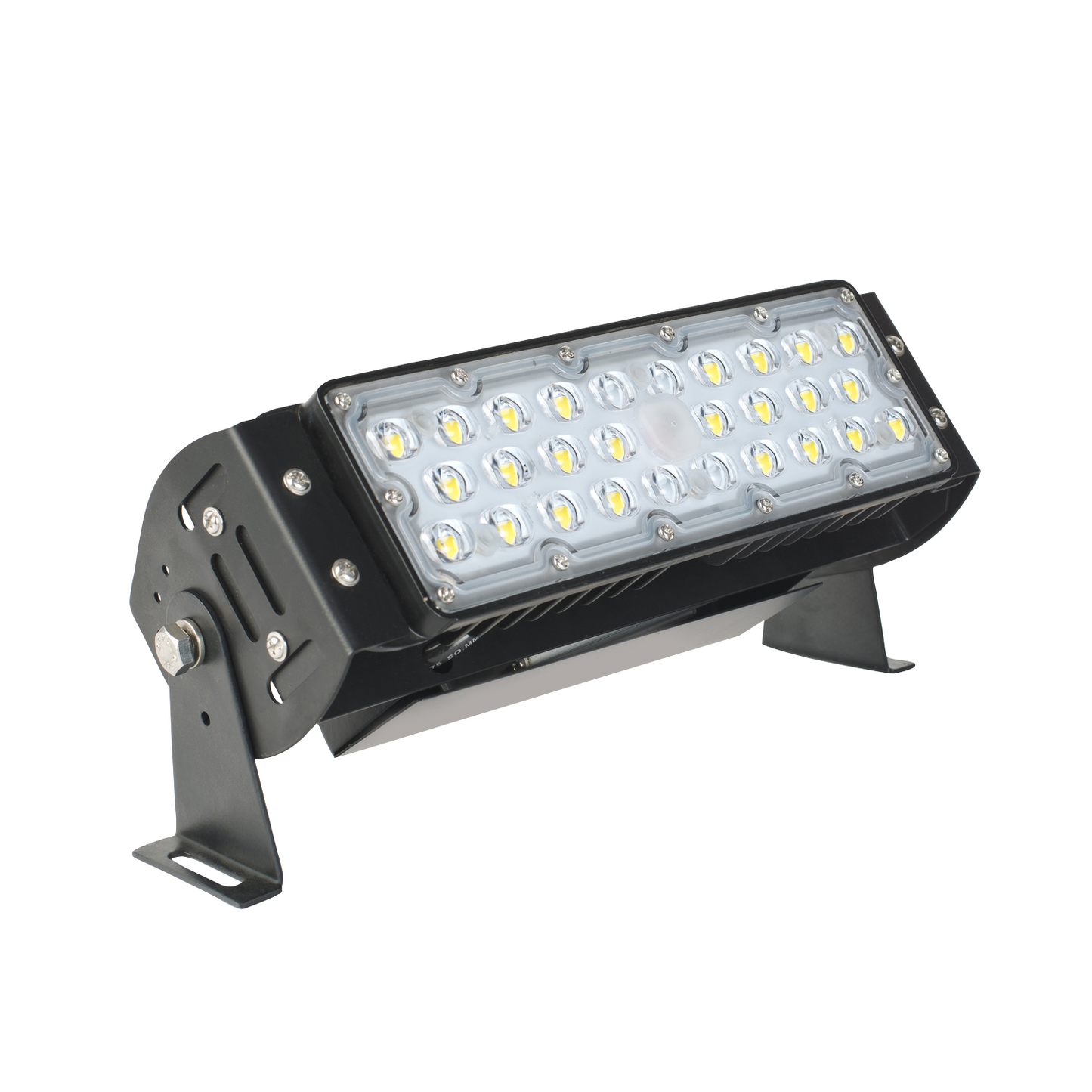

LFRDTL-50-C
Road Tunnel
LFRDTL-50-W
Road Tunnel

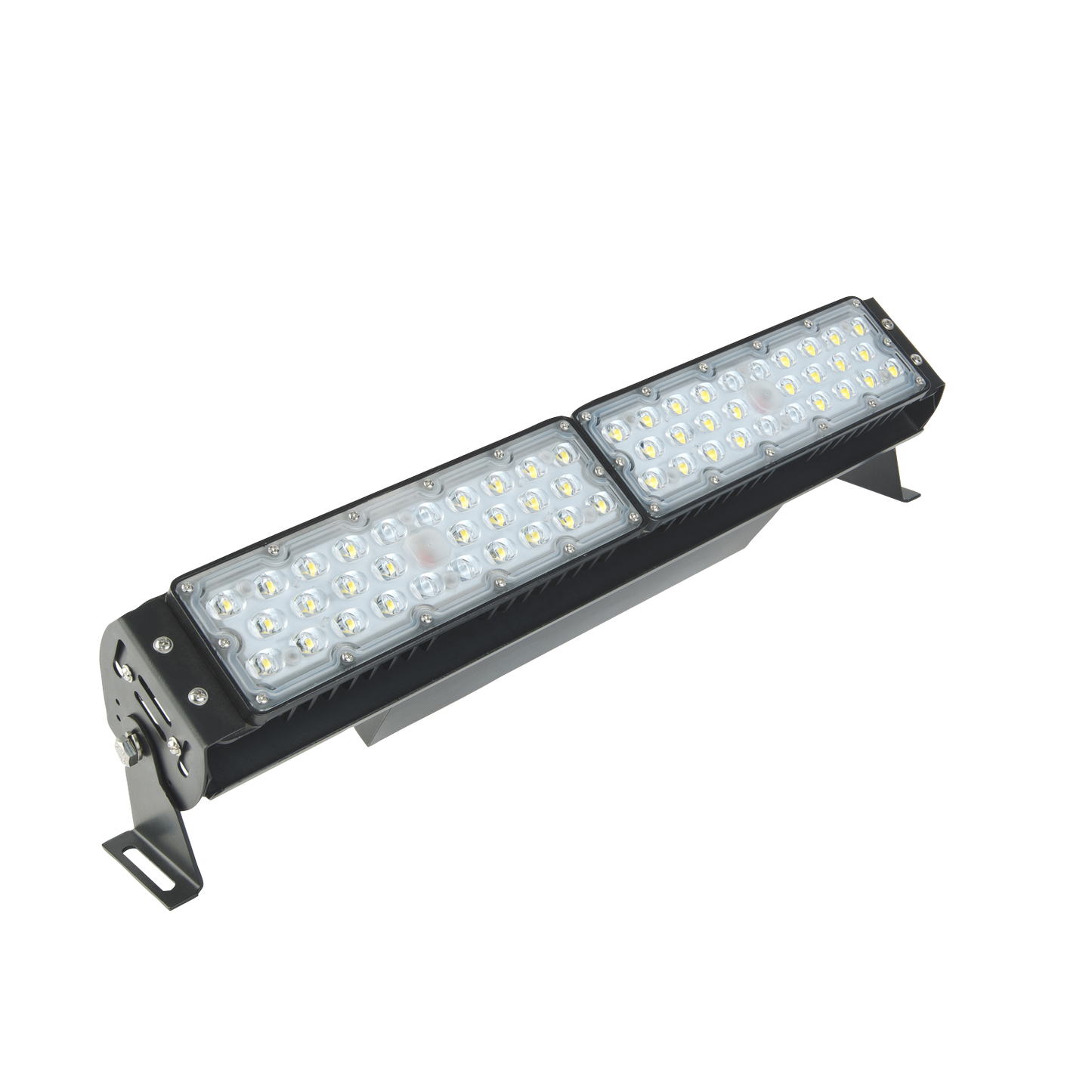

LFRDTL-100-C
Road Tunnel
LFRDTL-100-W
Road Tunnel

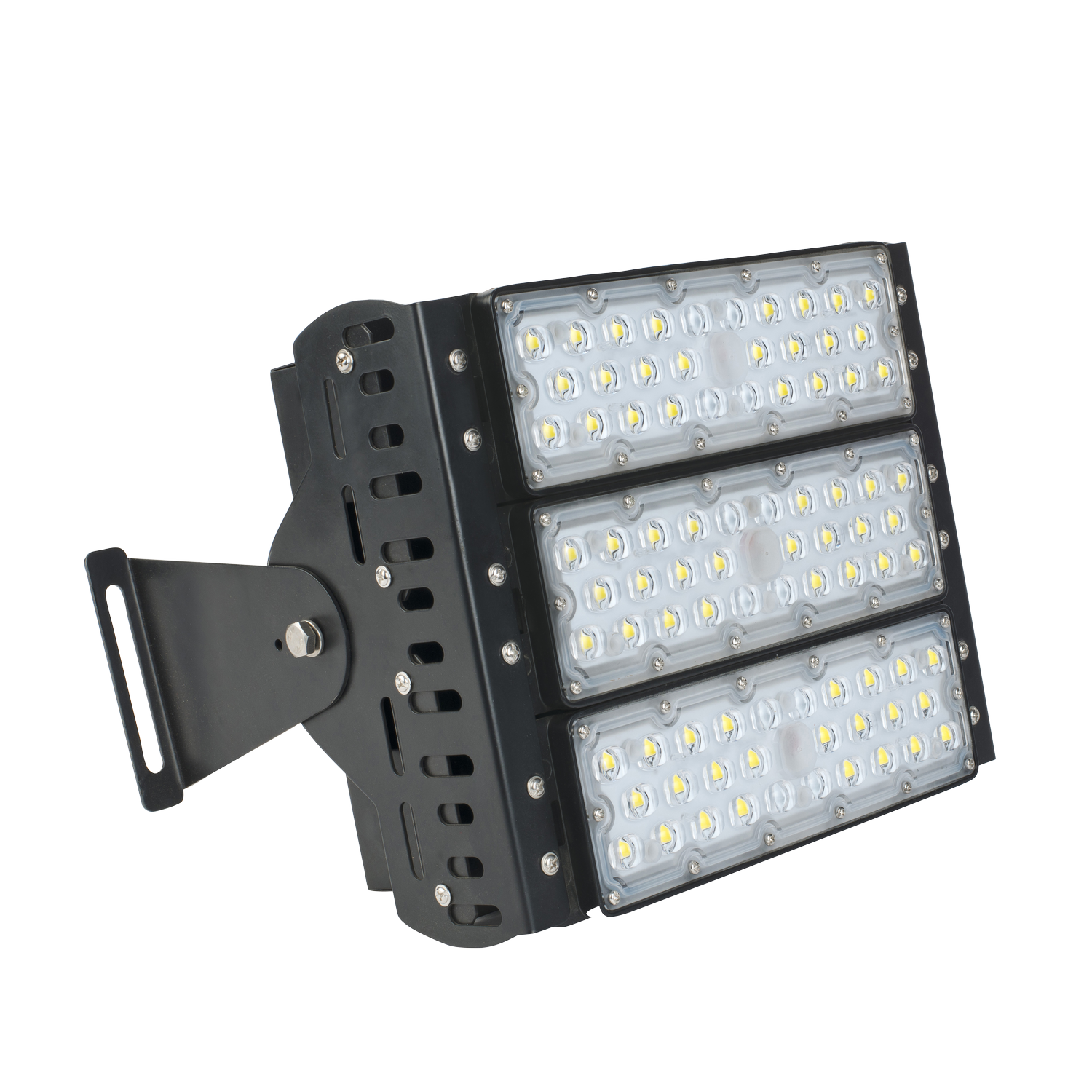

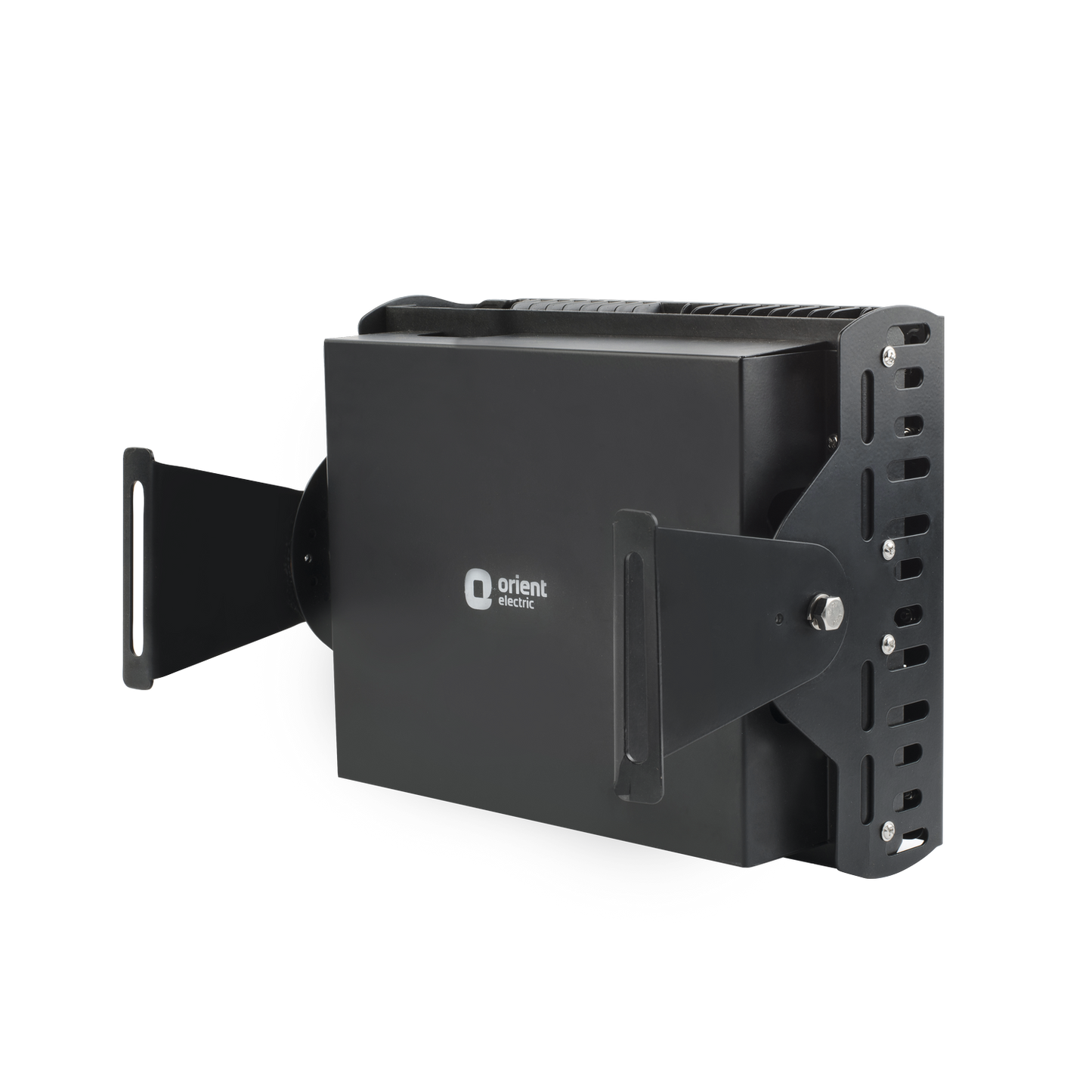

LFRDTL-150-C
Road Tunnel
LFRDTL-150-W
Road Tunnel
LFRDTL-200-C
Road Tunnel
LFRDTL-200-W
Road Tunnel
LFRDTL-250-C
Road Tunnel
LFRDTL-250-W
Road Tunnel

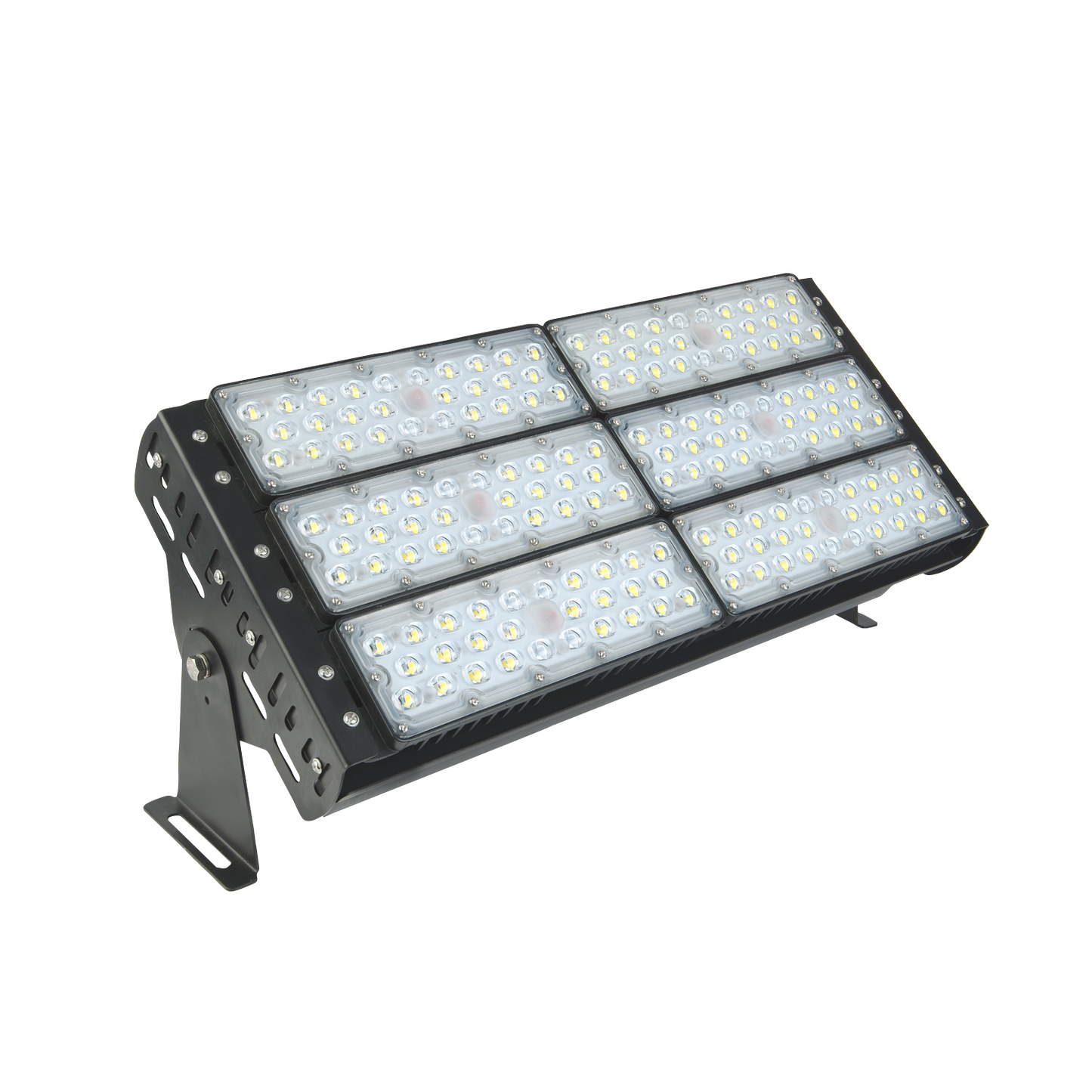

LFRDTL-300-C
Road Tunnel
LFRDTL-300-W
Road Tunnel
LFRDTL-350-C
Road Tunnel
LFRDTL-350-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
315
82
125
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
315
82
125
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
549
93
125
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
549
93
125
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
783
86
125
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
783
86
125
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
549
198
125
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
549
198
125
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
549
198
125
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
549
198
125
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
783
198
125
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
783
198
125
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
783
198
125
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
783
198
125
